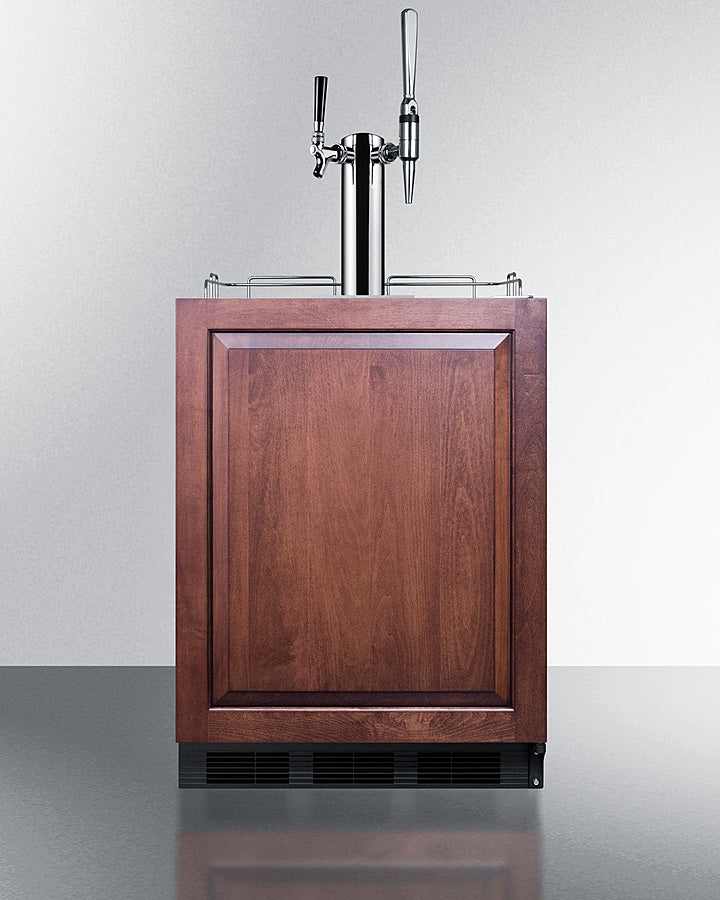

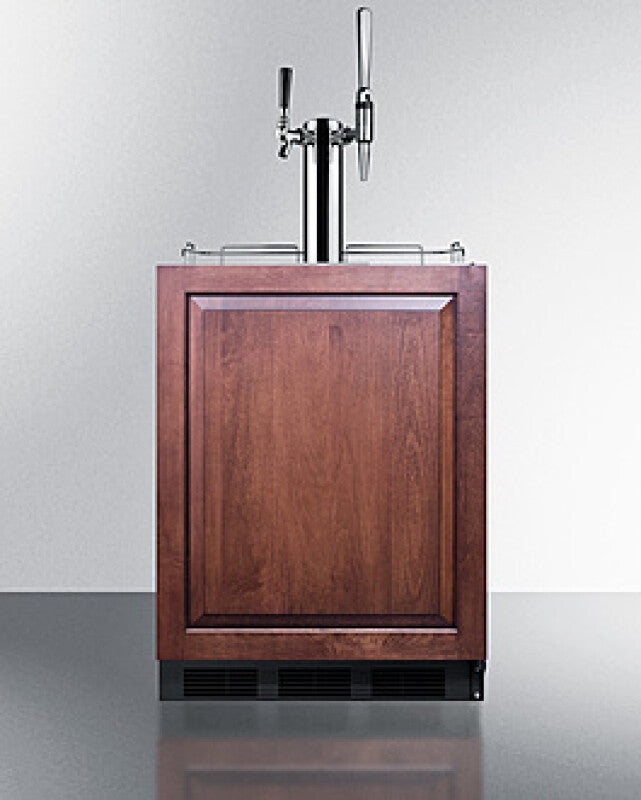

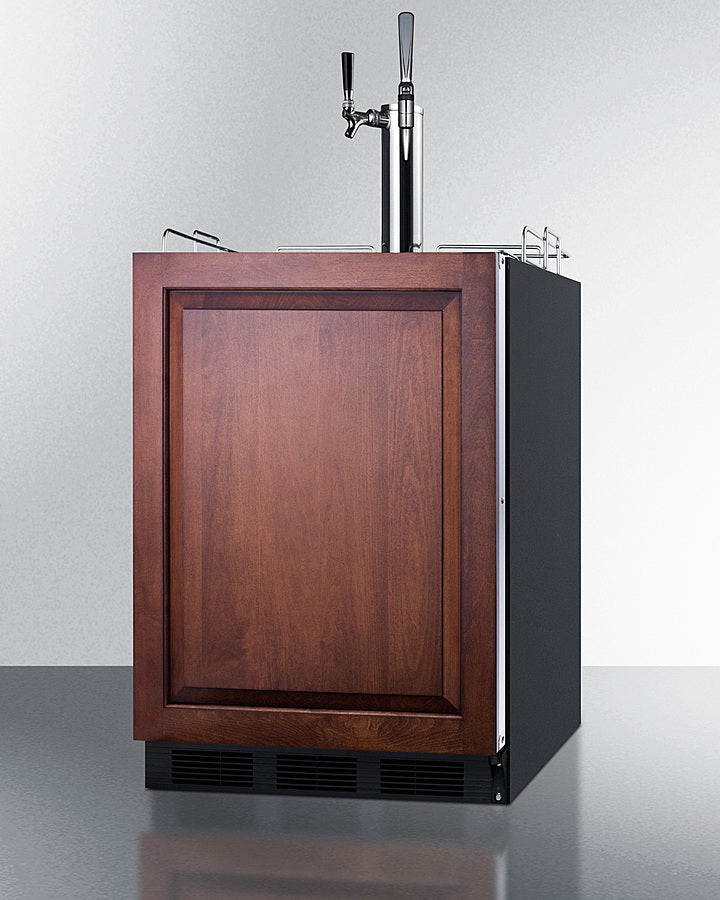

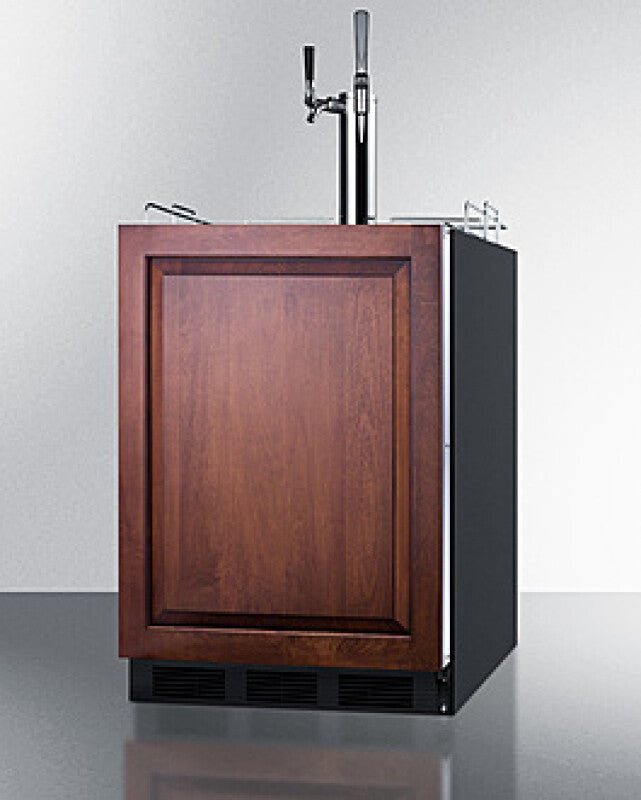

Summit SBC58BLBIADAIFCMTWIN 24" Wide Built-In Coffee Kegerator, ADA Compliant (Panel Not Included) Panel-Ready

Quick Specification More details

Width:
23.63"
Depth:
22.75"
Height:
32"
Type:
Specialty Refrigerators

About this product

ADA compliant height
Dispenses both flat and nitro coffee
Commercially approved
Dual tap system

Summer Sale

Clearance

SKU: SBC58BLBIADAIFCMTWIN | UPC: 761101069678

Summit SBC58BLBIADAIFCMTWIN 24" Wide Built-In Coffee Kegerator, ADA Compliant (Panel Not Included) Panel-Ready

$2,541.19 ~~$3,109.97~~ Save $568.78 / 18% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
23.63"
Depth:
22.75"
Height:
32"
Type:
Specialty Refrigerators

About this product

ADA compliant height
Dispenses both flat and nitro coffee
Commercially approved
Dual tap system

Product Details
Manuals & Guides
From The Manufacturer
Reviews

$2,541.19 ~~$3,109.97~~ Save $568.78 / 18% OFF

Product Details for SUMMIT SBC58BLBIADAIFCMTWIN

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Dimensions & weight

Width	23.63 in.
Height	32 in.
Length	22.75 in.
Weight	110 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	9.96 ft³
Dimensional Weight	123.76 lbs.
Total of Cubes	9.96 ft³
Total of Dimensional Weight	123.76 lbs.

Overview kegerator

Nominal Height	32.0" (81 cm)
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.25" (82 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	23.0" (58 cm)
Depth	22.75" (58 cm)
Depth with door at 90°	45.0" (114 cm)
Capacity	5.5 cu.ft. (156 L)
Defrost Type	Automatic
Door	Panel-Ready
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.2
Voltage/Frequency	115 V AC/60 Hz
Weight	110.0 lbs. (50 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101069678
Door Swing	RHD
Reversible	Factory Reversible
Tap Kit	Yes
Number of Taps	2
Thermostat Type	Dial
Interior Light	Yes
Fan Type	Exterior
Refrigerant	R600a
Refrigerant Amount	0.64 oz.
High Side PSI	180.0
Low Side PSI	80.0
Inter Height	25.75" (65 cm)
Interior Width	21.0" (53 cm)
Interior Depth	17.75" (45 cm)
Compressor Step Height	6.5" (17 cm)
Compressor Step Width	21.0" (53 cm)
Compressor Step Depth	5.5" (14 cm)
Temperature Range	34º to 43ºF

Description

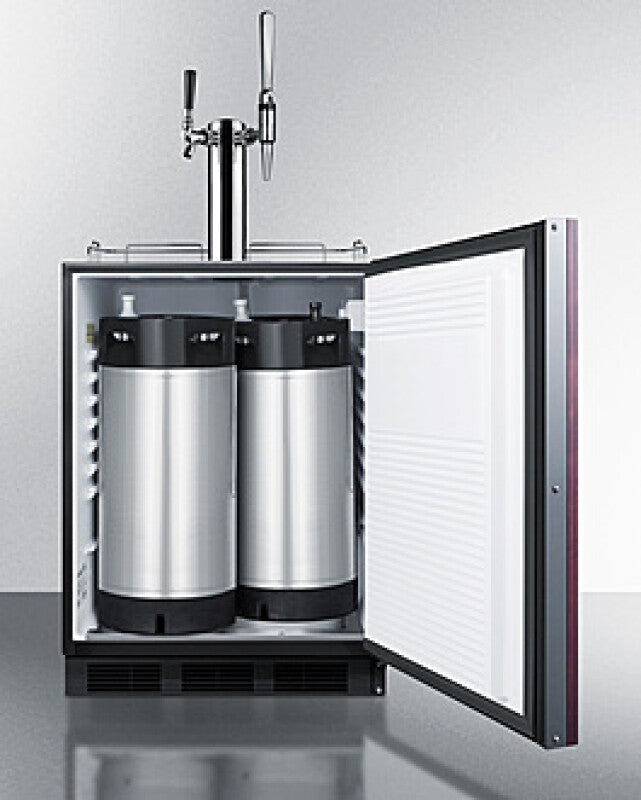

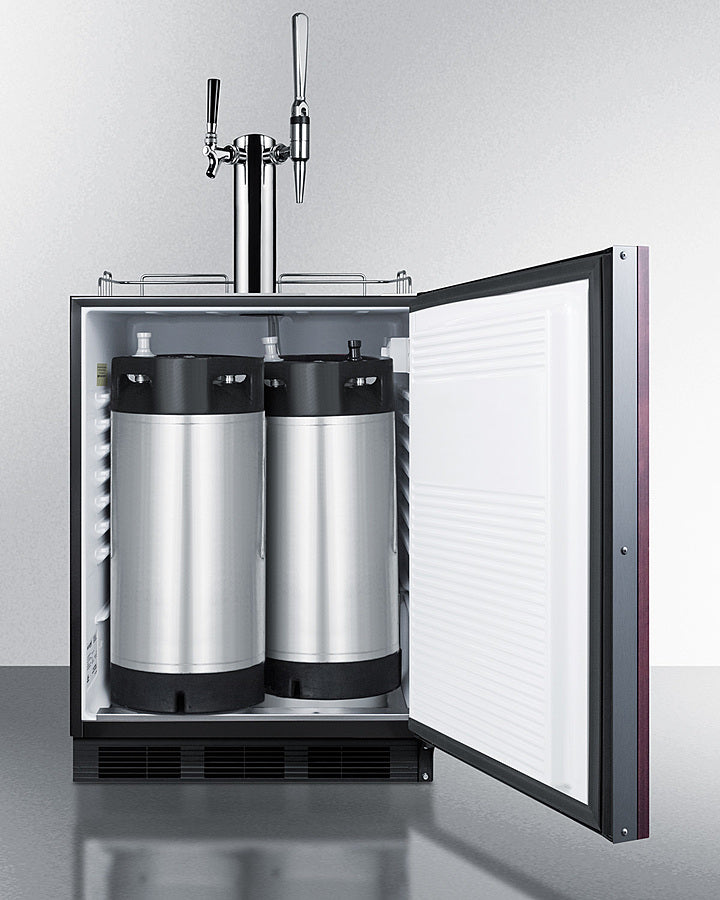

Summit Commercial brings unique appliance choices to ADA compliant settings with a new line of commercial coffee dispensers made in Europe. The SBC58BLBIADAIFCMTWIN is a dual tap coffee kegerator designed to serve both nitro and regular cold brew coffee on tap. Sized at 32 inches high, it is designed to fit under lower ADA compliant counters. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. This unit features an integrated stainless steel door frame designed to accept overlay panels, allowing you to create a custom look that blends into your cabinetry. We include a removable two-piece stainless steel drip tray for cleaner service. This unit ships with a commercial grade tap kit with a dual tower that lets you serve both standard "flat" iced coffee and nitro cold brew from two cornelius style kegs. The stainless steel draft tower includes both a standard tap and stout style faucet to accommodate both styles of cold brew, as well as a regulator, nitrogen tank, and ball locks to connect to two cornelius kegs. Inside, the SBC58BLBIADAIFCMTWIN is designed to hold two 1/6 (sixtel) kegs (note: interior does not accommodate a standard half barrel). Automatic defrost ensures easy user maintenance, with a seamless interior for easier cleaning. The stainless steel floor offers added durability when loading kegs. This unit includes an interior light with an on/off rocker switch and a dial thermostat for easy and intuitive temperature management. The nitrogen tank bracket is located inside, allowing you to keep the tank inside and save on exterior depth. The SBC58BLBIADAIFCMTWIN is ETL-S listed to NSF-7 commercial standards. Additional ADA compliant kegerator choices are available with stainless steel or glass doors. Browse our complete line for more choices.

Product Features

ADA compliant height
Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters
Dispenses both flat and nitro coffee
Unique combination stout and standard tap system allows you to serve both flat iced cold brew and nitro drafts
Commercially approved
ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings
Dual tap system
Twin style draft tower allows you to serve from two cornelius style kegs
Panel-ready door
Customize the front by mounting an overlay panel over the door; seamless look can blend into other cabinetry with no exposed frame. Handle not included (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
Adjustable thermostat
Interior dial thermostat ensures easy temperature management
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Complete tap kit
Commercial grade tap kit includes a dual tap draft tower with a standard and stout tap, Nitrogen tank, dual gauge regulator, and connections for ball lock Cornelius kegs
Automatic defrost
No-frost operation for minimum user maintenance
User-reversible door
Unit ships with a right hand door swing. For a left hand version, add option LHD upon order
Stainless steel drip tray
Removable two-piece drip tray included for added convenience
Interior light
Turn the light on when you need it and off when you're done with a convenient rocker switch

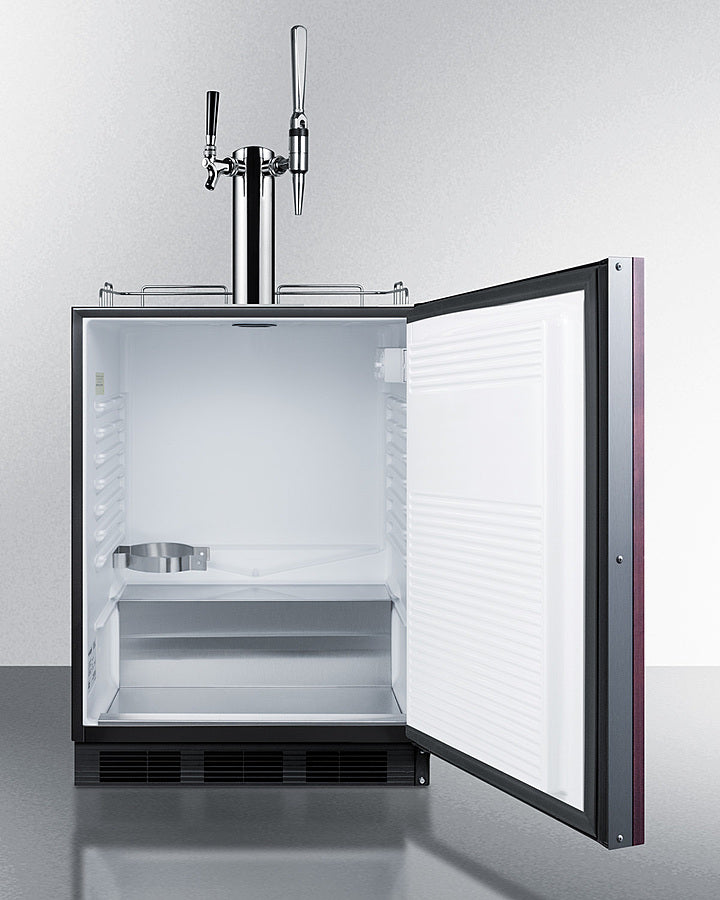

Interior nitrogen tank holder
Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs
Stainless steel floor cover
Interior includes steel cover to protect the floor when loading kegs
One piece interior liner
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Hidden evaporator
Cold wall design with hidden evaporator and seamless interior
Fully finished cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
