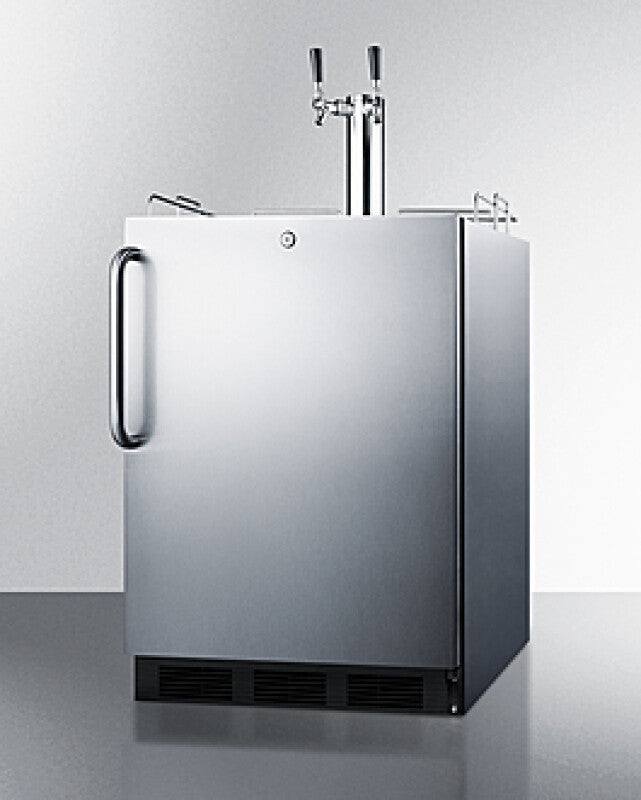

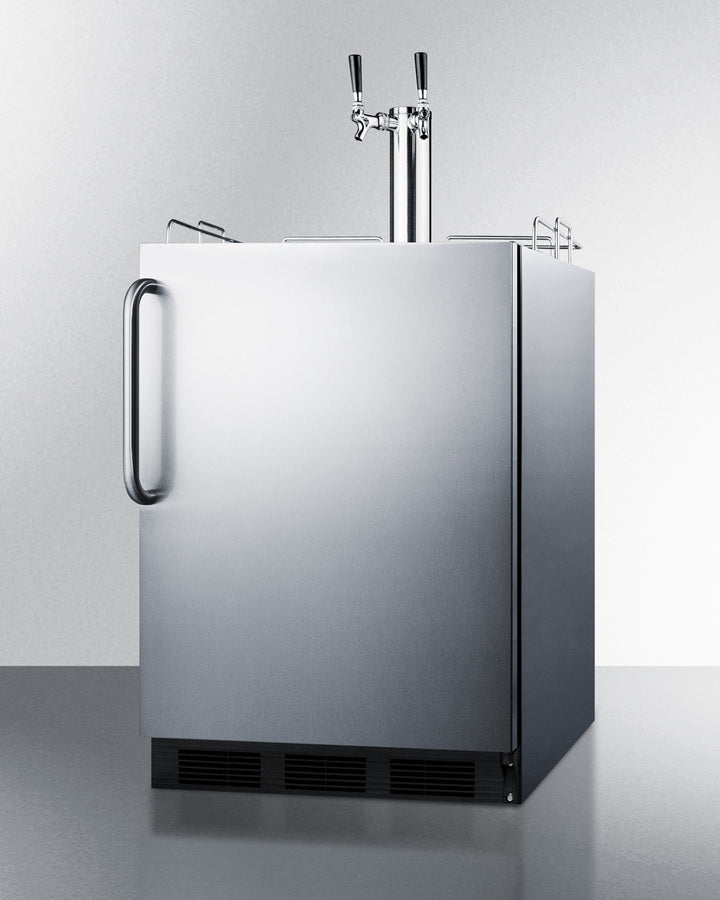

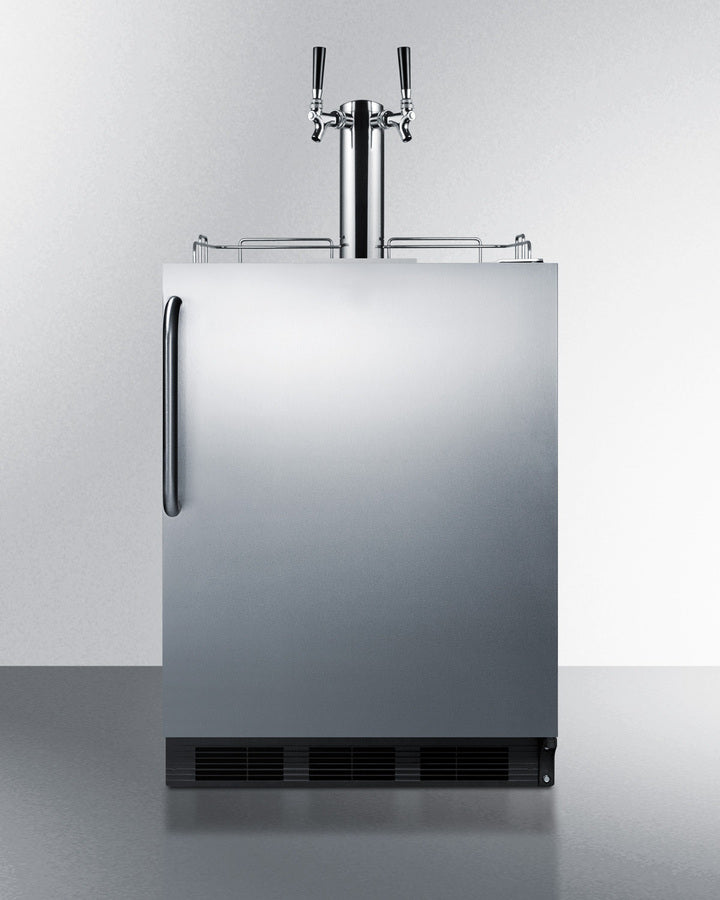

Summit SBC54OSBIADA 24" Wide Outdoor Kegerator, ADA Compliant Stainless Steel

Quick Specification More details

Width:
23.75"
Depth:
24.75"
Height:
32"
Type:
Specialty Refrigerators

About this product

ADA compliant height
Commercially approved
Built-in capable
Complete tap kit

Summer Sale

Clearance

SKU: SBC54OSBIADA | UPC: 761101069586

Summit SBC54OSBIADA 24" Wide Outdoor Kegerator, ADA Compliant Stainless Steel

$2,782.20 ~~$3,414.97~~ Save $632.77 / 18% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
23.75"
Depth:
24.75"
Height:
32"
Type:
Specialty Refrigerators

About this product

ADA compliant height
Commercially approved
Built-in capable
Complete tap kit

Product Details
Manuals & Guides
From The Manufacturer
Reviews

$2,782.20 ~~$3,414.97~~ Save $632.77 / 18% OFF

Product Details for SUMMIT SBC54OSBIADA

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Dimensions & weight

Width	23.75 in.
Height	32 in.
Length	24.75 in.
Weight	110 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	10.89 ft³
Dimensional Weight	135.32 lbs.
Total of Cubes	10.89 ft³
Total of Dimensional Weight	135.32 lbs.

Overview kegerator

Nominal Height	32.0" (81 cm)
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.25" (82 cm)
Nominal Width	24.0" (61 cm)
Width	23.75" (60 cm)
Nominal Depth	25.0" (64 cm)
Depth	24.75" (63 cm)
Depth with Handle	27.25" (69 cm)
Depth with door at 90°	47.0" (119 cm)
Capacity	5.5 cu.ft. (156 L)
Defrost Type	Automatic
Door	Stainless Steel
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.2
Voltage/Frequency	115 V AC/60 Hz
Weight	110.0 lbs. (50 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101069586
Door Swing	RHD
Reversible	Factory Reversible
Tap Kit	Yes
Height with Tap	47.5" (121 cm)
Number of Taps	2
Thermostat Type	Dial
Interior Light	Yes
Fan Type	Exterior
Refrigerant	R600a
Refrigerant Amount	0.64 oz.
High Side PSI	180.0
Low Side PSI	80.0
Inter Height	26.25" (67 cm)
Interior Width	21.0" (53 cm)
Interior Depth	17.75" (45 cm)
Compressor Step Height	5.5" (14 cm)
Compressor Step Width	21.0" (53 cm)
Compressor Step Depth	5.5" (14 cm)
Temperature Range	34º to 43ºF

Description

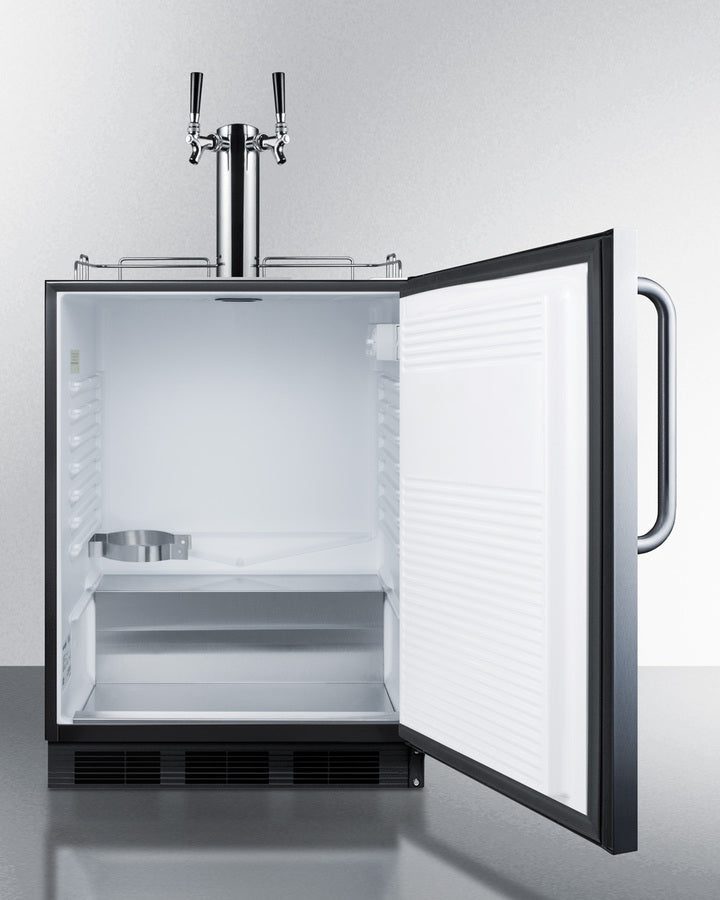

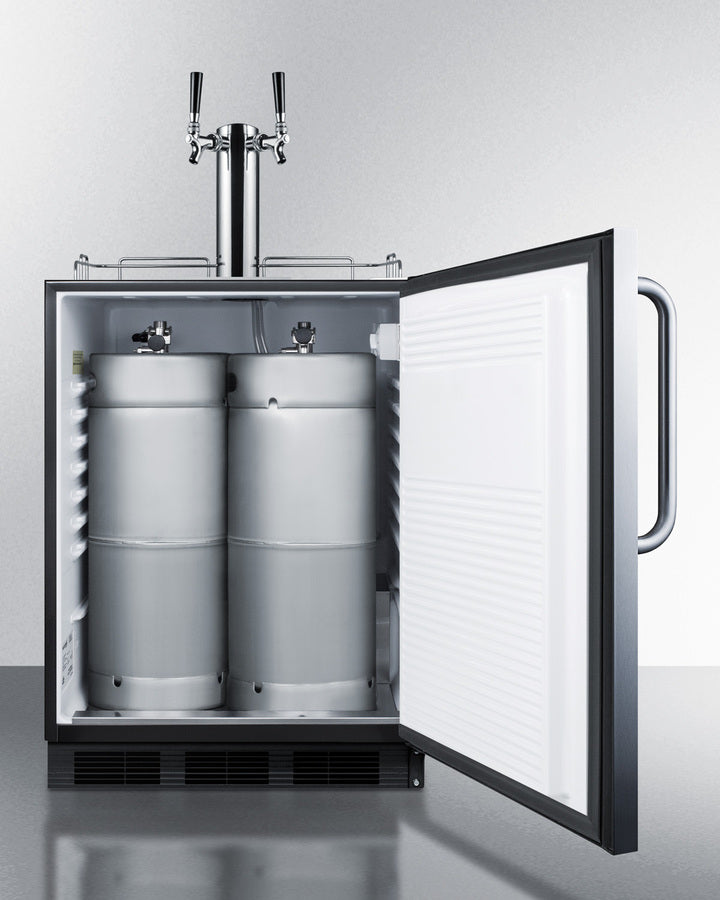

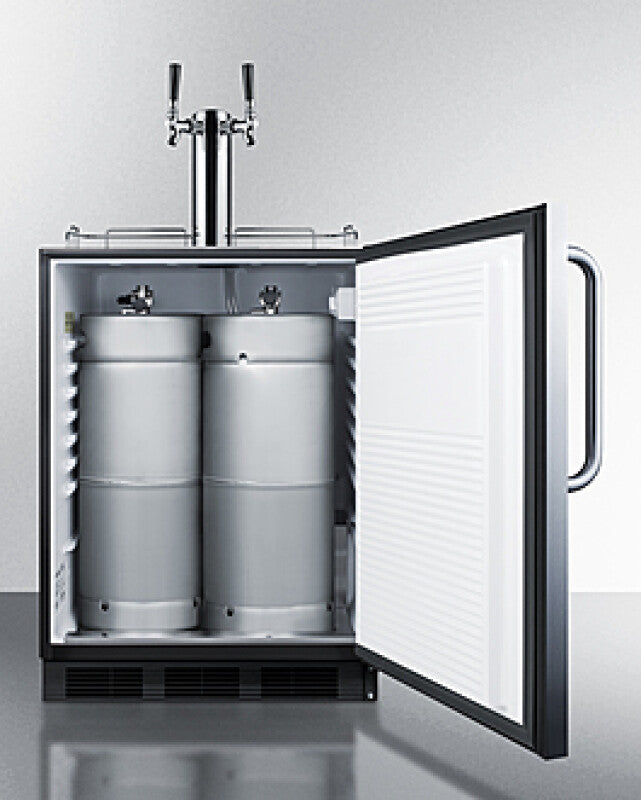

Summit Commercial brings unique appliance choices to outdoor ADA compliant settings with a new line of commercial beer dispensers made in Europe. Sized at 32 inches high, the SBC54OSBIADA is designed to fit under lower ADA compliant counters. The front-breathing design allows built-in installation, while the fully finished cabinet also enables freestanding use. This unit comes with a weatherproof 304 grade stainless steel wrapped cabinet and door, complete with a pro style towel bar handle. We include a two-piece stainless steel drip tray for cleaner service. The SBC54OSBIADA ships with a complete Sankey American dual tap kit complete with a draft tower, regulator, 5 lb. CO2 tank, and all the equipment you need to serve beer on tap. Inside, the SBC54OSBIADA is designed to hold two 1/6 (sixtel) kegs (note: interior does not accommodate a standard half barrel). Automatic defrost ensures easy user maintenance, with a seamless interior for easier cleaning. The stainless steel floor offers added durability when loading kegs. This unit includes an interior light with an on/off rocker switch and a dial thermostat for easy and intuitive temperature management. A CO2 tank bracket is located inside, allowing you to keep the tank in the cabinet and save on exterior depth. The SBC54OSBIADA is ETL-S listed to NSF-7 commercial standards and uses environmentally friendly hydrocarbon based refrigerant (R600a) to comply with certain state's guidelines. This unit can also be ordered with alternate tap equipment for coffee, wine, or kombucha. Browse our website for more options or contact our sales team at 78-893-3900.

Product Features

ADA compliant height
Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters
Commercially approved
ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings
Built-in capable
Front-breathing design allows fully recessed installation under counters
Complete tap kit
Includes a 5 lb. CO2 tank and regulator, dual tap draft arm, Sankey American tap, and connection hardware
Dual tap system
Twin draft tower allows you to serve from two 1/6 (sixtel) sized kegs
Professional handle
Curved towel bar style handle in brushed stainless steel
304 grade stainless steel exterior
Complete stainless steel construction for easy durability in the outdoors
Adjustable thermostat
Interior dial thermostat ensures easy temperature management
Automatic defrost
No-frost operation for minimum user maintenance
Stainless steel drip tray
Removable two-piece drip tray included for added convenience
Interior light
Turn the light on when you need it and off when you're done with a convenient rocker switch
Interior CO2 holder
Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs
Stainless steel floor cover
Interior includes steel cover to protect the floor when loading kegs
One piece interior liner
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Hidden evaporator
Cold wall design with hidden evaporator and seamless interior
Fully finished cabinet
Allows the unit to be used freestanding
Ground Fault Circuit Interrupter
Our integrated GFCI exceeds U.L. requirements for safety by protecting your unit from shocks and circuit breaks
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
