SKU: CPF36UGGWH | UPC: 8017709265236

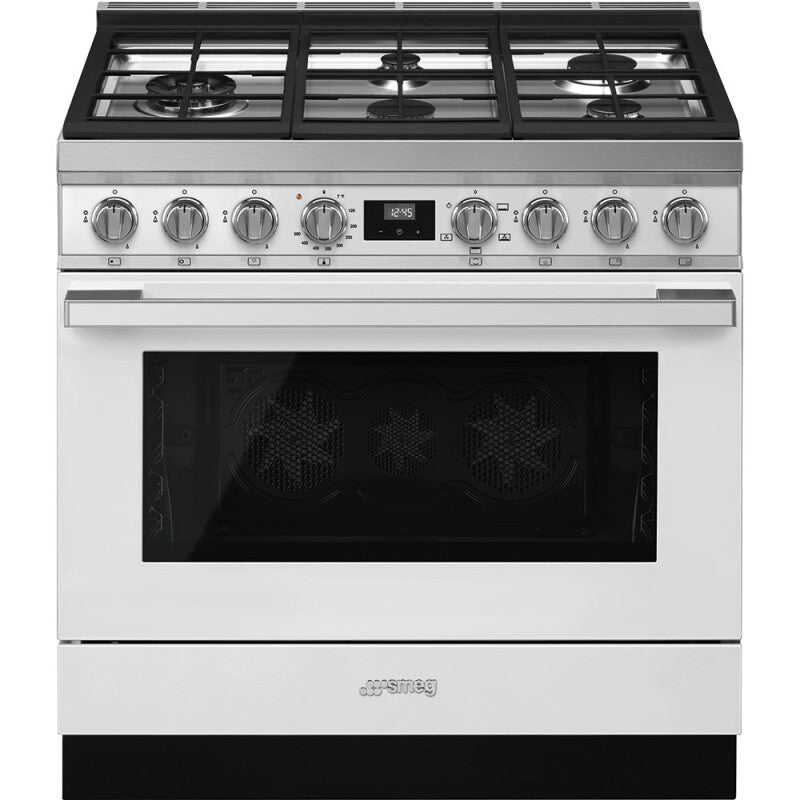

Smeg CPF36UGGWH Range with Hob 36" Portofino Aesthetic White

Range with Hob 36" Portofino Aesthetic

Quick Specification More details

  • Width:
    36"
  • Depth:
    25.06"
  • Height:
    36.06"
  • Type:
    Freestanding Ranges

About this product

  • Easy and intuitive timer setting with a single touch
  • New cooling system with tangential fan and airflow from the door to the splashback
  • Gas provides permanent control of the heat source and the temperature change is immediate - Gas hob
  • The door is equipped with a specific system for silent closing

SKU: CPF36UGGWH | UPC: 8017709265236

Smeg CPF36UGGWH Range with Hob 36" Portofino Aesthetic White

Contact us for Pricing

Active Rebates

Color:

KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Related Accessories

Quick Specification More details

  • Width:
    36"
  • Depth:
    25.06"
  • Height:
    36.06"
  • Type:
    Freestanding Ranges

About this product

  • Easy and intuitive timer setting with a single touch
  • New cooling system with tangential fan and airflow from the door to the splashback
  • Gas provides permanent control of the heat source and the temperature change is immediate - Gas hob
  • The door is equipped with a specific system for silent closing

Related Products

  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Reviews
Contact us for Pricing

Product Details for Smeg CPF36UGGWH

Technical Details

Aesthetic
Color White
Design Flush mounted
Aesthetics Portofino
Control panel finish Metal enameled
Material Painted metal
Upstand Yes
Cooktop color Stainless steel
Grates Cast Iron
Control setting type Control knobs
Control knobs Portofino
Controls color Stainless steel
No. of controls 8
Display Touch
Door With frame
Door glass type Gray
Handle Portofino
Handle color Colored
Storage compartment Push-pull
Feet Stainless steel
Plinth Black

Type
Product family Range
Range size 36"
Cooker configuration Full gas
Range fuel Gas
N. of ovens 1
Main oven Gas with grill
EAN code 8017709265236
Installation positioning of the appliance Free-standing, Class 1, Built-in, Class 2-1 norm UNI EN 30-1-1

Main oven options
Timer Yes
End-of-cooking alarm Yes
Minimum Temperature 120 °F
Maximum temperature 500 °F

Cooktop technical features
Cooking zones 5
Zone 1 - Type Gas - Dual ultra-rapid
Zone 2 - Type Gas - AUX
Zone 3 - Type Gas - Rapid
Zone 4 - Type Gas - Rapid
Zone 5 - Type Gas - Semi-rapid
Zone 1 - Power 20000 BTU
Zone 2 - Power 4500 BTU
Zone 3 - Power 10500 BTU
Zone 4 - Power 12000 BTU
Zone 5 - Power 8000 BTU
Burners type Standard
Burner caps Enameled matte black
Automatic gas ignition Yes
Gas safety valves Yes

Main oven technical features
Volume 0.16 cu. ft.
Cavity material EverClean enamel
No. of shelves 5
Shelves type Metal racks
No. of lights 2
Light type Halogen
Light Power 40 W
Fan number 3
Time setting Start and end
Door opening Drop-down
Removable door Yes
Full-glass inner door Yes
Removable inner door Yes
Total no. of door glasses 3
No.of thermo-reflective door glasses 2
Safety thermostat Yes
Cooling system Tangential
Grill type Gas
Soft Close system Yes
Temperature control Electro-mechanical

Electrical connection
Plug (B) NEMA 5-15P
Electrical connection rating 200 W
Current 2 A
Circuit breaker 15 A
Voltage 120 V
Voltage (V) 120 V
Frequency 60 Hz
Power cord length 47 1/4 "
Type of electric cable installed Yes, Single phase

Gas connection
Gas Type G20/G25 - 20/25 mbar

Dimensions & weight
Width 35.88 in.
Height 36.06 in.
Length 25.06 in.
Weight 234 lbs.
Gross weight 265 lbs
Net weight 234 lbs
Packaged width 37 3/8 "
Packaged depth 26 3/8 "
Packaged height 38 7/16 "

Number of boxes, shipping dimensions, & shipping weight
Shipping Width 37.38 in.
Shipping Height 38.44 in.
Shipping Length 26.38 in.
Source Calculation

Other
Packaged dimensions 976X950X670 mm
Maximum stackability 4
Packaging Cardboard box
Packaging composition - Paper 11 lbs
Packaging composition - Polystyrene 13 lbs
Packaging composition - Wood 7 lbs
Packaging composition - Plastics 1 lbs

Description

Compact- design range with gas oven and gas cooktop: efficient and responsive, the visible heat source allows total control and choice of the right intensity.



Product Features

  • Easy and intuitive timer setting with a single touch
  • New cooling system with tangential fan and airflow from the door to the splashback
  • Gas provides permanent control of the heat source and the temperature change is immediate - Gas hob
  • The door is equipped with a specific system for silent closing
  • More space thanks to the lower push-pull compartment, ideal for storing accessories or cooking utensils
