SKU: CPF36UGMR | UPC: 8017709248987

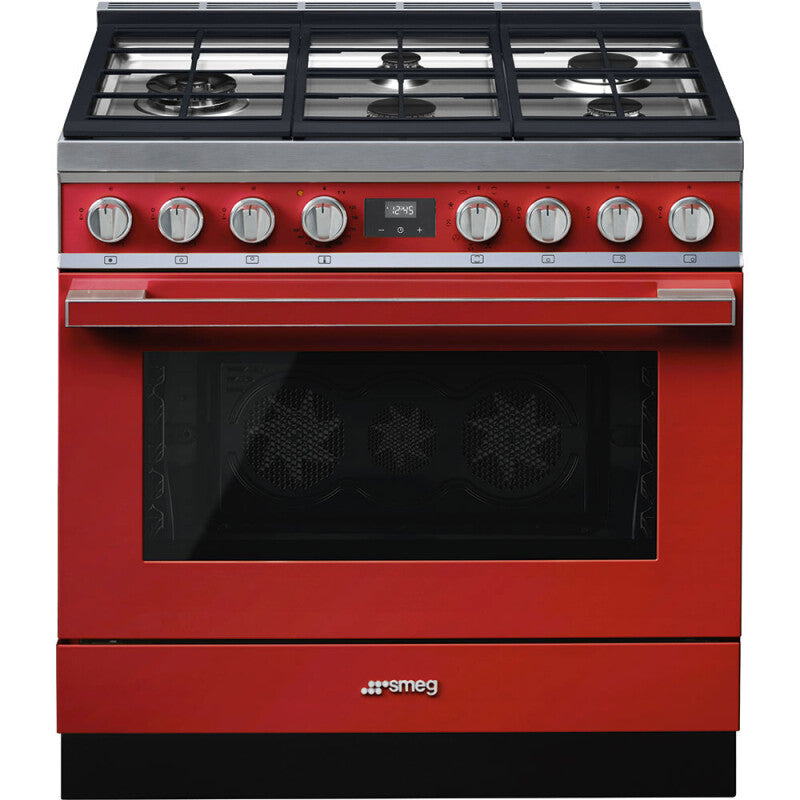

Smeg CPF36UGMR Range with Hob 36" Portofino Aesthetic Red

Quick Specification More details

Width:
36"
Depth:
25.06"
Height:
36.06"
Type:
Freestanding Ranges

About this product

Easy and intuitive timer setting with a single touch
New cooling system with tangential fan and airflow from the door to the splashback
The best cooking performances guaranteed by ventilated circular flow. - True-convection
Gas provides permanent control of the heat source and the temperature change is immediate - Gas hob

Summer Sale

SKU: CPF36UGMR | UPC: 8017709248987

Smeg CPF36UGMR Range with Hob 36" Portofino Aesthetic Red

Active Rebates

Color:

Smeg CPF36UGMR Range with Hob 36" Portofino Aesthetic Red

CPF36UGMR

Smeg CPF36UGMX Range with Hob 36" Portofino Aesthetic Stainless steel

CPF36UGMX

Out of stock

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
36"
Depth:
25.06"
Height:
36.06"
Type:
Freestanding Ranges

About this product

Easy and intuitive timer setting with a single touch
New cooling system with tangential fan and airflow from the door to the splashback
The best cooking performances guaranteed by ventilated circular flow. - True-convection
Gas provides permanent control of the heat source and the temperature change is immediate - Gas hob

Product Details for Smeg CPF36UGMR

Technical Details

Aesthetic

Color	Red
Design	Flush mounted
Aesthetics	Portofino
Control panel finish	Metal enameled
Material	Painted metal
Upstand	Yes
Cooktop color	Stainless steel
Grates	Cast Iron
Control setting type	Control knobs
Control knobs	Portofino
Controls color	Stainless steel
No. of controls	8
Display	Touch
Door	With frame
Door glass type	Gray
Handle	Portofino
Handle color	Colored
Storage compartment	Push-pull
Feet	Stainless steel
Plinth	Black

Type

Product family	Range
Range size	36"
Cooker configuration	Dual fuel
Range fuel	Gas
N. of ovens	1
Main oven	Thermo-ventilated
EAN code	8017709248987
Installation positioning of the appliance	Free-standing, Class 1, Built-in, Class 2-1 norm UNI EN 30-1-1
Cleaning system	VaporClean

Main oven options

Timer	Yes
End-of-cooking alarm	Yes
Minimum Temperature	120 °F
Maximum temperature	500 °F

Cooktop technical features

Cooking zones	5
Zone 1 - Type	Gas - Dual ultra-rapid
Zone 2 - Type	Gas - AUX
Zone 3 - Type	Gas - Rapid
Zone 4 - Type	Gas - Rapid
Zone 5 - Type	Gas - Semi-rapid
Zone 1 - Power	20000 BTU
Zone 2 - Power	4500 BTU
Zone 3 - Power	10500 BTU
Zone 4 - Power	12000 BTU
Zone 5 - Power	8000 BTU
Burners type	Standard
Burner caps	Enameled matte black
Automatic gas ignition	Yes
Gas safety valves	Yes

Main oven technical features

Volume	0.16 cu. ft.
Cavity material	EverClean enamel
No. of shelves	5
Shelves type	Metal racks
No. of lights	2
Light type	Halogen
Light Power	40 W
Fan number	3
Time setting	Start and end
Door opening	Drop-down
Light on when door is open	Yes
Removable door	Yes
Full-glass inner door	Yes
Removable inner door	Yes
Total no. of door glasses	3
No.of thermo-reflective door glasses	2
Safety thermostat	Yes
Cooling system	Tangential
Grill type	Electric
Grill power	1700 W
Large grill - Power	2900 W
Bottom heating element - Power	1700 W
Upper heating element - Power	1200 W
Circular heating element - Power	2 x 1550 W
Soft Close system	Yes
Temperature control	Electro-mechanical

Electrical connection

Electrical connection rating	3800 W
Current	20 A
Circuit breaker	20 A
Voltage	240/208 V
Frequency	60 Hz
Power cord length	47 1/4 "
Type of electric cable installed	Yes, Double phase

Gas connection

Gas Type

G20/G25 - 20/25 mbar

Dimensions & weight

Width	35.88 in.
Height	36.06 in.
Length	25.06 in.
Weight	230 lbs.
Gross weight	261 lbs
Net weight	230 lbs
Packaged width	37 3/8 "
Packaged depth	26 3/8 "
Packaged height	38 7/16 "

Number of boxes, shipping dimensions, & shipping weight

Shipping Width	37.38 in.
Shipping Height	38.44 in.
Shipping Length	26.38 in.
Source	Calculation

Other

Packaged dimensions	976X950X670 mm
Maximum stackability	5
Packaging	Cardboard box
Packaging composition - Paper	11 lbs
Packaging composition - Polystyrene	13 lbs
Packaging composition - Wood	7 lbs
Packaging composition - Plastics	1 lbs

Description

The brand Smeg CPF36UGMR delivers iconic Italian craftsmanship with this 36-inch dual fuel range in Red. Featuring five sealed gas burners, a large-capacity convection oven, and triple-fan technology, it provides maximum versatility and precise performance. From the bold Portofino Series, this range offers European styling, soft-close doors, and ergonomic controls in a vibrant design perfect for expressive kitchens.

Product Features

Easy and intuitive timer setting with a single touch
New cooling system with tangential fan and airflow from the door to the splashback
The best cooking performances guaranteed by ventilated circular flow. - True-convection
Gas provides permanent control of the heat source and the temperature change is immediate - Gas hob
By inserting water into a recess at the bottom of the cavity, steam is generated, which softens the residue and facilitates its removal - Vapor Clean
The door is equipped with a specific system for silent closing
More space thanks to the lower push-pull compartment, ideal for storing accessories or cooking utensils
