Sale price $1,599.00 Regular price $1,999.97 Save $400.97 / 20% OFF

Product Details for SHARP SMD3070ASY

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

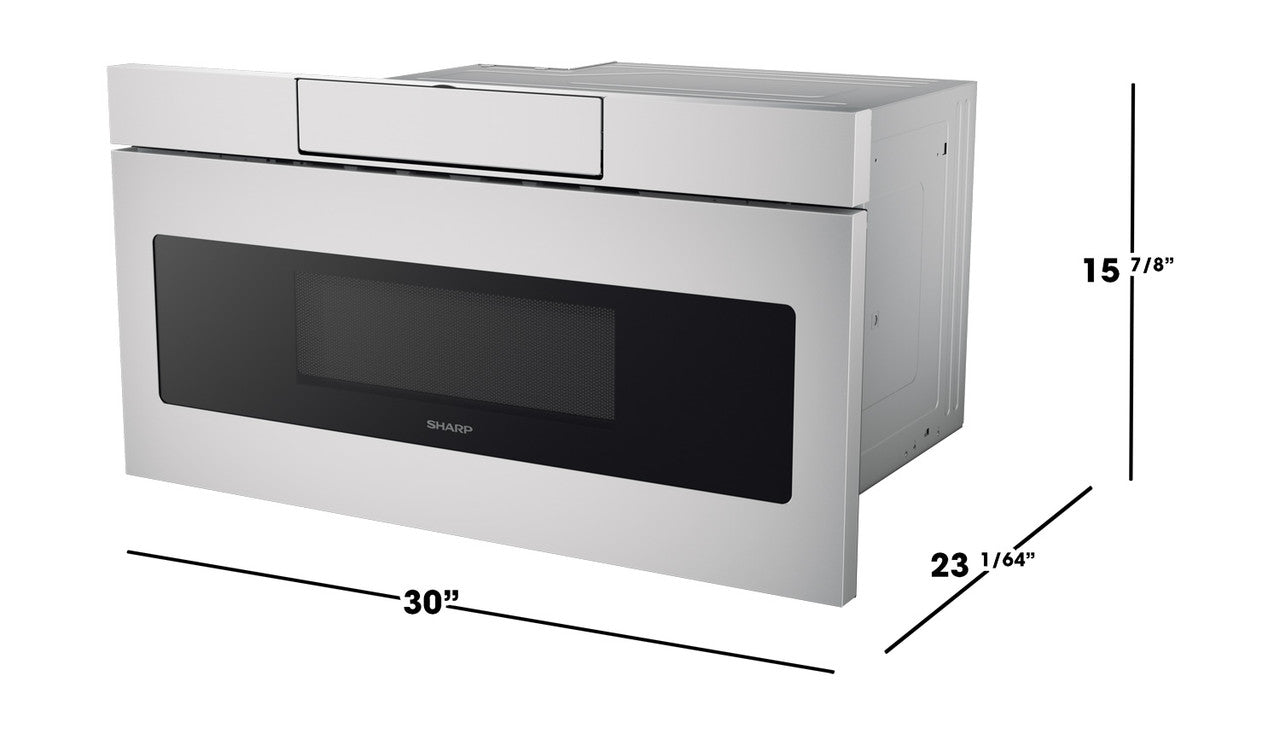

Dimensions & weight (in./lbs.) (w x h x d)

Cutout Dimensions 28 7/16” x 15 9/16” x 23 1/2”
Product Dimensions 30" x 15-3/4" x 23"
Shipping Weight 91
Product Weight 79
Flush Mount Cutout Dimensions 30 5/16" (min) 30 5/8" (max) x 16 7/8" x 23 1/2" (min)

Features

Drawer Opening Easy Touch Automatic
Capacity 1.2 Cu. Ft. (holds 9" x 13" dish)
Sensor Cook, Reheat and Popcorn Yes, 12 settings
Finish Stainless Steel
Output Power 950 watts
Reheat Auto Settings 2 settings
Defrost Auto Settings 6 settings
Microwave Keep Warm Setting Yes, up to 30 minutes
Minute Plus™ Yes
Clock Yes
Interior Oven Light Yes
Kitchen Timer Yes
Control Lock Yes
Built-In Ready for Easy Installation Yes
Demonstration Mode Yes

Control panel

Control Panel Location Center/Top
Control Panel Type Touchpad, Drop-down 45° Angle
Display Type LCD
Display Color White on Black Background

Additional specifications

Power Connection 3-Prong Grounding Plug (included)
Safety Compliance: FCC, DHHS, UL listed
Power Ratings 120V, 60Hz / 1.67kW, 14.5 Amps

Warranty/upc

Parts 1 Year
Labor 1 Year
Magnetron Tube 5 Years total (part only)
UPC 074000619579

Optional accessory

30" Flush Mount Deflector Vent SKMD30F0AS
Flush Mount Deflector Vent Kit (1) PREF-B020MRP0(2) LX-CZB055MRE0

Other

Cutout Dimensions 28 7/16” x 15 9/16” x 23 1/2”

Dimensions & weight

Width 30 in.
Height 79 in.
Length 23 in.
Cutout Dimensions 28 7/16” x 15 9/16” x 23 1/2”
Shipping Weight 91
Product Weight 79

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 35 in.
Shipping Height 96 in.
Shipping Length 28 in.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 31.55 ft³
Dimensional Weight 392.16 lbs.
Total of Cubes 31.55 ft³
Total of Dimensional Weight 392.16 lbs.

Description

Focus on the design elements you prefer by removing the microwave from sightlines and enabling more design versatility. The SMD3070AS 30 inch Microwave Drawer offers flexible placement options below an island, peninsula or standard cabinetry, or can be installed below your wall oven. This Sharp Microwave Drawer allows you to showcase your design savvy and create a kitchen that flows with your lifestyle. The SMD3070AS Microwave Drawer allows you to choose a location that works for your lifestyle. Cooking is easier and faster when the Sharp Microwave Drawer Oven is installed adjacent to your food preparation area: in islands, peninsulas or under the counter. Available in 24-inch and 30-inch widths. Accessories available (SKMD24F0AS, SKMD30F0AS).The 30-inch Sharp Microwave Drawer Oven has been designed to complement the widest range of kitchen styles and appliances. The sleek, low-profile design and a stainless-steel finish beautifully complement any kitchen.The SMD3070AS Microwave Drawer Oven boasts an easy-to-read display that disappears until you need it. The concealed control panel opens at a 45-degree angle, so it’s easy to read and operate.Browse our full range of Sharp microwave drawers to find the right model for your home.


Product Features

  • Easy Touch Automatic Drawer System Smoothly Opens and Enables Hands-Free Close
  • Convenient Kitchen Placement Allows for Easier Cooking, Saves Prep and Clean up Time
  • Concealed Control Panel Opens to an Easy-to-Read and Operate 45° Angle
  • Cooking Space Large Enough for a 4 qt Casserole Dish or a 20 oz Beverage
  • Cooking Performance from One of the Most Trusted Brands in Microwaves

Key Features

designed for your dream kitchen

Sharp's Microwave Drawer Oven allows you to focus on your kitchen's design and workflow by offering flexible installation options in an island, peninsula, or below your wall oven

Easy to Use

Easy Touch automatic drawer, Easier cooking and cleanup

Compliments Your Style

Low-profile design, Hidden controls, Stainless-steel finish

Design Flexibility

Install below an island, peninsula or standard cabinetry or below a wall oven. Accessories available (SKMD24F0AS, SKMD30F0AS).

Capacity

Fits 4 qt. casserole dish, Tall enough for a 20-oz. tall coffee cup, 1.2 cubic feet; 950 watts

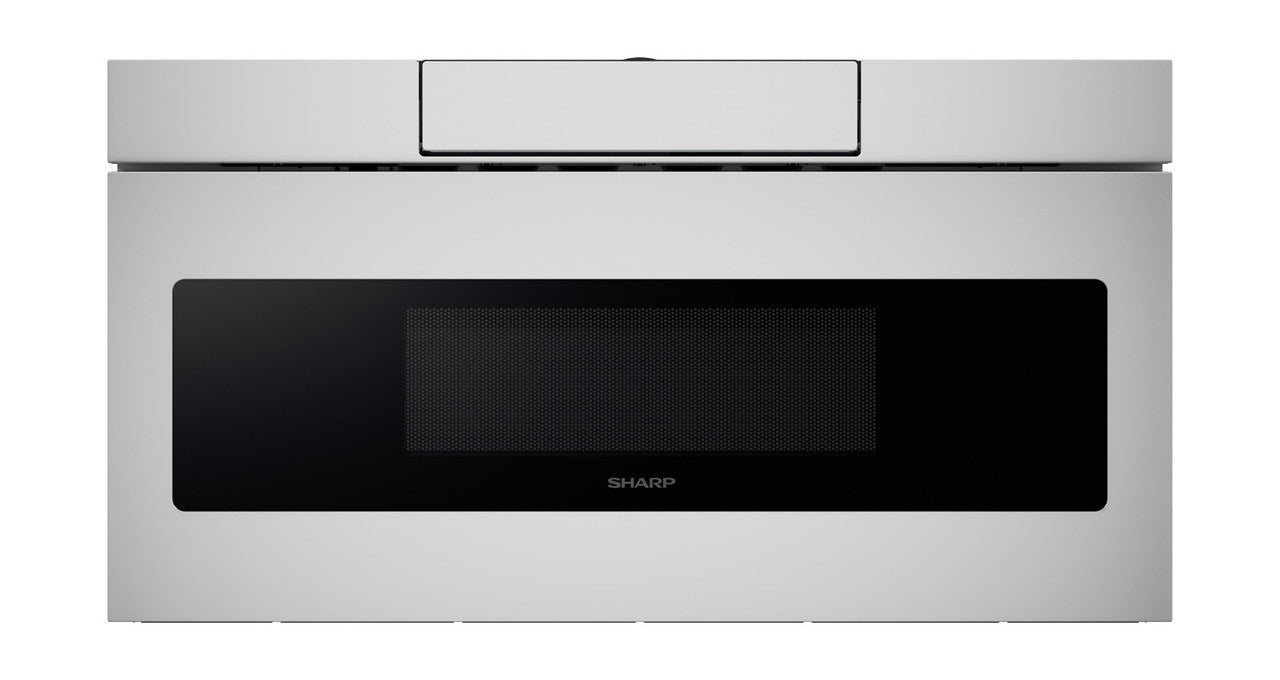

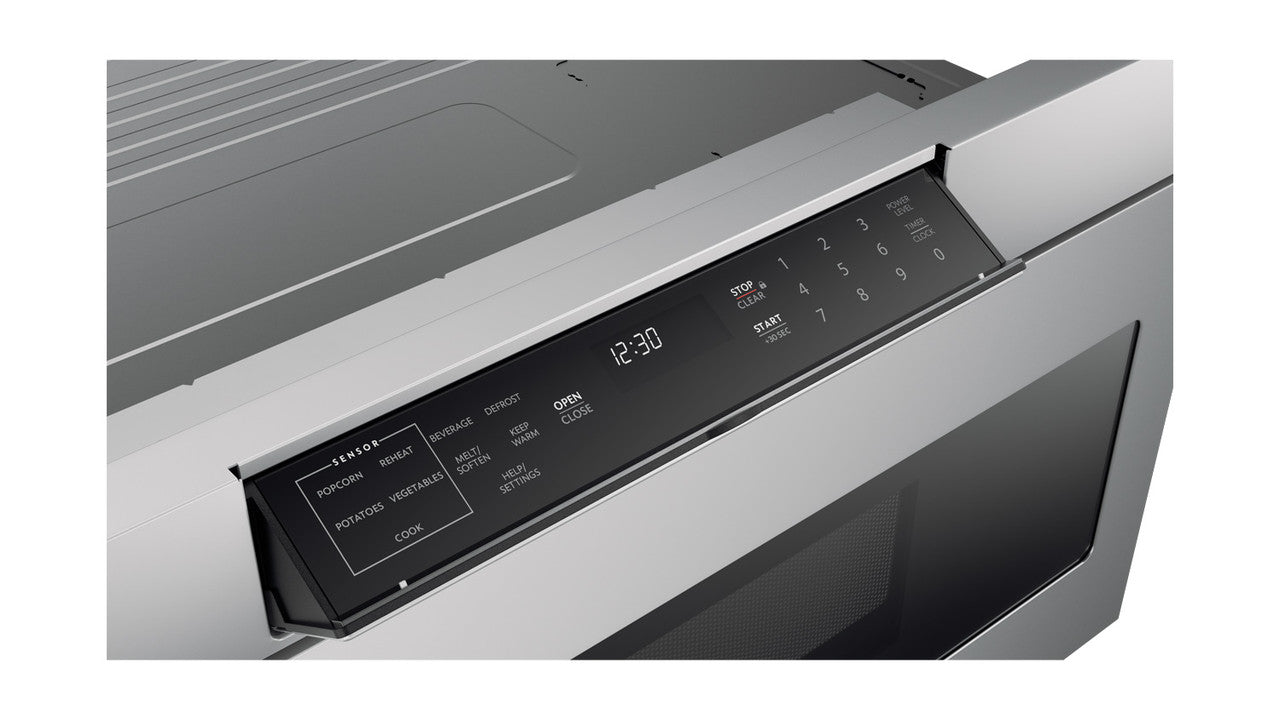

Hidden Control Panel

The SMD3070ASY Microwave Drawer Oven boasts an easy-to-read display that disappears until you need it. The concealed control panel opens at a 45-degree angle, so it’s easy to read and operate.

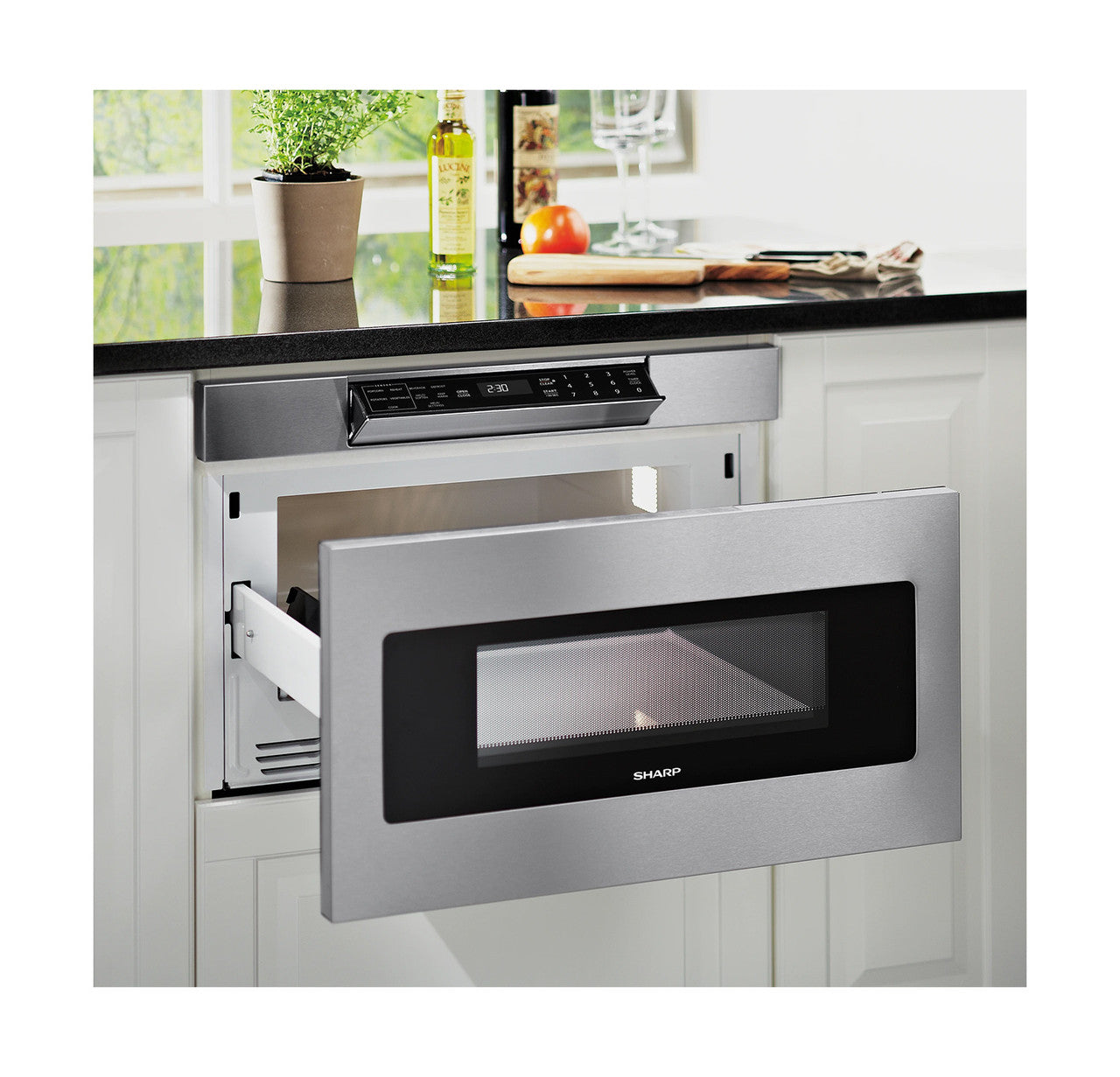

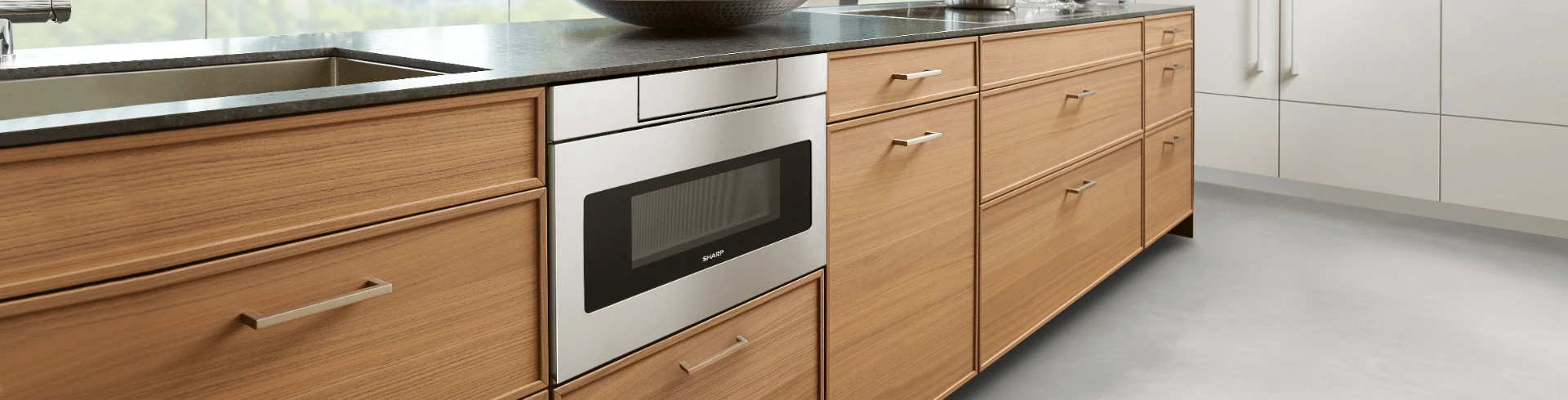

Convenient Placement Options

The SMD3070ASY 30-inch Microwave Drawer Oven offers flexible placement options below an island, peninsula or standard cabinetry, or can be installed below your wall oven.

Easier Cooking and Cleanup

The Sharp Stainless Steel Microwave Drawer Oven makes cooking and cleaning easier by putting the microwave at an accessible height. Easily lift hot foods from the Drawer. Stir dishes without removing them. And low sides and a virtual Carousel make cleaning a breeze.

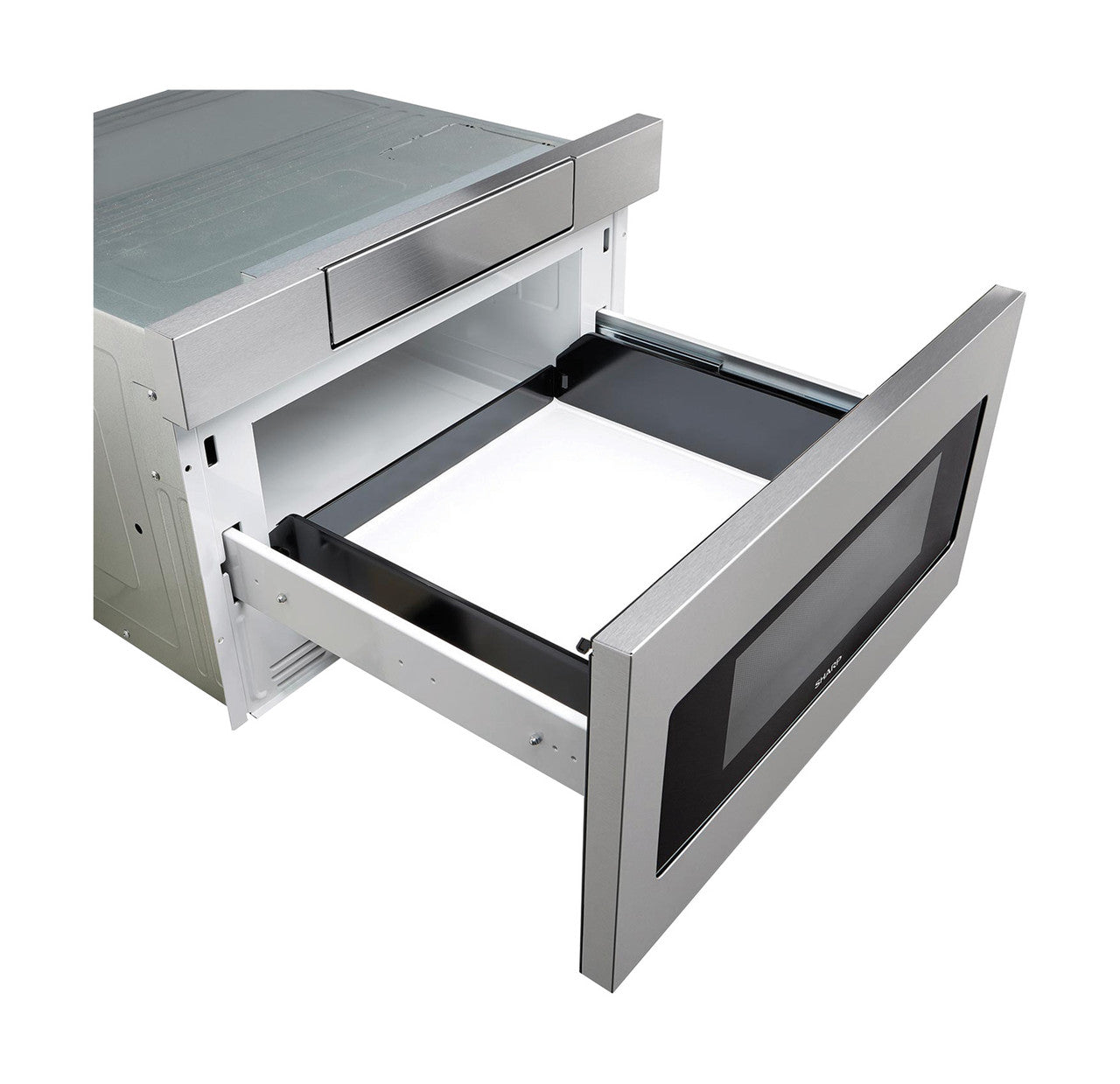

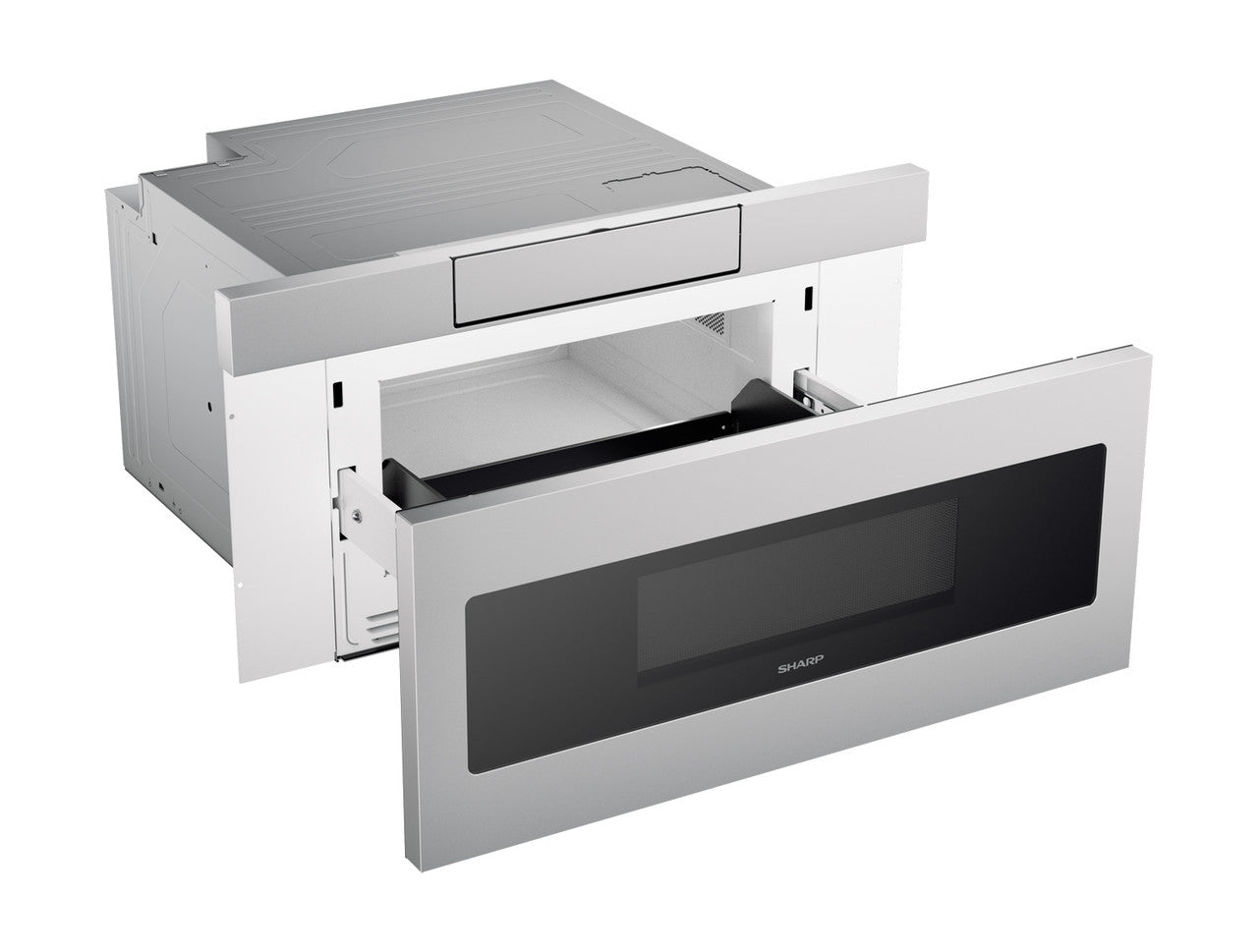

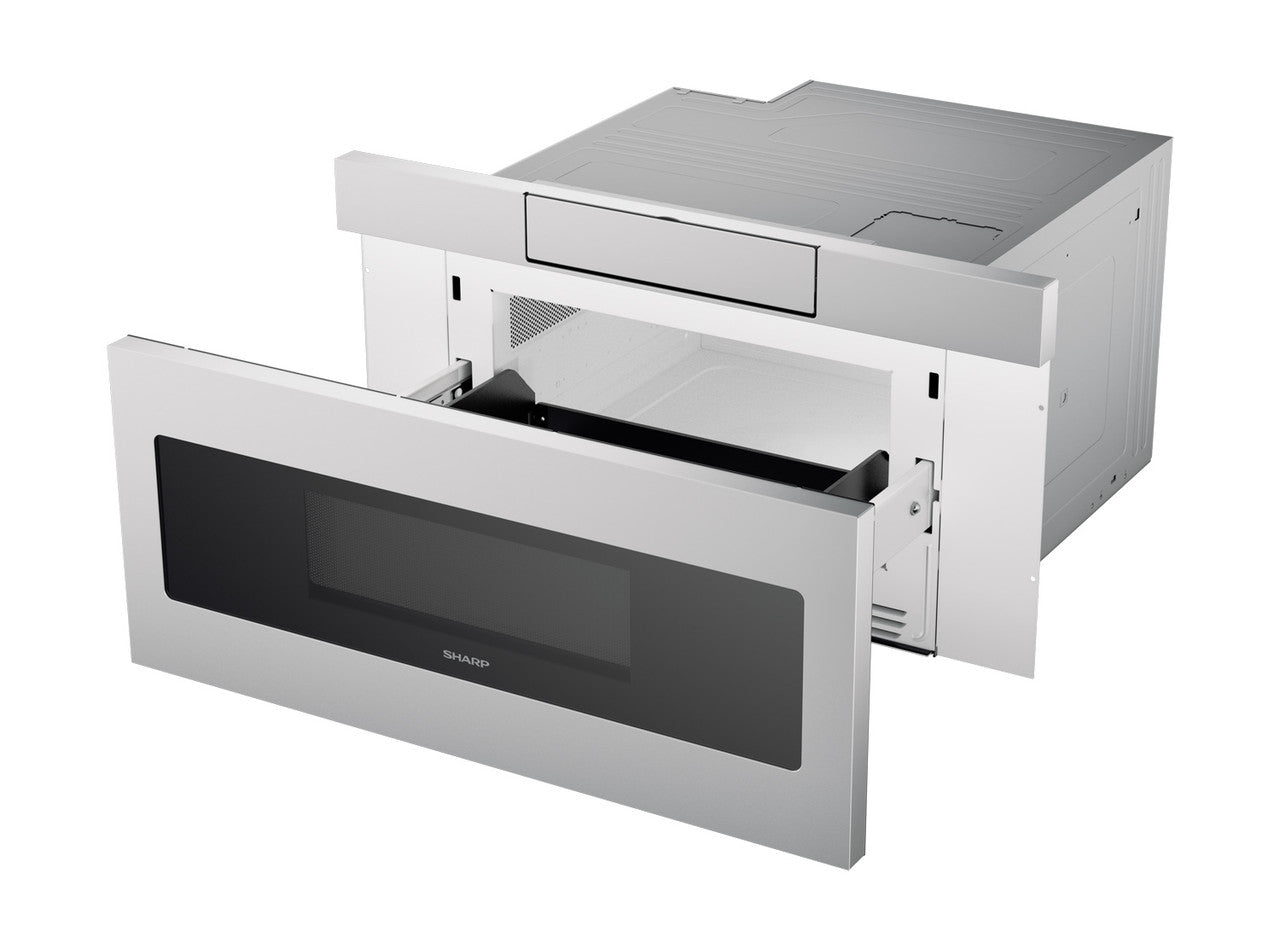

Easy Touch Automatic Drawer System

Sharp’s exclusive Easy Touch Automatic Drawer system eases open with a gentle pull or the touch of a button. Give the Microwave Drawer Oven a small nudge and it smoothly shuts for you. The even, gliding action and solid construction prevents liquids from spilling during opening and closing.

Designed for Your Dream Kitchen

The Sharp SMD3070ASY Microwave Drawer Oven has been designed to complement the widest range of kitchen styles and appliances. The sleek, low-profile design and a stainless-steel finish beautifully complement any kitchen.
