Sale price $1,499.00 Regular price $1,899.97 Save $400.97 / 21% OFF

Product Details for Sharp SMD2470ASY

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Features

Drawer Opening Easy Touch Automatic
Capacity 1.2 Cu. Ft. (holds 9" x 13" dish)
Output Power 950 watts
Sensor Cook, Reheat and Popcorn Yes, 12 settings
Finish Stainless Steel
Reheat Auto Settings 2 settings
Defrost Auto Settings 6 settings
Microwave Keep Warm Setting Yes, up to 30 minutes
Clock Yes
Minute Plus™ Yes
Interior Oven Light Yes
Kitchen Timer Yes
Control Lock Yes
Demonstration Mode Yes
Built-In Ready for Easy Installation Yes

Control panel

Control Panel Location Center/Top
Control Panel Type Touchpad, Drop-down 45° Angle
Display Type LCD
Display Color White on Black Background

Additional specifications

Power Connection 3-Prong Grounding Plug (included)
Power Ratings 120V, 60Hz / 1.67kW, 14.5 Amps
Safety Compliance: FCC, DHHS, UL listed

Warranty/upc

Labor 1 Year
Parts 1 Year
Magnetron Tube 4 Years total (part only)
UPC 074000619371

Optional accessory

30" Flush Mount Deflector Vent SKMD30F0AS
Flush Mount Deflector Vent Kit (1) PREF-B020MRP0(2) LX-CZB055MRE0

Dimensions & weight

Width 23.75 in.
Height 74 in.
Length 23 in.
Cutout Dimensions 22 1/8" x 15 9/16" x 23 1/2"
Shipping Dimensions 27-11/16" x 21-1/2" x 29-1/16"
Shipping Weight 86
Product Weight 74

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 27.69 in.
Shipping Height 21.5 in.
Shipping Length 29.06 in.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 23.39 ft³
Dimensional Weight 290.81 lbs.
Total of Cubes 23.39 ft³
Total of Dimensional Weight 290.81 lbs.

Dimensions & weight (in./lbs.) (w x h x d)

Shipping Dimensions 29-1/4" x 21-3/4" x 27-3/4"

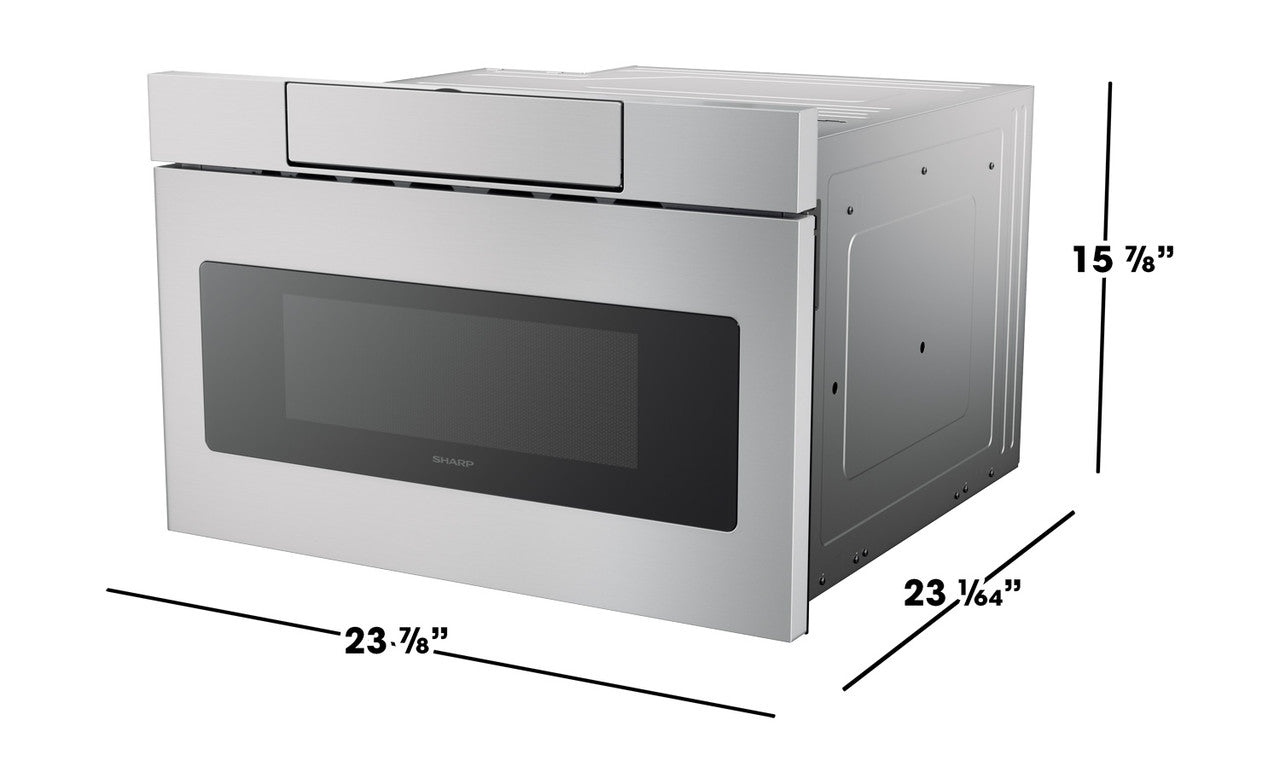

Product Dimensions 23 7/8" x 15 7/8" x 23 1/64"
Flush Mount Cutout Dimensions 24 3/16" (min) 24 1/2" (max) x 16 7/8" x 23 1/2" (min)
Product Weight / Shipping Weight 74 lbs. / 86 lbs.

Description

Focus on the design elements you prefer by removing the microwave from sightlines and enabling more design versatility. This 24 inch Stainless Steel Microwave Drawer offers flexible placement options below an island, peninsula or standard cabinetry, or can be installed below your wall oven. The SMD2470ASY Microwave Drawer allows you to showcase your design savvy and create a kitchen that flows with your lifestyle.The Microwave Drawer allows you to choose a location that works for your lifestyle. Cooking is easier and faster when the Sharp SMD2470ASY 24-Inch Stainless Steel Microwave Drawer Oven is installed adjacent to your food preparation area: in islands, peninsulas or under the counter. Available in 24” and 30” widths. Accessories available (SKMD24U0ES, SKMD30F0AS).The 24- inch Sharp Microwave Drawer Oven has been designed to complement the widest range of kitchen styles and appliances. The sleek, low-profile design and a stainless-steel finish beautifully complement any kitchen.The SMD2470ASY Sharp Microwave Drawer Oven boasts an easy-to-read display that disappears until you need it. The concealed control panel opens at a 45-degree angle, so it’s easy to read and operate.Browse our full range of Sharp microwave drawers to find the right model for your home.


Product Features

  • Convenient Kitchen Placement Allows for Easier Cooking, Saves Prep and Clean up Time
  • Concealed Control Panel Opens to an Easy-to-Read and Operate 45° Angle
  • Cooking Space Large Enough for a 4 qt Casserole Dish or a 20 oz Beverage
  • Cooking Performance from One of the Most Trusted Brands in Microwaves
  • Automatic Drawer System Smoothly Opens and Enables Hands-Free Close

Key Features

Designed for Your Dream Kitchen

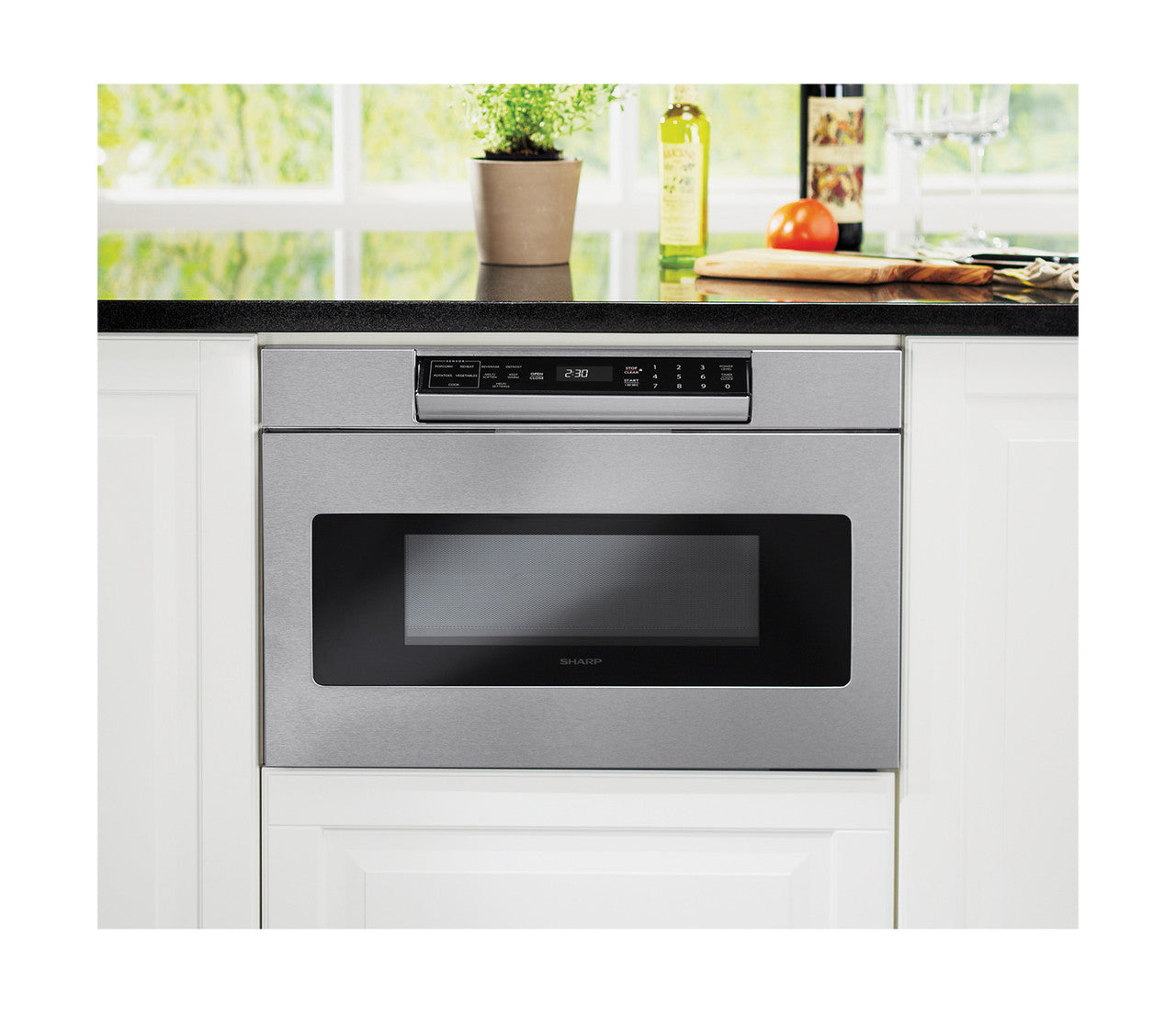

Sharp's Microwave Drawer Oven allows you to focus on your kitchen's design and workflow by offering flexible installation options in an island, peninsula, or below your wall oven

Easy to Use

Easy Touch automatic drawer, Easier cooking and cleanup

Compliments Your Style

Low-profile design, Hidden controls, Stainless-steel finish

Design Flexibility

Install below an island, peninsula or standard cabinetry or below a wall oven.

Capacity

Fits 4 qt. casserole dish, Tall enough for a 20-oz. tall coffee cup, 1.2 cubic feet; 950 watts

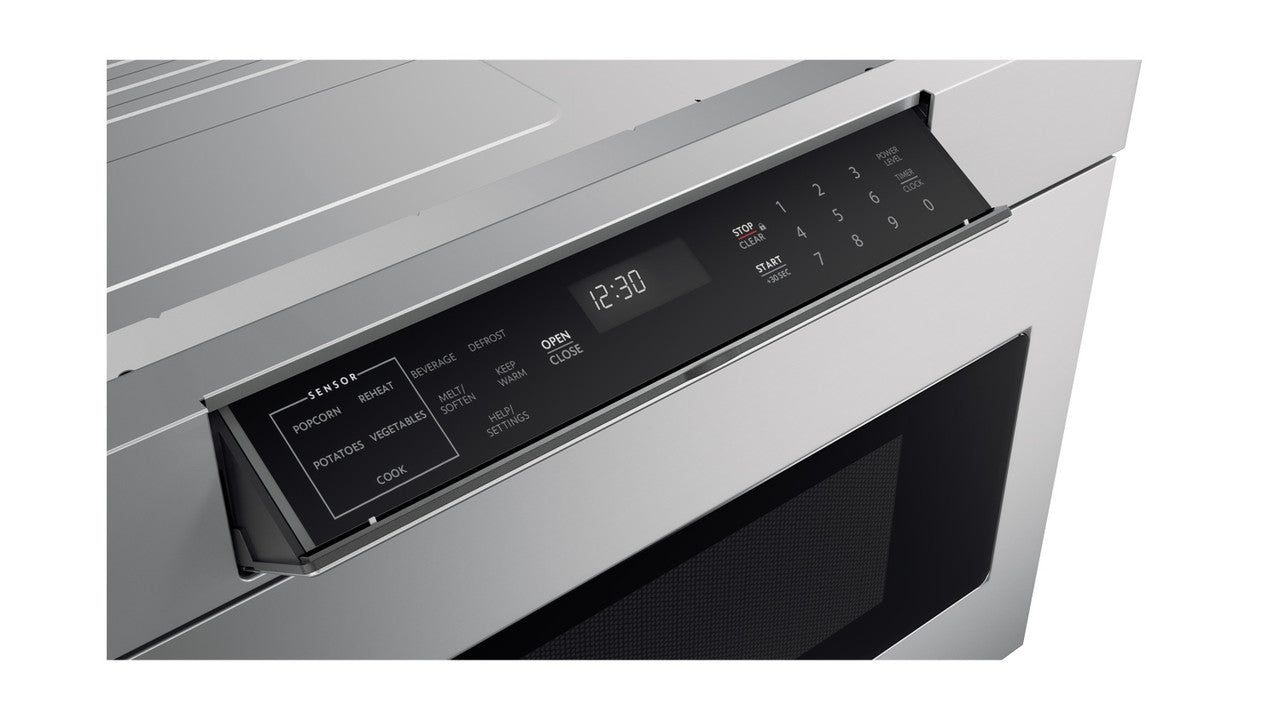

Hidden Control Panel

The SMD2470ASY Microwave Drawer Oven boasts an easy-to-read display that disappears until you need it. The concealed control panel opens at a 45-degree angle, so it’s easy to read and operate.

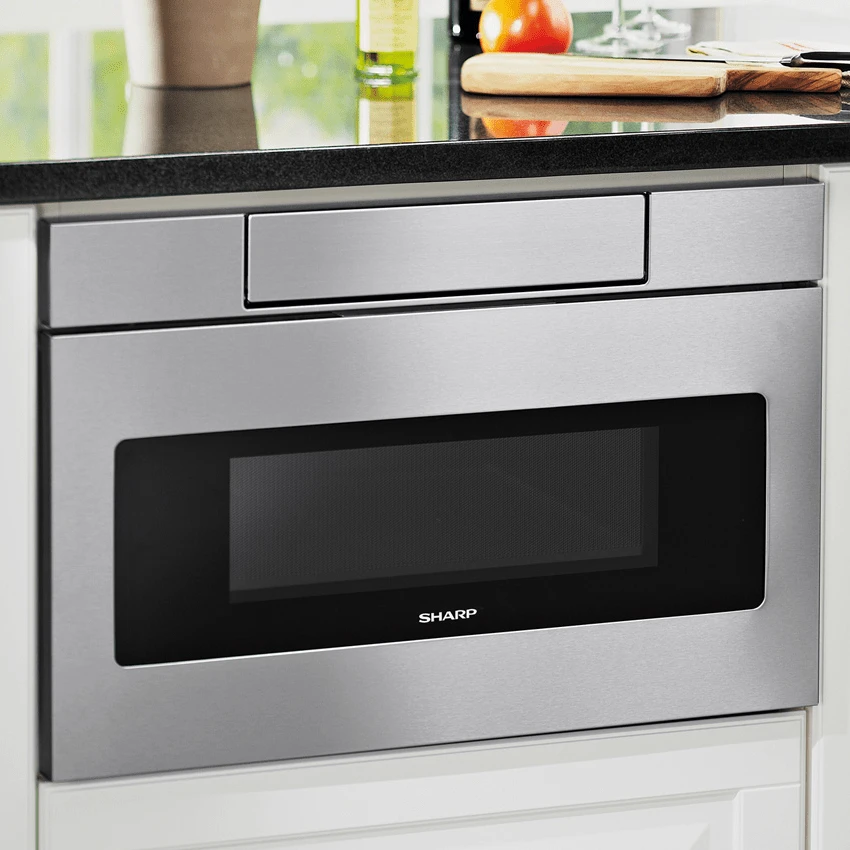

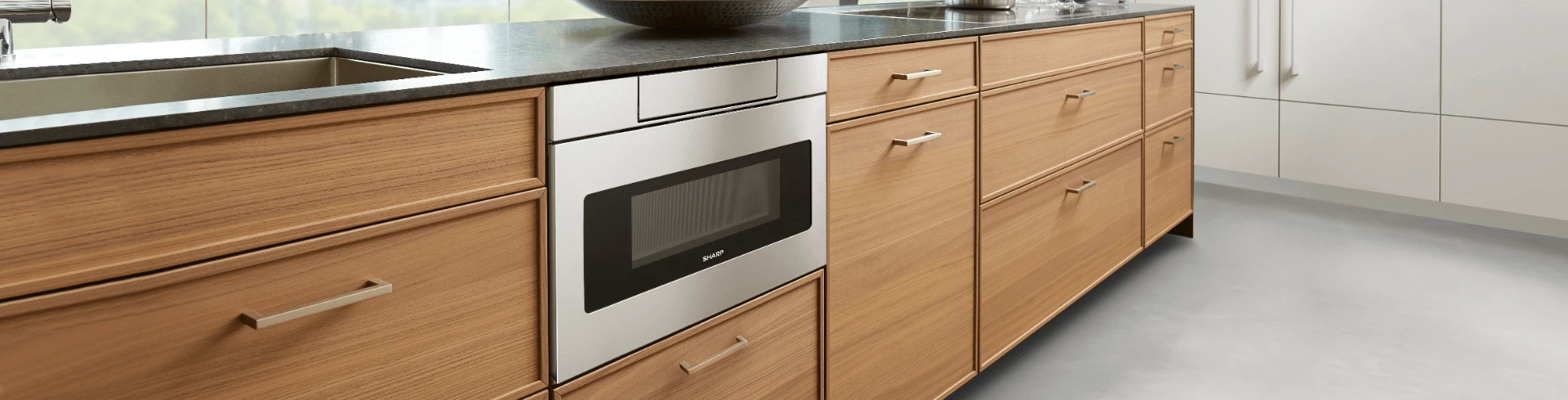

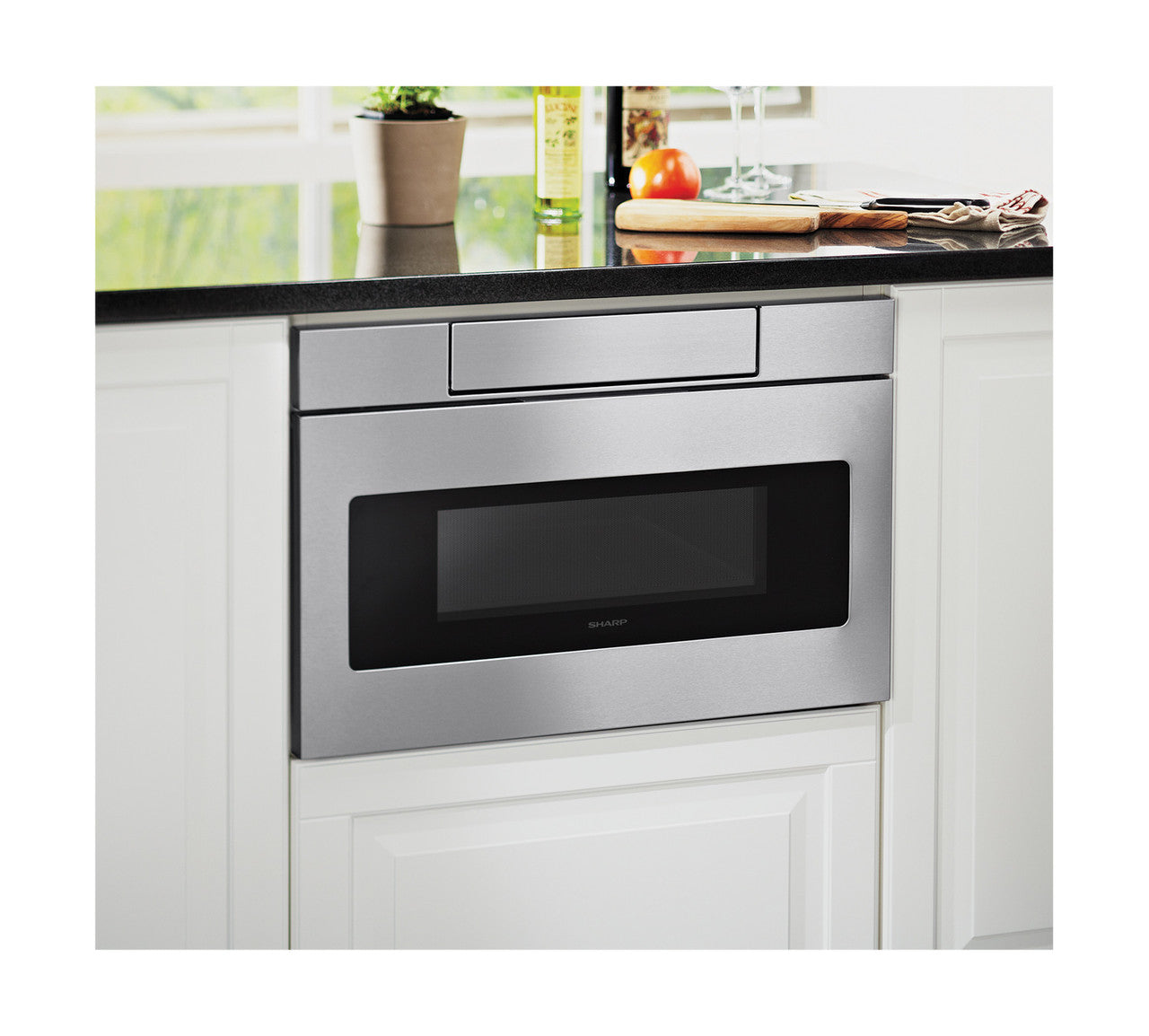

Convenient Placement Options

The SMD2470ASY 24-inch Microwave Drawer Oven offers flexible placement options below an island, peninsula or standard cabinetry, or can be installed below your wall oven.

Easier Cooking and Cleanup

The Sharp Stainless Steel Microwave Drawer Oven makes cooking and cleaning easier by putting the microwave at an accessible height. Easily lift hot foods from the Drawer. Stir dishes without removing them.

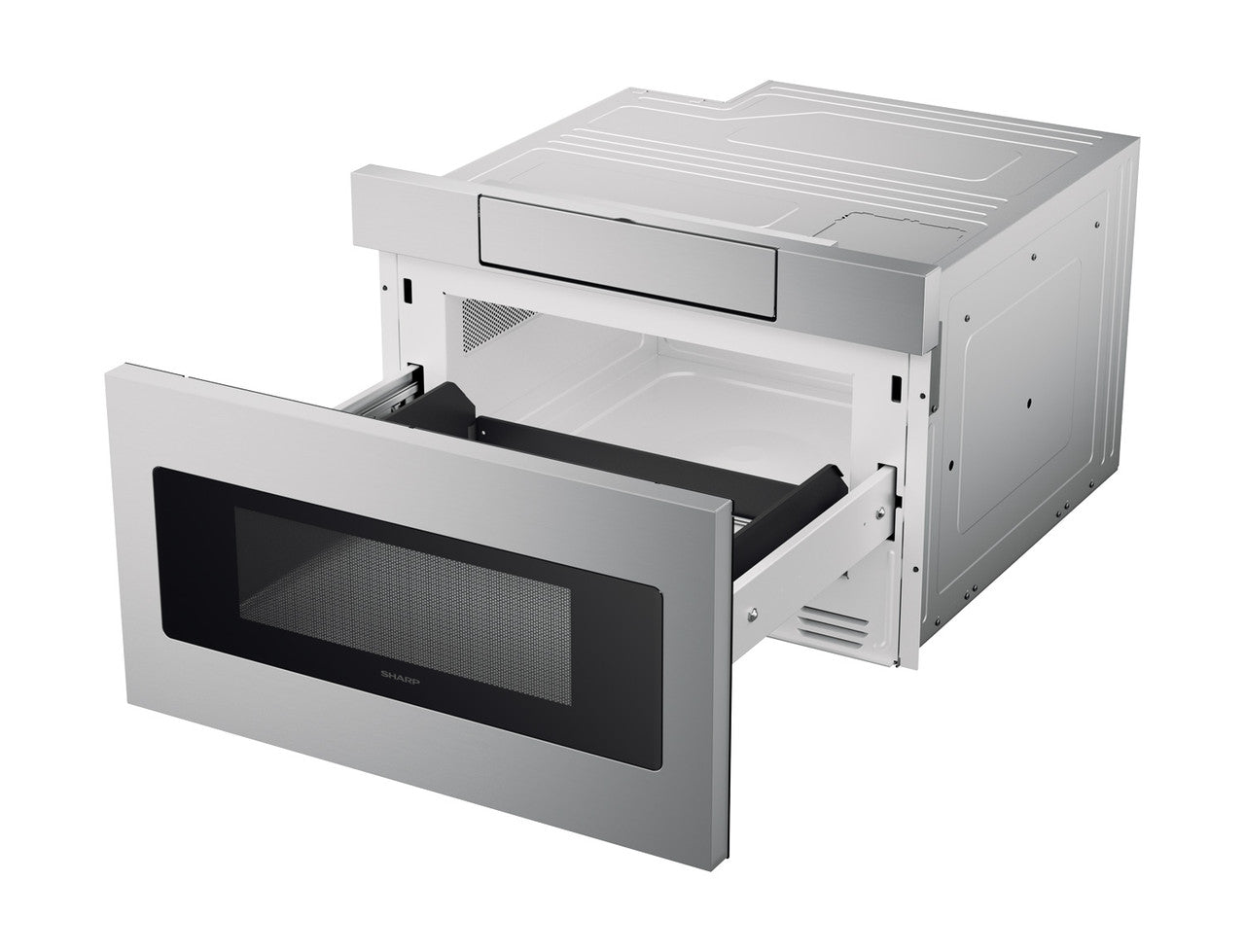

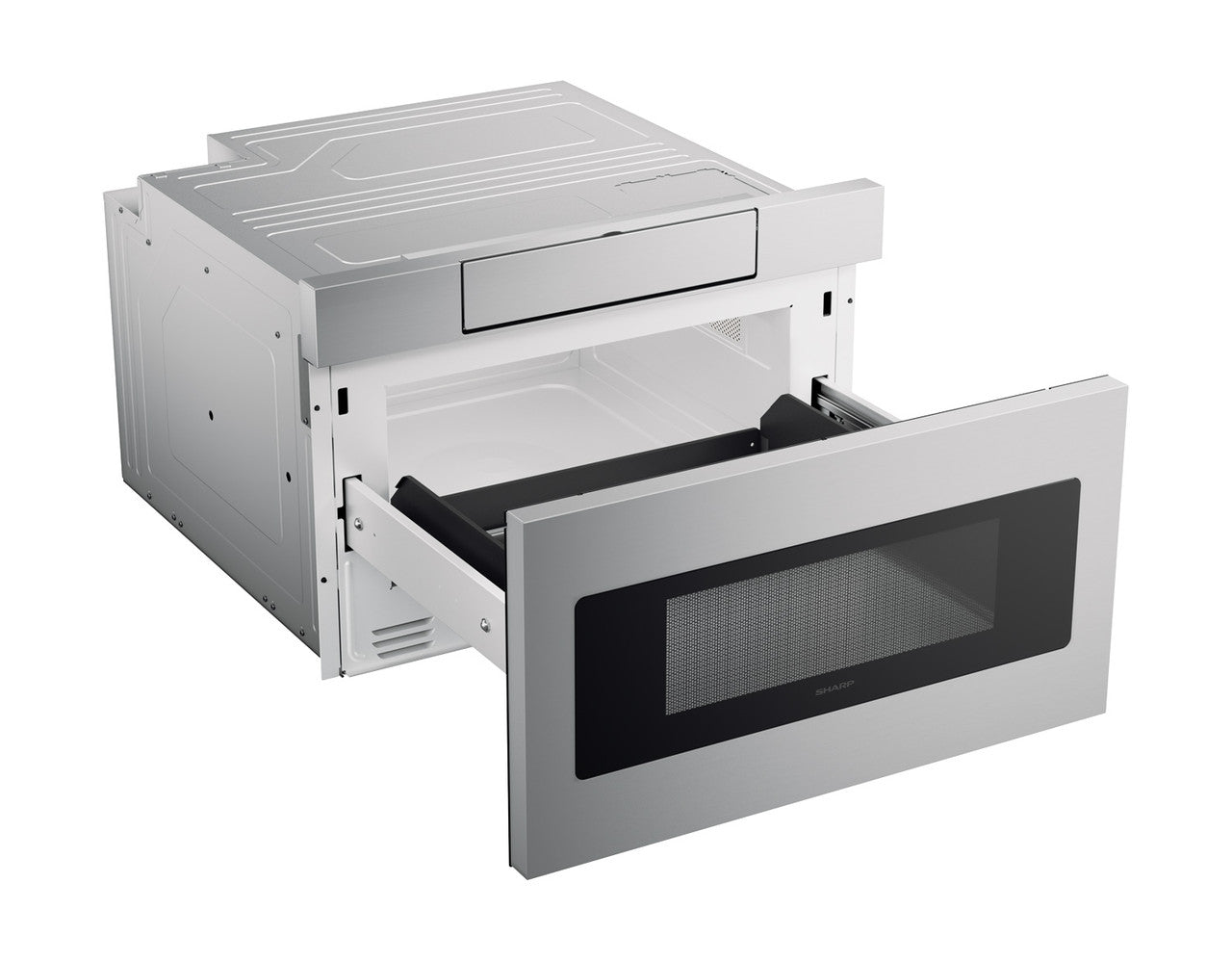

Easy Touch Automatic Drawer System

Sharp’s exclusive Easy Touch Automatic Drawer system eases open with a gentle pull or the touch of a button. Give the Microwave Drawer Oven a small nudge and it smoothly shuts for you. The even, gliding action and solid construction prevents liquids from spilling during opening and closing.
