Sale price $1,599.00 Regular price $1,999.97 Save $400.97 / 20% OFF

Product Details for SHARP SMD2470AH

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights and dimensions

Cutout Dimensions (with handle) (inches) 22 1/8” x 15 9/16” x 23 1/2”
Dimensions (with handle) (inches) 23-3/4" x 15-3/4" x 23"
Shipping Dimensions (inches) 27-11/16" x 21-1/2" x 29-1/16"
Shipping Weight (lbs.) 86
Product Weight (lbs.) 74

Features

Microwave Drawer Oven opening system Easy Open
Front-mounted touch controls Yes, angled for easy viewing
Digital LCD Display Yes
Interior Oven Light Yes
Built-in Ready Yes, this Microwave Drawer Oven can be installed below any electric or gas wall oven
Wattage 950
Color Black Stainless Steel
Kitchen timer Yes
Control lock Yes
Microwave Keep Warm Yes, up to 30 minutes
Demonstration mode Yes
Sensor Cook®, Reheat, Popcorn 12 Settings
Demonstration mode 1.2 cu. ft. capacity (holds 9" x 13" dish)Internal capacity is calculated by measuring maximum width, depth, and height. Actual capacity for holding food is less.
Preprogrammed Reheat 2 Settings
Automatic Defrost 6 Settings
Clock Yes

Additional specifications

Power Connection 3-Prong Grounding Plug (included)
Safety Compliance FCC, DHHS, UL listed
Power Ratings 120V, 60Hz / 1.67kW, 14.5 Amps

Warranty / upc

Parts 1 year limited
Labor 1 year limited
Magnetron Tube Additional 4 years (part only)
UPC 074000620001

Dimensions & weight

Width 23.75 in.
Height 74 in.
Length 23 in.
Cutout Dimensions (with handle) (inches) 22 1/8” x 15 9/16” x 23 1/2”
Shipping Dimensions (inches) 27-11/16" x 21-1/2" x 29-1/16"
Shipping Weight (lbs.) 86
Product Weight (lbs.) 74

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 27.69 in.
Shipping Height 21.5 in.
Shipping Length 29.06 in.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 23.39 ft³
Dimensional Weight 290.81 lbs.
Total of Cubes 23.39 ft³
Total of Dimensional Weight 290.81 lbs.

Description

Sharp's Black Stainless Steel Microwave Drawer's rich, elegant finish is an absolute show-stopper for your dream kitchen. As a complimentary appliance in a black stainless kitchen, or a stunning design statement in any kitchen, the Sharp Black Stainless Microwave Drawer (SMD2470AH) allows you to showcase your design savvy and create a premium kitchen that flows with your lifestyle. The 24-inch Black Stainless Steel Microwave Drawer offers flexible placement options so you can focus on the design elements you prefer by maximizing sight-lines and enabling more design versatility than typical built-in, over-the-range or countertop microwaves. The Microwave Drawer can be placed below an island, peninsula, or standard cabinetry, and can also be installed adjacent to your wall oven.The SMD2470AH Black Microwave Drawer allows you to choose a location that works for your lifestyle. Cooking is easier and faster when the Sharp Microwave Drawer Oven is installed adjacent to your food preparation area: in islands, peninsulas or under the counter.The Sharp Black Stainless Steel Microwave Drawer has been designed to complement the widest range of kitchen styles and appliances. The sleek, low-profile design and a stainless-steel finish beautifully complement any kitchen.Our Black Microwave Drawer boasts an easy-to-read display that disappears until you need it. The concealed control panel opens at a 45-degree angle, so it's easy to read and operate.Browse our full range of Sharp microwave drawers to find the right model for your home.


Product Features

  • Contemporary Black Stainless Steel Finish is Built to Match But Designed to Stand Out
  • Concealed Control Panel Opens to an Easy-to-Read and Operate 45° Angle

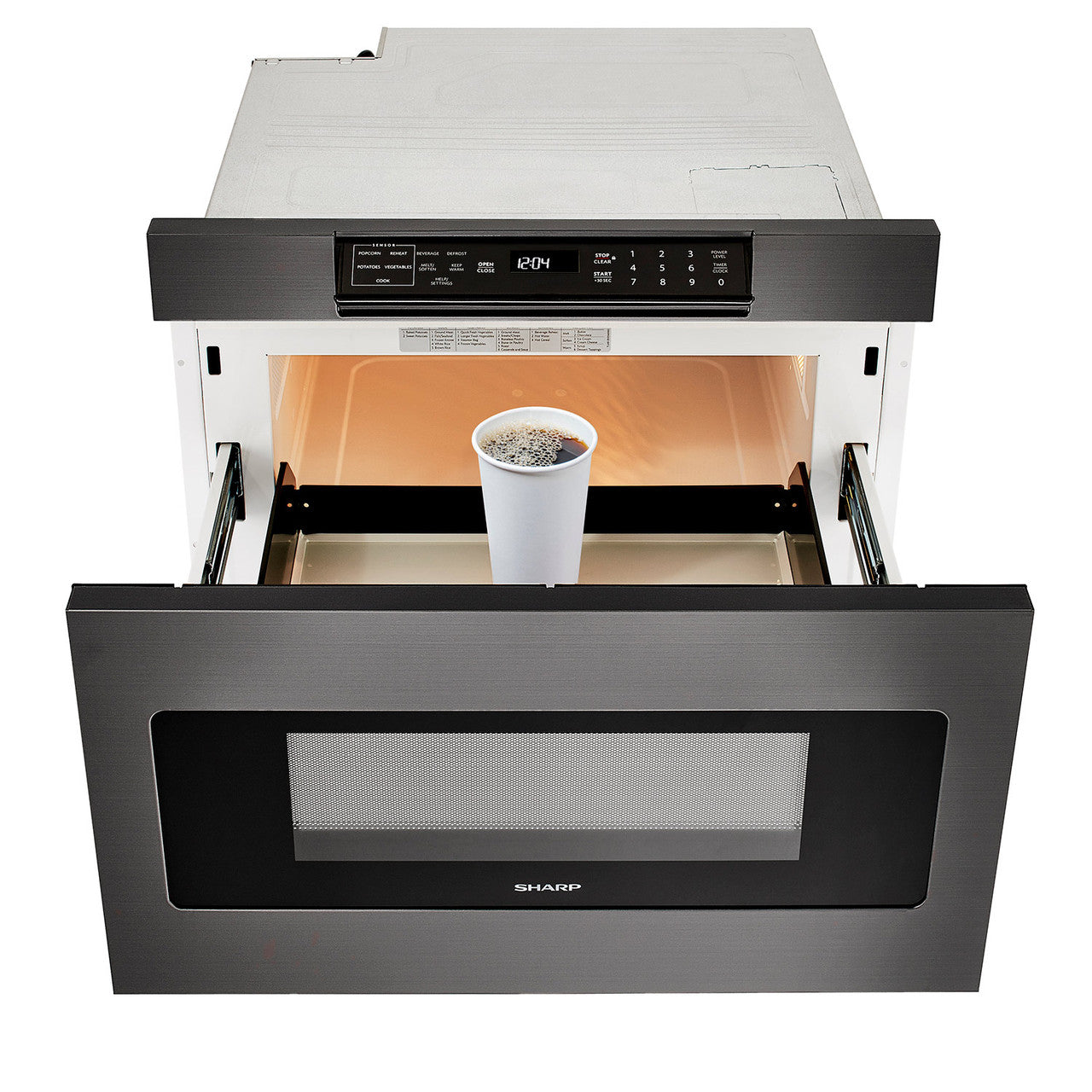

  • Cooking Space Large Enough for a 4 qt Casserole Dish or a 20 oz Beverage
  • Cooking Performance from One of the Most Trusted Brands in Microwaves
  • Automatic Drawer System Smoothly Opens and Enables Hands-Free Close

Key Features

Designed for Your Dream Kitchen

Sharp's Microwave Drawer Oven allows you to focus on your kitchen's design and workflow by offering flexible installation options in an island, peninsula, or below your wall oven

Easy to Use

Automatic Drawer System, Easier cooking and cleanup

Compliments Your Style

Low-profile design, Hidden controls, Black Stainless-steel finish

Design Flexibility

Install below an island, peninsula or standard cabinetry or below a wall oven.

Capacity

Fits 4 qt. casserole dish, Tall enough for a 20-oz. tall coffee cup, 1.2 cubic feet; 950 watts

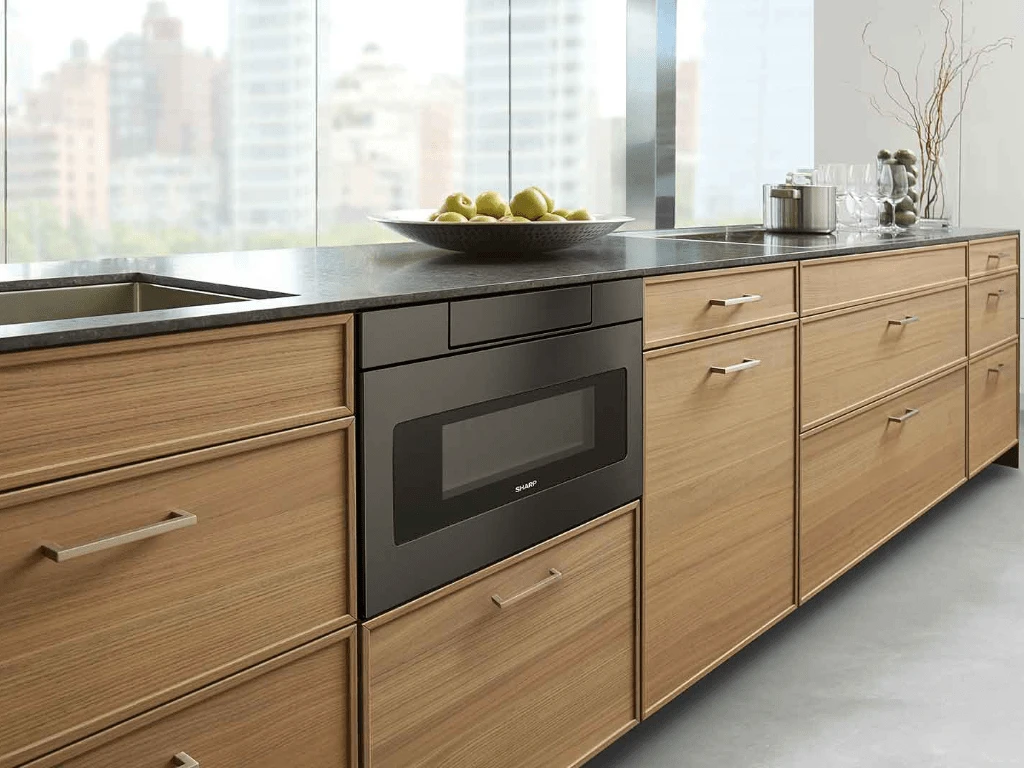

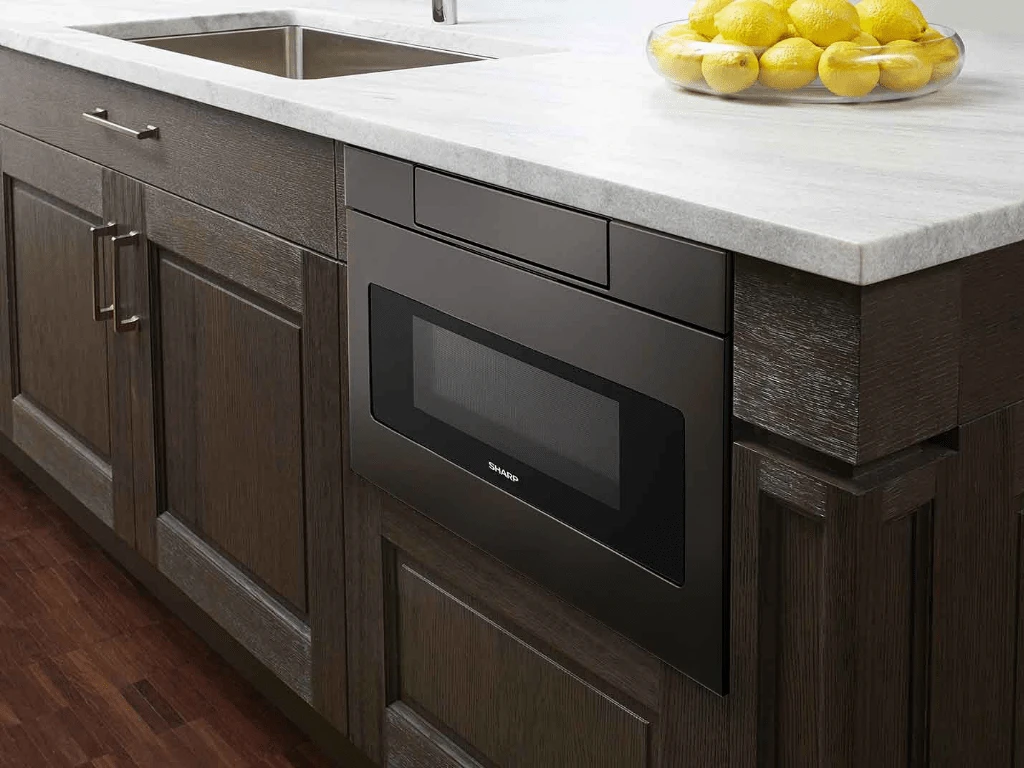

Convenient Placement Options

The SMD2470AH Microwave Drawer Oven allows you to chose a location that works for your lifestyle. Cooking is easier and faster when the Sharp Microwave Drawer Oven is installed adjacent to your food preparation area: in islands, peninsulas or under the counter.

Easier Cooking and Cleanup

The Sharp Microwave Drawer Oven makes cooking and cleaning easier by putting the microwave at an accessible height. Easily lift hot foods from the Microwave Drawer Oven. Stir dishes without removing them. And low sides and a virtual Carousel make cleaning a breeze.

Designed for your Dream Kitchen

The Sharp Black Stainless Steel Microwave Drawer Oven has been designed to complement the widest range of kitchen styles and appliances. The sleek, low-profile design and a stainless steel finish beautifully complement any kitchen.

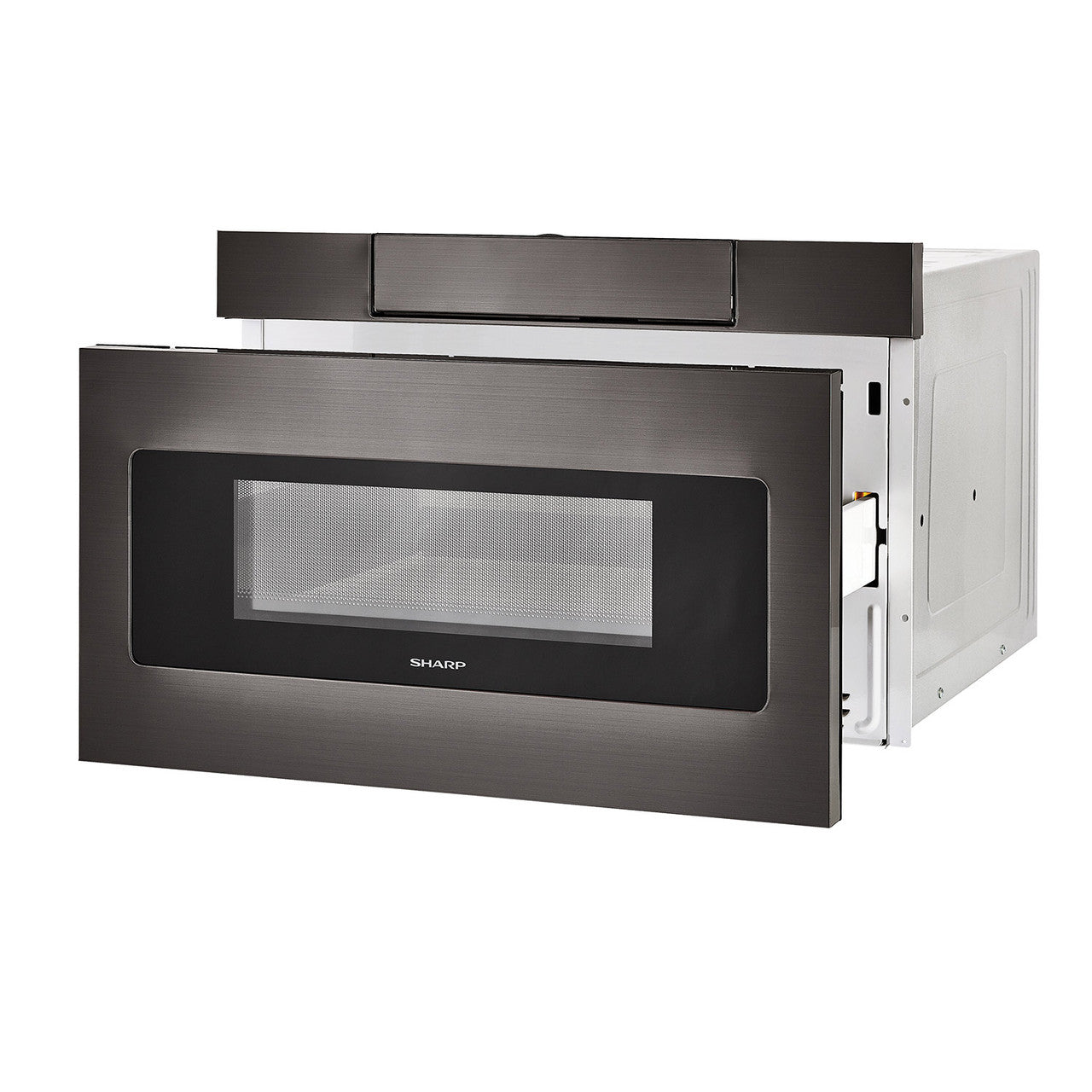

Automatic Drawer System

Sharp’s exclusive Automatic Drawer system eases open with a gentle pull or the touch of a button. Give the Microwave Drawer Oven a small nudge and it smoothly shuts for you. The even, gliding action and solid construction prevents liquids from spilling during opening and closing.
