| Parts | 1 Year |
| Labor | 1 Year |
| Overall Width | 23.875 in |
| Overall Depth | 23.3125 in |
| Overall Height | 15.9375 in |
| Cabinet Width | 24 in |
| Exterior Height (Rear) | 14.59375 in |
| Exterior Height (Front) | 15.9375 in |
| Cavity (W x H x D) | 17-1/4 x 7-1/8 x 17-1/2 |
| Open Drawer Clearance | 15.1” (38.4 cm) |
| Approximate Shipping Weight | 90 |
| Net Weight | 81 |
| Display Type | LCD |
| Electronic Digital Display with Clock | Yes (LED) |
| Display Screen Size (Diagonal Length) | 2.32 |
| Product Type | Built-In Microwave |
| Power Levels | 10 |
| Cooking Technology | Microwave |
| Control Features | Defrost,Melt/Soften,Sensor Cook,Sensor Reheat,Timer,Beverage,Popcorn,Add 30 Seconds,Express Cook,Mute On/Off,Power Level,Cook Time,Start/Pause,Open/ Close,Lock Controls |
| Control Type | Glass Touch,LCD |
| Microwave Sensor Cooking Controls | Popcorn,Cook,Reheat |
| Microwave Watts (IEC-705) | 1,000 W |
| Short Description | 24 Built-In Drawer Microwave |
| Voltage (MAX) | 120 V |
| Electrical Requirements | 120V; 60Hz |
| Watts | 1500 |
| Hertz | 60 |
| Case Color | Gray |
| Door Color | Stainless Steel |
| Color Appearance | Stainless Steel |
| Installation | Flush Appearance,Built-In |
| Labor Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 2-year entire appliance,Limited 5-year magnetron tube (parts only) |
| Open Drawer Clearance | 15.1" (38.4 cm) |
| Cavity (W x H x D) | 17-1/4 x 7-1/8 x 17-1/2 |
| Width | 23.88 in. |
| Height | 15.94 in. |
| Length | 23.31 in. |
| Weight | 81 lbs. |
| Number of Boxes | 1 |
| Shipping Width | 28.88 in. |
| Shipping Height | 20.94 in. |
| Shipping Length | 28.31 in. |
| Shipping Weight | 121 lbs. |
| Total of Shipping Weight | 121 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 5.13 ft³ |
| Dimensional Weight | 63.82 lbs. |
| Total of Cubes | 5.13 ft³ |
| Total of Dimensional Weight | 63.82 lbs. |
| Total Capacity (cubic feet) | 1.20 cu ft |
Offers a look of modern refinement that blends beautifully with both Statement and Minimalist Collections

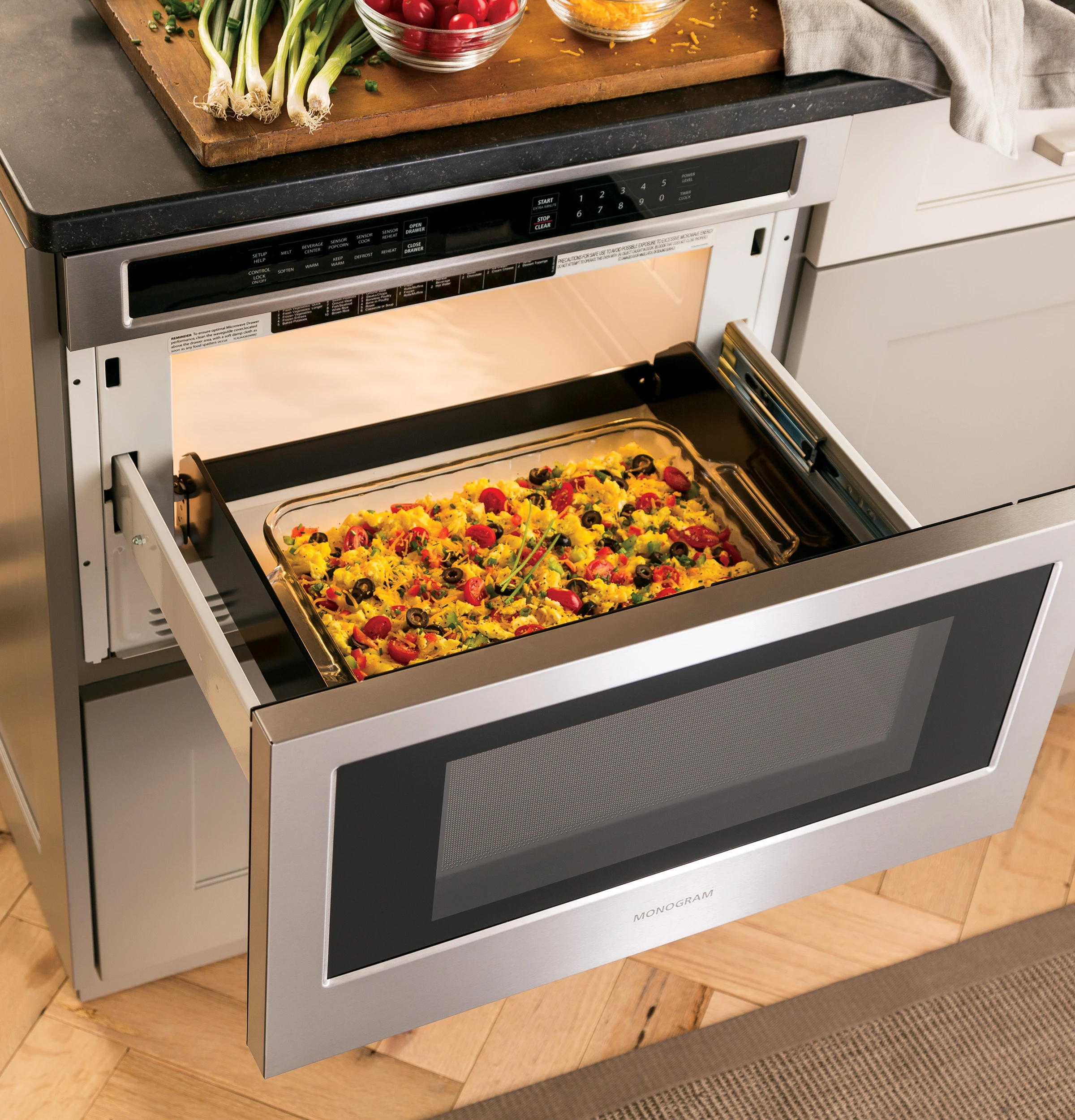

Accommodates large plates and cookware with ease

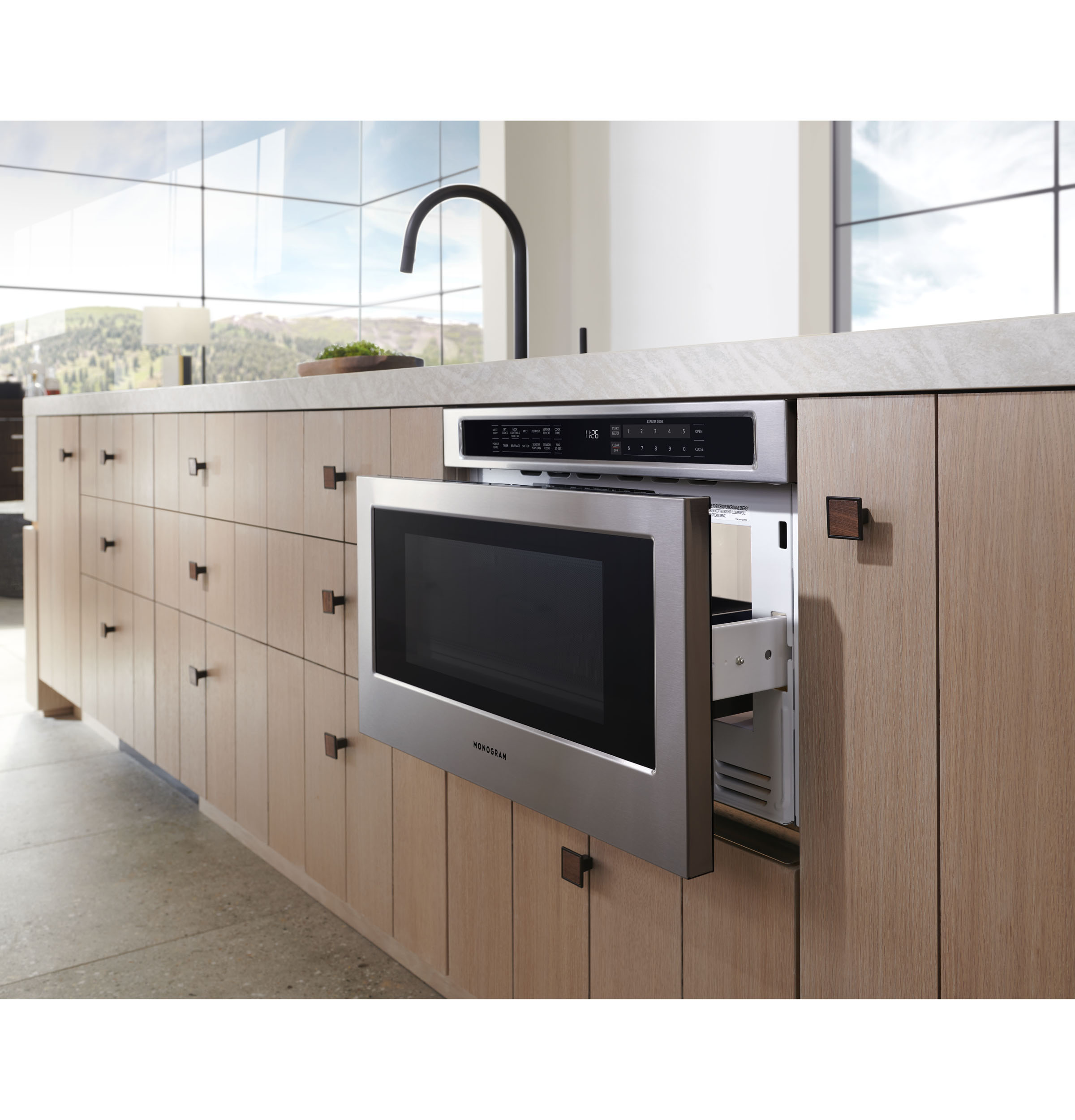

Enables the drawer to be installed flush with cabinetry without any additional parts

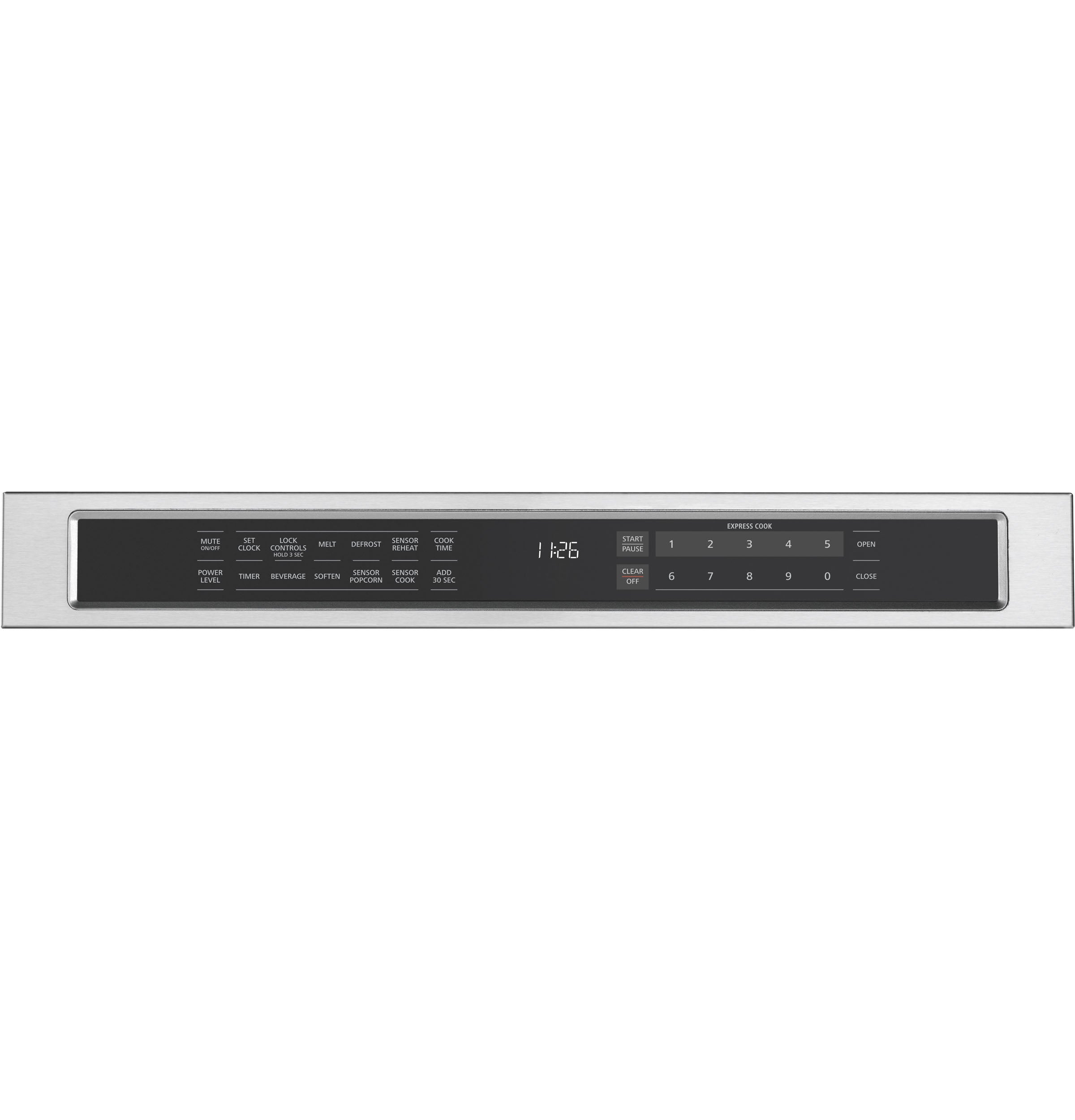

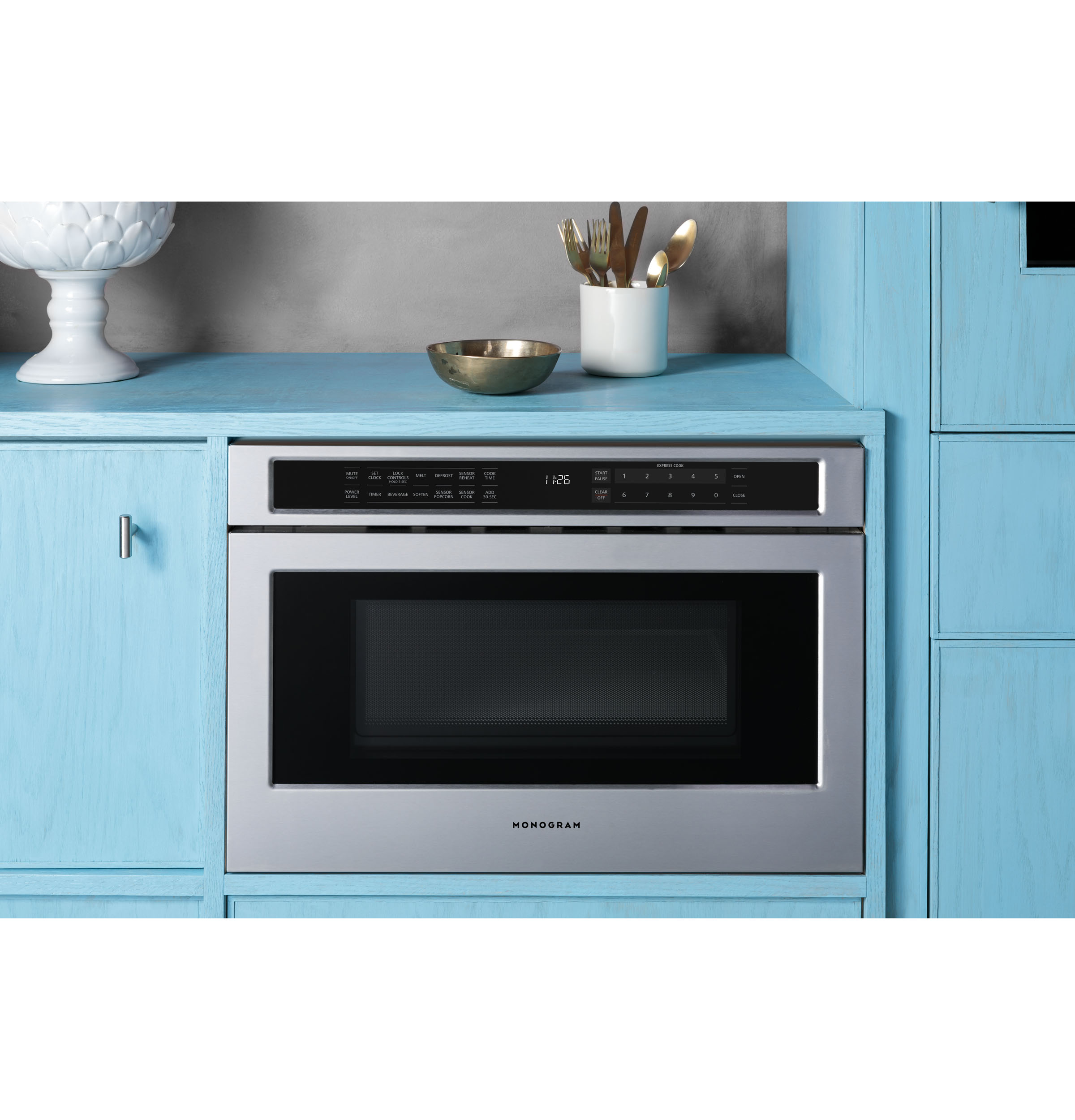

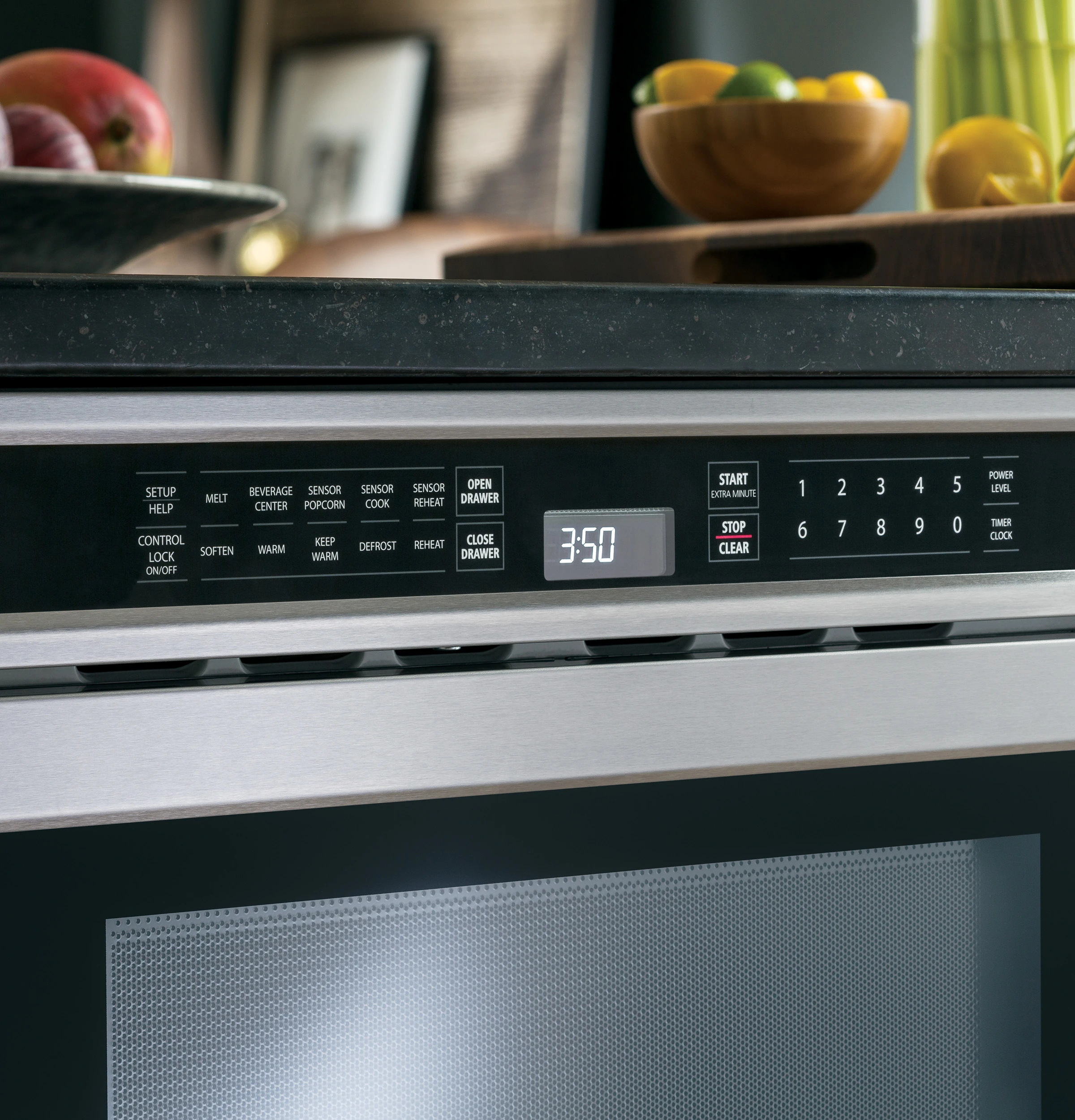

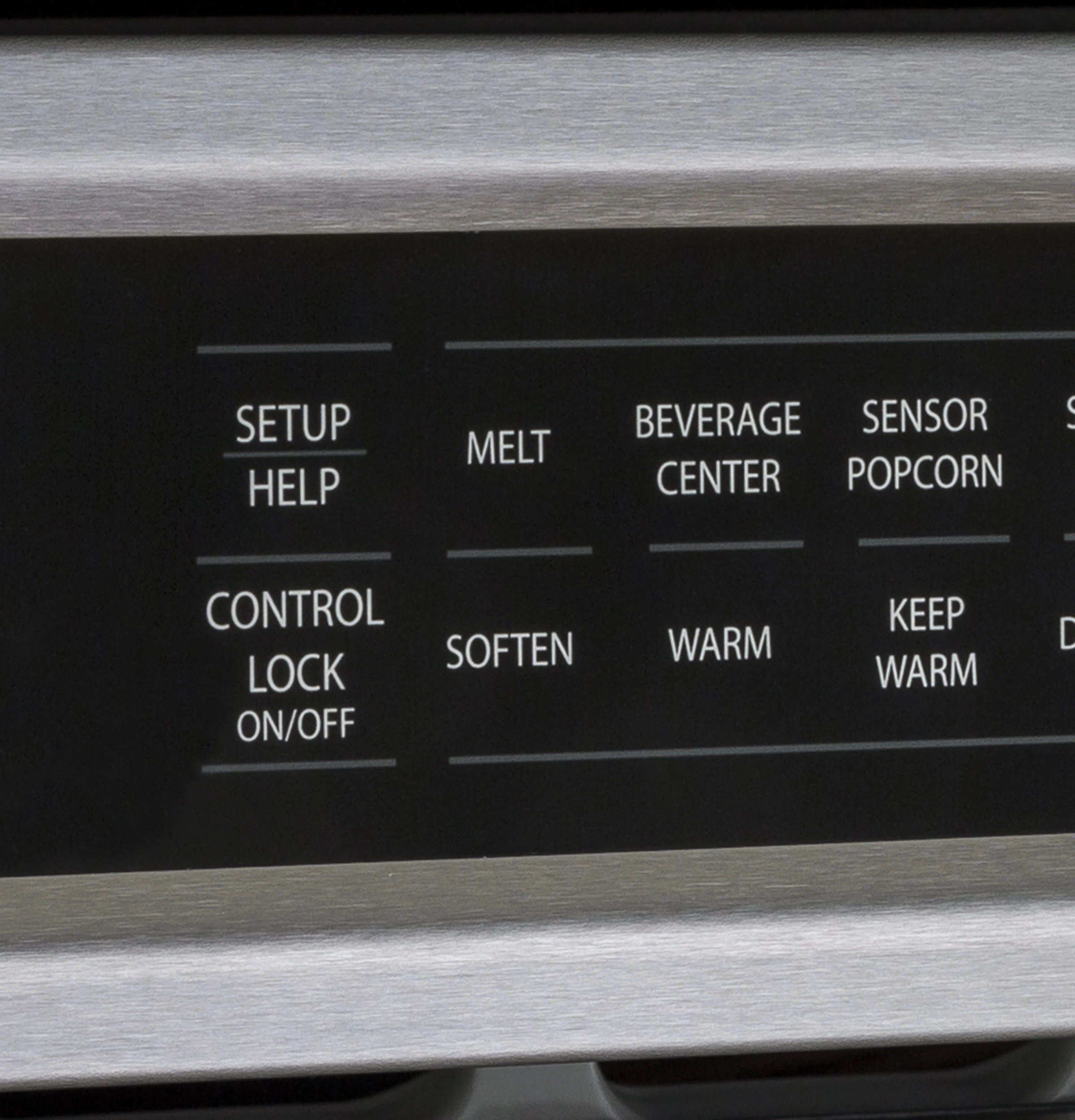

Makes it easy to adjust settings and adds to the drawer’s sleek, streamlined appearance
Provide cooking convenience and flexibility
Automatically adjusts time and power settings for optimal results
Prevents unwanted use for extra peace of mind

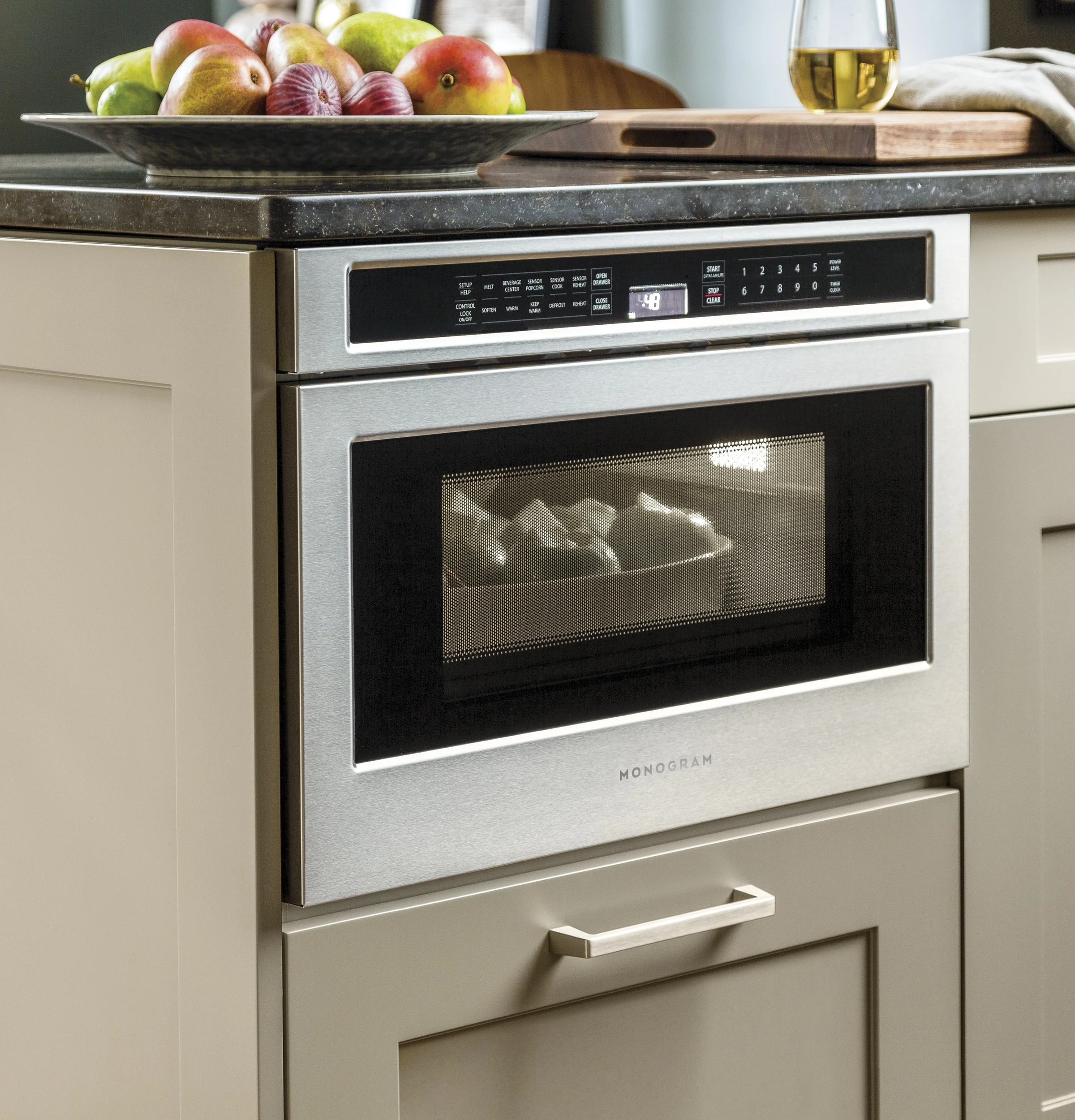

Allows the drawer to fit unobtrusively under a standard 24-in.-width cabinet

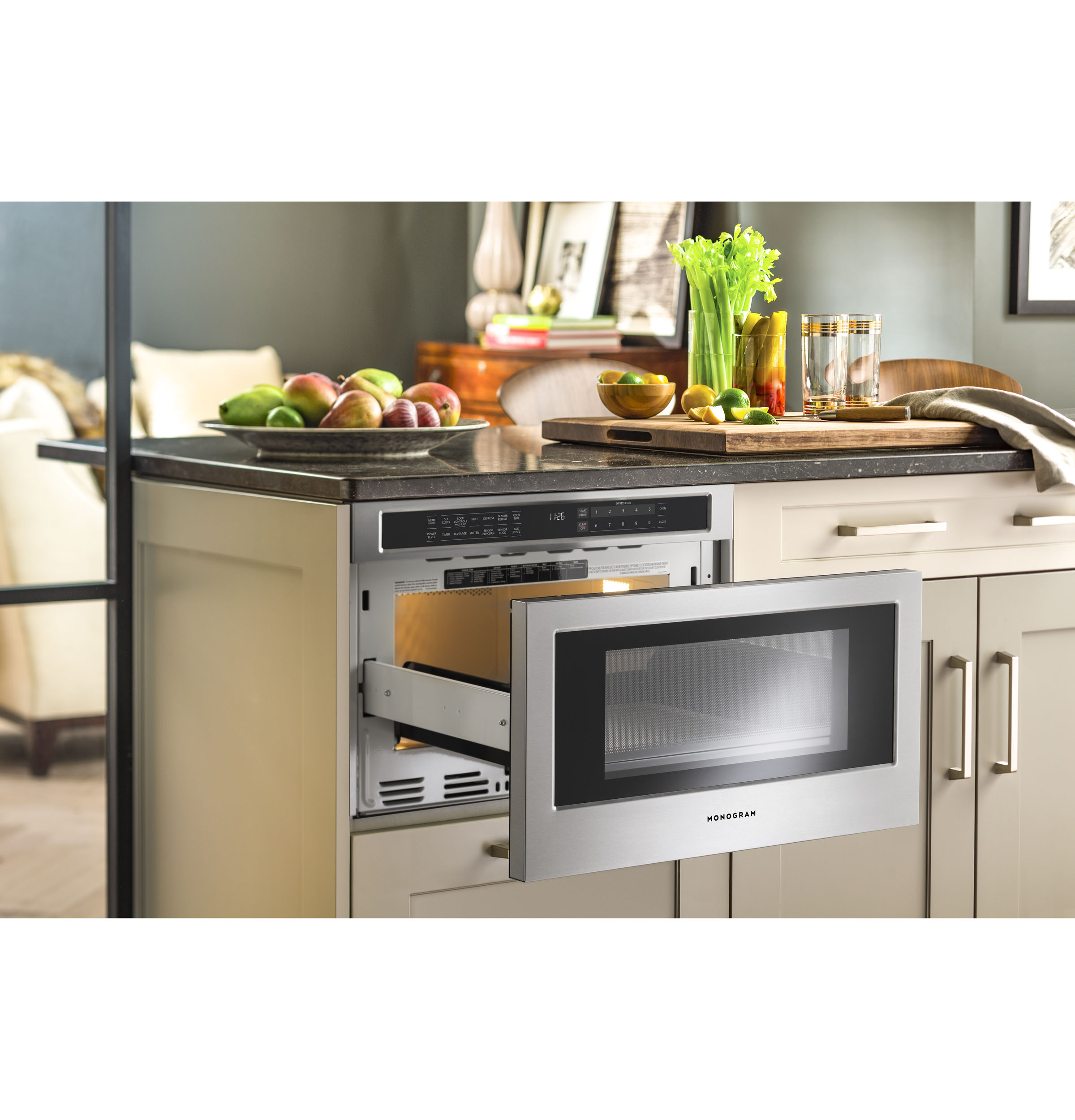

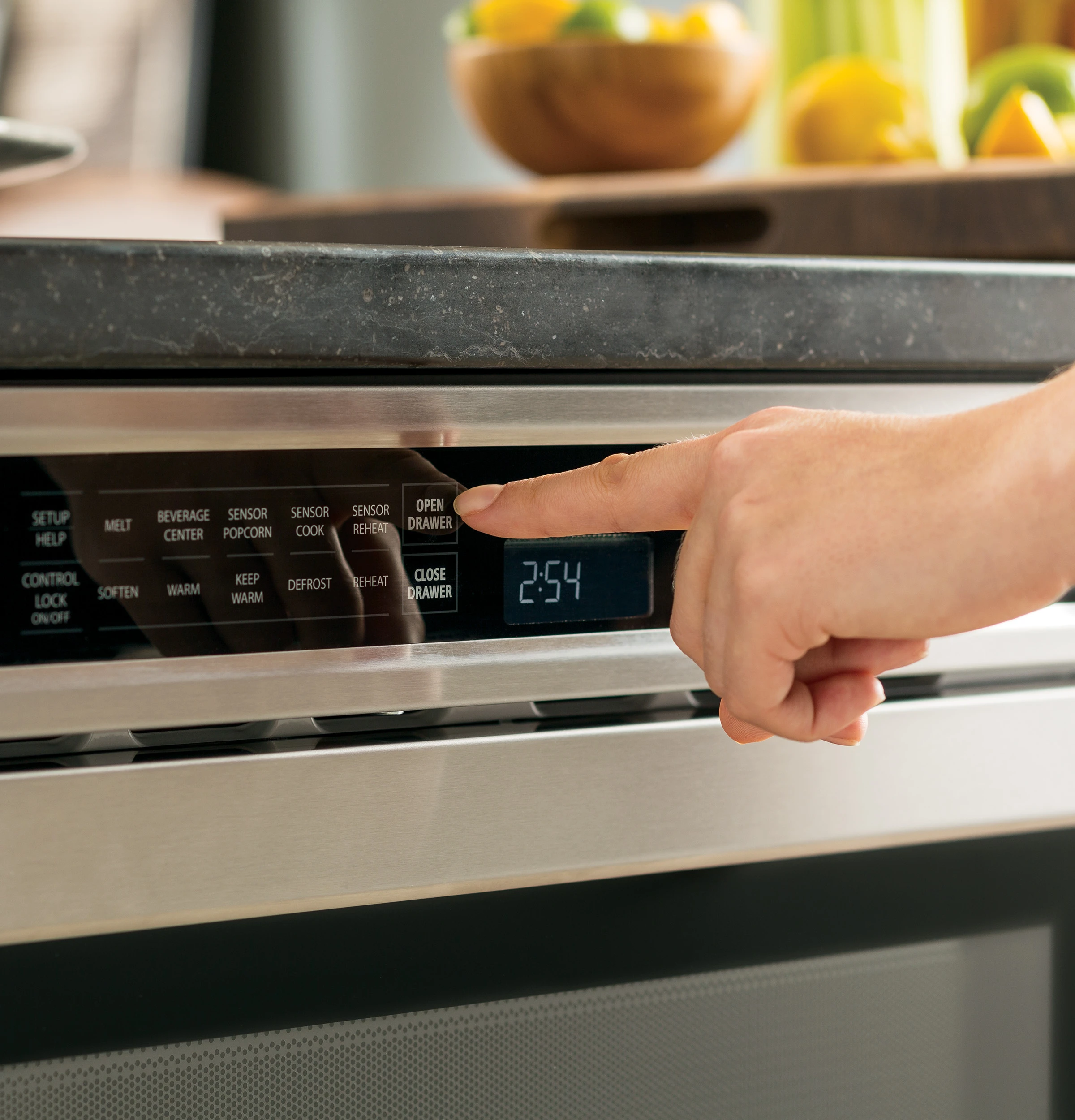

Allow you to open and close the drawer with the push of a button or by gently pulling or pushing the recessed handle
