| Parts | 2 Year |
| Labor | 2 Year |
| Overall Height | 7.875 in |
| Overall Width | 36 in |
| Overall Depth | 21 in |
| Cabinet Width | 36 in |
| Cutout Width (in) | 33.875 |
| Cutout Depth (in) | 19.125 |
| Approximate Shipping Weight | 65 |
| Net Weight | 59 |
| WiFi Connect | Built-In |
| Cooktop Burner Type | 5 Sealed |
| Valves (Degree of Turn) | 270 |
| Burner - Right Rear | 10,000 BTU Dual Brass Center |
| Burner - Right Front | 12,000 BTU Dual Brass Center |
| Control Location | Front Center |
| Ignition System | Direct Electronic Ignition |
| Burner - Center | 20,000 BTU Tri-ring (Brass Cap) |
| Cooktop Surface | Stainless Steel |
| Extra Low Simmer | 5 |
| Burner - Left Rear | 10,000 BTU Dual Brass Center |
| Burner Indicator Light | Yes - in Knob |
| Automatic Re-Ignition | Yes |
| Control Type | Glass Touch Controls |
| Cooktop Burner Grate Material | Cast-Iron; Porcelainized |
| Cooktop Burner Grate Features | Continuous Grates |

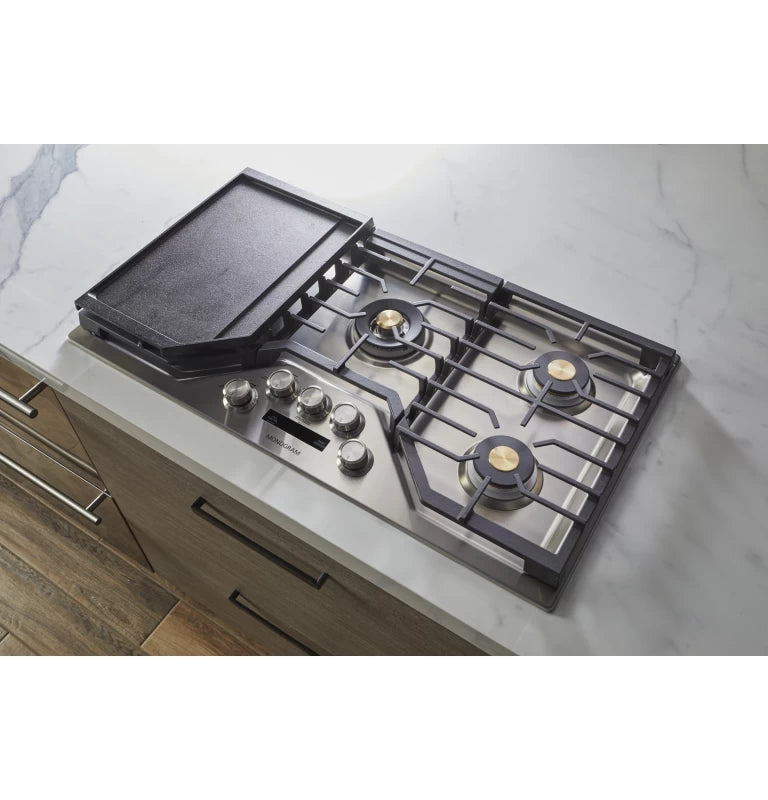

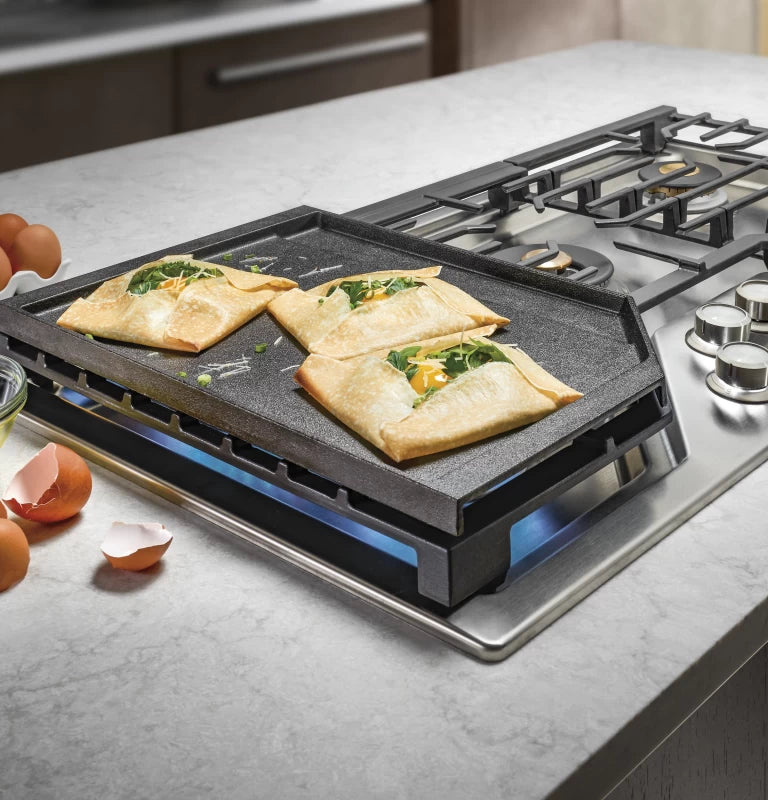

| Griddle | JXGRIDL236 (Included) |
| 140 Deg. Simmer Burner | 5 |

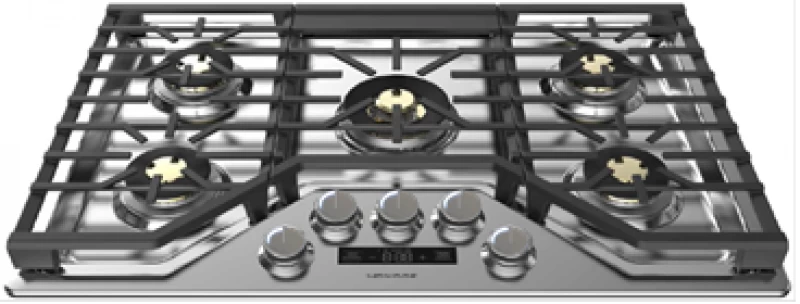

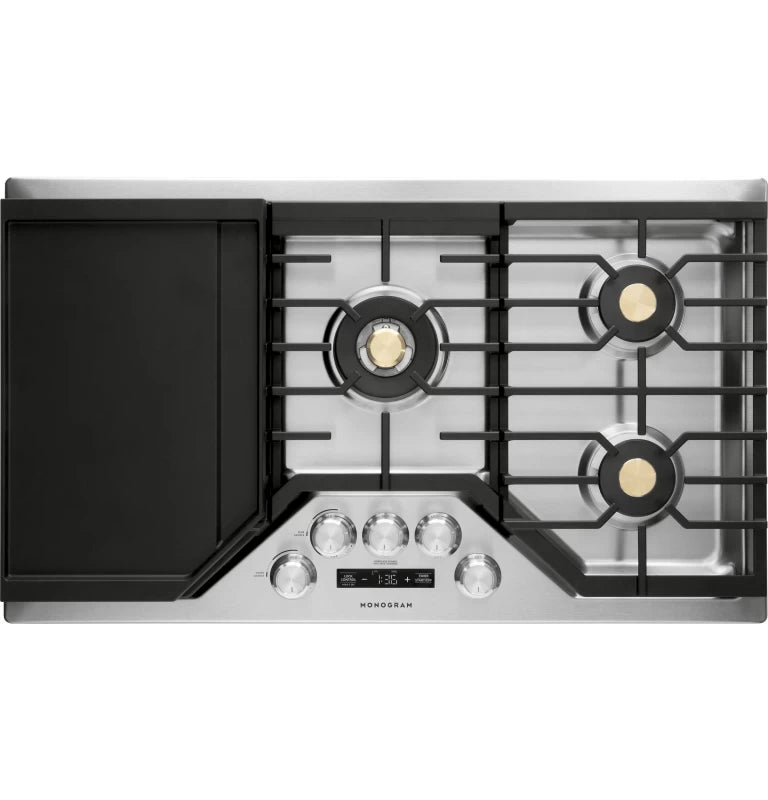

| Configuration | 5 Sealed Cooktop Burners |
| Burner - Left Front | 10,000 BTU Dual Brass Center |
| Product Type | Cooktop |
| Dual Flame Stacked Burners | 5 |
| Fuel Type | All-Gas (Natural Gas) |
| Cooking Technology | Natural Gas |
| Collection | Statement,Minimalist |
| Connected Capabilities | Amazon Alexa,Google Home |

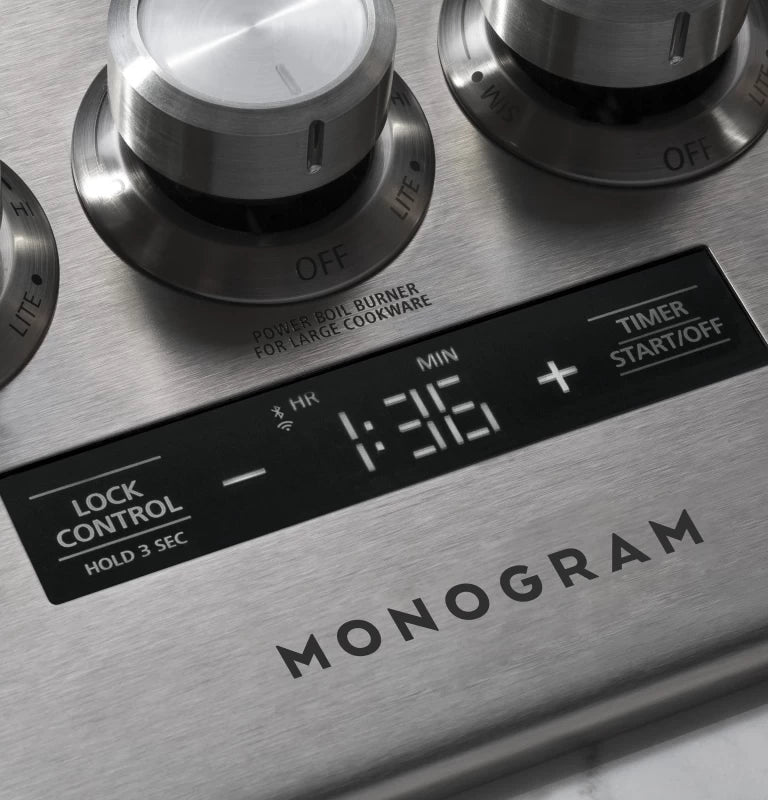

| Cooktop Control Features | Control Lock Capability,Kitchen timer |
| Cooktop Type | 5 Burners,Continuous Grates |
| Parts Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 2-year entire appliance |
| Color Appearance | Stainless Steel |
| Control Knobs | Precision Knobs with Embedded Sapphire Glass |

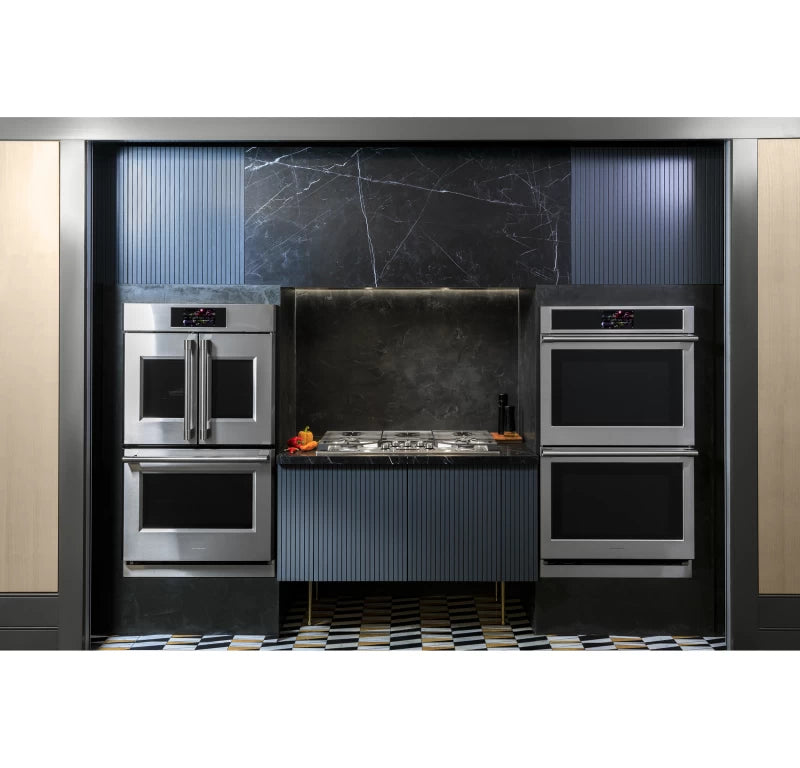

| Installation | Over Single Wall Oven (except Single-Double),Over Warming Drawer,Over Advantium Built-In 120V |
| Conversion Kit | Included - Nat. Gas to LP |
| Cooktop Cleaning | Included |
| Electrical Requirements | 120V; 60Hz; 5.0A |
| Hertz | 60 |
| Width | 36 in. |
| Height | 7.88 in. |
| Length | 21 in. |
| Weight | 59 lbs. |
| Number of Boxes | 1 |
| Shipping Width | 41 in. |
| Shipping Height | 12.88 in. |
| Shipping Length | 26 in. |
| Shipping Weight | 99 lbs. |
| Total of Shipping Weight | 99 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 3.45 ft³ |
| Dimensional Weight | 42.83 lbs. |
| Total of Cubes | 3.45 ft³ |
| Total of Dimensional Weight | 42.83 lbs. |
Delivered by a 20,000 BTU tri-ring burner, total of 62,000 BTUs
Designed to fit the Monogram gas cooktop

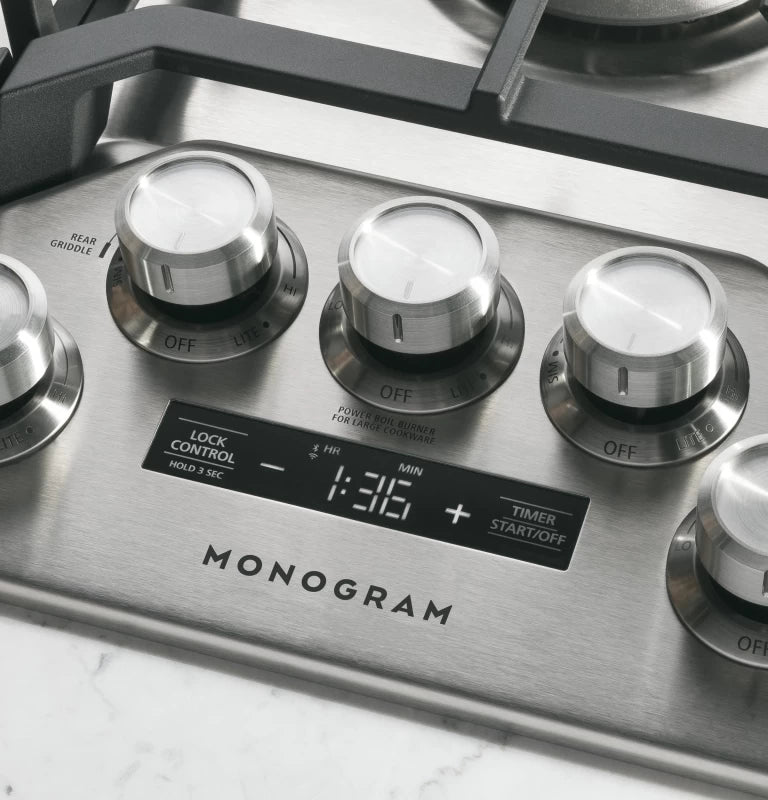

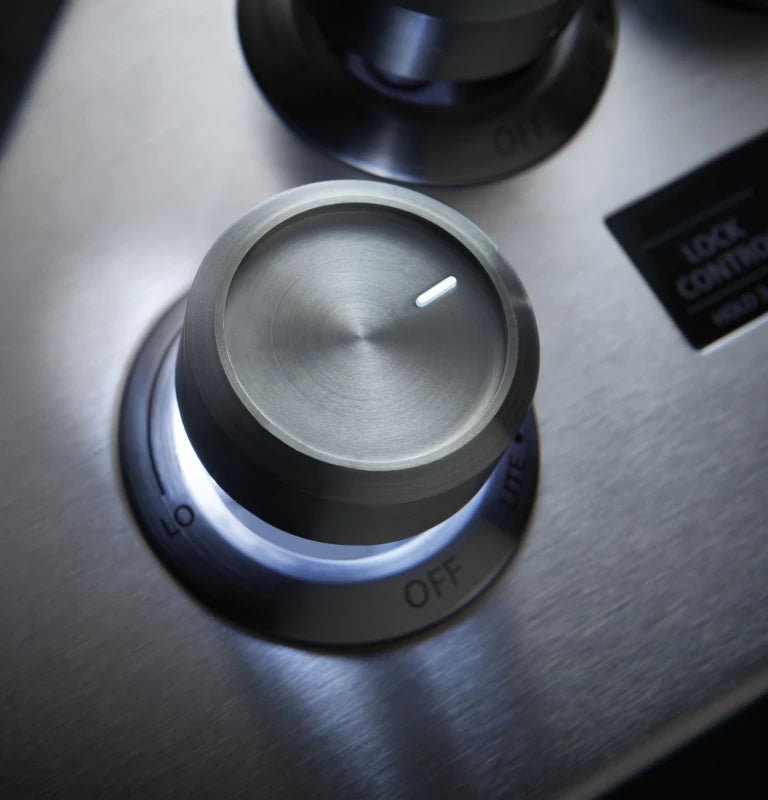

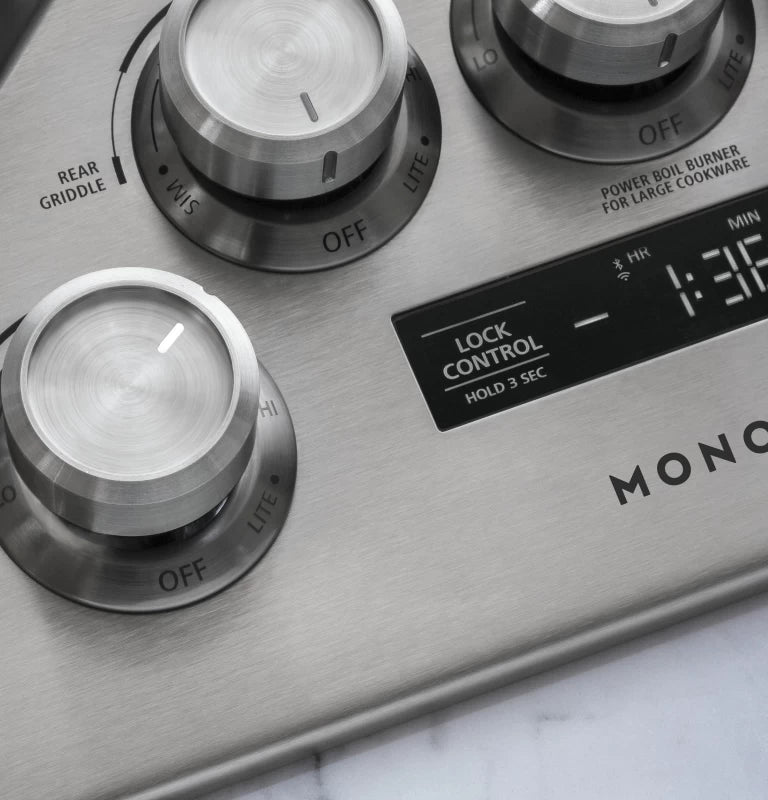

With embedded sapphire glass illuminate each knob making it easy to view and select heat settings
For the ultimate in elegant styling
Built in to the cooktop for meal preparation

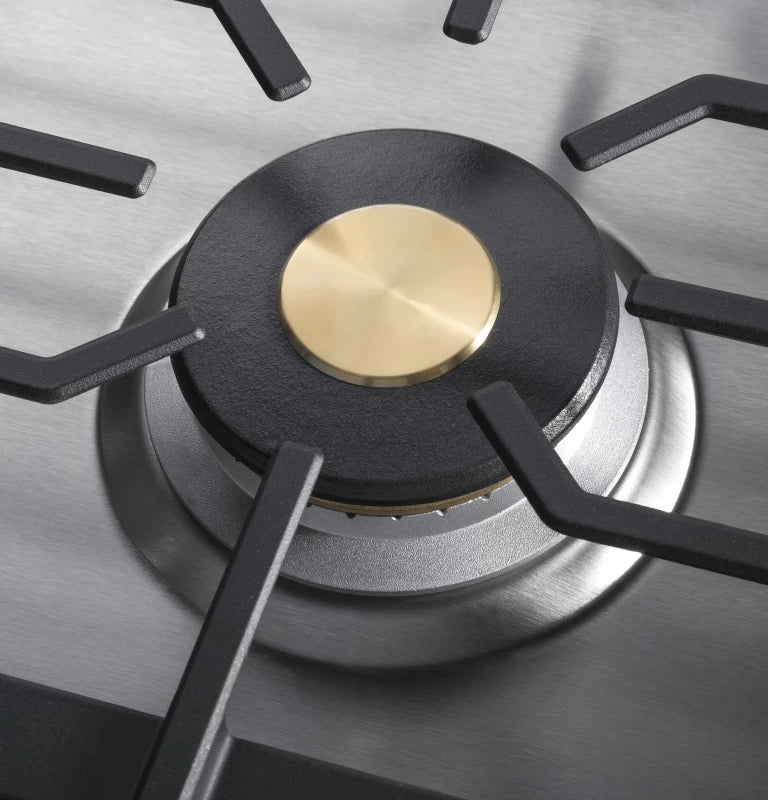

Provide complete 140F simmer-to-rapid-boil flexibility on all burners; the burners are sealed to the cooktop for easy cleaning

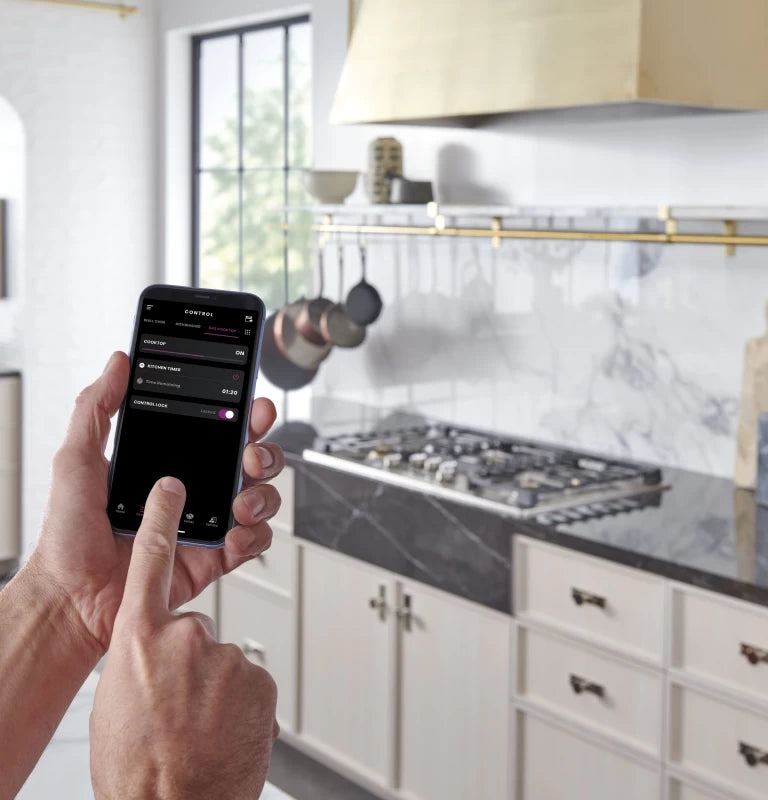

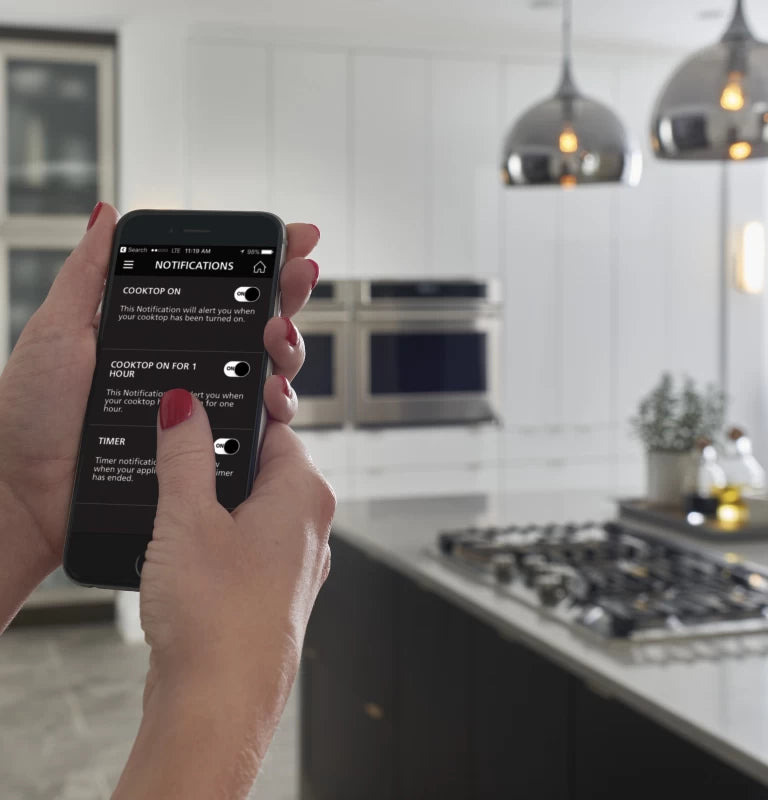

Allows you to wirelessly control gas cooktop functions from your smartphone

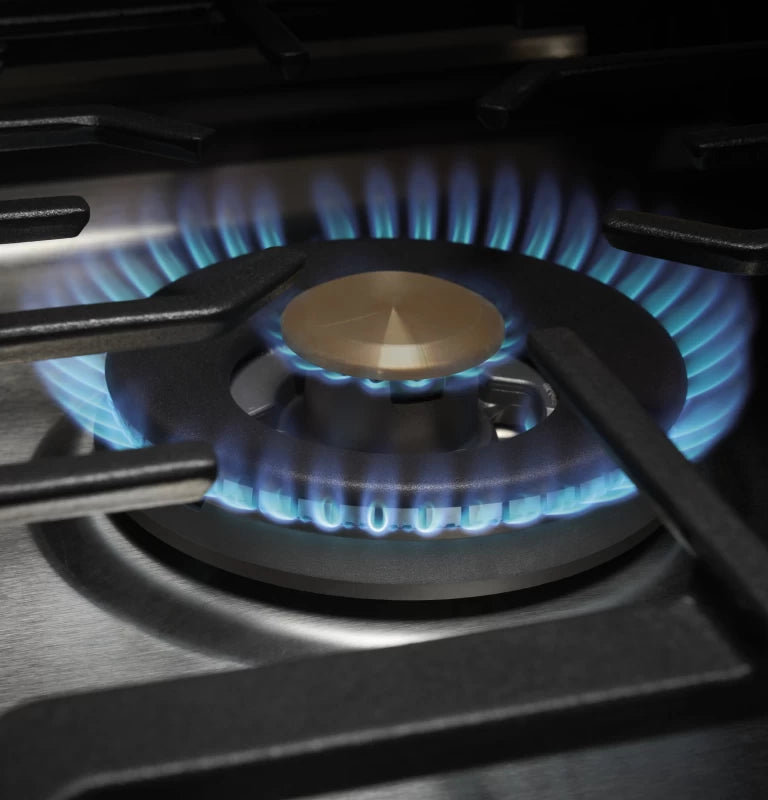

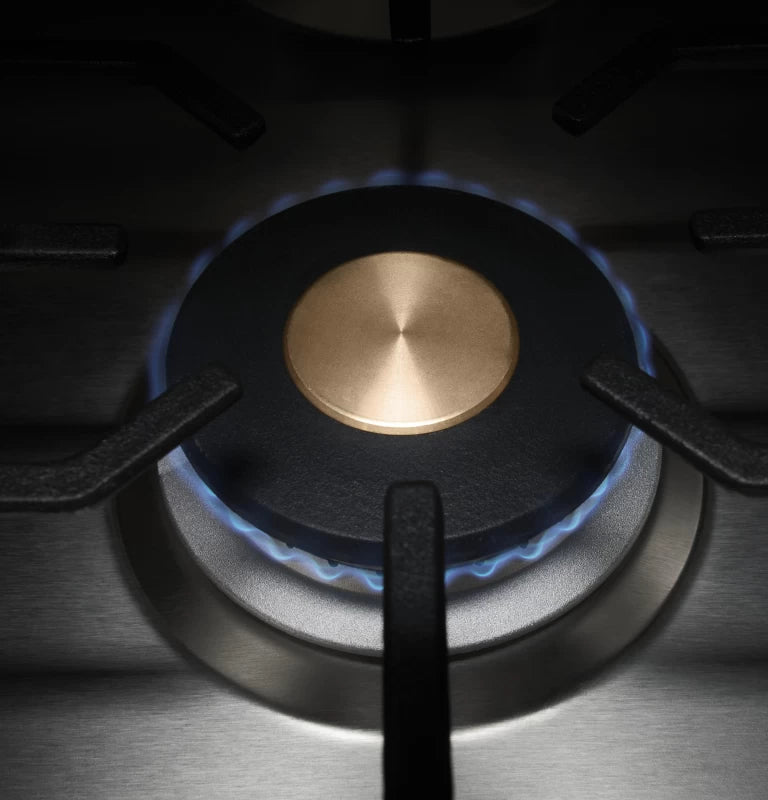

Versatile burner creates 20,000 BTUs of intense heat, perfect for searing, frying and sautéing
