Sale price $11,600.00 Regular price $18,338.97 Save $6,738.97 / 36% OFF

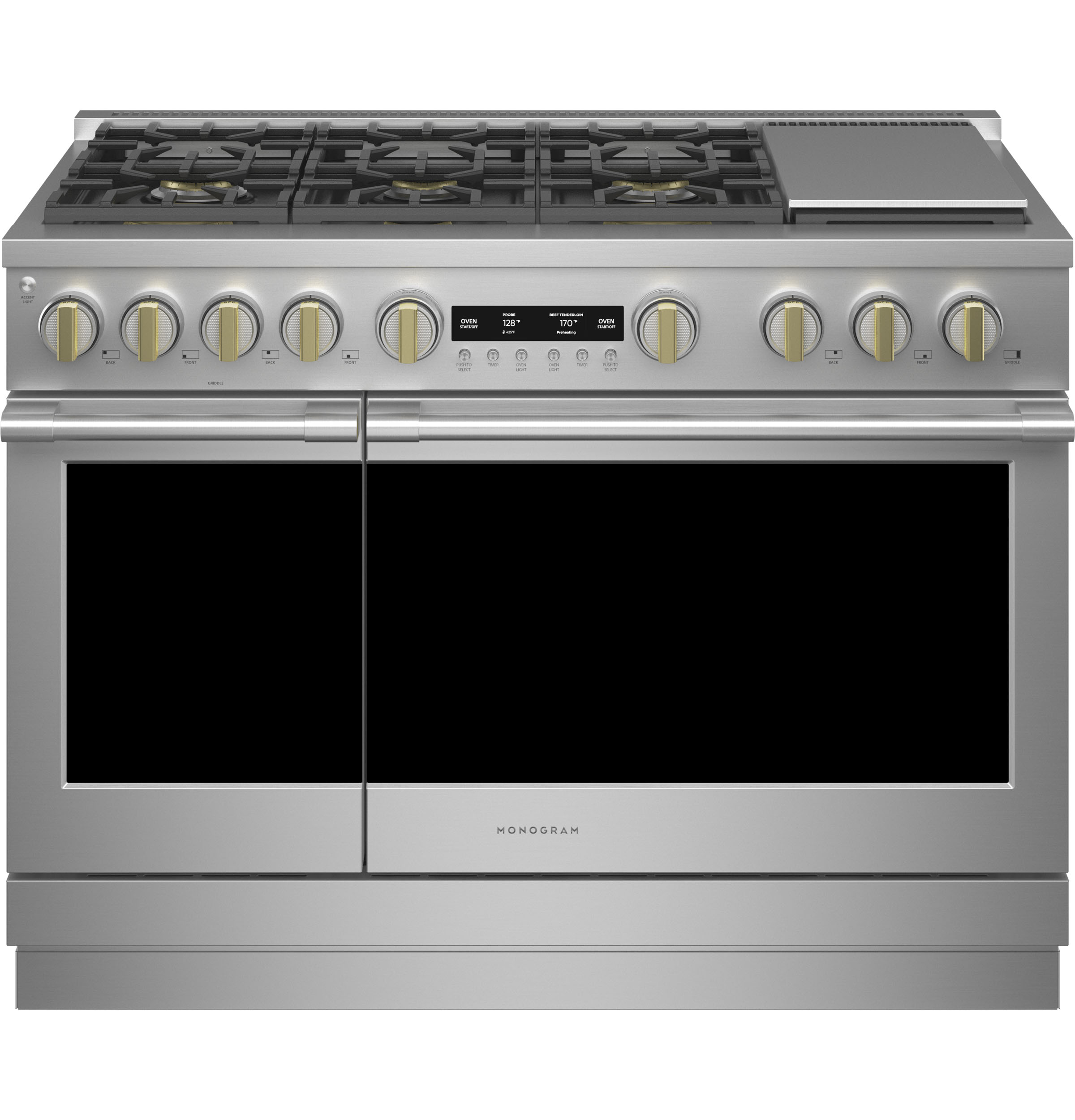

Product Details for MONOGRAM ZGP486NDTSS

Technical Details

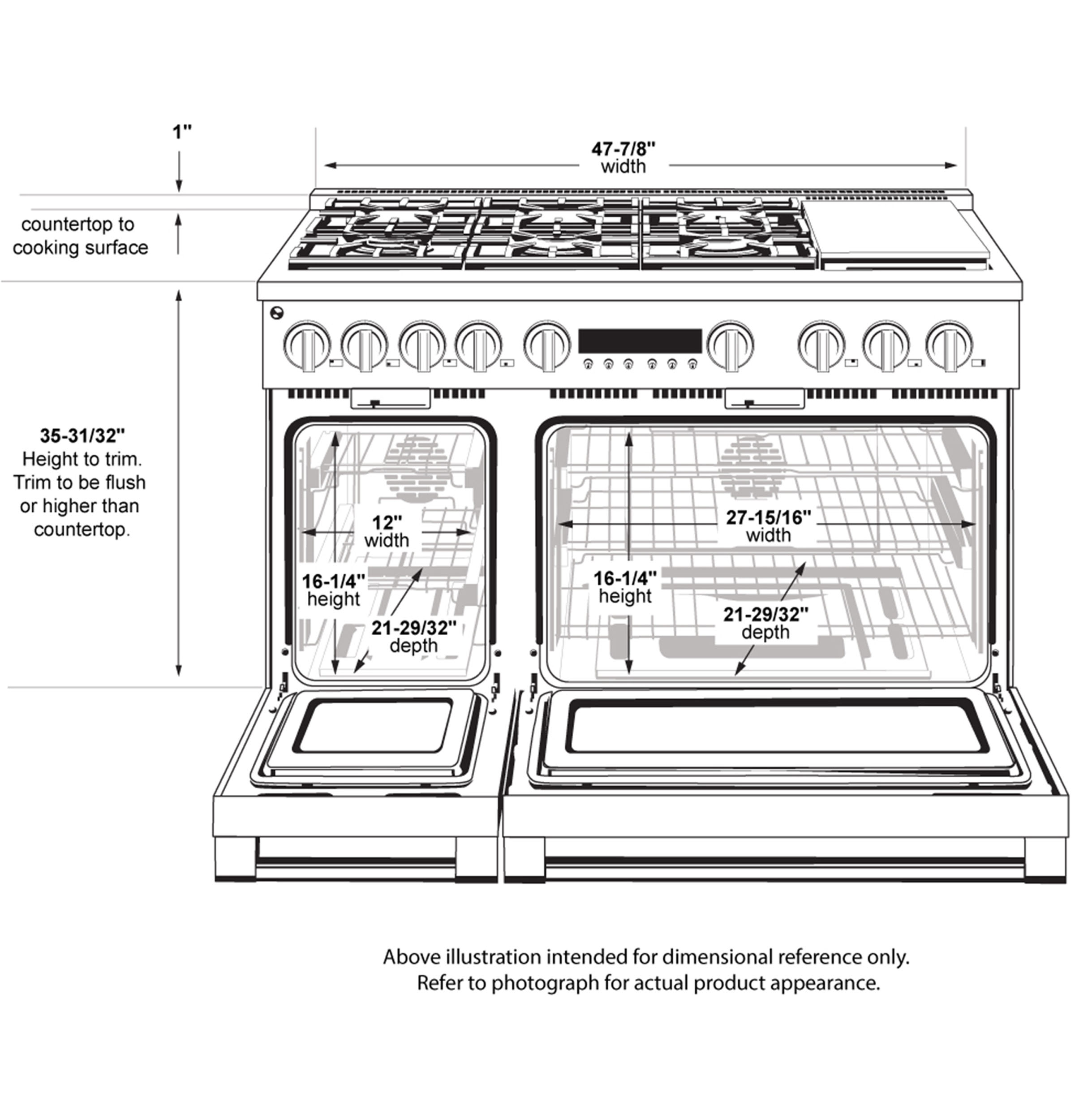

Weights & dimensions

Overall Width 47.875 in
Overall Height 35.25 in
Overall Depth 28.5 in
Cabinet Width 48 in
Interior Dimensions - Main Oven (WxHxD) (in.) 28-1/4 x 16-3/8 x 19
Height w/Legs Extended - Maximum Height 36.75 in
Interior Dimensions - Companion Oven (WxHxD) (in.) 12-1/8 x 16-3/8 x 19
Height to Cooking Surface (in.) 35.25 - 36.75
Height w/ Legs Retracted - Minimum Height 35.25 in
Approximate Shipping Weight 672
Net Weight 576

Features

Cooking System Reverse Air Convection
Ignition System Electronic w/Auto Reignition
Convection Roasting Rack Yes
Broiler Pan and Grid 2
Oven Cleaning Type Steam Clean (Both Ovens)
Removable Drip Tray Liners (1) Beneath Griddle
Product Type Professional Range
140 Deg. Simmer Burner All Burners - Adjustable
WiFi Connect Built-In
Extra Low Simmer All Burners - Adjustable
Control Type Digital Temperature LCD Display (Both Ovens) with Timer Display
Lighting Customizable LED Bullnose and Knob Accent Lighting
Removable Grease Trough (1) Front of Griddle
Cooktop Surface Porcelain-Enamel
Stainless Steel Grill / Griddle Covers 1
Oven Rack Positions (Single or Upper/Lower) 5 / 4
Fuel Type All-Gas (Natural Gas)
Collection Designer,Statement
Connected Capabilities Bluetooth,Amazon Alexa,Fresco,IFTTT,Innit,The Google Assistant,Sonos,Google Home
Cooking Technology Convection,All-Gas (Natural gas)

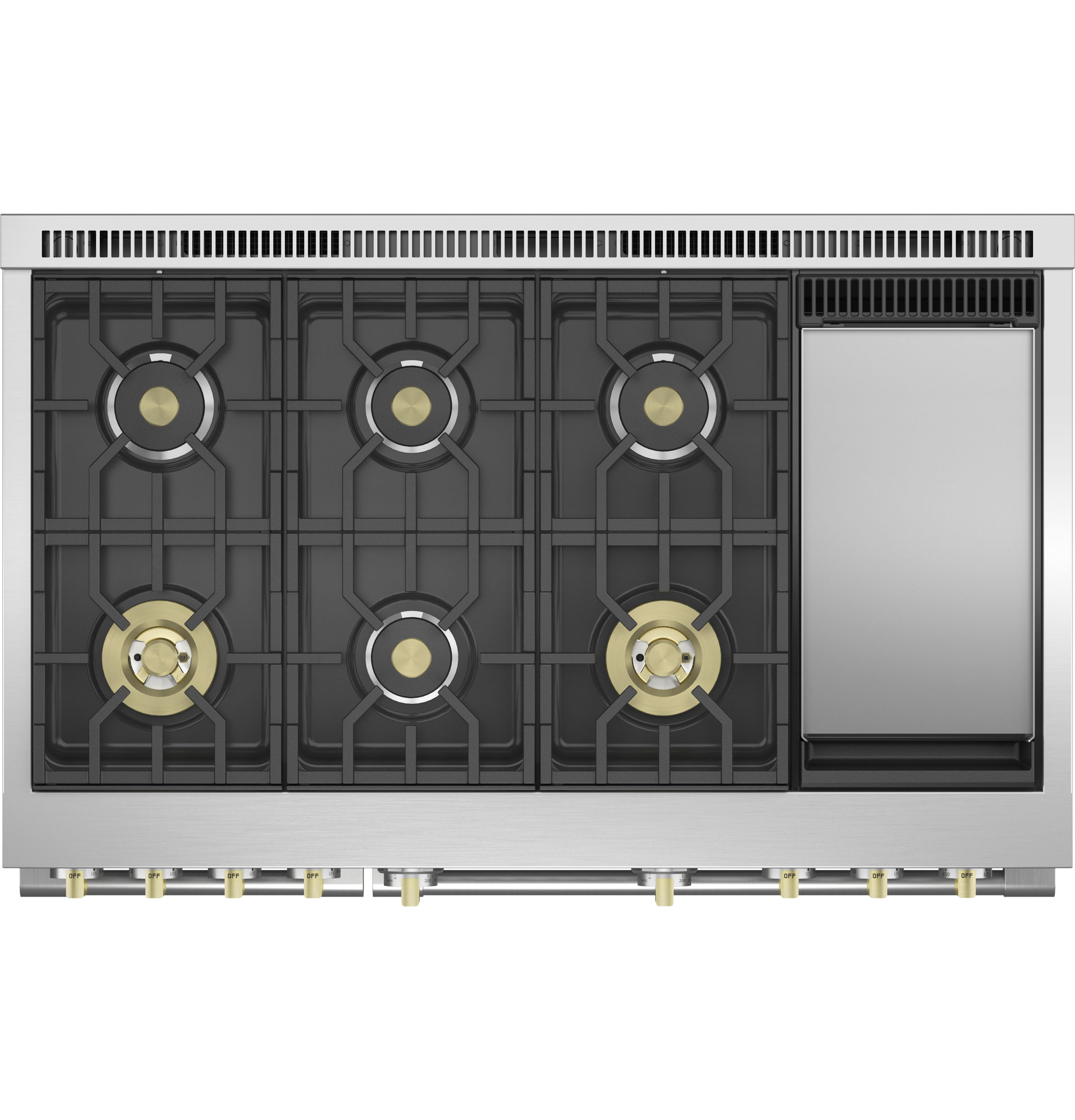

Cooktop Burner Grate Features Continuous Grates,Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates
Cooktop Burner Type 4 Sealed, Dual Flame Stacked (Removable Brass Accents),2 Sealed, Dual Ring

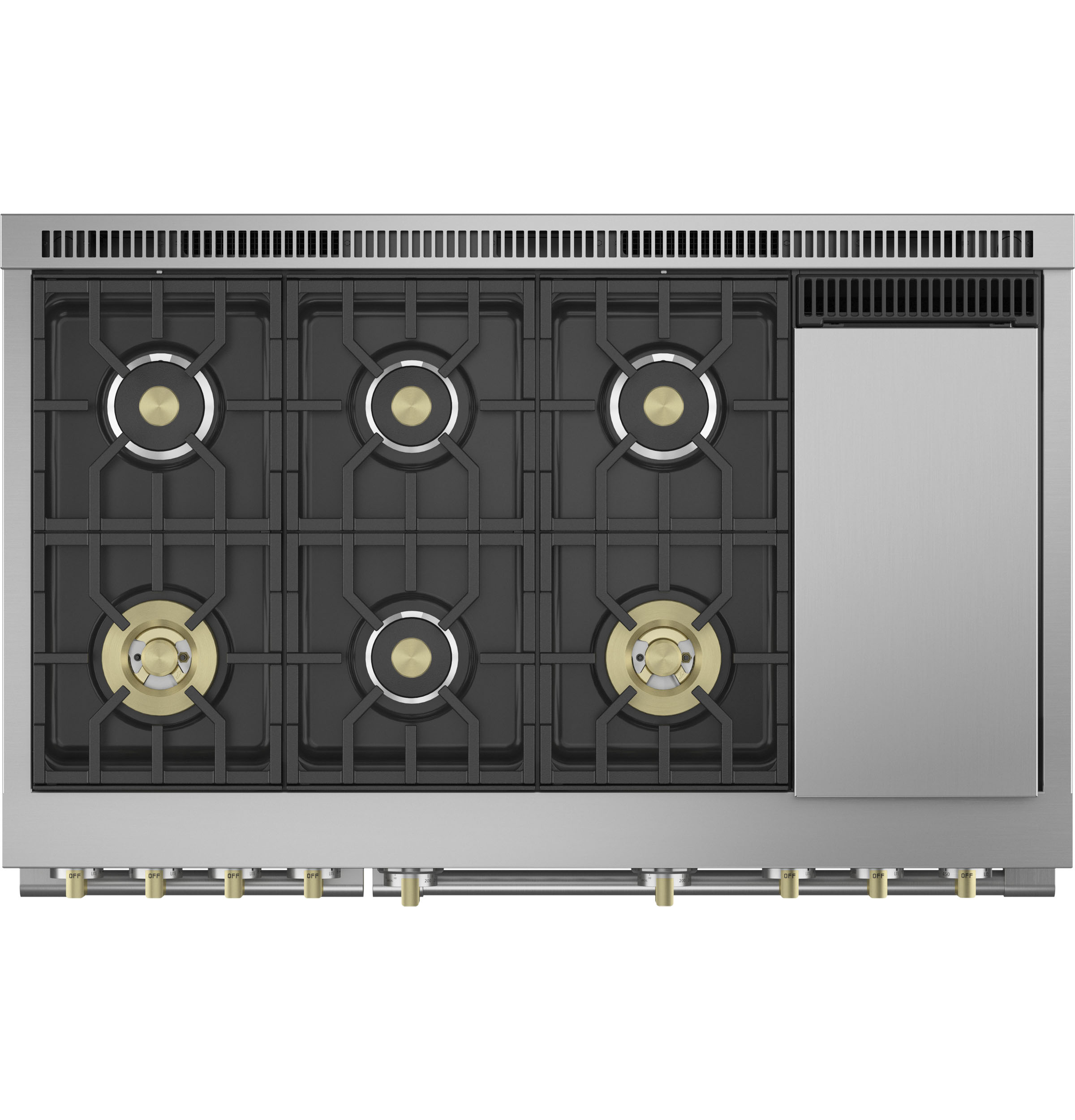

Cooktop Type 6 Burners,Griddle

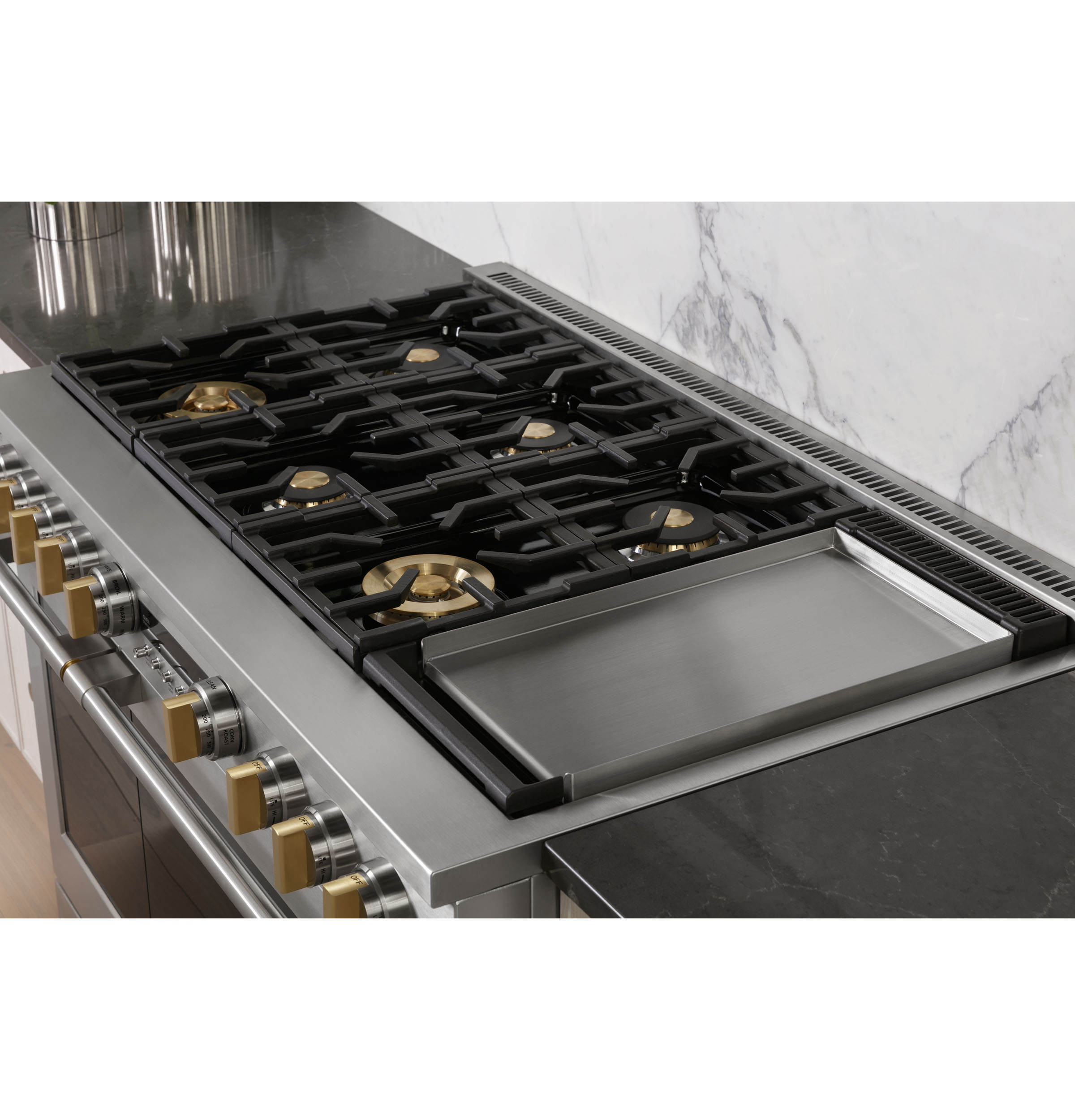

Griddle 18,000-BTU,Thermostatically Controlled,Stainless Steel and Aluminum Clad
Indicator Lights Burner On
Interior Oven Light 6 Halogen Lamps (Caterer Oven),3 Halogen Lamps (Everyday Oven)
Oven Control Features Delay Clean Option (Both Ovens),Proof Mode (Both Ovens),WiFi Connect,Chef Connect,Audible Preheat Signal,Timer,Steam Clean,Probe Mode,Remote Enabled,12-Hour Shut-Off Capability,C° or F° Progr
Oven Cooking Modes Convection Bake Multi/Single Rack (Both Ovens),Convection Roast (Both Ovens),Warming (Both Ovens),Proof (Both Ovens),Precision Cooking Modes

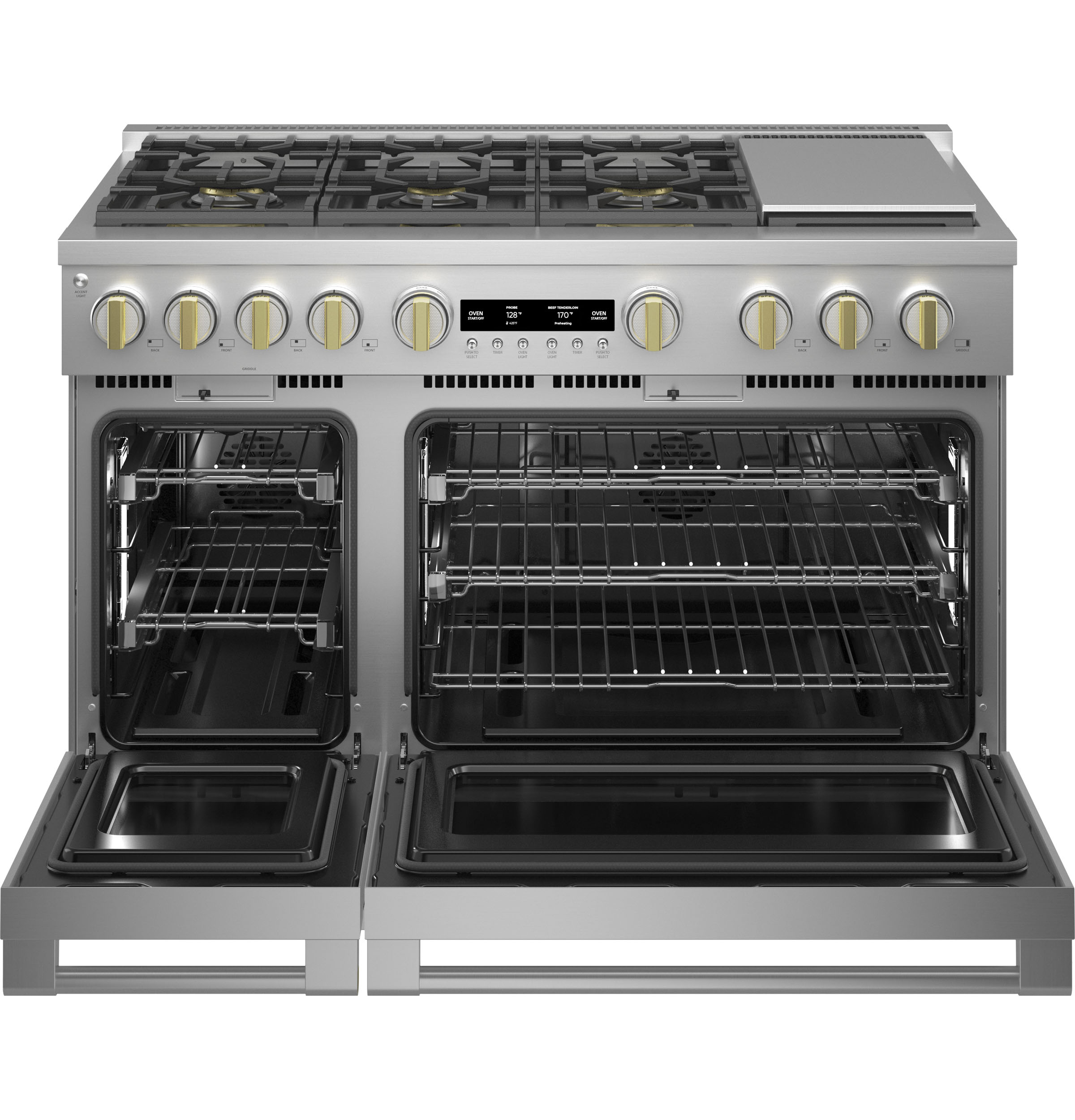

Oven Rack Features 3 Oven Racks (Caterer Oven), 2 Oven Racks (Everyday Oven),5 Rack Positions (Caterer Oven),4 Rack Positions (Everyday Oven),4 Full Extension Racks

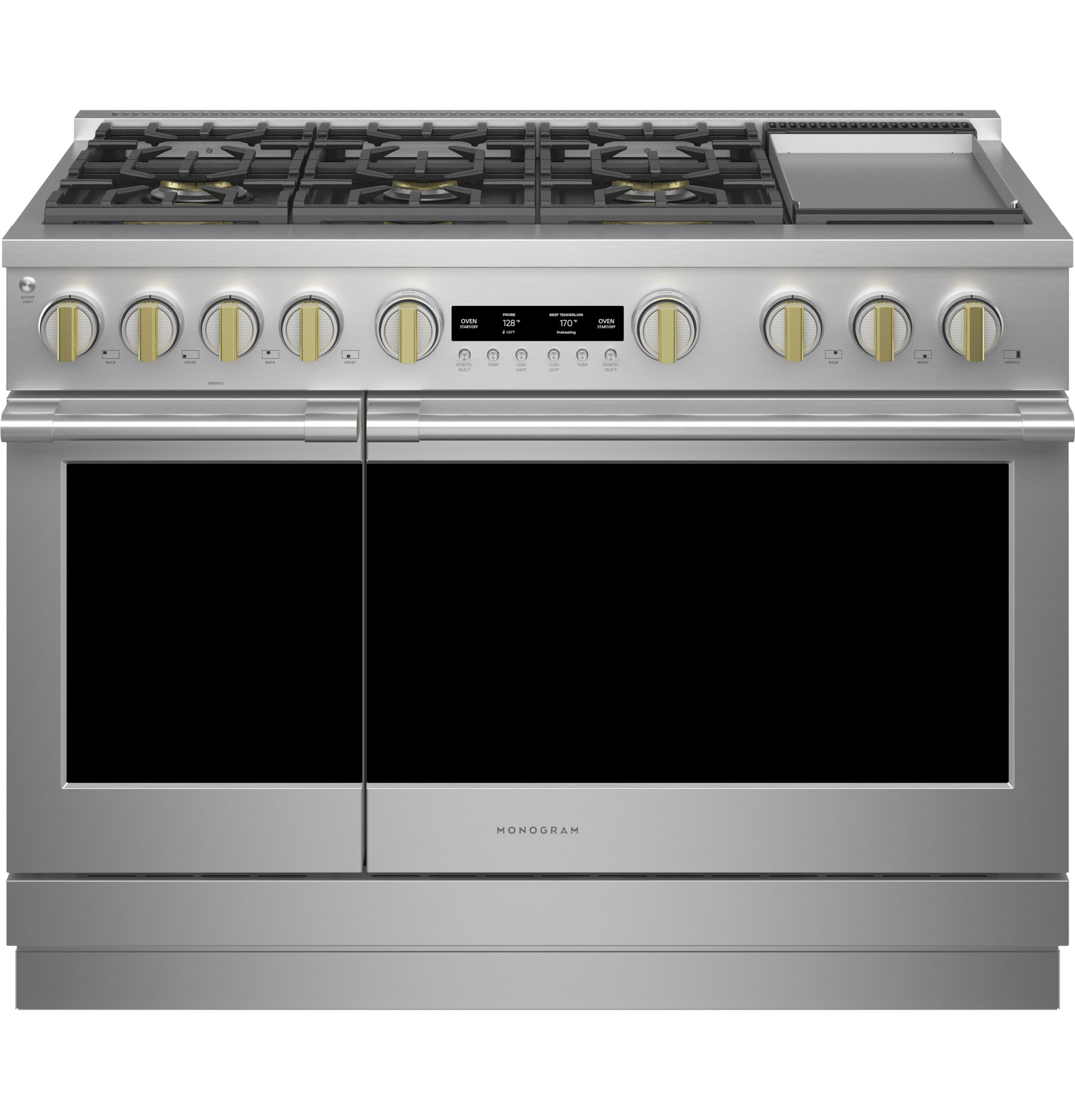

Short Description 48 Pro Range - All Gas with 6 Burners and Griddle

Accessories

Air Fry Basket Optional- JXAFTRAY1VSS
Multi Ring Burner Caps (Brass) Included
LP Conversion Kit Included
Multi Ring Burner Caps (Black) Included
48 Monogram Knob Kit ZXPR48KKTSS (SS, qty. 11)
Optional Backguard 12 stainless steel backsplash (UX12BS48PSS),30-36 adjustable stainless steel backsplash with warming shelf (UXADJB48PSS)

Power / ratings

Top Burner BTU Rating - Nat. Gas (000's BTU's) (2) 23.0; (2) 18.0; (2) 15.0
Electrical Requirements 120VAC;15A
Top Burner BTU Rating - LP (000's BTU's) (2) 21.0; (2) 15.0; (2) 10.0
Broiler Wattage 1050W (Main Oven): 650W (Companion Oven)
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) 23.0 Bake / 18.0 Broil Main Oven; 10.5 Bake / 11.0 Companion Oven
Bake/Broiler BTU Rating - LP (000's BTU's) 21.5 Bake / 18.0 Broil Main Oven; 10.0 Bake/11.0 Companion Oven
Griddle BTU Rating (000's/BTU) - LP Gas 16.0
Griddle BTU Rating (000's/BTU) - Natural Gas 18.0
Hertz 60

Appearance

Toe kick Included
Installation Flush Installation Capable
Oven Door Features Soft Close Door
Design Style Statement Collection
Color Appearance Stainless Steel
Control Knobs Diecast Metallic (Included),Stainless Steel with Brass Accents

Capacity

Capacity (Cu. Ft.) 6.2 Caterer Oven/2.7 Everyday Oven
Total Capacity (cubic feet) 8.90 cu ft

Warranty

Labor Warranty Limited 2-year entire appliance
Warranty Notes See written warranty for full details
Parts Warranty Limited 2-year entire appliance,Limited 5-year gas surface burners,Limited lifetime of oven racks

Other

Interior Dimensions - Main Oven (WxHxD) (in.) 28-1/4 x 16-3/8 x 19
Interior Dimensions - Companion Oven (WxHxD) (in.) 12-1/8 x 16-3/8 x 19

Dimensions & weight

Width 47.88 in.
Height 35.25 in.
Length 28.5 in.
Weight 576 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 52.88 in.
Shipping Height 40.25 in.
Shipping Length 33.5 in.
Shipping Weight 616 lbs.
Total of Shipping Weight 616 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 27.83 ft³
Dimensional Weight 346.02 lbs.
Total of Cubes 27.83 ft³
Total of Dimensional Weight 346.02 lbs.

Description

Versatile Gas Burner Configuration
Delivering exceptional cooking flexibility, the two 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame

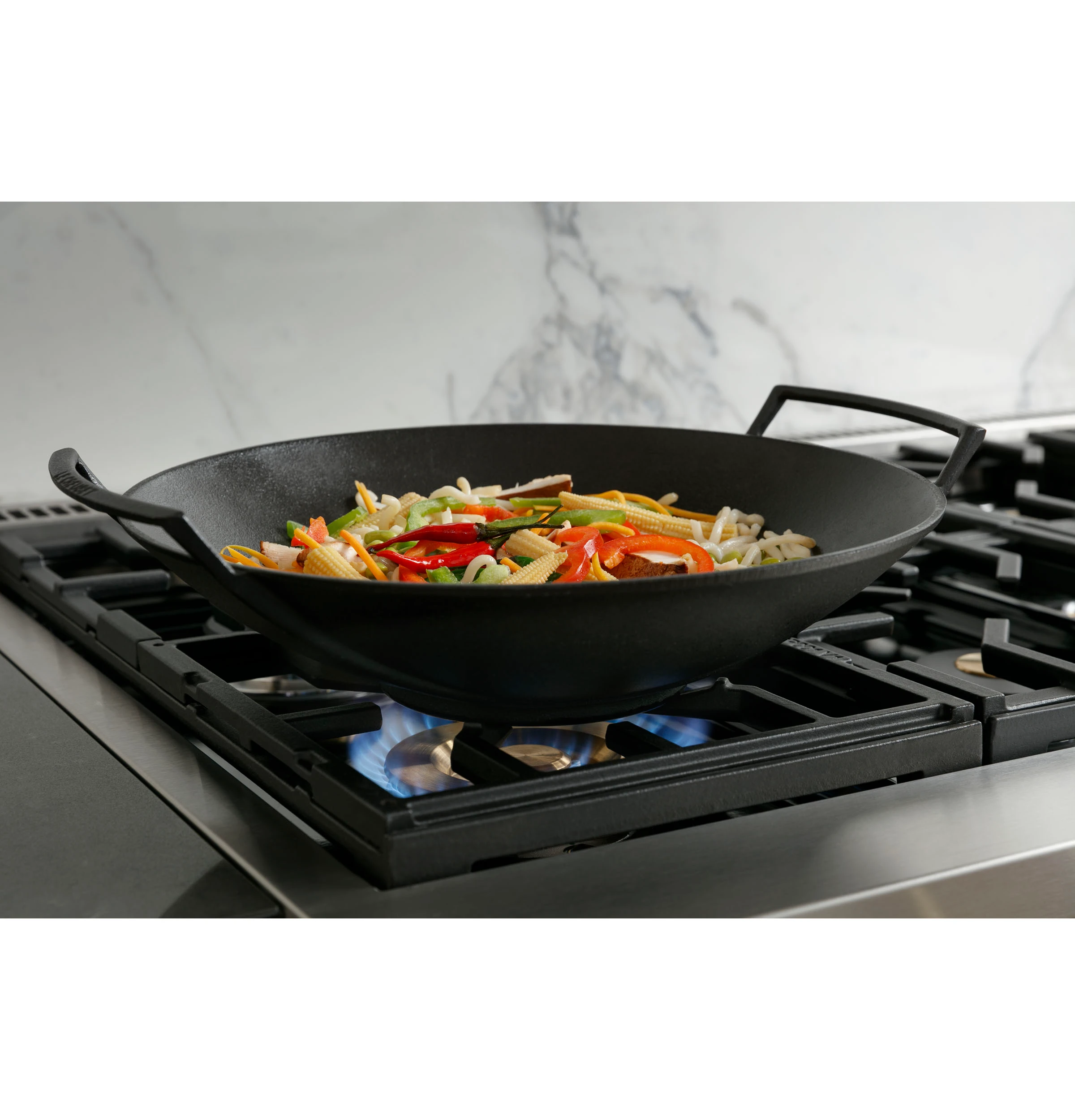

3-Piece Grates with Reversible Wok Feature
Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks

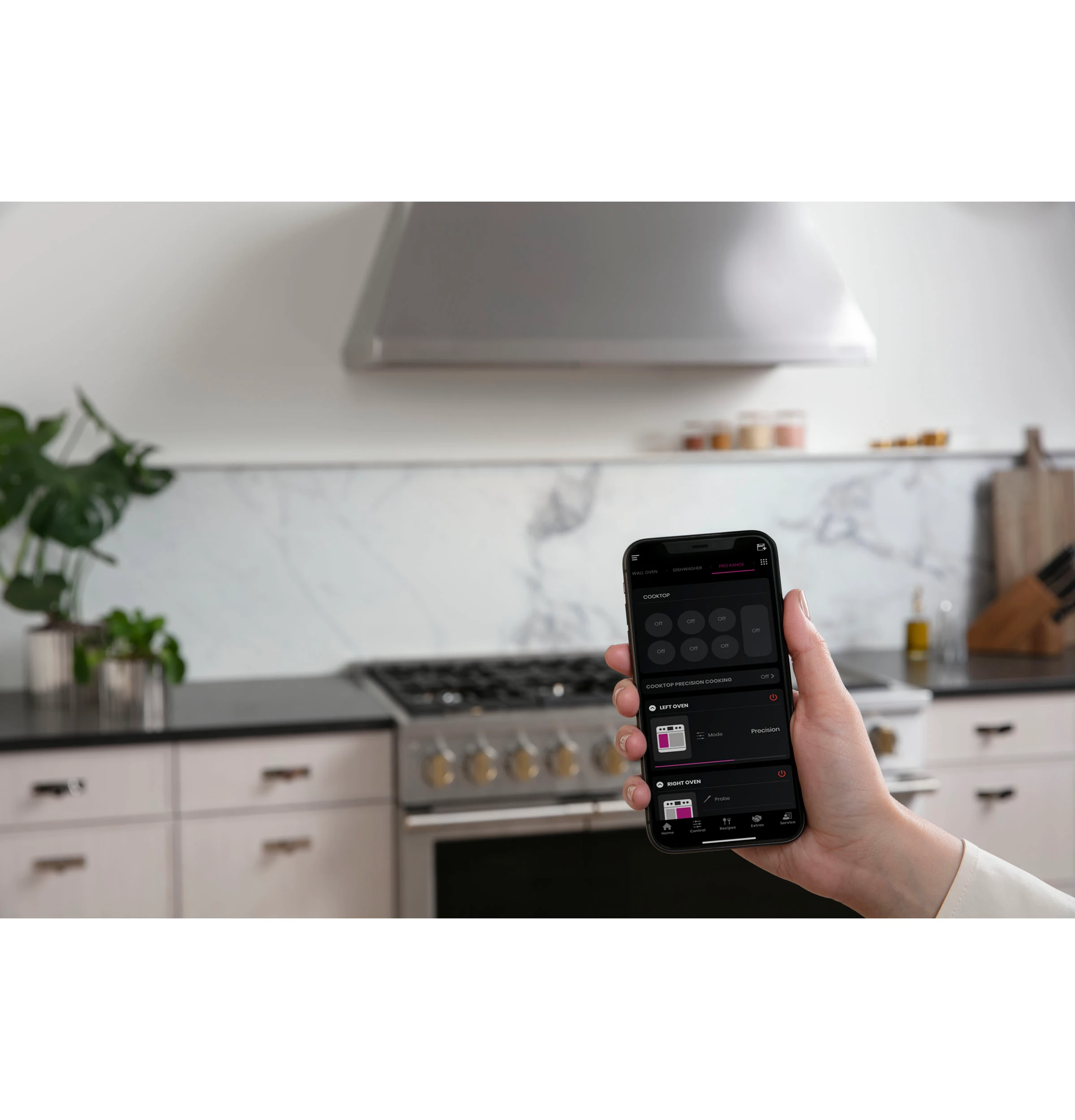

WiFi Monitoring and Remote Control with the SmartHQ(TM) app
Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more

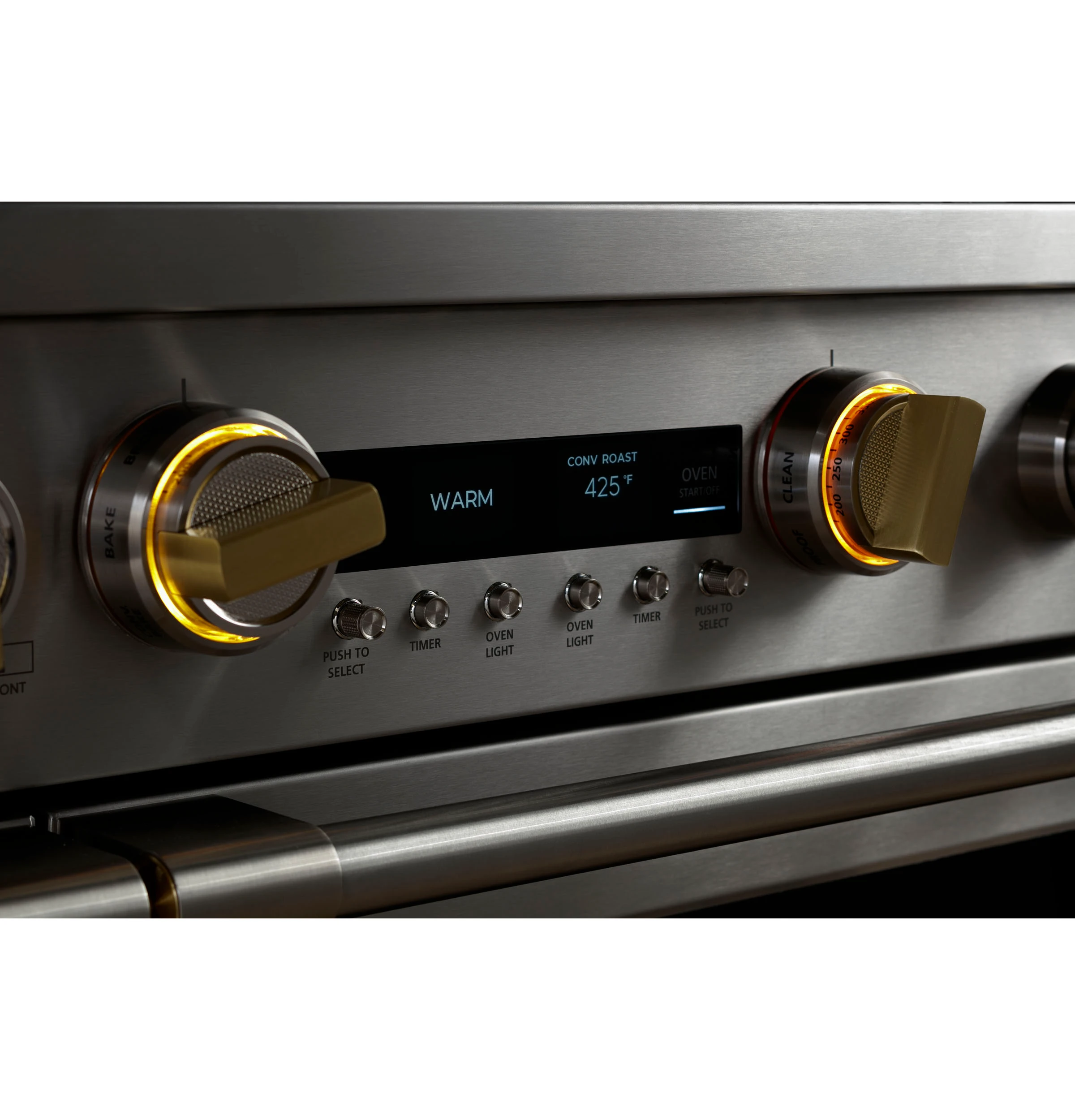

Dynamic Oven LCD
Functional and stylish, the LCD shows which oven mode is currently in use and other helpful information, like oven temperature, timer and probe temp

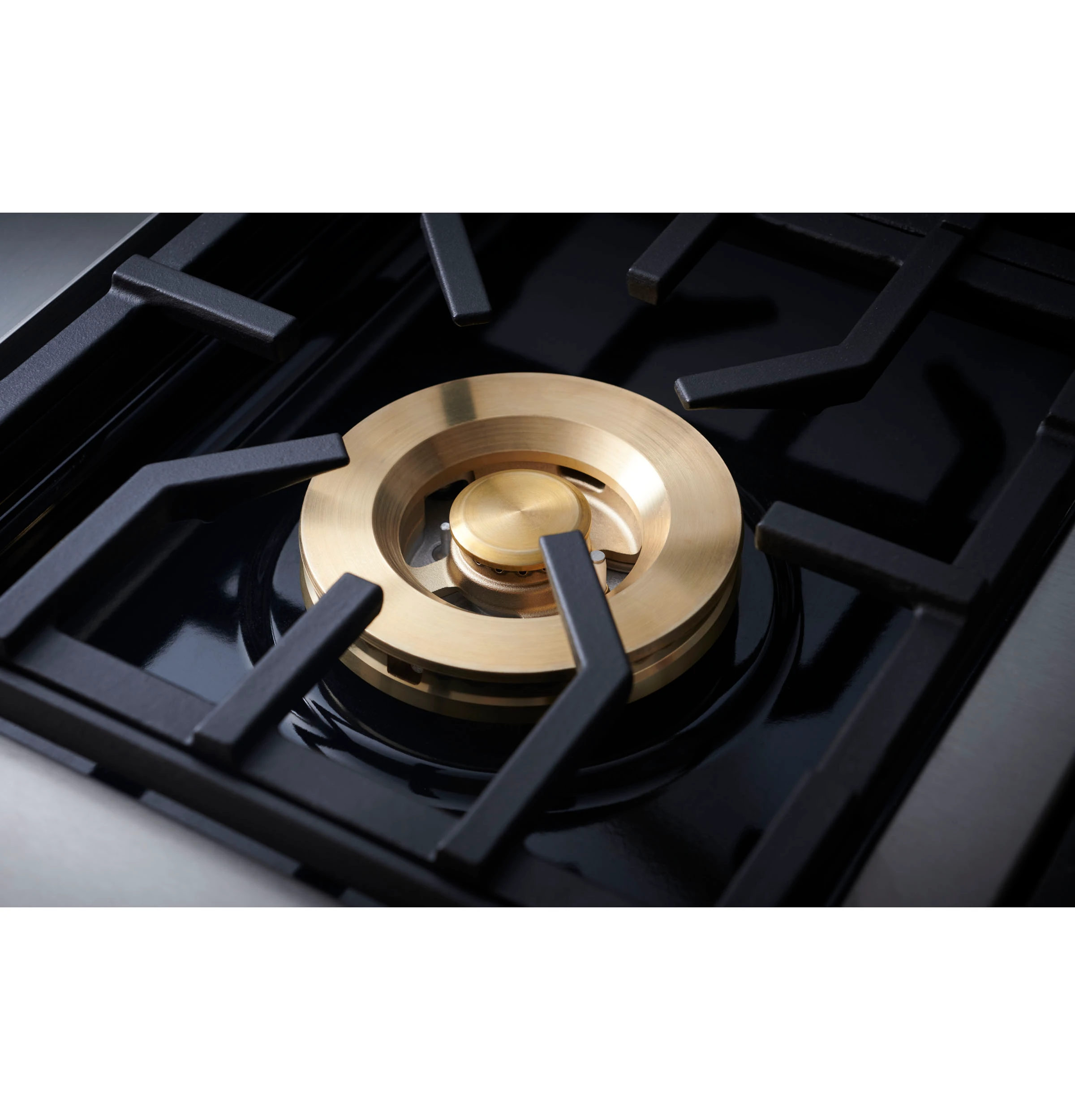

Solid Brass Burners
Monogram burners are constructed of 100% brass, embracing the natural thermal properties of this premium quality material. As they are exposed to heat, a natural patina will build up to protect the burners from corrosion and ensure that your brass burners will withstand even the highest temperatures

Chef Connect
Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on

Industry Exclusive-Custom Color LED Accent Lighting
For an elevated level of luxury, use the SmartHQ(TM) app to customize the accent lighting color and brightness to perfectly match kitchen d(eback)cor or dining ambiance

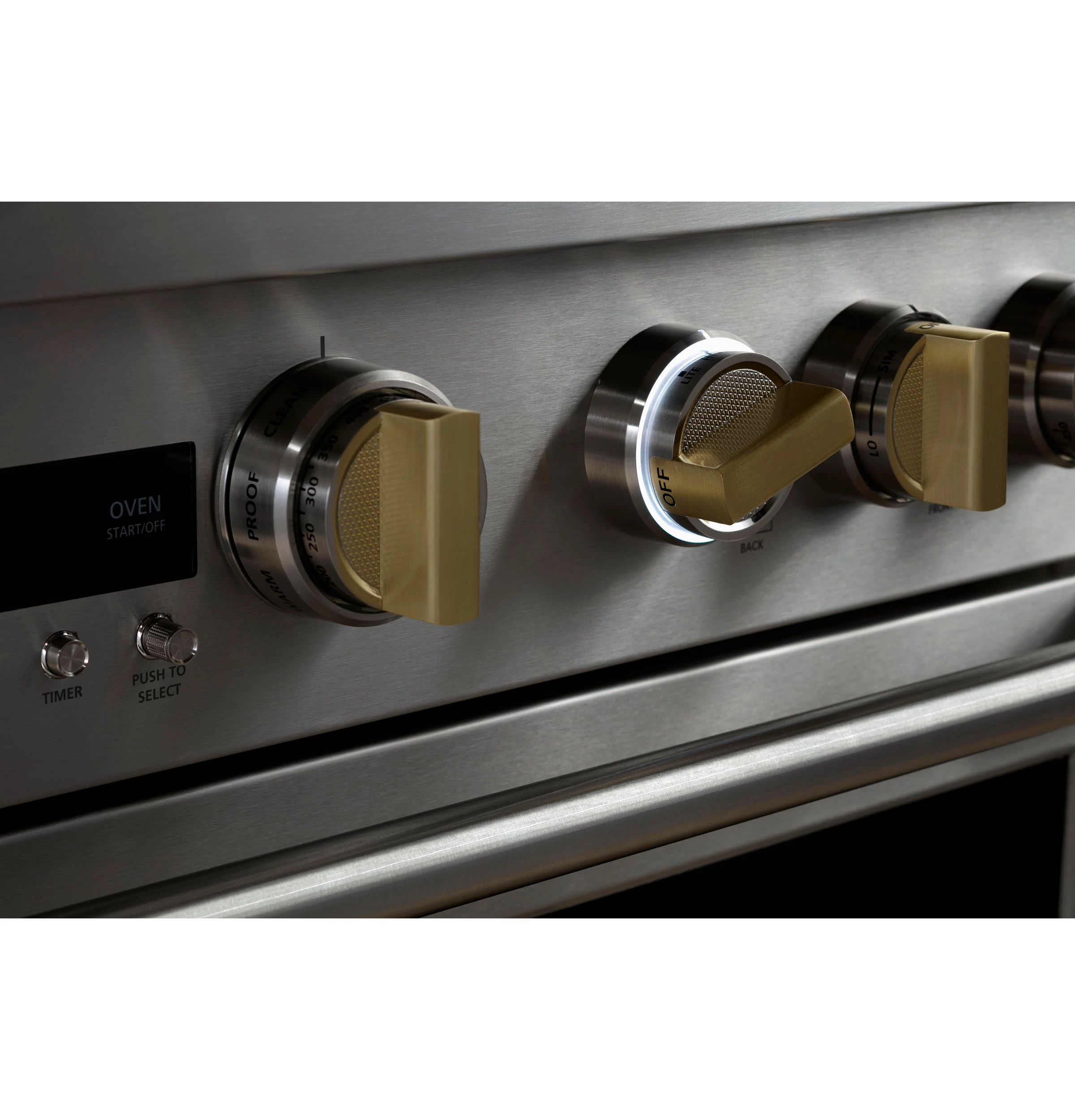

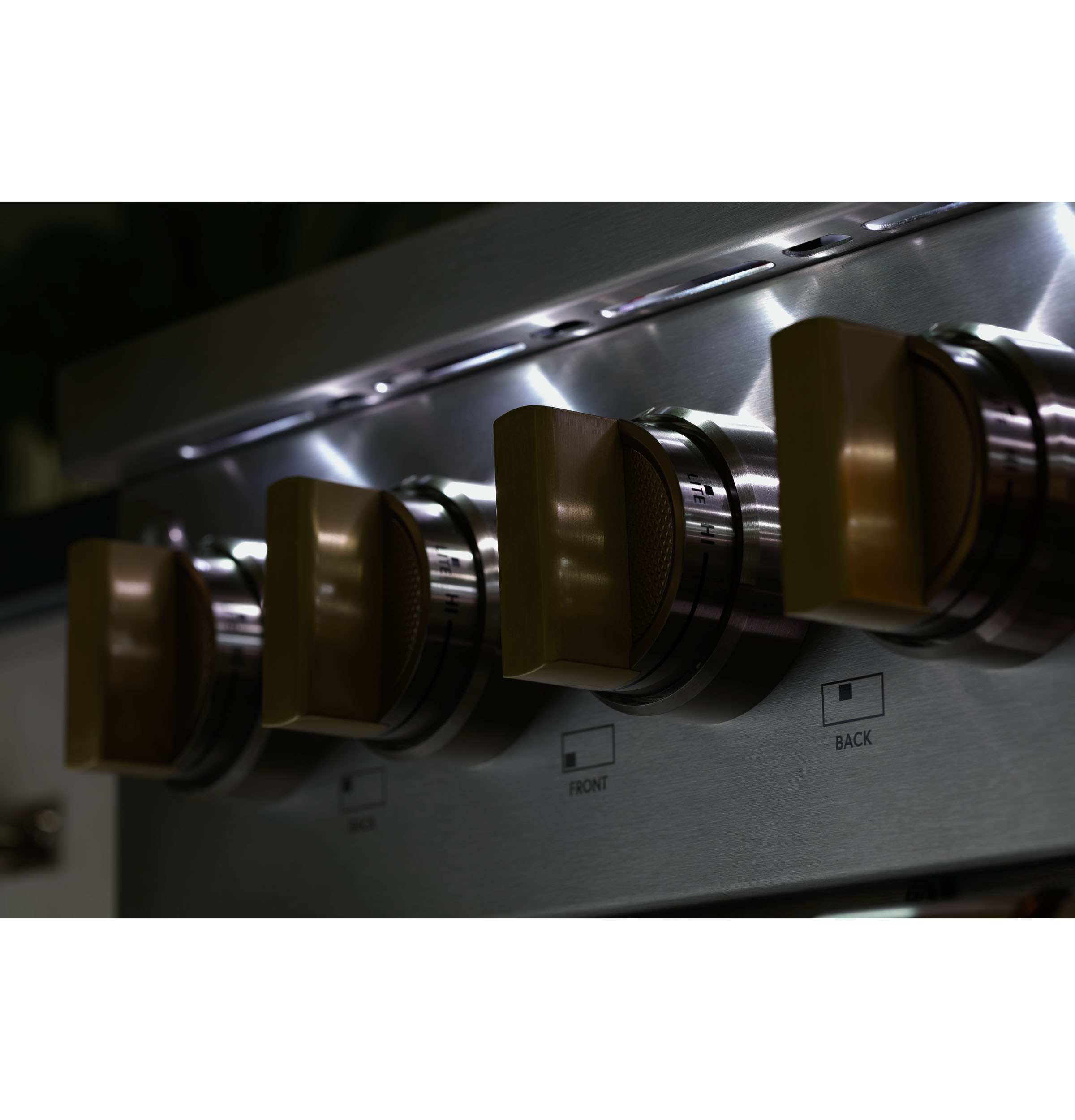

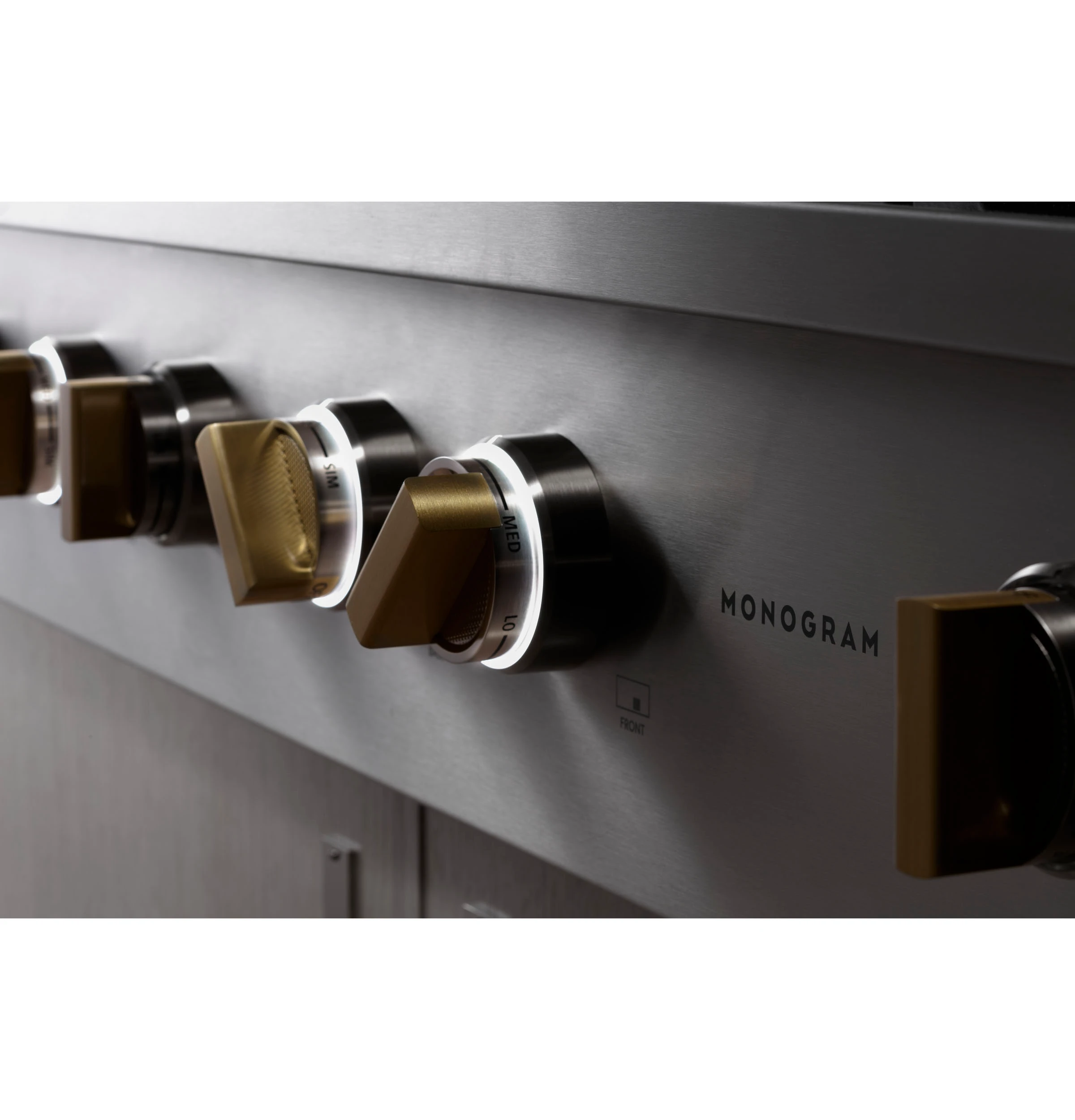

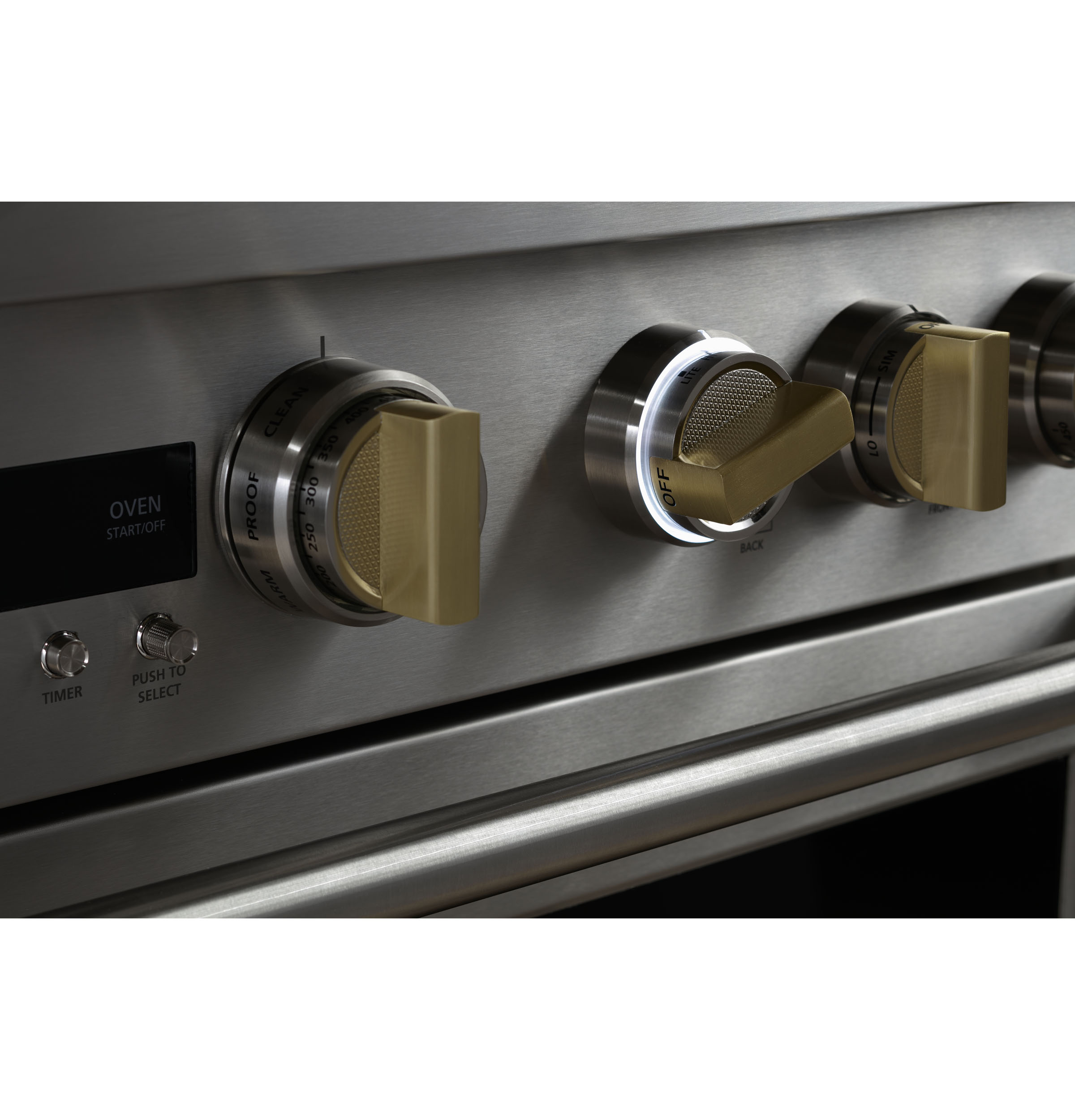

Ring-Lit Knobs
Delivering a modern approach to customization, the SmartHQ(TM) app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven

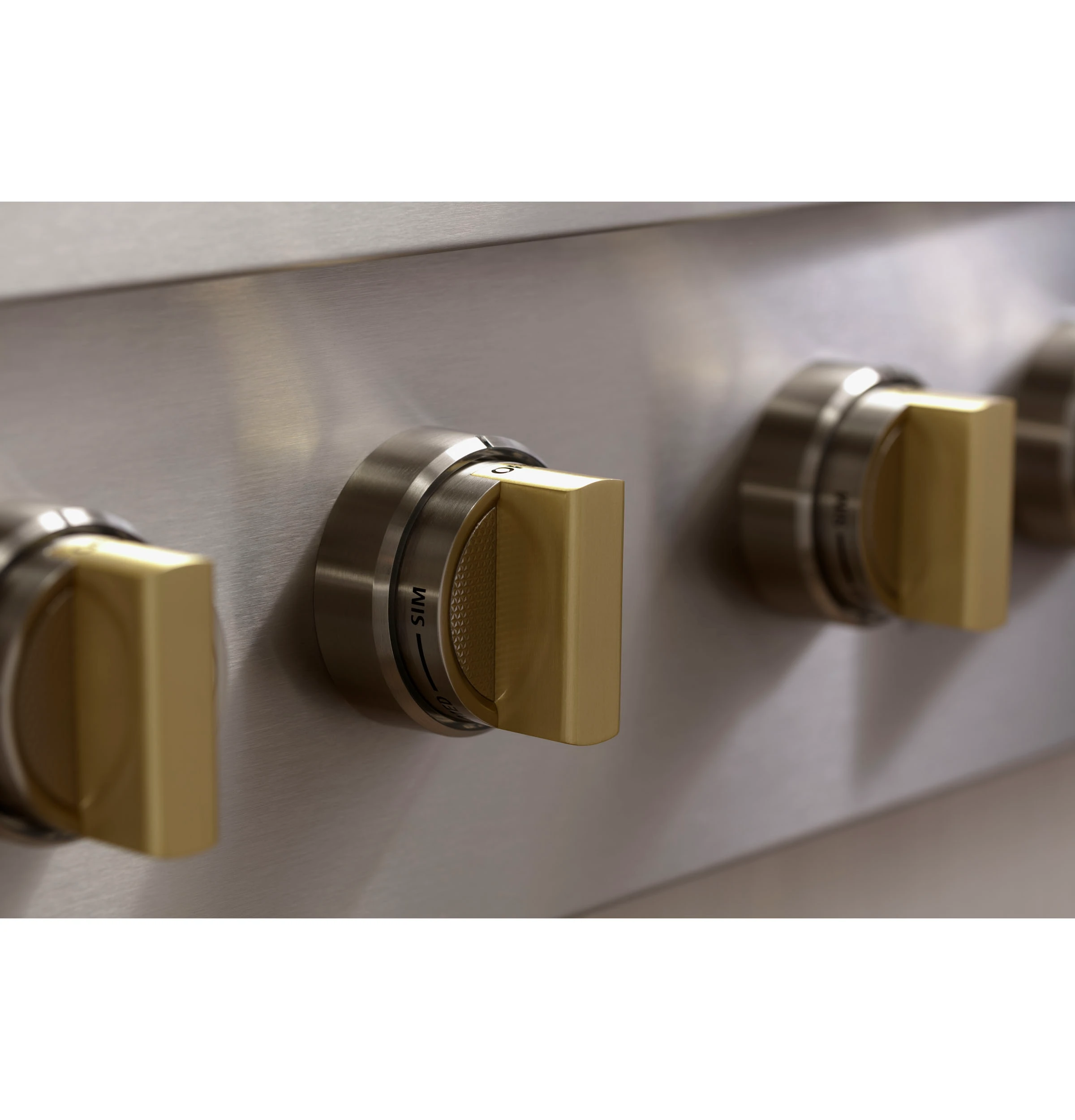

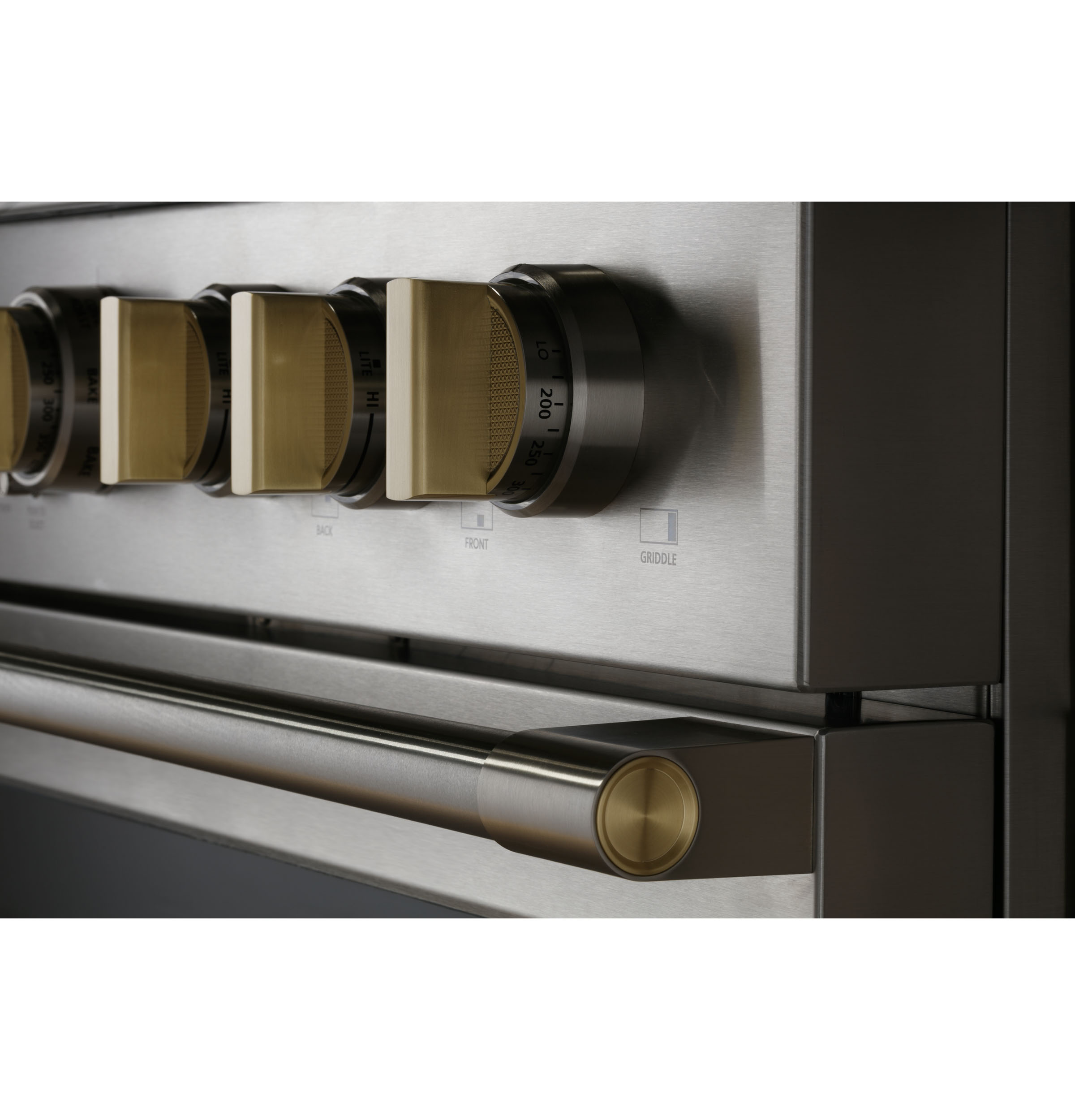

Solid Brass Blades on Precision Machined Knobs
With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents

Seamless Stainless Top Frame
Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at

Soft-Close Hinges
Specially designed, soft-close hinges ensure that the oven door always closes smoothly and quietly for a new level of kitchen refinement

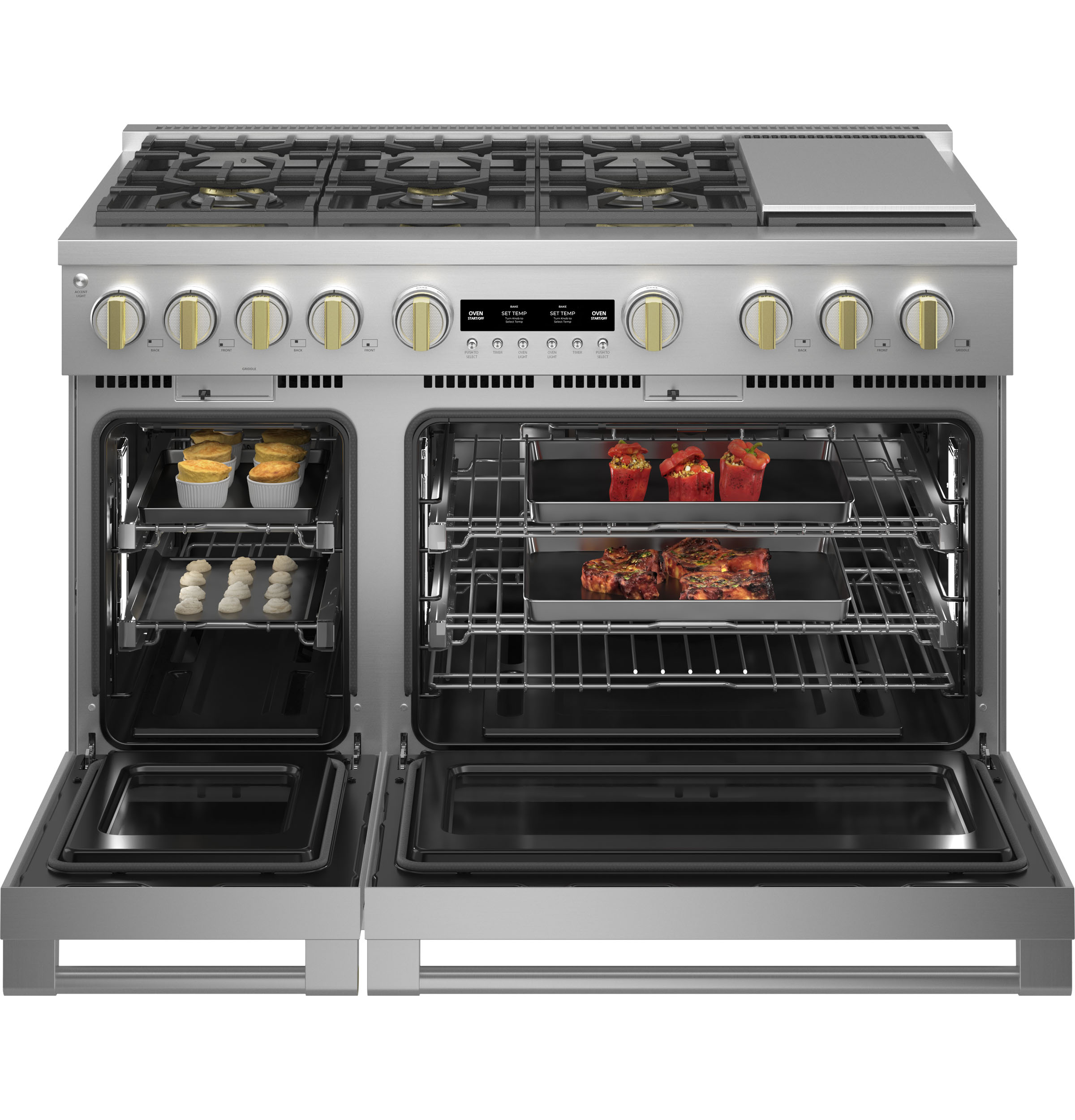

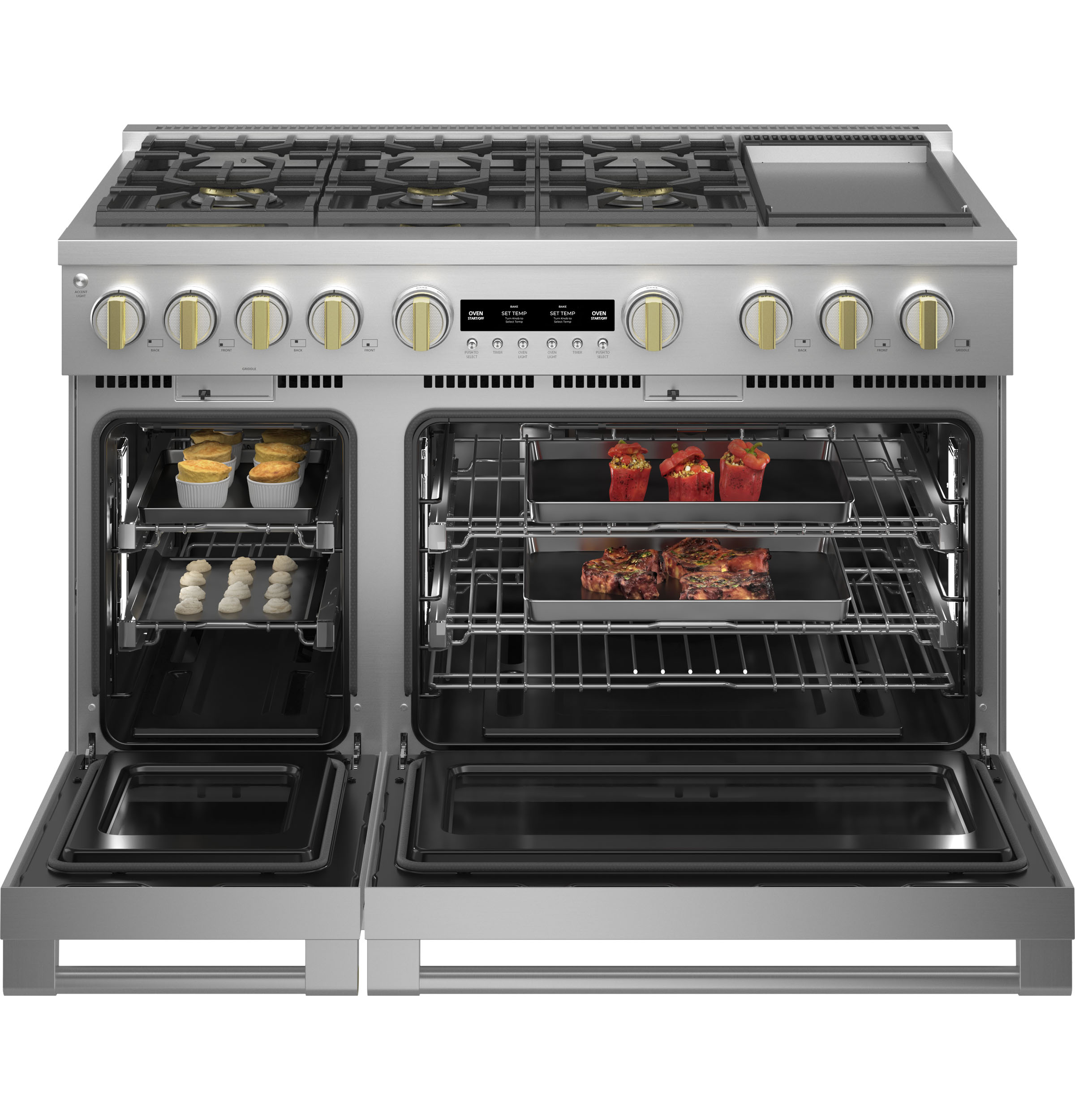

4 Oven Racks (Full-Extension), 1 Low Profile
Oven racks glide smoothly in and out on stainless steel ball bearings for easy access

Precision Oven Modes with SmartHQ(TM) app
Simplify the cooking process with Precision Oven Modes that automatically track progress and make time and temperature adjustments

Precise Air Convection System
Designed to optimize air movement in the oven, the convection fan system automatically adjusts airflow-forwards or backwards- depending on the oven mode being used



Product Features

  • Seamless Stainless Top Frame
    Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at
  • Soft-Close Hinges
    Specially designed, soft-close hinges ensure that the oven door always closes smoothly and quietly for a new level of kitchen refinement
  • 4 Oven Racks (Full-Extension), 1 Low Profile
    Oven racks glide smoothly in and out on stainless steel ball bearings for easy access
  • Precision Oven Modes with SmartHQ app
    Simplify the cooking process with Precision Oven Modes that automatically track progress and make time and temperature adjustments
  • Precise Air Convection System
    Designed to optimize air movement in the oven, the convection fan system automatically adjusts airflow—forwards or backwards— depending on the oven mode being used
  • Precision Oven Modes with SmartHQ™ app
    Simplify the cooking process with Precision Oven Modes that automatically track progress and make time and temperature adjustments

Key Features

Versatile Gas Burner Configuration

Delivering exceptional cooking flexibility, the two 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame

WiFi Monitoring and Remote Control with the SmartHQ app

Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more

Solid Brass Burners

Monogram burners are constructed of 100% brass, embracing the natural thermal properties of this premium quality material. As they are exposed to heat, a natural patina will build up to protect the burners from corrosion and ensure that your brass burners will withstand even the highest temperatures

Industry Exclusive—Custom Color LED Accent Lighting

For an elevated level of luxury, use the SmartHQ™ app to customize the accent lighting color and brightness to perfectly match kitchen décor or dining ambiance

Chef Connect

Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on

Ring-Lit Knobs

Delivering a modern approach to customization, the SmartHQ™ app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven

Solid Brass Blades on Precision Machined Knobs

With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents

3-Piece Grates with Reversible Wok Feature

Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks

Dynamic Oven LCD

Functional and stylish, the LCD shows which oven mode is currently in use and other helpful information, like oven temperature, timer and probe temp

WiFi Monitoring and Remote Control with the SmartHQ™ app

Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more
