SKU: KM3475G | UPC: 4002514141152

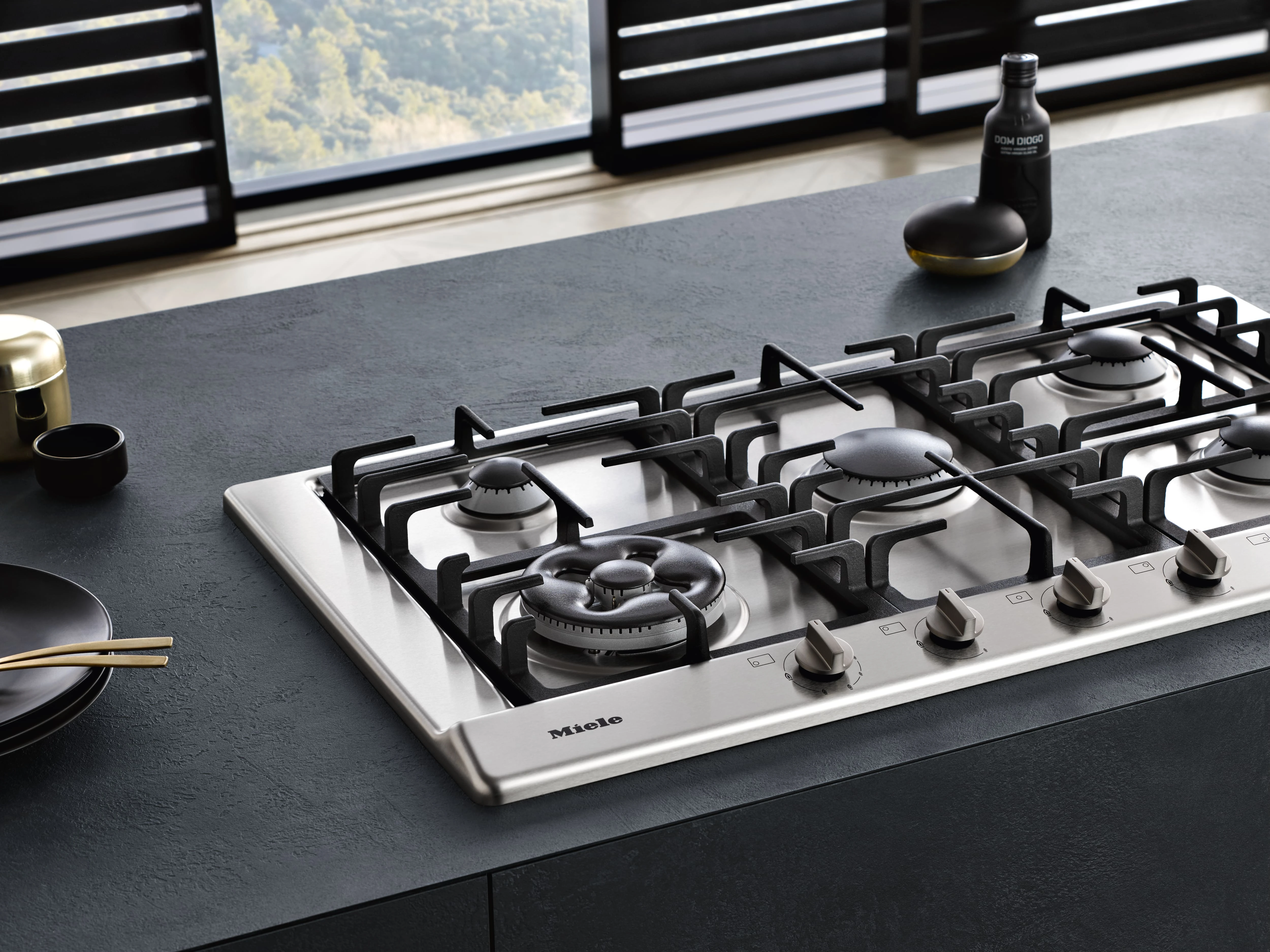

Miele KM3475G 36-inch gas cooktop Clean Touch Steel

Quick Specification More details

Width:
1.42"
Depth:
0.84"
Height:
0.2"
Type:
Gas Cooktops

About this product

Enamelled grates and grates and burner cap
Individual design
QuickStart
Single-handed electronic ignition

SKU: KM3475G | UPC: 4002514141152

Miele KM3475G 36-inch gas cooktop Clean Touch Steel

$3,099.00 ~~$4,587.97~~ Save $1,488.97 / 32% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
1.42"
Depth:
0.84"
Height:
0.2"
Type:
Gas Cooktops

About this product

Enamelled grates and grates and burner cap
Individual design
QuickStart
Single-handed electronic ignition

Product Details for Miele KM3475G

Technical Details

Heating type

Fuel type

Gas

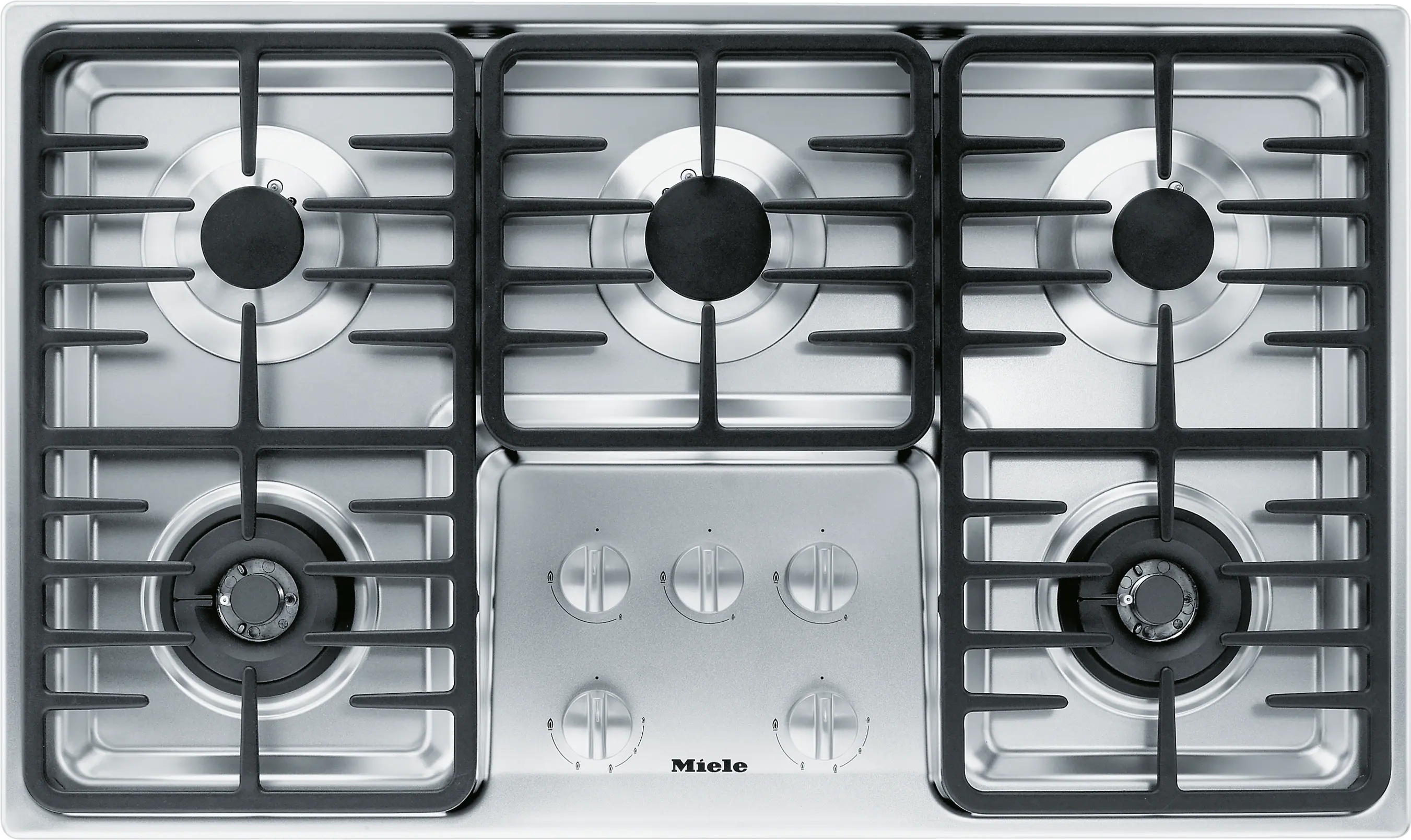

Cooking zone details

No. of rings

1st cooking zone/cooking area

Position	front left
Type	Dual wok burner

2nd cooking zone/cooking area

Position	rear left
Type	Standard burner

3rd cooking zone/cooking area

Position	rear center
Type	High-speed burner

4th cooking zone/cooking area

Position	rear right
Type	Standard burner

5th cooking zone/cooking area

Position	front right
Type	Dual wok burner

Technical data

Width in in. (mm)	36 (914)
Height in in. (mm)	5 (125)
Depth in in. (mm)	21 3/8 (542)
Weight in lbs. (kg)	55 (25)
Total connected load in kW	17
Voltage in V	120
Frequency in Hz	60
Power cord length in ft. (m)	3 (1.2)
Dimensions (H x W x D) in mm	5 (125) x 36 (914) x 21 3/8 (542)
Dimensions (W x D) in mm	36 (914) x 5 (125) x 21 3/8 (542)
Cut-out dimensions (W x D) with surface-mounted installation in inches (mm)	35 in (889 mm) x 20 1/2 in (518 mm)
Cutout dimensions width in in. (mm) with proud-mounted installation	35 in (889 mm)
Cutout dimensions depth in in. (mm) with proud-mounted installation	20 1/2 in (518 mm)
Position of gas connection	Hinten links

Other

Dimensions (W x D) in inches (mm)	36 (914) x 5 (125) x 21 3/8 (542)
Cut-out dimensions (W x D) with surface-mounted installation in inches (mm)	35 (889)x20 1/2 (518)
Total connected load in kW	17
Voltage in V	120
Frequency in Hz	60

Dimensions & weight

Width	1.42 in.
Height	0.2 in.
Length	0.84 in.
Weight	121 lbs.
Width	35.98 in.
Height	4.92 in.
Length	21.34 in.
Weight	121.51 lbs.
Gross Weight	63.93 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	6.42 in.
Shipping Height	5.2 in.
Shipping Length	5.84 in.
Shipping Weight	161 lbs.
Total of Shipping Weight	161 lbs.
Source	Calculation
Shipping Width	45.67 in.
Shipping Height	7.87 in.
Shipping Length	23.62 in.
Shipping Weight	161.51 lbs.
Source	Manufacturer
Total of Shipping Weight	161.51 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	0 ft³
Dimensional Weight	0 lbs.
Total of Cubes	0 ft³
Total of Dimensional Weight	0 lbs.
Cubic Feet Measurement	4.92 ft³
Cubic Feet Measurement	2.19 ft³
Dimensional Weight	27.18 lbs.
Total of Cubes	2.19 ft³
Total of Dimensional Weight	27.18 lbs.

Gas burner power rating

Normal burner in kW	2.60
Normal burner in BTU/h	9000
Large burner in kW	3.50
Dual wok burner in kW	4.50
Dual wok burner in BTU/h	15300
Large burner in BTU/h	12500

General information

Model number	KM 3475 G
Manufacturer material number	06792770
EAN number	4002514141152
Marketing class	Gold

Design

Independent of oven	TRUE
Stainless steel trough	TRUE
Cast iron pot rest (matte black enameled)	TRUE

User convenience

Operation via knobs	TRUE
Electronic ignition with one-handed operation	TRUE
QuickStart	TRUE

Safety

GasStop & ReStart

TRUE

Description

KM 3475 G - 36-inch gas cooktop with 2 dual wok burners for particularly versatile cooking convenience.

Manuals & Guides

Key Features

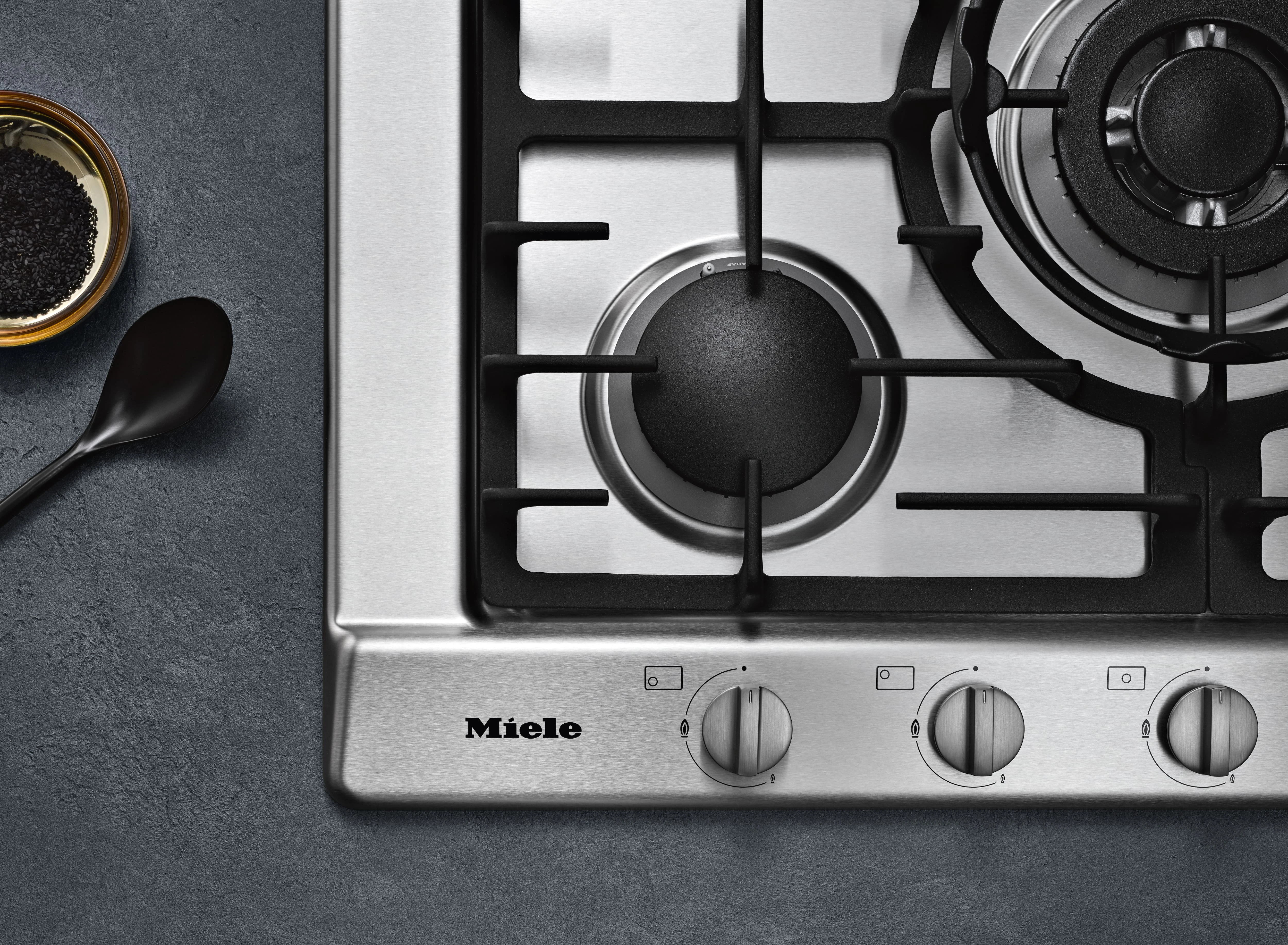

Enamelled grates and grates and burner cap

Miele gas cooktops are equipped with enamelled cast iron grates - robust and durable, a visible sign of first-class quality. In addition, some gas cooktops are equipped with PerfectClean burner heads, making cleaning easier thanks to the non-stick coating.

Individual design

Professional stainless steel look or elegant ceramic glass - Miele offers an attractive range of designs for a customized kitchen environment.

QuickStart

No need to press or hold the control: All Gas cooktops with electronic controls / Gas cooktops with electronic controls / Gas cooktops with electronic controls can be switched on easily and conveniently.

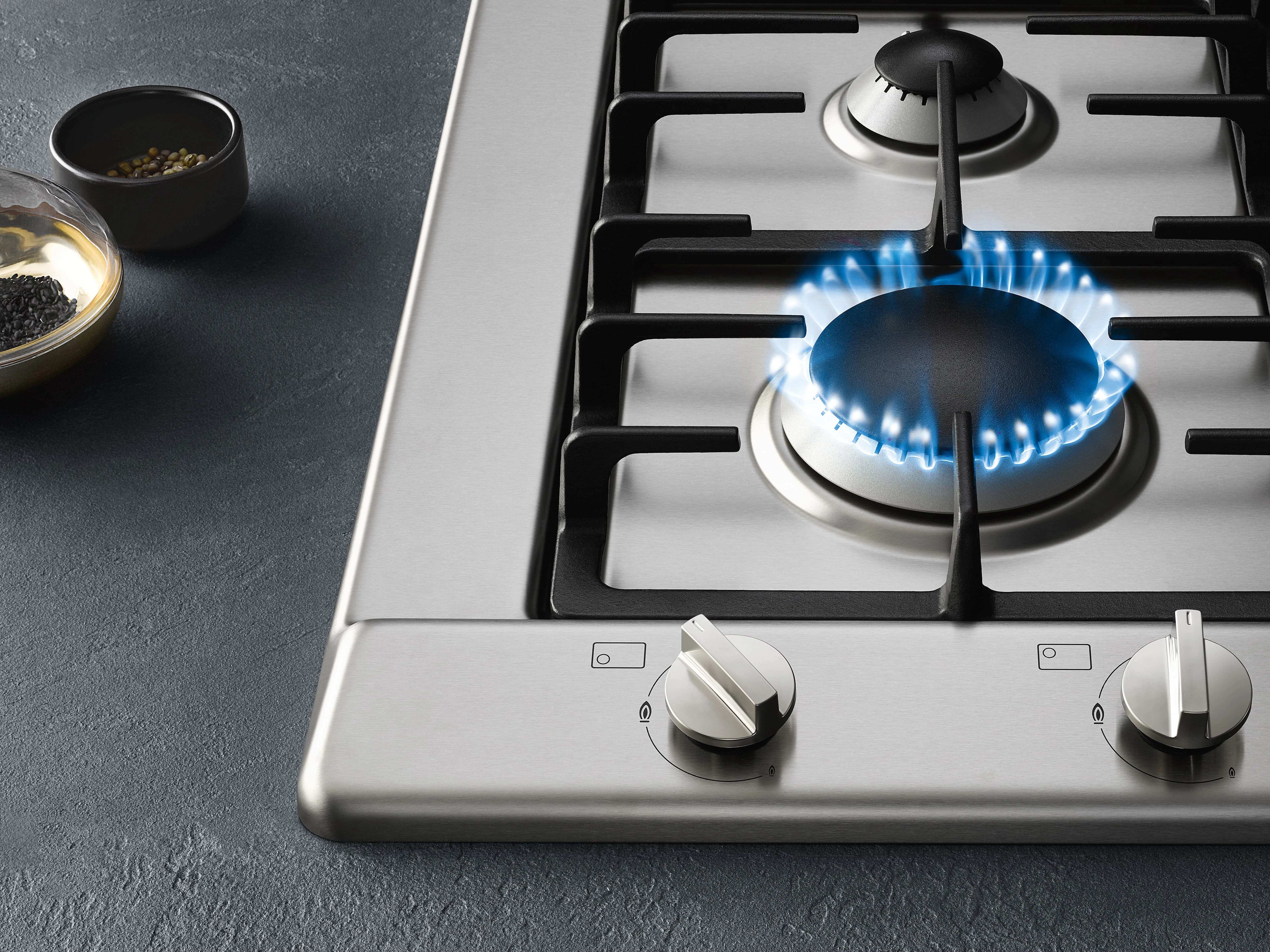

Single-handed electronic ignition

The burners ignite automatically thanks to sophisticated technology. The rotary control dials can be simply and easily turned with one hand and be held during ignition.

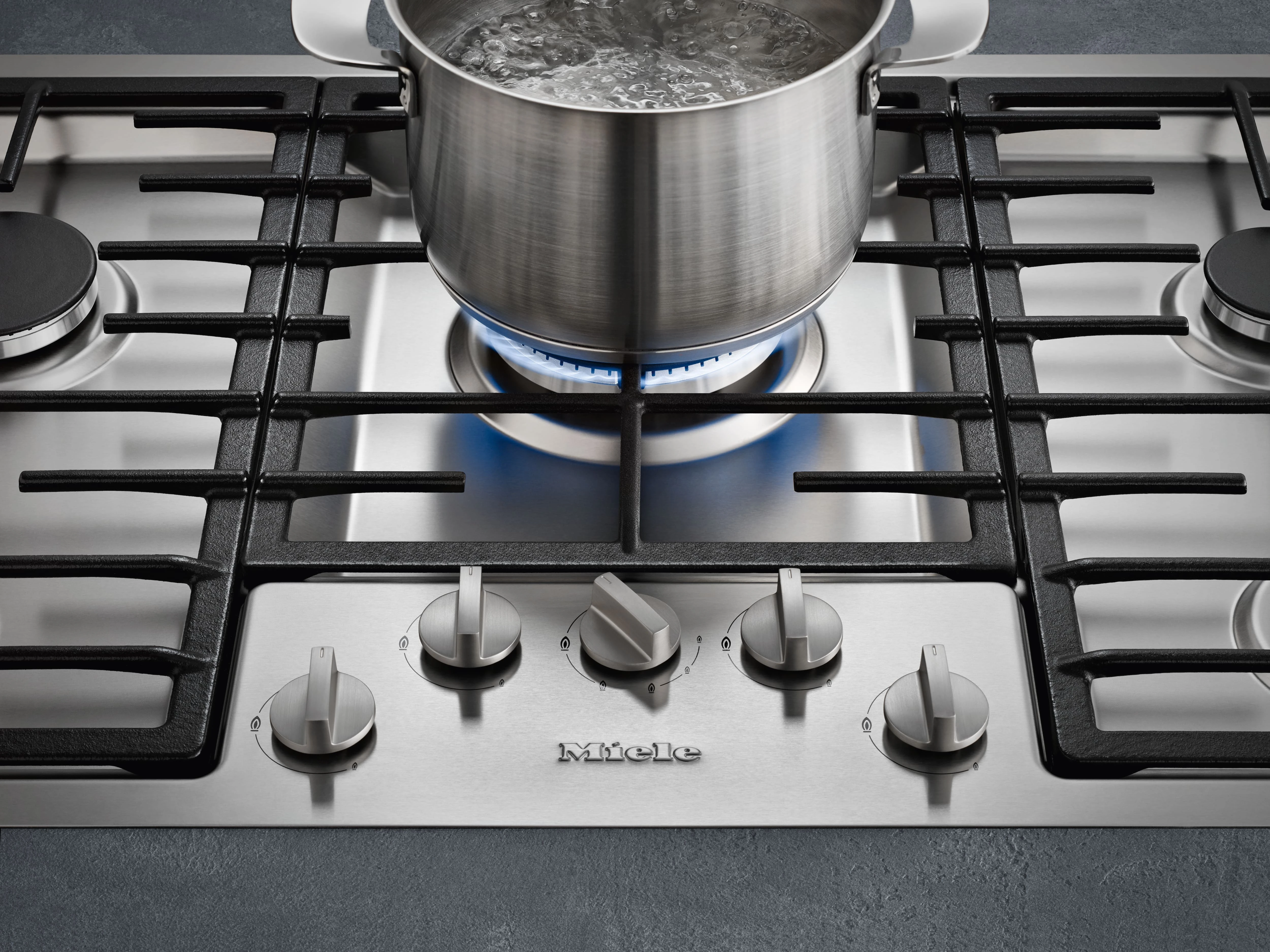

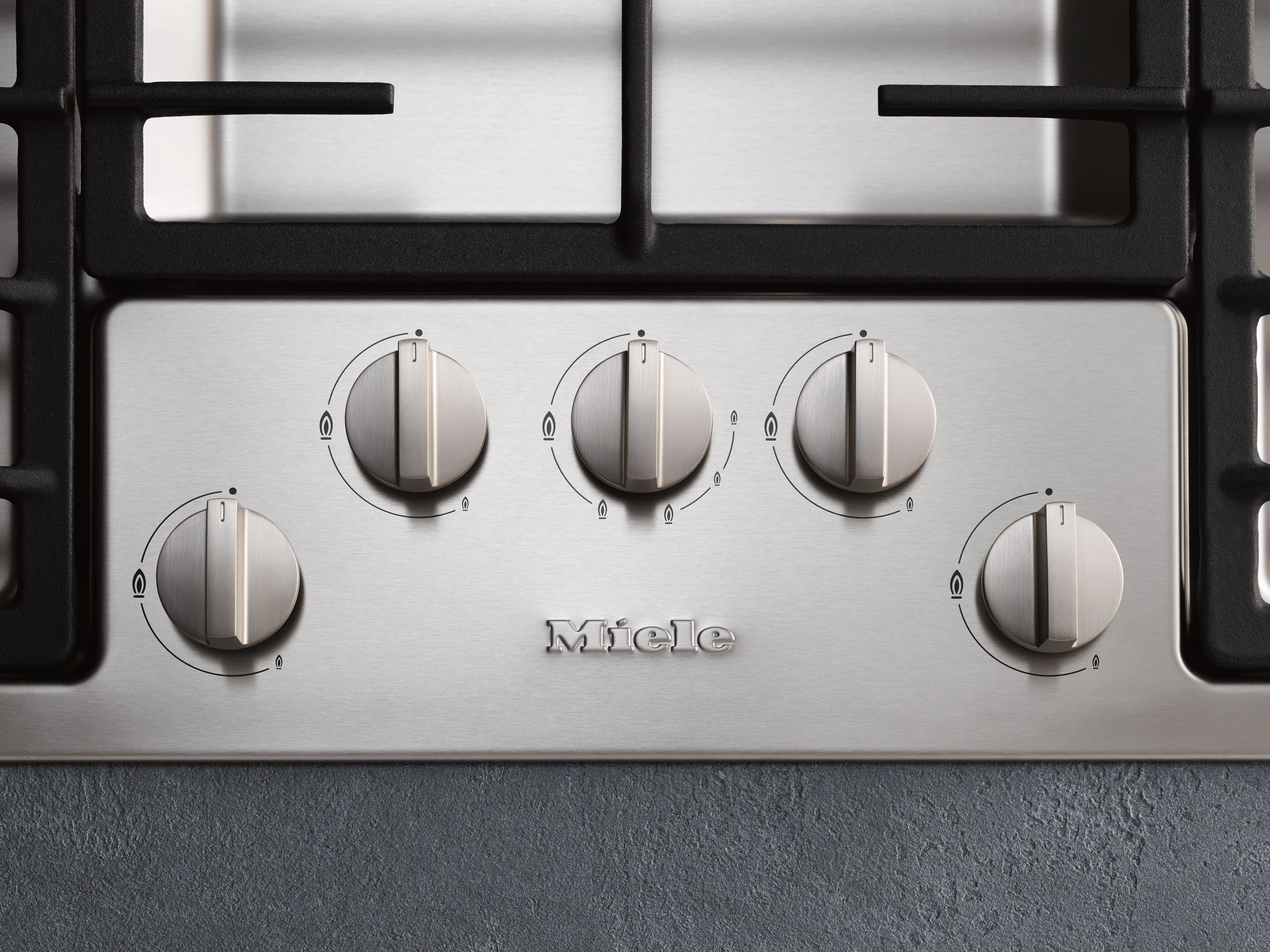

Comfort handle with integrated controls with knobs

Miele gas cooktops are operated by plastic or metal knobs. In this way the power is extremely easy and safe to regulate.

GasStop and ReStart

The gas flame can be extinguished by a draught or pans boiling over. The electronics recognize this and initiate an automatic reignition. If this does not work, the gas supply is switched off immediately – simple and safe.

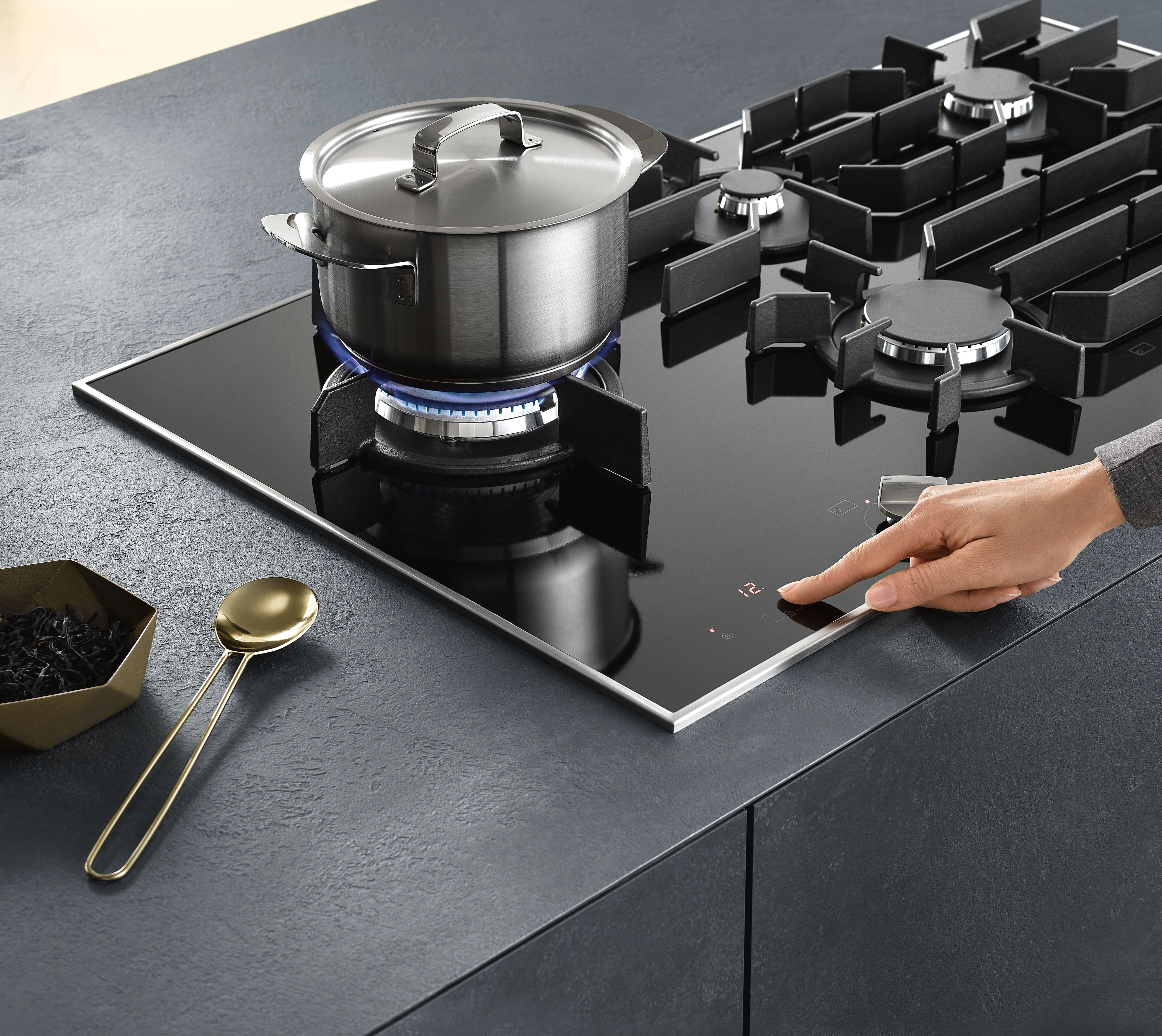

Gas cooktops with electronic controls

Miele's intelligent design features offer the customer more safety and convenience. QuickStart ensures fast ignition and GasStop& ReStart automatic reignition in the event of flame failure. Some models have an additional Minute minder as well as heat and residual heat indicators.

Versatile burner configuration

Miele gas cooktops offer a wide range of burner sizes. From the smallest energy-saving burner for slow and gentle cooking to the powerful wok burner for large amounts and fast heating up. The right power for every situation!
