Sale price $2,679.30 Regular price $3,398.97 Save $719.67 / 21% OFF

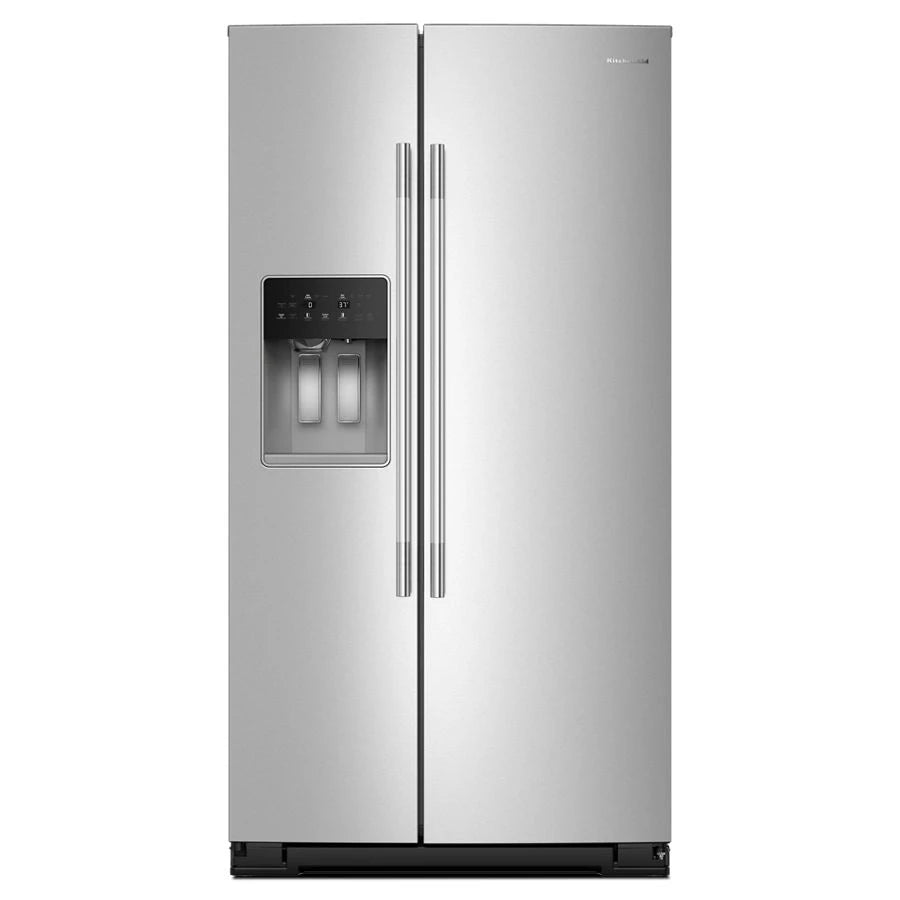

Product Details for KitchenAid KRSC536RPS

Technical Details

Dimensions & weight

Width 35.5 in.
Height 69 in.
Length 29.56 in.
Weight 270.6 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 40.5 in.
Shipping Height 74 in.
Shipping Length 34.56 in.
Shipping Weight 310.6 lbs.
Total of Shipping Weight 310.6 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 41.9 ft³
Dimensional Weight 520.92 lbs.
Total of Cubes 41.9 ft³
Total of Dimensional Weight 520.92 lbs.

Certifications

ADA Compliant Yes
CEE Tier Rating Not Rated
Star K Certified Star K Certified
UL Yes
Energy Star® Qualified ENERGY STAR® Qualified
Prop 65 Standard

Controls

Automatic Defrost Yes
Control Location Exterior Dispenser
Control Lockout Yes
Cooling Type Single Evaporator
Door Ajar/Open Alarm Yes
LCD Touch Screen No
Max Cool/Fast Cool Yes
Sabbath Mode Yes
Temperature Range -5/+5 FC 33/45 RC

Details

Advance Foam Insulation N/A
Garage Ready No
Installation Configuration Freestanding
Levelers 2 Black
Refrigeration Configuration Refrigerator
Refrigerator Type Side-by-Side
Wheels 4-Natural
Door Style Configuration Side-by-Side
Ice Capacity Storage 4-3/10 lbs

Exterior details

Cabinet Finish Smooth
Counter Depth Yes
Door Style Contour
Hidden Hinge Yes
Reversible Door No
Base Grille Color Grey
Cabinet Color Grey
Door Color Stainless Steel with PrintShield Finish
Door Finish PrintShield Finish
Door Opening Direction N/A
Handle Color Stainless Steel
Handle Material Metal
Handle Type Reach Through Handle

Filter details

Air Filter Indicator/Reset Yes
Air Filter Part Number W10311524
Fresh Flow Air Filter Included Yes
Produce Preserver No
Water Filter Indicator/Reset Yes
Water Filter Location Interior
Water Filter Part Number EDRARXD1

Freezer details

Defrost Type Automatic Defrost
Freezer Door Bins 3 Fixed Full-Width
Freezer Door Type Swing
Freezer Drawer/Basket 1 Full Width Lower Plastic
Freezer Fast Cool Yes
Freezer Lighting LED
Freezer Number of Shelves 4
Freezer Shelves 1 Fixed Full Width Glass, 3 Adjustable Full Width Glass

Icemaker details

Icemaker Factory Installed
Icemaker Location Freezer Door
Types of Ice Crushed/Cubed

Refrigerator details

Deli Drawer 1 Full Width
Humidity-Controlled Crispers 1 Full-Width
Liner Finish Platinum
Non Climate Control Drawers 1 Full Width
Number of Doors 2
Number of Interior Shelves 4
Pantry Drawer No
Refrigerator Lighting LED
Spill-Proof Glass Shelves No
Supplementary Containers N/A
Temperature-Controlled Drawers No
Conventional Shelves 1 Fixed Full-Width Glass, 3 Adjustable Full-Width Glass
Refrigerator Door Bins 2 Fixed Full-Width Gallon, 3 Adjustable Two-Liter

Smart compatibility

Connectivity No
Smart Appliance No
Works With No

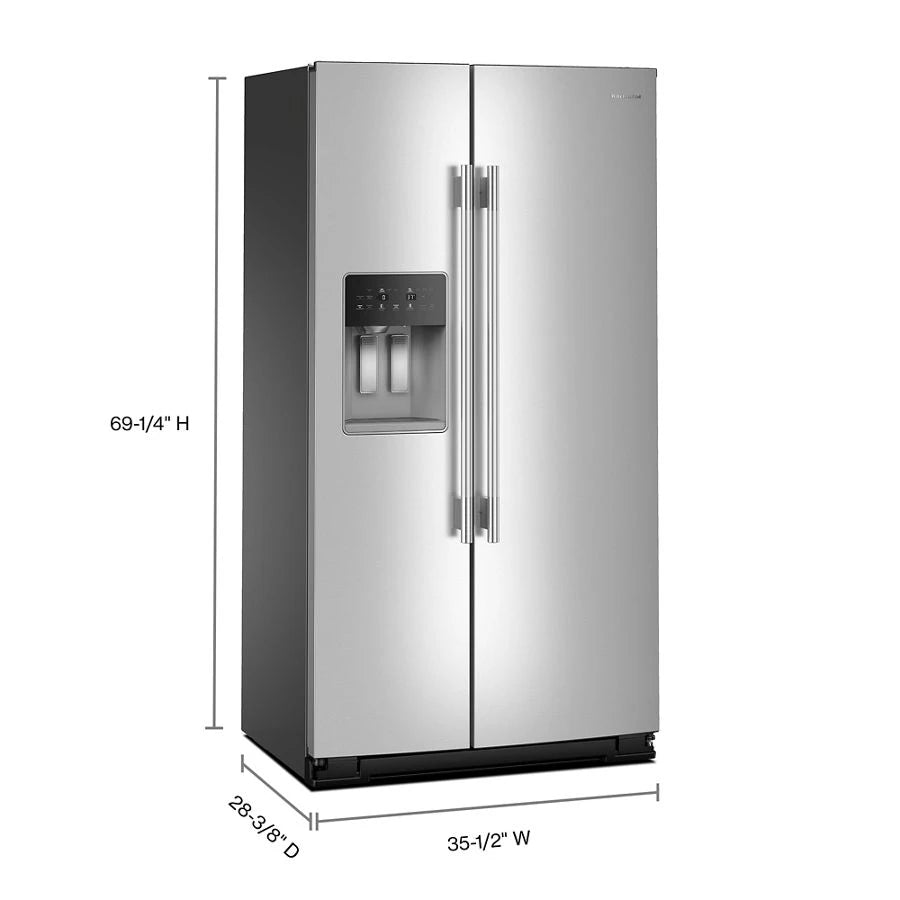

Dimensions

Refrigerator Capacity Volume 13-33/50, 13-33/50
Cabinet Width 35-1/2 in
Capacity 20.85 cu. ft.
Cutout Depth 30-3/8 in
Cutout Height 70-1/4 in
Cutout Width 36-1/2 in
Depth 28-3/8 in
Depth Closed Excluding Handles 28-3/8 in
Depth Closed Including Handles 31-1/8 in
Depth Excluding Doors 23-7/8 in
Depth With Door Open 90 Degree 45-3/4 in
Freezer Capacity Volume 7.19 cu. ft.
Gross Weight 270-3/5 lbs
Height 69-1/4 in
Height To Top Of Cabinet 69 in
Height To Top Of Door Hinge 69-187/1000 in
Height To Top Of Door Trim 69-1/4 in
Maximum Height 69 in
Minimum Height 68-7/8 in
Net Weight 260-3/5 lbs
Total Refrigerator Capacity Volume 20.85 cu. ft.
Width 35-1/2 in

Dispenser details

Dispenser Options Control/Child Lock, Filtered Water, Measured/Metered Fill, Night Light
Dispenser Pad Color Grey
Dispenser Type Exterior Ice and Water

Electrical

Amps 15
Hz 60
Volts 115

Description

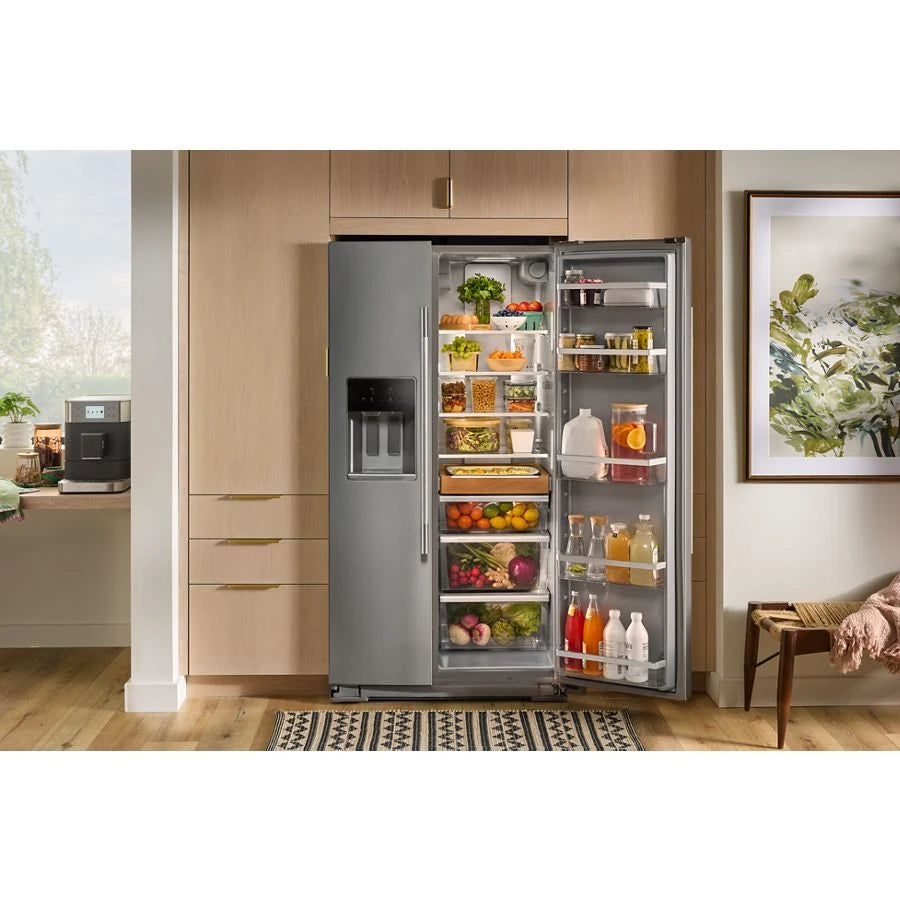

Make room for every grocery run and farmers market haul with this large capacity counter-depth side-by-side refrigerator from KitchenAid brand. Counter-depth design fits with surrounding cabinetry to create a built-in appearance. Panoramic LED Lighting illuminates every angle to keep ingredients in sight and easy to find. And an Exterior Ice and Water Dispenser with Measured Fill allows you to select and dispense the exact amount you need in ounces, cups or liters.

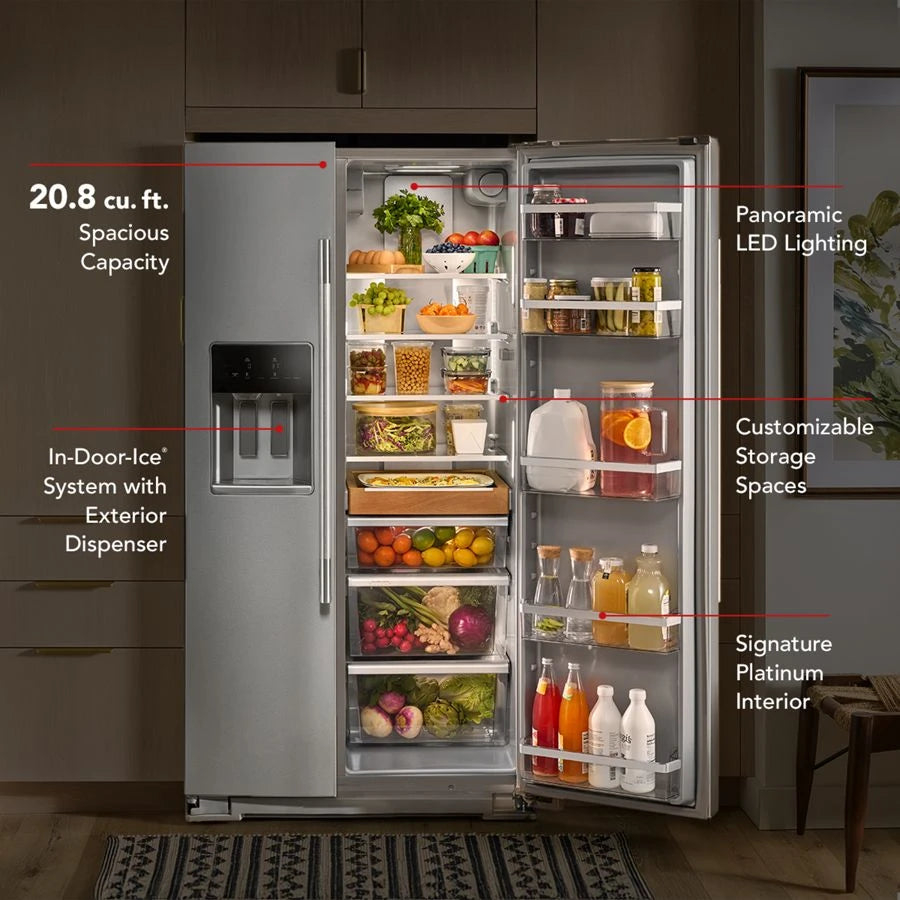

Product Features

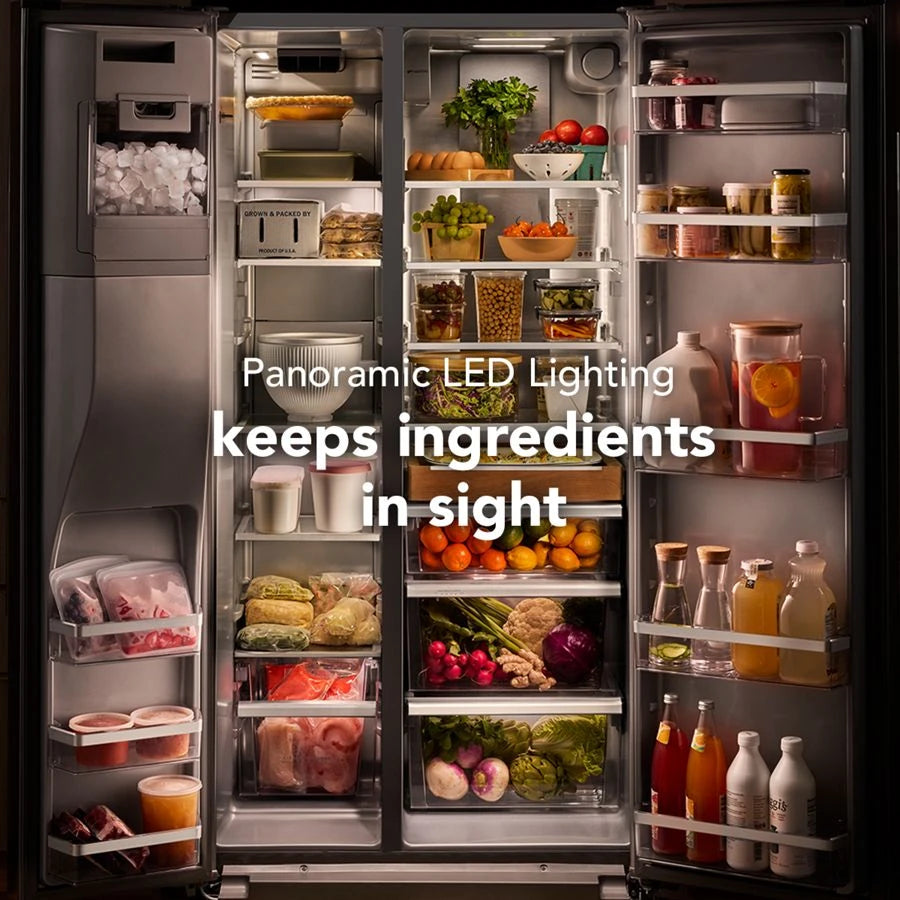

  • Panoramic LED Lighting
    illuminates the back of the refrigerator to keep ingredients in sight and easy to find. The rear lighting tower, combined with additional LED light strips throughout the refrigerator and freezer, brighten up the view throughout.

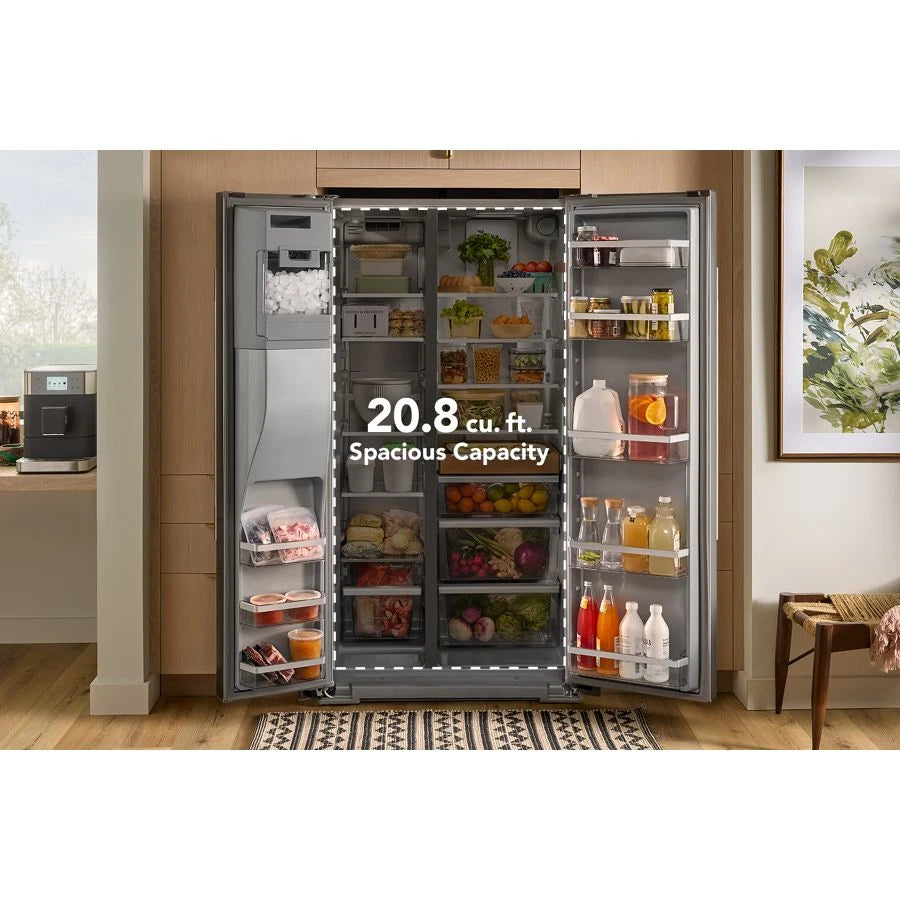

  • Spacious Counter-Depth Capacity at 20.8 cu. ft.
    this large capacity counter-depth side-by-side refrigerator makes room for every grocery run and farmers market haul with 20.8 cu. ft. of capacity and specialized spaces for your special ingredients.

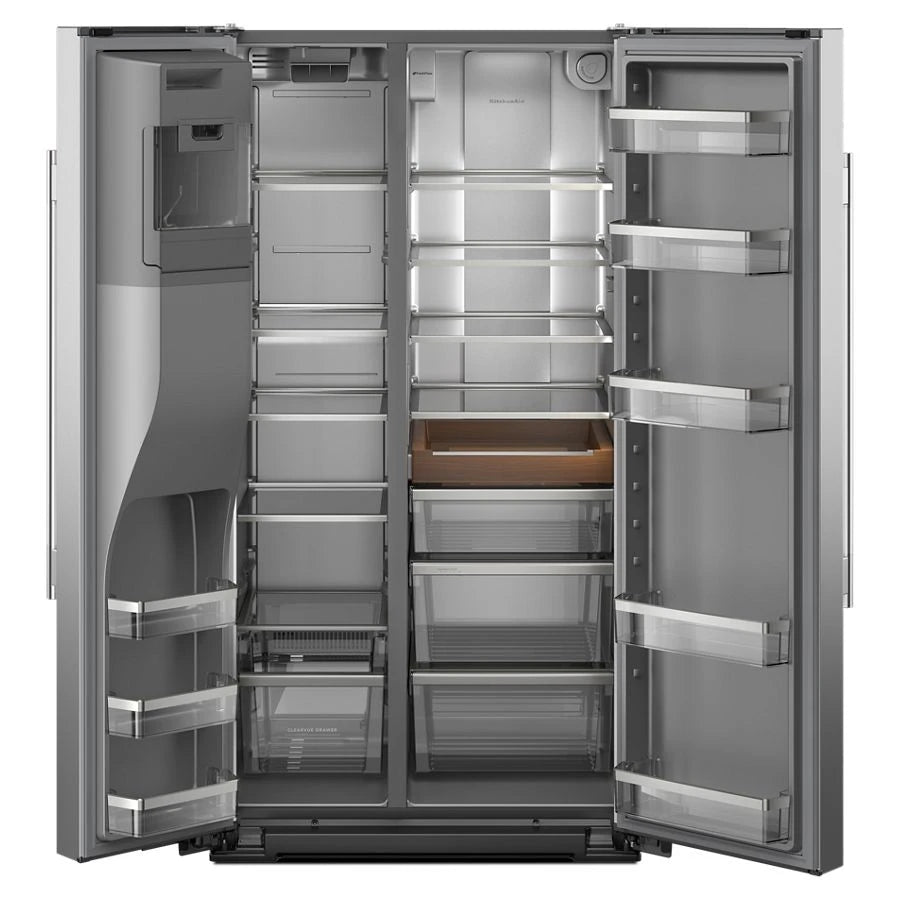

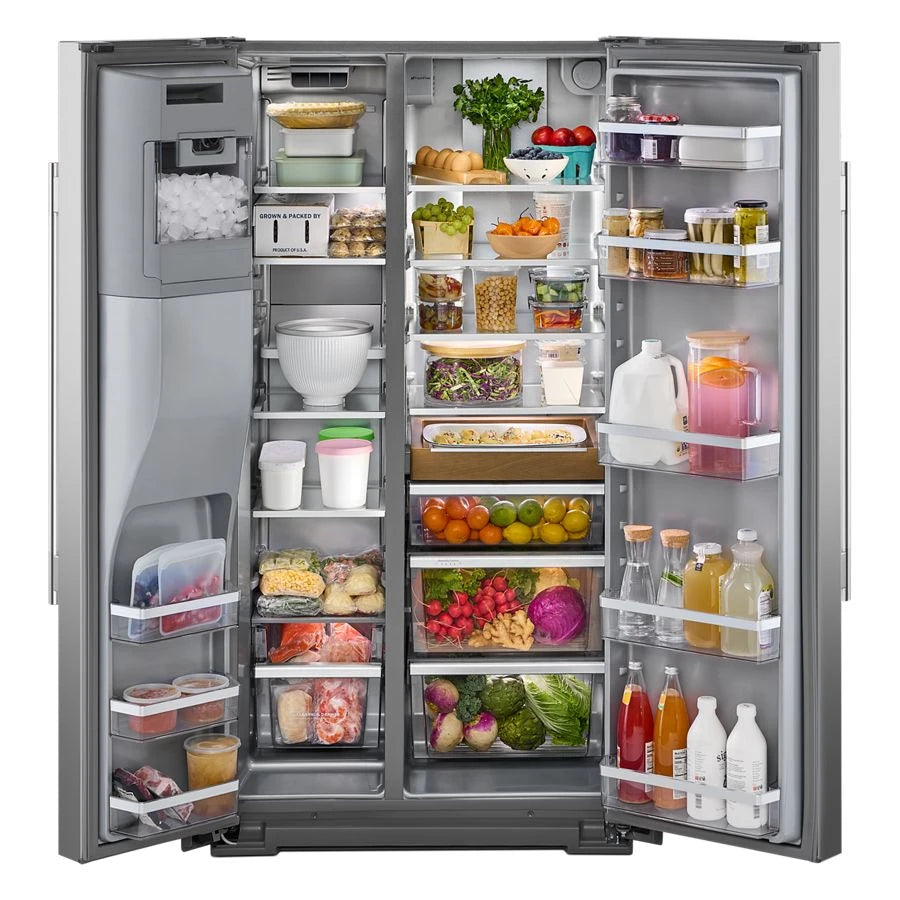

  • Customizable Spaces for Items Big and Small
    featuring nine removable glass shelves and eight adjustable door bins keep all of your ingredients easily accessible. Rearrange to fit tall wine bottles, stash small items within reach and organize frozen favorites.

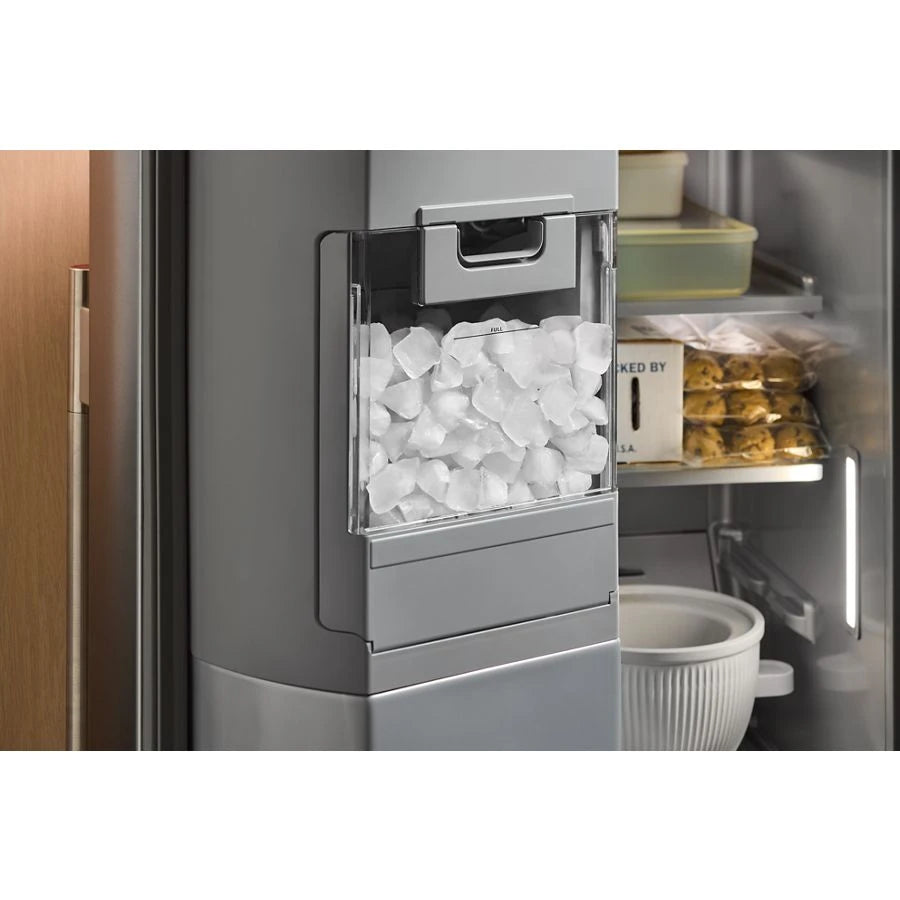

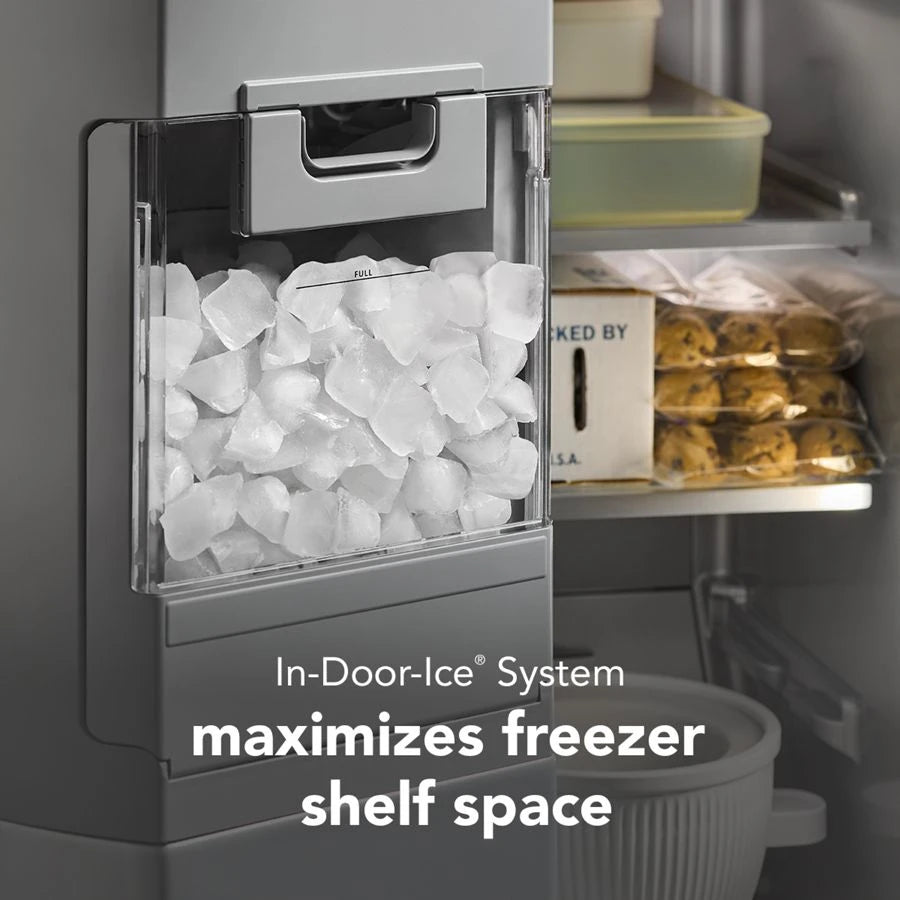

  • In-Door-Ice® System with Removable Bin
    maximizes ice storage while maximizing space on freezer shelves by moving the ice bin to the door. The bin holds up to 4.3 lbs of ice, is clear so you can quickly see ice levels and can be removed to easily fill pitchers or coolers.
  • Signature Platinum Interior
    wows from the inside out with premium craftsmanship and design. Wood-look trim, metallic touchpoints and ultra-bright LED lighting pop against the stunning silver-colored finish.
  • Wood-Look Sliding Storage Tray
    keeps serving platters and ingredients easily accessible. The tray removes fully for easy cleaning.
  • Humidity-Controlled Crisper
    provides dedicated space for produce with the ability to adjust humidity levels to match. Choose high humidity to help vegetables stay crisp, low humidity to help fruit stay fresh or a setting in between to balance the needs of both.

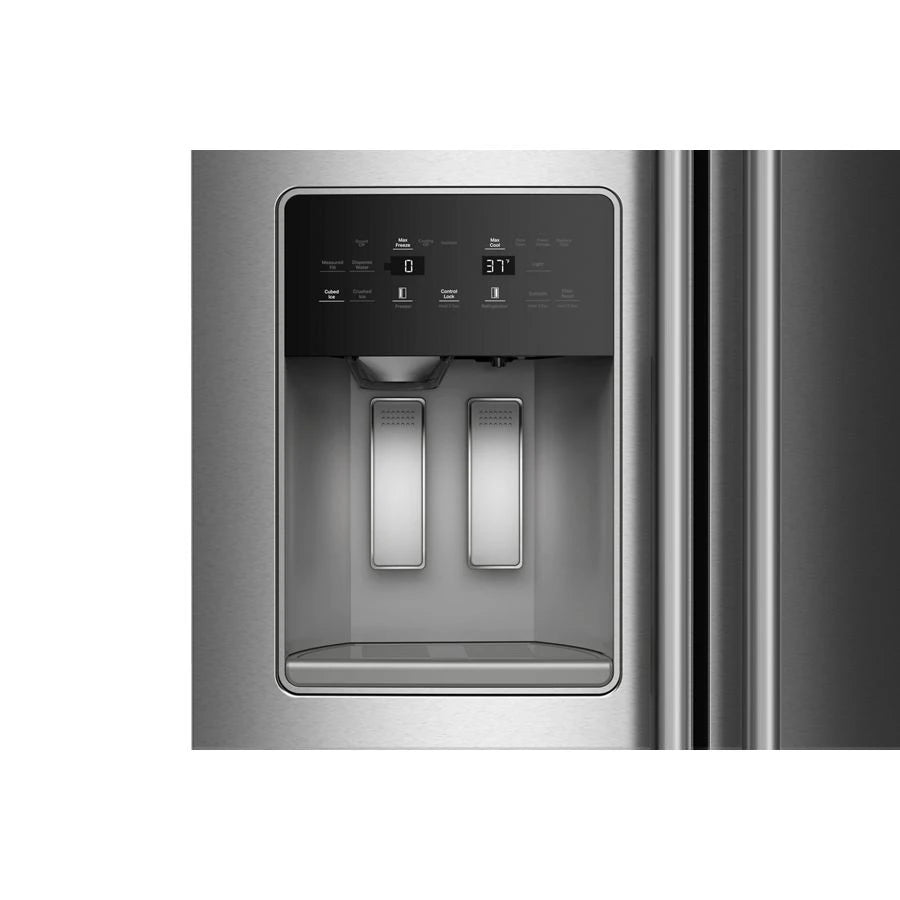

  • Exterior Ice and Water Dispenser with Measured Fill
    conveniently dispenses filtered ice and water without opening the door. Measured Fill allows you to select and dispense the exact amount you need in ounces, cups or liters.
  • Max Cool
    helps quickly chill recently loaded groceries by setting the refrigerator compartment to the lowest temperature level for up to 6 hours.
  • Max Freeze
    helps frozen items quickly reach optimal storage temperatures by setting the freezer compartment to the lowest temperature level for up to 48 hours.
  • ExtendFresh™ Temperature Management System
    helps keep ingredients fresh and flavorful. This single evaporator system uses sensors to continually monitor temperature levels in both the refrigerator and freezer and adapts the flow of cold air between them to maintain optimal temperatures throughout.
  • FreshFlow™ Air Filter
    deodorizes 15x better than baking soda. The replaceable carbon-based filter neutralizes common food odors for up to 6 months.
  • Touchscreen Controls
    on the front of the refrigerator make it easy to choose temperature settings, control the icemaker and check the status of the water filter, all without opening the door.

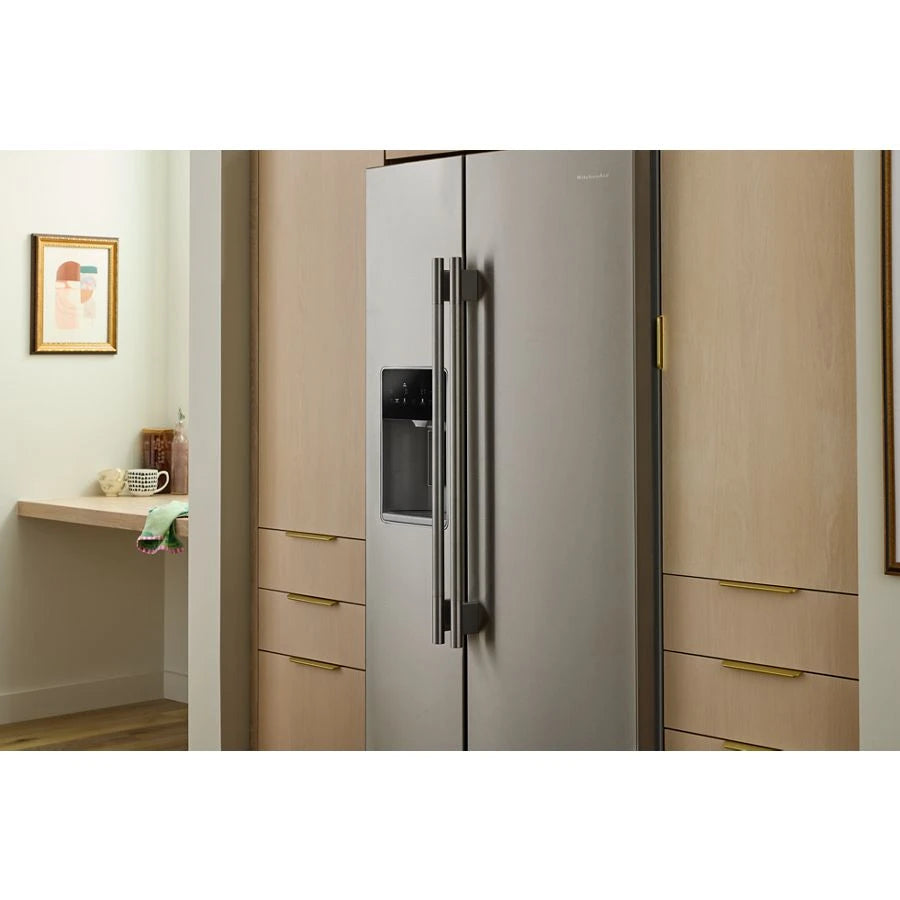

  • Counter-Depth Design
    fits with surrounding cabinetry, creating a built-in appearance while freeing up more space in the kitchen.
  • Energy Star® Certified
    to exceed government standards for energy efficiency, supporting sustainability and helping to save money on utility bills.
  • Sabbath Mode
    meets kosher requirements for use on the Jewish Sabbath and other holidays. Turning on Sabbath Mode disables the refrigerator's automatic lights and alarm tones while maintaining cold temperatures for freshness.
  • Designed to be Personalized
    with a curated palette of exterior finishes and mixed metal hardware. Pick from lush Juniper, warm Black Ore and classic Stainless Steel finishes, all with matching handles. Personalize your hardware with optional handle accessory kits in Brass, Bronze, Black Ore and Stainless Steel.
