Sale price $3,799.00 Regular price $5,458.97 Save $1,659.97 / 30% OFF

Product Details for KITCHENAID KSEG950ESS

Technical Details

Controls

Display Color Red, White
Electronic Display Type Digital

Details

Oven Automatic Shut-Off Yes
Fuel Type Electric
LP Convertible No
Oven Configuration Single Oven
Power On Indicator Light Yes
Power Outage Compatible No
Range Configuration Slide-In
Range Type Slide-in
Oven Selections Cancel/Off, Clock, Cook Time Indicator, Delay Start, Keep Warm Setting, Proofing, Sabbath Mode, Steam Bake, Timer

Cooktop details

Auto Re-ignition No
Cooktop Surface Color Black
Cooktop Surface Material Ceramic Glass
Heating Element On Indicator Light Yes
Hot Surface Indicator Light Yes

Certifications

ADA Compliant ADA Height and Operation Compliant
Prop 65 Standard
UL Yes

Electrical

Amps 40
Volts 240
Power Cord Included 4-Prong

Dimensions & weight

Width 29.88 in.
Height 36 in.
Length 28.88 in.
Weight 180 lbs.
Carton Depth 30 9/16
Carton Height 43 1/2
Carton Width 31 1/2
Depth Closed Including Handles 28 7/8
Depth With Door Open 90 Degree 48 3/4
Gross Weight 180
Net Weight 162.0
Depth Closed Including Handles(IN,inches) 28.8750
Depth With Door Open 90 Degree(IN,inches) 48.7500
Net Weight(LB,pounds) 162
Carton Depth(IN,inches) 30.5625
Carton Height(IN,inches) 43.5000
Carton Width(IN,inches) 31.5000
Gross Weight(LB,pounds) 180

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34.88 in.
Shipping Height 41 in.
Shipping Length 33.88 in.
Shipping Weight 220 lbs.
Total of Shipping Weight 220 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 17.97 ft³
Dimensional Weight 223.46 lbs.
Total of Cubes 17.97 ft³
Total of Dimensional Weight 223.46 lbs.

Element/burner details

Cooktop Element Style Radiant
Left Front Element-Burner Size 12in./6in.
Left Front Element-Burner Type Dual
Left Rear Element-Burner Size 6in.
Left Rear Element-Burner Type Radiant Hyper
Number of Cooking Element-Burners 4
Right Front Element-Burner Size 10in.
Right Front Element-Burner Type Radiant Hyper
Right Rear Element-Burner Size 6in.
Right Rear Element-Burner Type Radiant
Left Front Element-Burner Power 3,000W
Left Rear Element-Burner Power 1,300W
Right Front Element-Burner Power 3,200W
Right Rear Element-Burner Power 1,200W

Exterior details

Door Type Metal & Glass
Oven Control Type Electronic Touch
Oven Window Size Large
Handle Color Stainless Steel
Handle Material Metal
Handle Type Towel Bar
Knob Color Stainless Steel
Knob Type Metal

Oven cavity details

Automatic Convection Conversion Temperature Adjust Yes
Bake Element Power 3,600 W
Broiler Element Power 4,000 W
Broiler Location Top of Oven
Convection Element Type Fan
Convection Functions Bake, Broil, Roast
Door Removable Yes
Hidden Bake Element Yes
Interior Color Grey
Number of Oven Lights 2
Number of Rack Guides 7
Oven Cleaning Type AquaLift® Self Clean
Oven Cooking System Convection
Oven Light Switch Location Oven Control
Oven Light Type Incandescent
Convection Element Power 3,200 w
Number of Oven Racks 2
Oven Rack Type 1 Steam Rack, 1 Gliding Roll-out Rack

Features

Range Features ADA Compliant, Downdraft, EasyConvect™ Conversion, Even-Heat™ True Convection, FIT System, SatinGlide™ Racks, Steam Rack

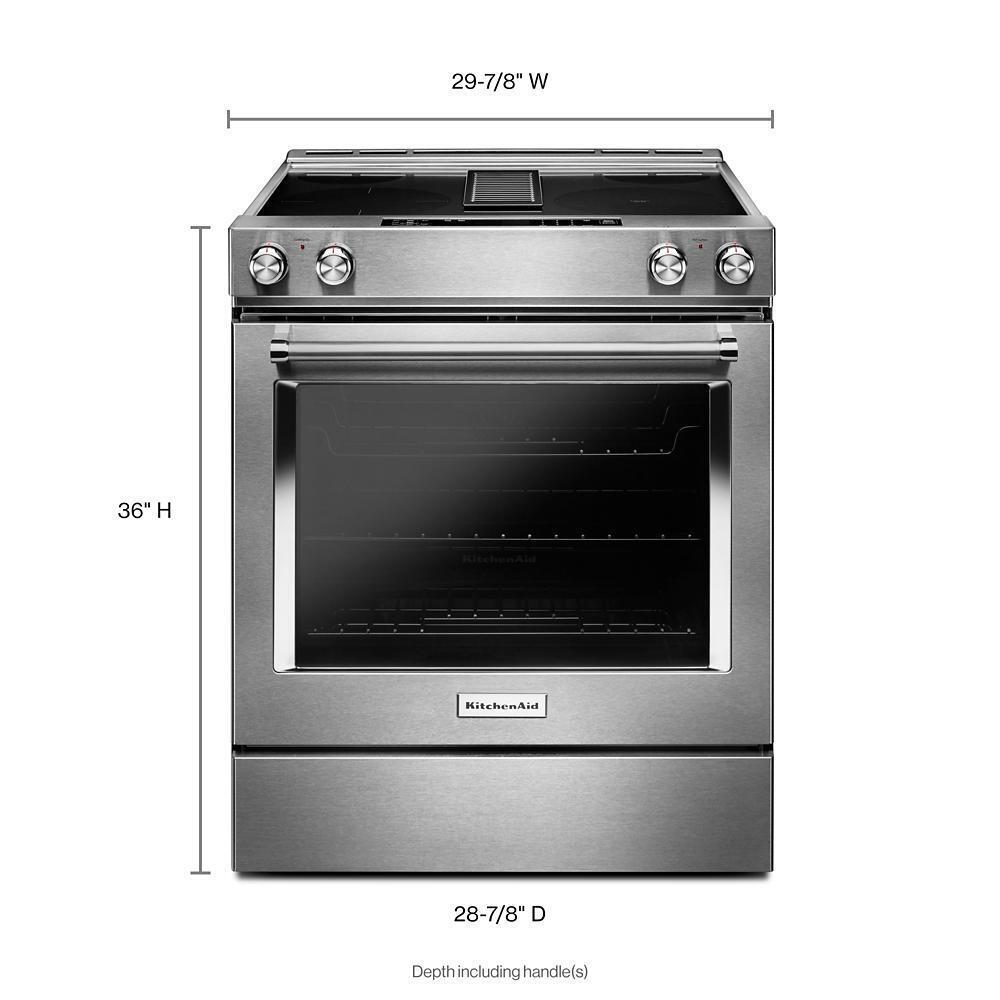

Dimensions

Capacity 6.4 cu. ft.
Common Size 30 in
Depth 28-7/8 in
Depth Closed Including Handles 28-7/8 in
Depth With Door Open 90 Degree 48-3/4 in
Gross Weight 180 lbs
Height 36 in
Net Weight 162 lbs
Oven Interior Depth 20-5/8 in
Oven Interior Height 22-1/8 in
Oven Interior Width 24-1/8 in
Width 29-7/8 in

Ventilation details

Maximum Motor CFM 300

Description

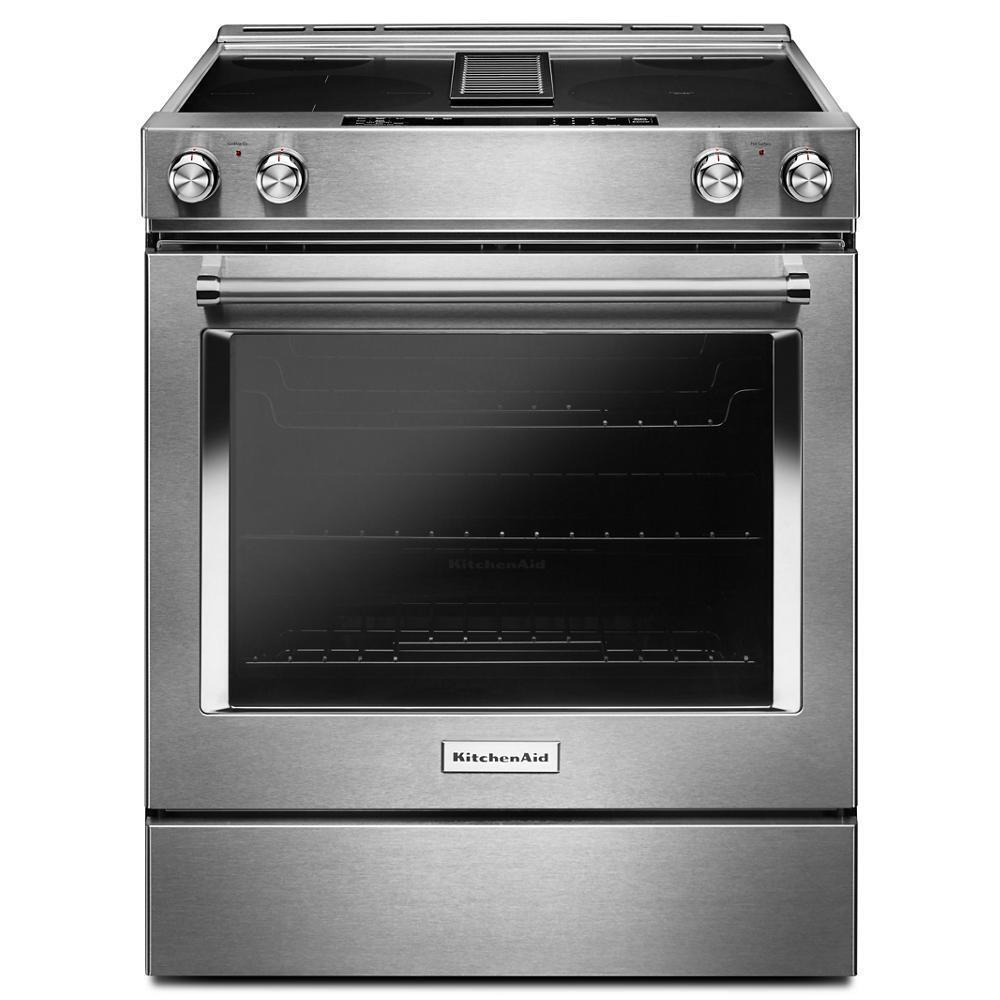

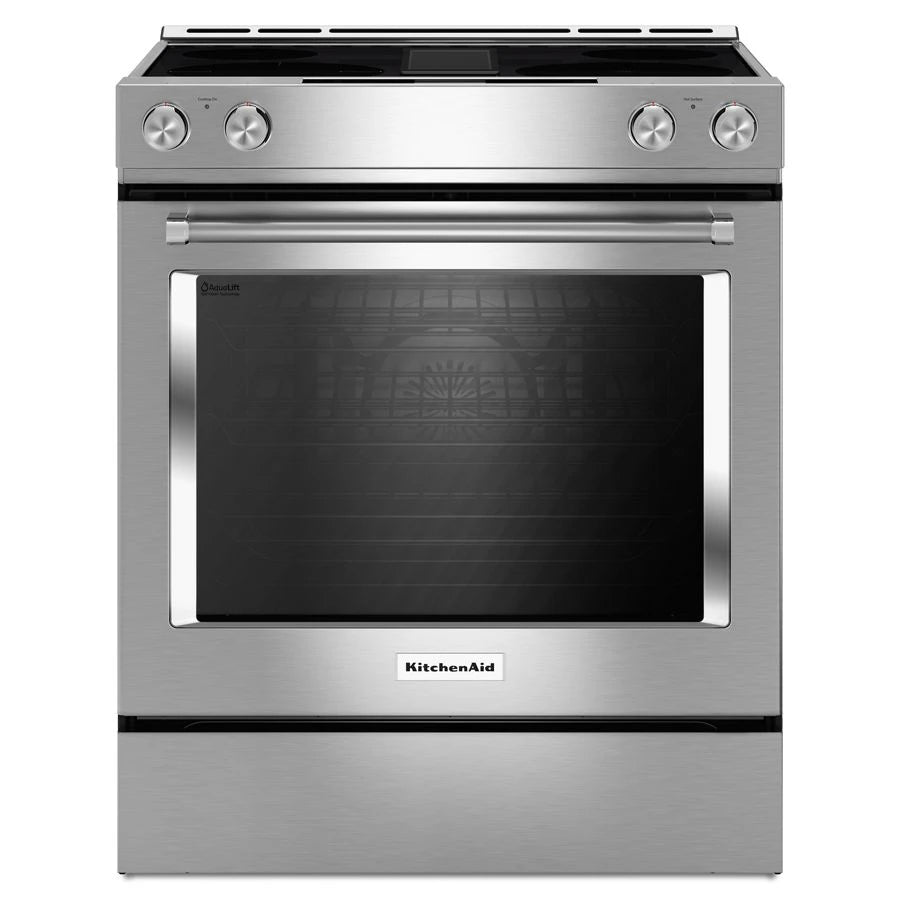

KitchenAid 30" Electric Range with Downdraft Ventilation, 4 Cooking Elements, and Even-Heat™ True Convection Oven


Product Features

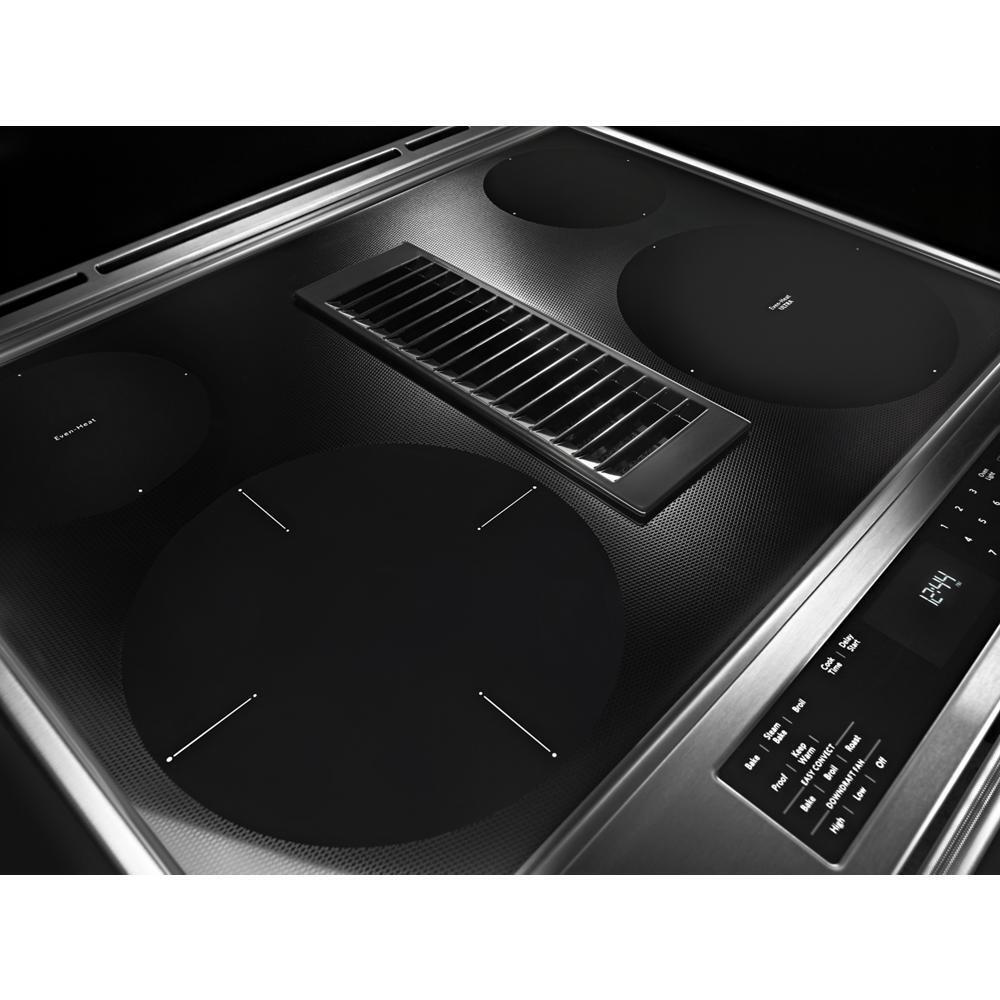

  • Downdraft
    Integrates the ventilation system right into the range so that a separate hood is not needed. Smoke and odors can be removed and taken outside or air can be filtered and recirculated inside. A duct free kit can be purchased separately.
  • Side Trim Accessory Kit
    This optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.
  • Steam Rack
    Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
  • 6.4 cu ft Capacity
    This electric slide-in range provides a large cooking capacity that easily handles multiple dishes at once.

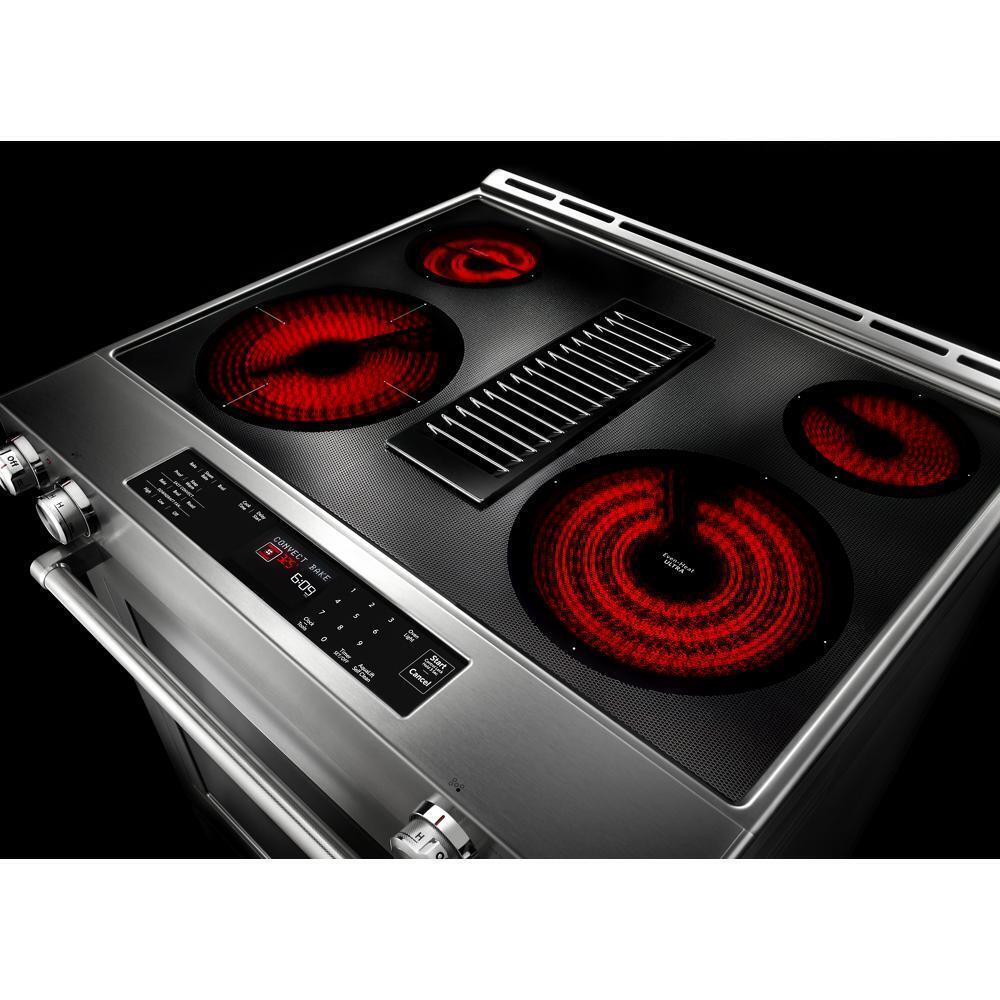

  • 4 Cooking Elements
    Provides four independent cooking surfaces that allow you to do more on your range. It features a double cooking zone of 6 and 10 inches, one 10 inch zone, plus two 6 inch cooking zones.
  • Glass Touch Controls
    Offer an intuitive, easy-to-use touch screen experience.
  • Aqualift®
    Cleans your oven in less than an hour without odors and at a temperature below 200°F. This innovative system combines low heat with water to release baked-on spills.
  • EasyConvect™ Conversion
    Takes the guesswork out of convection cooking by converting conventional settings for recipes to convection settings for you.
  • Even-Heat™ True Convection
    Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures combined with airflow for crisp, flaky baked goods, juicy, well-browned roasts and caramelized vegetables.
  • SatinGlide® Max Racks
    Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
  • Max Capacity Rack (Sold separately)
    The Max Capacity Rack dips down so you have plenty of room for cooking your largest dishes.
