Product Details for KITCHENAID KOSC504PPS

Technical Details

Controls

Control Type Glass Touch Digital Display
Display Color Full Color
Electronic Display Type LCD Touch Screen
Language Conversion English/French
Light Control Oven Light Touch Pad

Features

Selection Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Cook Time Indicator, Delay Start, Favorites, Frozen Bake Pizza, Full Bake Meal, Keep Warm/Warm Hold, Language Conversion, Proofin

Details

Oven Automatic Shut-Off Yes
Delay Clean Yes
Flush Installation Approved Yes
Fuel Type Electric
Oven Type Single
Power On Indicator Light Yes

Certifications

CUL Yes
Prop 65 Standard
UL Yes

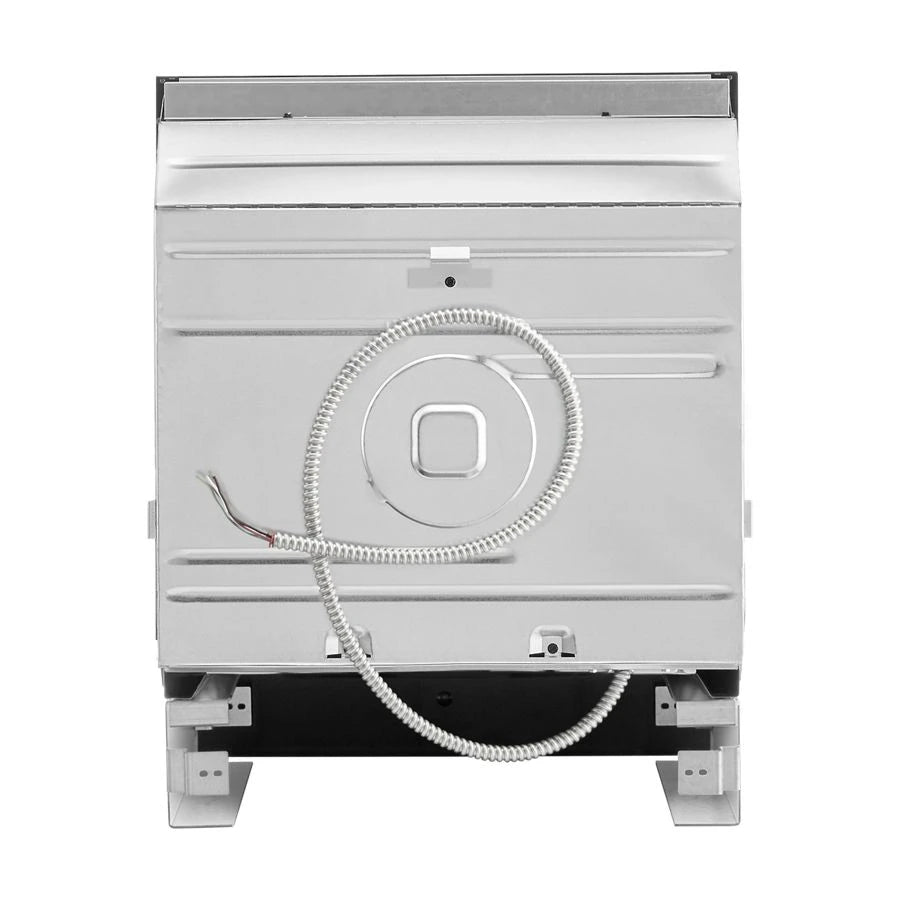

Electrical

Amps 20
Hz 60
Power Cord Included No
Volts 208

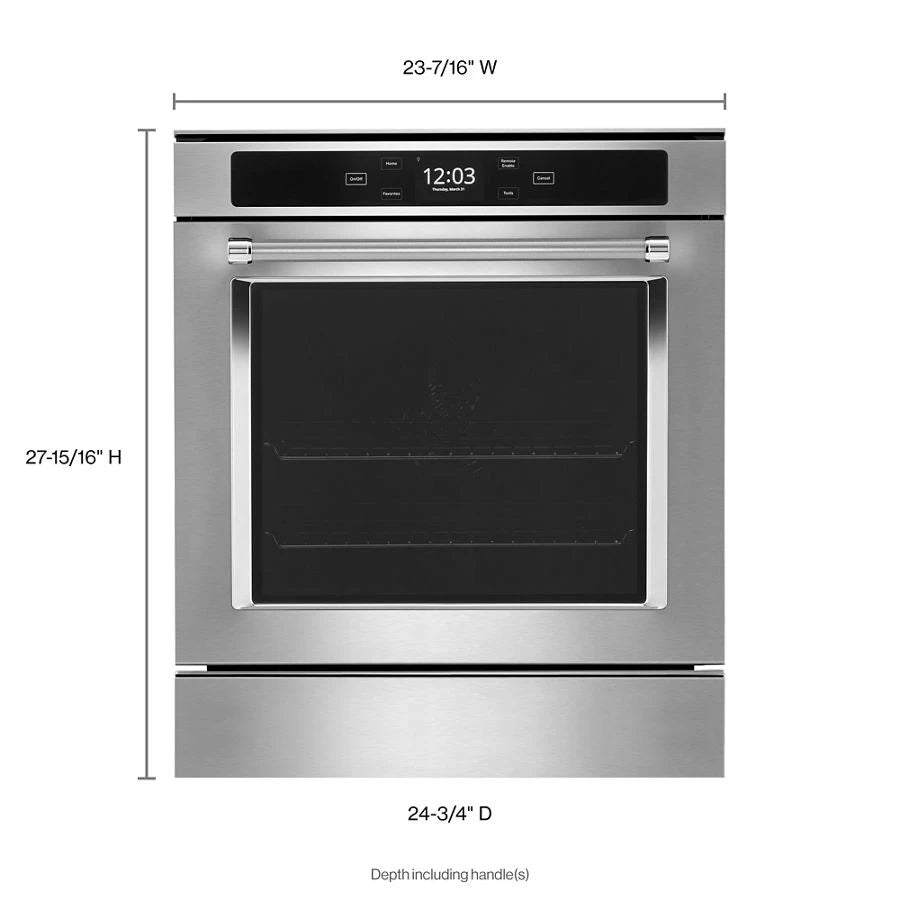

Dimensions & weight

Width 23.44 in.
Height 27.94 in.
Length 22.5 in.
Weight 92 lbs.
Carton Depth 27 3/16
Carton Height 30 3/4
Carton Width 25 1/4
Gross Weight 92
Net Weight 86.0
Cutout Depth(IN,inches) 23.2500
Cutout Height(IN,inches) 27.7500
Cutout Width(IN,inches) 22.6250
Depth Closed Excluding Handles(IN,inches) 22.5000
Depth Closed Including Handles(IN,inches) 24.7500
Depth With Door Open 90 Degree(IN,inches) 40.5000
Maximum Height(IN,inches) 27.9375
Carton Depth(IN,inches) 27.1875
Carton Height(IN,inches) 30.7500
Carton Width(IN,inches) 25.2500

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 28.44 in.
Shipping Height 32.94 in.
Shipping Length 27.5 in.
Shipping Weight 132 lbs.
Total of Shipping Weight 132 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 8.53 ft³
Dimensional Weight 106.01 lbs.
Total of Cubes 8.53 ft³
Total of Dimensional Weight 106.01 lbs.

Exterior details

Door Type Metal & Glass
Door Lock Yes
Handle Color Stainless Steel
Handle Material Metal

Smart compatibility

Smart Appliance Yes
Connectivity Amazon Alexa, Android, Google Assistant, iOS
Works With App, Remote Access, Voice Controlled, WiFi

Oven cavity details

Bake Element Power 1,150 W
Broiler Element Power 2,045 W
Broiler Location Top of Oven
Convection Element Type True Convection
Convection Functions Bake, Broil
Door Broil Position Closed
Door Removable Yes
Hidden Bake Element Yes
Installable Under Cooktop Yes
Interior Coating Porcelain
Interior Color Grey
Light Type Halogen
Number of Bake Elements 1
Number of Broil Elements 1
Number of Oven Lights 2
Number of Oven Racks 2
Number of Rack Guides 5
Oven Cleaning Type Self-Cleaning
Oven Cooking System Convection
Temperature Conversion Yes
Convection Element Power 2,000 w

Dimensions

Capacity 2.9 cu. ft.
Common Size 24 in
Cutout Depth 23-1/4 in
Cutout Height 27-3/4 in
Cutout Width 22-5/8 in

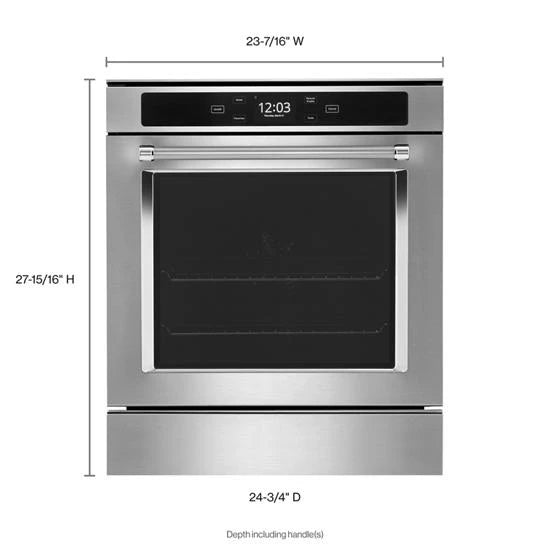

Depth 22-1/2 in
Depth Closed Excluding Handles 22-1/2 in
Depth Closed Including Handles 24-3/4 in
Depth With Door Open 90 Degree 40-1/2 in
Gross Weight 91-1/2 lbs
Height 27-15/16 in
Maximum Height 27-15/16 in
Net Weight 86 lbs
Oven Interior Depth 17 in
Oven Interior Height 14-563/1000 in
Oven Interior Width 18 in
Width 23-7/16 in

Description

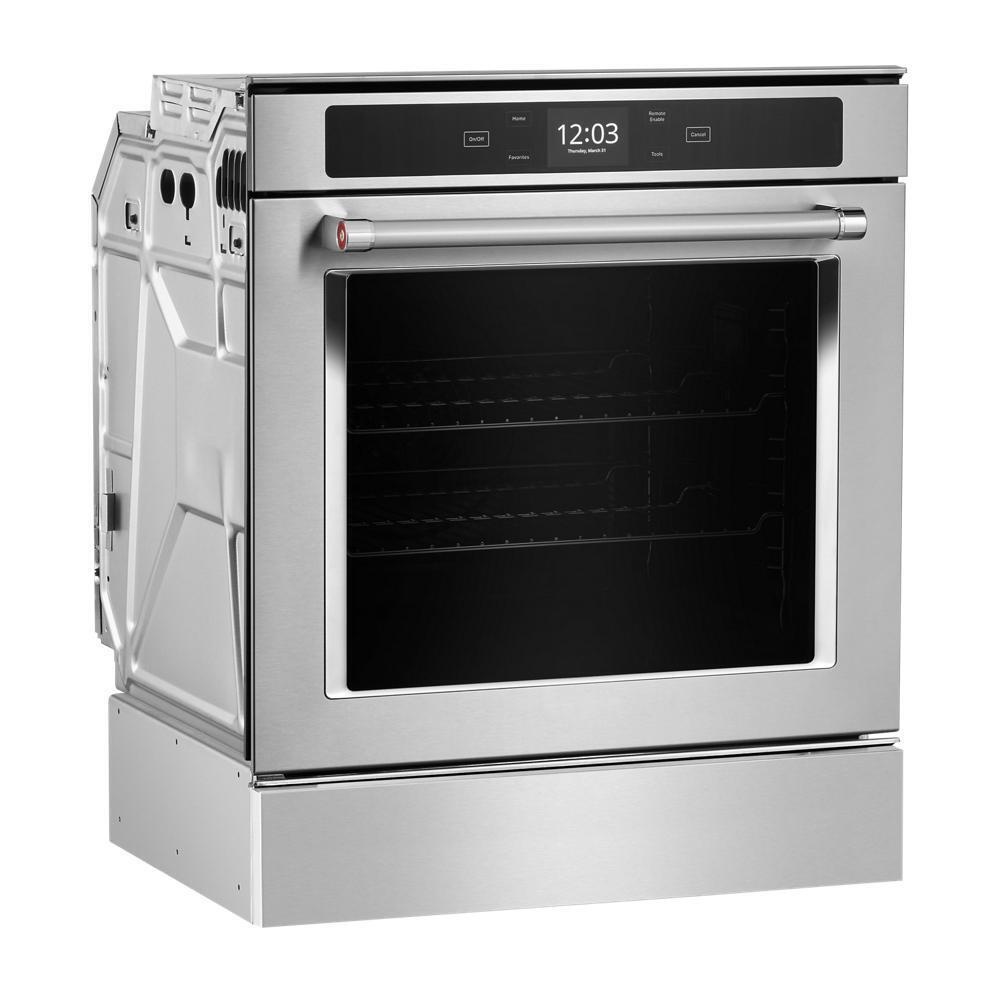

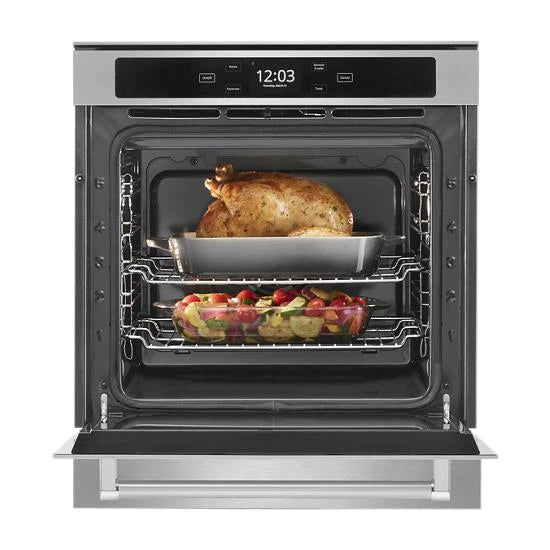

The slim design of this KitchenAid® 24" Smart Single Wall Oven helps you fit your baking, broiling and roasting in any size kitchen. With Five-Level Rack Support, it is easy to rearrange two oven racks, adding flexibility for a variety of cooking adventures. True Convection circulates hot air throughout the entire oven, providing consistent temperatures for pastries, roasts and more.


Product Features

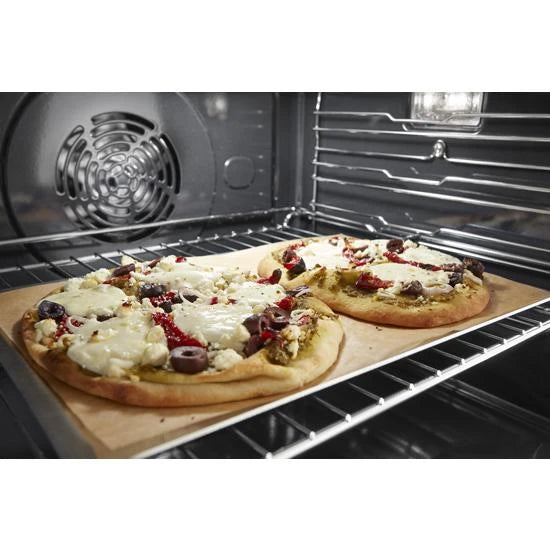

  • True Convection
    uses a hidden heating element and fan to circulate hot air throughout the entire oven while baking or roasting. This provides consistent temperatures for delicious cookies and pastries; juicy, well-browned roasts; and flavorful caramelized vegetables.

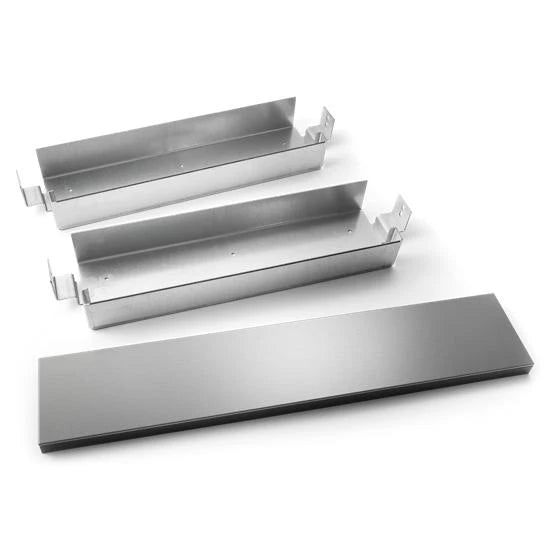

  • Trim Kit Included
    for easy replacement of an existing 24" KitchenAid® Wall Oven without changing your cutout.
  • 2.6 Cu. Ft. Capacity
    combines spacious cooking capacity with a slim design, providing plenty of room to cook a large roast or multiple dishes at once.
  • Smart Appliance
    gives you control of your oven in or out of the kitchen. Remotely monitor and control this oven with the KitchenAid™ App* or with simple voice commands through your Google Assistant or an Alexa-enabled device, leaving your hands free to create.** *Appliance must be set to remote enable. Wi-Fi & App required. Features subject to change. For details and privacy info, visit kitchenaid.com/connect (USA) or kitchenaid.ca/connect (Canada).

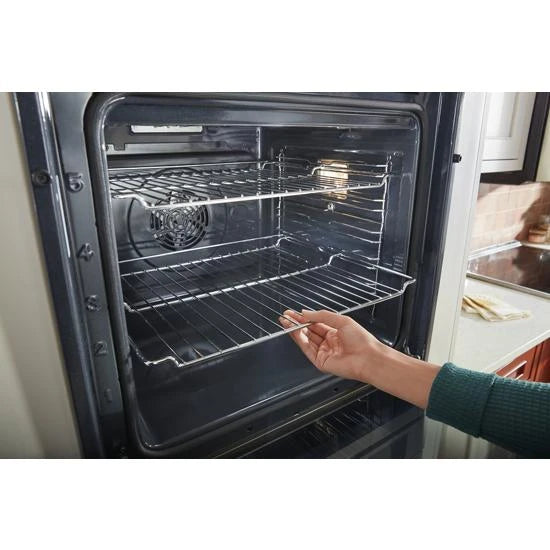

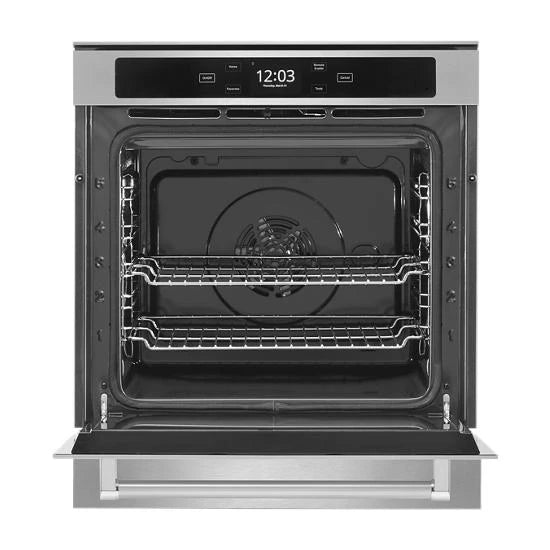

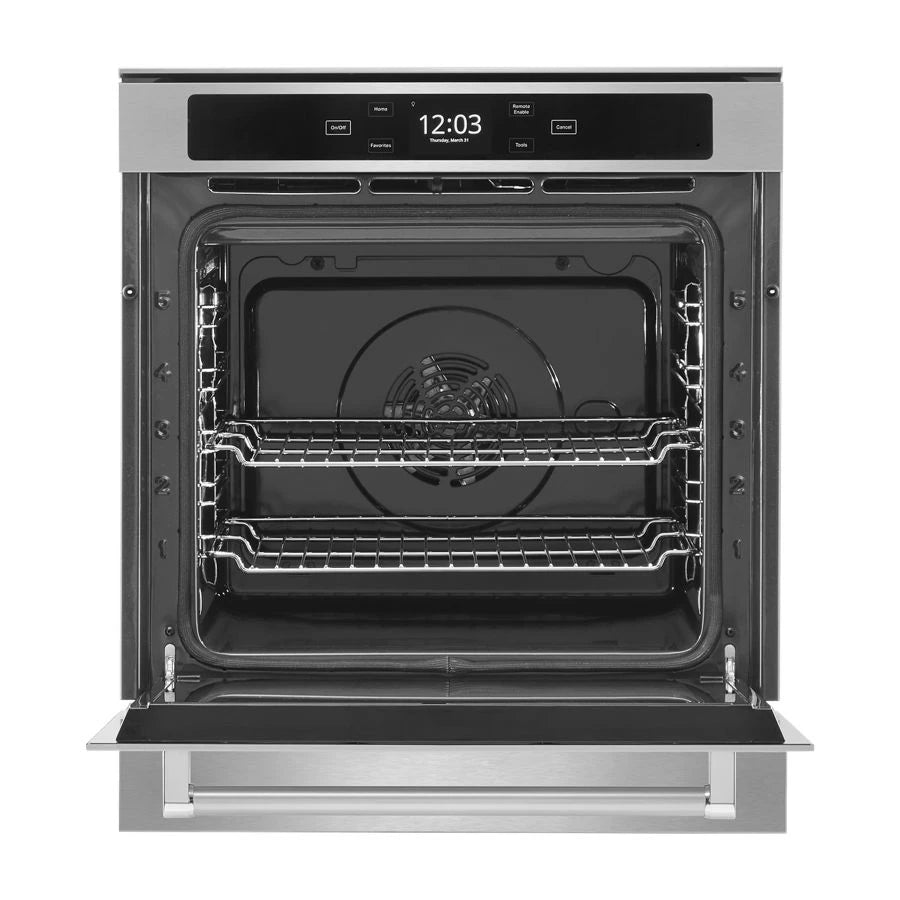

  • Five-Level Rack Support
    makes it easy to rearrange two oven racks, adding flexibility for a variety of cooking adventures. Sturdy ladder rack supports let you choose from five height positions.

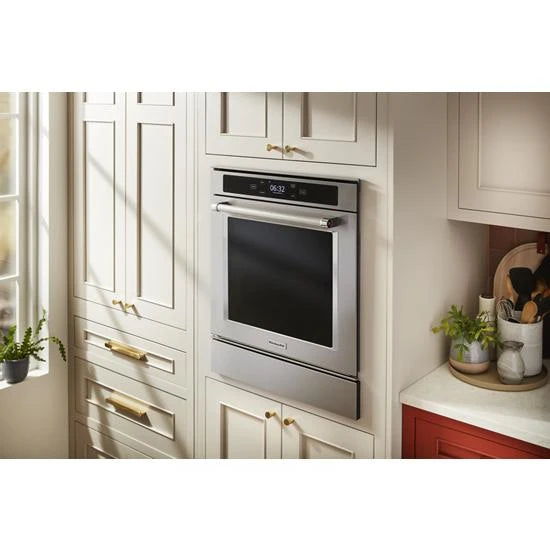

  • Flush Installation Option
    provides a seamless built-in look, so your style stands out, not the appliance. This option allows the oven door to sit flush with surrounding cabinet fronts when closed.

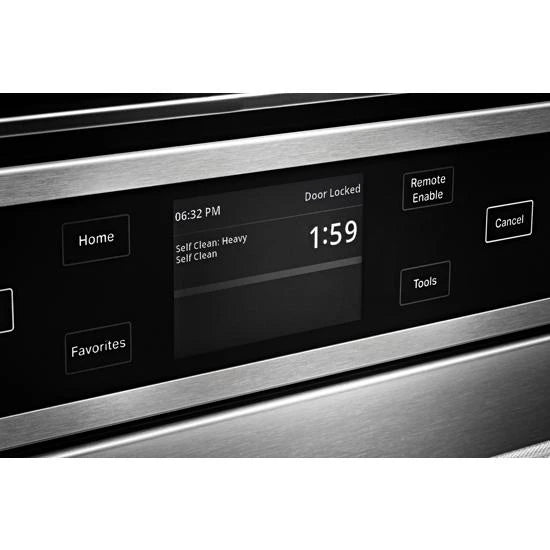

  • Self-Cleaning Cycle
    uses high temperatures to loosen baked-on food without the need for harsh chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth.

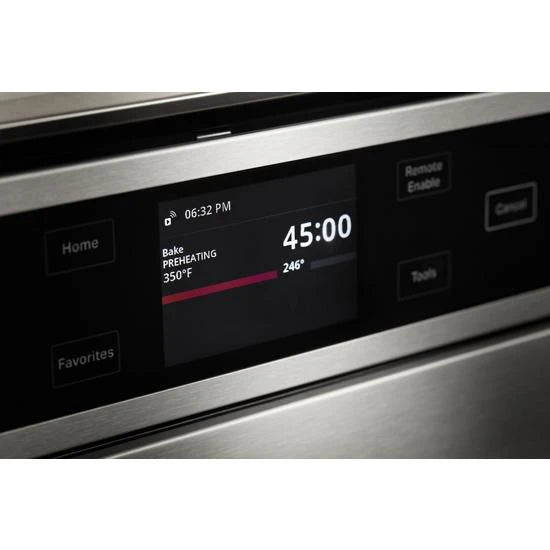

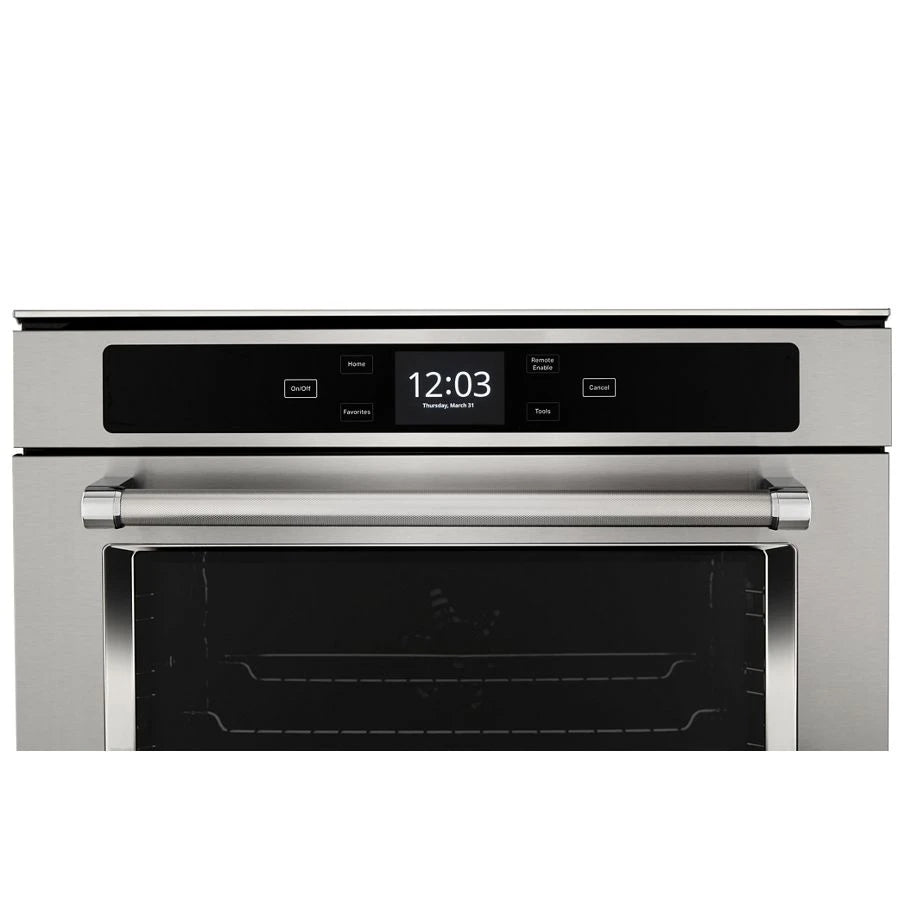

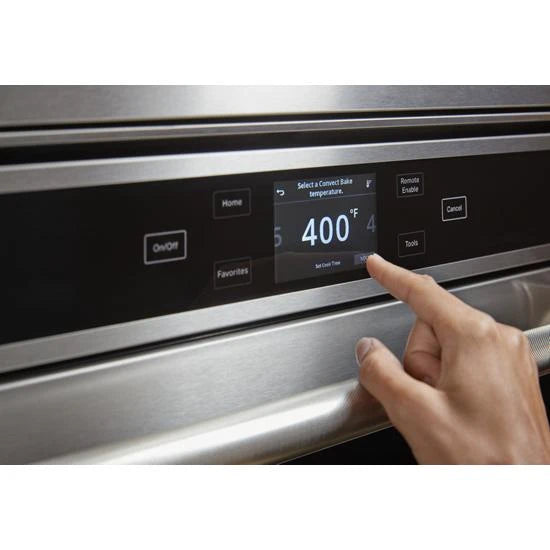

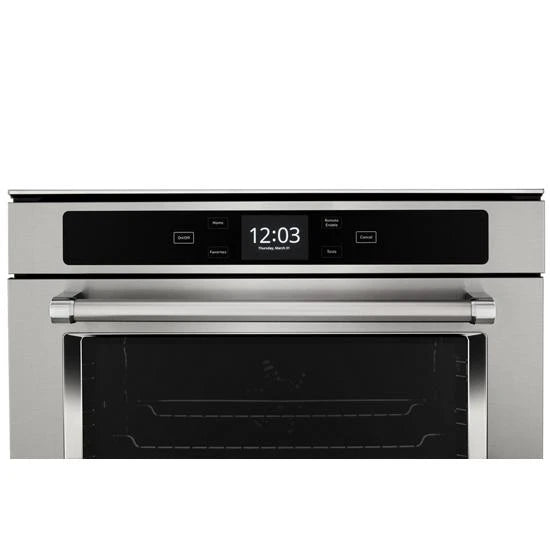

  • Touchscreen Controls
    feature a 3.5" full-color LCD display, making it easy to see and select cooking modes, set cook times and temperatures, connect your mobile device to control the oven from outside the kitchen and even download future feature updates.* *Appliance must be set to remote enable. Wi-Fi & App required. Features subject to change. For details and privacy info, visit kitchenaid.com/connect (USA) or kitchenaid.ca/connect (Canada).
  • Broil Element
    combines high heat and even coverage to give foods a crispy, golden brown finish. Use Broil to sear meat, grill fish, char vegetables, toast bread, melt cheesy toppings and more.

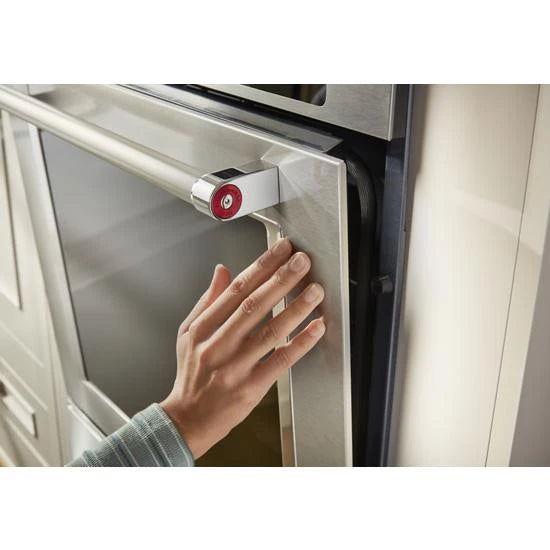

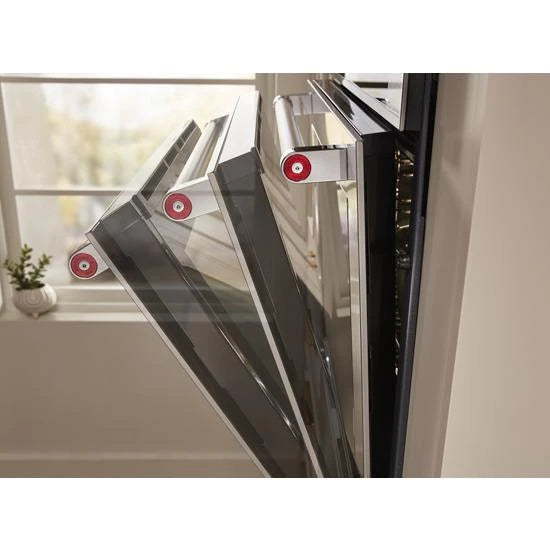

  • Self-Close Doors
    feature specialized hinges that make it easy to shut the oven when your hands are full. Just give either door a nudge, and it will gently close itself.
  • PrintShield™ Finish
    Resists smudges and fingerprints on the microwave. You can easily wipe it down with water and a soft cloth, so you're spending less time cleaning in the kitchen and more time cooking.
