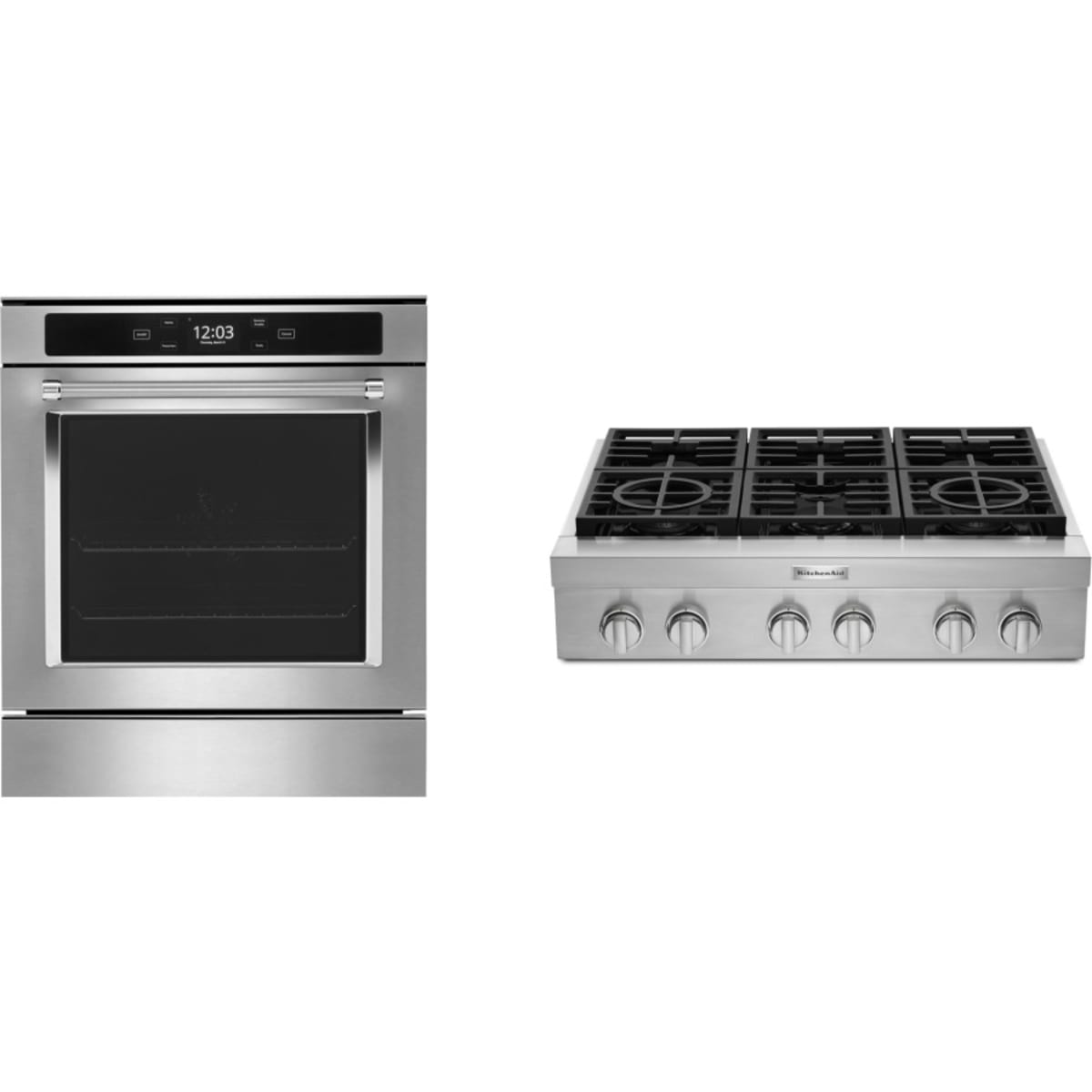

Name: Kitchen Aid 2-Piece Package KCGC506JSS 36 Inch Commercial-Style Gas Rangetop and KOSC504PPS 24 Inch Single Convection Smart Electric Wall Oven
Brand: KITCHENAID
SKU: KitchenAid-KCGC506JSS-KOSC504PPS
Price: 6506.00 USD
Availability: OutOfStock

What's included: 2 items

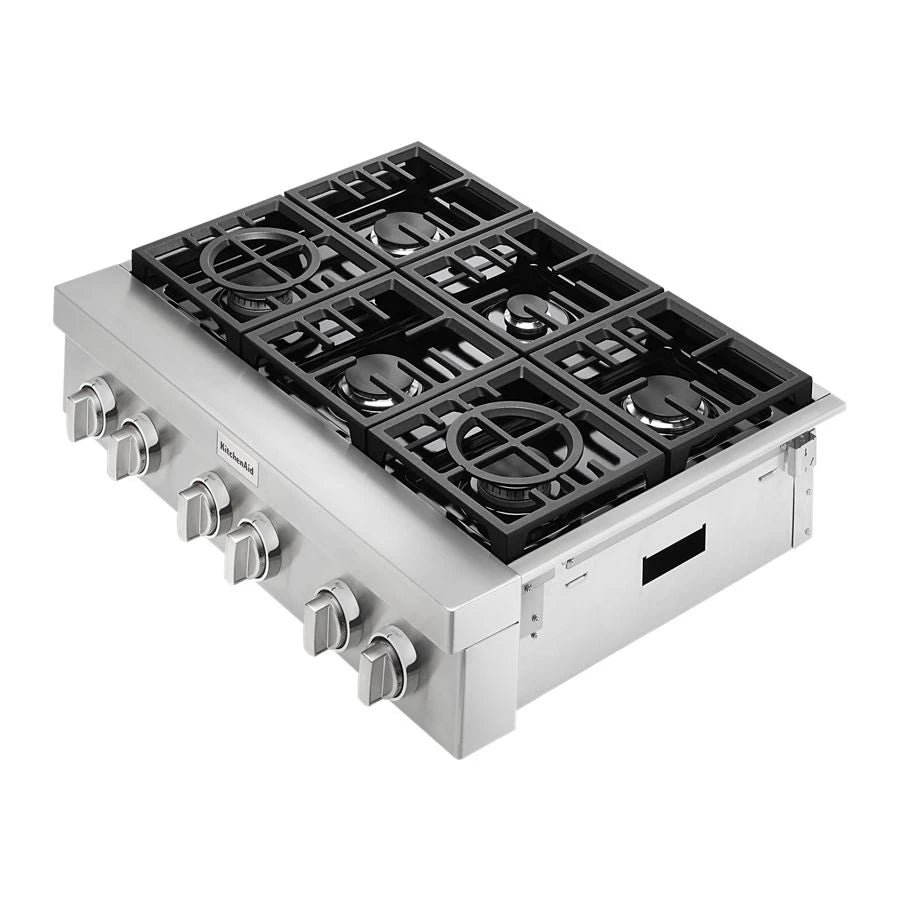

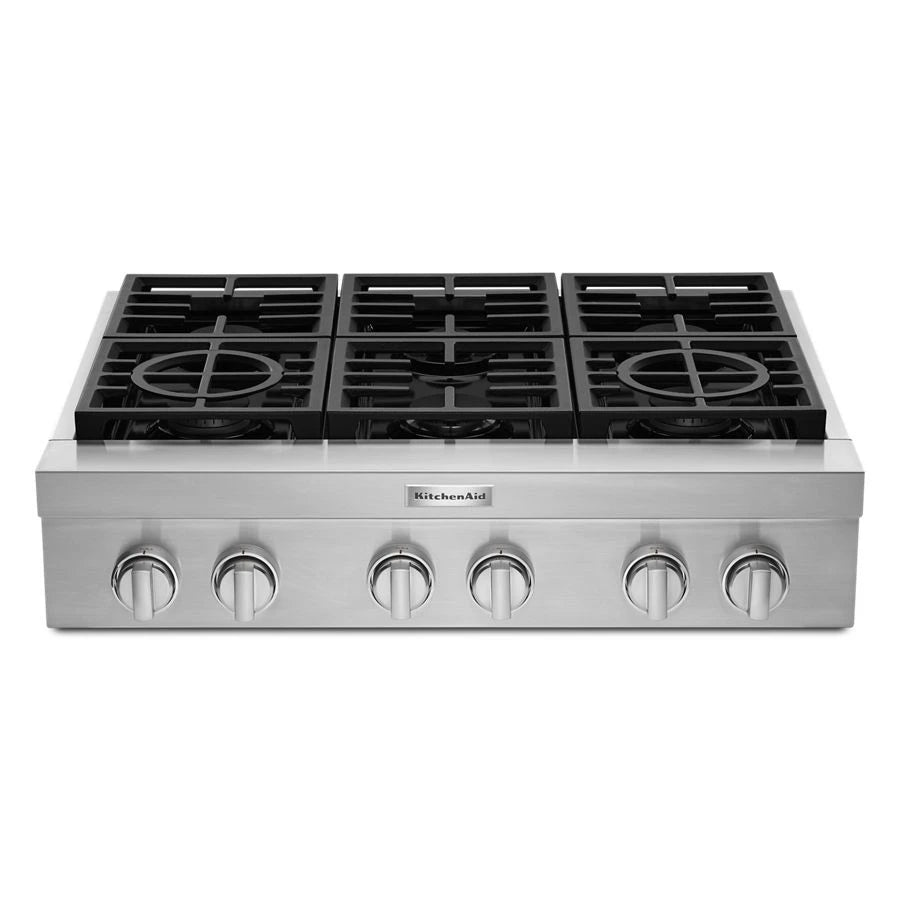

KCGC506JSS Kitchenaid® 36'' 6-burner Commercial-style Gas Rangetop Stainless Steel
- SKU SKU: KCGC506JSS UPC: 883049528328
- Type Gas Cooktops
KitchenAid KOSC504PPS 24" Smart Single Wall Oven With True Convection Fingerprint Resistant Stainless Steel
- SKU SKU: KOSC504PPS UPC: 883049633114
- Type Single Wall Ovens

Product Details
Manuals & Guides
From The Manufacturer
Rebates
Reviews

$6,506.00 ~~$10,683.99~~ Save $4,177.99 / 39% OFF

Product Details for KITCHENAID KCGC506JSS

Technical Details

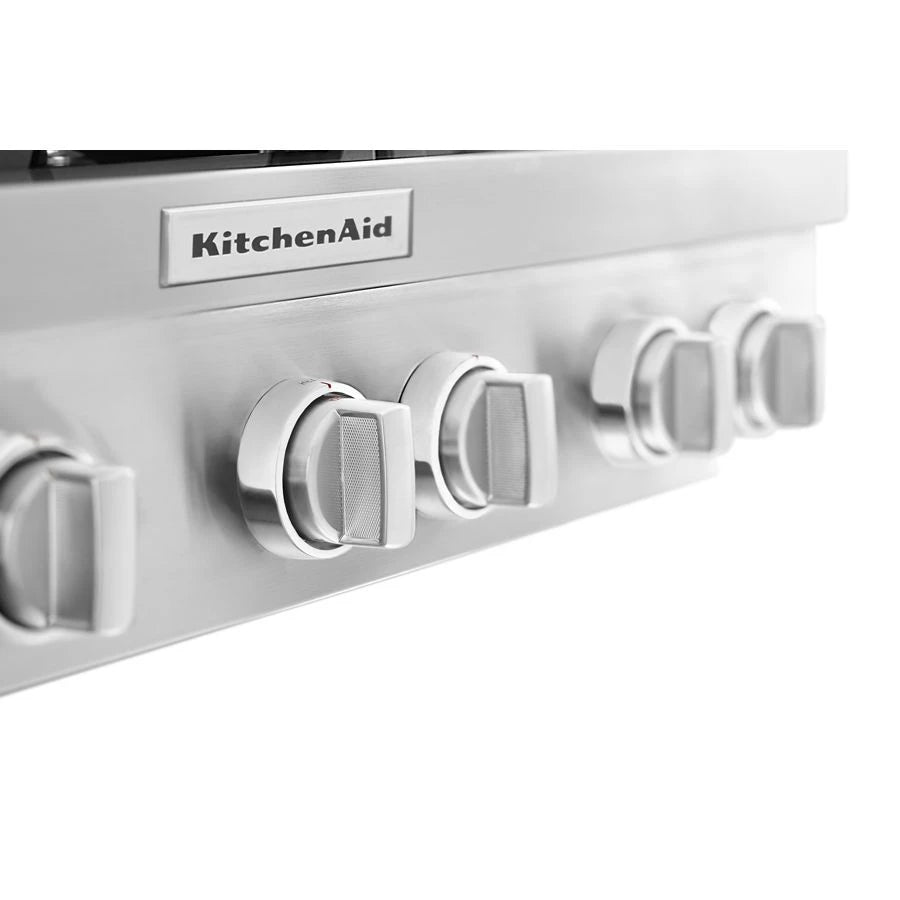

Controls

Control Location	Front
Control Type	Knobs
Infinite Heat Controls	No

Cooktop details

Number of Open Bays	N/A
Cooktop Surface Material	Porcelain Coated Steel
Digital Display	No
Griddle Included	N/A
Heating Element On Indicator Light	No
Hot Surface Indicator Light	No

Certifications

ADA Compliant	No
CUL	Yes
UL	Yes
prop65	Standard

Electrical

Power Cord Included	Yes
208V Compatible	No

Dimensions & weight

Width	35.75 in.
Height	7.44 in.
Length	27.88 in.
Weight	128 lbs.
Carton Depth	34 1/2
Carton Height	19 1/2
Carton Width	39 3/4
Gross Weight	128
Net Weight	106.0
Cutout Depth Min(IN,inches)	22.2500
Cutout Width Max(IN,inches)	35.7500
Cutout Width Min(IN,inches)	35.2500
Net Weight(LB,pounds)	106
Carton Depth(IN,inches)	34.5000
Carton Height(IN,inches)	19.5000
Carton Width(IN,inches)	39.7500
Gross Weight(LB,pounds)	128

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	40.75 in.
Shipping Height	12.44 in.
Shipping Length	32.88 in.
Shipping Weight	168 lbs.
Total of Shipping Weight	168 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	4.29 ft³
Dimensional Weight	53.34 lbs.
Total of Cubes	4.29 ft³
Total of Dimensional Weight	53.34 lbs.

Details

Automatic Pan Detection	No
Cooktop Configuration	All Burners
Fuel Type	Gas
Installs Over Built-In Oven	No
LP Convertible	Yes - Kit Included
Power Outage Compatible	No

Dimensions

Cutout Depth Min	22.25
Cutout Width Max	35.75
Cutout Width Min	35.25
carton depth	34.5
carton height	19.5
carton width	39.7
gross weight	128
net weight	106

Element/burner details

Center Front Element-Burner Power	15, 000 BTU
Center Front Element-Burner Type	Professional
Center Rear Element-Burner Power	5, 000 BTU
Center Rear Element-Burner Type	Simmer/Melt
Cooktop Element Style	Sealed Burners
Cooktop Type	Commercial
Left Front Element-Burner Power	20, 000 BTU/14, 000 LP
Left Front Element-Burner Type	Dual-Stacked Burner
Left Rear Element-Burner Power	15000 BTU/11000 LP
Left Rear Element-Burner Type	Professional
Number of Cooking Element-Burners	6
Power Boost	No
Right Front Element-Burner Power	15, 000 BTU/11, 000 LP
Right Front Element-Burner Type	Dual-Stacked Burner
Right Rear Element-Burner Power	5, 000 BTU/3, 000 LP
Right Rear Element-Burner Type	Professional

Grate details

Grate Details	Dishwasher Safe; Individual; Matte Finish; Porcelain Coated Cast Grates
Number of Grates	6

Ventilation details

Downdraft Vent

Description

KitchenAid 36" Gas Rangetop with 6 Powerful Burners and Three-Level Convertible Grates

Product Features

Three-Level Convertible Grates
with removable inserts match the heat to your technique. Leave the insert level for high-heat searing and sautéing, flip it over to lift your pan above the flame to simmer and melt or remove it to nestle a round-bottom wok in the flame for stir-fry.
5,000 BTU Simmer & Melt Burner
with a low flame sized for small saucepans lets you reach and maintain low temperatures. Simmer sauces until they look, feel and taste just right and melt even delicate ingredients.
Three 15,000 BTU Burners
deliver the high-heat you need for successful searing, sautéing, stir-frying and quickly bringing large stock pots to a rolling boil.
Two 20,000 BTU Ultra Power™ Dual-Flame Burners
give you precise control of powerful highs, steady lows and the wide range of temperatures in between. The versatile, dual-flame design lets you sear, sauté, simmer and sizzle, all on the same burner.

Manuals & Guides

Rebates

Reviews

Product Details
Manuals & Guides
From The Manufacturer
Reviews

$6,506.00 ~~$10,683.99~~ Save $4,177.99 / 39% OFF

Product Details for KITCHENAID KOSC504PPS

Technical Details

Controls

Control Type	Glass Touch Digital Display
Display Color	Full Color
Electronic Display Type	LCD Touch Screen
Language Conversion	English/French
Light Control	Oven Light Touch Pad

Features

Selection

Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Cook Time Indicator, Delay Start, Favorites, Frozen Bake Pizza, Full Bake Meal, Keep Warm/Warm Hold, Language Conversion, Proofin

Details

Oven Automatic Shut-Off	Yes
Delay Clean	Yes
Flush Installation Approved	Yes
Fuel Type	Electric
Oven Type	Single
Power On Indicator Light	Yes

Certifications

CUL	Yes
Prop 65	Standard
UL	Yes

Electrical

Amps	20
Hz	60
Power Cord Included	No
Volts	208

Dimensions & weight

Width	23.44 in.
Height	27.94 in.
Length	22.5 in.
Weight	92 lbs.
Carton Depth	27 3/16
Carton Height	30 3/4
Carton Width	25 1/4
Gross Weight	92
Net Weight	86.0
Cutout Depth(IN,inches)	23.2500
Cutout Height(IN,inches)	27.7500
Cutout Width(IN,inches)	22.6250
Depth Closed Excluding Handles(IN,inches)	22.5000
Depth Closed Including Handles(IN,inches)	24.7500
Depth With Door Open 90 Degree(IN,inches)	40.5000
Maximum Height(IN,inches)	27.9375
Carton Depth(IN,inches)	27.1875
Carton Height(IN,inches)	30.7500
Carton Width(IN,inches)	25.2500

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	28.44 in.
Shipping Height	32.94 in.
Shipping Length	27.5 in.
Shipping Weight	132 lbs.
Total of Shipping Weight	132 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	8.53 ft³
Dimensional Weight	106.01 lbs.
Total of Cubes	8.53 ft³
Total of Dimensional Weight	106.01 lbs.

Exterior details

Door Type	Metal & Glass
Door Lock	Yes
Handle Color	Stainless Steel
Handle Material	Metal

Smart compatibility

Smart Appliance	Yes
Connectivity	Amazon Alexa, Android, Google Assistant, iOS
Works With	App, Remote Access, Voice Controlled, WiFi

Oven cavity details

Bake Element Power	1,150 W
Broiler Element Power	2,045 W
Broiler Location	Top of Oven
Convection Element Type	True Convection
Convection Functions	Bake, Broil
Door Broil Position	Closed
Door Removable	Yes
Hidden Bake Element	Yes
Installable Under Cooktop	Yes
Interior Coating	Porcelain
Interior Color	Grey
Light Type	Halogen
Number of Bake Elements	1
Number of Broil Elements	1
Number of Oven Lights	2
Number of Oven Racks	2
Number of Rack Guides	5
Oven Cleaning Type	Self-Cleaning
Oven Cooking System	Convection
Temperature Conversion	Yes
Convection Element Power	2,000 w

Dimensions

Capacity	2.9 cu. ft.
Common Size	24 in
Cutout Depth	23-1/4 in
Cutout Height	27-3/4 in
Cutout Width	22-5/8 in
Depth	22-1/2 in
Depth Closed Excluding Handles	22-1/2 in
Depth Closed Including Handles	24-3/4 in
Depth With Door Open 90 Degree	40-1/2 in
Gross Weight	91-1/2 lbs
Height	27-15/16 in
Maximum Height	27-15/16 in
Net Weight	86 lbs
Oven Interior Depth	17 in
Oven Interior Height	14-563/1000 in
Oven Interior Width	18 in
Width	23-7/16 in

Description

The slim design of this KitchenAid® 24" Smart Single Wall Oven helps you fit your baking, broiling and roasting in any size kitchen. With Five-Level Rack Support, it is easy to rearrange two oven racks, adding flexibility for a variety of cooking adventures. True Convection circulates hot air throughout the entire oven, providing consistent temperatures for pastries, roasts and more.

Product Features

True Convection
uses a hidden heating element and fan to circulate hot air throughout the entire oven while baking or roasting. This provides consistent temperatures for delicious cookies and pastries; juicy, well-browned roasts; and flavorful caramelized vegetables.
Trim Kit Included
for easy replacement of an existing 24" KitchenAid® Wall Oven without changing your cutout.
2.6 Cu. Ft. Capacity
combines spacious cooking capacity with a slim design, providing plenty of room to cook a large roast or multiple dishes at once.
Smart Appliance
gives you control of your oven in or out of the kitchen. Remotely monitor and control this oven with the KitchenAid™ App* or with simple voice commands through your Google Assistant or an Alexa-enabled device, leaving your hands free to create.** *Appliance must be set to remote enable. Wi-Fi & App required. Features subject to change. For details and privacy info, visit kitchenaid.com/connect (USA) or kitchenaid.ca/connect (Canada).
Five-Level Rack Support
makes it easy to rearrange two oven racks, adding flexibility for a variety of cooking adventures. Sturdy ladder rack supports let you choose from five height positions.
Flush Installation Option
provides a seamless built-in look, so your style stands out, not the appliance. This option allows the oven door to sit flush with surrounding cabinet fronts when closed.
Self-Cleaning Cycle
uses high temperatures to loosen baked-on food without the need for harsh chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth.
Touchscreen Controls
feature a 3.5" full-color LCD display, making it easy to see and select cooking modes, set cook times and temperatures, connect your mobile device to control the oven from outside the kitchen and even download future feature updates.* *Appliance must be set to remote enable. Wi-Fi & App required. Features subject to change. For details and privacy info, visit kitchenaid.com/connect (USA) or kitchenaid.ca/connect (Canada).
Broil Element
combines high heat and even coverage to give foods a crispy, golden brown finish. Use Broil to sear meat, grill fish, char vegetables, toast bread, melt cheesy toppings and more.
Self-Close Doors
feature specialized hinges that make it easy to shut the oven when your hands are full. Just give either door a nudge, and it will gently close itself.
PrintShield™ Finish
Resists smudges and fingerprints on the microwave. You can easily wipe it down with water and a soft cloth, so you're spending less time cleaning in the kitchen and more time cooking.
