Name: Kitchen Aid 2-Piece Package KCES950KSS 30 Inch Electric Cooktop and KOSC504PPS 24 Inch Single Convection Smart Electric Wall Oven
Brand: KITCHENAID
SKU: KitchenAid-KCES950KSS-KOSC504PPS
Price: 4384.00 USD
Availability: OutOfStock

What's included: 2 items

KitchenAid KCES950KSS 30" Electric Cooktop With 5 Elements And Touch-activated Controls Stainless Steel
- SKU SKU: KCES950KSS UPC: 883049598987
- Type Electric Cooktops

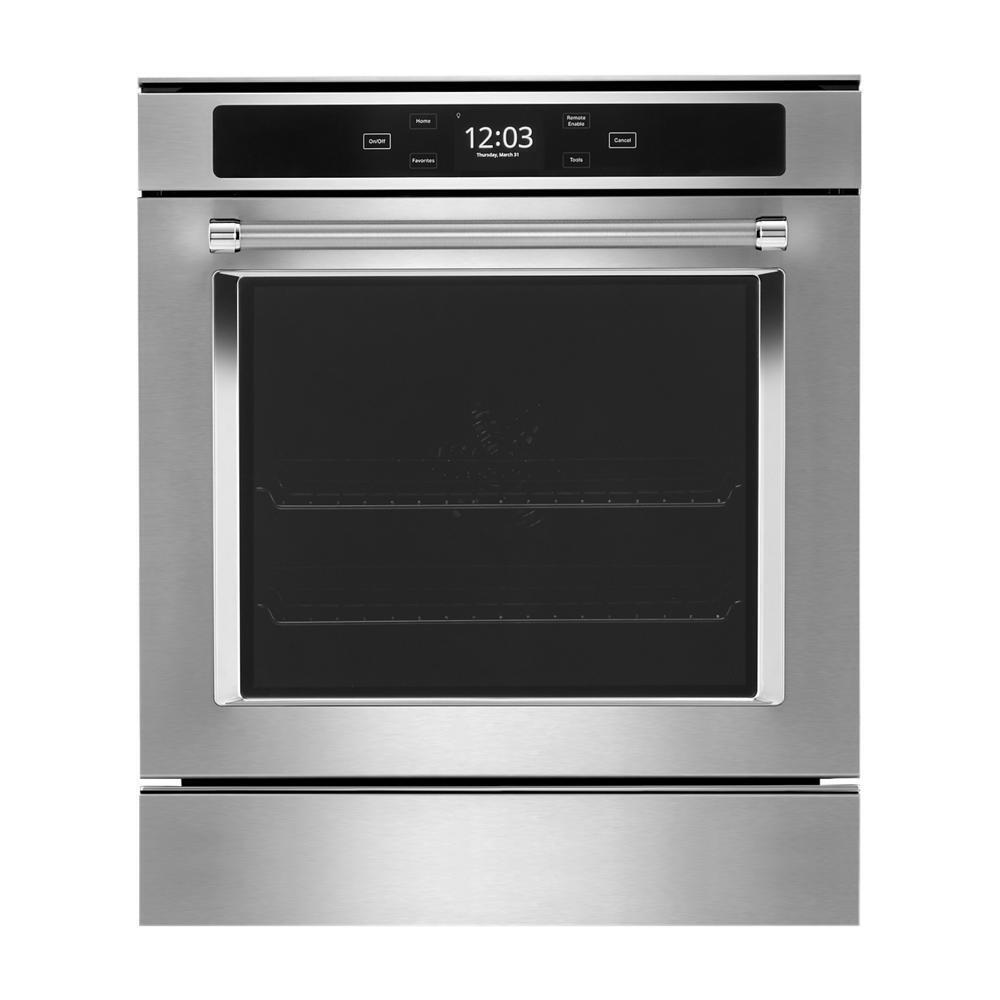

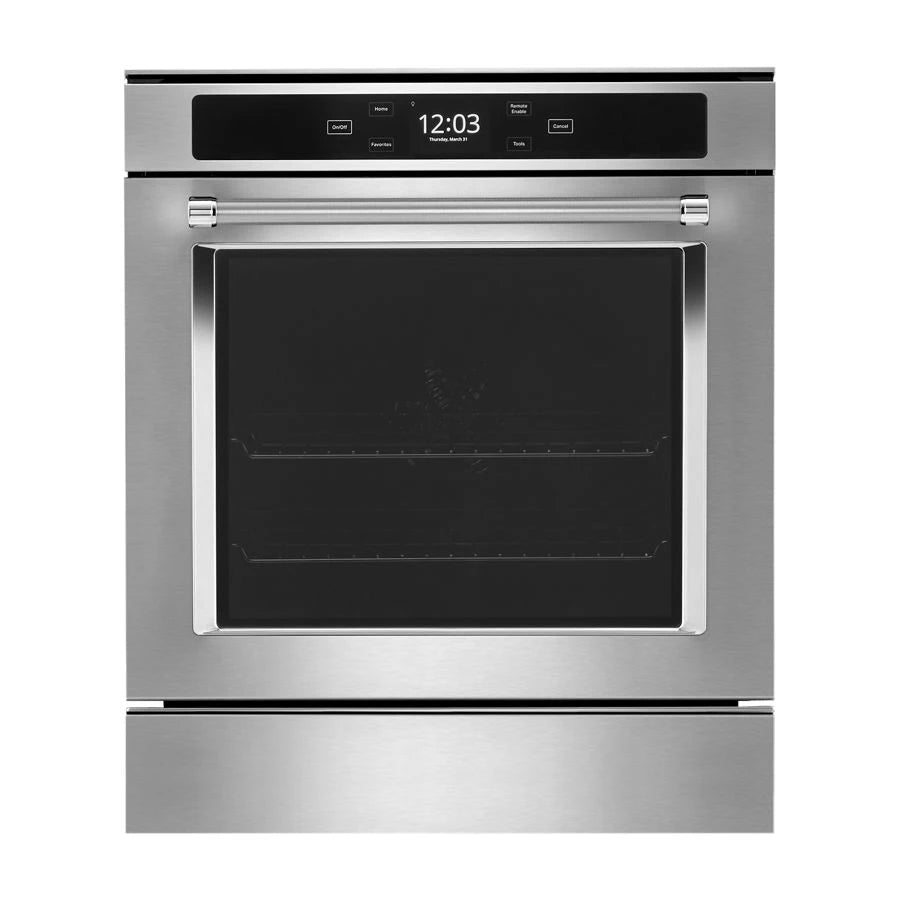

KitchenAid KOSC504PPS 24" Smart Single Wall Oven With True Convection Fingerprint Resistant Stainless Steel
- SKU SKU: KOSC504PPS UPC: 883049633114
- Type Single Wall Ovens

Product Details
Manuals & Guides
From The Manufacturer
Rebates
Reviews

$4,384.00 ~~$6,488.99~~ Save $2,104.99 / 32% OFF

Product Details for KITCHENAID KCES950KSS

Technical Details

Controls

Control Location	Right Front
Control Type	Tap Touch
Infinite Heat Controls	No

Certifications

ADA Compliant	ADA Height and Operation Compliant
UL	Yes
prop65	Standard

Electrical

Power Cord Included	No
208V Compatible	Yes

Dimensions & weight

Width	29 in.
Height	3.63 in.
Length	20.25 in.
Weight	46 lbs.
Carton Depth	25
Carton Height	9 1/4
Carton Width	35
Gross Weight	46
Net Weight	41.0
Cutout Depth Max(IN,inches)	20.5625
Cutout Depth Min(IN,inches)	20.3750
Cutout Width Max(IN,inches)	29.5625
Cutout Width Min(IN,inches)	29.0625
Minimum Height(IN,inches)	3.8333
Net Weight(LB,pounds)	41
Carton Depth(IN,inches)	25.0000
Carton Height(IN,inches)	9.2500
Carton Width(IN,inches)	35.0000
Gross Weight(LB,pounds)	46

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	34 in.
Shipping Height	8.63 in.
Shipping Length	25.25 in.
Shipping Weight	86 lbs.
Total of Shipping Weight	86 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	1.23 ft³
Dimensional Weight	15.34 lbs.
Total of Cubes	1.23 ft³
Total of Dimensional Weight	15.34 lbs.

Cooktop details

Cooktop Surface Material	Glass
Digital Display	No
Griddle Included	N/A
Heating Element On Indicator Light	Yes
Hot Surface Indicator Light	Yes

Details

Automatic Pan Detection	No
Automatic Pan Size Adjustment	No
Cooktop Configuration	All Burners
Fuel Type	Electric
Installs Over Built-In Oven	Yes
LP Convertible	No
Power Outage Compatible	No

Dimensions

Cutout Depth Max	20.563
Cutout Depth Min	20.375
Cutout Width Max	29.563
Cutout Width Min	29.063
carton depth	25
carton height	9.25
carton width	35
gross weight	46
net weight	41

Element/burner details

Center Front Element-Burner Power	1, 200W
Center Front Element-Burner Size	6in.
Center Front Element-Burner Type	Standard
Center Rear Element-Burner Power	1, 300W
Center Rear Element-Burner Size	6in.
Center Rear Element-Burner Type	Even Heat
Cooktop Element Style	Radiant
Cooktop Type	Standard
Left Front Element-Burner Power	3200/2300W
Left Front Element-Burner Size	10in./6in.
Left Front Element-Burner Type	Even Heat Dual
Left Rear Element-Burner Power	1, 800W
Left Rear Element-Burner Size	8in.
Left Rear Element-Burner Type	Standard
Number of Cooking Element-Burners	5
Power Boost	No
Right Front Element-Burner Power	3000W/1900W
Right Front Element-Burner Size	10in./6in.
Right Front Element-Burner Type	Dual

Ventilation details

Downdraft Vent

Product details

Combination Match with Oven

KOES527P; KOES530P; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107

Description

This 30" electric cooktop delivers exceptional results with the performance offered by a 10'' Even-Heat™ UltraPower™ Element with Simmer Setting, a 6'' Even-Heat™ Elements with Melt Setting, and 10"/6" Ultra Power™ Double-Ring Round Element designed to accommodate both large stock pots and six-inch sauté pans with ease and handle rapid boiling, searing and wok cooking.

Product Features

8'' 1800-Watt Round Element
Efficiently heats a variety of pan sizes and can reach a power output of up to 1800-watts for every day use.
6'' 1200-Watt Round Element
Can reach a power output of up to 1200-watts to handle your daily cooking needs.
Touch-Activated Controls
Offer an intuitive, easy-to-use touch screen experience.
Hot Surface Indicator
Protects you by providing a visual indication if a cooking surface is on or still hot, so you can create with confidence.
Control Lock
Disables cooking mode for easy cleaning when not in use.
10''/6'' Even-Heat™ Ultra Power™ Element with Simmer Setting
Adds versatility for high and low temperature cooking. Even-Heat™ Technology delivers constant power and a range of simmer settings. Two element sizes in one make it ideal for boiling, yet also accept small pans for various cooking tasks.
10''/6'' Ultra Power™ Double-Ring Round Element
Combines two element sizes in one, making it a perfect fit for large stock pots or six-inch sauté pans alike, and ideal for a wide range of tasks from rapid boiling and searing to wok cooking.
6'' Even-Heat™ Element with Melt Setting
Combines the benefits of Even-Heat™ Technology with a dedicated setting that reaches the low temperatures needed to melt chocolate or butter without scorching.

Manuals & Guides

Rebates

Reviews

Product Details
Manuals & Guides
From The Manufacturer
Reviews

$4,384.00 ~~$6,488.99~~ Save $2,104.99 / 32% OFF

Product Details for KITCHENAID KOSC504PPS

Technical Details

Controls

Control Type	Glass Touch Digital Display
Display Color	Full Color
Electronic Display Type	LCD Touch Screen
Language Conversion	English/French
Light Control	Oven Light Touch Pad

Features

Selection

Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Cook Time Indicator, Delay Start, Favorites, Frozen Bake Pizza, Full Bake Meal, Keep Warm/Warm Hold, Language Conversion, Proofin

Details

Oven Automatic Shut-Off	Yes
Delay Clean	Yes
Flush Installation Approved	Yes
Fuel Type	Electric
Oven Type	Single
Power On Indicator Light	Yes

Certifications

CUL	Yes
Prop 65	Standard
UL	Yes

Electrical

Amps	20
Hz	60
Power Cord Included	No
Volts	208

Dimensions & weight

Width	23.44 in.
Height	27.94 in.
Length	22.5 in.
Weight	92 lbs.
Carton Depth	27 3/16
Carton Height	30 3/4
Carton Width	25 1/4
Gross Weight	92
Net Weight	86.0
Cutout Depth(IN,inches)	23.2500
Cutout Height(IN,inches)	27.7500
Cutout Width(IN,inches)	22.6250
Depth Closed Excluding Handles(IN,inches)	22.5000
Depth Closed Including Handles(IN,inches)	24.7500
Depth With Door Open 90 Degree(IN,inches)	40.5000
Maximum Height(IN,inches)	27.9375
Carton Depth(IN,inches)	27.1875
Carton Height(IN,inches)	30.7500
Carton Width(IN,inches)	25.2500

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	28.44 in.
Shipping Height	32.94 in.
Shipping Length	27.5 in.
Shipping Weight	132 lbs.
Total of Shipping Weight	132 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	8.53 ft³
Dimensional Weight	106.01 lbs.
Total of Cubes	8.53 ft³
Total of Dimensional Weight	106.01 lbs.

Exterior details

Door Type	Metal & Glass
Door Lock	Yes
Handle Color	Stainless Steel
Handle Material	Metal

Smart compatibility

Smart Appliance	Yes
Connectivity	Amazon Alexa, Android, Google Assistant, iOS
Works With	App, Remote Access, Voice Controlled, WiFi

Oven cavity details

Bake Element Power	1,150 W
Broiler Element Power	2,045 W
Broiler Location	Top of Oven
Convection Element Type	True Convection
Convection Functions	Bake, Broil
Door Broil Position	Closed
Door Removable	Yes
Hidden Bake Element	Yes
Installable Under Cooktop	Yes
Interior Coating	Porcelain
Interior Color	Grey
Light Type	Halogen
Number of Bake Elements	1
Number of Broil Elements	1
Number of Oven Lights	2
Number of Oven Racks	2
Number of Rack Guides	5
Oven Cleaning Type	Self-Cleaning
Oven Cooking System	Convection
Temperature Conversion	Yes
Convection Element Power	2,000 w

Dimensions

Capacity	2.9 cu. ft.
Common Size	24 in
Cutout Depth	23-1/4 in
Cutout Height	27-3/4 in
Cutout Width	22-5/8 in
Depth	22-1/2 in
Depth Closed Excluding Handles	22-1/2 in
Depth Closed Including Handles	24-3/4 in
Depth With Door Open 90 Degree	40-1/2 in
Gross Weight	91-1/2 lbs
Height	27-15/16 in
Maximum Height	27-15/16 in
Net Weight	86 lbs
Oven Interior Depth	17 in
Oven Interior Height	14-563/1000 in
Oven Interior Width	18 in
Width	23-7/16 in

Description

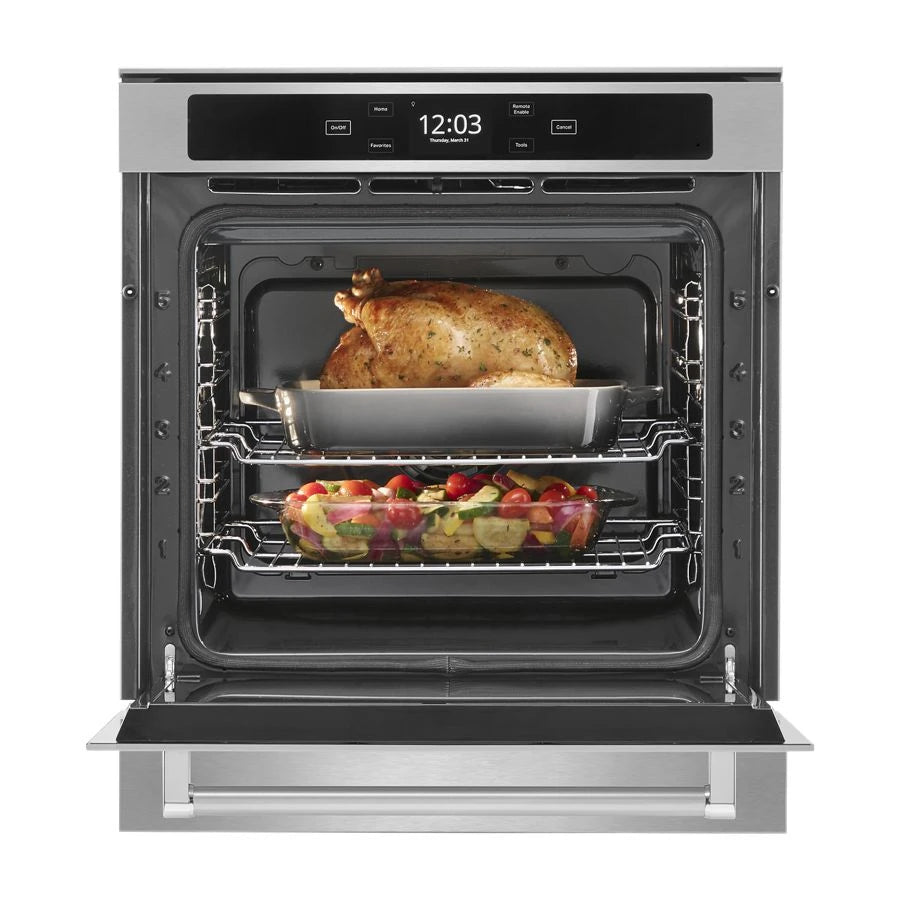

The slim design of this KitchenAid® 24" Smart Single Wall Oven helps you fit your baking, broiling and roasting in any size kitchen. With Five-Level Rack Support, it is easy to rearrange two oven racks, adding flexibility for a variety of cooking adventures. True Convection circulates hot air throughout the entire oven, providing consistent temperatures for pastries, roasts and more.

Product Features

True Convection
uses a hidden heating element and fan to circulate hot air throughout the entire oven while baking or roasting. This provides consistent temperatures for delicious cookies and pastries; juicy, well-browned roasts; and flavorful caramelized vegetables.
Trim Kit Included
for easy replacement of an existing 24" KitchenAid® Wall Oven without changing your cutout.
2.6 Cu. Ft. Capacity
combines spacious cooking capacity with a slim design, providing plenty of room to cook a large roast or multiple dishes at once.
Smart Appliance
gives you control of your oven in or out of the kitchen. Remotely monitor and control this oven with the KitchenAid™ App* or with simple voice commands through your Google Assistant or an Alexa-enabled device, leaving your hands free to create.** *Appliance must be set to remote enable. Wi-Fi & App required. Features subject to change. For details and privacy info, visit kitchenaid.com/connect (USA) or kitchenaid.ca/connect (Canada).
Five-Level Rack Support
makes it easy to rearrange two oven racks, adding flexibility for a variety of cooking adventures. Sturdy ladder rack supports let you choose from five height positions.
Flush Installation Option
provides a seamless built-in look, so your style stands out, not the appliance. This option allows the oven door to sit flush with surrounding cabinet fronts when closed.
Self-Cleaning Cycle
uses high temperatures to loosen baked-on food without the need for harsh chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth.
Touchscreen Controls
feature a 3.5" full-color LCD display, making it easy to see and select cooking modes, set cook times and temperatures, connect your mobile device to control the oven from outside the kitchen and even download future feature updates.* *Appliance must be set to remote enable. Wi-Fi & App required. Features subject to change. For details and privacy info, visit kitchenaid.com/connect (USA) or kitchenaid.ca/connect (Canada).
Broil Element
combines high heat and even coverage to give foods a crispy, golden brown finish. Use Broil to sear meat, grill fish, char vegetables, toast bread, melt cheesy toppings and more.
Self-Close Doors
feature specialized hinges that make it easy to shut the oven when your hands are full. Just give either door a nudge, and it will gently close itself.
PrintShield™ Finish
Resists smudges and fingerprints on the microwave. You can easily wipe it down with water and a soft cloth, so you're spending less time cleaning in the kitchen and more time cooking.
