Product Details for KitchenAid KCGK736SBE

Technical Details

Certifications

ADA Compliant ADA Height and Side Reach Compliant
CEC Listed Yes
CUL Yes
Star K Certified No
UL Yes
prop65 Standard - Standard

Controls

Control Location Front
Control Type Knobs
Infinite Heat Controls Yes

Cooktop details

Auto Re-ignition Yes
Cooktop Surface Material Stainless/Porcelain Coated Steel
Digital Display No
Griddle Included Yes
Heating Element On Indicator Light No
Hot Surface Indicator Light No
Ignition Type Flame-Sensing™ Re-ignition
Number of Open Bays N/A

Details

Automatic Pan Detection No
Automatic Pan Size Adjustment No
Cooktop Configuration All Burners
Cooktop Selections Automatic Reignition; Lighted Knobs
Fuel Type Gas
Installation Configuration Built-In
Installs Over Built-In Oven Yes
LP Convertible Yes - Kit Included
Power Outage Compatible Yes

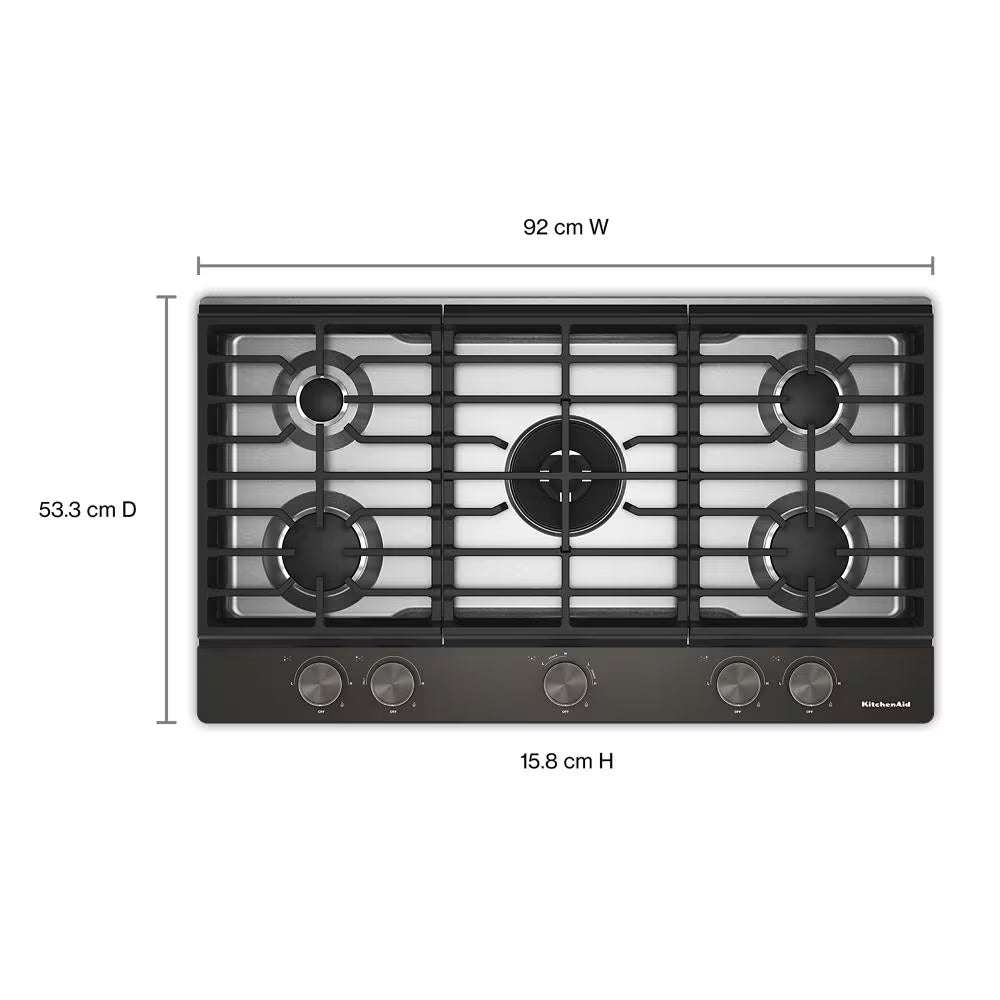

Dimensions

Cutout Depth 19.813
Cutout Depth Max 20
Cutout Depth Min 19.5
Cutout Height 5
Cutout Width 35.188
Cutout Width Max 35.625
Cutout Width Min 34.875
carton depth 25
carton height 13
carton width 41
gross weight 81 lbs.
net weight 74
Height 13 in.
Length 25 in.
Width 41 in.

Electrical

208V Compatible No
Power Cord Included Yes

Element/burner details

Center Element Burner Power 20, 000 BTU
Center Element Burner Type Professional Dual Ring
Cooktop Element Style Sealed Burner
Cooktop Type Standard
Left Front Element-Burner Power 12, 000 BTU
Left Front Element-Burner Type Rapid
Left Rear Element-Burner Power 6, 000 BTU
Left Rear Element-Burner Type Melt / Simmer
Number of Cooking Element-Burners 5
Power Boost No
Right Front Element-Burner Power 10, 000 BTU
Right Front Element-Burner Type Rapid
Right Rear Element-Burner Power 7, 000 BTU
Right Rear Element-Burner Type Semirapid

Grate details

Grate Details Cast Iron Grates; Continuous; Dishwasher Safe; Integrated Wok Grate; Matte Finish
Number of Grates 3

Oven details

Natural Gas Convertible Yes

Smart compatibility

Connectivity No

Ventilation details

Downdraft Vent No

Product details

Combination Match with Oven KOES430R; KOES527P; KOES530P; KOES530S; KOES630S; KOES727S; KOES730P; KOES730S; KOES930S; KOSE500E; KOSE507E; KOSE900; KOSE900H
Energy Star® Qualified No
Gas Regulator Inlet Thread Size .75
Personalized Hardware Yes
Total Maximum BTU Output (cooktop & oven) 55000 BTU

Capacity

Volume 7.711 Cu.Ft.

Description

Fuel more moments with the KitchenAid® Gas-on-Metal Cooktop featuring a seamlessly Integrated Wok Grate. The cooktop is Designed to be Personalized with a curated palette of exterior finishes and Backlit Knobs. Go from a delicate simmer to a rolling boil on a powerful 20,000 BTU Professional Dual Ring Burner.


Product Features

  • 20,000 BTU Professional Dual Ring Burner
    allows you to go from one small flame for precise simmering to a dual flame for powerful boiling, all on the same burner.
  • 6,000 BTU Simmer Burner
    allows control of the flame at the lowest setting, for precise simmering and melting.
  • ADA Compliant
    this appliance meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
  • Auto Reignition
    relights burners with an electric spark. If something happens to snuff out the flame, such as a gust of air or boilover, the Auto Reignition feature will relight the burner without manual intervention.
  • Designed to be Personalized
    with a curated palette of exterior finishes and mixed metal hardware. Pick from lush Juniper, warm Black Ore and classic Stainless Steel finishes, all with matching knobs. Personalize your hardware with optional knob accessory kits in Brass, Bronze, Black Ore and Stainless Steel.
  • Included Aluminum Griddle
    provides a one-piece flat surface that can be used on the center of the cooktop surface and is ideal for making a range of dishes from crepes to quesadillas.
  • Integrated Wok Grate
    lets you experience high-heat wok cooking with authentic stir-fry flavor right at home. The removable grate seamlessly allows you to nestle a round-bottom wok directly into the burner's flames so you can flash-sear garlic shrimp, toss spicy beef or caramelize crisp vegetables in minutes.
  • LP Conversion Kit
    allows you to convert the cooktop so it can be used with liquid propane
  • Sealed Burners
    prevent crumbs, spills and boilovers from falling into the cooktop interior, making cleanup easy.
  • Wall Oven Compatible
    install this cooktop above a wall oven or on its own for more flexibility

Key Features

Backlit Knobs

deliver a beautiful accent with LED lights that let you know when the burner is in use.

Edge-to-Edge Cast-Iron Grates

enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface. Wash these Cast-Iron Grates right in the dishwasher when they get messy.
