Product Details for KITCHENAID KCES556HSS
Technical Details
Product details
| Combination Match with Oven | KOES527P; KOES530P; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107 |
| Energy Star® Qualified | ENERGY STAR® Qualified |
Element/burner details
| Center Rear Element-Burner Power | 1, 800W |
| Center Rear Element-Burner Size | 8in. |
| Center Rear Element-Burner Type | Standard |
| Cooktop Element Style | Radiant |
| Cooktop Type | Standard |
| Left Front Element-Burner Power | 1, 300W |
| Left Front Element-Burner Size | 6in. |
| Left Front Element-Burner Type | Even-Heat™ |
| Left Rear Element-Burner Power | 3000W/2200W/1100W |
| Left Rear Element-Burner Size | 12in./9in./6in. |
| Left Rear Element-Burner Type | Triple |
| Number of Cooking Element-Burners | 5 |
| Power Boost | No |
| Right Front Element-Burner Power | 3, 200W |
| Right Front Element-Burner Size | 10in./6in. |
| Right Front Element-Burner Type | Dual |
| Right Rear Element-Burner Power | 1, 200W |
| Right Rear Element-Burner Size | 6in. |
| Right Rear Element-Burner Type | Standard |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 2.36 ft³ |
| Dimensional Weight | 29.31 lbs. |
| Total of Cubes | 2.36 ft³ |
| Total of Dimensional Weight | 29.31 lbs. |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 40.88 in. |
| Shipping Height | 10.25 in. |
| Shipping Length | 26.63 in. |
| Shipping Weight | 96 lbs. |
| Total of Shipping Weight | 96 lbs. |
| Source | Calculation |

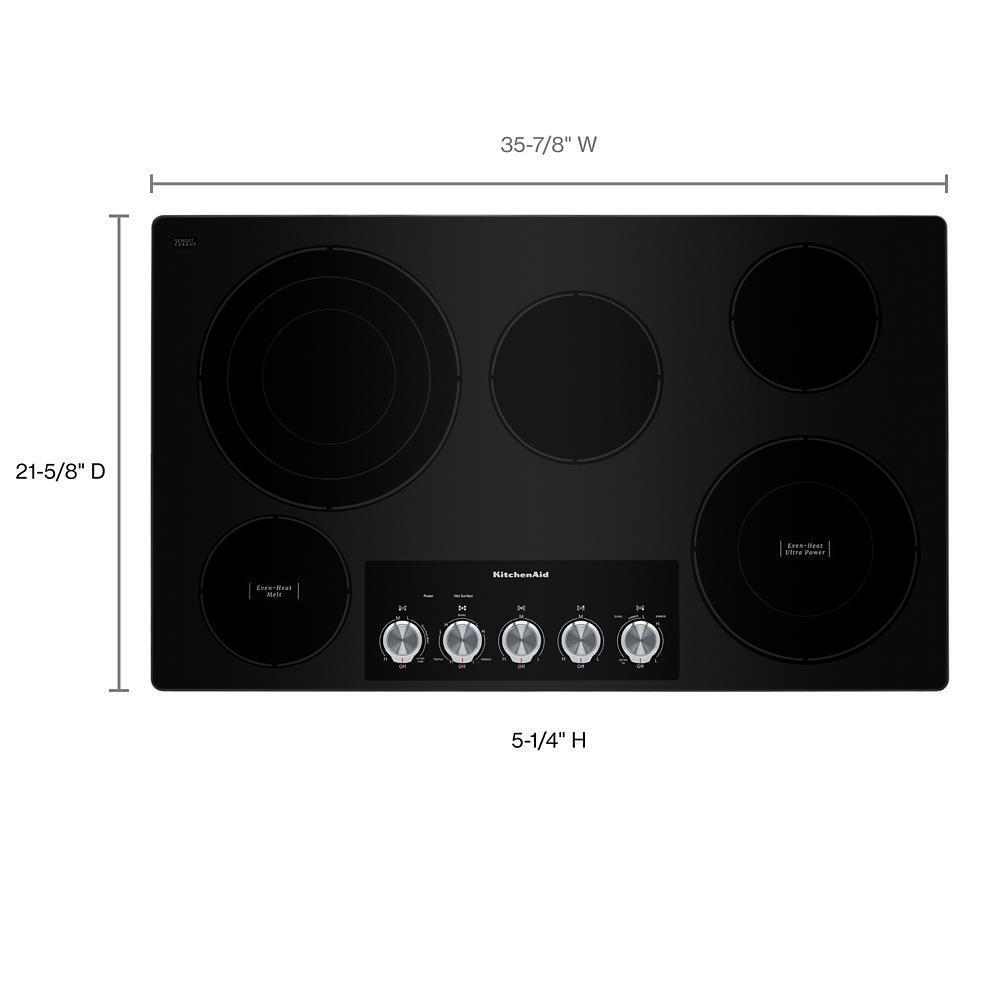

Dimensions & weight
| Width | 35.88 in. |
| Height | 5.25 in. |
| Length | 21.63 in. |
| Weight | 56 lbs. |
| Carton Depth | 25 |
| Carton Height | 9 1/4 |
| Carton Width | 40 3/4 |
| Cutout Depth (in) | 20 3/8 |
| Cutout Width (in) | 34 9/16 |
| Gross Weight | 56 |
| Maximum Height | 5 1/4 |
| Net Weight | 44.0 |
| Cutout Depth Max(IN,inches) | 20.5625 |
| Cutout Depth Min(IN,inches) | 20.3750 |
| Cutout Depth(IN,inches) | 20.3750 |
| Cutout Width Max(IN,inches) | 35.5625 |
| Cutout Width Min(IN,inches) | 34.5625 |
| Cutout Width(IN,inches) | 34.5625 |
| Maximum Height(IN,inches) | 5.2500 |
| Net Weight(LB,pounds) | 44 |
| Carton Depth(IN,inches) | 25.0000 |
| Carton Height(IN,inches) | 9.2500 |
| Carton Width(IN,inches) | 40.7500 |
| Gross Weight(LB,pounds) | 56 |
Certifications
| Ada Compliant | ADA Height and Operation Compliant |
| Energy Rating (kwh/year) | 195 |
| Prop65 | CA |
| ADA Compliant | ADA Height and Operation Compliant |
| Energy Rating (kWh/year) | 195 |
| prop65 | Standard - Standard |
Controls
| Control Location | Front |
| Control Type | Knobs |
| Infinite Heat Controls | Yes |
Cooktop details
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Glass |
| Digital Display | No |
| Griddle Included | N/A |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
| Number of Open Bays | N/A |
Details
| Automatic Pan Detection | No |
| Cooktop Configuration | All Burners |
| Fuel Type | Electric |
| Installs Over Built-in Oven | Yes |
| Lp Convertible | No |
| Power Outage Compatible | No |
| Installs Over Built-In Oven | Yes |
| LP Convertible | No |
Dimensions
| Product Height | 5.25 |
| Carton Height | 9.25 |
| Gross Weight | 56 |
| Carton Width | 40.75 |
| Product Depth | 21.75 |
| Carton Depth | 25.0 |
| Net Weight | 44 |
| Product Width | 36.31 |
| Cutout Depth | 20.375 |
| Cutout Depth Max | 20.563 |
| Cutout Depth Min | 20.375 |
| Cutout Width | 34.563 |
| Cutout Width Max | 35.563 |
| Cutout Width Min | 34.563 |
| carton depth | 25 |
| carton height | 9.25 |
| carton width | 40.75 |
| gross weight | 56 |
| net weight | 44 |
Electrical
| 208v Compatible | Yes |
| Power Cord Included | No |
| 208V Compatible | Yes |
Element/burner details
| Center Rear Element-burner Power | 1 |
| Center Rear Element-burner Size | 8.0 |
| Center Rear Element-burner Type | Standard |
| Cooktop Element Style | Radiant |
| Cooktop Type | Standard |
| Left Front Element-burner Power | 1 |
| Left Front Element-burner Size | 6.0 |
| Left Front Element-burner Type | Even-Heat(TM) |
| Left Rear Element-burner Power | 3000 |
| Left Rear Element-burner Size | 12.0 |
| Left Rear Element-burner Type | Triple |
| Number of Cooking Element-burners | 5 |
| Power Boost | No |
| Right Front Element-burner Power | 3 |
| Right Front Element-burner Size | 10.0 |
| Right Front Element-burner Type | Dual |
| Right Rear Element-burner Power | 1 |
| Right Rear Element-burner Size | 6.0 |
| Right Rear Element-burner Type | Standard |
General
| Combination Match With Oven | KOES527P; KOES530P; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107 |
| Cooktop Features | ADA Compliant |
| Energy Star(r) Qualified | ENERGY STAR(R) Qualified |
Features

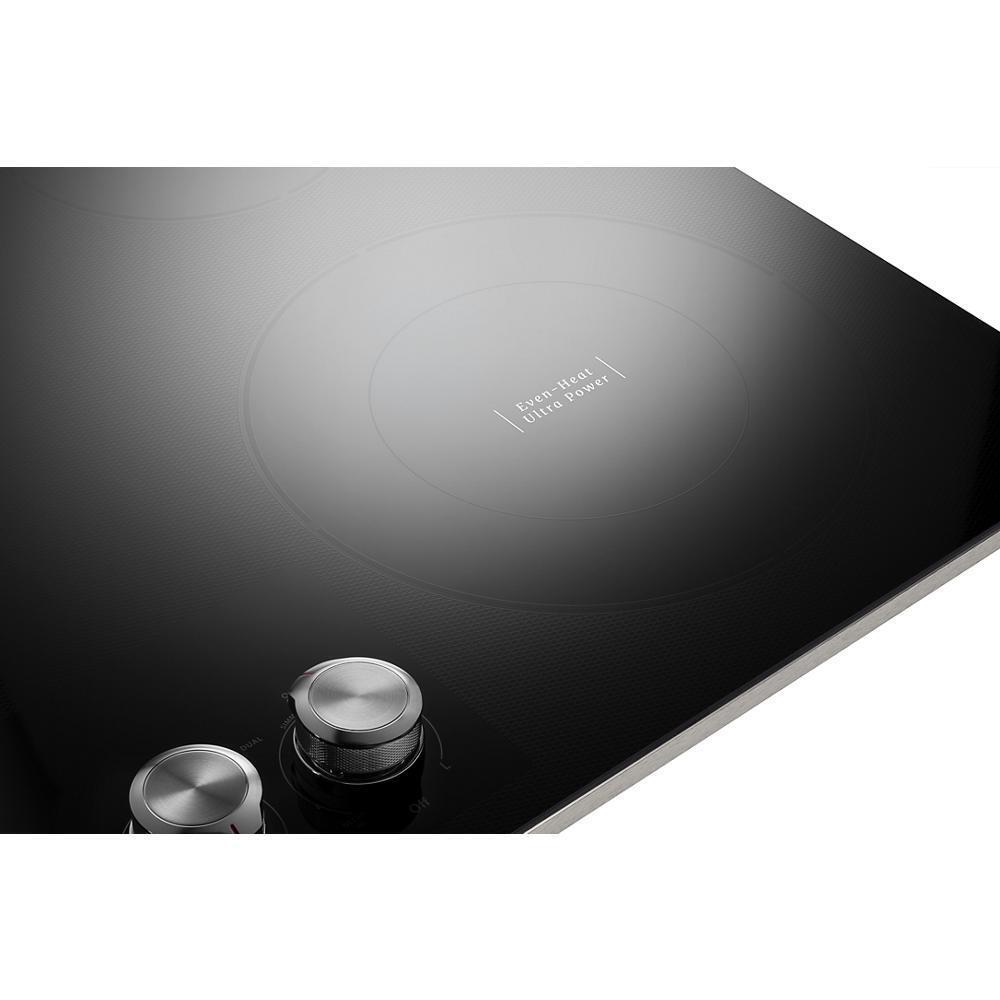

- 10" Even-Heat(TM) Ultra Power(TM) Element with Simmer Setting
- 12''/9''/6'' Triple-Ring Round Element
Maximizes your flexibility with three distinct sizes that allow for element selection based on cookware size. - Hot Surface Indicator
Protects you by providing a visual indication if a cooking surface is on or still hot, so you can create with confidence. - 12"/9"/6" triple-ring element accommodates various cookware sizes

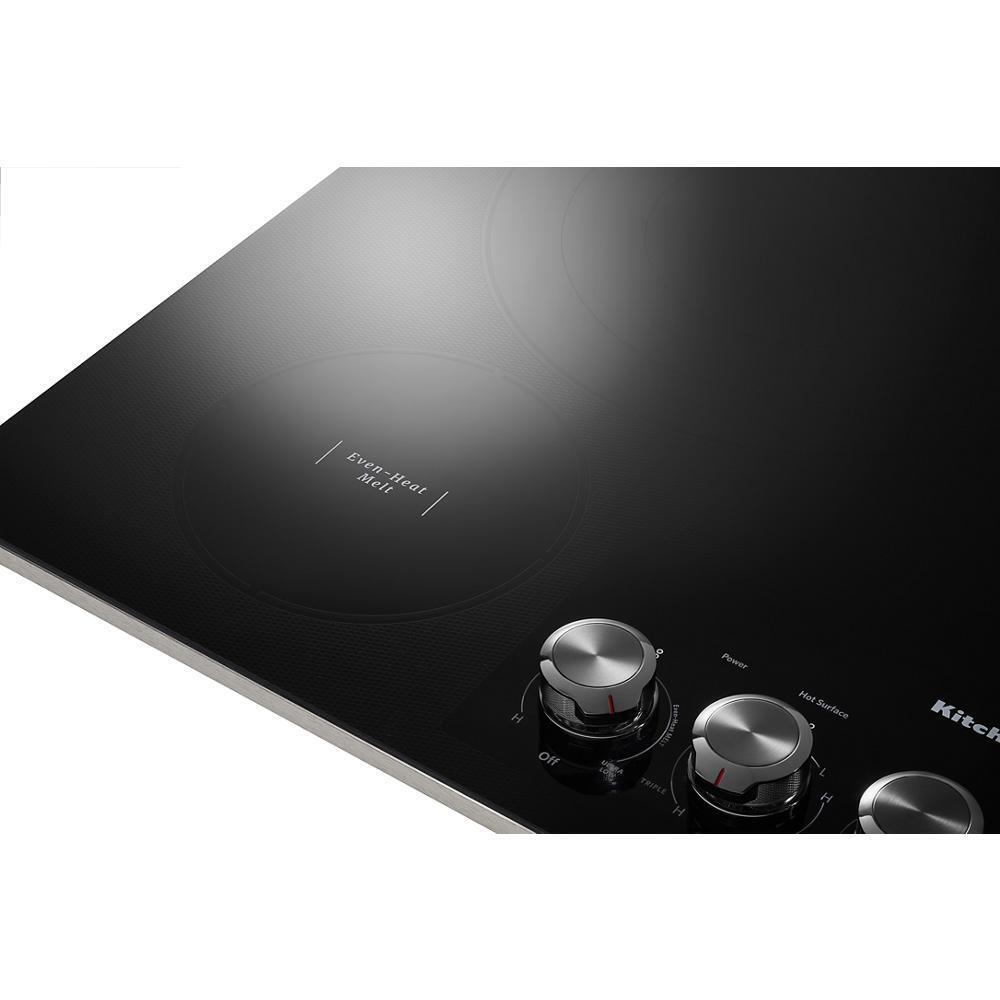

- 6" Even-Heat element has a low setting that can melt chocolate
- Control Lock disables cooking for easy cleaning when not in use
- Visually indicates when a cooking surface is on or still hot

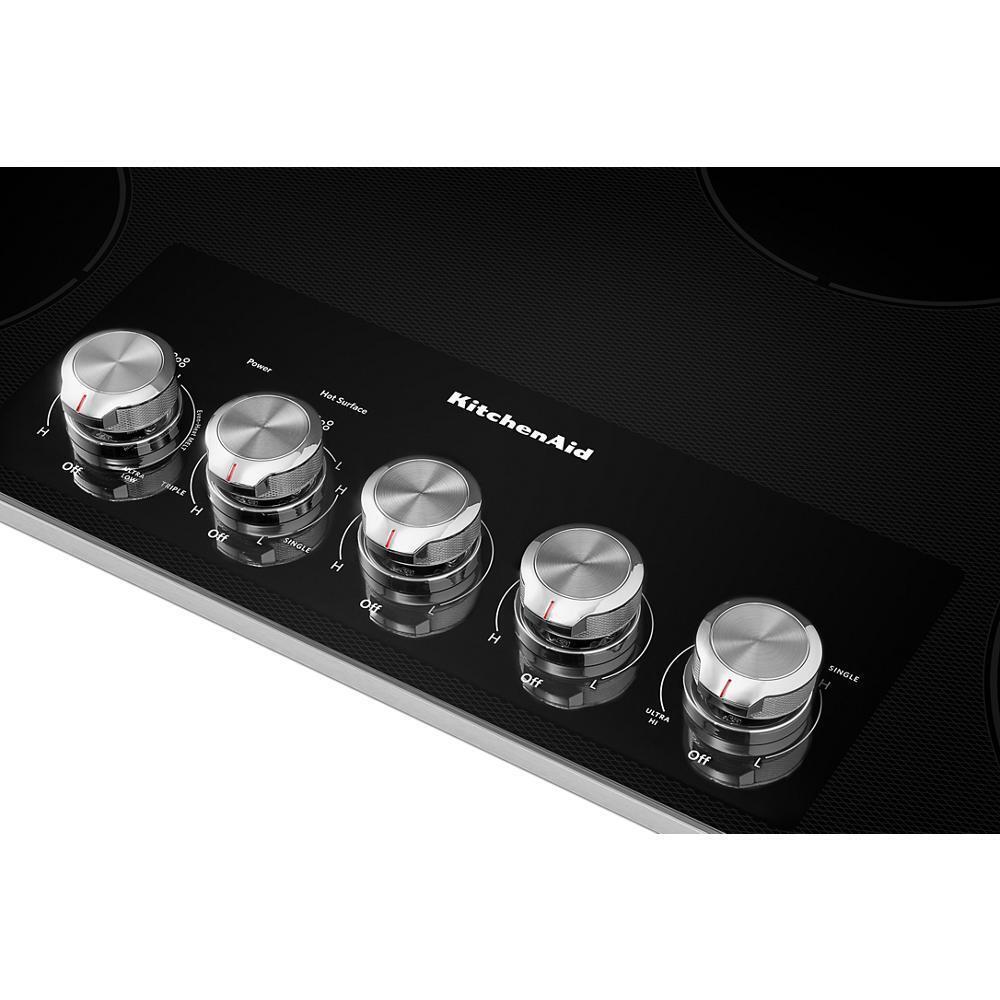

- Substantial, professionally-inspired stainless steel knobs easily adjust the cooktop's elements through an infinite number of heat settings, offering responsiveness and flexibility in control.
- 6" elements have 1200 watts of power to handle daily cooking needs
Description

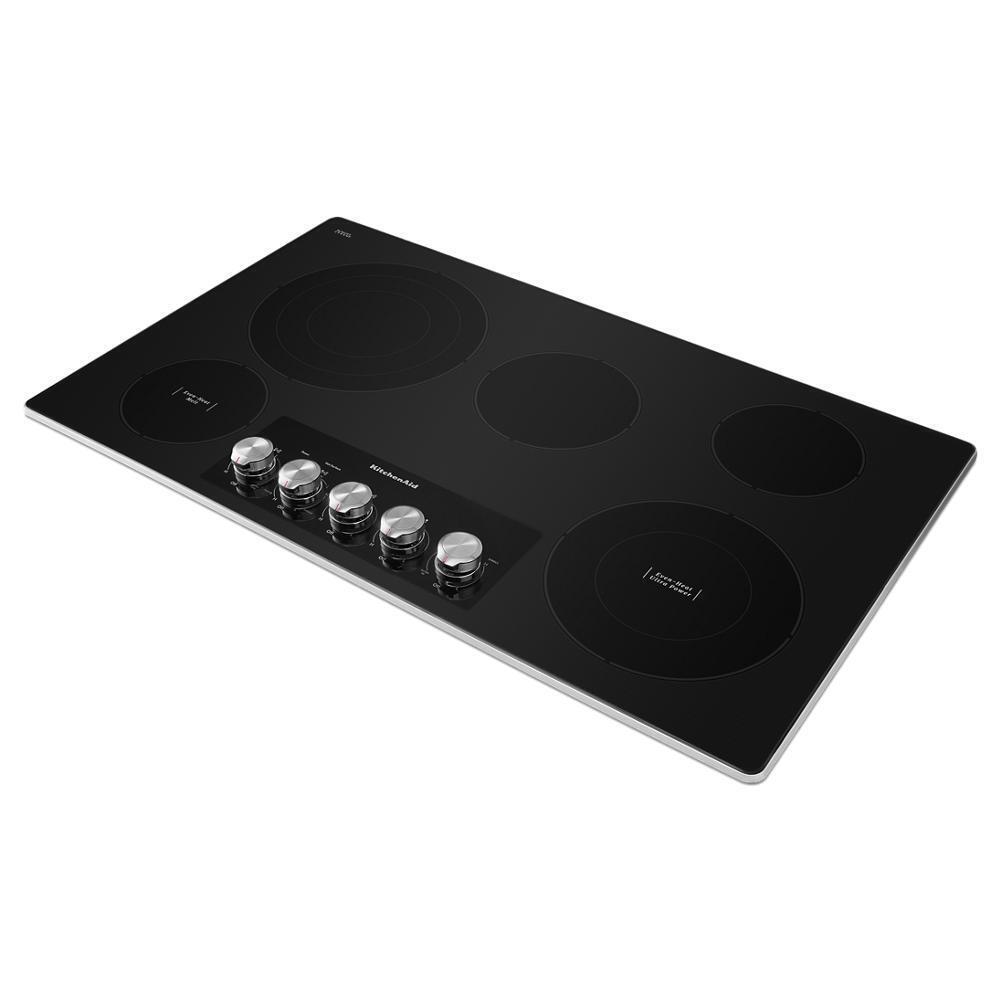

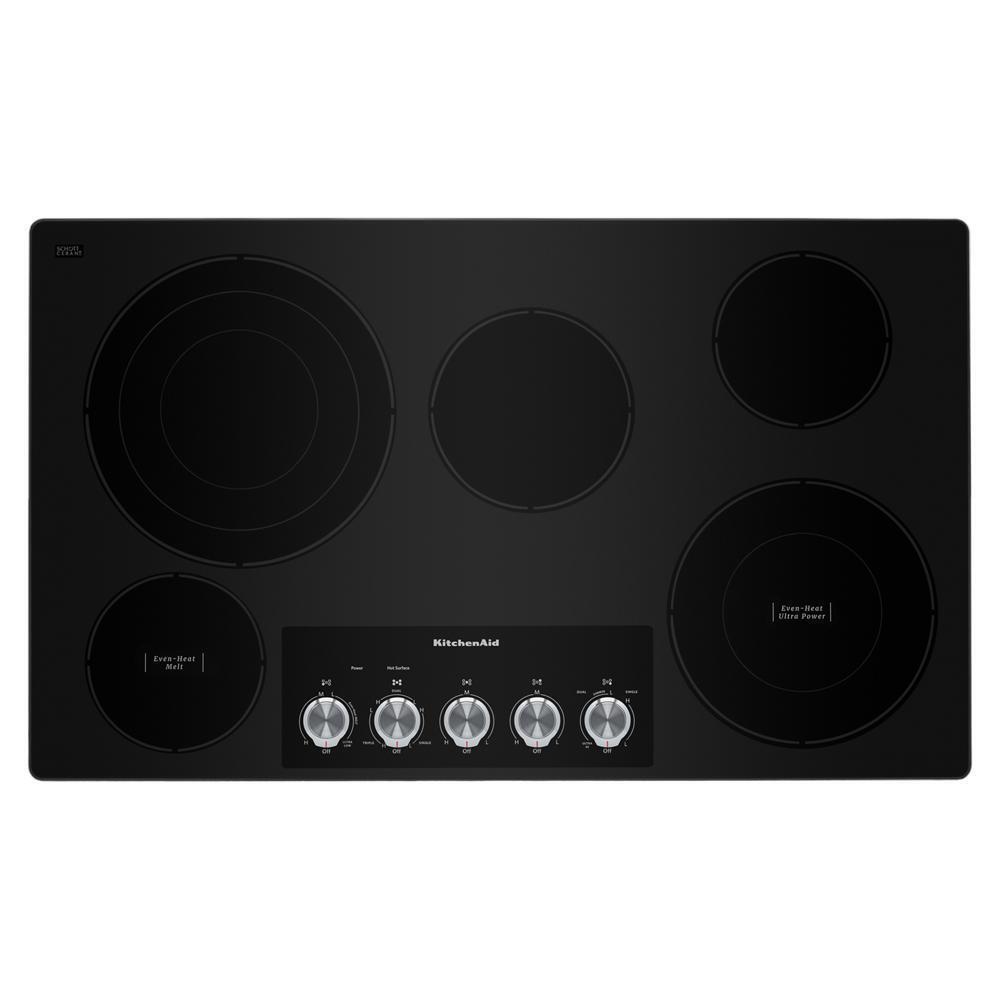

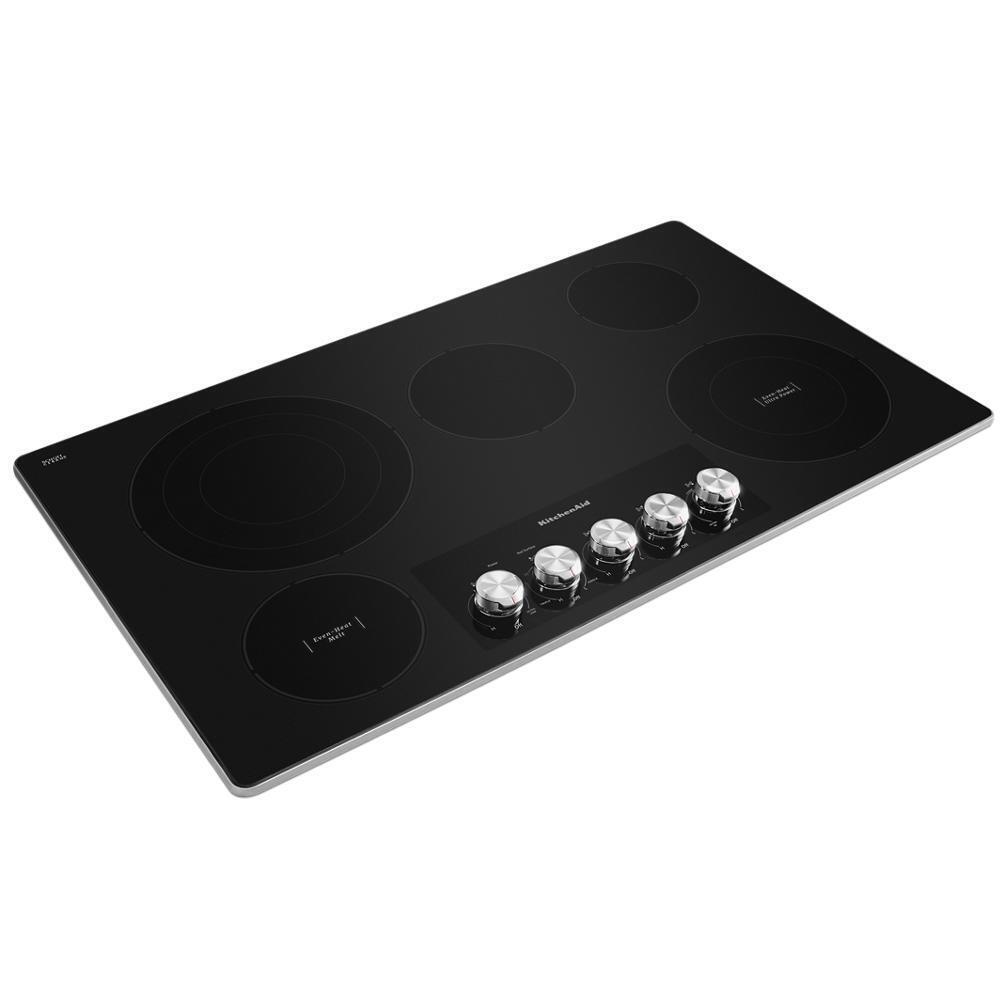

The brand + SKU: The KitchenAid KCES556HSS combines professional-grade design with user-focused functionality. This 36" electric cooktop features five radiant glass-ceramic elements, including a versatile 10"/6" dual element and two flexible 9"/6" expansion elements that adjust to varied cookware sizes. The stainless steel trim adds a premium finish that resists smudges and complements any kitchen decor. Precise metal knob controls offer tactile feedback and effortless temperature adjustment. A smooth glass surface ensures easy cleanup while hot surface indicators enhance safety. Durable radiant heat technology enables consistent cooking results. The KCES556HSS blends style, performance, and convenience for an elevated cooking experience.
Manuals & Guides
Key Features

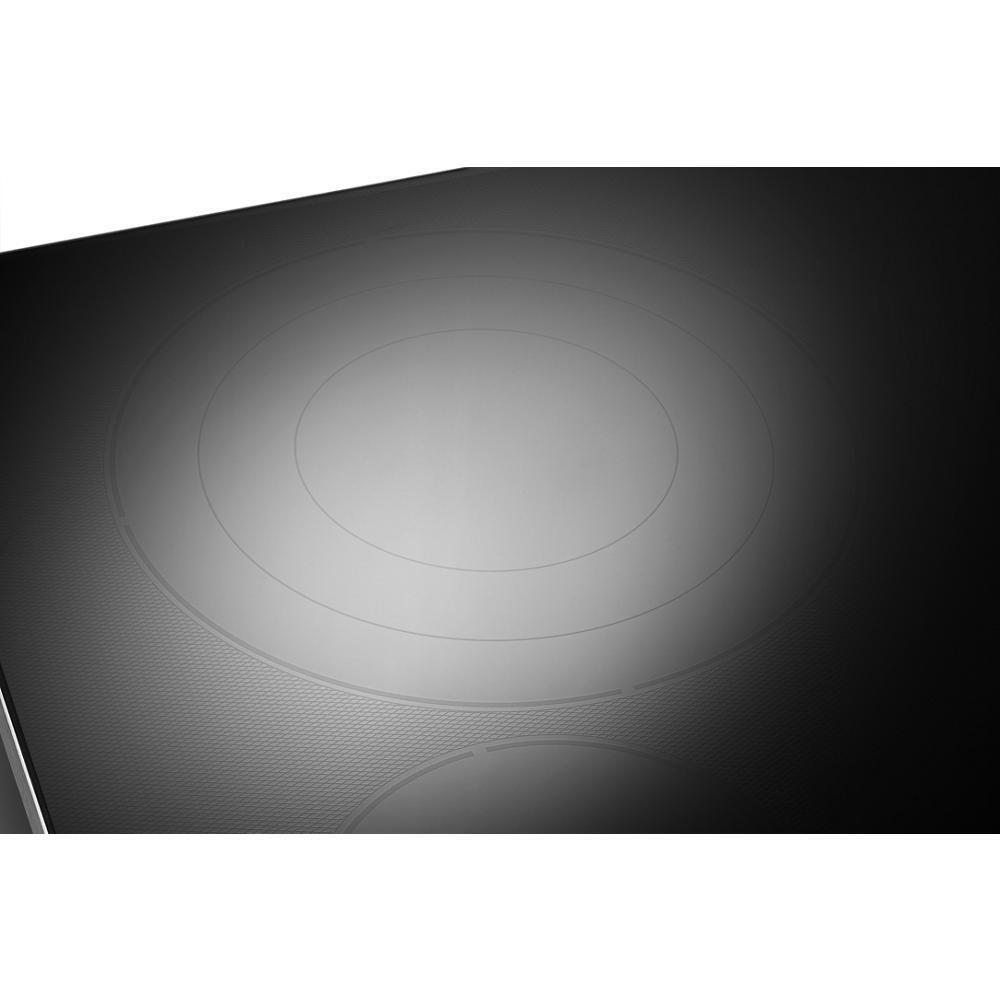

12''/9''/6'' Triple-Ring Round Element
Maximizes your flexibility with three distinct sizes that allow for element selection based on cookware size.
Hot Surface Indicator
Protects you by providing a visual indication if a cooking surface is on or still hot, so you can create with confidence.
