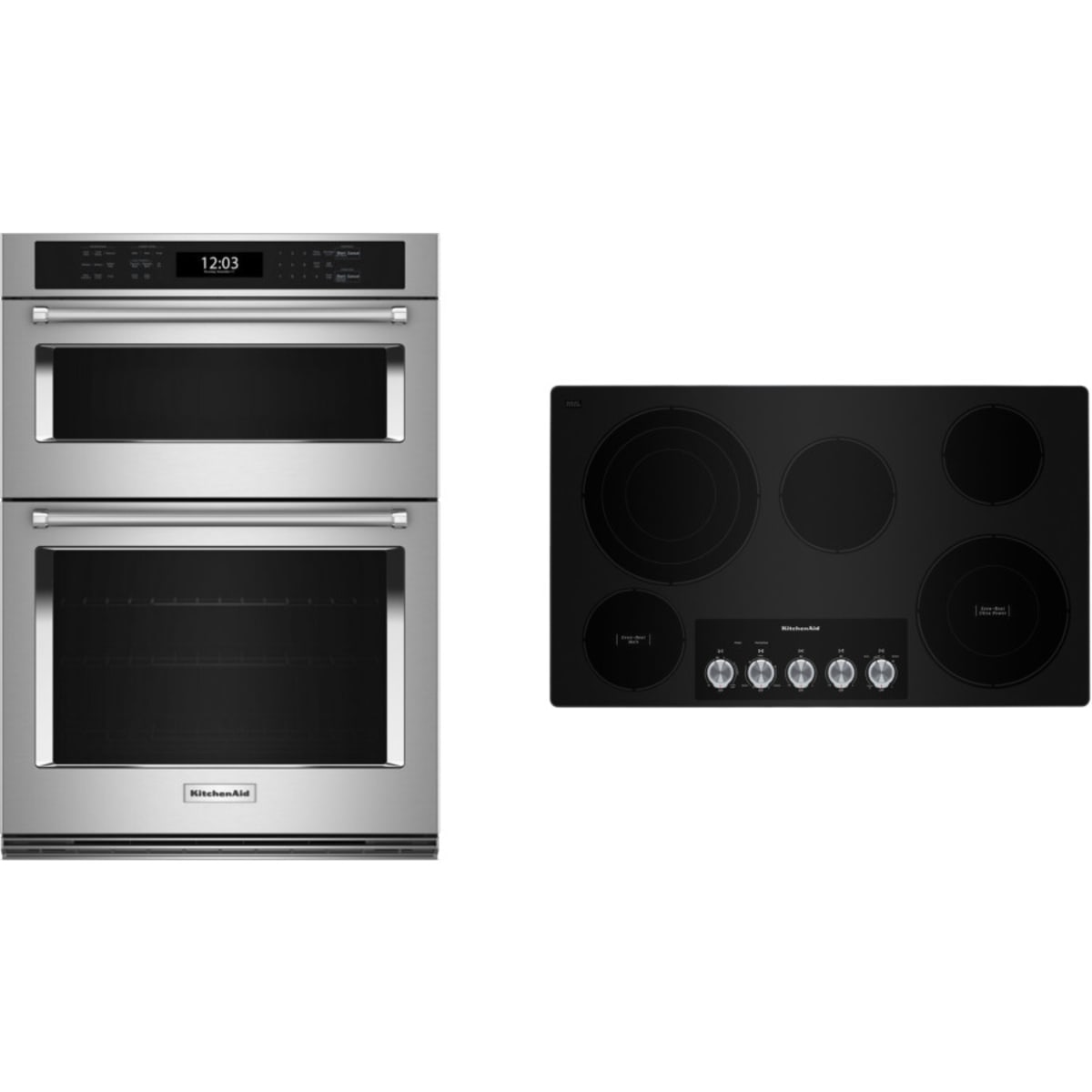

What's included: 2 items

  • 36" Electric Cooktop With 5 Elements And Knob Controls

    KitchenAid KCES556HSS 36" Electric Cooktop With 5 Elements And Knob Controls Stainless Steel

    • SKU SKU: KCES556HSS UPC: 883049472973
    • Type Electric Cooktops
  • 30" Combination Microwave Wall Ovens with Air Fry Mode.

    KitchenAid KOEC530PSS 30" Combination Microwave Wall Ovens with Air Fry Mode. Stainless Steel

    • SKU SKU: KOEC530PSS UPC: 883049670515
    • Type Microwave & Oven Combos
  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Rebates
  • Reviews
Sale price $4,325.00 Regular price $6,820.99 Save $2,495.99 / 36% OFF

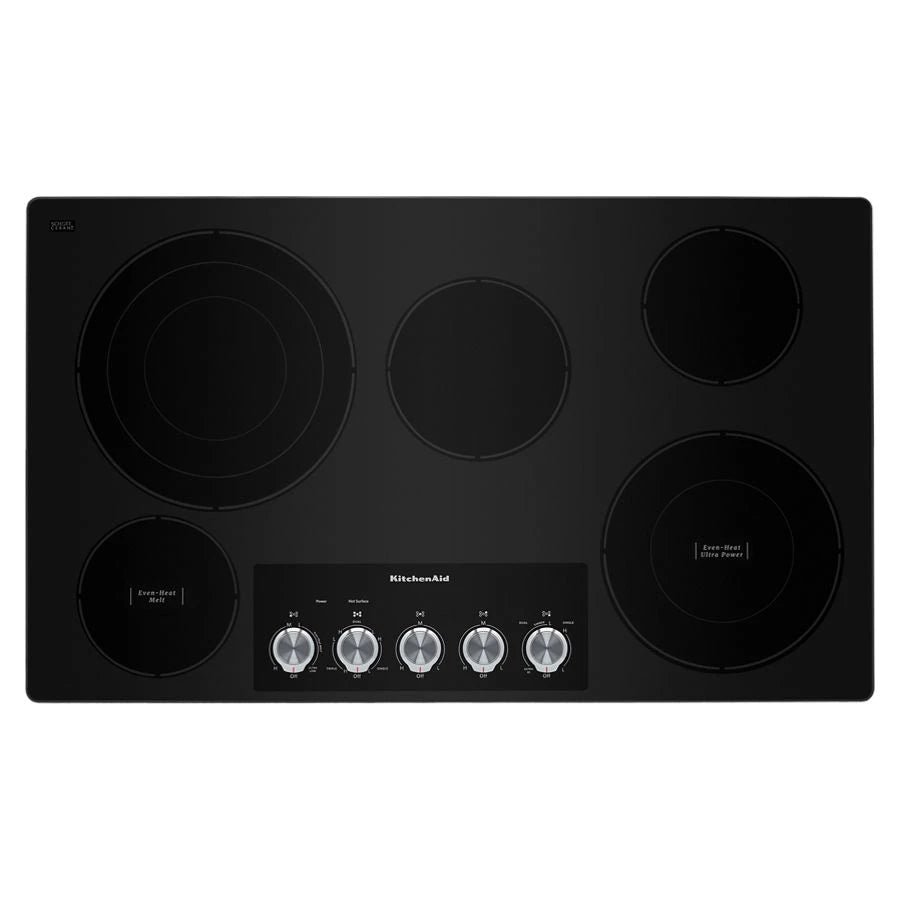

Product Details for KITCHENAID KCES556HSS

Technical Details

Controls

Control Location Front
Control Type Knobs
Infinite Heat Controls Yes

Cooktop details

Number of Open Bays N/A
Cooktop Surface Material Glass
Digital Display No
Griddle Included N/A
Heating Element On Indicator Light Yes
Hot Surface Indicator Light Yes

Certifications

ADA Compliant ADA Height and Operation Compliant
Energy Rating (kWh/year) 195
prop65 Standard - Standard

Electrical

Power Cord Included No
208V Compatible Yes

Dimensions & weight

Width 35.88 in.
Height 5.25 in.
Length 21.63 in.
Weight 56 lbs.
Carton Depth 25
Carton Height 9 1/4
Carton Width 40 3/4
Cutout Depth (in) 20 3/8
Cutout Width (in) 34 9/16
Gross Weight 56
Maximum Height 5 1/4
Net Weight 44.0
Cutout Depth Max(IN,inches) 20.5625
Cutout Depth Min(IN,inches) 20.3750
Cutout Depth(IN,inches) 20.3750
Cutout Width Max(IN,inches) 35.5625
Cutout Width Min(IN,inches) 34.5625
Cutout Width(IN,inches) 34.5625
Maximum Height(IN,inches) 5.2500
Net Weight(LB,pounds) 44
Carton Depth(IN,inches) 25.0000
Carton Height(IN,inches) 9.2500
Carton Width(IN,inches) 40.7500
Gross Weight(LB,pounds) 56

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 40.88 in.
Shipping Height 10.25 in.
Shipping Length 26.63 in.
Shipping Weight 96 lbs.
Total of Shipping Weight 96 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 2.36 ft³
Dimensional Weight 29.31 lbs.
Total of Cubes 2.36 ft³
Total of Dimensional Weight 29.31 lbs.

Details

Automatic Pan Detection No
Cooktop Configuration All Burners
Fuel Type Electric
Installs Over Built-In Oven Yes
LP Convertible No
Power Outage Compatible No

Dimensions

Cutout Depth 20.375
Cutout Depth Max 20.563
Cutout Depth Min 20.375
Cutout Width 34.563
Cutout Width Max 35.563
Cutout Width Min 34.563
carton depth 25
carton height 9.25
carton width 40.75
gross weight 56
net weight 44

Element/burner details

Center Rear Element-Burner Power 1, 800W
Center Rear Element-Burner Size 8in.
Center Rear Element-Burner Type Standard
Cooktop Element Style Radiant
Cooktop Type Standard
Left Front Element-Burner Power 1, 300W
Left Front Element-Burner Size 6in.
Left Front Element-Burner Type Even-Heat™
Left Rear Element-Burner Power 3000W/2200W/1100W
Left Rear Element-Burner Size 12in./9in./6in.
Left Rear Element-Burner Type Triple
Number of Cooking Element-Burners 5
Power Boost No
Right Front Element-Burner Power 3, 200W
Right Front Element-Burner Size 10in./6in.
Right Front Element-Burner Type Dual
Right Rear Element-Burner Power 1, 200W
Right Rear Element-Burner Size 6in.
Right Rear Element-Burner Type Standard

Ventilation details

Downdraft Vent No

Product details

Combination Match with Oven KOES527P; KOES530P; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107
Energy Star® Qualified ENERGY STAR® Qualified

Description

This 36" electric cooktop combines timeless style with the performance of five radiant elements, including a 10'' Even-Heat™ Ultra Power™ Element with Simmer Setting, a 6'' Even-Heat™ Elements with Melt Setting, and a 12''/9''/6'' Triple-Ring Round Element that maximizes your flexibility with three distinct rings that allow for element selection based on cookware size.


Product Features

  • 12''/9''/6'' Triple-Ring Round Element
    Maximizes your flexibility with three distinct sizes that allow for element selection based on cookware size.
  • Two 6'' 1200-Watt Round Elements
    Can reach a power output of up to 1200-watts to handle your daily cooking needs.
  • Hot Surface Indicator
    Protects you by providing a visual indication if a cooking surface is on or still hot, so you can create with confidence.

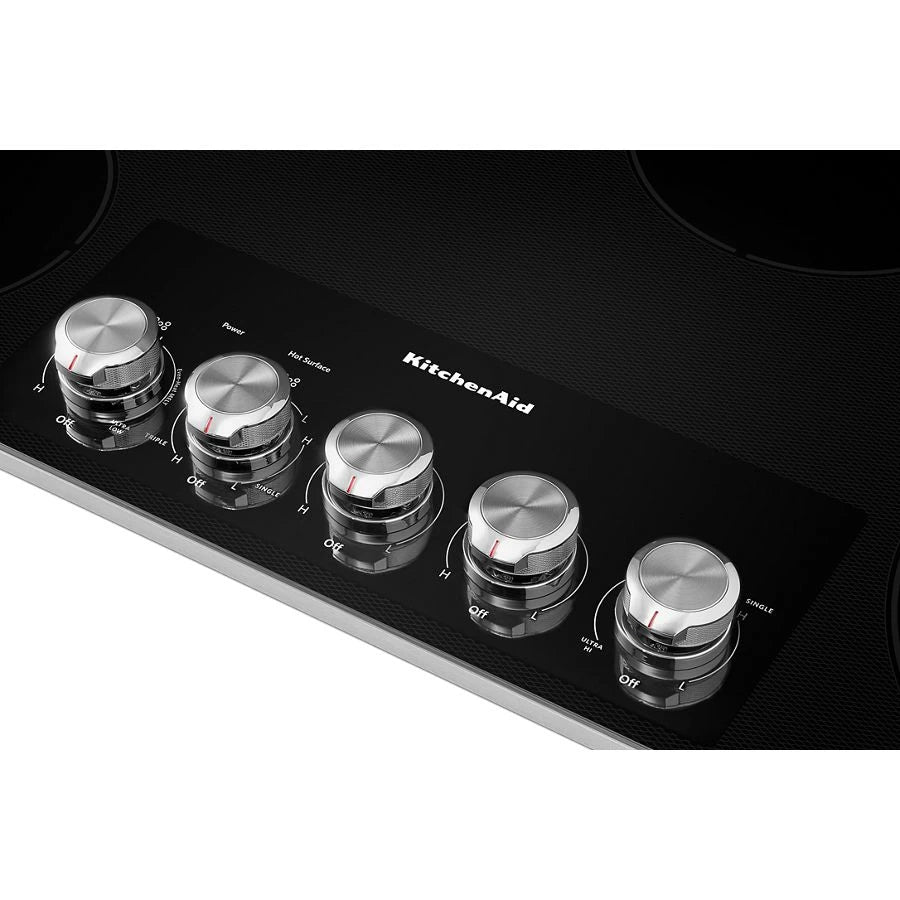

  • Metal Control Knobs
    Substantial, professionally-inspired stainless steel knobs easily adjust the cooktop's elements through an infinite number of heat settings, offering responsiveness and flexibility in control.
  • Control Lock
    Disables cooking mode for easy cleaning when not in use.
  • 10'' Even-Heat™ Ultra Power™ Element with Simmer Setting
    Provides greater versatility for high and low temperature cooking techniques. Even-Heat™ Technology maintains a constant supply of power and delivers a range of simmer settings.
  • 6'' Even-Heat™ Element with Melt Setting
    Combines the benefits of Even-Heat™ Technology with a dedicated setting that reaches the low temperatures needed to melt chocolate or butter without scorching.

From The Manufacturer

Rebates

KitchenAid Appliance Bundle – Unlock Up to $3,000 in Rebate Savings

Craft your dream kitchen and unlock rebates up to $3000 on select KitchenAid major appliances via a prepaid card by mail
Valid: 01/01/2026 - 03/31/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Rebates
  • Reviews
Sale price $4,325.00 Regular price $6,820.99 Save $2,495.99 / 36% OFF

Product Details for KITCHENAID KOEC530PSS

Technical Details

Other

Capacity (Cu Ft) 6.40

Product details

Oven Selections Air Fry, Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Cook Time Indicator, Delay Start, Language Conversion, Proofing, Rapid Preheat, Sabbath Mode, Start Time, Temperature Pr
Microwave Selections Add A Minute, Control Lock, Convect, Cook Power, Cook Time, Cook/Start, Crisp, Defrost, Easy Convect, End of Cycle Signal, Off/Cancel, Popcorn, Reheat, Soften/Melt, Sound On/Off, Steam, Time

Dimensions & weight

Width 76.31 in.
Height 108.45 in.
Length 27.13 in.
Weight 220 lbs.
Carton Depth 30 13/16
Carton Height 45
Carton Width 34 13/16
Cutout Depth (in) 24
Cutout Height (in) 41 5/16
Cutout Width (in) 28 1/2
Depth Closed Excluding Handles 24 1/2
Depth Closed Including Handles 27 1/8
Depth With Door Open 90 Degree 46 3/4
Gross Weight 265
Net Weight 243.0
Cutout Depth 60.96 cm, 60.96 cm, 60.96 cm, 24 in, 24 in, 24 in
Cutout Height 104.94 cm, 104.94 cm, 104.94 cm, 41-313/1000 in, 41-313/1000 in, 41-313/1000 in
Cutout Width 72.39 cm, 72.39 cm, 72.39 cm, 28-1/2 in, 28-1/2 in, 28-1/2 in
Depth Closed Excluding Handles 62.23 cm, 62.23 cm, 62.23 cm, 24-1/2 in, 24-1/2 in, 24-1/2 in
Depth Closed Including Handles 68.90 cm, 68.90 cm, 68.90 cm, 27-1/8 in, 27-1/8 in, 27-1/8 in
Depth With Door Open 90 Degree 118.74 cm, 118.74 cm, 118.74 cm, 46-3/4 in, 46-3/4 in, 46-3/4 in
Gross Weight 99.79 kg, 120.20 kg, 99.79 kg, 99.79 kg, 220 lbs, 265 lbs, 220 lbs, 220 lbs
Microwave Interior Depth 41.91 cm, 41.91 cm, 16-1/2 in, 16-1/2 in
Microwave Interior Height 20.96 cm, 20.96 cm, 8-1/4 in, 8-1/4 in
Microwave Interior Width 44.77 cm, 44.77 cm, 17-5/8 in, 17-5/8 in
Net Weight 89.81 kg, 110.22 kg, 89.81 kg, 89.81 kg, 198 lbs, 243 lbs, 198 lbs, 198 lbs
Oven Interior Depth 48.26 cm, 48.26 cm, 48.26 cm, 19 in, 19 in, 19 in
Oven Interior Height 45.72 cm, 45.72 cm, 45.72 cm, 18 in, 18 in, 18 in
Oven Interior Width 63.50 cm, 63.50 cm, 63.50 cm, 25 in, 25 in, 25 in
Microwave Interior Depth 41.91 cm, 16-1/2 in
Microwave Interior Width 44.77 cm, 17-5/8 in
Microwave Interior Height 20.96 cm, 8-1/4 in
Cutout Depth(IN,inches) 24.0000
Cutout Height(IN,inches) 41.3125
Cutout Width(IN,inches) 28.5000
Depth Closed Excluding Handles(IN,inches) 24.5000
Depth Closed Including Handles(IN,inches) 27.1250
Depth With Door Open 90 Degree(IN,inches) 46.7500

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 81.31 in.
Shipping Height 113.45 in.
Shipping Length 32.13 in.
Shipping Weight 260 lbs.
Total of Shipping Weight 260 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 129.91 ft³
Dimensional Weight 1614.98 lbs.
Total of Cubes 129.91 ft³
Total of Dimensional Weight 1614.98 lbs.

Certifications

ADA Compliant No
CUL Yes
Star K Certified Star K Certified
UL Yes
Prop 65 Standard - Standard

Controls

Control Type Electronic Touch
Display Color White
Electronic Display Type Digital
Language Conversion English/French/Spanish
Microwave Selections Add A Minute, Control Lock, Convect, Cook Power, Cook Time, Cook/Start, Crisp, Defrost, Easy Convect, End of Cycle Signal, Off/Cancel, Popcorn, Reheat, Soften/Melt, Sound On/Off, Steam, Time

Details

Flush Installation Approved Yes
Fuel Type Electric
Grill Yes
Oven Automatic Shut-Off Yes
Turntable Yes
Convection Power 1,200 w
Door Release Handle, Handle
Microwave Interior Light Halogen
Number of Microwave Racks 2
Oven Selections Air Fry, Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Cook Time Indicator, Delay Start, Language Conversion, Proofing, Rapid Preheat, Sabbath Mode, Start Time, Temperature Pr
Turntable Diameter Size 14-1/8 in

Electrical

Power Cord Included No
Amps 40
Hz 60
Volts 240
Watts 900

Exterior details

Door Type Metal & Glass
Handle Color Stainless Steel
Handle Material Metal
Door Lock Yes

Microwave details

Door Release Handle
Sensor Cooking Yes - Microwave
Grill Yes
Microwave Interior Light Halogen
Grill Power 1,600 w
Microwave Interior Depth 16-1/2 in
Microwave Interior Height 8-1/4 in
Microwave Interior Width 17-5/8 in
Turntable Diameter Size 14-1/8 in
Microwave Capacity 1.4 cu. ft.

Oven cavity details

Door Lock Yes
Bake Element Power 2,800 W
Broiler Element Power 4,000 W
Broiler Location Top of Oven
Convection Yes
Convection Element Power 3,200 w
Convection Element Type True Convection
Convection Functions Bake, Broil, Convection Conversion
Convection Power 1,200 w
Cooking Power 900 w
Door Broil Position Closed
Hidden Bake Element Yes
Interior Coating Porcelain
Interior Color Blue
Number of Oven Lights 2
Number of Oven Racks 3
Number of Rack Guides 6
Oven Cleaning Type Self-Cleaning
Oven Light Type Halogen
Self-Cleaning Oven Racks No

Dimensions

Capacity 6.4 cu. ft.
Common Size 30 in
Cutout Depth 24 in
Cutout Height 41-313/1000 in
Cutout Width 28-1/2 in
Depth 27-1/8 in
Depth Closed Excluding Handles 24-1/2 in
Depth Closed Including Handles 27-1/8 in
Depth With Door Open 90 Degree 46-3/4 in
Gross Weight 220 lbs, 220 lbs
Height 42-1/2 in
Microwave Interior Depth 16-1/2 in
Microwave Interior Height 8-1/4 in
Microwave Interior Width 17-5/8 in
Net Weight 198 lbs, 198 lbs
Oven Capacity 5 cu. ft.
Oven Interior Depth 19 in
Oven Interior Height 18 in
Oven Interior Width 25 in
Width 29-3/4 in

Smart compatibility

Connectivity No
Works With No

Description

Get the crisp you crave, right from your oven. KitchenAid® Combination Microwave Wall Ovens with Air Fry Mode circulate hot air around the included basket to cook with less oil.* Microwave convection cooking turns the microwave into a second oven for small batch bakes like cookies, madeleines and cakes.

*When compared to deep frying.


Product Features

  • 4,000-Watt Broil Element
    Uses high heat to give foods a crispy, golden brown finish. Use Broil to sear meat, grill fish, char vegetables, toast bread, melt cheesy toppings and more.
  • Self-Close Doors
    Feature specialized hinges that make it easy to shut the oven when your hands are full. Just give either door a nudge, and it will gently close itself.
  • Self-Cleaning Cycle
    Uses high temperatures to loosen baked-on food without the need for chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth.
  • 5.0 Cu. Ft. Oven Capacity
    Provides room to cook multiple dishes, so you can cook a whole turkey or roast and sides all at once.
  • Star-K Certified
    To meet kosher requirements for use on the Jewish Sabbath and other religious holidays. When in Sabbath Mode, the oven remains in baking mode at a constant temperature with lights, displays and tones disabled.
  • What's in the box
    Combination Microwave Wall Oven includes a Dishwasher-Safe Air Fry Basket, a Microwave Crisper Pan, and an Integrated Meat Thermometer
  • Dishwasher-Safe Air Fry Basket
    Allows air to circulate around food as it cooks for crisping and browning and is dishwasher-safe for easy cleanup.
  • FIT System Limited Guarantee
    Allows the oven to install in standard, short or tall cabinet cutouts, using flexible design elements to match the height of an existing cutout.**On 27" and 30" KitchenAid® wall ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified. Visit kitchenaid.com/promotions.
  • EasyConvect™ Conversion System
    Automatically adjusts conventional baking temperatures and cook times to their convection equivalents, making it easy to use convection with recipes of all kinds.
  • Even-Heat™ Preheat
    Raises the oven temperature an extra 40°F during preheating to maintain the set temperature when the oven door is opened and food is added. This also ensures the entire oven cavity, including walls and racks, is fully heated to help prevent cold spots.
  • CrispWave™ Technology
    Uses microwave power to heat the included crisper pan and a 1600-watt element in the top of the microwave to brown and broil, allowing you to grill meats, crisp pizza, fry bacon and more, right in the microwave.
  • Microwave Convection Cooking
    Uses dual heating elements and a fan to reach temperatures up to 450°F, turning the microwave into a second oven for small batch bakes like cookies, madeleines and cakes.
  • 1.4 Cu. Ft. Microwave Oven Capacity
    Comfortably fits a variety of dishes with enough height for a mixing bowl and width for a 9" x 13" casserole dish.

Key Features

Even-Heat™ True Convection

Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures for delicious baked goods, juicy roasts and flavorful vegetables.

From The Manufacturer

Rebates

KitchenAid Appliance Bundle – Unlock Up to $3,000 in Rebate Savings

Craft your dream kitchen and unlock rebates up to $3000 on select KitchenAid major appliances via a prepaid card by mail
Valid: 01/01/2026 - 03/31/2026
Download Rebate formView all rebate products

Reviews

Compare with similar products

This item

Recommendations

Previously viewed products
