Product Details for Frigidaire Professional PCCE3680AF
Technical Details
Dimensions & weight
| Width | 36 in. |
| Height | 2 in. |
| Length | 21 in. |
| Weight | 39 lbs. |
| Cutout Height | 5" |
| Minimum Cutout Width | 33 7/8" |
| Minimum Cutout Depth | 19 1/8" |
| Maximum Cutout Width | 36 1/8" |
| Maximum Cutout Depth | 20 1/2" |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 41 in. |
| Shipping Height | 7 in. |
| Shipping Length | 26 in. |
| Shipping Weight | 79 lbs. |
| Total of Shipping Weight | 79 lbs. |
| Source | Calculation |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 0.88 ft³ |
| Dimensional Weight | 9.11 lbs. |
| Total of Cubes | 0.88 ft³ |
| Total of Dimensional Weight | 9.11 lbs. |

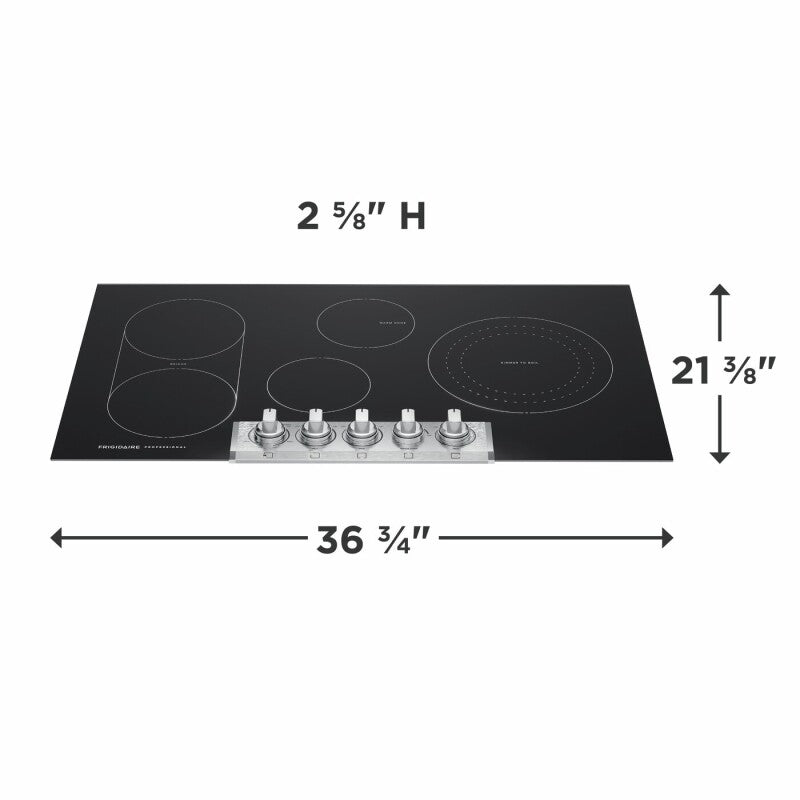

Product details
| Height | 2 5/8" |
| Width | 36 3/4" |
| Depth | 21 3/8" |
| Minimum Cutout Width | 33 7/8" |
| Minimum Cutout Depth | 19 1/8" |
| Maximum Cutout Width | 36 1/8" |
| Maximum Cutout Depth | 20 1/2" |
| ADA Compliant | Yes |
| CSA Listed | Yes |
| UL Listed | Yes |

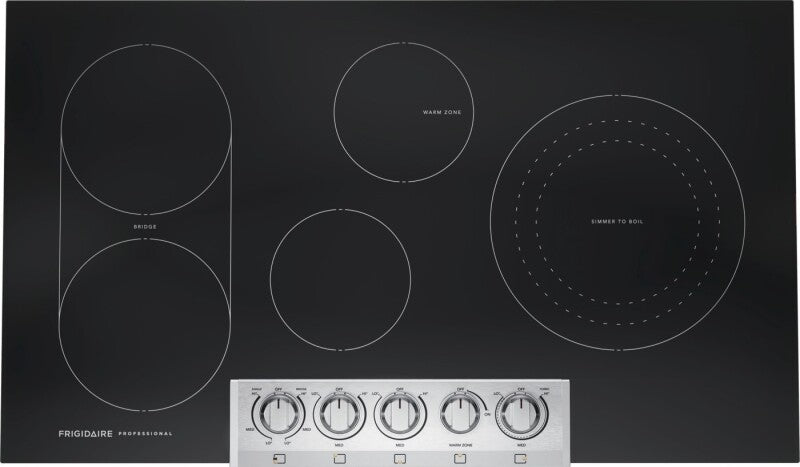

| Bridge Element | Yes |
| Bridge Element Location | Left |
| Cooking Surface Type | Smooth |
| Hot-Surface Indicator Light | Yes |
| Right Front Element Burner Size | 9" |
| Left Front Element Burner Size | 7" |
| Left Rear Element Burner Size | 7" |
| Center Front Element Burner Size | 6" |
| Right Front Element Burner | 3200 Watts |
| Left Front Element Burner | 1800 Watts |
| Left Rear Element Burner | 1800 Watts |
| Center Front Element Burner | 1200 Watts |
| Center Rear Element Burner | 100 Watts |
| Keep Warm Burner Location | Center Rear |
| Standard Width | 36" |
| Cutout Height | 5" |
| Connected Load @ 240V | 8.1 kW |
| Minimum Circuit Required | 40 Amps |
| Voltage Rating | 240 V |
| Frigidaire Fit Promise | Yes |
| Product Weight | 39 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| Installed Over a Wall Oven | Yes |
| Display Type | Mechanical |
Description

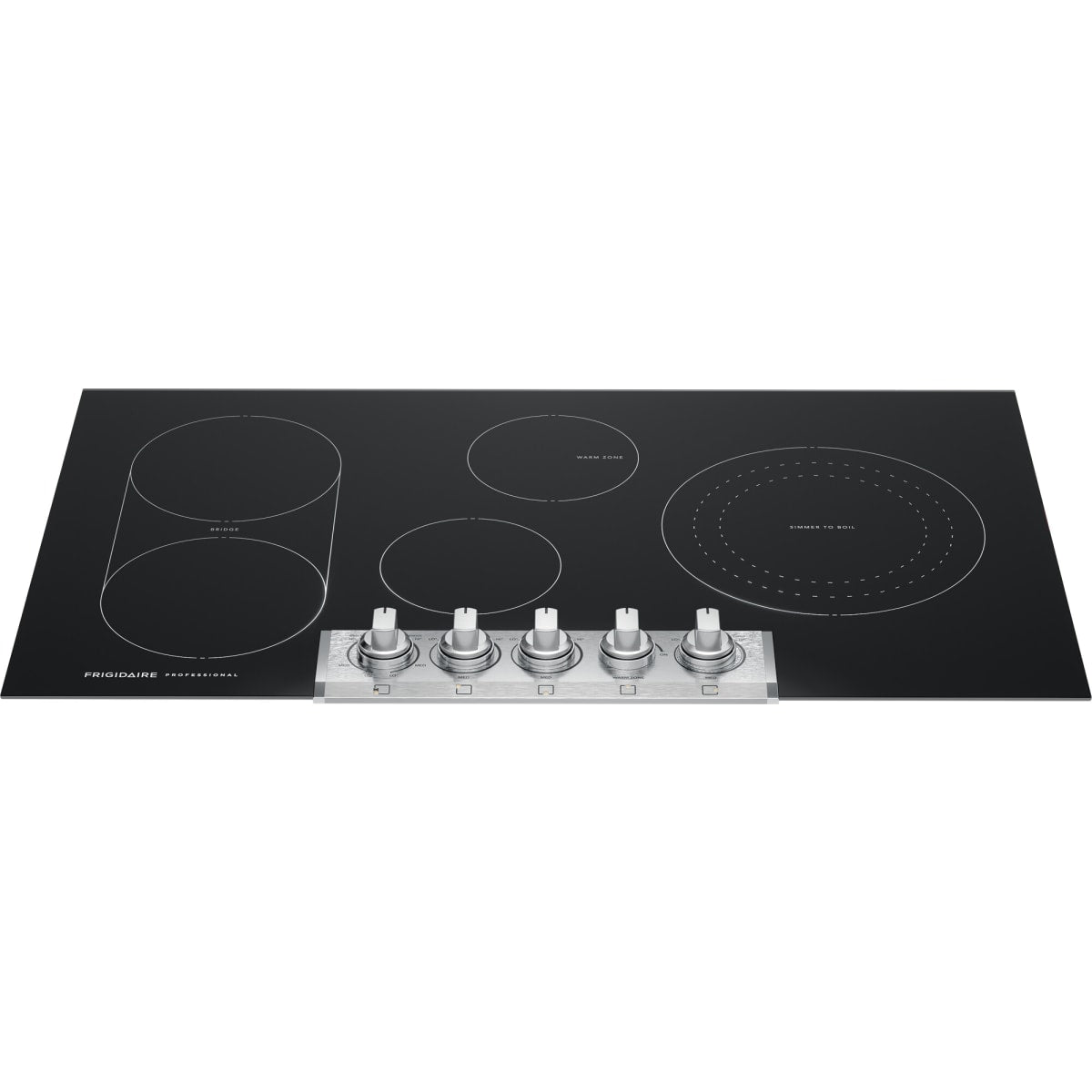

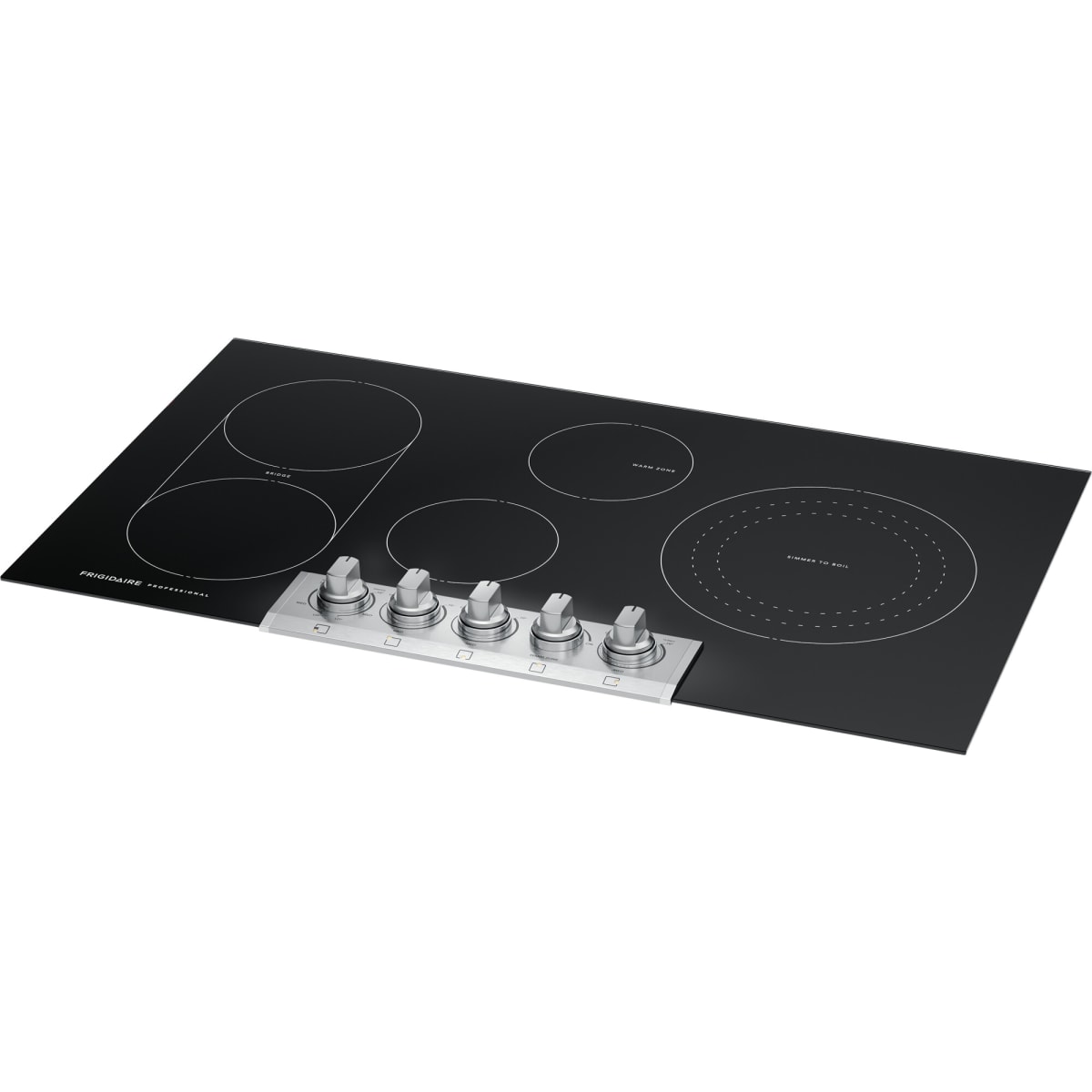

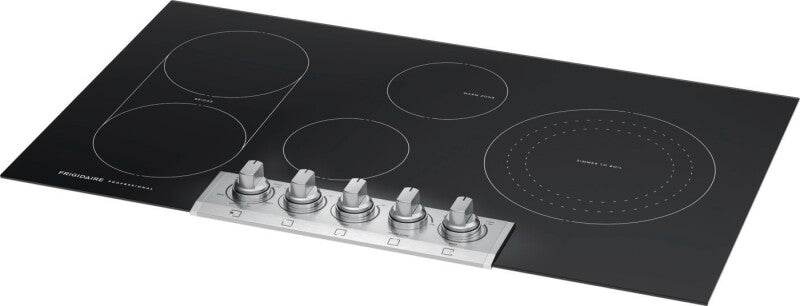

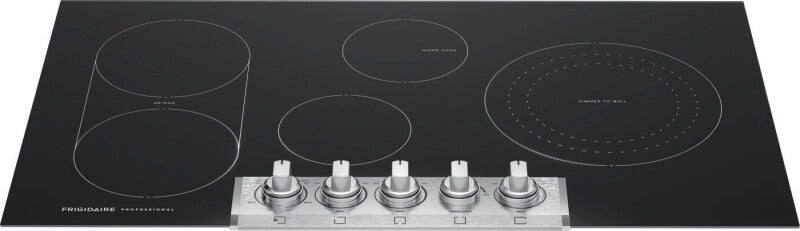

Electric Cooktop with 5 Radiant Elements
The Frigidaire Professional 36" Electric Cooktop delivers precise, even heating with its advanced EvenTemp™ element, minimizing hot spots for consistent cooking results. A convenient bridge element connects two zones to create a larger surface, ideal for griddles or oversized cookware. Plus, with the Frigidaire Fit Promise, you can be confident it will seamlessly fit your existing countertop cutout.

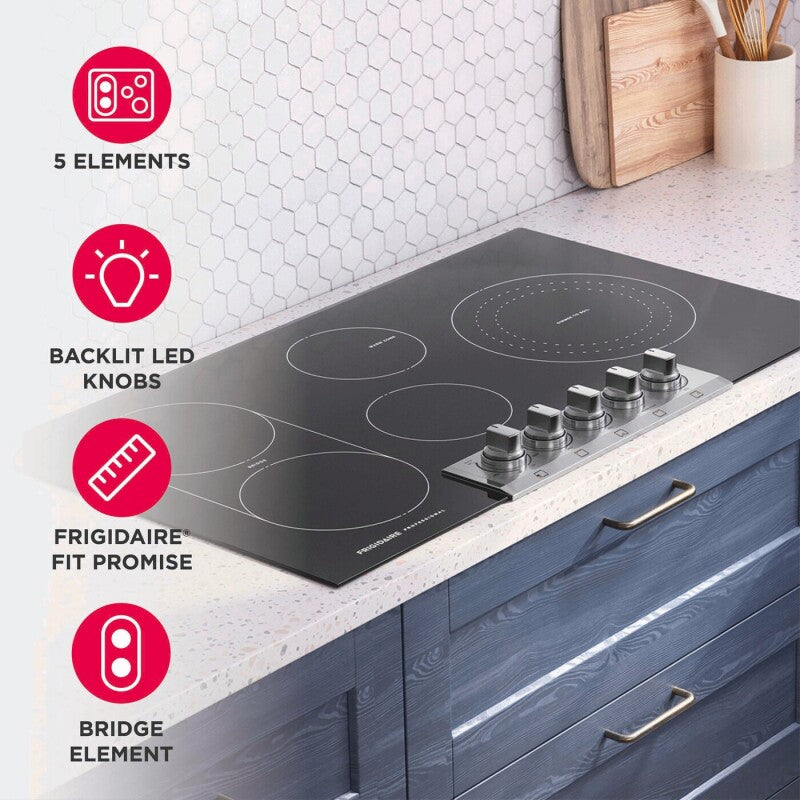

Product Features
-
EvenTemp® Element
Heat is evenly distributed across the element's surface, which reduces hot spots and cold areas in your pan. -

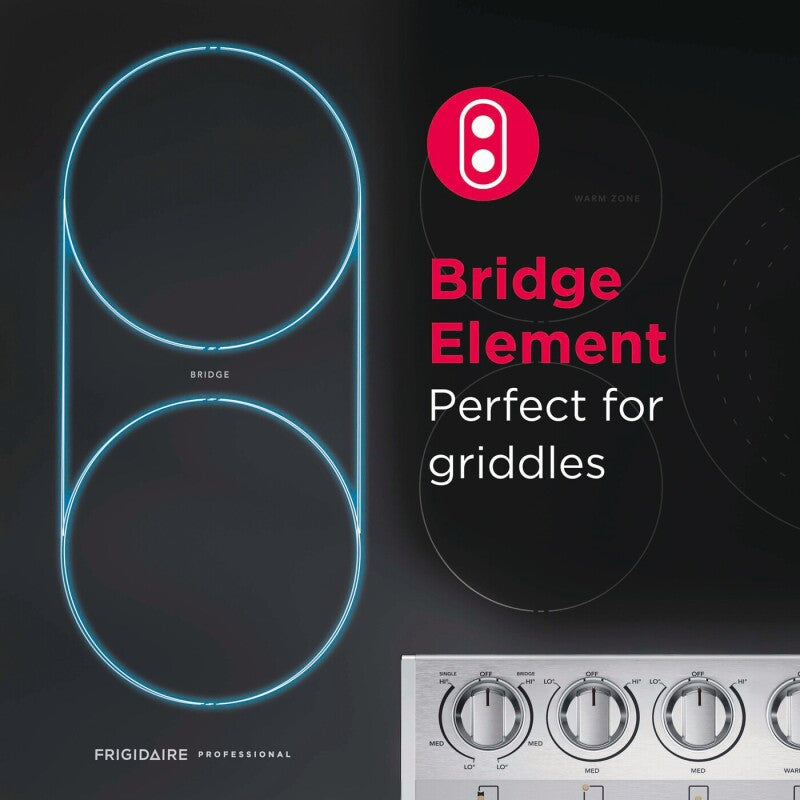

Bridge Element
Connect two elements to create a larger cooking surface, perfect for griddles or large pans. -
Frigidaire® Fit Promise
We promise that your new 36" Frigidaire Professional radiant cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100(1) -
Keep Warm Zone
Keeps dishes warm while the rest finish so that your entire meal is ready when you are. -

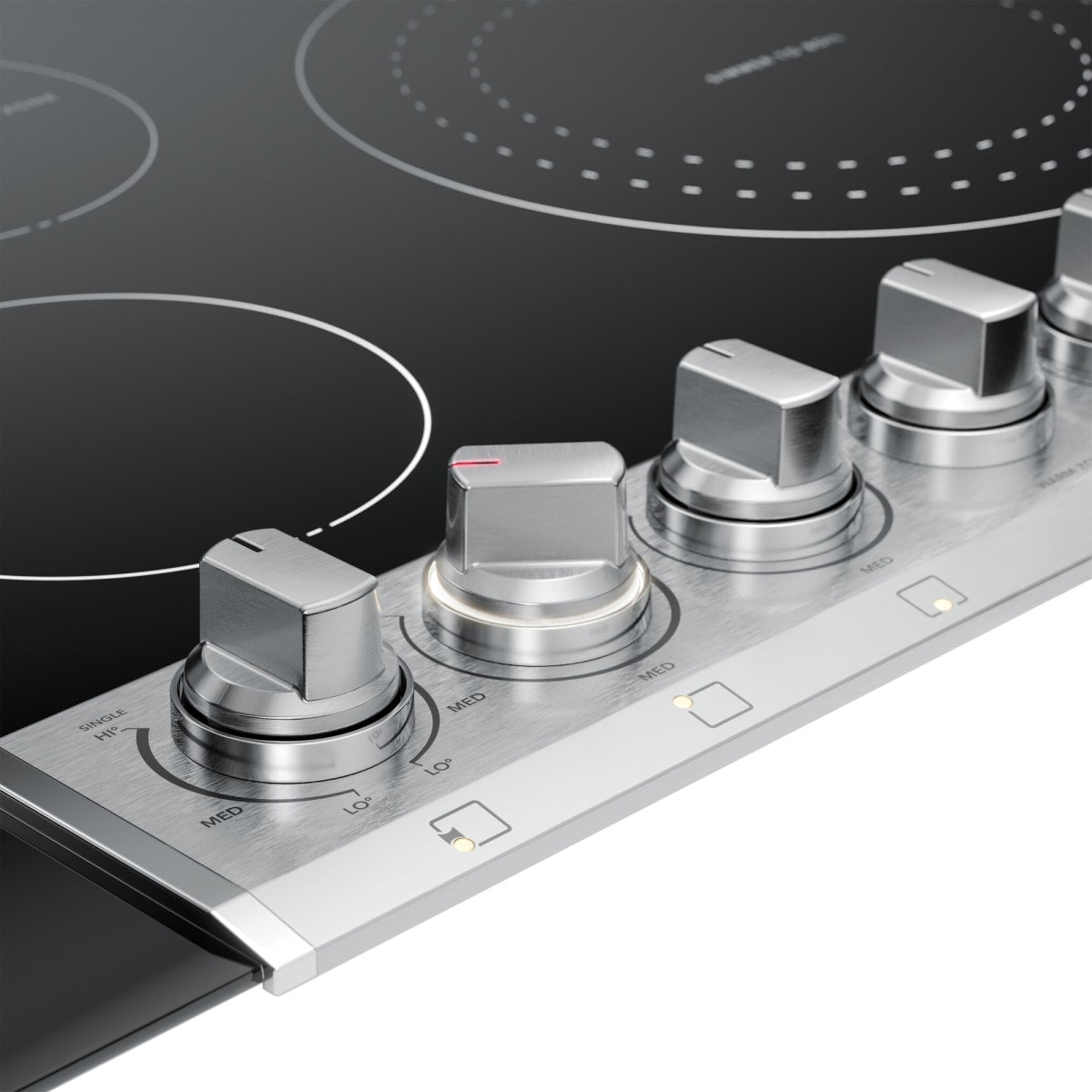

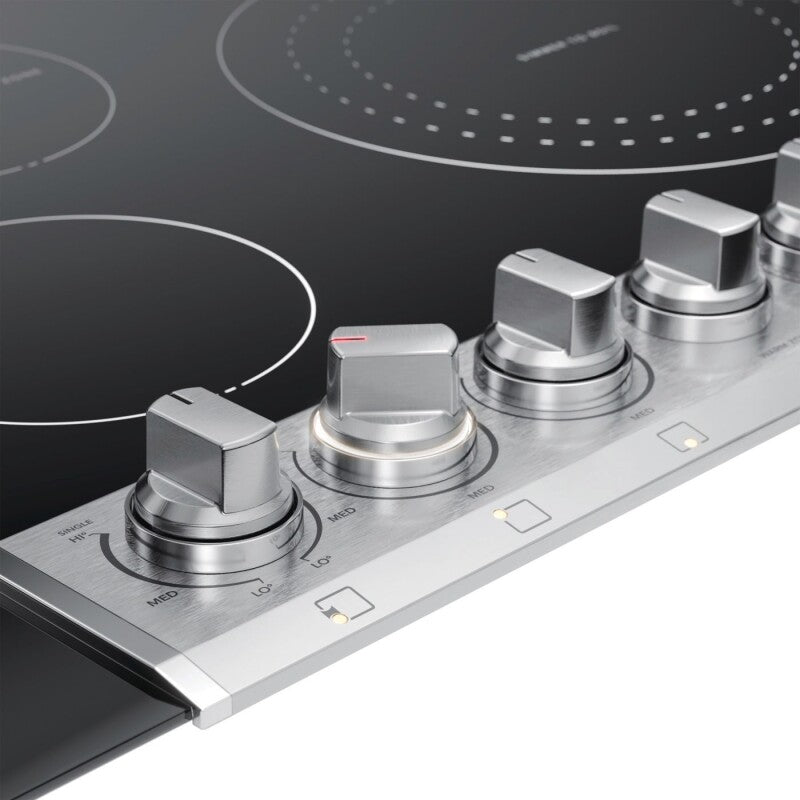

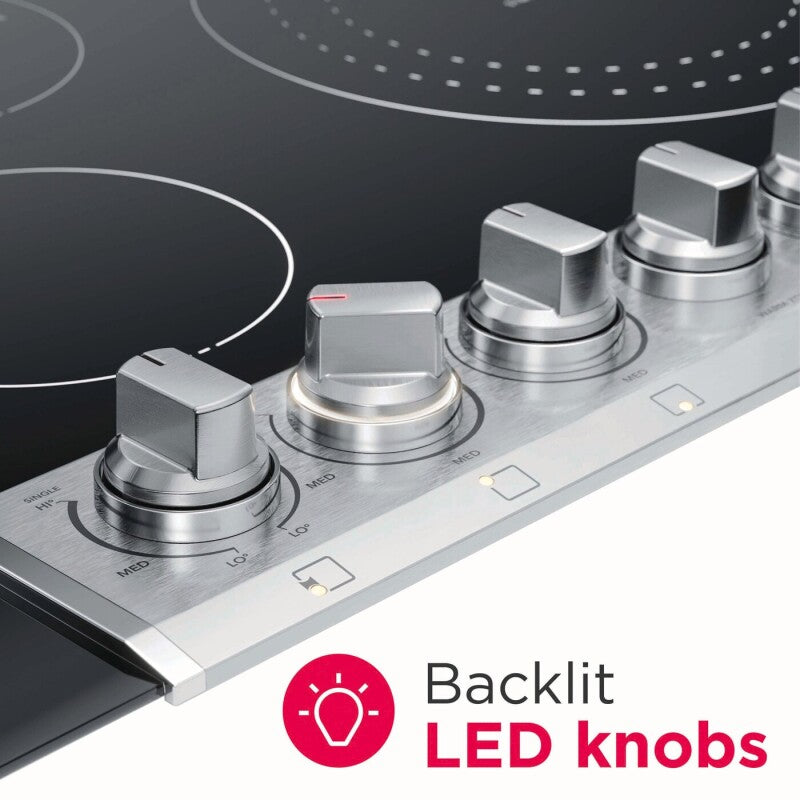

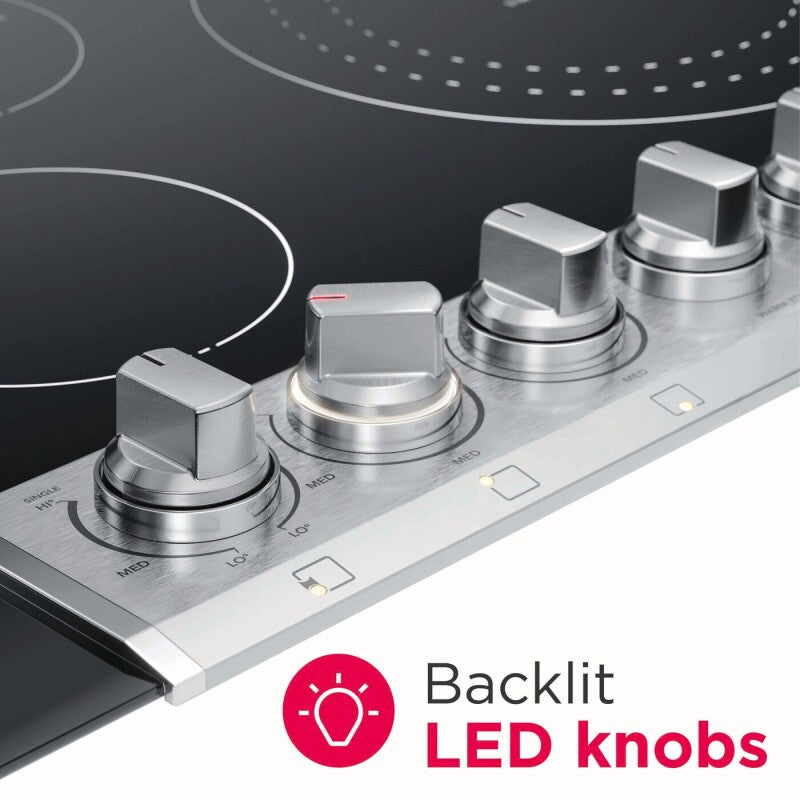

Backlit LED Knobs
Lights up when an element is on, so you know when your cooktop is in use. -

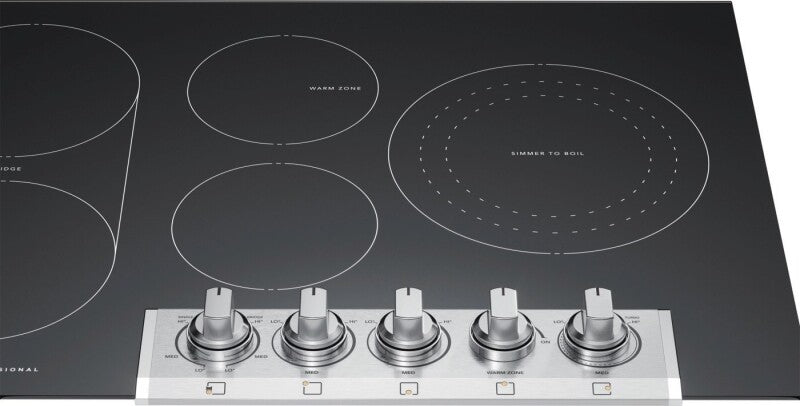

Front Control Design
Adjust the cooking temperature without having to reach over hot items on the cooktop -
Easy-to-Clean Glass Cooktop
Wipe away spills easier the smooth ceramic glass cooktop -
Installation over Wall Oven Approved
Cooktops are approved for installation above any of our Frigidaire electric wall ovens. -
Smudge-Proof® Stainless Steel
Resists fingerprints and cleans easily. -
ADA Compliant
Product complies with the Americans with Disabilities Act.
