SKU: KM116BAJ

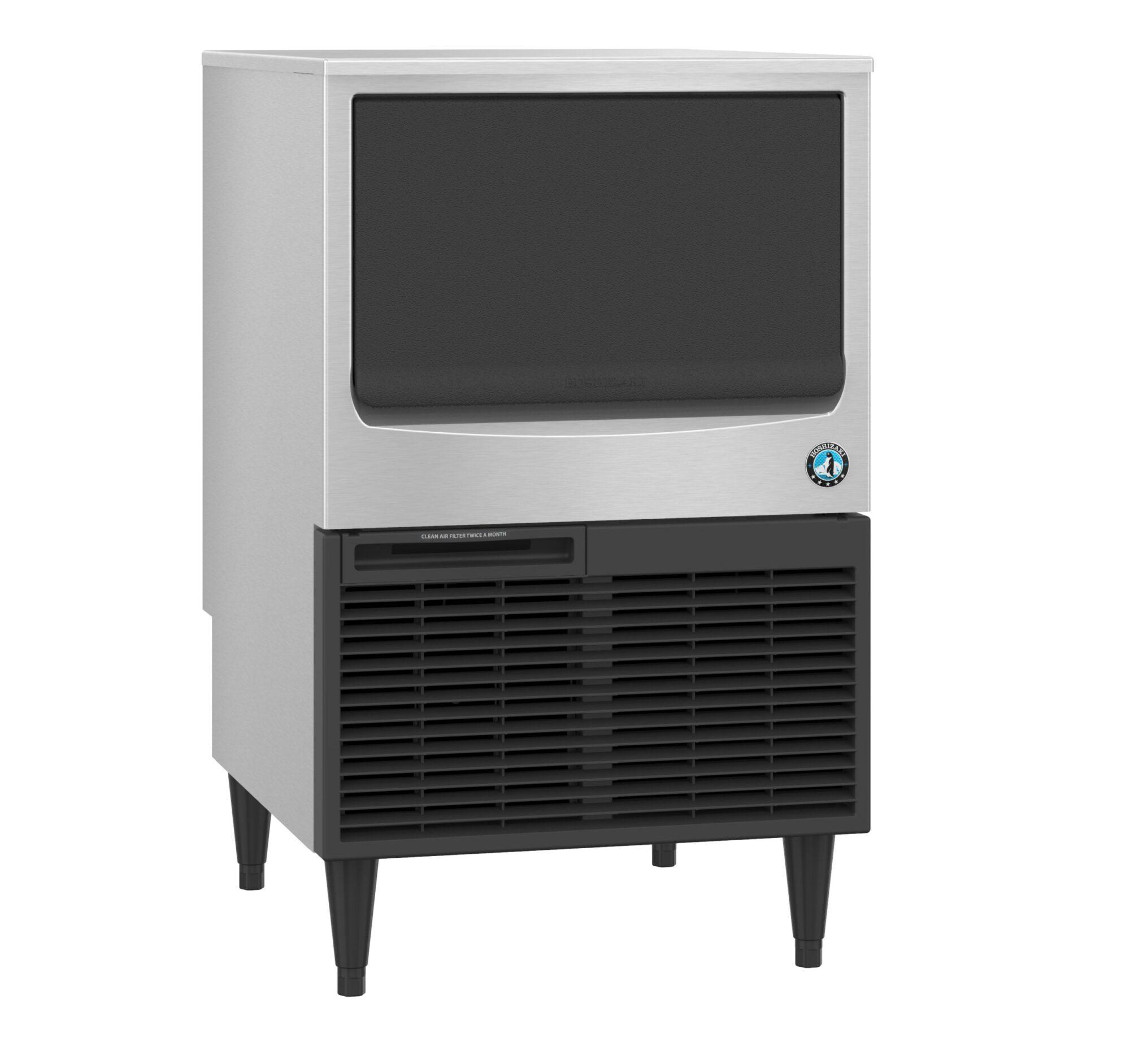

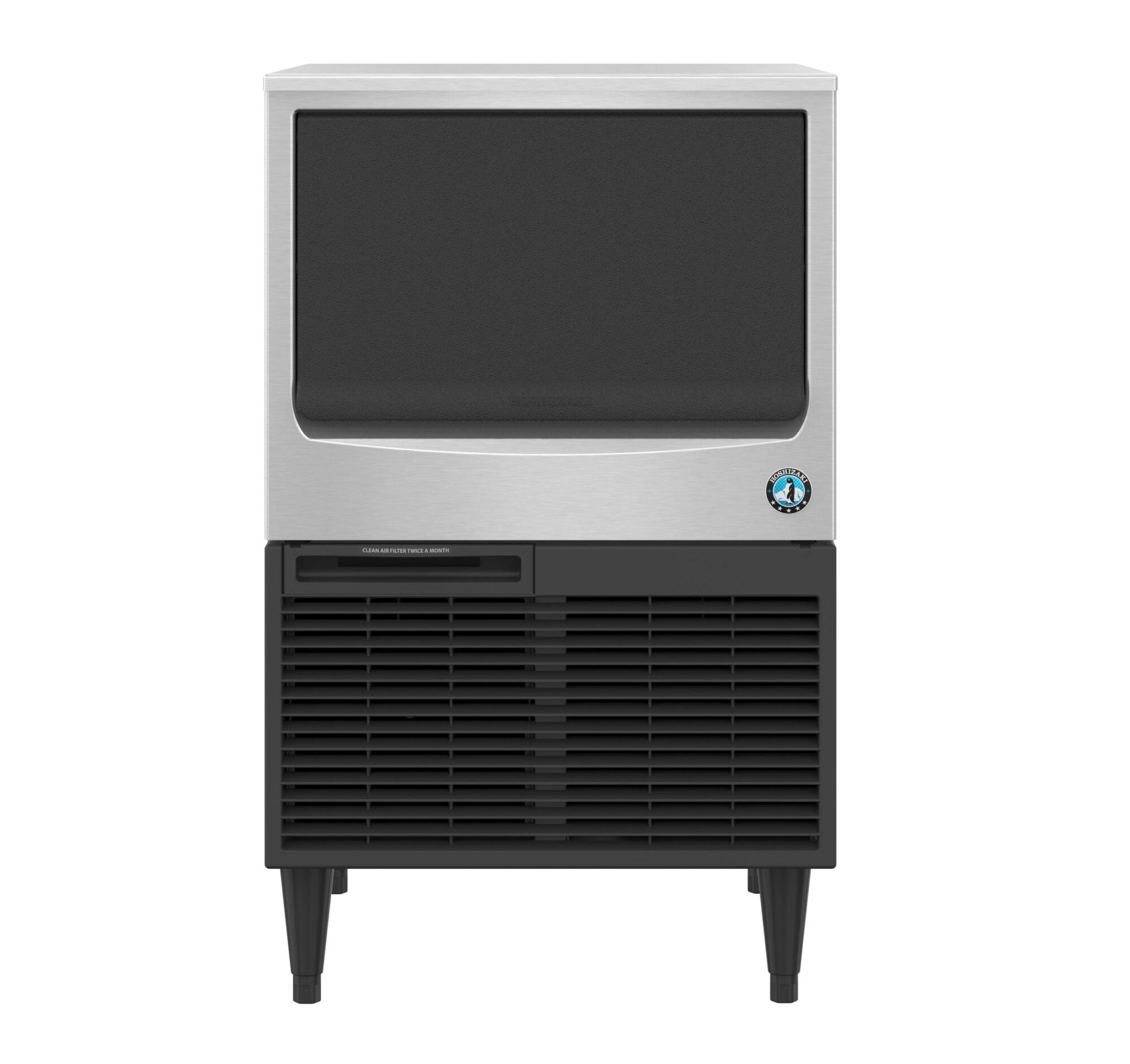

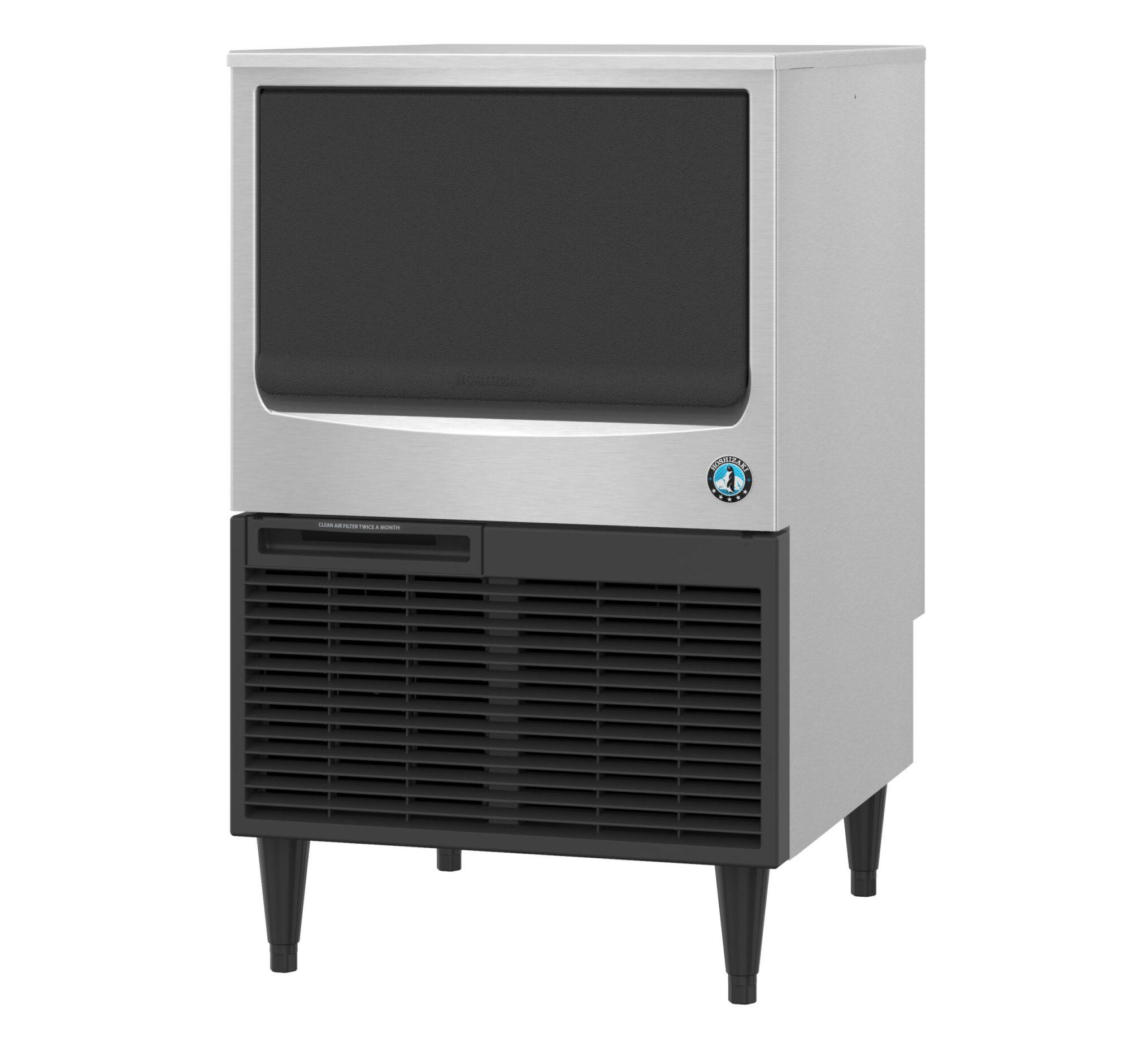

HOSHIZAKI KM116BAJ KM-116BAJ Crescent Cuber Icemaker, Air-cooled, Built in Storage Bin

Quick Specification More details

Width:
23.75 Inch
Height:
39.0 Inch
Type:
Ice Makers

About this product

Dimensions: 23-3/4" W x 24" D x 39" H
Up to 125 lbs of ice produced per 24 hours
Up to 53 lbs of built-in storage capacity (1.8ft3)
Produces crescent shaped ice cubes

SKU: KM116BAJ

HOSHIZAKI KM116BAJ KM-116BAJ Crescent Cuber Icemaker, Air-cooled, Built in Storage Bin

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
23.75 Inch
Height:
39.0 Inch
Type:
Ice Makers

About this product

Dimensions: 23-3/4" W x 24" D x 39" H
Up to 125 lbs of ice produced per 24 hours
Up to 53 lbs of built-in storage capacity (1.8ft3)
Produces crescent shaped ice cubes

Product Details for HOSHIZAKI KM116BAJ

Technical Details

Features

Dimensions: 23-3/4" W x 24" D x 39" H	Yes
Up to 125 lbs of ice produced per 24 hours	Yes
Up to 53 lbs of built-in storage capacity (1.8ft3)	Yes
Produces crescent shaped ice cubes	Yes
Slide in door with durable stainless steel exterior	Yes
Front in, front out airflow	Yes
EverCheck(TM) alert system	Yes
CycleSaver(TM) design	Yes
HS-5061 drain pump assembly, sold separately	Yes
R-134a refrigerant (7.8 oz. / 221 g)	Yes
Heat Rejection:2100 BTU/hr	Yes
Ambient temperature range: 45 - 100(degree)F	Yes
Water temperature range: 45 - 90(degree)F	Yes
Water pressure: 10 - 113psig	Yes
Voltage range: 104 - 127V	Yes
5.5 amps (15 Amp Max fuse)	Yes
8.1 kwh/100 lbs.@ 90/70	Yes
Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug	Yes
ENERGY STAR(R) qualified	Yes
Three Years: Parts & Labor warranty on entire machine.	Yes
Five Years: Parts & Labor warranty on evaporator.	Yes

Product details

Category	Ice Makers
Product Type	Appliances
Energy Star Certified	Yes
ADA Compliant	No
Smart Device	No

Dimensions & weight

Product Dimensions	23.75 in x 39 in x 24 in
Shipping Dimensions	0 in x 0 in x 0 in
Product Weight	145 lb
Shipping Weight	185 lb

Features

Dimensions: 23-3/4" W x 24" D x 39" H
Up to 125 lbs of ice produced per 24 hours
Up to 53 lbs of built-in storage capacity (1.8ft3)
Produces crescent shaped ice cubes
Slide in door with durable stainless steel exterior
Front in, front out airflow
EverCheck(TM) alert system
CycleSaver(TM) design
HS-5061 drain pump assembly, sold separately
R-134a refrigerant (7.8 oz. / 221 g)
Heat Rejection:2100 BTU/hr
Heat Rejection: 2100 BTU/hr
Ambient temperature range: 45 - 100(degree)F
Water temperature range: 45 - 90(degree)F
Water pressure: 10 - 113psig
Voltage range: 104 - 127V
5.5 amps (15 Amp Max fuse)
8.1 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug
ENERGY STAR(R) qualified
Three Years: Parts & Labor warranty on entire machine.
Three Years: Parts & Labor warranty on entire machine
Five Years: Parts & Labor warranty on evaporator.
Five Years: Parts & Labor warranty on evaporator

Description

The KM-116BAJ is capable of producing approximately 125 lbs of crescent cubed ice. This Undercounter Air-cooled, Built in Storage Bin icemaker stores up to 53 lbs of ice*, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver(TM) design and includes the EverCheck(TM) alert system making the unit simple to maintain. The KM-116BAJ requires a Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug electrical connection. Front in, front out airflow. ENERGY STAR(R) qualified. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice. KMD-11611BAJ.
