SKU: KUIX535HPS | UPC: 883049483290

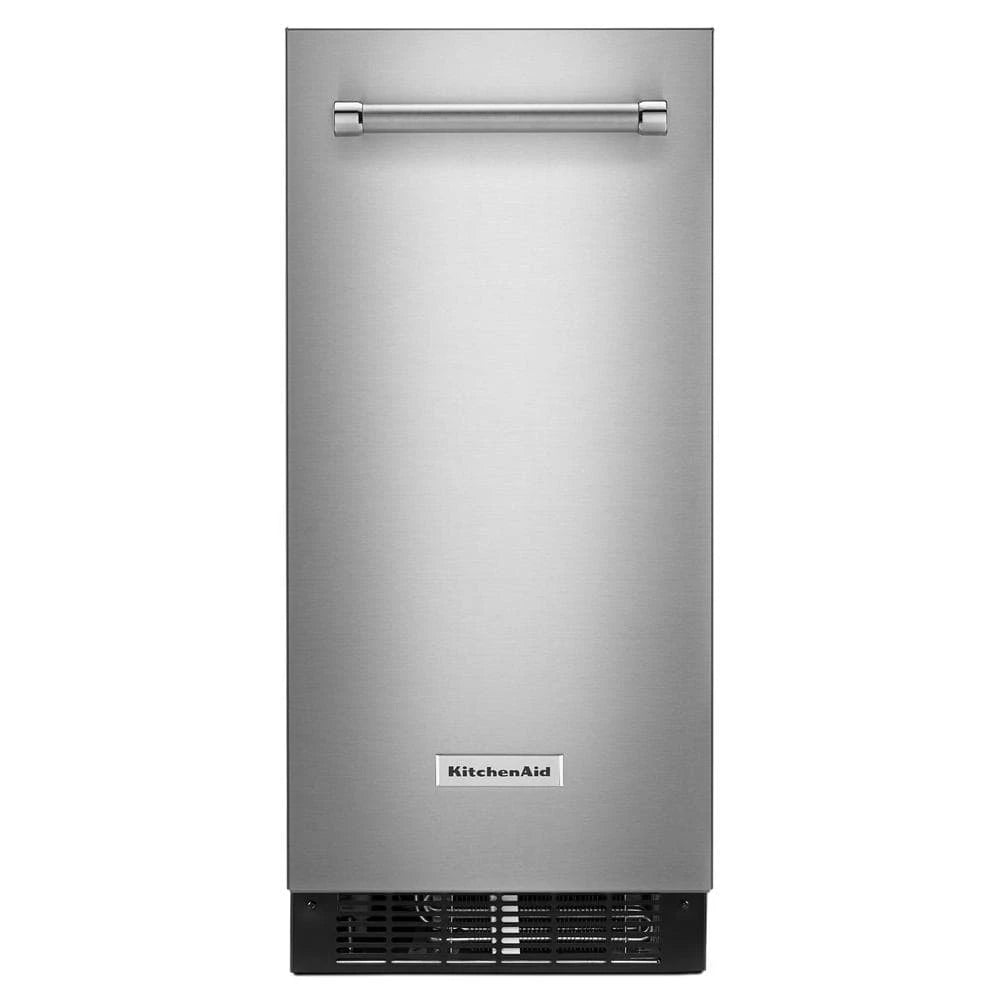

KITCHENAID KUIX535HPS KitchenAid® 15'' Automatic Ice Maker with PrintShield™ Finish in Stainless Steel

Name: KITCHENAID KUIX535HPS KitchenAid® 15'' Automatic Ice Maker with PrintShield™ Finish in Stainless Steel
Brand: KITCHENAID
SKU: KUIX535HPS
Availability: OutOfStock

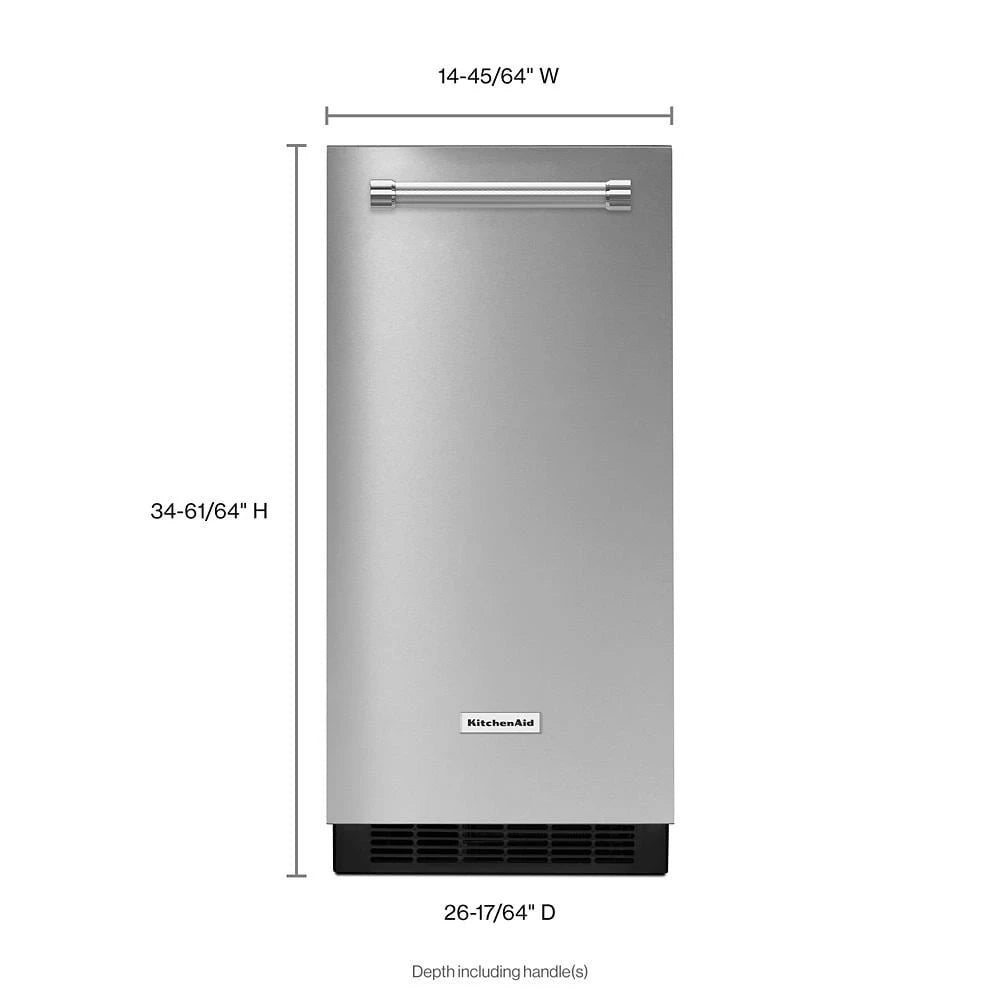

Quick Specification More details

Width:
14.07 Inch
Depth:
26.26 Inch
Height:
34.95 Inch
Type:
Ice Makers

About this product

Installs nearly anywhere in the home within 100ft of drain line
Filter-Ready
Clear Ice Technology for appealing, uniformly shaped cubes
Fully Flush Installation with Articulating Hinge

SKU: KUIX535HPS | UPC: 883049483290

KITCHENAID KUIX535HPS KitchenAid® 15'' Automatic Ice Maker with PrintShield™ Finish in Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Related Accessories

KITCHENAID KMMF530PPS KitchenAid® Multifunction Over-the-Range Oven with Flush Built-In Design in Stainless Steel

Spring Sale

Memorial Day Sale

KitchenAid KMMF730PPS Over The Range Microwaves Printshield Stainless Front View

KitchenAid KMMF730PPS Over The Range Microwaves Printshield Stainless – Catalog Photo

KITCHENAID KMMF730PPS KitchenAid® Multifunction Over-the-Range Oven with Infrared Sensor Modes in Stainless Steel

Spring Sale

Memorial Day Sale

KITCHENAID W10846206 Handle Medallion Kit Black

kitchenaid-w10846206-handle-medallion-kit-other

KITCHENAID W10846206 Handle Medallion Kit Black

Quickship

On Sale

Quick Specification More details

Width:
14.07 Inch
Depth:
26.26 Inch
Height:
34.95 Inch
Type:
Ice Makers

About this product

Installs nearly anywhere in the home within 100ft of drain line
Filter-Ready
Clear Ice Technology for appealing, uniformly shaped cubes
Fully Flush Installation with Articulating Hinge

Product Details for KITCHENAID KUIX535HPS

Technical Details

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	8.17 ft³
Dimensional Weight	101.62 lbs.
Total of Cubes	8.17 ft³
Total of Dimensional Weight	101.62 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	20 in.
Shipping Height	41.13 in.
Shipping Length	31.06 in.
Shipping Weight	147 lbs.
Total of Shipping Weight	147 lbs.
Source	Calculation

Dimensions & weight

Width	15 in.
Height	36.13 in.
Length	26.06 in.
Weight	107 lbs.
Cabinet Width (in)	14 7/8
Carton Depth	28 3/8
Carton Height	36 1/8
Carton Width	17 1/4
Cutout Depth (in)	25
Cutout Height (in)	34 1/2
Cutout Width (in)	15
Depth Closed Excluding Handles	24 5/8
Depth Closed Including Handles	26 1/16
Depth Excluding Doors	22 1/16
Depth With Door Open 90 Degree	39 9/16
Gross Weight	107
Height To Top Of Cabinet	33 5/8
Height To Top Of Door Hinge	34 1/16
Net Weight	96.5
Cabinet Width (IN,inches)	14.8750
Cutout Depth(IN,inches)	25.0000
Cutout Height(IN,inches)	34.5000
Cutout Width(IN,inches)	15.0000
Depth Closed Excluding Handles(IN,inches)	24.0000
Depth Closed Including Handles(IN,inches)	25.3750
Depth Excluding Doors(IN,inches)	22.1250
Depth With Door Open 90 Degree(IN,inches)	39.5000
Height To Top Of Cabinet(IN,inches)	33.6250
Height To Top Of Door Hinge(IN,inches)	34.0625
Net Weight(LB,pounds)	96
Carton Depth(IN,inches)	28.3750
Carton Height(IN,inches)	36.1250
Carton Width(IN,inches)	17.2500
Gross Weight(LB,pounds)	107

Warranty

Parts	2 Year
Labor	2 Year

Certifications

Ada Compliant	No
Prop65	Standard
Ul	Yes
ADA Compliant	No
UL	Yes
prop65	Standard - Standard

Controls

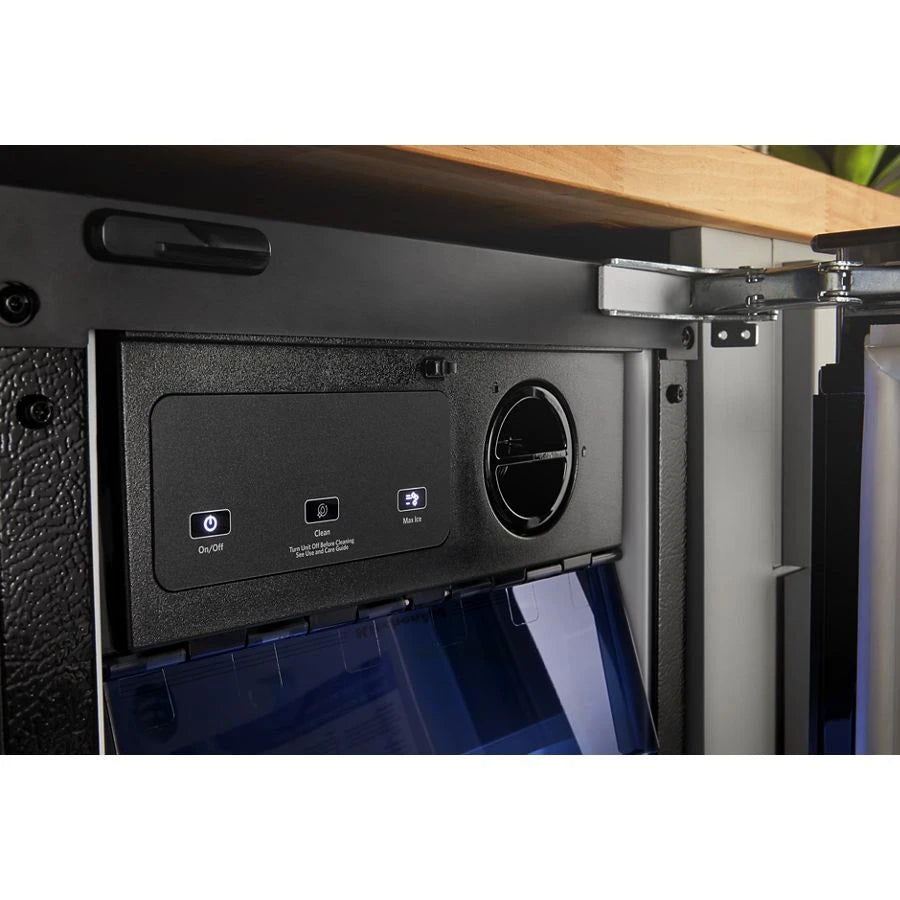

Control Location	Interior Up Front
Control Type	Electronic Touch
Ambient Temperature Range	55F to 110F

Details

Door Opening Direction	Right
Drain Connection	Rear Access 5/8in. OD
Drain Pump	Pump Included
Ice Capacity Storage	25
Stainless Steel Cutting Grid	3/4in. x 3/4in. Cubes
Water Inlet Connection	1/4in. OD PEX Tubing
Water Supply Pressure	30 - 120 psi

Dimensions

Product Height	34.95
Height To Top of Door Hinge	34.06
Carton Height	36.07
Gross Weight	107
Height To Top of Cabinet	33.63
Carton Width	17.25
Product Depth	26.26
Cutout Height	34.5
Carton Depth	28.37
Net Weight	96.5
Product Width	14.07
Cutout Depth	25
Cutout Width	15
Height To Top Of Cabinet	33.625
Height To Top Of Door Hinge	34.063
carton depth	28.37
carton height	36.07
carton width	17.25
gross weight	107
net weight	96.5

Exterior details

Cabinet Finish	Textured
Cabinet Material	Prepainted Steel
Handle Color	Stainless Steel
Handle Location	Horizontal
Handle Material	Metal
Handle Type	Towel Bar
Reversible Door	Yes

Filter details

Water Filter Indicator/reset	Yes
Water Filter Location	Interior
Water Filter Part Number	F2WC9I1
Water Filter Indicator/Reset	Yes

Icemaker details

Ice Maker On/off	Yes
Ice Maker On/Off	Yes

Refrigerator details

Interior Liner Finish	Plastic
Liner Color	White

Features

Installs nearly anywhere in the home within 100ft of drain line
Filter-Ready
provides a dedicated space where a filter can be inserted to help remove contaminants, improving taste and clarity. A filter is not required but can be purchased separately. Use filter #F2WC9I1 and change every six months for best results.
Clear Ice Technology for appealing, uniformly shaped cubes
Fully Flush Installation with Articulating Hinge

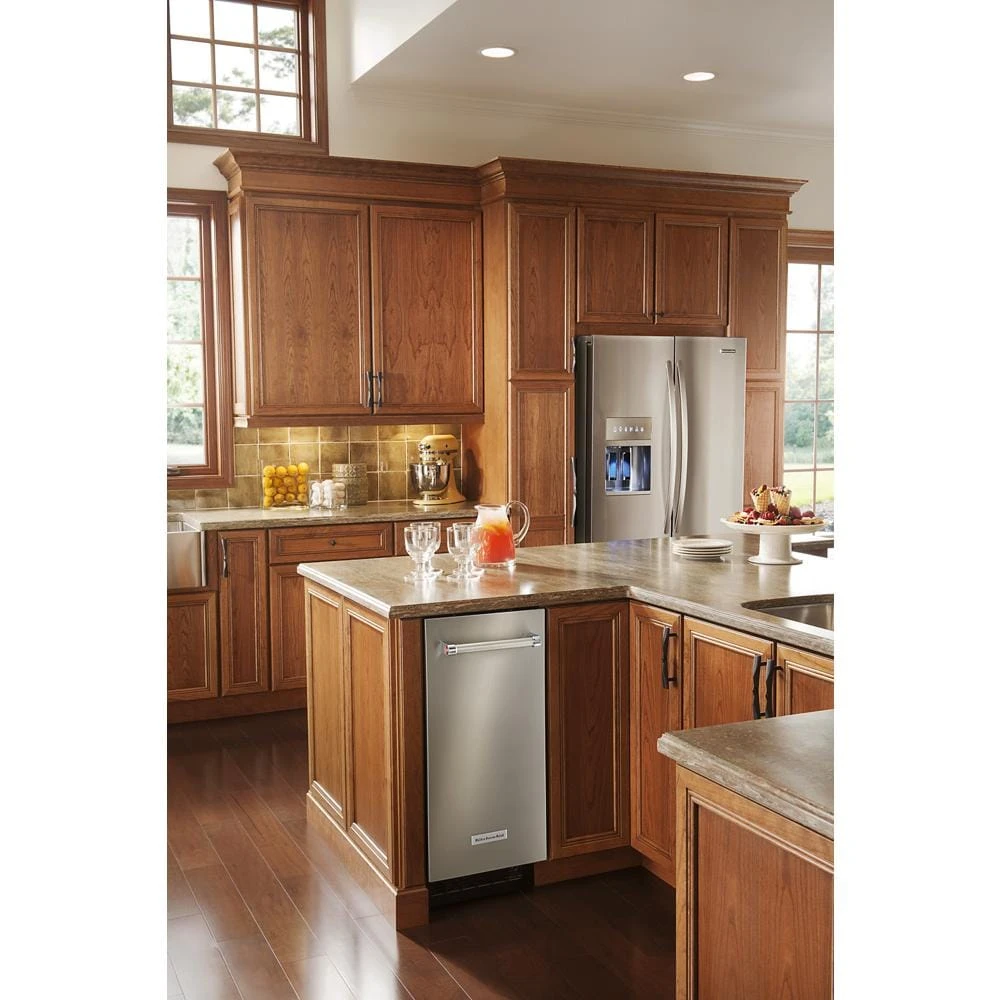

allows the ice maker's door to sit flush without protruding or leaving a gap between the ice maker and the adjoining cabinets. Articulating hinge design allows the door to open 90 degrees without swinging beyond its normal closed width, providing a built-in look that adds a touch of style to your kitchen or bar space.
Clear Ice Technology
provides cubes of uniform 3/4" x 3/4" x 1/2" size and shape that are ideal for daily use or a variety of entertaining needs. Clear Ice Technology allows for attractive drink presentation and a slow melt rate so beverages won't water down quickly.
Filter-Ready for easy water filter install to improve ice quality
Built-In Drain Pump System
Allows this ice maker to be installed nearly anywhere in the home within 100 feet of an under-sink drain line, so you can keep a continuous supply of clear ice in your kitchen or entertaining space

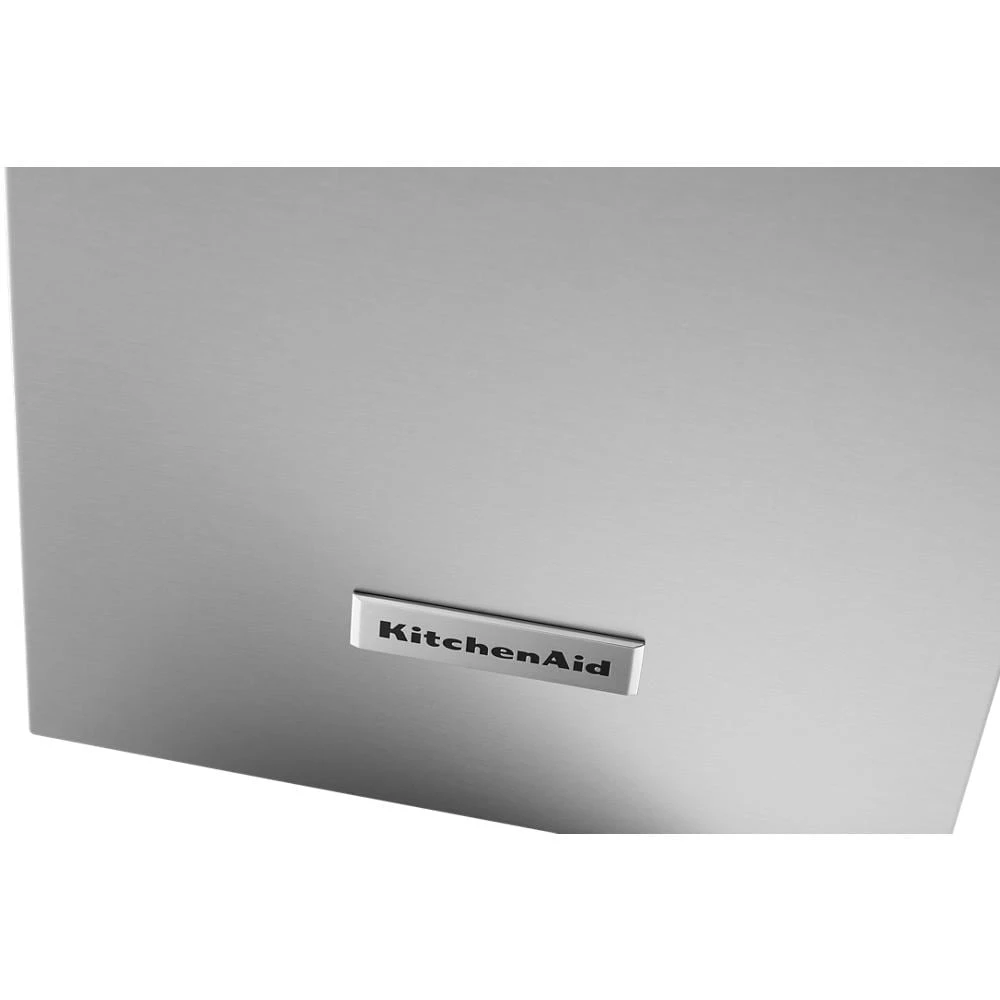

PrintShield™ Finish
resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.
Fully Flush Installation to align with surrounding cabinetry
Self Cleaning Cycle
Uses high temperature to power through soils in the oven cavity, requiring only a quick wipe down at the end of the cycle.
Holds 25 Pounds of Ice
ensures a generous supply of fresh ice is conveniently at your fingertips.
Holds 25 pounds of ice in reserve
Max Ice
Easy-clean PRINTSHIELD finish resists smudges and fingerprints
Reversible Door that accommodates left- or right-hand swing
Reversible Door
offers flexible installation options by allowing hinge installation on either side of the door.

Description

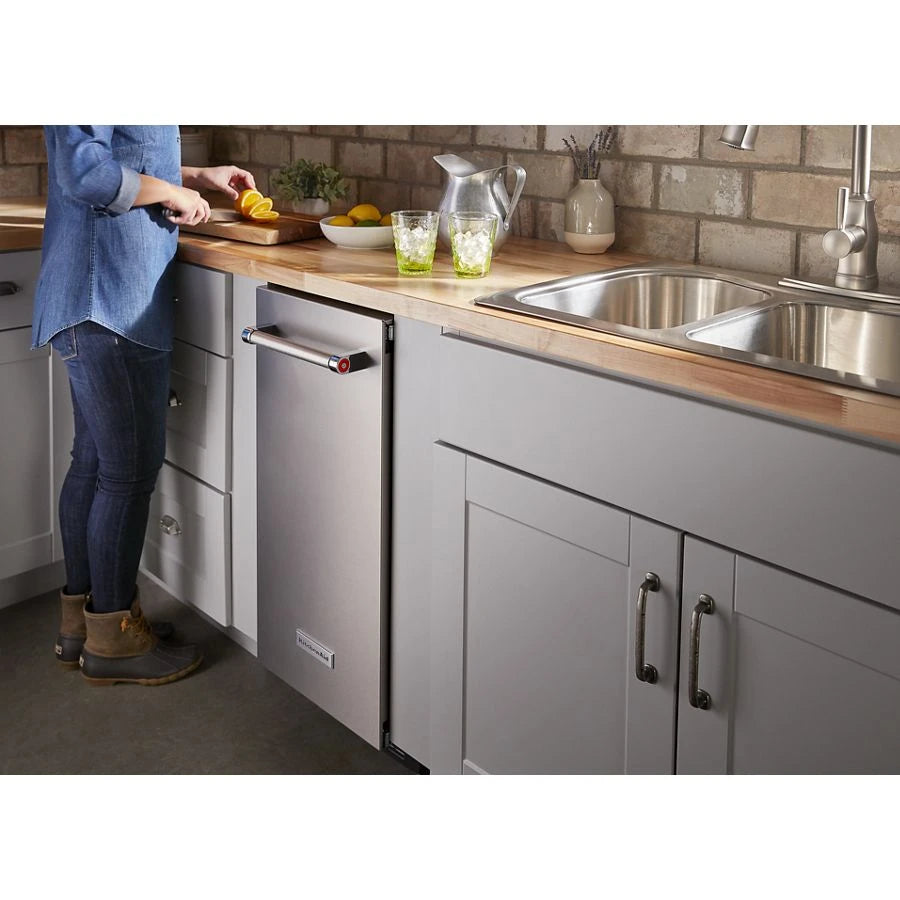

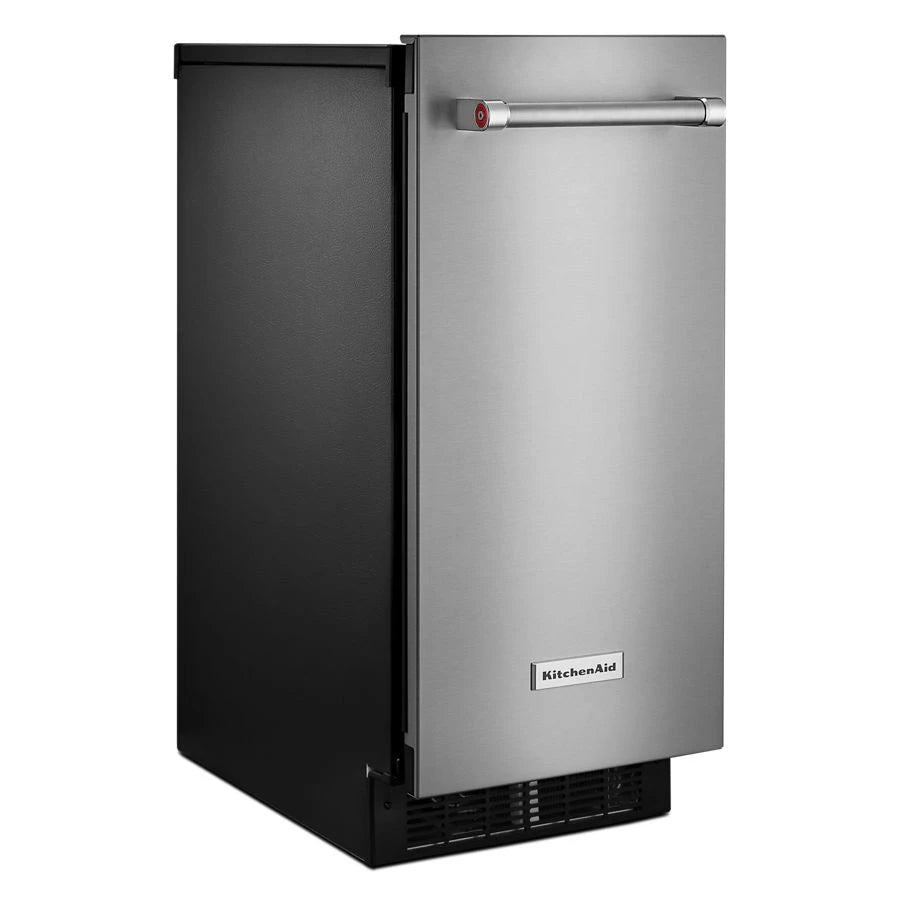

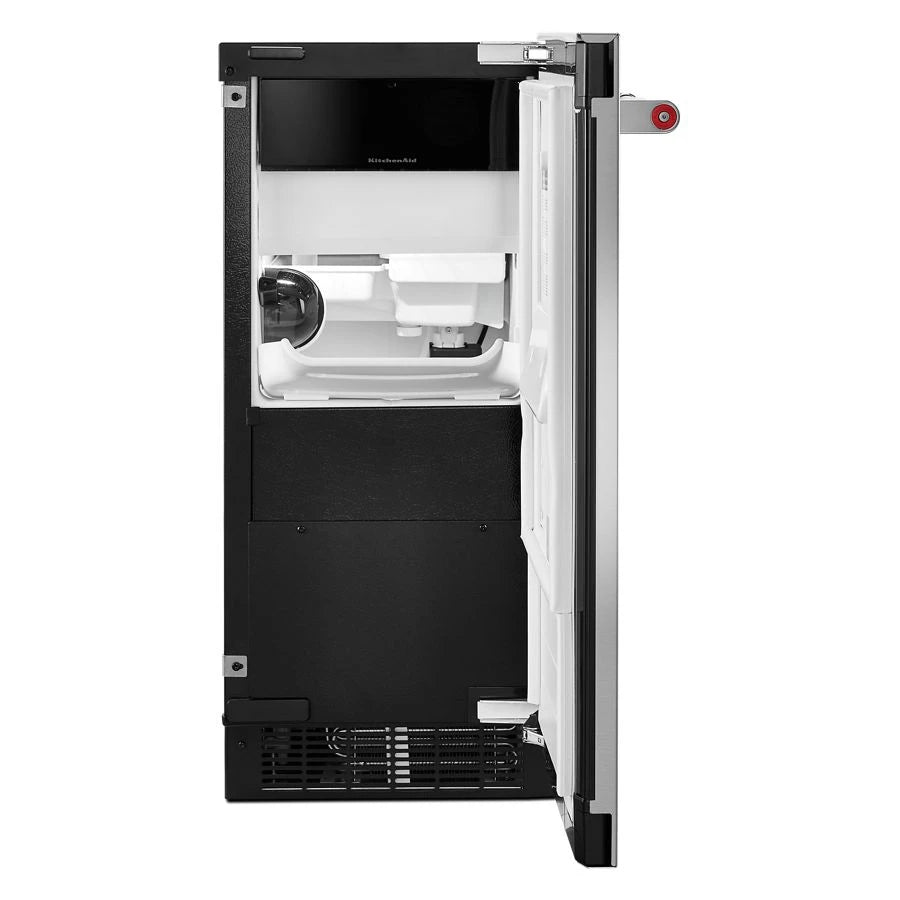

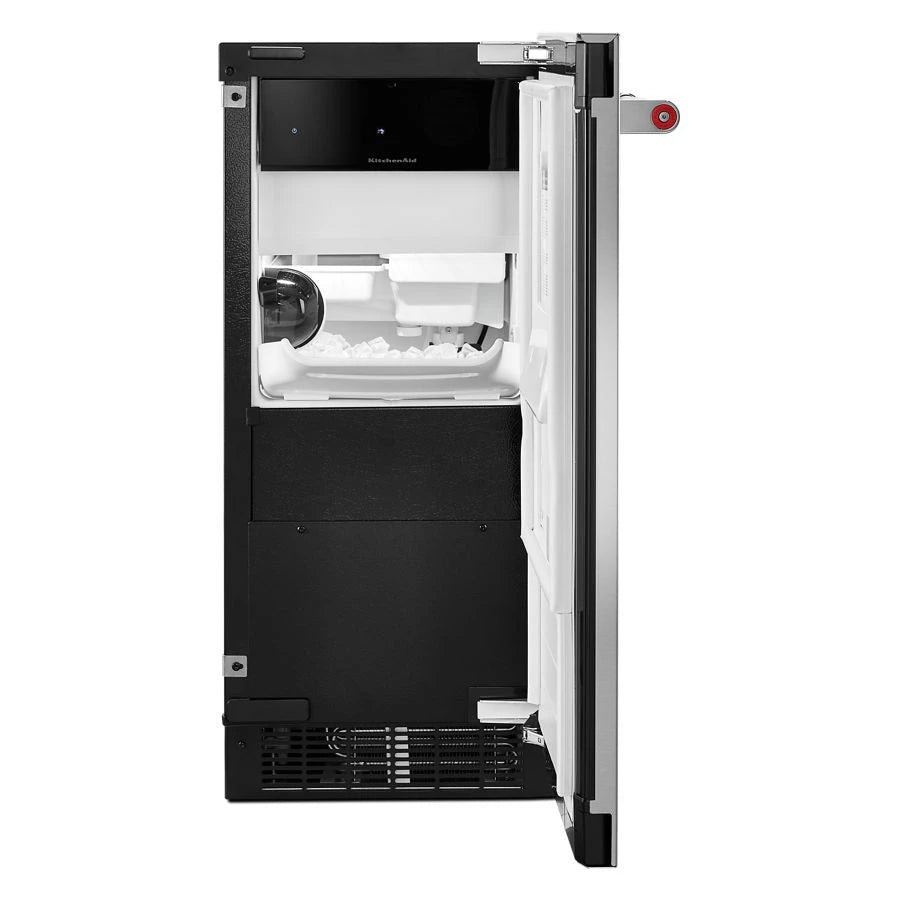

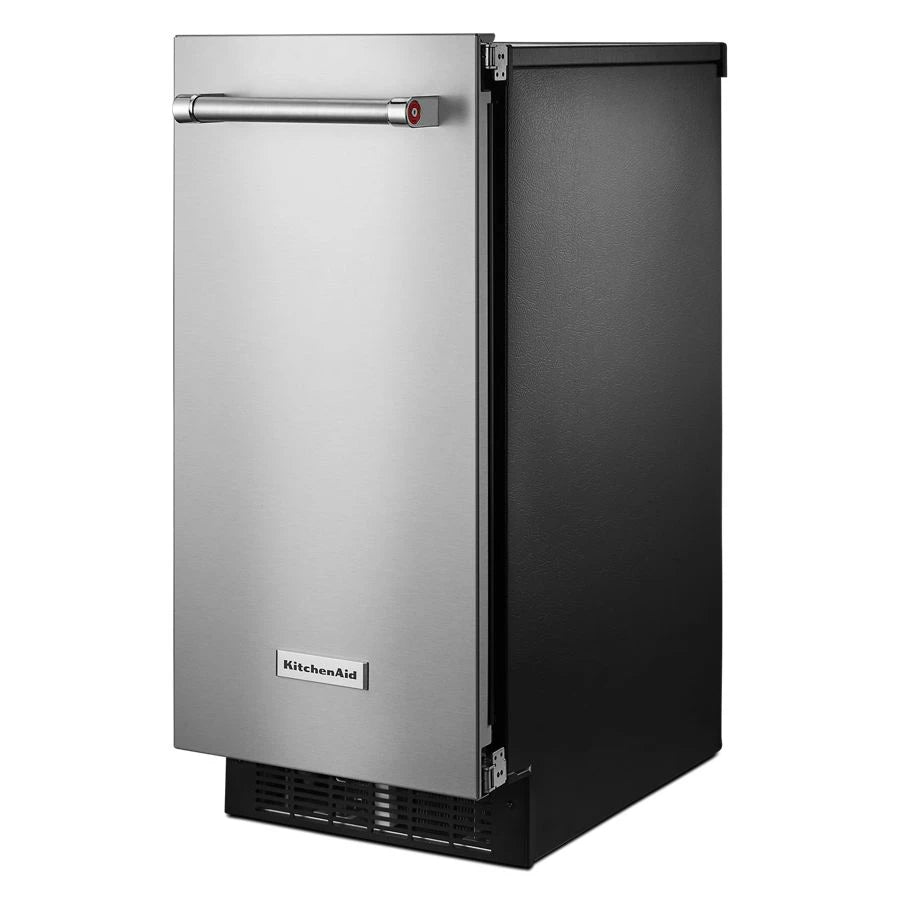

This 15" automatic ice maker uses Clear Ice Technology to help produce cubes of uniform shape and clarity for every occasion. Distinctive styling makes it an appealing complement to other KitchenAid(R) appliances, with Fully Flush Installation for a built-in look. The signature handle design opens the door to reveal a storage bin that holds up to 25 pounds of ice.

Manuals & Guides

Key Features

PrintShield™ Finish

resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.

Easy-clean PRINTSHIELD finish resists smudges and fingerprints

Clear Ice Technology for appealing, uniformly shaped cubes

Fully Flush Installation with Articulating Hinge

allows the ice maker's door to sit flush without protruding or leaving a gap between the ice maker and the adjoining cabinets. Articulating hinge design allows the door to open 90 degrees without swinging beyond its normal closed width, providing a built-in look that adds a touch of style to your kitchen or bar space.

Clear Ice Technology

provides cubes of uniform 3/4" x 3/4" x 1/2" size and shape that are ideal for daily use or a variety of entertaining needs. Clear Ice Technology allows for attractive drink presentation and a slow melt rate so beverages won't water down quickly.
