SKU: KM116BAJ

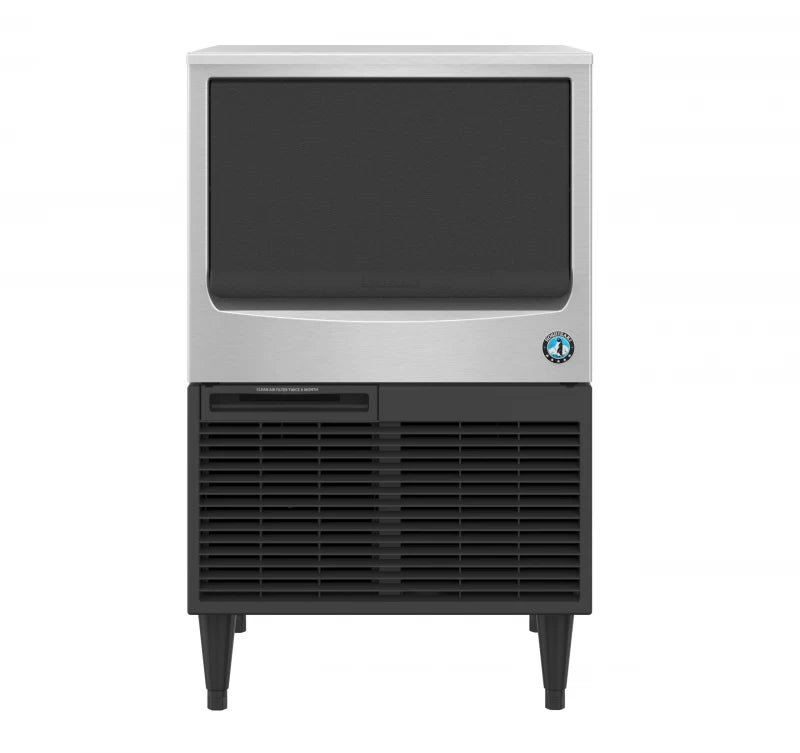

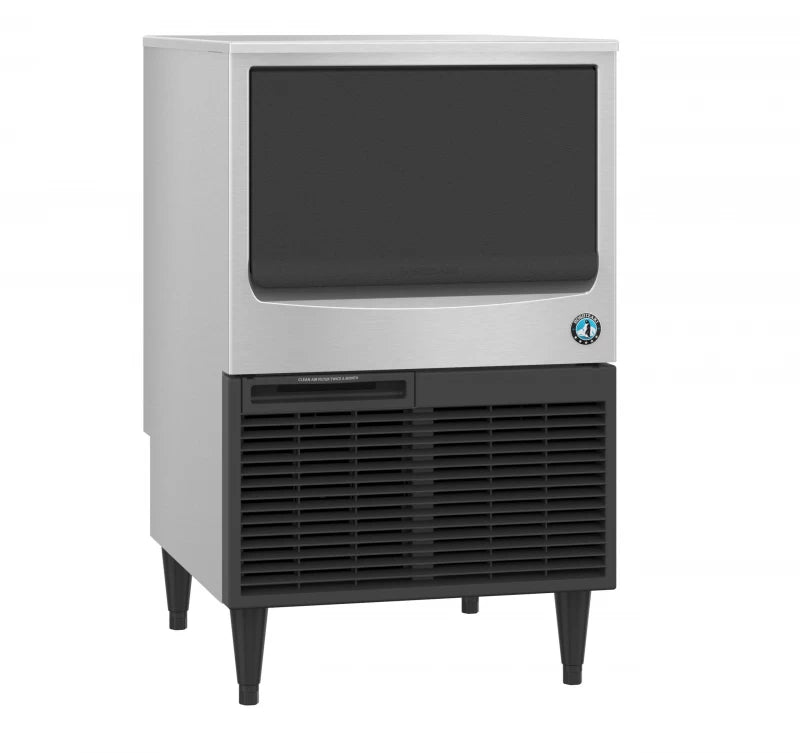

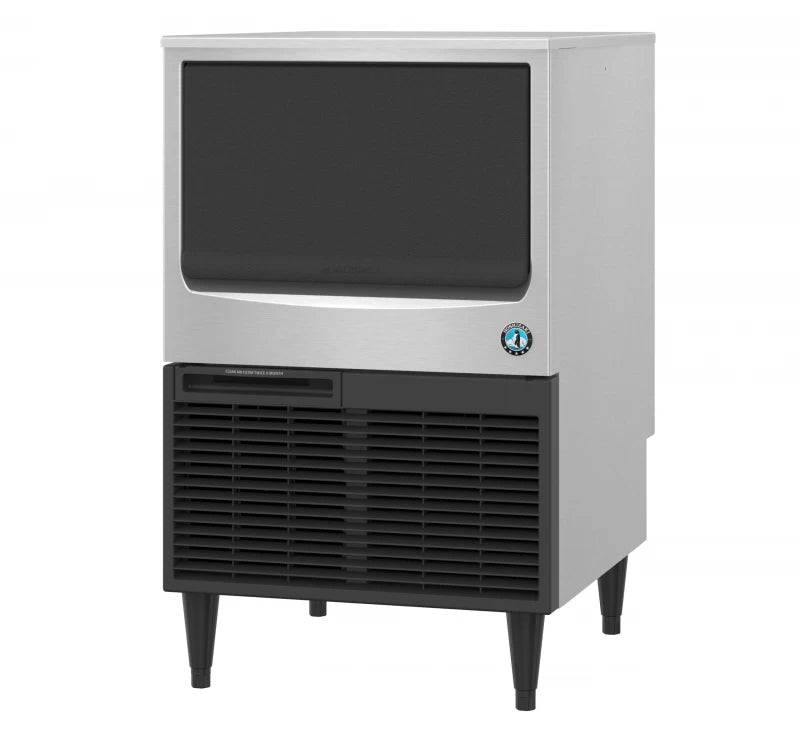

Hoshizaki KM116BAJ Crescent® Cuber Icemaker, Air-cooled, Built in Storage Bin Stainless Steel

Quick Specification More details

Width:
23.75"
Depth:
24"
Height:
39"
Type:
Ice Makers

About this product

Up to 125 lbs of ice produced per 24 hours
Up to 53 lbs of built-in storage capacity (1.8ft3)
Produces crescent shaped ice cubes
Slide in door with durable stainless steel exterior

Summer Sale

Clearance

SKU: KM116BAJ

Hoshizaki KM116BAJ Crescent® Cuber Icemaker, Air-cooled, Built in Storage Bin Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
23.75"
Depth:
24"
Height:
39"
Type:
Ice Makers

About this product

Up to 125 lbs of ice produced per 24 hours
Up to 53 lbs of built-in storage capacity (1.8ft3)
Produces crescent shaped ice cubes
Slide in door with durable stainless steel exterior

Product Details for HOSHIZAKI KM116BAJ

Technical Details

Product details

Electrical Specs	Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug, Amperage: 5.5, Max Fuse/HACR Breaker: 15 A
Utility Consumption	8.1 kWh per 100 lbs @ 90/70, 20 gal of Potable Water per 100 lbs @ 90/70
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 2100 BTU/hr, Refrigerant Charge: R-134a, (7.8 oz. / 221 g
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight	145

Dimensions & weight

Weight	145 lbs.
Width	23.75 in.
Depth	24 in.
Height	39 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	185 lbs.
Total of Shipping Weight	185 lbs.
Source	Calculation

Warranty

Parts	3 Years
Labor	3 Years
Parts (Compressor)	5 Years

Description

The KM-116BAJ is capable of producing approximately 125 lbs of crescent cubed ice. This Undercounter Air-cooled, Built in Storage Bin icemaker stores up to 53 lbs of ice*, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver™ design and includes the EverCheck™ alert system making the unit simple to maintain. The KM-116BAJ requires a Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug electrical connection. Front in, front out airflow. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.
