SKU: KUIX335HPS | UPC: 883049483252

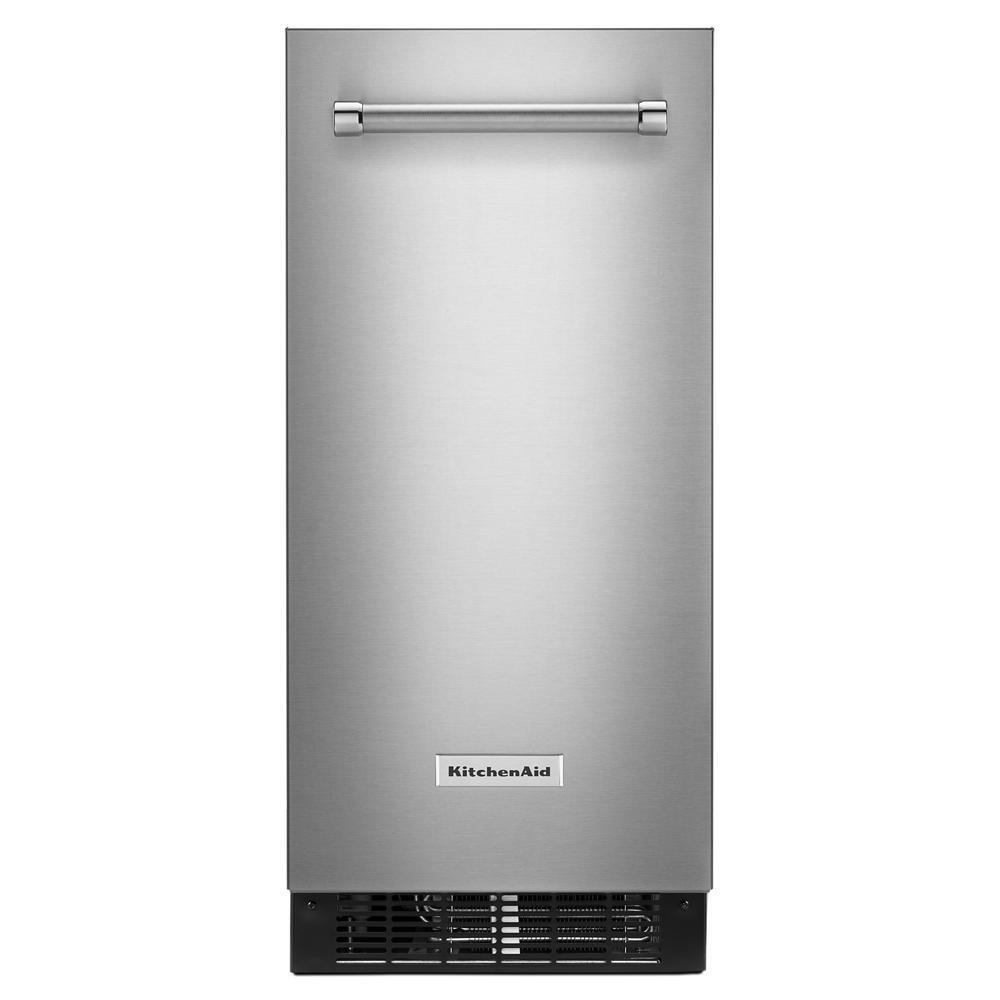

KitchenAid KUIX335HPS 15'' Automatic Ice Maker with PrintShield™ Finish Stainless Steel with PrintShield™ Finish

Quick Specification More details

Width:
17.25"
Depth:
26" - 27"
Height:
36.07"
Type:
Ice Machines

About this product

Fully Flush Installation with Articulating Hinge
Clear Ice Technology
Holds 25 Pounds of Ice
Max Ice

SKU: KUIX335HPS | UPC: 883049483252

KitchenAid KUIX335HPS 15'' Automatic Ice Maker with PrintShield™ Finish Stainless Steel with PrintShield™ Finish

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
17.25"
Depth:
26" - 27"
Height:
36.07"
Type:
Ice Machines

About this product

Fully Flush Installation with Articulating Hinge
Clear Ice Technology
Holds 25 Pounds of Ice
Max Ice

Bundle & Save on Matching Kitchen Packages

Kitchen Aid 5-Piece Package KRFC136RPS 36 Counter-Depth Refrigerator and KSGG700ESS 30 Slide-In Gas Range and KMMF530PPS 30 Multifunction Over-the-Range Microwave Oven and KDTE204KPS 24 Integrated Dishwasher and KUIX335HPS 15 Undercounter Clear Ice Maker

Kitchen Aid 5-Piece Package KRFC136RPS 36 Freestanding Counter-Depth French-Door Refrigerator and KSEG700ESS 30 Slide-In Electric Range and KMMF530PPS 30 Multifunction Over-the-Range Microwave Oven and KDTE204KPS 24 Integrated Dishwasher and KUIX335HPS 15

Related Products

Refrigerator Handle Medallion Kit with 2 Medallions and Wrenches for KAD Models - Black

Whirlpool W10846206 Refrigerator Handle Medallion Kit with 2 Medallions and Wrenches for KAD Models - Black

Refrigerator Handle Medallion (set Of 2) With Wrenches (1-inches 1- Metric) For Kad Models - Red

KitchenAid W10846207 Refrigerator Handle Medallion (set Of 2) With Wrenches (1-inches 1- Metric) For Kad Models - Red

Refrigerator Handle Medallion Kit with 2 Medallions and Wrenches for KAD Models - Chrome

Whirlpool W10846205 Refrigerator Handle Medallion Kit with 2 Medallions and Wrenches for KAD Models - Chrome

Whirlpool 1901A Ice Machine Drain Pump Kit, used with 50-lb ice makers, for excess water up to 10' H Other

AMANA F2WC9I1 Drinking Water Treatments 0 Front View

AMANA F2WC9I1 Drinking Water Treatments 0 – Catalog Photo

Maytag F2WC9I1 Ice Filter Other

Summer Sale

Clearance

30-inch 5-element Electric Slide-in Convection Range

KitchenAid KSEG700ESS 30-inch 5-element Electric Slide-in Convection Range Stainless Steel

Summer Sale

20 cu. ft. 36-Inch Width Counter-Depth French Door Refrigerator with Interior Dispense

KitchenAid KRFC136RPS 20 cu. ft. 36-Inch Width Counter-Depth French Door Refrigerator with Interior Dispense Stainless Steel

Summer Sale

Kitchenaid® Multifunction Over-the-range Oven With Flush Built-in Design

KMMF530PPS Kitchenaid® Multifunction Over-the-range Oven With Flush Built-in Design PrintShield Stainless

Summer Sale

Third Level Utensil Rack Dishwasher with 30+ Total Wash Jets, 39 dBA

KitchenAid KDTE204KPS Third Level Utensil Rack Dishwasher with 30+ Total Wash Jets, 39 dBA Stainless Steel with PrintShield™ Finish

Summer Sale

Clearance

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for KitchenAid KUIX335HPS

Technical Details

Warranty

Parts	2 Year
Labor	2 Year

Controls

Control Location	Interior Up Front
Control Type	Electronic Touch
Ambient Temperature Range	55F to 110F

Details

Drain Connection	Rear Access 5/8in. OD
Stainless Steel Cutting Grid	3/4in. x 3/4in. Cubes
Water Inlet Connection	1/4in. OD PEX Tubing
Door Opening Direction	Right
Drain Pump	No - Gravity Drain
Ice Capacity Storage	25
Water Supply Pressure	30 - 120 psi

Certifications

ADA Compliant	No
UL	Yes
prop65	Standard

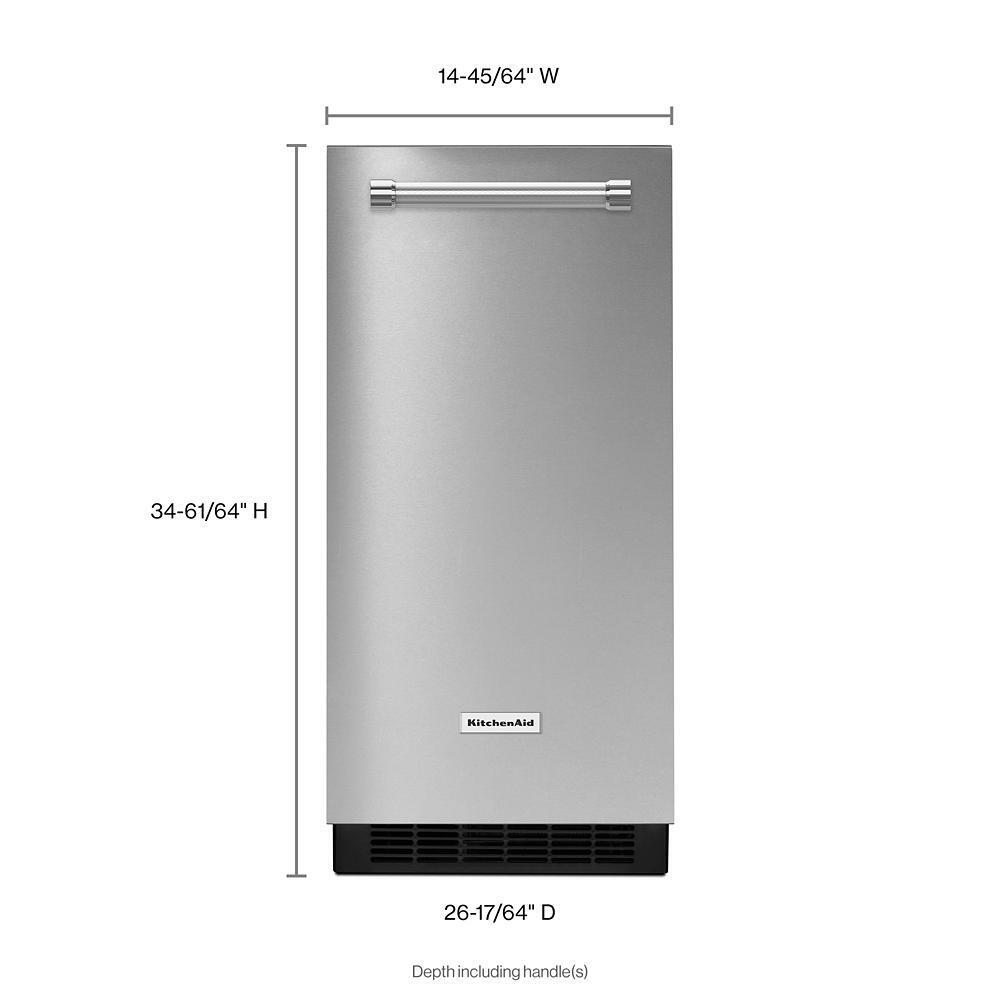

Dimensions & weight

Width	17.25 in.
Height	36.07 in.
Length	28.37 in.
Weight	107 lbs.
Cabinet Width (in)	14 7/8
Carton Depth	28 3/8
Carton Height	36 1/8
Carton Width	17 1/4
Cutout Depth (in)	25
Cutout Height (in)	34 1/2
Cutout Width (in)	15
Depth Closed Excluding Handles	24 5/8
Depth Closed Including Handles	26 1/16
Depth Excluding Doors	22 1/16
Depth With Door Open 90 Degree	39 9/16
Gross Weight	107 lbs.
Height To Top Of Cabinet	33 5/8
Height To Top Of Door Hinge	34 1/16
Net Weight	96.5
Cabinet Width (IN,inches)	14.8750
Cutout Depth(IN,inches)	25.0000
Cutout Height(IN,inches)	34.5000
Cutout Width(IN,inches)	15.0000
Depth Closed Excluding Handles(IN,inches)	24.0000
Depth Closed Including Handles(IN,inches)	25.3750
Depth Excluding Doors(IN,inches)	22.1250
Depth With Door Open 90 Degree(IN,inches)	39.5000
Height To Top Of Cabinet(IN,inches)	33.6250
Height To Top Of Door Hinge(IN,inches)	34.0625
Net Weight(LB,pounds)	96
Carton Depth(IN,inches)	28.3750
Carton Height(IN,inches)	36.1250
Carton Width(IN,inches)	17.2500
Gross Weight(LB,pounds)	107

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	20 in.
Shipping Height	41.13 in.
Shipping Length	31.06 in.
Shipping Weight	147 lbs.
Total of Shipping Weight	147 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	8.17 ft³
Dimensional Weight	101.62 lbs.
Total of Cubes	8.17 ft³
Total of Dimensional Weight	101.62 lbs.

Dimensions

Cutout Depth	25
Cutout Height	34.5
Cutout Width	15
Height To Top Of Cabinet	33.625
Height To Top Of Door Hinge	34.063
carton depth	28.37
carton height	36.07
carton width	17.25
gross weight	107 lbs.
net weight	96.5

Exterior details

Cabinet Finish	Textured
Cabinet Material	Prepainted Steel
Handle Location	Horizontal
Reversible Door	Yes

Filter details

Water Filter Indicator/Reset	Yes
Water Filter Location	Interior
Water Filter Part Number	F2WC9I1

Freezer details

Defrost Type

Automatic Defrost

Icemaker details

Ice Maker On/Off

Yes

Oven details

Interior Light

LED

Refrigerator details

Interior Liner Finish	Plastic
Liner Color	White

Capacity

Volume

10.215 Cu.Ft.

Description

Fully Flush Installation lets this automatic ice maker blend in with surrounding cabinetry for a refined built-in look. Its Clear Ice Technology helps produce cubes of uniform clarity, size and shape that are ideal for everyday use. And because it holds 25 pounds of ice, there will always be enough ice for entertaining.

Product Features

Clear Ice Technology
provides cubes of uniform 3/4" x 3/4" x 1/2" size and shape that are ideal for daily use or a variety of entertaining needs. Clear Ice Technology allows for attractive drink presentation and a slow melt rate so beverages won't water down quickly.
Holds 25 Pounds of Ice
ensures a generous supply of fresh ice is conveniently at your fingertips.
Max Ice
Reversible Door
offers flexible installation options by allowing hinge installation on either side of the door.
Gravity Drain System (Pump Sold Separately)
Installs directly over a floor drain or can be adapted to connect to an under-sink drain line within 10 ft with additional purchase of Drain Pump 1901A (sold separately), so you can keep a continuous supply of clear ice nearly anywhere in the home

Manuals & Guides

Key Features

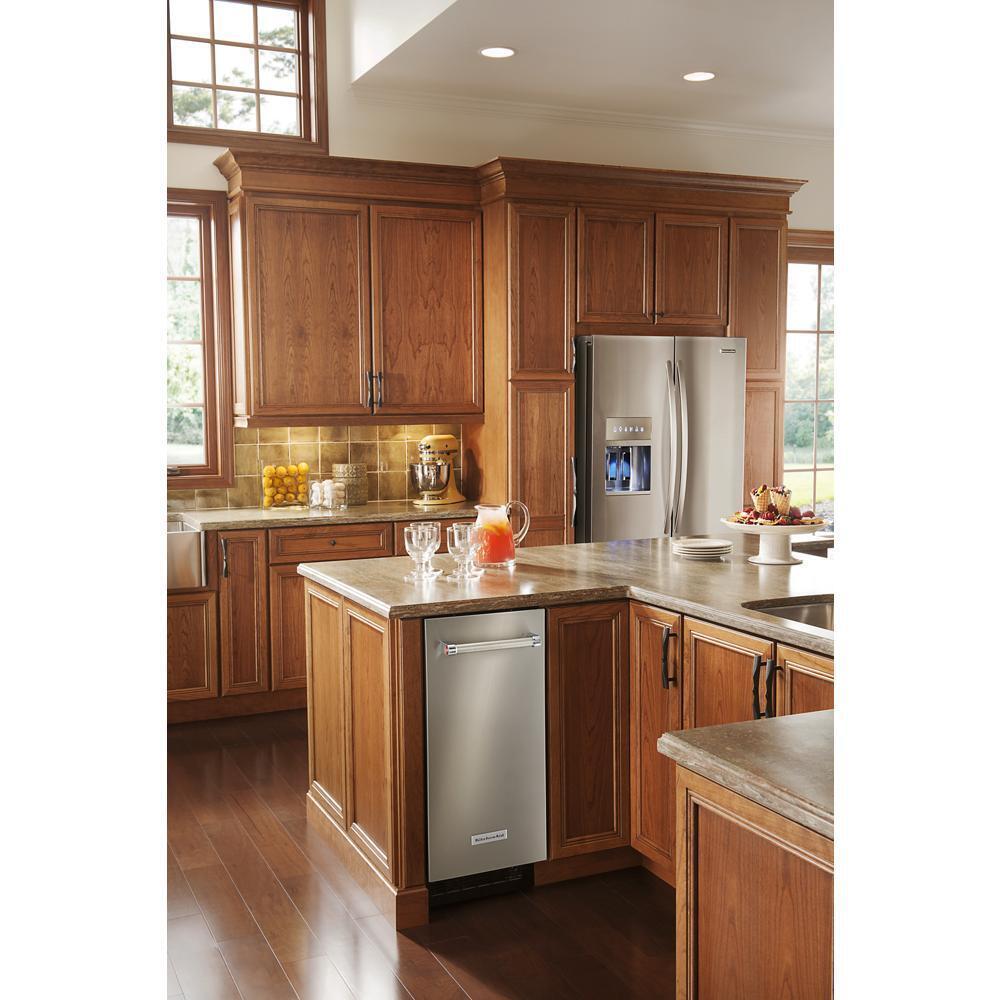

Fully Flush Installation with Articulating Hinge

allows the ice maker's door to sit flush without protruding or leaving a gap between the ice maker and the adjoining cabinets. Articulating hinge design allows the door to open 90 degrees without swinging beyond its normal closed width, providing a built-in look that adds a touch of style to your kitchen or bar space.

Filter-Ready

provides a dedicated space where a filter can be inserted to help remove contaminants, improving taste and clarity. A filter is not required but can be purchased separately. Use filter #F2WC9I1 and change every six months for best results.

PrintShield™ Finish

resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.
