SKU: PGP9830DRBB | UPC: 84691896968

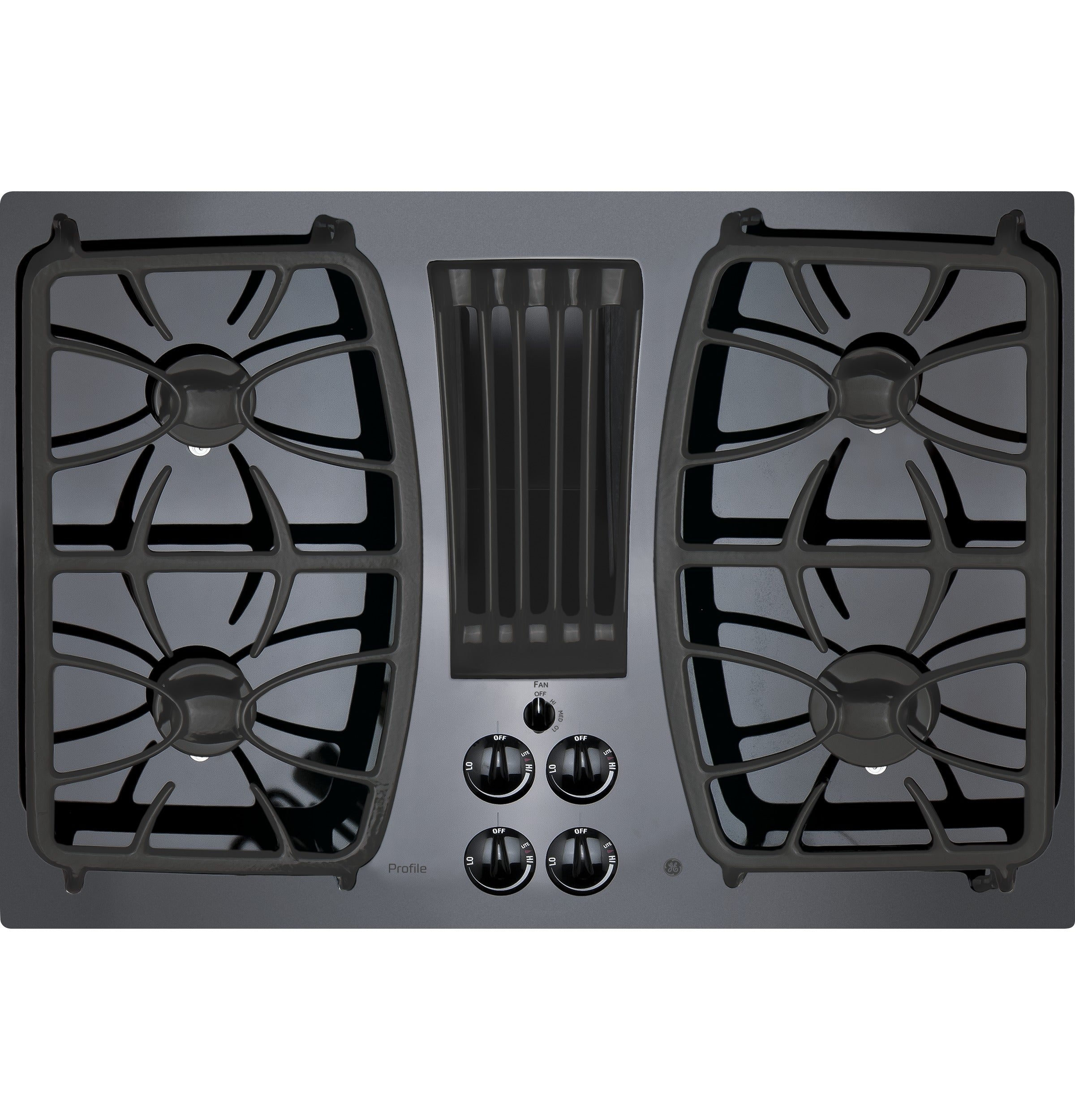

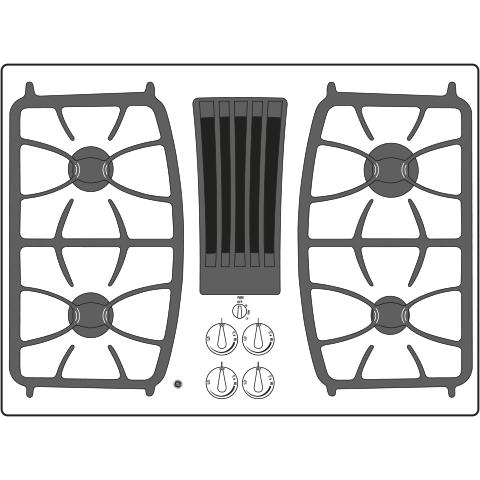

GE Profile PGP9830DRBB 30" Built-In Gas Downdraft Cooktop Black on Black

Quick Specification More details

Width:
29.75"
Depth:
21.875"
Height:
23.875"
Type:
Gas Cooktops

About this product

Four gas cooking burners
Gas on Glass Cooktop
11,500 BTU all-purpose burner
Spend Less Time Cleaning Up

Quickship

On Sale

Summer Sale

SKU: PGP9830DRBB | UPC: 84691896968

GE Profile PGP9830DRBB 30" Built-In Gas Downdraft Cooktop Black on Black

$2,699.00 ~~$2,998.97~~ Save $299.97 / 10% OFF

Quantity:

Quickship

Active Rebates

Extended Protection

1-Year Extended Protection
$57.99
2-Year Extended Protection
$91.99
3-Year Extended Protection
$151.99
5-Year Extended Protection
$239.95
Manufacturer Warranty Only

Cooktop Install Kit
$40.00
Standard Cooktop Install - Direct Replacement, No Modifications
$180.00
Old Appliance Removal (Unit Must be Disconnected by Owner if Installation was Not Added)
$49.99

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
29.75"
Depth:
21.875"
Height:
23.875"
Type:
Gas Cooktops

About this product

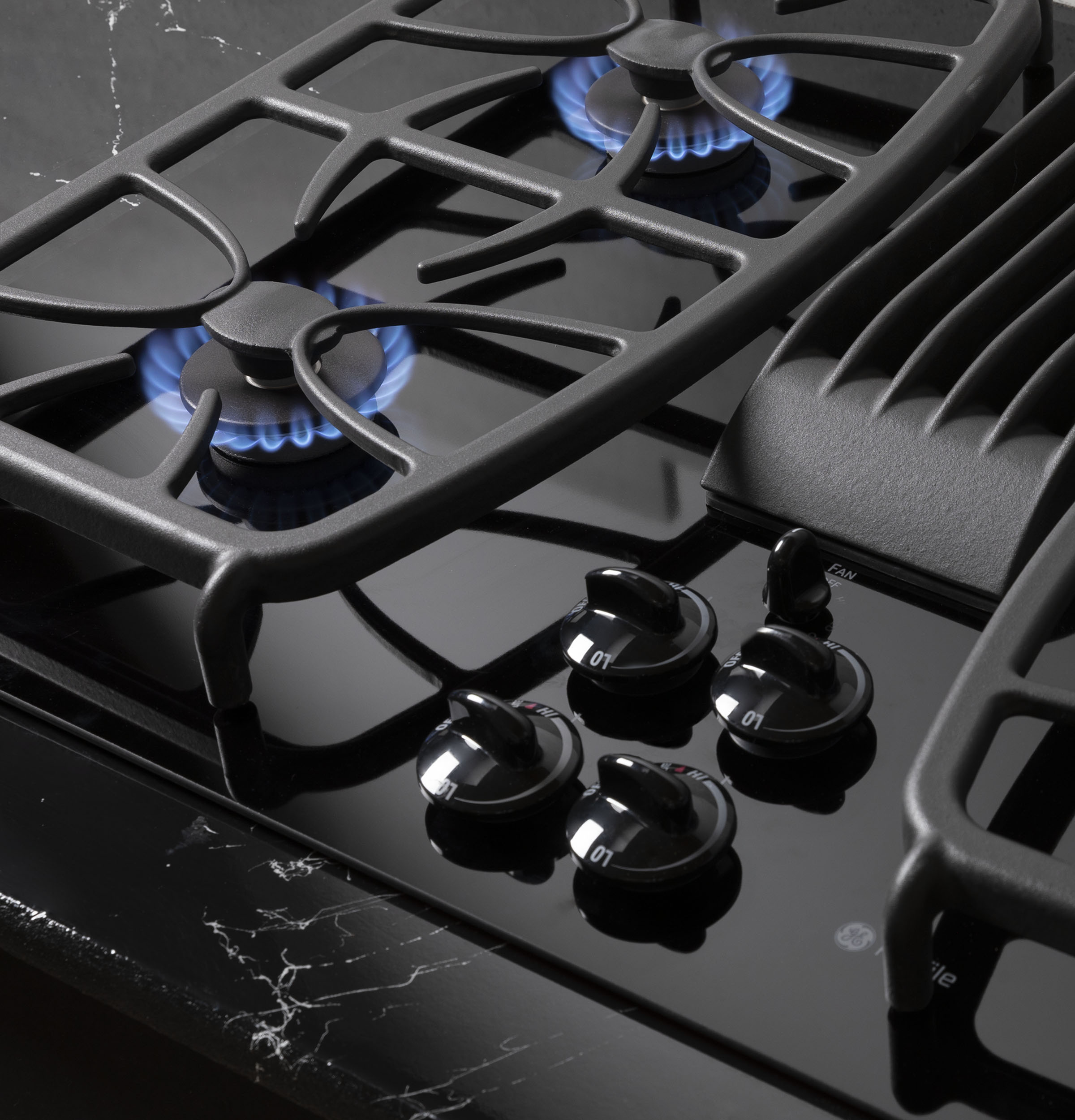

Four gas cooking burners
Gas on Glass Cooktop
11,500 BTU all-purpose burner
Spend Less Time Cleaning Up

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Videos
Rebates
Reviews

$2,699.00 ~~$2,998.97~~ Save $299.97 / 10% OFF

Product Details for GE PGP9830DRBB

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Weights & dimensions

Overall Height	23.875 in
Cabinet Width	30 in
Overall Width	29.75 in
Overall Depth	21.875 in
Approximate Shipping Weight	75 lb
Net Weight	60 lb

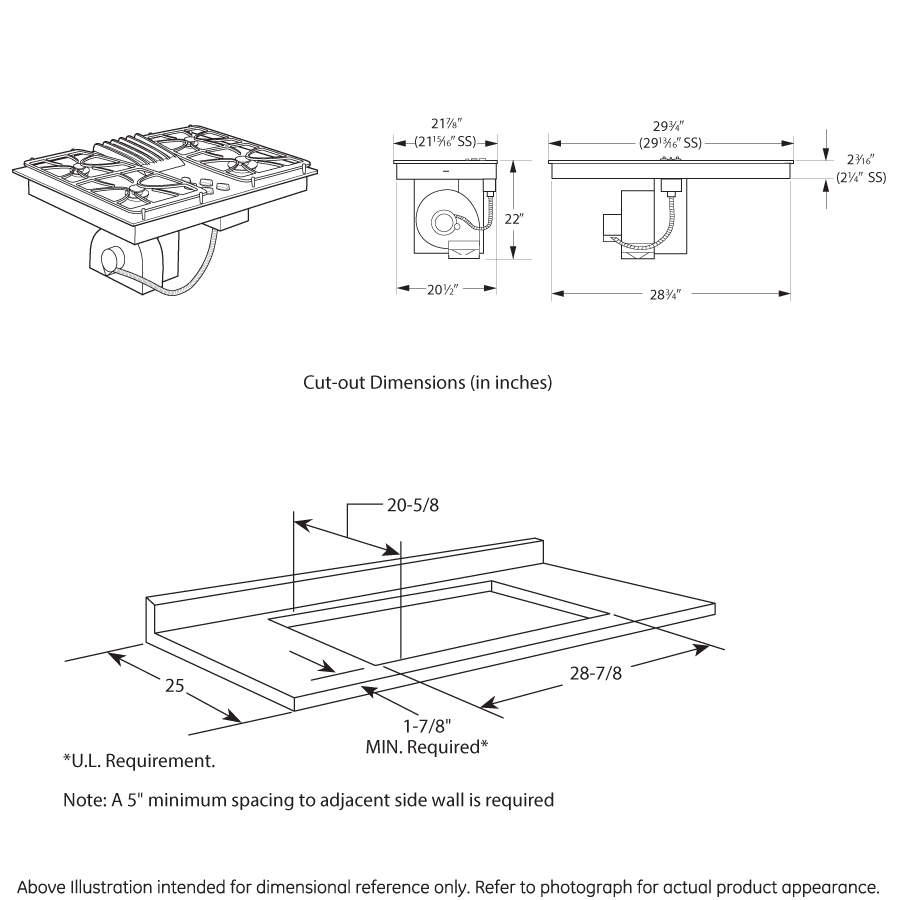

Cutout Depth (in)	20.5
Cutout Height (in)	2.5
Cutout Width (in)	28.75

Features

Cooktop Burner Type	4 Sealed
Burner - Right Rear	5,500 BTU
Variable Speed Fan	3 Speeds - Hi/Med/Low
Burner - Right Front	11,500 BTU
LP Convertible	Yes, Kit Included
Fuel Type	Natural Gas
Control Location	Front Center
Cooktop Type	Standard Grates
Ignition System	Electronic
Cooktop Surface	Gas-On-Glass Ceramic
Burner - Left Rear	9,100 BTU
Control Type	Gas Valve or Knob
CFM/ Sones Rating	400/ 7.0 (High Speed)
Cooktop Burner Grate Material	Medium Cast
Cooktop Burner Grate Features	Dishwasher Safe
Burner - Left Front	9,100 BTU
Product Type	Cooktop

Warranty

Parts Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
Labor Warranty	Limited 1-year entire appliance

Accessories

LP Conversion Kit

Included (Part WB28X45706)

Appearance

Color Appearance

Black on Black

Power / ratings

Burner BTU Ratings (000's/BTU) - Natural Gas	(2) 9.1 ; (1) 11.5 ; (1) 5.5
Electrical Requirements	120V
Hertz	60

Dimensions & weight

Width	29.75 in.
Height	23.88 in.
Length	21.88 in.
Weight	60 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	34.75 in.
Shipping Height	28.88 in.
Shipping Length	26.88 in.
Shipping Weight	100 lbs.
Total of Shipping Weight	100 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	8.99 ft³
Dimensional Weight	111.78 lbs.
Total of Cubes	8.99 ft³
Total of Dimensional Weight	111.78 lbs.

Description

Cook foods quickly and evenly with all-purpose burners.Sleek and easy to clean cooking surface.23 7/8 H x 29 3/4 W x 21 7/8 D

Product Features

11,500 BTU all-purpose burner
Delivers a wide range of heat output for most cooking needs

Manuals & Guides

Key Features

Four gas cooking burners

Cook foods quickly and evenly with all-purpose burners

Gas on Glass Cooktop

Sleek and easy to clean cooking surface

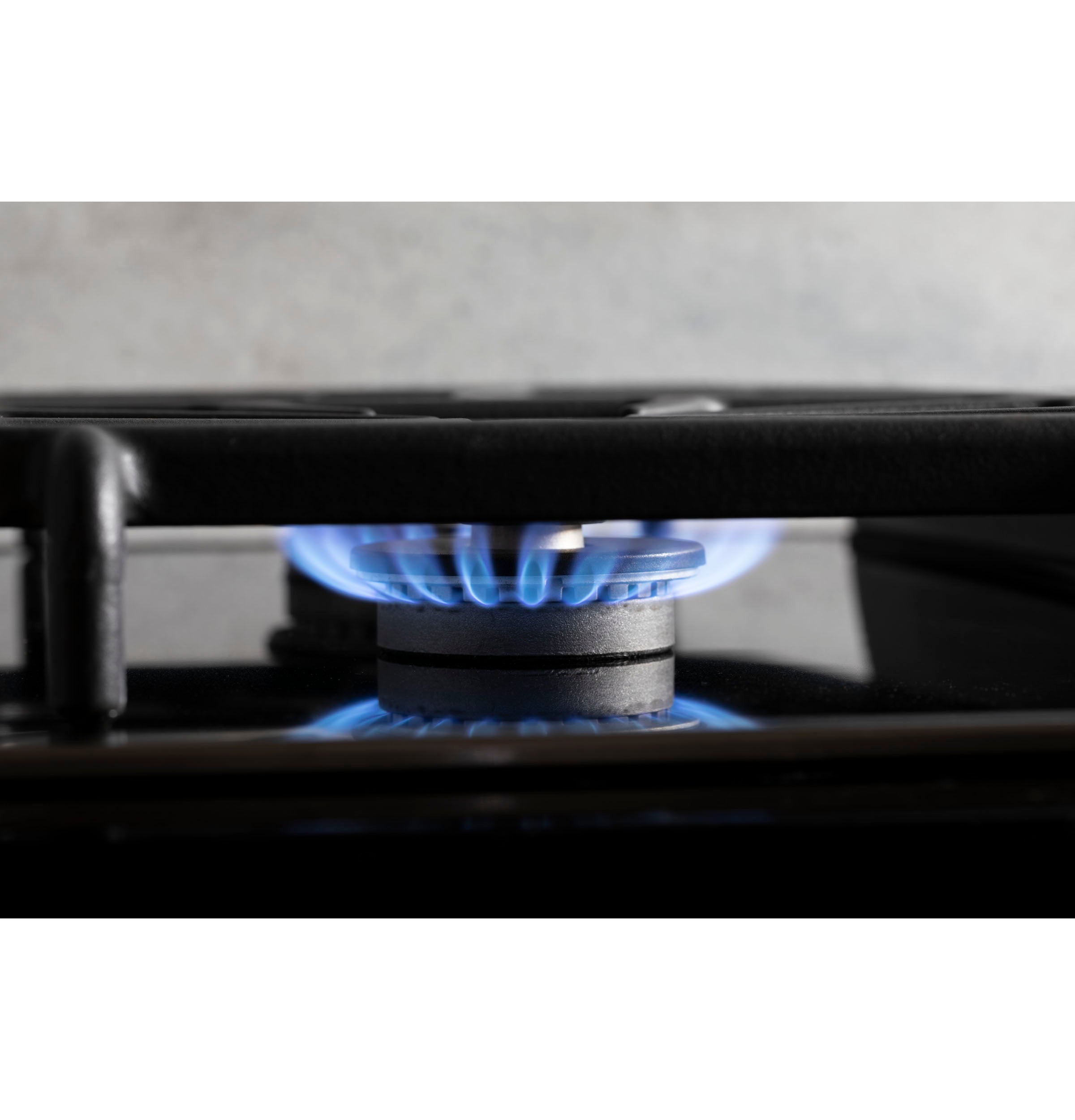

Spend Less Time Cleaning Up

Sealed cooktop burners contain spills and make cleaning quick and easy

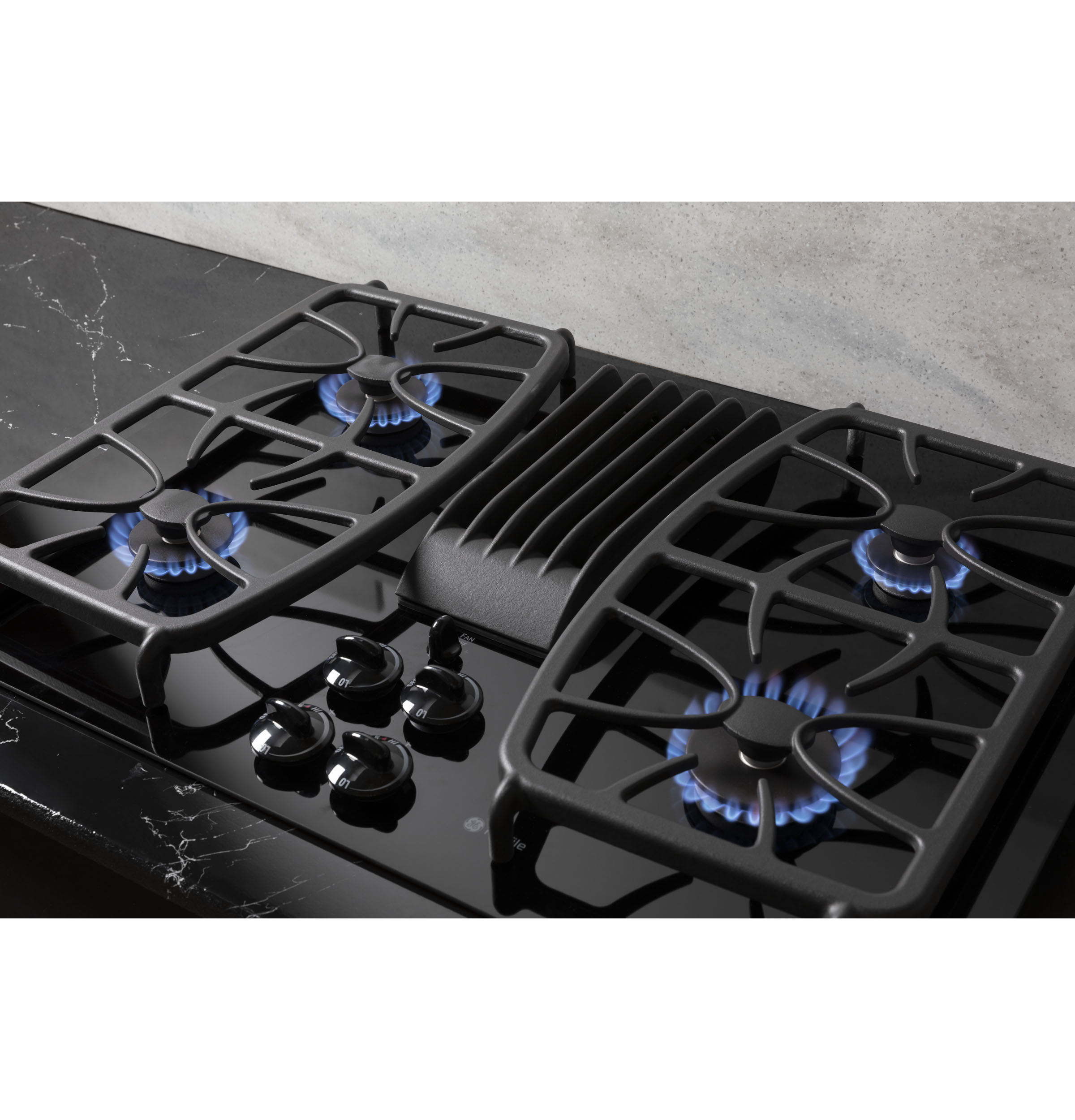

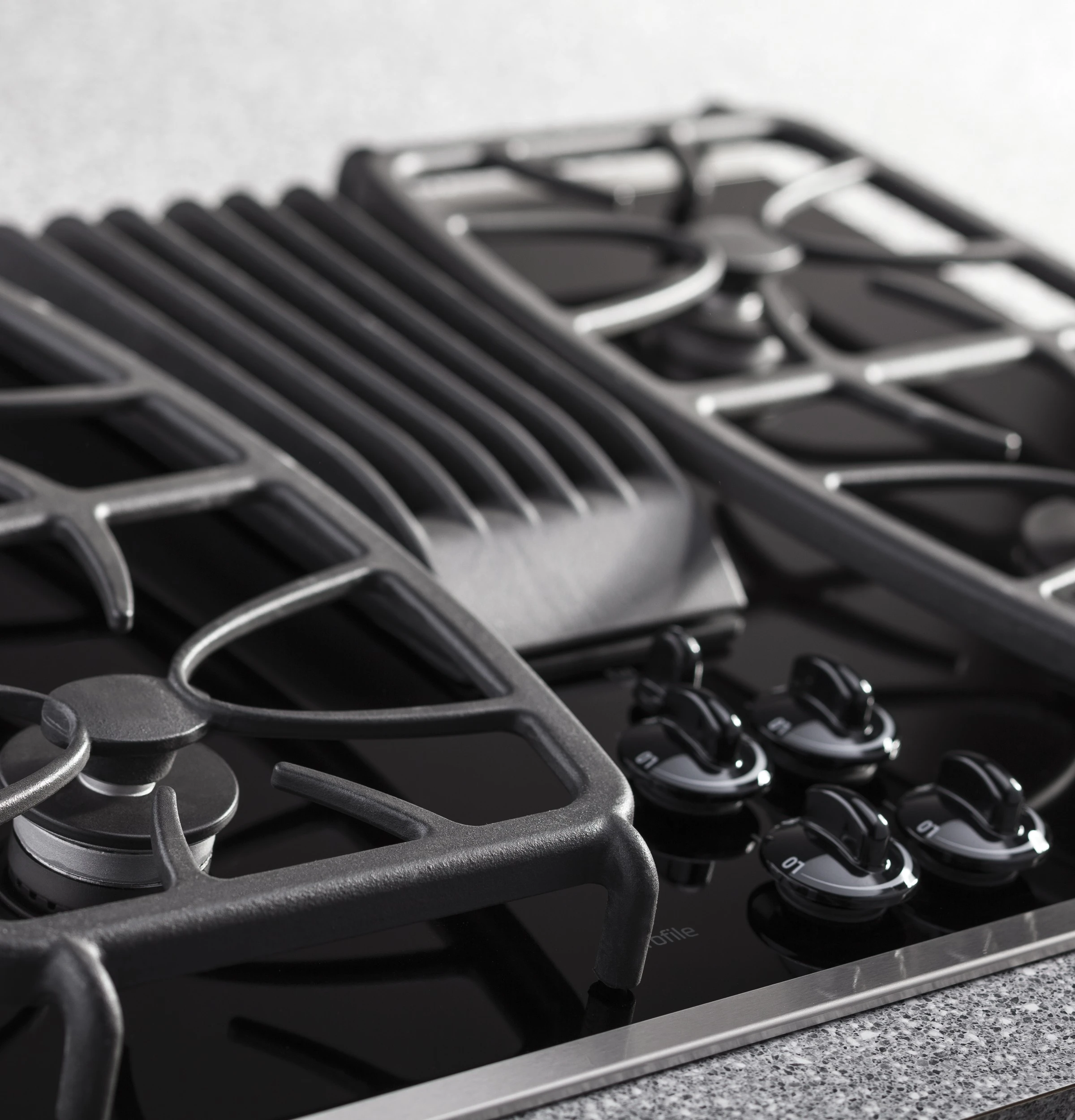

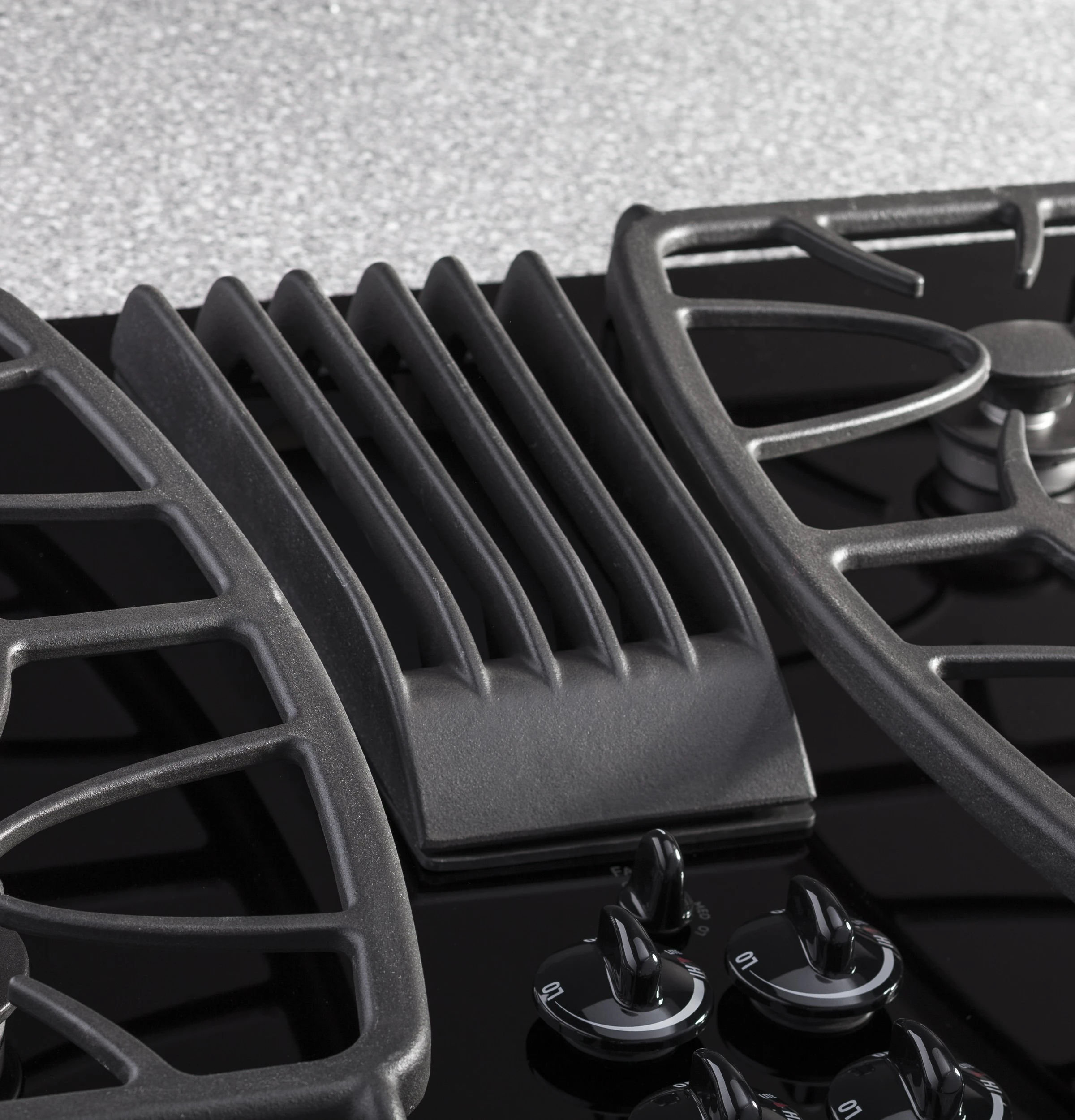

Downdraft exhaust

Powerful exhaust system effectively pulls smoke and steam out of the kitchen

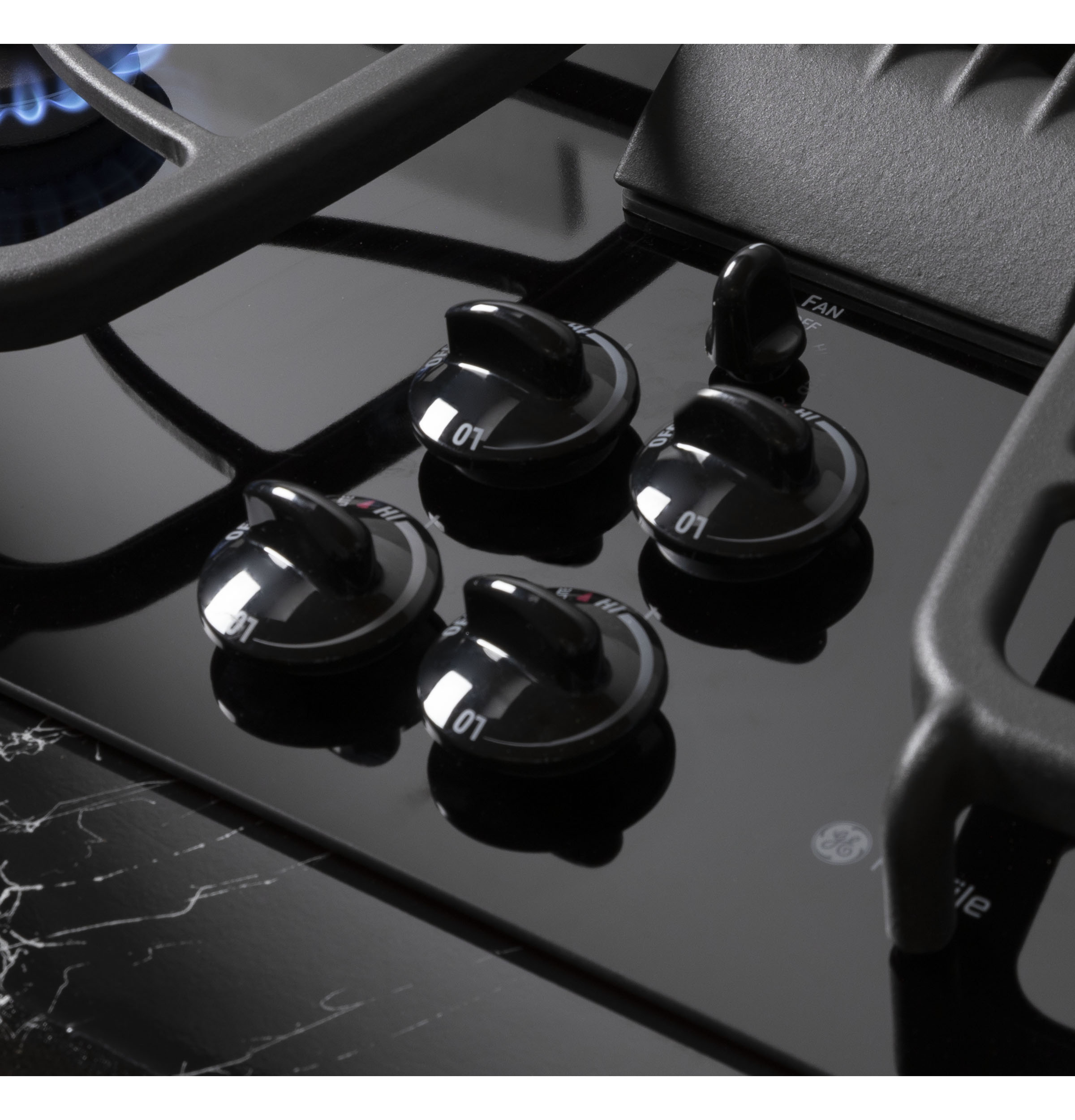

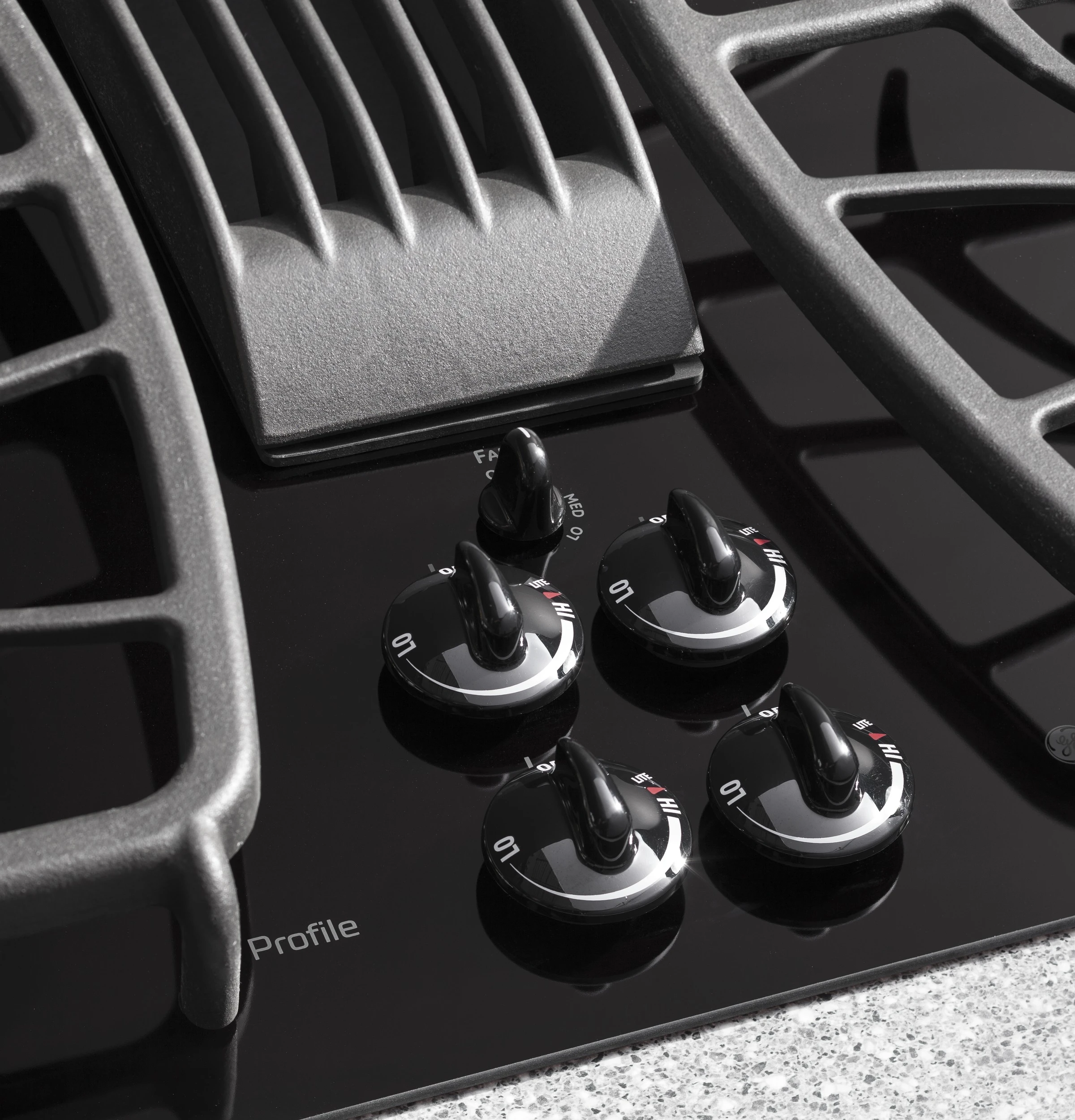

Knob controls with black glass surface

Achieve a modern look with the convenience of knob controls

Dishwasher-safe grates and knobs

Safe to clean in the dishwasher

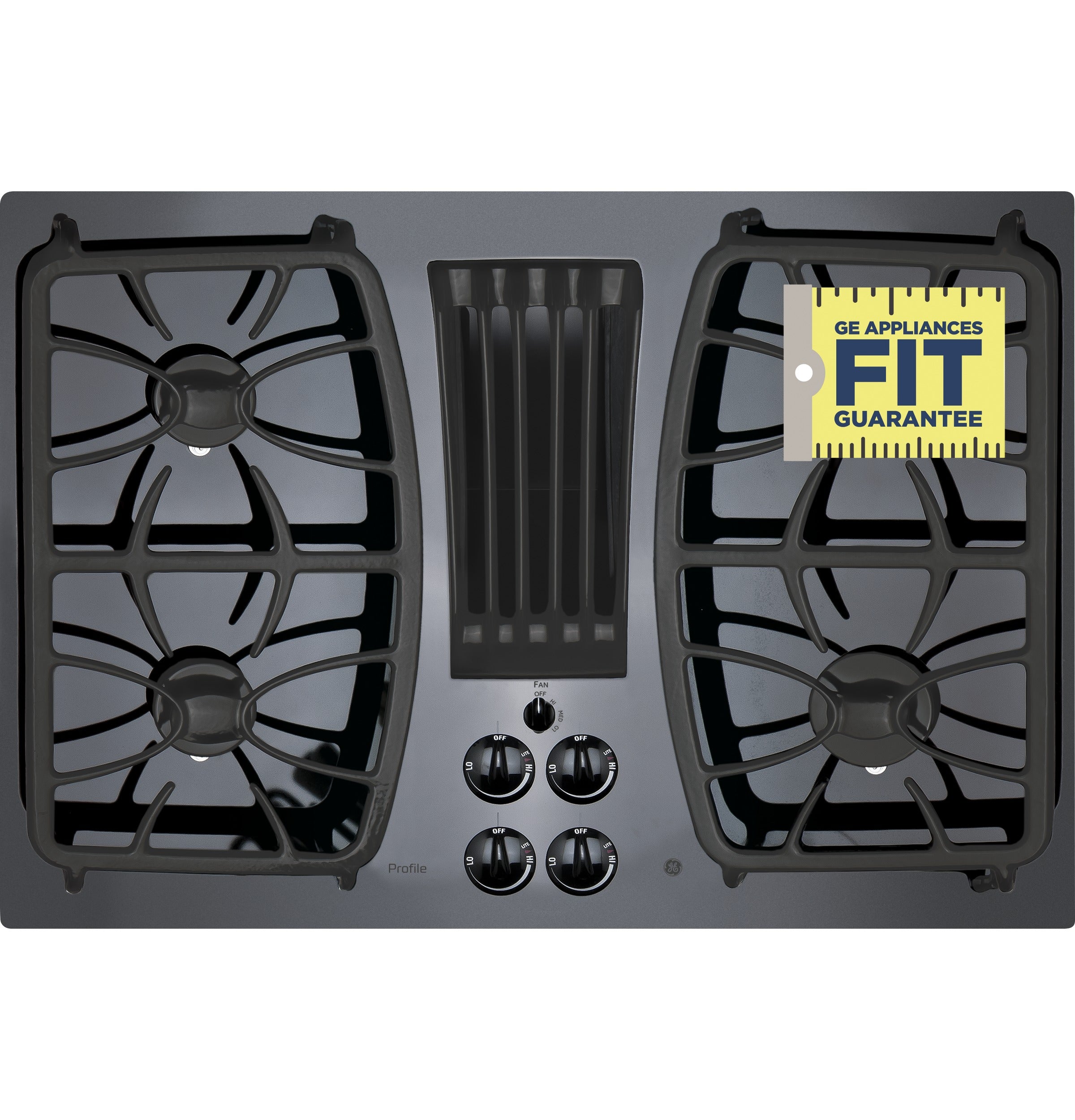

Fit Guarantee

Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
