Product Details for GE Appliances JGP3036DLBB
Technical Details
Filter
| App Filter - Cabinet Width | 36.0 |
| App Filter - Cooktop Type | Continuous Grates |
| App Filter - Fuel Type | Gas |
| App Filter - Control Type | Rotary knobs |
Appearance
| Color Appearance | Black |
| Cooktop Burner Grate Color | Matte Black |
| Control Knobs | Dishwasher Safe Gloss Black |
Power / ratings
| Burner BTU Ratings (000's/BTU) - LP Gas | (1) 15.0; (1) 12.0; (2) 9.5; (1) 5.0 |
| Hertz | 60 |
| Burner BTU Ratings (000's/BTU) - Natural Gas | (1) 15.0; (1) 12.0; (2) 9.5; (1) 5.0 |
| Electrical Requirements | 120 |
| Volts/Hertz/Amps | 120 |
Warranty
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |

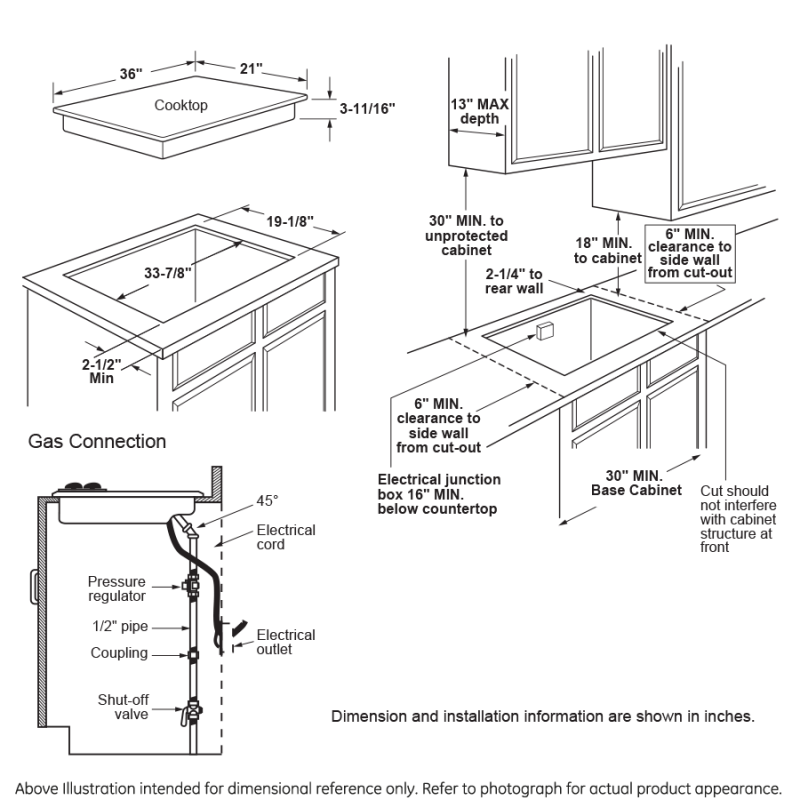

Weights & dimensions
| Cutout Height (in) | 3.69 |
| Overall Height | 4.75 |
| Cutout Depth (in) | 19.13 |
| Cabinet Width | 36.0 |
| Approximate Shipping Weight | 44 |
| Overall Width | 36.0 |
| Net Weight | 38 |
| Cutout Width (in) | 33.88 |
| Overall Depth | 21.0 |
Features
| Cooktop Burner Type | 5 |
| Valves (Degree of Turn) | 270 |
| Burner - Right Rear | 9 |
| Burner - Right Front | 15 |
| Fuel Type | Natural Gas |
| Power Boil Burner | Yes |
| Control Location | Front Center |
| Cooktop Type | Continuous Grates |
| Ignition System | Electronic |
| Burner - Center | 5 |
| Cooktop Surface | Black Deep Porcelain-Enamel |
| Burner - Left Rear | 12 |

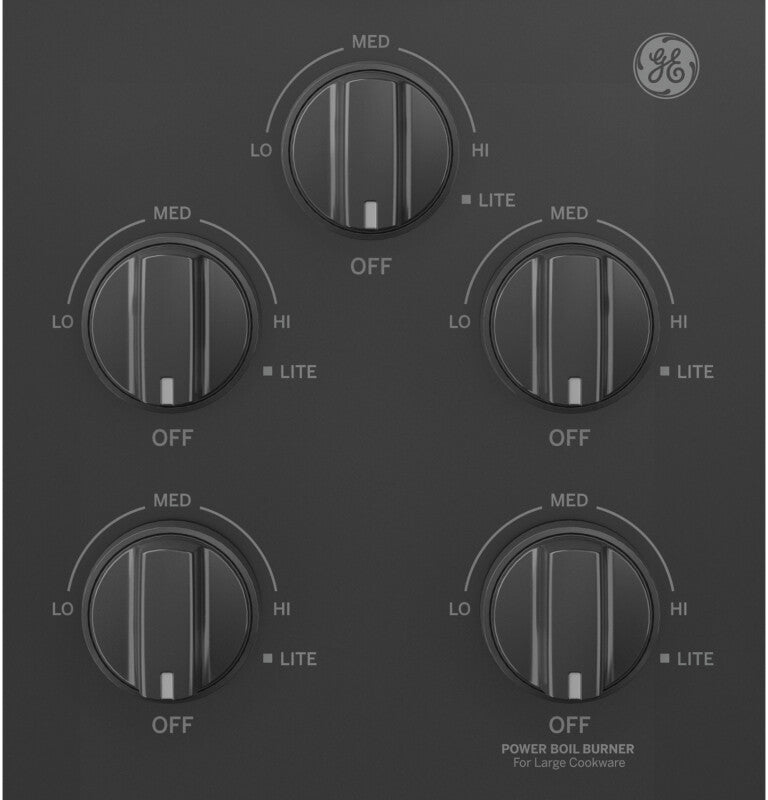

| Control Type | Knob |
| Cooktop Burner Grate Material | Standard Cast |
| Cooktop Burner Grate Features | Continuous Grates Dishwasher Safe |
| Burner - Left Front | 9 |
| Product Type | Cooktop |
Features
- Dishwasher-Safe Grates
Heavy-duty grates are easy to clean in the dishwasher - Spend Less Time Cleaning Up

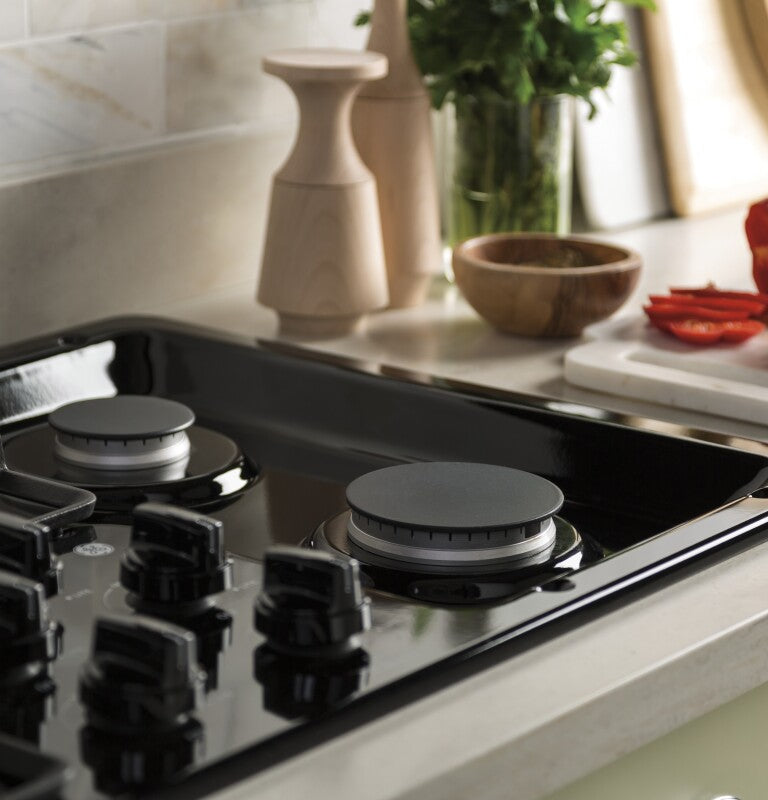

Sealed cooktop burners contain spills and make cleaning quick and easy - Precise Simmer Burner
Protect delicate foods with low, even heating - Designed for Easy Cleaning

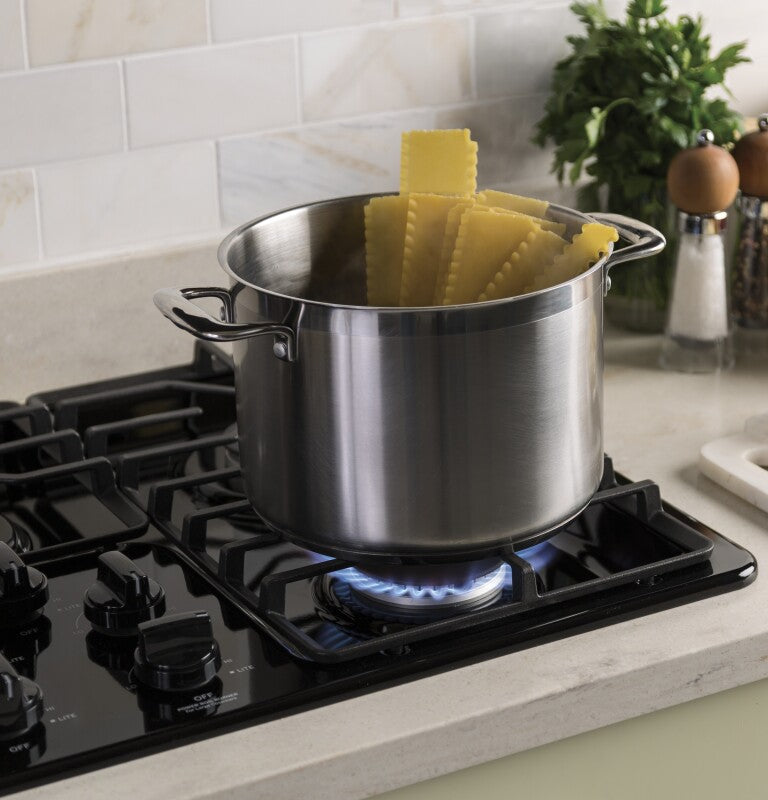

- 15,000 BTU Power Boil Burner
- MAX Burner System
Delivers the same maximum BTU power to propane and natural gas cooktops - Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
Description

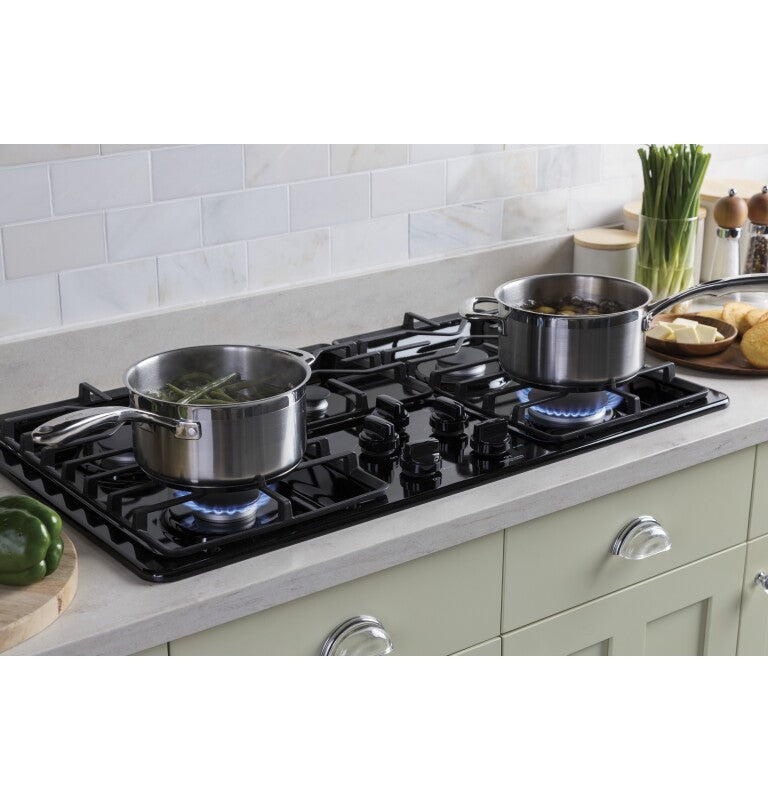

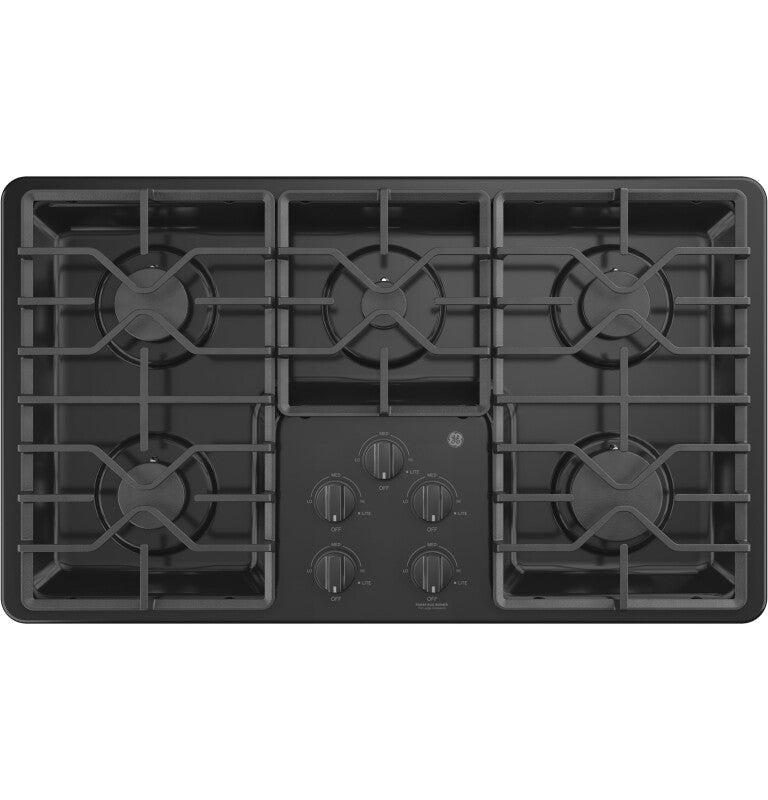

The brand GE JGP3036DLBB delivers powerful and convenient cooking performance with its 36" built-in gas cooktop. Equipped with five sealed burners, including a power boil burner for rapid heating and a low simmer burner for delicate tasks, it offers versatile cooking control. The cooktop features durable dishwasher-safe grates, making cleanup simple and efficient. With a stylish
Manuals & Guides
Key Features
Dishwasher-Safe Grates
Heavy-duty grates are easy to clean in the dishwasher

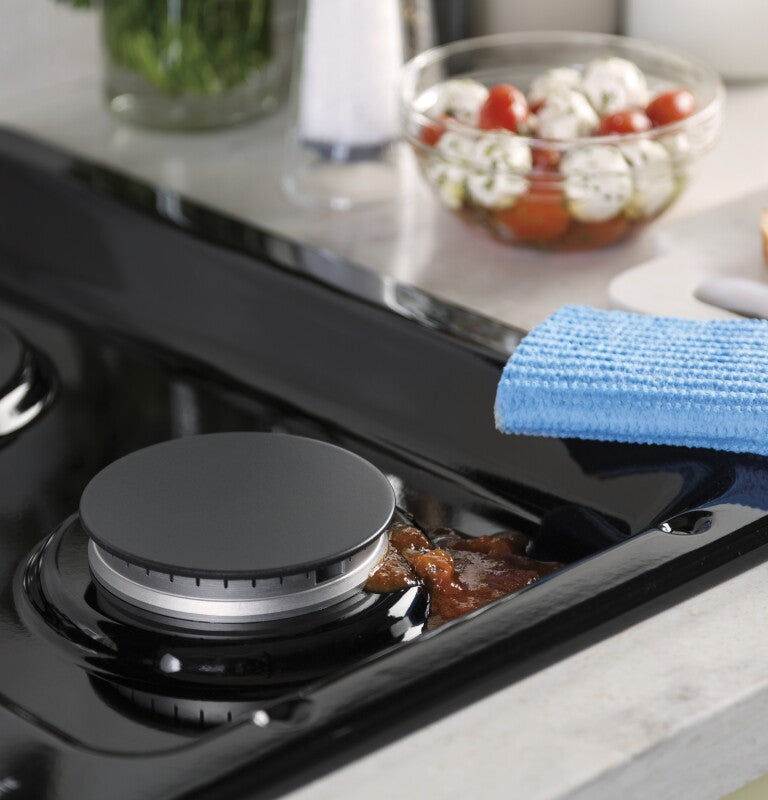

Spend Less Time Cleaning Up
Sealed cooktop burners contain spills and make cleaning quick and easy

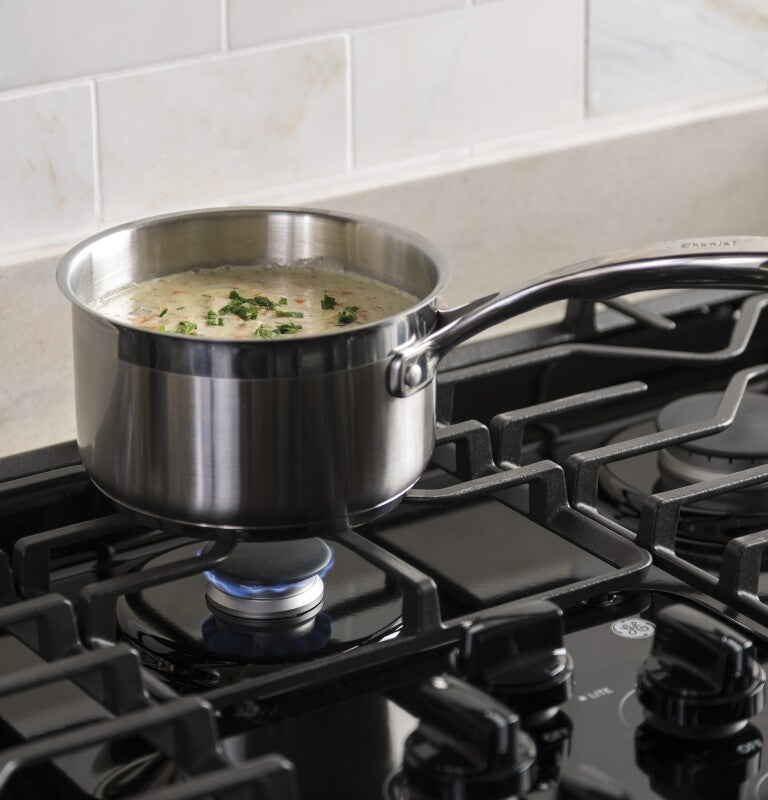

Precise Simmer Burner
Protect delicate foods with low, even heating
MAX Burner System
Delivers the same maximum BTU power to propane and natural gas cooktops

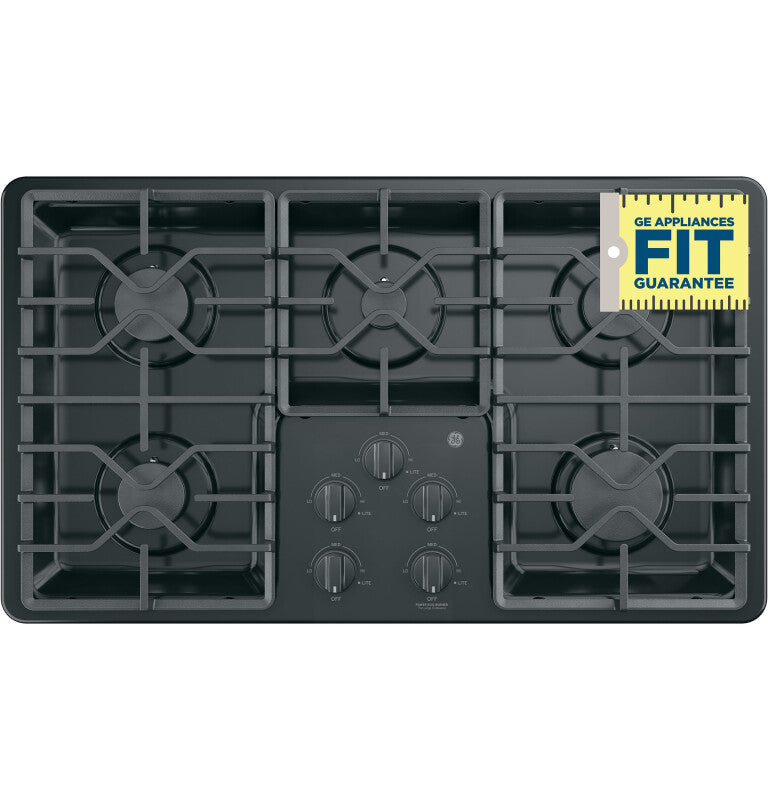

Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
