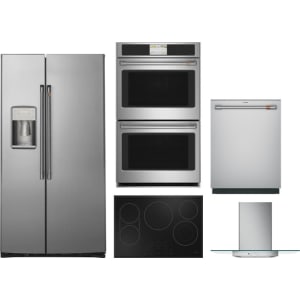

What's included: 5 items

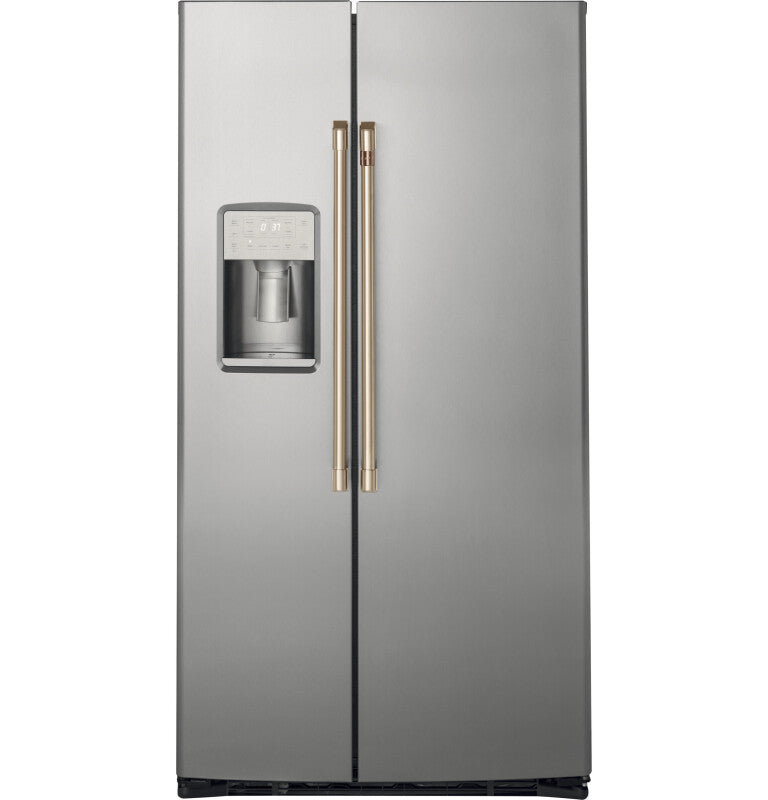

  • CAFE CZS22MP2NS1 Side By Side Refrigerators Stainless Steel Front View

    CAFE CZS22MP2NS1 CAFé™ 21.9 Cu. Ft. Counter-Depth Side-By-Side Refrigerator in Stainless Steel

    • SKU SKU: CZS22MP2NS1 UPC: 84691840237
    • Type Side By Side Refrigerators
  • CAFE CEP90301TBB Electric Cooktops Black Front View

    CAFE CEP90301TBB CAFé™ 30" Touch-Control Electric Cooktop Black

    • SKU SKU: CEP90301TBB UPC: 84691897675
    • Type Electric Cooktops
  • CAFE CTD70DP2NS1 Double Wall Ovens Stainless Steel Front View

    CAFE CTD70DP2NS1 CAFé™ 30" Smart Double Wall Oven with Convection in Stainless Steel

    • SKU SKU: CTD70DP2NS1 UPC: 84691842132
    • Type Double Wall Ovens
  • CAFE CDT828P2VS1 Built-In Dishwashers Stainless Steel – Catalog Photo

    CAFE CDT828P2VS1 Custom Fit ENERGY STAR Stainless Interior Dishwasher with Ultra Wash & Dry, 42 dBA in Stainless Steel

    • SKU SKU: CDT828P2VS1 UPC: 84691914587
    • Type Built-In Dishwashers
  • CAFE CVW73012MSS Ducted Mount Hoods Stainless Steel Front View

    CAFE CVW73012MSS CAFé™ 30" Wall-Mount Glass Canopy Chimney Hood in Stainless Steel

    • SKU SKU: CVW73012MSS UPC: 84691839163
    • Type Ducted Mount Hoods
  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Rebates
  • Reviews
Sale price $10,126.80 Regular price $16,183.15 Save $6,056.35 / 37% OFF

Product Details for CAFE CZS22MP2NS1

Technical Details

Capacity

Fresh Food Capacity 14.24
Total Capacity (cubic feet) 21.9
Freezer Capacity 7.7

Filter

App Filter - Icemaker Yes
App Filter - Product Type Refer Side-by-Side
App Filter - Capacity Refer Large (20-24 cu. ft.)
App Filter - Dispenser Yes

Appearance

Dispenser Color Graphite Gray
Case Color Gray
Exterior Design Contoured Doors
Door Stops Yes
Textured Steel Case Case Only - Dark Gray
Handle Color Brushed Stainless
Counter-Depth Design true
Door Swing Side-by-Side
Color Appearance Stainless Steel
Handle CAFé(TM)
Control Knobs Brushed Bronze
Hidden Door Hinge(s) Yes

Power / ratings

Energy Consumption (kWh/year) 669
Electrical Requirements 120
Hertz 60
Watts 330
Volts/Hertz/Amps 120

Warranty

Warranty Notes Limited 5-year Sealed System
See written warranty for details
Labor Warranty Limited 1-year entire appliance
Parts Warranty Limited 1-year entire appliance

Weights & dimensions

Overall Depth 30.75
Height to Top of Hinge 69.25
Net Weight 340
Overall Width 35.75
Back Air Clearances 2.0
Width w/Door Open 90 Degrees Less Handle 38.25
Overall Depth with Handle 30.75
Height to Top of Door Trim 69.88
Approximate Shipping Weight 360
Depth with Door Open 90(degree) 46.25
Width w/Door Open 90 Degrees Incl. Handle 43.13
Case Depth Without Door 24.13
Top Air Clearances 1.0
Side Air Clearances 0.13
Depth Without Handle 28.5
Height to Top of Case 69.0
Overall Height 69.25

Features

Temperature Management Features 4
Dispenser Features Child Lock
Door Alarm
LED Dispenser Light
Quick Ice
Water Filter Indicator Light
Control Type Actual Temperature Display
Upfront Electronic Touch Temperature Controls
Door Liner ABS
Showroom Power Mode To Enter Demo Mode, Wake up the control panel by pressing any of the Freezer or Refrigerator Colder or Warmer buttons. Press and hold Freezer Colder + Refrigerator Warmer buttons simultaneously for 3 seconds. You should hear a beep. The cooling system will turn off.
Yes
Icemaker Factory-Installed
Freezer Cabinet Shelves 1
Performance Features Easily Removable Door Gaskets
Never Clean Condenser
Sabbath Mode Optional
Filter Location Upper right corner
Top Drawer Snack Drawer
Door Alarm Yes
Freezer Storage Baskets 2
Freezer Door Shelves 1
Defrost Type Frost Guard
Fresh Food Door Features Dairy Compartment
Leveling System 2
Fresh Food Cabinet Shelves 1
Middle Drawer Adjustable Humidity
Fresh Food Door Bins 1
Freezer Features Ice Storage Bin
Interior Lighting - LED
Exterior Style Counter-Depth
Temperature Display External Digital
Fresh Food Features Integrated Shelf Support System
Interior Lighting - All LED
Configuration Side-by-Side
Refrigerant Type R600a
Dispenser Integrated with Cubes, Crushed Ice & Chilled Water
Fresh Food Cabinet Drawers 3
Water Filtration GE Water Filtration (XWFE Filter)
Product Type Counter Depth Refrigerator
Side-by-Side Refrigerator
OU Certified OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately

Features

  • Designed for a flush fit
    Enjoy the built-in look of a counter-depth, side-by-side refrigerator that fits flush with surrounding cabinetry
  • Handle any mess without stress
    Spills happen, but cleanup is stress-free thanks to adjustable slide-out, spillproof glass shelves that easily shift and lock, and have raised edges to contain mess
  • Humidify your favorites your way
    Keep any delicacy wonderfully preserved in humidity-controlled drawers that allow you to set your preferred temperature and level of moisture
  • Put your food in the spotlight
    Display groceries like a gallery with showcase LED lighting positioned throughout the interior to spotlight your favorite foods and containers
  • Ice at extraordinary speed
    Great for hosting get-togethers, a Quick Ice setting that functions 50% faster than the normal setting makes quality ice
  • Consistently cool and always fresh
    Open the door frequently without worrying, thanks to a Turbo Cool setting that drops the interior temperature to maintain a set degree
  • Create a look that matches your personal style
    Select hardware options to create a stunning look customized to any owner's taste
  • Safe, pure water for your family and guests
    Enjoy water and ice from the refrigerator with total peace of mind, thanks to an advanced water filtration system that removes 98% of certain pharmaceuticals (Removes 98% of ibuprofen, atenolol, fluoxetine, progesterone and trimethoprim. These pharmaceuticals are not necessarily in all users' water)
  • Everything in its place
    You'll know every item is in the ideal place with Clear Look door bins that you can modify as you like and see through to take stock of their contents
  • The ideal space for ice-cold items
    From frozen meals to sorbet, keep a variety of items ice cold in glass freezer shelves that provide secure storage and look stunning
  • Enhanced Shabbos Mode



Description

The Café™ 21.9 Cu. Ft. Counter-Depth Side-By-Side Refrigerator combines style and functionality to keep your kitchen impeccably organized. Its counter-depth design ensures a flush fit with your surrounding cabinetry, creating a seamless look. Inside, adjustable slide-out, spillproof glass shelves and Clear Look door bins offer the flexibility you need when handling groceries or cleaning up. Humidity-controlled drawers allow you to set your preferred temperature and moisture levels, keeping delicacies wonderfully preserved. The Quick Ice setting is great for hosting get-togethers, functioning 50% faster than the normal setting to make quality ice. An advanced water filtration system removes 98% of certain pharmaceuticals, providing safe, pure water for your family and guests.

Key Features

Designed for a flush fit

Enjoy the built-in look of a counter-depth, side-by-side refrigerator that fits flush with surrounding cabinetry

Handle any mess without stress

Spills happen, but cleanup is stress-free thanks to adjustable slide-out, spillproof glass shelves that easily shift and lock, and have raised edges to contain mess

Put your food in the spotlight

Display groceries like a gallery with showcase LED lighting positioned throughout the interior to spotlight your favorite foods and containers

Consistently cool and always fresh

Open the door frequently without worrying, thanks to a Turbo Cool setting that drops the interior temperature to maintain a set degree

Safe, pure water for your family and guests

Enjoy water and ice from the refrigerator with total peace of mind, thanks to an advanced water filtration system that removes 98% of certain pharmaceuticals (Removes 98% of ibuprofen, atenolol, fluoxetine, progesterone and trimethoprim. These pharmaceuticals are not necessarily in all users' water)

Everything in its place

You'll know every item is in the ideal place with Clear Look door bins that you can modify as you like and see through to take stock of their contents

From The Manufacturer

Rebates

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $10,126.80 Regular price $16,183.15 Save $6,056.35 / 37% OFF

Product Details for CAFE CEP90301TBB

Technical Details

Filter

App Filter - Cabinet Width 30.0
App Filter - Backlit Knobs Yes
App Filter - Cooktop Type Radiant Smoothtop
App Filter - Fuel Type Electric
App Filter - SyncBurners Yes
App Filter - Control Type Rotary knobs

Appearance

Color Appearance Black
Frameless Yes
Control Knobs Black

Power / ratings

Recommended Circuit Breaker (Amps) at 240V 40
Max. Connected Load (kW) at 240V 9.5
Hertz 60
Max. Current Draw (Amps) at 240V 39.6
Max. Connected Load (kW) at 208V 7.1
Electrical Requirements 208
Recommended Circuit Breaker (Amps) at 208V 40
Max. Current Draw (Amps) at 208V 34.1

Warranty

Parts Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details
Labor Warranty Limited 1-year entire appliance

Weights & dimensions

Cutout Height (in) 5.56
Cooktop Size 30.0
Overall Height 3.38
Cutout Depth (in) 19.63
Cabinet Width 30.0
Approximate Shipping Weight 40
Overall Width 29.88
Net Weight 34
Cutout Width (in) 28.5
Overall Depth 21.5

Features

WiFi Connect Built-In
Filler trim kit JXTR32B
Cooktop Burner Type 5
Melt Setting Yes
Fuel Type Electric
Element - Left Front 7.0
Connected Capabilities Amazon Alexa
Google Home
Indicator Lights 5.0
Dual Ring Burners Yes
Element - Right Front 8.0
Control Location Front Center
Cooktop Type Radiant Smoothtop
Cooktop Surface Black Ceramic Glass with Beveled Edge
Cooktop Control Features All-Off Control
Control Lock Capability
Custom Settings
Keep-Warm Setting
Kitchen timer
LED Light level adjustment
Melt Setting
Sound adjustment
Sync-Burners Capability
WiFi Enabled Features Bluetooth Pairing - Chef Connect with Hoods/OTRs and HestenCue Pans (HMI)
Interfaces with SmartHQ App
Precision cooking with HestanCue Pans (HMI and App)
Element - Left Rear 7.0
Control Type Electronic
Glide Touch
Element - Center 9.0
Element - Right Rear 6.0
Product Type Cooktop

Features

  • Power Boil on Tri- and Dual-Ring Elements
    Cook more faster with a 3,000W Tri-ring element and a 2,200W dual-ring element that can handle any pan size.
  • Easy Clean Surface with Beveled Edge
    A smooth glass surface with beveled edge makes this an easy clean electric cooktop that adds a level of aesthetic sophistication
  • Glide Touch Controls
    Choose from 19 different heat settings with one easy swipe for precise heat control on this easy-to-clean electric cooktop.
  • Precision Temperature Control
    Set your burner to an exact degree, not just high, medium or low, with Precision Temperature Control. Using a smart pan, the cooktop maintains a specific temperature - from 100 to 500 degrees. Perfect for sauces, candies and frying.
  • Synchronized Elements
    Connect and control two cooktop burners as one to create a bigger cooking surface for pans such as griddles.
  • Chef Connect
    Synchronize your cooktop and CAF(EBACK)(TM) over-the-range microwave or hood so that your fan and lights automatically come on when a burner is activated with Chef Connect
  • Keep Warm Setting
    This electric cooktop's 7" element features a range of heat - from a dedicated "Keep Warm" setting to the power to boil water.
  • Control Lock
    Protect against unintentionally turning your cooktop on with a safety control lock setting.
  • Hot Surface Indicator Lights
    A quick glance is all it takes to know when elements are hot on this electric cooktop with hot surface indicator lights.
  • Smart Cookware Rebate
    Smart pans and a wireless sous vide probe easily pair with this smart cooktop to ensure you get the perfect cooking results. Earn a rebate for a free Hestan Cue smart pan
  • Built-in WiFi
    This smart cooktop features Built-In WiFi so you can monitor your burners and view power levels, precision temperature, or on/off.
  • Fit Guarantee
    This cooktop will fit your existing 30" cut-out or CAF(EBACK)(TM) will help pay for modifications up to $100.



Description

The Café CEP90301TBB 30" Smart Touch-Control Electric Cooktop is a high-performance appliance designed for modern, high-end kitchens. Its smooth glass surface with touch controls offers a sleek, seamless appearance while allowing for precise heat adjustments.

This cooktop features five radiant cooking elements, including a powerful 3,100W Power Boil burner for fast heating and SyncBurner technology, which allows two burners to work together for large cookware. The Glide Touch Controls provide an intuitive and responsive cooking experience, while the Melt setting ensures delicate ingredients, like butter or chocolate, heat without burning.

With Wi-Fi connectivity and SmartHQ compatibility, users can remotely control burner settings and receive alerts via their smartphone. Additionally, the Keep Warm setting maintains food temperature without overcooking, making it perfect for multi-course meals. The edge-to-edge glass surface is not only stylish but also easy to clean, offering both functionality and elegance.

Ideal for those who prioritize precision, convenience, and modern aesthetics, the Café CEP90301TBB enhances any kitchen with smart technology and premium cooking performance.

Key Features

Chef Connect

Synchronize your cooktop and CAF(EBACK)(TM) over-the-range microwave or hood so that your fan and lights automatically come on when a burner is activated with Chef Connect

From The Manufacturer

Videos

Rebates

Café Fit Guarantee Rebate – Upgrade Your Kitchen Risk-Free in 2026

Café Fit Guarantee Rebate – Upgrade Your Kitchen Risk-Free in 2026

OFFER VALID REGARDLESS OF PREVIOUSLY PURCHASED BRAND.
Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $10,126.80 Regular price $16,183.15 Save $6,056.35 / 37% OFF

Product Details for CAFE CTD70DP2NS1

Technical Details

Capacity

Total Capacity (cubic feet) 10
Capacity (Cu. Ft.) 5.0

Filter

App Filter - Product Type Wall Oven Double
App Filter - Control Type Electronic touchpad
App Filter - WiFi Connect Built-In
App Filter - Cooking Technology Convection
App Filter - Cabinet Width 30.0
App Filter - Fuel Type Electric
App Filter - Convection Yes
App Filter - Cleaning Type Steam and Self-Clean

Appearance

Handle Color Brushed Stainless
Installation Above Warming Drawer
Side-by-Side
Handle CAFé(TM) Pro Style
Customizable
Oven Door Features Big View Oven Window
Color Appearance Stainless Steel

Power / ratings

Bake Wattage 2850
Electrical Requirements 208
Amp Rating at 208V 40
Hertz 60
Broiler Wattage 4300
Convection Wattage 2400
KW Rating at 240V 9
Amp Rating at 240V 40
KW Rating at 208V 6.8

Warranty

Labor Warranty Limited 1-year entire appliance
Parts Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details

Accessories

Air Fry Basket Optional- JXAFTRAY1VSS
Optional Accessories 30.0
Optional Kits CXWD0H0PMBT Brushed Black
CXWD0H0PMBZ Brushed Bronze
CXWD0H0PMCG - Brushed Brass
CXWD0H0PMCU Brushed Copper
CXWD0H0PMFB - Flat Black
CXWD0H0PMSS Brushed Stainless

Weights & dimensions

Overall Depth 26.75
Cabinet Width 30.0
Oven Interior Dimensions (lower) 25
Overall Width 29.75
Oven Interior Dimensions (upper) 25
Cutout Height (in) 51.81
Net Weight 260
Approximate Shipping Weight 278
Cutout Depth (in) 23.5
Depth with Door Open 48.75
Overall Height 53.0
Cutout Width (in) 28.5
Cutout Dimensions (w x h x d) (in.) 28 in x 51 in x 23 in

Features

Fuel Type Electric
Oven Interior 2
Oven Features 10
Configuration Double Oven
Product Type Double Oven
Oven Rack Features 2
Cooking Technology Convection
Self-Clean Oven Door Lock Automatic
Control Type 7.0
Connected Capabilities Amazon Alexa
Fresco
Google Home
IFTTT
Innit
Sonos
The Google Assistant
Cooking System True European Convection (Lower)
True European Convection with Direct Air (Upper)
Sabbath Mode Yes
Oven Cooking Modes Convection Bake
Convection Bake Multi-Rack
Convection Broil Hi/Lo
Convection Roast
Keep Warm
No Preheat Air Fry
Precision Cooking Modes
Proof
Scan-to-Cook
Thermal Bake
Thermal Broil Hi/Lo
Turkey Mode
OU Certified No
Oven Cleaning Type Self-Clean with Steam Clean Option
WiFi Connect Built-In
Cleaning Time Variable with Delay Clean Option
Oven Rack Positions (Single or Upper/Lower) 6
Oven Control Features 12

Features

  • Built-In WiFi, Powered by SmartHQ App
    Manage all aspects of your kitchen with the help of the SmartHQ(TM) App or your voice assistant (Select features require WiFi Connection) See details
  • Personalized Features + Upgrades
    Usher in the latest features by downloading cooking upgrades right to your oven, putting Air Fry and more in your repertoire
  • Precision is the name of your cooking game
    Confidently try new recipes and perfectly execute your favorites, using a smart system that automatically tracks progress, modifies temperatures and adjusts cook times
  • Brighten up life in the kitchen
    Easily navigate settings using a stunning full color display that adds an unexpected touch of style to your kitchen, including custom screen backgrounds and weather updates
  • The perfect bake is now perfectly easy
    Achieve unrivaled performance with the only system that delivers top-down true convection for consistent results on special occasion favorites like roasts, chicken, turkey and more
  • No preheat, no hassle
    Save time with a variety of precision cooking modes that eliminate the need for preheating
  • Fried taste. Crisp texture. Less oil.
    Make your favorite "fried" foods healthy, thanks to Air Fry that crisps without using oil for frying
  • Enjoy convenient temperature control from anywhere
    Preheat while running errands or change oven temperatures while doing yard work with the CAF(EBACK)(TM) Appliances Kitchen app
  • Create a look that matches your personal style
  • The oven rack that handles it all
    Easily remove heavy dishes with a roller rack that is specially designed to glide smoothly
  • The perfect fit you've always dreamed of
    When you're updating your kitchen, attention to detail is a priority. That's why CAF(EBACK)(TM) wall ovens are guaranteed for an exact fit or CAF(EBACK)(TM) Appliances will pay up to $300 toward modifications.
  • Clean up has never been easier
    Keep your oven looking like new at all times with a steam clean option for small spills and a self clean cycle for larger messes
  • Prepare foods to perfect doneness
    Get roasts and meats just right with a temperature probe that lets you monitor progress on the wall oven screen, eliminating the need to open the oven door during cooking
  • More heat coverage means better results
    Ensure even baking with an element that covers more surface area for better distribution of heat
  • An even broil is yours
    Achieve completely even browning on any size dish with a full-coverage broil element



Description

Elevate your culinary experience with the Café™ 30" Smart Double Wall Oven with Convection (Model: CTD70DP2NS1). This oven offers a spacious 10.0 cu. ft. total capacity, with 5.0 cu. ft. in both the upper and lower ovens, providing ample space to prepare multiple dishes simultaneously. Equipped with True European Convection with Direct Air in the upper oven and True European Convection in the lower oven, it ensures even heat distribution for consistent baking and roasting results. The 7" full-color touch LCD screen offers intuitive navigation through various cooking modes, including No Preheat Air Fry, Scan-to-Cook, Precision Cooking, Convection Bake, Convection Roast, and more. With Built-In WiFi powered by the SmartHQ™ App, you can control and monitor your oven remotely, receive real-time notifications, and access software updates for new cooking features. The oven also includes self-clean and steam clean options for easy maintenance, and two never-scrub roller racks for smooth loading and unloading of dishes. Customizable hardware options allow you to select from various handle finishes to match your kitchen decor.

Key Features

Built-In WiFi, Powered by SmartHQ App

Manage all aspects of your kitchen with the help of the SmartHQ(TM) App or your voice assistant (Select features require WiFi Connection) See details

Personalized Features + Upgrades

Usher in the latest features by downloading cooking upgrades right to your oven, putting Air Fry and more in your repertoire

Precision is the name of your cooking game

Confidently try new recipes and perfectly execute your favorites, using a smart system that automatically tracks progress, modifies temperatures and adjusts cook times

Brighten up life in the kitchen

Easily navigate settings using a stunning full color display that adds an unexpected touch of style to your kitchen, including custom screen backgrounds and weather updates

The perfect bake is now perfectly easy

Achieve unrivaled performance with the only system that delivers top-down true convection for consistent results on special occasion favorites like roasts, chicken, turkey and more

No preheat, no hassle

Save time with a variety of precision cooking modes that eliminate the need for preheating

Fried taste. Crisp texture. Less oil.

Make your favorite "fried" foods healthy, thanks to Air Fry that crisps without using oil for frying

Enjoy convenient temperature control from anywhere

Preheat while running errands or change oven temperatures while doing yard work with the CAF(EBACK)(TM) Appliances Kitchen app

The oven rack that handles it all

Easily remove heavy dishes with a roller rack that is specially designed to glide smoothly

The perfect fit you've always dreamed of

When you're updating your kitchen, attention to detail is a priority. That's why CAF(EBACK)(TM) wall ovens are guaranteed for an exact fit or CAF(EBACK)(TM) Appliances will pay up to $300 toward modifications.

Clean up has never been easier

Keep your oven looking like new at all times with a steam clean option for small spills and a self clean cycle for larger messes

Prepare foods to perfect doneness

Get roasts and meats just right with a temperature probe that lets you monitor progress on the wall oven screen, eliminating the need to open the oven door during cooking

More heat coverage means better results

Ensure even baking with an element that covers more surface area for better distribution of heat

An even broil is yours

Achieve completely even browning on any size dish with a full-coverage broil element

From The Manufacturer

Videos

Rebates

Café Fit Guarantee Rebate – Upgrade Your Kitchen Risk-Free in 2026

Café Fit Guarantee Rebate – Upgrade Your Kitchen Risk-Free in 2026

OFFER VALID REGARDLESS OF PREVIOUSLY PURCHASED BRAND.
Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Rebates
  • Reviews
Sale price $10,126.80 Regular price $16,183.15 Save $6,056.35 / 37% OFF

Product Details for CAFE CDT828P2VS1

Technical Details

Appearance

Handle CAFé(TM)
Installation Built-Up Floor Capable
Flush Cabinet Installation
Side Installation or Top Installation Included
Handle Color Brushed Stainless
Door Style Long Door with Top Controls
Door Appearance Full-length flat door
Color Appearance Stainless Steel
Control Panel Color Matte Dark Slate, Fingerprint Resistant
Handle Design Customizable

Power / ratings

Power Connection Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
Energy Consumption (kWh/year) 240
Hertz 60
Electrical Requirements 120
Watts 936
Calrod Heater Watts 800
Volts/Hertz/Amps 120

Warranty

Labor Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details
Parts Warranty Limited 1-year entire appliance

Economical / quiet

Door Insulation Insulation
Mastic
Quiet Package 42
Outer Wrap Bitumen
Full-wrap Blanket
Motor Type Variable Speed
Quiet Features Quiet Water Valve
Sealed Toe Kick
Tub Collar Trim

Accessories

Optional 12' Drain Hose Optional hose kit (WD24X10065)
Optional Kits CXADTH1PVBT Brushed Black
CXADTH1PVBZ Brushed Bronze
CXADTH1PVCG Brushed Brass
CXADTH1PVCU Brushed Copper
CXADTH1PVFB Flat Black
CXADTH1PVSS Brushed Stainless

Weights & dimensions

Height w/ Legs Retracted - Minimum Height 33.38
Cutout Height (in) 33.5
Cutout Width (in) 24.0
Overall Depth 24.0
Cabinet Width 24.0
Net Weight 124
Overall Width 23.75
Depth Without Handle 24.0
Approximate Shipping Weight 137
Overall Height 34.0
Overall Depth with Handle 26.3
Cutout Depth (in) 24.0
Height w/Legs Extended - Maximum Height 34.63
Depth with Door Open 25.5

Features

Wash System 3
Sensor Clean Sensor
Lower Rack 1
Tub Type Tall Tub
Leveling System 4
OU Certified No
Additional Protection Active Flood Protect
Number of Place Settings 16
Dishwasher Options Bottle Wash (on app)
Delay Start 1-12 Hr.
Favorites
Favorites (on app)
Heated Dry Off
Hi-Temp Wash
Lock Controls
Normal Dry
Pre Soak
Sabbath Mode
Sani (Certified to NSF Standard 184)
Start/Cancel
Ultra Dry
Wash Zones/Half Load (on app)
Latch Pull with Handle
Number of Options 15
Style Built-In Top Control
Water Filtration System 100
Cutlery Tray One piece removable 3rd rack
Rack Features Adjustable Upper Rack
Ball-Tipped Tines
Cafe Flex Silverware Basket
Racking Material Nylon
Smart Assist Yes
Dishwasher Cycles Auto
Cookware
Express
Gentle
Normal
Rack Color Black Pearl
Dispenser Rinse Aid with Indicator and Adjustment
WiFi Connect Optional (Requires part no. PBX23W00Y1)
EcoBalance Compatible Yes
Control Type 8
Racking System Full 3rd rack
Dishwasher Drying Features Heated Dry - Ultra/Normal/Off
Multi-Wattage Wash & Dry Element
UltraDry
Wash Arms 3
Wash System Features Automatic HotStart
Automatic Temperature Control
Bottle Jets (4)
Hard Food Disposer with removable filter
Lower Wash Arm
Middle Wash Arm
Variable Speed Dual Pumps and Motors
Top Rack/3rd Rack Slilding 3rd rack + Tray
Exterior Style Customizable Professional
Product Type Built-In
Upper Rack 1
Dishwasher Control Features Audible End-of-Cycle Signal
Cycle Countdown with Bi-Color LED Status Light on door
Cycle Progress Indicators: Clean/Sanitized/Smart Assist
Last Cycle Memory
Number of Cycles 5
Tub and Door Liner Stainless Steel
Sabbath Mode Yes
Showroom Power Mode Yes

Features

  • CustomFit Top Rack
    Load your way in this dishwasher with a customizable top rack. The sliding top rack provides loading flexibility with a place to load silverware, cooking utensils, ramekins and more, so you can wash everything at once.
  • CustomFit Basket
    Load more than just silverware in this redesigned basket. The stylish CustomFit Basket holds all your silverware, delicate stemware, reusable straws and more, so items that were hand wash before can safely be washed in the dishwasher.
  • Ultra Wash & Dry
    This ultra-wash and dry dishwasher ensures table-ready dishes. Ranging from gentle for delicate stemware or intense for pots and pans, flexible wash options ensure that dishes get full coverage and the right amount of pressure for an ideal clean.
  • 4 Bottle Wash Jets
    This dishwasher with 4 bottle wash jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the jets directs water and detergent inside to effectively wash hard-to-reach areas.
  • Customizable Dishwasher Handles
    Choose from six unique CAF(EBACK)(TM) handle finishes to complement the rest of your kitchen thanks to this dishwasher with customizable hardware.
  • Favorites
    Easily save your favorite wash and dry option combinations to the 'Favorites' button on your control panel for convenient and quick access at the touch of a button.
  • Adjustable Middle Rack
    Load the dishwasher your way thanks to an adjustable middle rack. Easily move it up and down to fit bottles, large platters and other items as tall as 10.5".
  • Presoak
    Loosen tough soils with a presoak cycle that runs before the wash cycle begins, so you can skip the need to pre-rinse or soak items by hand.
  • Sanitize
    Enjoy piece of mind with a sanitation cycle that reduces up to 99.999% of bacteria on dishes.
  • Middle and Lower Rack Fold-Down Tines
    Two rows of adjustable tines in both the middle and lower rack allow you to load the way you want. 16 different tine positions offer the ultimate customization to fit all of your items.
  • Active Flood Protect
    Active Flood Protect prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached.
  • Flush Installation
    Cabinet-depth flush installation ensures your dishwasher blends in with the design of your kitchen without sacrificing space for dishes inside.
  • Piranha(TM) Hard Food Disposer
    The Piranha(TM) Hard Food Disposer lets you use your dishwasher without pre-rinsing. Its stainless steel impellers rotate to pulverize food particles and an anti-jamming design make sure wash arms stay unclogged.
  • 42 dBA Dishwasher
    Enjoy a peaceful kitchen while delivering a powerful wash thanks to this super silent 42 dBA dishwasher.



Description

The Café CDT828P2VS1 24" Smart Built-In Dishwasher is designed for those who demand powerful cleaning performance and sleek aesthetics. Featuring Ultra Wash & Dry technology, it provides superior cleaning and drying for spotless dishes. The stainless steel interior enhances durability and resists odors while maintaining a modern look.

This dishwasher offers a customizable loading system with adjustable racks, fold-down tines, and a third rack for added capacity. The Wi-Fi connectivity allows users to monitor and control the dishwasher remotely using the SmartHQ app. The Sanitize cycle removes 99.99% of bacteria, while the Steam + Sani option loosens tough food residues for a more thorough clean.

With an ultra-quiet 45 dBA operation, the CDT828P2VS1 ensures a peaceful kitchen environment. The hidden top controls and sleek stainless steel finish blend seamlessly with modern kitchen designs, offering a high-end touch to any space.

Key Features

CustomFit Top Rack

Load your way in this dishwasher with a customizable top rack. The sliding top rack provides loading flexibility with a place to load silverware, cooking utensils, ramekins and more, so you can wash everything at once.

CustomFit Basket

Load more than just silverware in this redesigned basket. The stylish CustomFit Basket holds all your silverware, delicate stemware, reusable straws and more, so items that were hand wash before can safely be washed in the dishwasher.

Ultra Wash & Dry

This ultra-wash and dry dishwasher ensures table-ready dishes. Ranging from gentle for delicate stemware or intense for pots and pans, flexible wash options ensure that dishes get full coverage and the right amount of pressure for an ideal clean.

4 Bottle Wash Jets

This dishwasher with 4 bottle wash jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the jets directs water and detergent inside to effectively wash hard-to-reach areas.

Customizable Dishwasher Handles

Choose from six unique CAFÉ™ handle finishes to complement the rest of your kitchen thanks to this dishwasher with customizable hardware.

Favorites

Easily save your favorite wash and dry option combinations to the 'Favorites' button on your control panel for convenient and quick access at the touch of a button.

Adjustable Middle Rack

Load the dishwasher your way thanks to an adjustable middle rack. Easily move it up and down to fit bottles, large platters and other items as tall as 10.5".

Presoak

Loosen tough soils with a presoak cycle that runs before the wash cycle begins, so you can skip the need to pre-rinse or soak items by hand.

Sanitize

Enjoy piece of mind with a sanitation cycle that reduces up to 99.999% of bacteria on dishes.

Middle and Lower Rack Fold-Down Tines

Two rows of adjustable tines in both the middle and lower rack allow you to load the way you want. 16 different tine positions offer the ultimate customization to fit all of your items.

Active Flood Protect

Active Flood Protect prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached.

Flush Installation

Cabinet-depth flush installation ensures your dishwasher blends in with the design of your kitchen without sacrificing space for dishes inside.

Piranha™ Hard Food Disposer

The Piranha™ Hard Food Disposer lets you use your dishwasher without pre-rinsing. Its stainless steel impellers rotate to pulverize food particles and an anti-jamming design make sure wash arms stay unclogged.

42 dBA Dishwasher

Enjoy a peaceful kitchen while delivering a powerful wash thanks to this super silent 42 dBA dishwasher.

From The Manufacturer

Rebates

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Rebates
  • Reviews
Sale price $10,126.80 Regular price $16,183.15 Save $6,056.35 / 37% OFF

Product Details for CAFE CVW73012MSS

Technical Details

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 0.56 ft³
Dimensional Weight 5.85 lbs.
Total of Cubes 0.56 ft³
Total of Dimensional Weight 5.85 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 35 in.
Shipping Height 6.75 in.
Shipping Length 23.5 in.
Shipping Weight 60 lbs.
Total of Shipping Weight 60 lbs.
Source Calculation

Dimensions & weight

Width 30 in.
Height 1.75 in.
Length 18.5 in.
Weight 43 lbs.

Warranty

Parts 1 Year
Labor 1 Year

Filter

App Filter - Hood Type Designer (includes "canopy" and "chimney")
App Filter - Venting Type Convertible
App Filter - Cabinet Width 30.0

Appearance

Blower / Light Switch Color Backlit
Material Steel
Color Appearance Stainless Steel

Power / ratings

Watts 236
Hertz 60
Amp Rating at 120V 5.3
Electrical Requirements 120V ; 60Hz ; 5.3A

Warranty

Labor Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details
Parts Warranty Limited 1-year entire appliance

Weights & dimensions

Overall Depth 18.5 in
Overall Height 1.75 in
Cabinet Width 30 in
Net Weight 43 lb
Approximate Shipping Weight 60 lb
Overall Width 30 in

Features

Cooktop Lighting Halogen
Max CFM 350
Ducting Vertical Only
Light Controls On/Off/Night
Filter Cleaning Dishwasher Safe
Product Type Wall-Mount Hood
6" Round Duct Yes
Control Location Front
Blower Type Internal
Removable Grease Filter(s) Yes
Fan Speed Control 4-Speed
Control Type Backlit
CFM/ Sones Rating 160/.9 (Working Speed)
Exhaust Options Recirculating
Required Duct Size 6 in. Round

Features

  • Design a kitchen that breathes
    Keep your kitchen smelling fresh and ready for guests with a 350-CFM venting system with boost that removes smoke, grease, odors and moisture
  • Enjoy effortless control
    Add a conversation-starter to your kitchen with electronic backlit controls that look great and are easy to use
  • Create a a warmly lit atmosphere
  • Create a warmly lit atmosphere
    Clearly watch the progress of preparing your favorite meals with dual halogen cooktop lighting that brightly illuminates the cooking surface
  • Light up your night
    See your way through midnight snacking with a night light that softly illuminates the cooktop and surrounding areas
  • Freshen up your kitchen air
    Fill the kitchen with fresh air with two convertible venting options: recirculating or external venting
  • Control at your fingertips
    Share favorite stories without interruption, thanks to an optional remote control that can change lighting and fan speed settings from anywhere in the kitchen.
  • Never forget to power down
    Keep conversations flowing without interruption thanks to an auto-off feature that deactivates the vent after 15 minutes
  • Clean up cleaning up
    Simplify clean-up with a dishwasher-safe filter that removes grease and can be cleaned alongside dishes too



Description

Elevate your kitchen's ambiance and functionality with the Café™ 30" Wall-Mount Glass Canopy Chimney Hood (model CVW73012MSS). This stylish hood boasts a sleek stainless steel finish paired with a glass canopy, adding a contemporary touch to any kitchen decor. The powerful 350 CFM venting system efficiently removes smoke, grease, odors, and moisture, ensuring a fresh cooking environment. The electronic backlit controls not only provide a modern aesthetic but also offer easy operation, allowing you to adjust settings effortlessly. Illuminate your cooking surface with the dual halogen cooktop lighting, which brightly lights up your workspace, and utilize the night light feature for subtle illumination during nighttime hours. The hood offers four fan speed settings, including a boost mode for intensive ventilation needs. Additionally, it provides two convertible venting options: recirculating or external venting, giving you flexibility in installation based on your kitchen's configuration. For added convenience, an optional remote control allows you to adjust fan speed and lighting settings from anywhere in the kitchen. The dishwasher-safe filters make maintenance simple, ensuring your hood remains efficient and clean with minimal effort.

From The Manufacturer

Rebates

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

Compare with similar products

Recommendations

Previously viewed products
