What's included: 5 items

  • Series Energy Star® 30" Built-in Touch Control Induction Cooktop

    Cafe CHP90301TBB Café Series 30" Built-in Touch Control Induction Cooktop Black

    • SKU SKU: CHP90301TBB UPC: 84691897712
    • Type Induction Cooktops
  • Café 30" Smart Double Wall Oven With Convection

    Cafe CTD70DP2NS1 Café 30" Smart Double Wall Oven With Convection Stainless Steel

    • SKU SKU: CTD70DP2NS1 UPC: 84691842132
    • Type Double Wall Ovens
  • Energy Star® 23.2 Cu. Ft. Smart Counter-depth 4-door French-door Refrigerator With Dual-dispense Autofill Pitcher

    Cafe CJE23DP2WS1 Café 23.2 Cu. Ft. Smart Counter-depth 4-door French-door Refrigerator With Dual-dispense Autofill Pitcher Stainless Steel

    • SKU SKU: CJE23DP2WS1 UPC: 84691953364
    • Type French Door Refrigerators
  • Café 30" Wall-mount Glass Canopy Chimney Hood

    Cafe CVW73012MSS Café 30" Wall-mount Glass Canopy Chimney Hood Stainless Steel

    • SKU SKU: CVW73012MSS UPC: 84691839163
    • Type Wall & Chimney Hoods

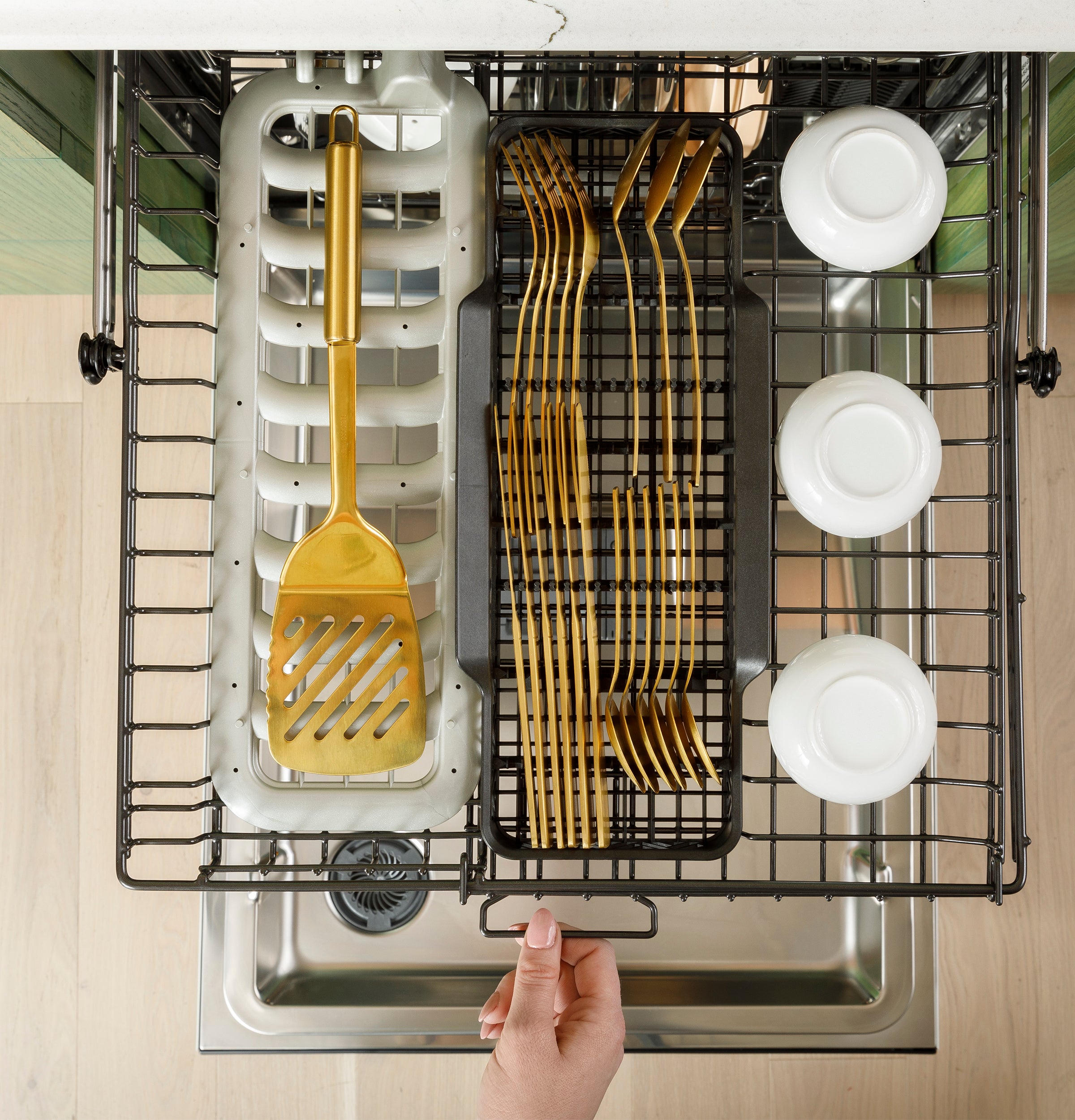

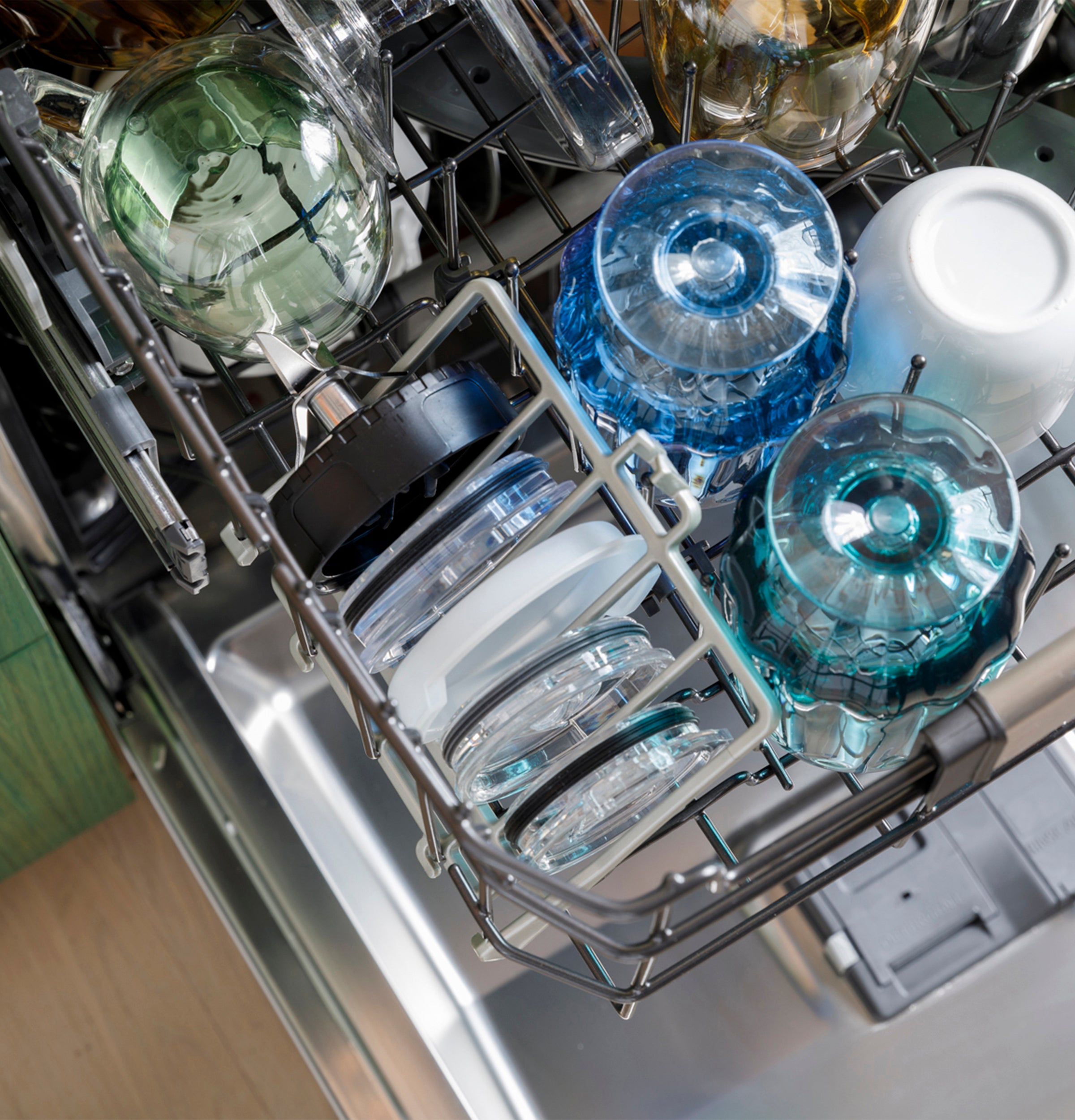

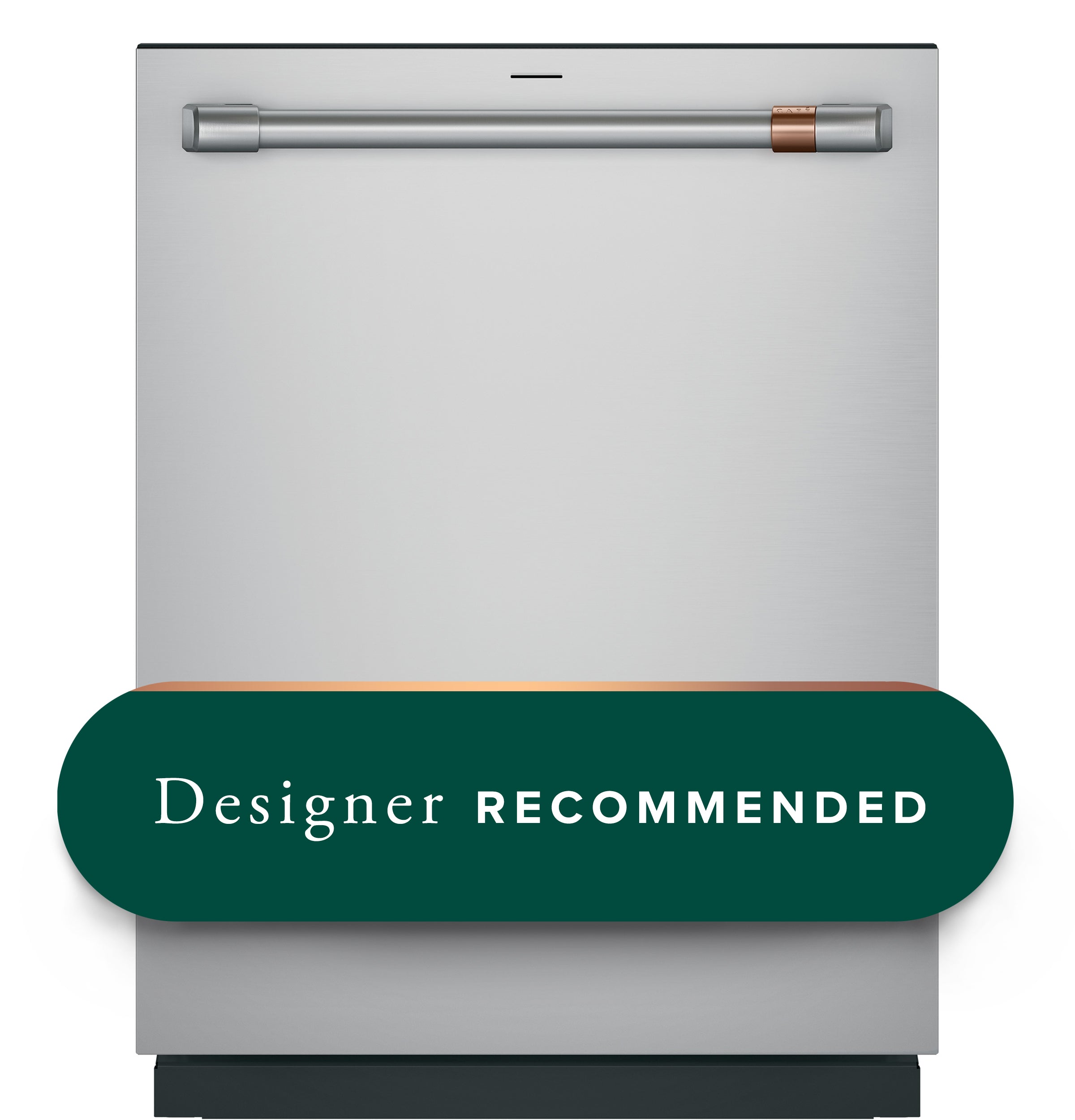

  • Customfit Energy Star Stainless Interior Smart Dishwasher With Ultra Wash Top Rack And Dual Convection Ultra Dry, Led Lights, 39 Dba

    Cafe CDT888P2VS1 Café Customfit Stainless Interior Smart Dishwasher With Ultra Wash Top Rack And Dual Convection Ultra Dry, Led Lights, 39 Dba Stainless Steel

    • SKU SKU: CDT888P2VS1 UPC: 84691914594
    • Type Built-In Dishwashers
  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $12,644.53 Regular price $20,158.15 Save $7,513.62 / 37% OFF

Product Details for Cafe CHP90301TBB

Technical Details

Features

WiFi Connect Built-In
Filler trim kit JXTR32B
Cooktop Burner Type 4 Induction Elements
Melt Setting Yes
Fuel Type Electric
Element - Left Front 7" 2500W
Indicator Lights White/Red
Element - Right Front 11" 3700W
Control Location Front Center
Cooktop Type Induction
Cooktop Surface Black Ceramic Glass with Beveled Edge
Cooktop Control Features Sync-Burners Capability
WiFi Enabled Features Works with Precision Cooking Probe
Timer Yes
Element - Left Rear 7" 2500W
Control Type Glide Touch
Element - Right Rear 6" 1800W
Product Type Cooktop
Connected Capabilities Google Home
Indicator Lights Setting Level Indicators
Cooktop Control Features Boost (All Elements)
WiFi Enabled Features Interfaces with SmartHQ App
Control Type Electronic
Cooktop Control Features All-Off Control
Cooktop Control Features Chef Connect
Cooktop Control Features Control Lock Capability
Cooktop Control Features Keep-Warm Setting
Cooktop Control Features Melt Setting
Cooktop Control Features Pan Presence Sensor
Cooktop Control Features Pan Size Sensor
Cooktop Control Features LED Light level adjustment
Cooktop Control Features Sound adjustment
Cooktop Control Features Kitchen timer
Indicator Lights 4 Hot Surface
Indicator Lights Surface Element "ON"
WiFi Enabled Features Chef Connect with Hoods/OTRs
WiFi Enabled Features Works with HestanCue Pans
Connected Capabilities Amazon Alexa

Weights & dimensions

Cooktop Size 30 in
Overall Height 3.25 in
Cabinet Width 30 in
Approximate Shipping Weight 48 lb
Overall Width 29.875 in
Net Weight 42 lb
Overall Depth 21.5 in
Cutout Width (in) 28.5
Cutout Height (in) 4.625
Cutout Depth (in) 19.625

Warranty

Parts Warranty Limited 1-year entire appliance
Labor Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details

Appearance

Color Appearance Black
Frameless Yes
Control Knobs Black

Power / ratings

Circuit Breaker (Amps) at 208V 40
KW Rating at 208V 6.9
Max. Current Draw (Amps) at 240V 32.1
KW Rating at 240V 7.7
Max. Current Draw (Amps) at 208V 33.2
Circuit Breaker (Amps) at 240V 40
Electrical Requirements 208/240V ; 60Hz ; 40A
Hertz 60

Accessories

Optional Accessories JXPROBE1 - Precision cooking probe

Warranty

Parts 1 Year
Labor 1 Year

Other

Cooktop Size 30 in

Dimensions & weight

Width 29.88 in.
Height 3.25 in.
Length 21.5 in.
Weight 42 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34.88 in.
Shipping Height 8.25 in.
Shipping Length 26.5 in.
Shipping Weight 48 lbs.
Total of Shipping Weight 48 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 1.21 ft³
Dimensional Weight 15.02 lbs.
Total of Cubes 1.21 ft³
Total of Dimensional Weight 15.02 lbs.

Description

This seamless cooktop will delight your family, your guests and, most of all, you. Four induction cooking elements cook every dish to perfection by delivering rapid, accurate heat, for the most efficient heating possible. A convenient rapid boil feature boils water 1.5x faster than other cooktops while a safe surface feature keeps you worry-free by automatically switching off when cookware is removed. Plus, a beautiful white LED digital display allows for effortless control of 19 different heat settings, and induction heating technology ensures burners quickly adjust and respond to every touch. Precision Temperature Control lets you use smart pans to dial into the exact temperatures needed to take your results to the next level, like you do in your oven. Not to mention the easy clean, smooth glass surface, which adds a sleek touch while containing spills with beveled edges.

Key Features

Guided Cooking

Follow along a video-guided recipe and your burners will automatically adjust time and temperature using a smart pan. Experience the joy of a perfectly cooked meal, from scallops to scrambles. Pan sold separately.

Rapid Boil

Boil water faster thanks to induction elements that immediately heat your pan, not the cooktop surface.

Precision Temperature Control

Set your burner to an exact degree, not just high, medium or low, with Precision Temperature Control. Using a smart pan, the cooktop maintains a specific temperature – from 100 to 500 degrees. Perfect for sauces, candies and frying.

Smart Cookware Rebate

Smart pans and a wireless sous vide probe easily pair with this smart cooktop to ensure you get the perfect cooking results. Earn a rebate for a free Hestan Cue smart pan

Most Efficient Heating

Energy flows directly to your pan instead of the cooktop surface and surrounding areas, allowing for the most efficient heat available.

Synchronized Elements

Connect and control two cooktop burners as one to create a bigger cooking surface for pans such as griddles.

Chef Connect

Synchronize your cooktop and CAFÉ™ over-the-range microwave or hood so that your fan and lights automatically come on when a burner is activated with Chef Connect

Timer

Help coordinate meal preparation and cooking with a convenient kitchen timer.

Built-in WiFi

This smart cooktop features Built-In WiFi so you can monitor your burners and view power levels, precision temperature, or on/off.

Fit Guarantee

This cooktop will fit your existing 30" cut-out or CAFÉ™ will help pay for modifications up to $100. See offer criteria and details

Effortless Control and Responsiveness

19 different heat settings and controls illuminated with white LED lights use induction technology to ensure burners quickly adjust and respond.

Easy Clean Surface

A smooth glass surface with glide touch controls and induction technology that ensures spills won’t burn makes this an easy clean cooktop

Safer Surface

Stay free from worry with this induction cooktop that automatically detects your cookware, so when it's removed the burner automatically switches off

From The Manufacturer

Videos

Rebates

Café Fit Guarantee Rebate – Upgrade Your Kitchen Risk-Free in 2026

Café Fit Guarantee Rebate – Upgrade Your Kitchen Risk-Free in 2026

OFFER VALID REGARDLESS OF PREVIOUSLY PURCHASED BRAND.
Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $12,644.53 Regular price $20,158.15 Save $7,513.62 / 37% OFF

Product Details for Cafe CTD70DP2NS1

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Overall Depth 26.75 in
Overall Height 53 in
Cabinet Width 30 in
Oven Interior Dimensions (lower) 25 x 17-3/8 x 20-1/4
Overall Width 29.75 in
Oven Interior Dimensions (upper) 25 x 17-3/8 x 20-1/4
Net Weight 260 lb
Approximate Shipping Weight 278 lb
Cutout Depth (in) 23.5
Cutout Dimensions (w x h x d) (in.) 28-1/2 x 51-13/16 x 23-1/2
Depth with Door Open 48.75 in
Cutout Height (in) 51.8125
Cutout Width (in) 28.5

Power / ratings

Bake Wattage 2850W
Electrical Requirements 208/240V ; 60Hz ; 40A
Amp Rating at 208V 40
Broiler Wattage 4300W; Dual Element
Convection Wattage 2400W
KW Rating at 240V 9
Amp Rating at 240V 40
KW Rating at 208V 6.8
Hertz 60

Features

Fuel Type Electric
Oven Interior Hidden Bake
Oven Features Closed Door Broiling
Configuration Double Oven
Product Type Double Oven
Oven Rack Features Embossed Rack Positions (Both Ovens)
Cooking Technology Convection
Self-Clean Oven Door Lock Automatic
Control Type 7" Full-Color Touch LCD Screen
Connected Capabilities The Google Assistant
Cooking System True European Convection with Direct Air (Upper)
Sabbath Mode Yes
Oven Cooking Modes Turkey Mode
OU Certified No
Oven Cleaning Type Self-Clean with Steam Clean Option
WiFi Connect Built-In
Cleaning Time Variable with Delay Clean Option
Oven Rack Positions (Single or Upper/Lower) 6 / 6
Oven Control Features Temperature Probe
Oven Interior Black Gloss Finish
Oven Features 10-Pass Dual Broil Element
Oven Rack Features 2 Heavy-Duty Roller Racks
Connected Capabilities Fresco
Oven Cooking Modes Convection Bake Multi-Rack
Oven Control Features Audible Preheat Signal
Connected Capabilities Amazon Alexa
Connected Capabilities IFTTT
Connected Capabilities Innit
Connected Capabilities Sonos
Cooking System True European Convection (Lower)
Oven Control Features 12-Hour Shut-Off Capability
Oven Control Features Auto Recipe Conversion
Oven Control Features C° or F° Programmable
Oven Control Features Sabbath Mode
Oven Control Features Control Lock Capability
Oven Control Features Cook Time
Oven Control Features Delay Time
Oven Control Features Electronic Clock & Kitchen Timer
Oven Control Features Remote Enabled
Oven Cooking Modes Convection Bake
Oven Cooking Modes Convection Broil Hi/Lo
Oven Cooking Modes Convection Roast
Oven Cooking Modes Thermal Bake
Oven Cooking Modes Thermal Broil Hi/Lo
Oven Cooking Modes Keep Warm
Oven Cooking Modes Proof
Oven Cooking Modes Precision Cooking Modes
Oven Cooking Modes Scan-to-Cook
Oven Cooking Modes No Preheat Air Fry
Oven Features 10-Pass Bake Element
Oven Interior 2 Halogen Interior Oven Lights (Both Ovens)
Oven Rack Features 2 Heavy-Duty Flat Racks
Connected Capabilities Google Home

Warranty

Labor Warranty Limited 1-year entire appliance
Parts Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details

Appearance

Handle Color Brushed Stainless
Installation Side-by-Side
Handle Customizable
Oven Door Features Big View Oven Window
Color Appearance Stainless Steel
Handle CAFÉ™ Pro Style
Installation Above Warming Drawer

Accessories

Air Fry Basket Optional- JXAFTRAY1VSS
Optional Accessories WB48X10056 - Large Broiler Pan
Optional Kits CXWD0H0PMSS Brushed Stainless
Optional Accessories WB18T10574 - 60" Replacement Electrical Conduit
Optional Kits CXWD0H0PMBZ Brushed Bronze
Optional Accessories UXWORXR30 - 30" Never Scrub Roller Rack
Optional Accessories WB18T10580 - 72" Replacement Electrical Conduit
Optional Kits CXWD0H0PMBT Brushed Black
Optional Kits CXWD0H0PMCU Brushed Copper
Optional Kits CXWD0H0PMCG - Brushed Brass
Optional Kits CXWD0H0PMFB - Flat Black

Capacity

Capacity (Cu. Ft.) 5.0 Upper / 5.0 Lower
Total Capacity (cubic feet) 10.00 cu ft

Dimensions & weight

Width 29.75 in.
Height 53 in.
Length 26.75 in.
Weight 260 lbs.
Oven Interior Dimensions (lower) 25 x 17-3/8 x 20-1/4
Oven Interior Dimensions (upper) 25 x 17-3/8 x 20-1/4
Cutout Dimensions (w x h x d) (in.) 28-1/2 x 51-13/16 x 23-1/2

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34.75 in.
Shipping Height 58 in.
Shipping Length 31.75 in.
Shipping Weight 278 lbs.
Total of Shipping Weight 278 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 24.41 ft³
Dimensional Weight 303.44 lbs.
Total of Cubes 24.41 ft³
Total of Dimensional Weight 303.44 lbs.

Description

Are you in the market for a new oven that will elevate your cooking experience to the next level? Look no further than the Cafe 30" Smart Double Wall Oven with Convection. With a modern stainless steel appearance and a generous 10.0 cu. ft. capacity, this oven is the perfect addition to any modern kitchen. The 7" Full-Color Touch LCD Screen Control makes it easy to operate this smart oven, and the Big View Oven Window lets you keep an eye on your food without having to open the door. The Hidden Bake Oven Interior, 6 Embossed Rack Positions, and Closed Door Broiling feature make cooking more efficient and seamless. The Cafe double wall oven boasts advanced features that make it stand out from its competitors. With Built-In WiFi and the SmartHQ App, you can control and monitor the oven from anywhere using your smartphone or tablet. This means that you can start preheating the oven or adjust the temperature without having to leave the comfort of your couch or while you're out running errands. The Self-Clean with Steam Clean Option is another game-changing feature that makes cleaning up a breeze. You no longer have to worry about scrubbing away at stubborn stains or dealing with harsh chemical cleaners. With the push of a button, the oven uses steam to loosen and remove food particles and spills, leaving you with a sparkling clean oven in no time. The Scan-to-cook technology takes the guesswork out of cooking. With this feature, you can simply scan the barcode on your food packaging, and the oven will automatically adjust the temperature and cook time to ensure that your food is cooked to perfection. This feature is especially helpful for those who are new to cooking or for those who simply want to save time and effort. Finally, the smart system in the Cafe double wall oven automatically tracks progress, modifies temperatures, and adjusts cook times to ensure that your food is cooked to perfection every time. You can rest assured that your food will come out just the way you want it, whether you're cooking a roast, baking a cake, or broiling your favorite dish. Investing in the Cafe double wall oven means investing in your culinary future. With its cutting-edge features and sleek design, this oven will revolutionize the way you cook and entertain. Don't settle for less than the best – upgrade your kitchen with the Cafe 30" Smart Double Wall Oven with Convection today.


Product Features

  • Create a look that matches your personal style
    Select any combination of premium finishes and hardware options to create a stunning look customized to any owner’s taste

Key Features

Built-In WiFi, Powered by SmartHQ App

Manage all aspects of your kitchen with the help of the SmartHQ™ App or your voice assistant (Select features require WiFi Connection) See details

Personalized Features + Upgrades

Usher in the latest features by downloading cooking upgrades right to your oven, putting Air Fry and more in your repertoire

The oven rack that handles it all

Easily remove heavy dishes with a roller rack that is specially designed to glide smoothly

The perfect fit you’ve always dreamed of

When you’re updating your kitchen, attention to detail is a priority. That’s why CAFÉ™ wall ovens are guaranteed for an exact fit or CAFÉ™ Appliances will pay up to $300 toward modifications.

Clean up has never been easier

Keep your oven looking like new at all times with a steam clean option for small spills and a self clean cycle for larger messes

Prepare foods to perfect doneness

Get roasts and meats just right with a temperature probe that lets you monitor progress on the wall oven screen, eliminating the need to open the oven door during cooking

More heat coverage means better results

Ensure even baking with an element that covers more surface area for better distribution of heat

An even broil is yours

Achieve completely even browning on any size dish with a full-coverage broil element

Precision is the name of your cooking game

Confidently try new recipes and perfectly execute your favorites, using a smart system that automatically tracks progress, modifies temperatures and adjusts cook times

Brighten up life in the kitchen

Easily navigate settings using a stunning full color display that adds an unexpected touch of style to your kitchen, including custom screen backgrounds and weather updates

The perfect bake is now perfectly easy

Achieve unrivaled performance with the only system that delivers top-down true convection for consistent results on special occasion favorites like roasts, chicken, turkey and more

No preheat, no hassle

Save time with a variety of precision cooking modes that eliminate the need for preheating

Fried taste. Crisp texture. Less oil.

Make your favorite "fried" foods healthy, thanks to Air Fry that crisps without using oil for frying

Enjoy convenient temperature control from anywhere

Preheat while running errands or change oven temperatures while doing yard work with the CAFÉ™ Appliances Kitchen app

From The Manufacturer

Videos

Rebates

Café Fit Guarantee Rebate – Upgrade Your Kitchen Risk-Free in 2026

Café Fit Guarantee Rebate – Upgrade Your Kitchen Risk-Free in 2026

OFFER VALID REGARDLESS OF PREVIOUSLY PURCHASED BRAND.
Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Rebates
  • Reviews
Sale price $12,644.53 Regular price $20,158.15 Save $7,513.62 / 37% OFF

Product Details for Cafe CJE23DP2WS1

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Overall Depth 31.75 in
Overall Height 69.875 in
Height to Top of Hinge 69.75 in
Net Weight 360 lb
Overall Width 35.625 in
Back Air Clearances 2 in
Overall Depth with Handle 31.75 in
Approximate Shipping Weight 382 lb
Depth with Door Open 90° 43.375 in
Width w/Door Open 90 Degrees Incl. Handle 44.875 in
Case Depth Without Door 24.5 in
Top Air Clearances 1 in
Depth Without Handle 29.25 in
Height to Top of Case 68.625 in
Side Air Clearances 1/8 in

Features

Temperature Management Features Multiflow Air System
Center Drawer Features Removable Drawer Liner
Control Type Electronic Temperature Controls
Dispenser Features Dual-Dispense AutoFill Pitcher (BPA-free and dishwasher safe)
Icemaker Factory-Installed
Number of Doors 4
WiFi Connect Built-In
Performance Features Easily Removable Door Gaskets
Sabbath Mode Yes
Filter Location Left door
Door Alarm Yes
Temperature Management System TwinChill™ Evaporators
Freezer Cabinet Drawer Features LED Lighting
Connected Capabilities Google Home
Freezer Door Bins 1 Tilt-Out
Defrost Type Frost Guard
Center Drawer Select Temp Convertible
Fresh Food Door Features In Door Autofill Pitcher
Leveling System 2 Point Front Adjustable
Fresh Food Cabinet Shelves 4 Total - Glass, Split
Mobility Rollers Yes
Fresh Food Door Bins 6 Total
Freezer Features Interior Lighting - LED
Exterior Style Counter-Depth
Fresh Food Features LED Back Lit Wall
Configuration French Door & Double Drawer
Refrigerant Type R600a
Dispenser Internal Water
Fresh Food Cabinet Drawers 2 Total
Water Filtration XWFE
Product Type French-Door Refrigerator
OU Certified OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately
Center Drawer Features Convertible Drawer
Performance Features Dual Evaporator Cooling
Freezer Cabinet Drawer Features 3 Tiered Baskets
Fresh Food Door Features Door Alarm
Fresh Food Door Bins 3 with Gallon Storage
Freezer Features Icemaker
Fresh Food Cabinet Drawers 1 Sealed Low Humidity
Water Filtration Water Filter Indicator Light
Product Type Bottom Freezer Refrigerator
Connected Features Door Alarm Alerts
Center Drawer Features Electronic Temp Control with 6 Temperature Settings (Soft Freeze, Meats, Beverages, Snacks, Wine, Lock)
Center Drawer Features 2 Tuck Away Sliding Glass Bin Dividers
Center Drawer Features Full-Extension Slides
Connected Capabilities Amazon Alexa
Dispenser Features Door Alarm
Freezer Cabinet Drawer Features 1 Tilt-Out Door BIn
Freezer Features Freezer Drawer with Full Extension Slides
Fresh Food Cabinet Drawers 1 Sealed High Humidity
Fresh Food Cabinet Shelves 1 Quick Space Shelf
Fresh Food Door Bins 1 Adjustable
Fresh Food Door Features Dairy Compartment
Performance Features Deluxe Quiet Design
Product Type 4-Door Refrigerator
Water Filtration GE Water Filtration 6 Month
Connected Features Water Consumption Tracking
Connected Features Icemaker On/Off
Connected Features High Temperature Alerts
Connected Features Temperature Adjustments
Connected Features Water Filter Status
Connected Features LED Light Wall Brightness
Connected Features Demand Response

Capacity

Fresh Food Capacity 13.51 cu ft
Total Capacity (cubic feet) 23.2 cu ft
Convertible Drawer Capacity 2.93 cu ft
Freezer Capacity 6.74 cu ft

Accessories

Optional Kits CXQB4H4PNSS - Brushed Stainless
Optional Kits CXQB4H4PNBZ - Brushed Bronze
Optional Kits CXQB4H4PNBT - Brushed Black
Optional Kits CXQB4H4PNCU - Brushed Copper
Optional Kits CXQB4H4PNCG - Brushed Brass
Optional Kits CXQB4H4PNFB - Flat Black

Appearance

Exterior Design Hidden Door Hinges
Door Stops Yes
Textured Steel Case Case Only - Dark Gray
Handle Color Brushed Stainless
Counter-Depth Design Yes
Door Swing French Door
Color Appearance Stainless Steel
Hidden Door Hinge(s) Yes
Counter-Depth Design true
Case Color Gray
Handle Design CAFÉ™ Pro
Handle CAFÉ™
Exterior Design Contoured Doors

Warranty

Warranty Notes See written warranty for full details
Labor Warranty Limited 1-year entire appliance
Parts Warranty Limited 1-year entire appliance

Power / ratings

Volts/Hertz/Amps 120v; 60Hz; 15A
Energy Consumption (kWh/year) 624
Electrical Requirements 120V
Hertz 60

Other

Back Air Clearances 2 in
Top Air Clearances 1 in
Side Air Clearances 0.125 in

Dimensions & weight

Width 35.63 in.
Height 69.88 in.
Length 31.75 in.
Weight 360 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 40.63 in.
Shipping Height 74.88 in.
Shipping Length 36.75 in.
Shipping Weight 382 lbs.
Total of Shipping Weight 382 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 45.74 ft³
Dimensional Weight 568.6 lbs.
Total of Cubes 45.74 ft³
Total of Dimensional Weight 568.6 lbs.

Description

Elevate your kitchen with the Café™ ENERGY STAR® 23.2 Cu. Ft. Smart Counter-Depth 4-Door French-Door Refrigerator (Model: CJE23DP2WS1). This refrigerator provides a built-in look with its counter-depth design, fitting almost flush with your cabinets and counters. The Dual-Dispense AutoFill Pitcher automatically refills when placed on its docking station, ensuring you have chilled, filtered water ready whenever you need it. The Convertible Drawer with Soft Freeze offers five customizable temperature settings—Soft Freeze, Meats, Beverages, Snacks, and Wine—allowing you to store a variety of items at their optimal temperatures. An LED Light Wall spans the back of the refrigerator, providing bright, uniform illumination for easy access to all your fresh food items. The Humidity Control System creates a climate zone that keeps leafy greens and other produce fresh for up to 2.5 times longer than standard vegetable drawers. With Wi-Fi connectivity, you can control and monitor your refrigerator remotely, ensuring optimal performance at all times. The Stainless Steel finish with Brushed Stainless handles adds a touch of elegance to any kitchen decor.



Product Features

  • Easy Clean Refrigerator
    Your stylish, easy clean refrigerator is simple to keep sparkling clean thanks to a washable drawer liner that can be removed to clean up spills with minimal effort.

Key Features

Counter Depth Design

Get a built-in look in the kitchen with a counter depth refrigerator that fits almost flush with the rest of the cabinets and counters

Unmatched Visibility Meets Undeniable Style

Relish in the bright, uniform glow of the LED Light Wall that spans the back wall of the refrigerator, designed for enhanced visibility of the fresh food section so every item is easy to find.

Keep your Leafy Greens Twice as Long*

A Humidity Control System provides a climate zone for leafy greens to last 2-1/2 times longer than standard vegetable drawers. (*Based on internal testing versus similar size vegetable drawers with humidity controls from a leading competitor.)

Flatbread Freezer Compartment

A slim, full width freezer compartment designed to hold flatbread, pizzas, and other uniquely shaped frozen items is one of the many sliding shelves and trays in this three-level storage system.

Glass Dividers in Convertible Drawer

This stylish refrigerator convertible drawer features glass dividers for a clean, aesthetic storage solution that allows for simplified organization.

Built-In WiFi

This sophisticated refrigerator with built-in WiFi allows users to expand on its convenient features and receive alerts when connected to the SmartHQ App.

TwinChill Dual Evaporators

Curated to fit your needs, this dual evaporator model features refrigerator climate zones that keep all food items perfectly fresh in both the fresh and freezer sections.

Advanced Water Filtration System

The included refrigerator water filter reduces 50+ impurities including lead, chlorine, microplastics, and PFOA/PFOS; providing clean, safe drinking water and ice (replacement water filters sold separately - check refrigerator filter compartment for compatible model)

Dual-Dispense AutoFill Pitcher

Enjoy chilled, delicious water anytime with a pitcher that automatically refills when placed on its docking station. Two curated pouring options give you quick access to filtered water.

Convertible Drawer with Soft Freeze

Experience true flexibility in this adjustable temperature drawer with 5 customizable temperature settings that range from 23 to 42 degrees: Soft Freeze, Meat, Beverages, Snacks, and Wine Bottles.

TwinChill™ Dual Evaporators

Curated to fit your needs, this dual evaporator model features refrigerator climate zones that keep all food items perfectly fresh in both the fresh and freezer sections.

From The Manufacturer

Rebates

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Rebates
  • Reviews
Sale price $12,644.53 Regular price $20,158.15 Save $7,513.62 / 37% OFF

Product Details for Cafe CVW73012MSS

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Overall Depth 18.5 in
Overall Height 1.75 in
Cabinet Width 30 in
Net Weight 43 lb
Approximate Shipping Weight 60 lb
Overall Width 30 in

Features

Cooktop Lighting Halogen
Fan Speed Control 4-Speed
Max CFM 350
Ducting Vertical Only
Light Controls On/Off/Night
Filter Cleaning Dishwasher Safe
CFM/ Sones Rating 350/6.1 (Boost Speed)
Exhaust Options Vented to Outside
Product Type Wall-Mount Hood
6" Round Duct Yes
Control Type Electronic Touch
Control Location Front
Removable Grease Filter(s) Yes
CFM/ Sones Rating 330/5.4 (High Speed)
Blower Type Internal
CFM/ Sones Rating 160/.9 (Working Speed)
Exhaust Options Recirculating
Required Duct Size 6 in. Round
Control Type Backlit

Appearance

Blower / Light Switch Color Backlit
Material Steel
Color Appearance Stainless Steel

Accessories

Optional Accessories UXRC70 - Remote Control
Optional Accessories UXDC732MSS - 10 (ft.) Ceiling Duct Cover Kit
Optional Accessories JXCF71 - Charcoal Filter

Power / ratings

Amp Rating at 120V 5.3
Watts 236
Hertz 60
Electrical Requirements 120V ; 60Hz ; 5.3A

Warranty

Labor Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details
Parts Warranty Limited 1-year entire appliance

Economical / quiet

Venting Type Convertible

Dimensions & weight

Width 30 in.
Height 1.75 in.
Length 18.5 in.
Weight 43 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 35 in.
Shipping Height 6.75 in.
Shipping Length 23.5 in.
Shipping Weight 60 lbs.
Total of Shipping Weight 60 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 0.56 ft³
Dimensional Weight 5.85 lbs.
Total of Cubes 0.56 ft³
Total of Dimensional Weight 5.85 lbs.

Description

Easily eliminate odors that result from cooking large meals with a 350 CFM Venting System. Additional lighting features, like Electronic Backlit Controls, Dual Halogen Cooktop Lighting, and a Night Light mean you have the light you need when and where you need it - even for those midnight snacks.

Key Features

Design a kitchen that breathes

Keep your kitchen smelling fresh and ready for guests with a 350-CFM venting system with boost that removes smoke, grease, odors and moisture

Enjoy effortless control

Add a conversation-starter to your kitchen with electronic backlit controls that look great and are easy to use

Create a warmly lit atmosphere

Clearly watch the progress of preparing your favorite meals with dual halogen cooktop lighting that brightly illuminates the cooking surface

Light up your night

See your way through midnight snacking with a night light that softly illuminates the cooktop and surrounding areas

Freshen up your kitchen air

Fill the kitchen with fresh air with two convertible venting options: recirculating or external venting

Control at your fingertips

Share favorite stories without interruption, thanks to an optional remote control that can change lighting and fan speed settings from anywhere in the kitchen.

Never forget to power down

Keep conversations flowing without interruption thanks to an auto-off feature that deactivates the vent after 15 minutes

Clean up cleaning up

Simplify clean-up with a dishwasher-safe filter that removes grease and can be cleaned alongside dishes too

From The Manufacturer

Rebates

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $12,644.53 Regular price $20,158.15 Save $7,513.62 / 37% OFF

Product Details for Cafe CDT888P2VS1

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Overall Depth 24 in
Overall Height 34 in
Height w/ Legs Retracted - Minimum Height 33.375 in
Cabinet Width 24 in
Net Weight 124 lb
Overall Width 23.75 in
Approximate Shipping Weight 137 lb
Overall Depth with Handle 27.4 in
Height w/Legs Extended - Maximum Height 34.625 in
Depth with Door Open 27.5 in
Depth Without Handle 24 in
Cutout Height (in) 33.5
Cutout Width (in) 24
Cutout Depth (in) 24

Features

Wash System 800 Series
Sensor Clean Sensor
Lower Rack Ball-Tip Tines
Tub Type Tall Tub
Leveling System 3 Point Leveling
OU Certified No
Additional Protection Leak Defense with Active Flood Protect
Number of Place Settings 16
Dishwasher Options WiFi/Remote Enabled
Latch Pull with Handle
Number of Options 15
Style Built-In Top Control
Water Filtration System 100% Filtration with Hard Food Disposer and Removable Filter
Cutlery Tray One piece removable 3rd rack
Rack Features Lid Manager
Racking Material Nylon
Smart Assist Yes
Floor Protection Leak Defense with Active Flood Protect - Leak Pan with Sensor
Dishwasher Cycles Normal
Rack Color Black Pearl
Dispenser Rinse Aid with Indicator and Adjustment
WiFi Connect Built-In
EcoBalance Compatible Yes
Control Type Top Controls
Racking System Full 3rd rack
Dishwasher Drying Features Ultra/Normal/Off
Interior Lighting Yes - 4 - Café Expression
Wash Arms Upper
Wash System Features Variable Speed Dual Pumps and Motors
Top Rack/3rd Rack Washing, Sliding 3rd Rack w/ removable caddy
Exterior Style Customizable Professional
Product Type Built-In
Connected Capabilities Google Home
Upper Rack Smooth Glide Upper Rack
Dishwasher Control Features Last Cycle Memory
Number of Cycles 6
Tub and Door Liner Stainless Steel
Sabbath Mode Yes
Showroom Power Mode Yes
Lower Rack 1/2 fixed tines, 1/2 fold down tines
Dishwasher Options Delay Start 1-12 Hr.
Rack Features Ball-Tipped Tines
Dishwasher Cycles Cascade Platinum Plus (on app)
Control Type Cap Touch Controls
Dishwasher Drying Features Fan Assist Dry
Wash Arms 4 Wash Levels
Wash System Features Automatic HotStart
Upper Rack 1/2 fixed tines, 1/2 fold down tines
Dishwasher Control Features Cycle Countdown with Bi-Color LED Status Light on door
Additional Protection Active Flood Protect
Control Type 8 Touchpads
Dishwasher Control Features Cycle Progress Indicators: Clean/Sanitized/Smart Assist/WiFI/Remote Enabled
Dishwasher Control Features Audible End-of-Cycle Signal
Dishwasher Cycles Auto Wash
Dishwasher Cycles Cookware
Dishwasher Cycles Gentle
Dishwasher Cycles Express
Dishwasher Drying Features Dual Convection Ultra Dry
Dishwasher Options Favorites
Dishwasher Options Presoak + Sanitize (Certified to NSF Standard 184)
Dishwasher Options Hi-Temp Wash
Dishwasher Options Silverware Wash
Dishwasher Options Heated Dry Off
Dishwasher Options Normal Dry
Dishwasher Options Ultra Dry
Dishwasher Options Lock Controls
Dishwasher Options Bottle Wash (on app)
Dishwasher Options Wash Zones/Half Load (on app)
Dishwasher Options Favorites (on app)
Dishwasher Options Sabbath Mode
Dishwasher Options Start/Cancel
Dispenser Electronic Low Rinse Aid Sensor
Lower Rack 1 Rack handle
Rack Features Adjustable Upper Rack
Rack Features Full Extension Slides - Upper
Rack Features Cafe Flex Silverware Basket
Upper Rack Premium Height Adjustable
Upper Rack Ball-Tip Tines
Upper Rack Fixed tines with Bottle Jets
Upper Rack 1 Rack handle
Upper Rack Lid Manager
Wash Arms Lower
Wash Arms Middle
Wash Arms 3rd Rack
Wash Arms Bottle Jets
Wash Arms Deep Clean Silverware Jets
Wash System 4-Level
Wash System Features Automatic Temperature Control
Wash System Features Drain Pump
Wash System Features Hard Food Disposer with removable filter
Wash System Features Deep Clean Silverware Jets
Wash System Features 90+ Spray Jet Wash System
Wash System Features Hidden Heater
Wash System Features Bottle Jets (4)
Wash System Features Middle Wash Arm
Wash System Features Lower Wash Arm
Connected Capabilities Amazon Alexa

Power / ratings

Power Connection Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
Energy Consumption (kWh/year) 240
Electrical Requirements 120V ; 60Hz ; 10.2A
Calrod Heater Watts 1200/400
Volts/Hertz/Amps 120V; 60Hz; 10.2A
Hertz 60
Watts 1296

Economical / quiet

Door Insulation Mastic
Quiet Package 39 dBA
Outer Wrap Full-wrap Blanket
Motor Type Variable Speed
Quiet Features Tub Collar Trim
Quiet Features Sealed Toe Kick
Door Insulation Insulation
Outer Wrap Bitumen
Quiet Features Quiet Water Valve

Accessories

Optional 12' Drain Hose Optional hose kit (WD24X10065)
Optional Kits CXADTH1PVSS Brushed Stainless
Optional Kits CXADTH1PVBZ Brushed Bronze
Optional Kits CXADTH1PVCU Brushed Copper
Optional Kits CXADTH1PVBT Brushed Black
Optional Kits CXADTH1PVCG Brushed Brass
Optional Kits CXADTH1PVFB Flat Black

Appearance

Installation Side Installation or Top Installation Included
Handle Color Brushed Stainless
Door Style Long Door with Top Controls
Door Appearance Full-length flat door
Color Appearance Stainless Steel
Control Panel Color Matte Dark Slate, Fingerprint Resistant
Handle Design Customizable
Handle CAFÉ™
Installation Flush Cabinet Installation
Installation Built-Up Floor Capable

Warranty

Labor Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details
Parts Warranty Limited 1-year entire appliance

Dimensions & weight

Width 23.75 in.
Height 34 in.
Length 24 in.
Weight 124 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 28.75 in.
Shipping Height 39 in.
Shipping Length 29 in.
Shipping Weight 137 lbs.
Total of Shipping Weight 137 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 11.22 ft³
Dimensional Weight 139.42 lbs.
Total of Cubes 11.22 ft³
Total of Dimensional Weight 139.42 lbs.

Description

Luminous LED Lights
Shine bright with uniform LED lighting throughout this well lit dishwasher for simplified loading and unloading.

39 dBA Dishwasher
Enjoy a peaceful kitchen while delivering a powerful wash thanks to this super silent 39 dBA dishwasher.

CustomFit Top Rack with Ultra Wash
Load your way in this dishwasher with a customizable top rack. The CustomFit Top Rack can be configured to maximize flexibility. In addition, the UltraWash Zone uses powerful jets to target stuck-on food on silverware, cooking utensils and ramekins.

CustomFit Basket with Ultra Wash
Load more than just silverware in this flexible basket with dedicated wash jets below. The CustomFit Basket holds all your silverware, stemware and reusable straws, so items that were hand wash before can safely be washed in the dishwasher.

CustomFit Lid Caddy
Cup lids and blender blades can easily dry thanks to the CustomFit Lid Caddy. It is designed to hold items at the perfect position for cleaning and restricts water from pooling, so pieces come out clean and dry after every wash.

Smart Features Powered by SmartHQ(TM)
Built-in WiFi and the SmartHQ(TM) app make it easy to control and monitor your smart dishwasher from anywhere. You can also conveniently access the latest features like Favorites, which allows you to access your favorite cycles with a single button.

Smart Assist
Smart Assist makes it simple for you to unlock optimal wash and dry performance. Innovative dishwasher sensors and intelligent machine learning enhance and improve cycles over time.

Ultra Wash & Dry
This ultra-wash and dry dishwasher ensures table-ready dishes. Ranging from gentle for delicate stemware or intense for pots and pans, flexible wash options ensure that dishes get full coverage and the right amount of pressure for an ideal clean.

Dual Convection Ultra Dry with Hidden Heat
Expect precision cleaning and superior dryness on fine china, dinnerware and plastics in this ultra-wash and dry dishwasher. The Dual Convection Ultra Dry with Hidden Heat ensures that every item is fully dried, even dishwasher safe plastics.

Customizable Dishwasher Handles
Choose from six unique CAF(EBACK)(TM) handle finishes to complement the rest of your kitchen thanks to this dishwasher with customizable hardware.

4 Bottle Wash Jets
This dishwasher with 4 bottle wash jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the jets directs water and detergent inside to effectively wash hard-to-reach areas.

Silverware Wash
Powerful jets in the top rack and and below the basket in the lower rack work in unison using targeted washing action to clean even the most stuck-on foods from silverware and cooking utensils.

Presoak + Sanitize
Save time with a high-temperature cycle that steams and sanitizes. Loosen tough soils before the wash cycle begins without the need to pre-rinse or soak. Plus, a sanitation cycle reduces 99.999% of bacteria on dishes.

Leak Defense with Active Flood Protect
Leak Defense with Active Flood Protect senses and prevents potential overflows. A powerful water sensor alerts and guides you through the new Smart Assist feature if even a small amount of water leaks below the unit.

Wash Zones
Wash a true half load in the upper or lower rack whenever you need to in this dishwasher with loading flexibility. Just choose your wash zone: upper or lower. The feature works in combination with most cycles, saving you time and conserving energy.

Key Features

Luminous LED Lights

Shine bright with uniform LED lighting throughout this well lit dishwasher for simplified loading and unloading.

39 dBA Dishwasher

Enjoy a peaceful kitchen while delivering a powerful wash thanks to this super silent 39 dBA dishwasher.

CustomFit Basket with Ultra Wash

Load more than just silverware in this flexible basket with dedicated wash jets below. The CustomFit Basket holds all your silverware, stemware and reusable straws, so items that were hand wash before can safely be washed in the dishwasher.

CustomFit Lid Caddy

Cup lids and blender blades can easily dry thanks to the CustomFit Lid Caddy. It is designed to hold items at the perfect position for cleaning and restricts water from pooling, so pieces come out clean and dry after every wash.

Smart Assist

Smart Assist makes it simple for you to unlock optimal wash and dry performance. Innovative dishwasher sensors and intelligent machine learning enhance and improve cycles over time.

Ultra Wash & Dry

This ultra-wash and dry dishwasher ensures table-ready dishes. Ranging from gentle for delicate stemware or intense for pots and pans, flexible wash options ensure that dishes get full coverage and the right amount of pressure for an ideal clean.

Customizable Dishwasher Handles

Choose from six unique CAFÉ™ handle finishes to complement the rest of your kitchen thanks to this dishwasher with customizable hardware.

4 Bottle Wash Jets

This dishwasher with 4 bottle wash jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the jets directs water and detergent inside to effectively wash hard-to-reach areas.

Silverware Wash

Powerful jets in the top rack and and below the basket in the lower rack work in unison using targeted washing action to clean even the most stuck-on foods from silverware and cooking utensils.

Presoak + Sanitize

Save time with a high-temperature cycle that steams and sanitizes. Loosen tough soils before the wash cycle begins without the need to pre-rinse or soak. Plus, a sanitation cycle reduces 99.999% of bacteria on dishes.

Leak Defense with Active Flood Protect

Leak Defense with Active Flood Protect senses and prevents potential overflows. A powerful water sensor alerts and guides you through the new Smart Assist feature if even a small amount of water leaks below the unit.

Wash Zones

Wash a true half load in the upper or lower rack whenever you need to in this dishwasher with loading flexibility. Just choose your wash zone: upper or lower. The feature works in combination with most cycles, saving you time and conserving energy.

CustomFit Top Rack with Ultra Wash

Load your way in this dishwasher with a customizable top rack. The CustomFit Top Rack can be configured to maximize flexibility. In addition, the UltraWash Zone uses powerful jets to target stuck-on food on silverware, cooking utensils and ramekins.

Smart Features Powered by SmartHQ

Built-in WiFi and the SmartHQ app make it easy to control and monitor your smart dishwasher from anywhere. You can also conveniently access the latest features like Favorites, which allows you to access your favorite cycles with a single button.

Dual Convection Ultra Dry with Hidden Heat

Expect precision cleaning and superior dryness on fine china, dinnerware and plastics in this ultra-wash and dry dishwasher. The Dual Convection Ultra Dry with Hidden Heat ensures that every item is fully dried, even dishwasher safe plastics.

Smart Features Powered by SmartHQ™

Built-in WiFi and the SmartHQ™ app make it easy to control and monitor your smart dishwasher from anywhere. You can also conveniently access the latest features like Favorites, which allows you to access your favorite cycles with a single button.

From The Manufacturer

Videos

Rebates

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

Compare with similar products

Recommendations

Previously viewed products
