SKU: NGM5059UC | UPC: 825225972600

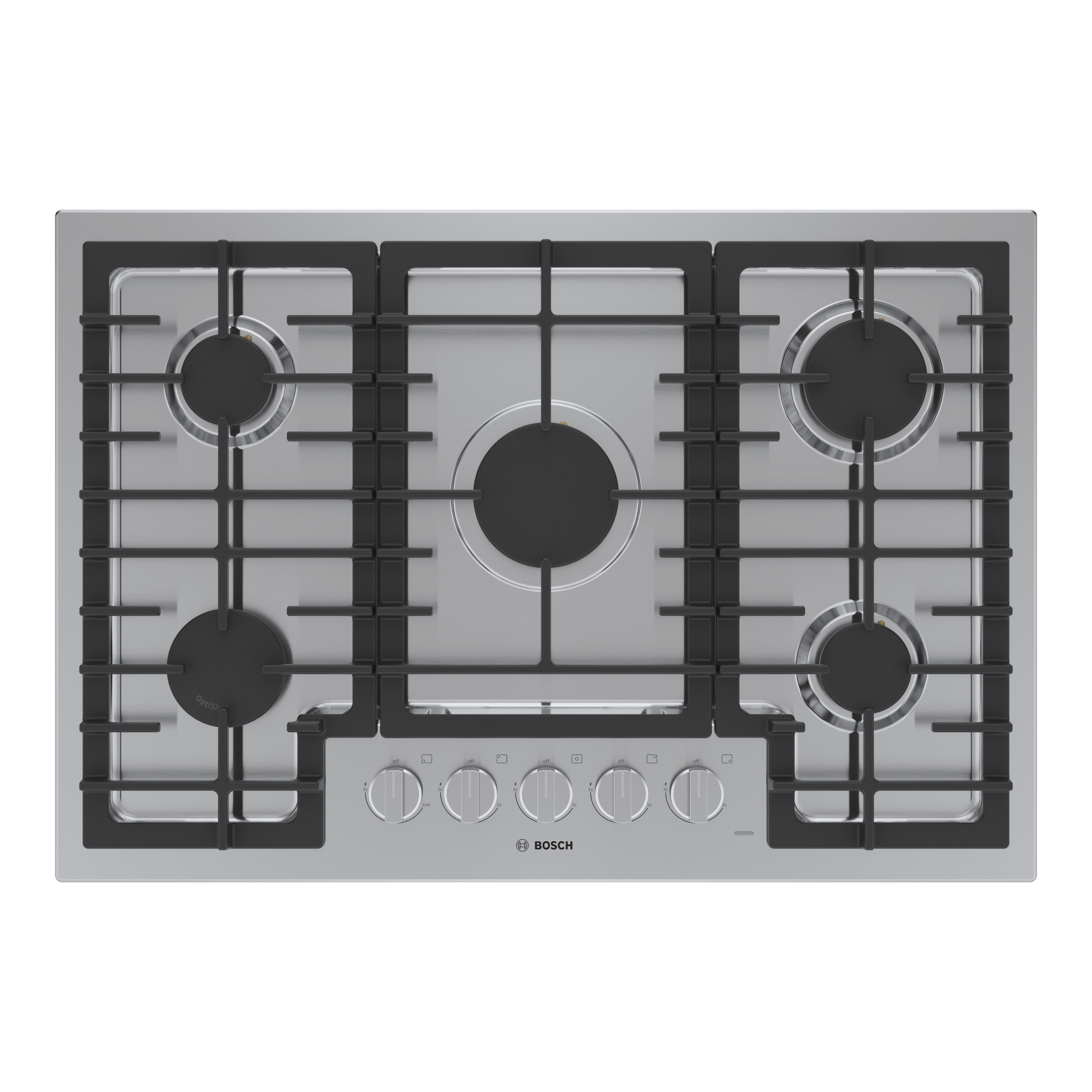

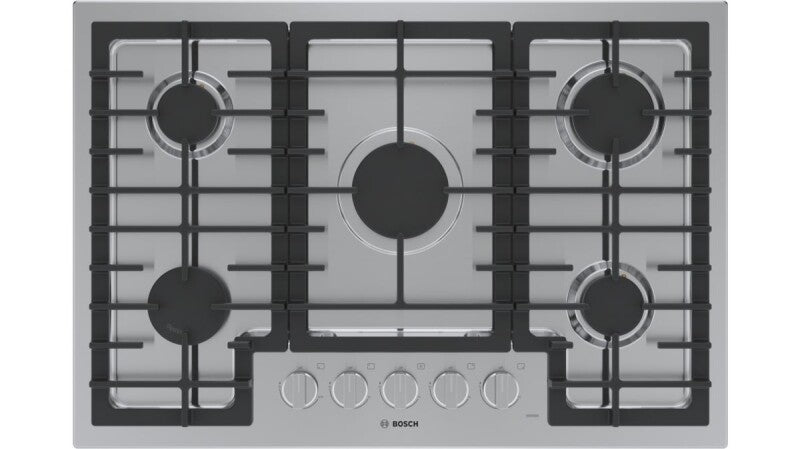

Bosch NGM5059UC 500 Series Gas Cooktop 30'' Stainless Steel

Quick Specification More details

Width:
31"
Depth:
21.25"
Height:
3.75"
Type:
Gas Cooktops

About this product

Fit multiple pans and cook with 5 burners
Slide your pans from burner to burner
Easy to clean, low-profile design
Residual Heat Indicator

Quickship

On Sale

Summer Sale

Father's Day Sale

SKU: NGM5059UC | UPC: 825225972600

Bosch NGM5059UC 500 Series Gas Cooktop 30'' Stainless Steel

$1,385.98 ~~$2,149.97~~ Save $763.99 / 35% OFF

Quantity:

Quickship

Active Rebates

Extended Protection

1-Year Extended Protection
$43.49
2-Year Extended Protection
$75.99
3-Year Extended Protection
$115.99
5-Year Extended Protection
$163.99
Manufacturer Warranty Only

Cooktop Install Kit
$40.00
Standard Cooktop Install - Direct Replacement, No Modifications
$180.00
Old Appliance Removal (Unit Must be Disconnected by Owner if Installation was Not Added)
$49.99

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
31"
Depth:
21.25"
Height:
3.75"
Type:
Gas Cooktops

About this product

Fit multiple pans and cook with 5 burners
Slide your pans from burner to burner
Easy to clean, low-profile design
Residual Heat Indicator

Product Details for BOSCH NGM5059UC

Technical Details

Accessories

Included Accessories

1 x nozzle set for liquid gas, 1 x cast iron pan support

General

Total NG BTUs	41400 Btu
Total LP BTUs	41400 Btu

Installation

Overall Appliance Dimensions (HxWxD) (in)	3 3/4" x 31'' x 21 1/4''
Required Cutout Size (HxWxD) (in)	3 3/4" x 28 15/16'' x 19 1/8''
Alternative Gas Type (Nozzle Set Included)	Liquid gas 27,5 mbar (USA)
Plug Type	120V-3 prong
Power Cord Length	40"
Fuse protection	15 A
Volts	120 V
Product Packaging Dimensions (HxWxD)	8 3/8'' x 37 1/8'' x 24 3/4''
Gas type preset	Natural gas 15 mbar (USA)

Design

Surface Materials	Stainless Steel
Grate Materials	Cast Iron with Rubber Feet

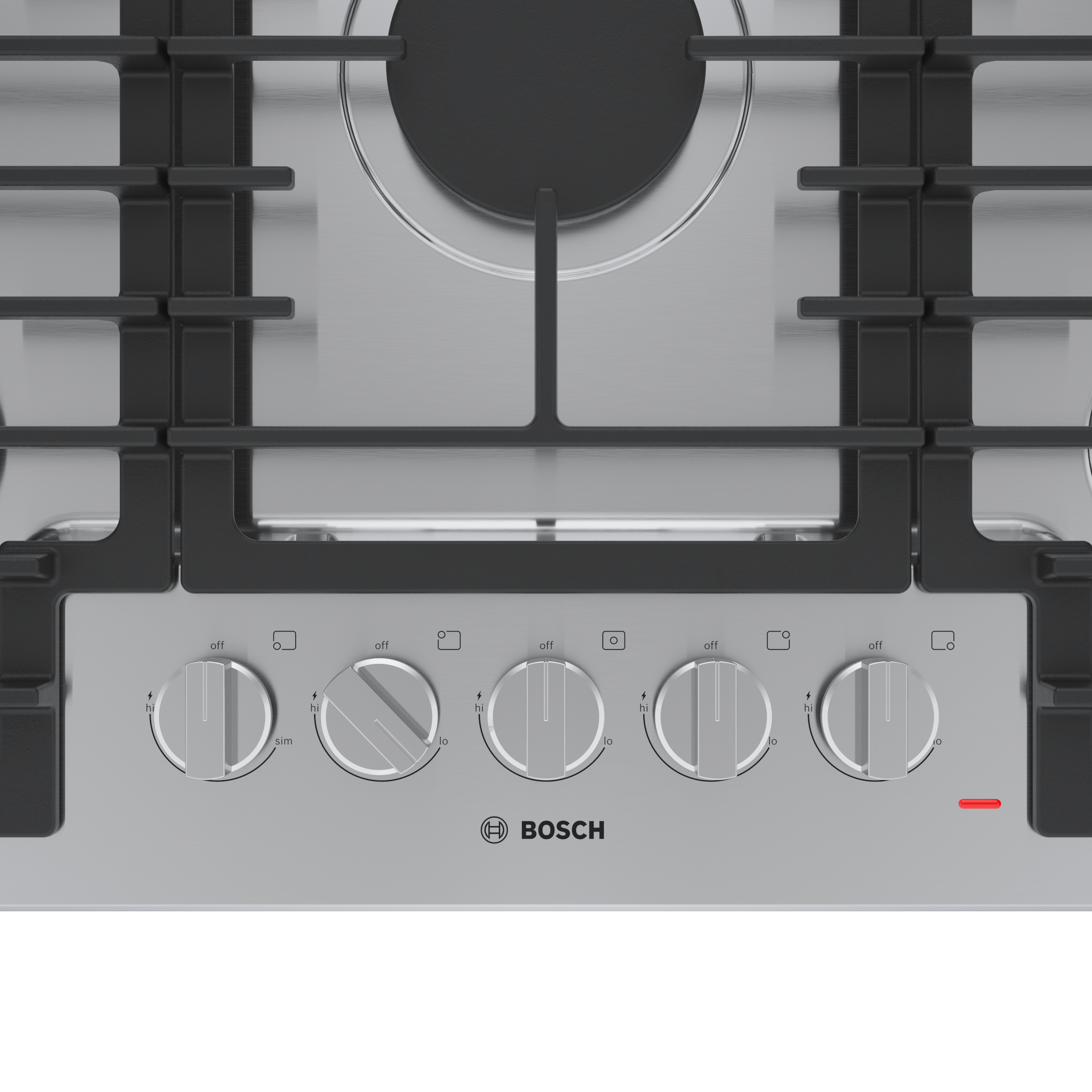

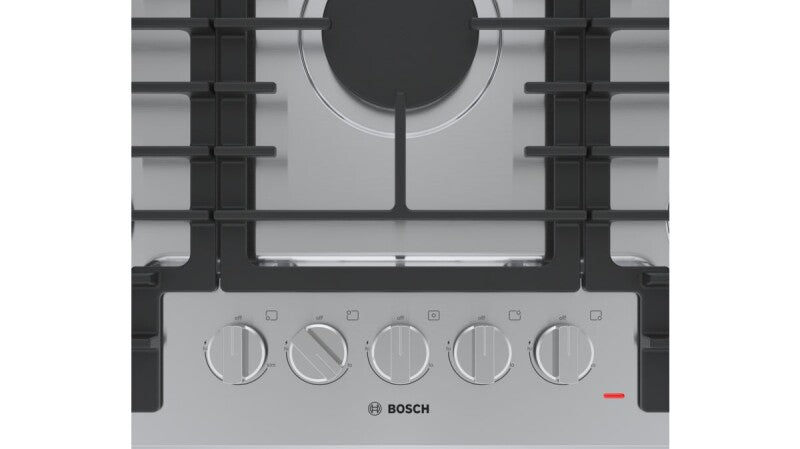

Location of Control Panel	Front

Comfort and convenience

Number of Gas Burners	5
Sealed Burners	yes
Griddle	no
ADA Compliant (When Installed to ADA requirements)	no
OptiSim® Burner	no
Special Features	Simmer Cap

Dimensions & weight

Width	31 in.
Height	3.75 in.
Length	21.25 in.
Weight	26 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	36 in.
Shipping Height	8.75 in.
Shipping Length	26.25 in.
Shipping Weight	66 lbs.
Total of Shipping Weight	66 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	1.43 ft³
Dimensional Weight	17.77 lbs.
Total of Cubes	1.43 ft³
Total of Dimensional Weight	17.77 lbs.

Safety

Flame failure safety device for each burner,

Description

Bosch gas cooktops are engineered to perform precisely, offering high heat and low simmer options for optimal cooking flexibility. Electronic re-ignition will automatically re-ignite the burner in case the flame goes out. Its seamless, one-piece stainless steel design makes clean-up simple. The distinctive red LED light will indicate when the burners are on.

Product Features

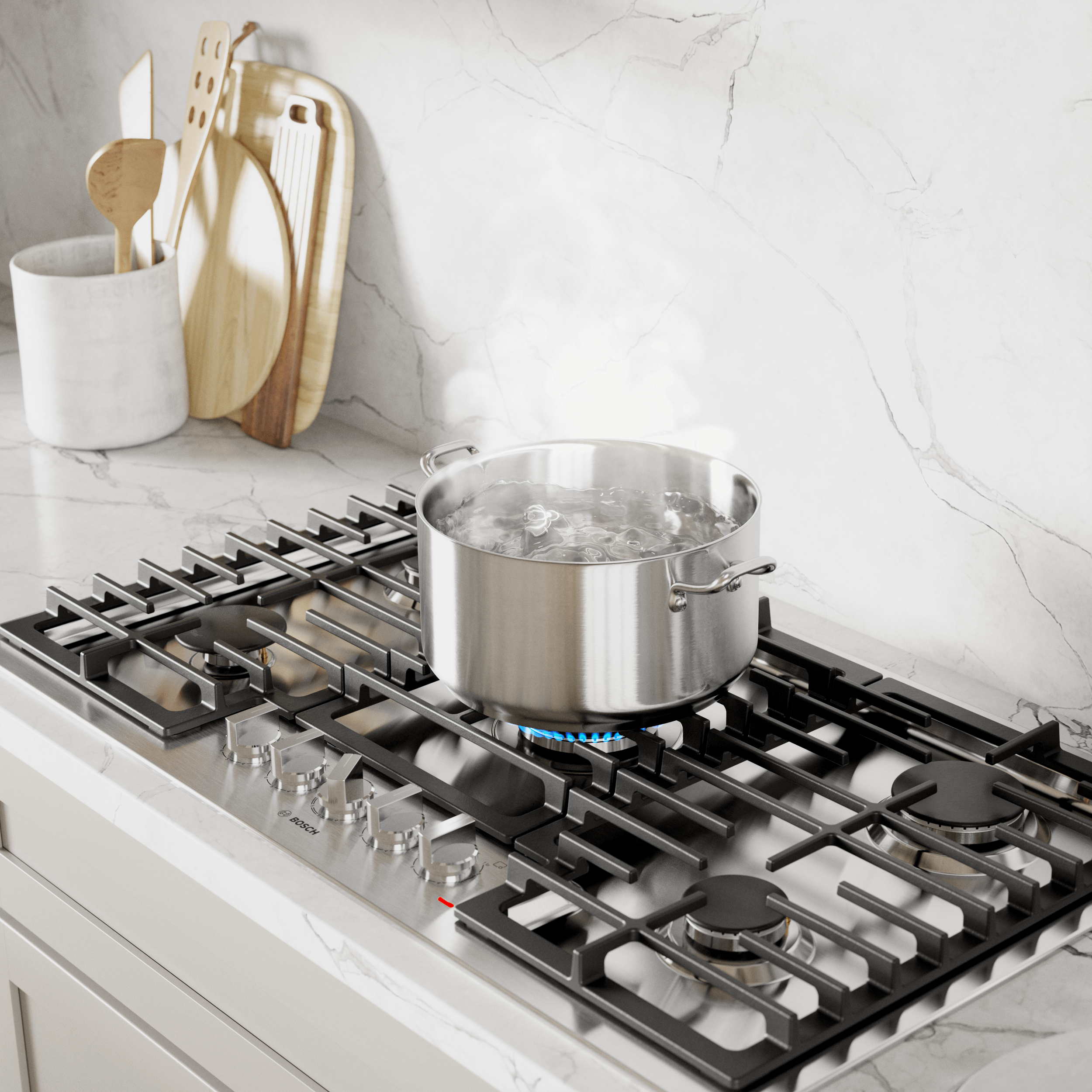

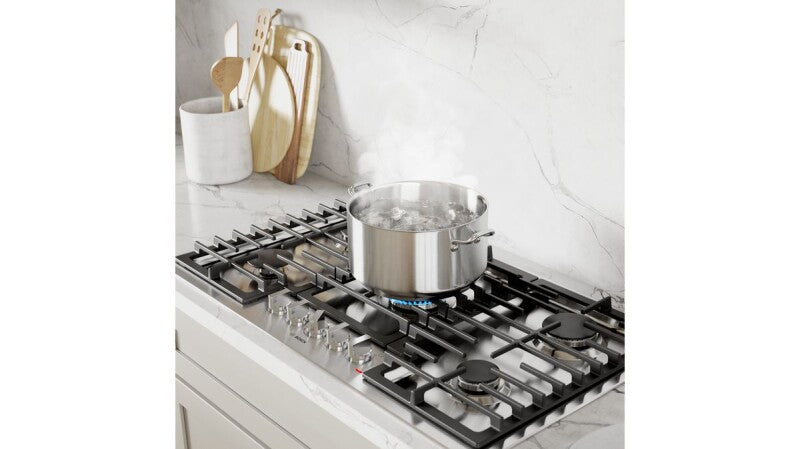

Fit multiple pans and cook with 5 burners

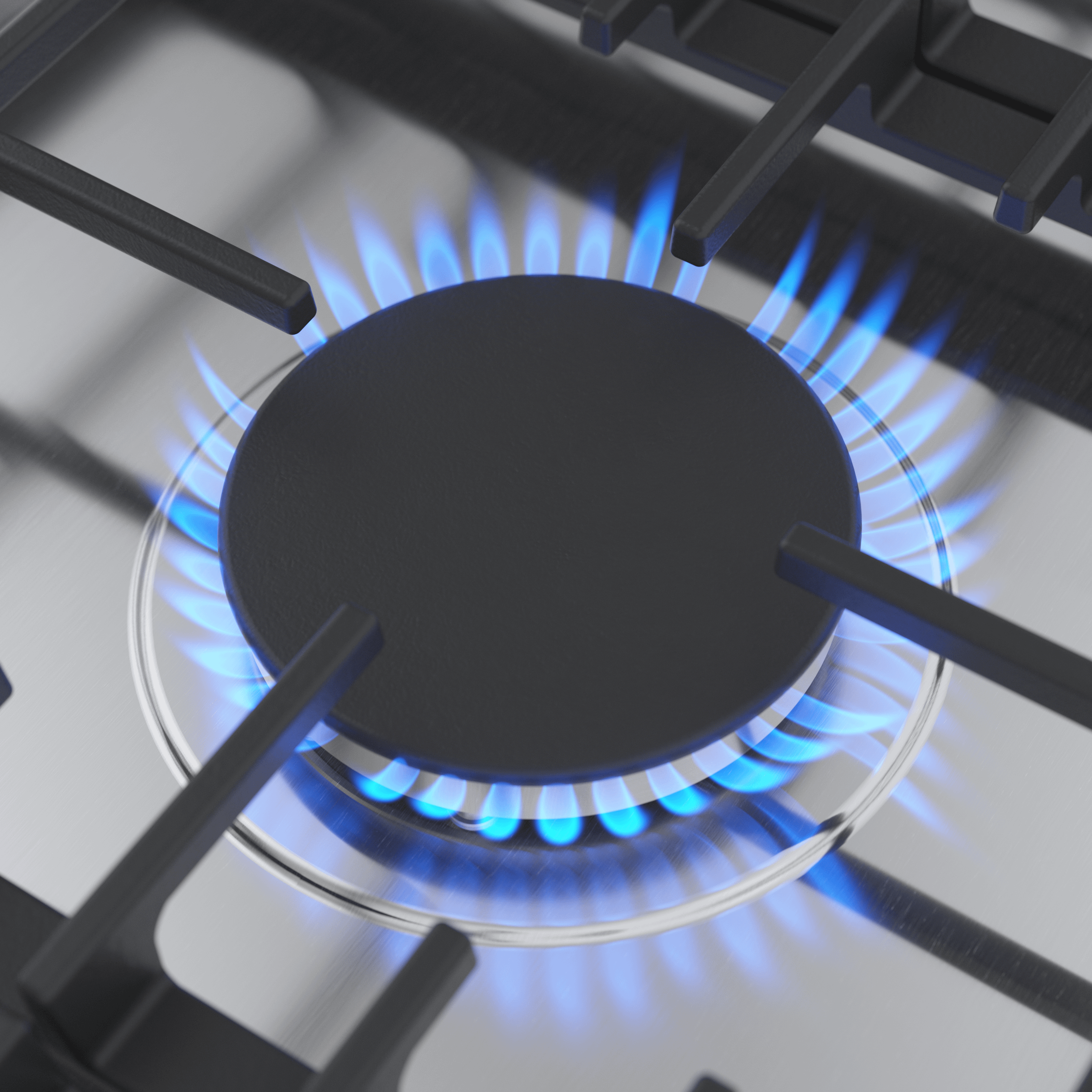

5 powerful high-efficiency gas burners allow you to cook multiple dishes with a full range of BTU performance.

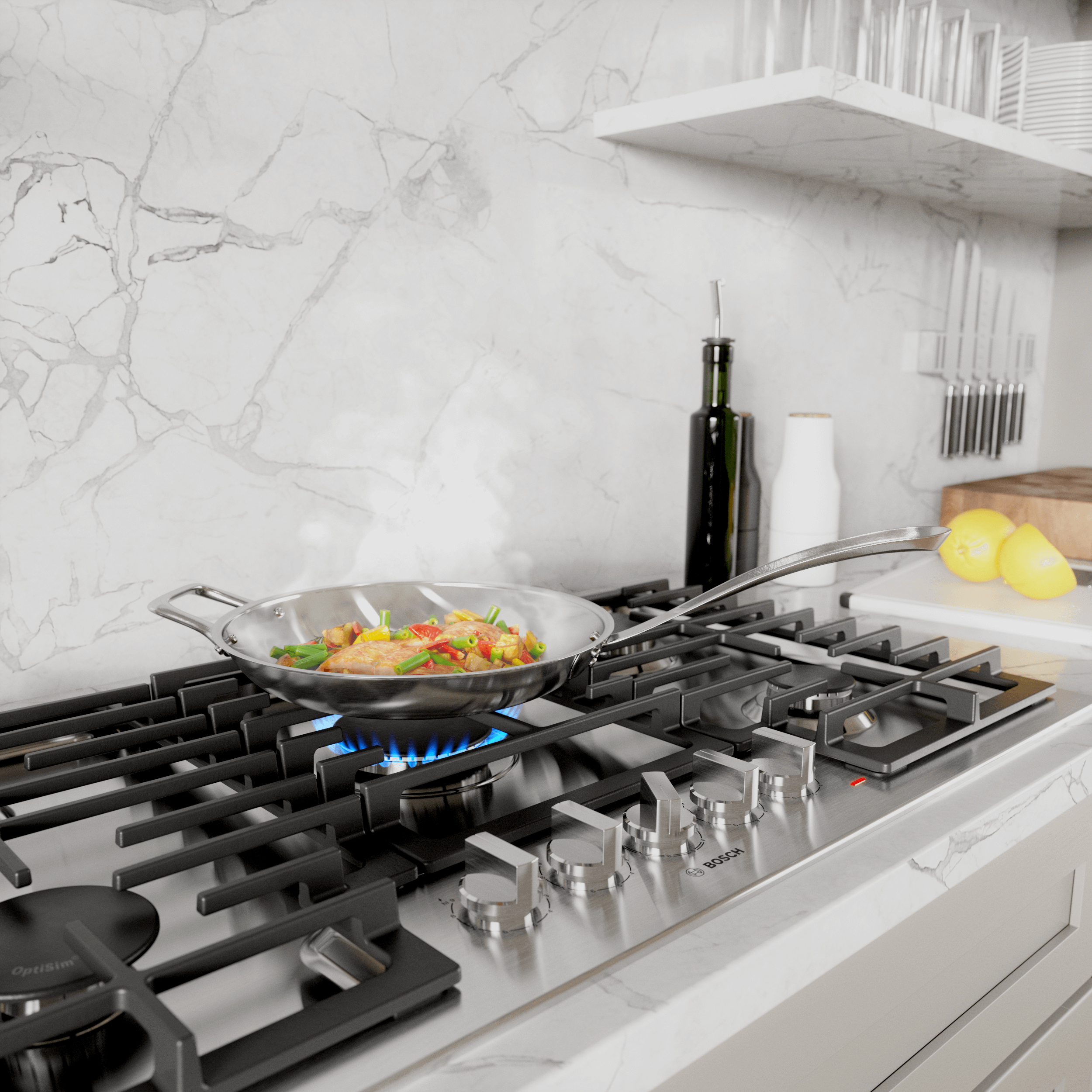

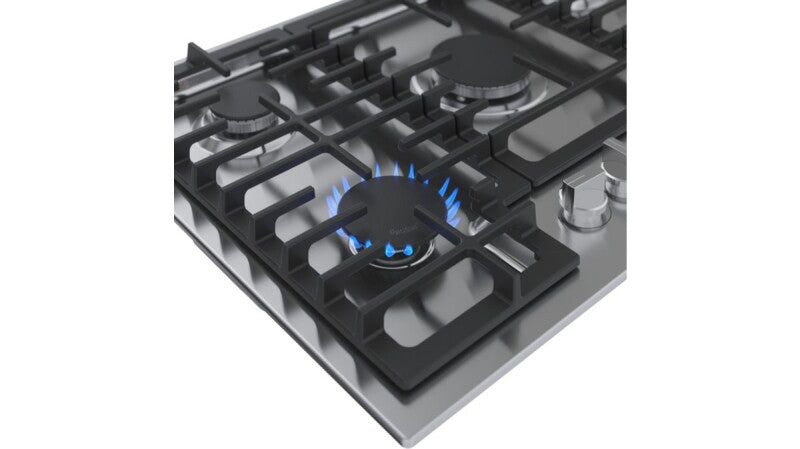

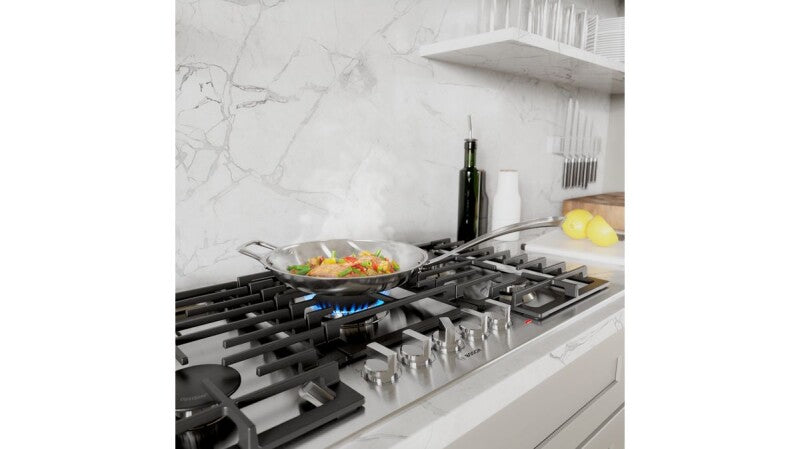

Slide your pans from burner to burner
The full-width continuous cast iron grate design makes sliding heavy pots easier around the cooking surface.
Easy to clean, low-profile design
The low-profile cooking surface provides a timeless, streamlined look while keeping spills contained and makes clean-up easier than ever.
Residual Heat Indicator
Residual heat indication shown on the cooktop with a 'H' for hot to touch or 'h' for warm taking the guesswork out of safety.

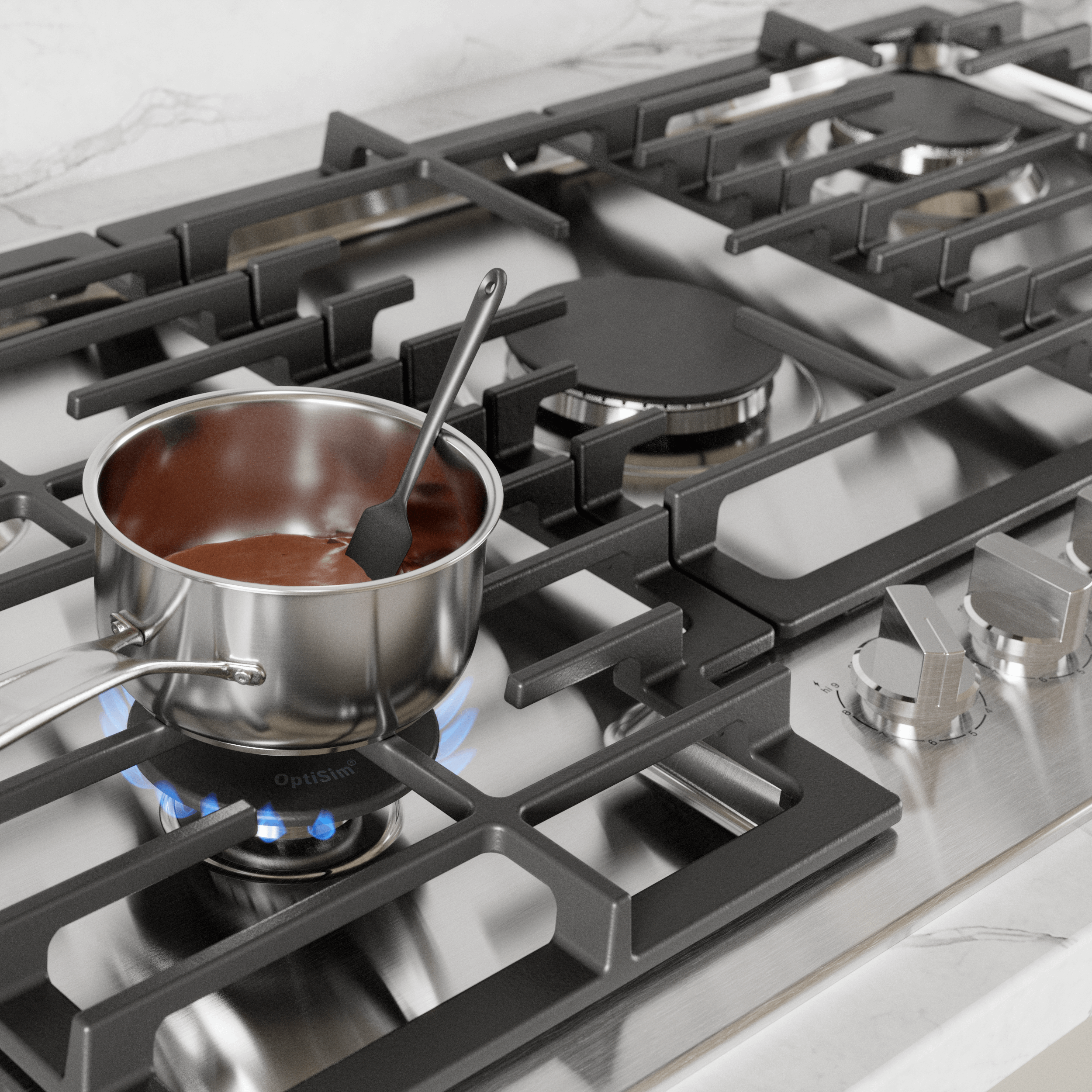

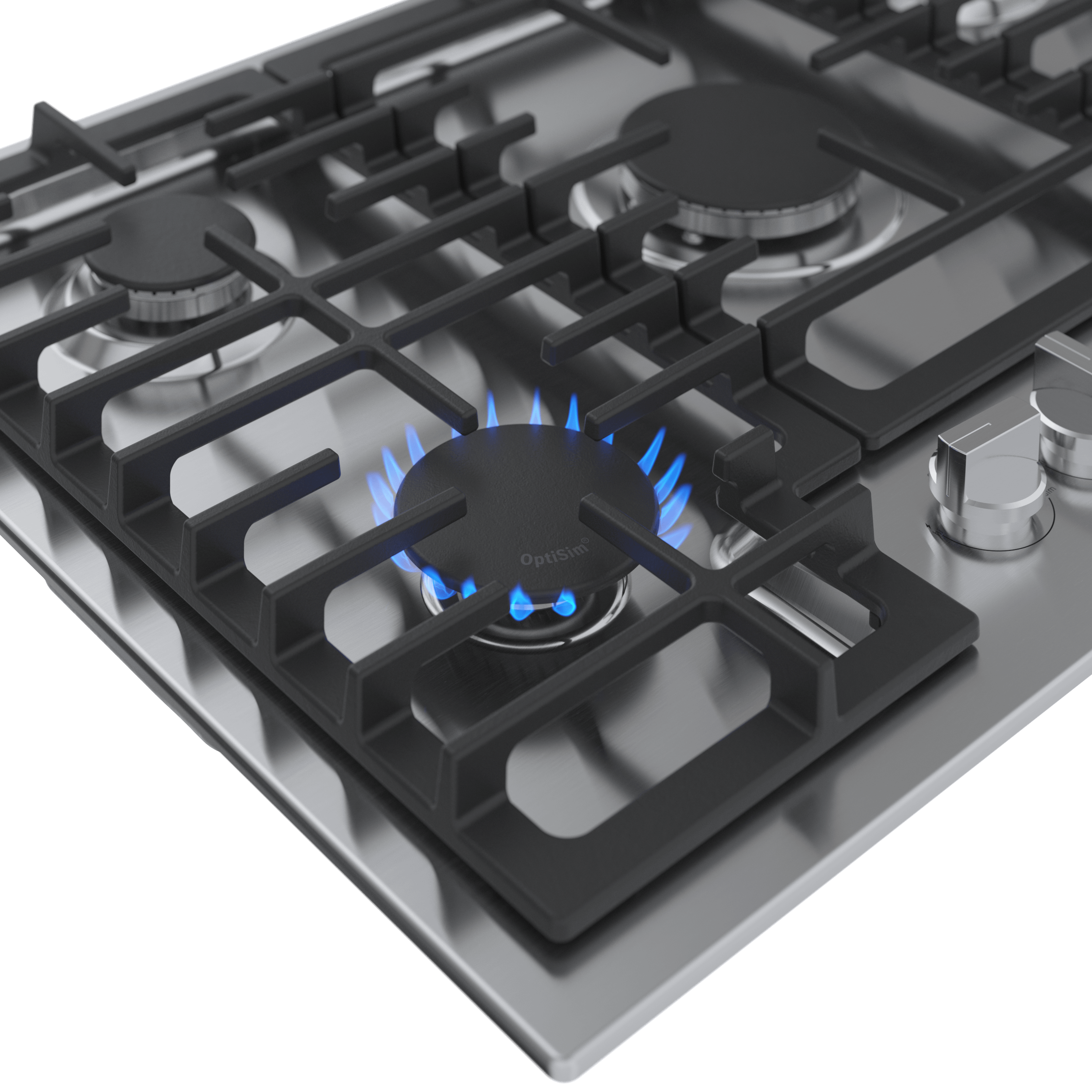

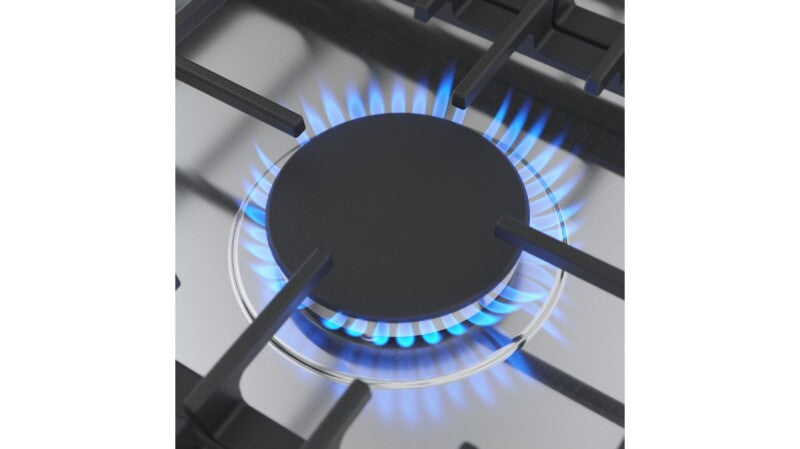

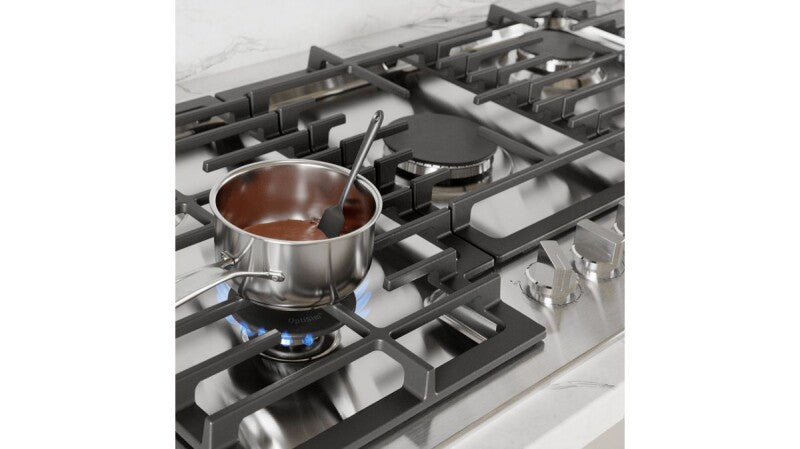

Simmer delicate sauces with the OptiSim® Burner
The OptiSim burner design is wider and thicker which diffuses heat evenly for better flame control when simmering delicate sauces.
