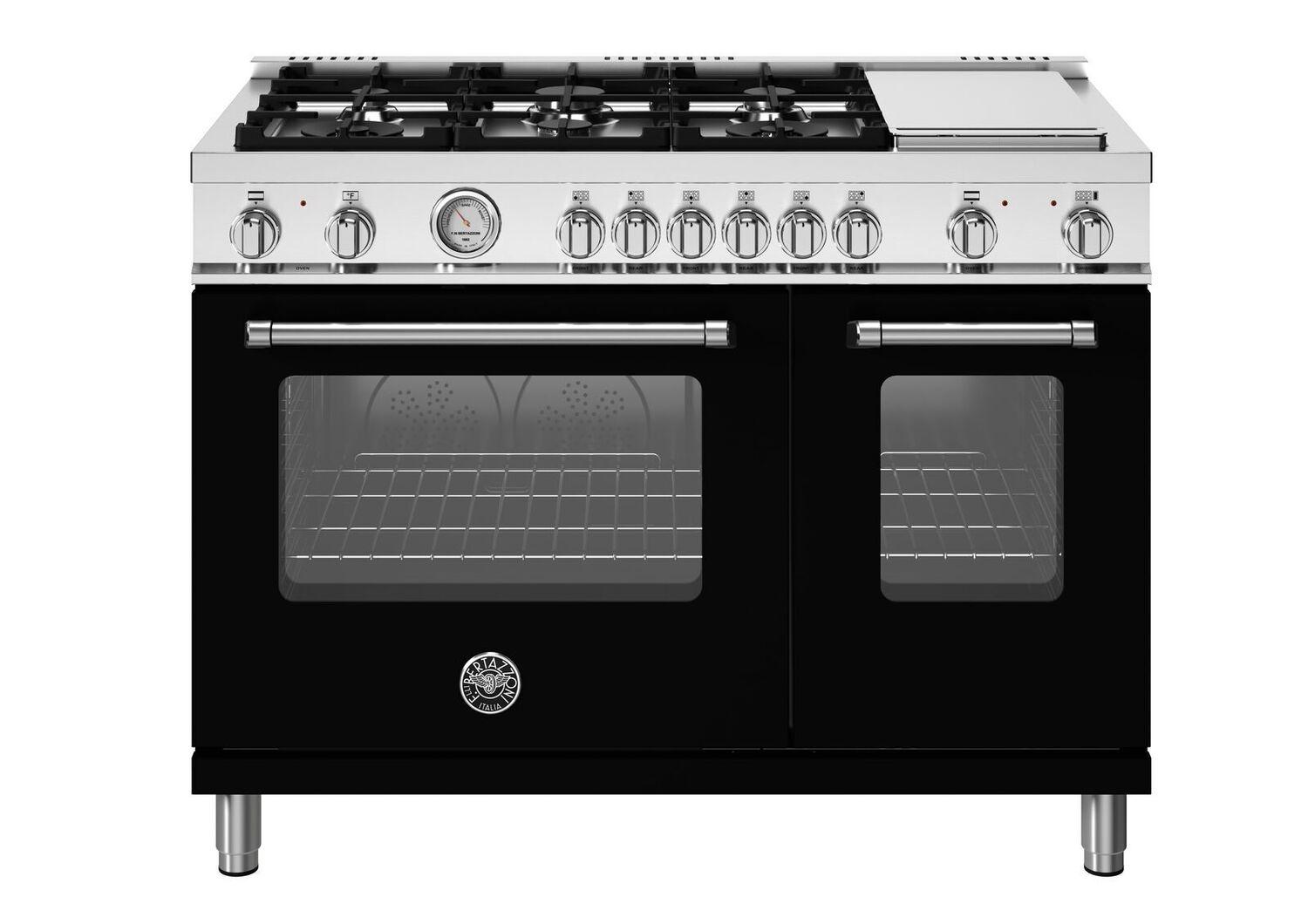

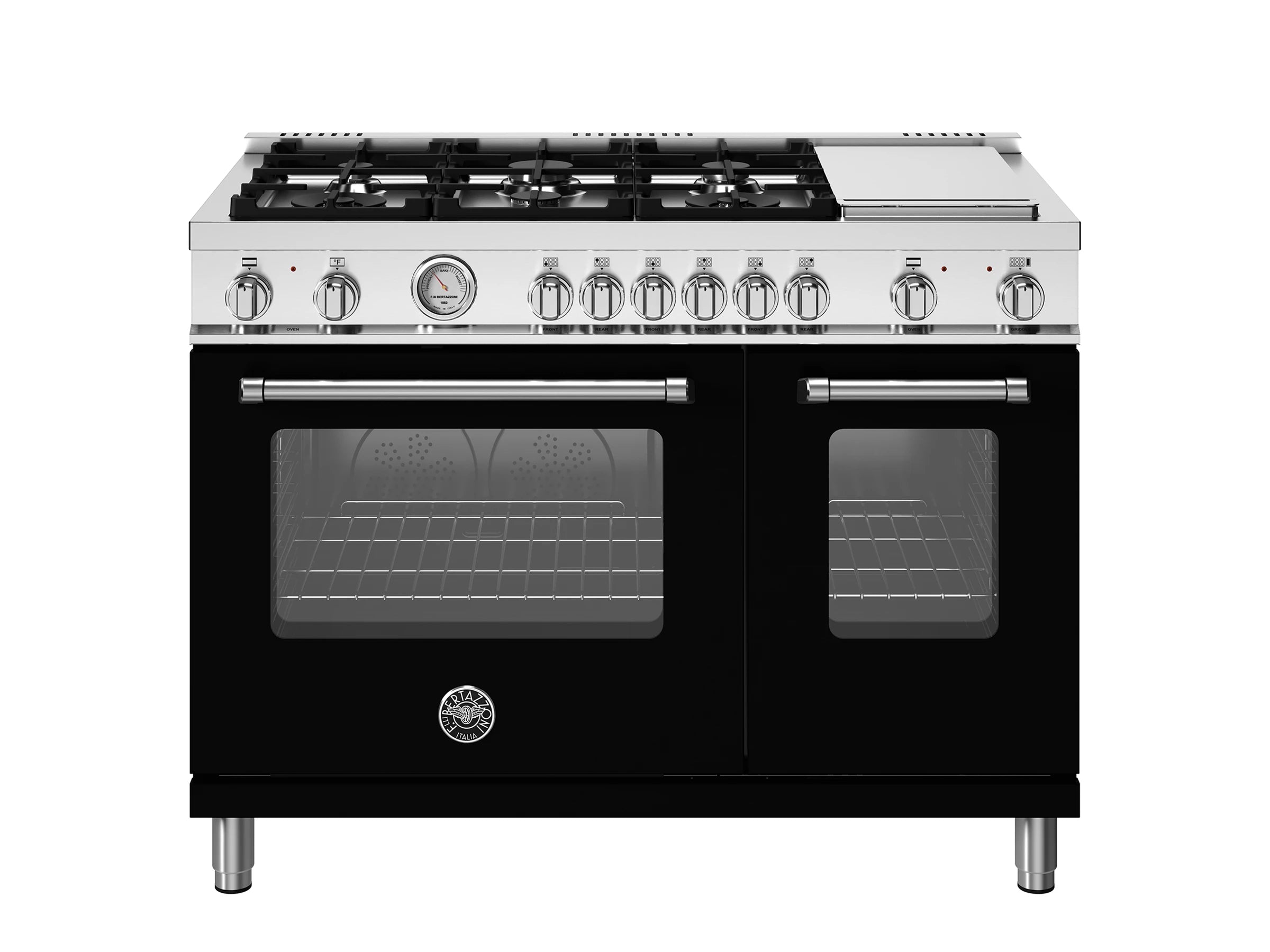

Product Details for BERTAZZONI MAS486GDFMNEV
Technical Details

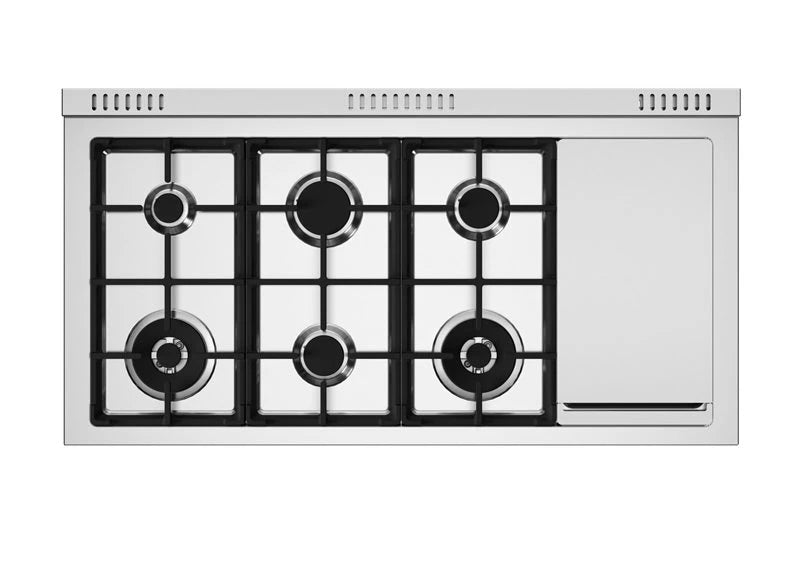

Worktop
| Size | 48.0 |
| Cooking zones | 7 |
| Number of gas burners | 6 |
| Griddle zones | electric |
| Worktop type | gas / electric griddle |
| Worktop design | stainless steel with seamless edges |

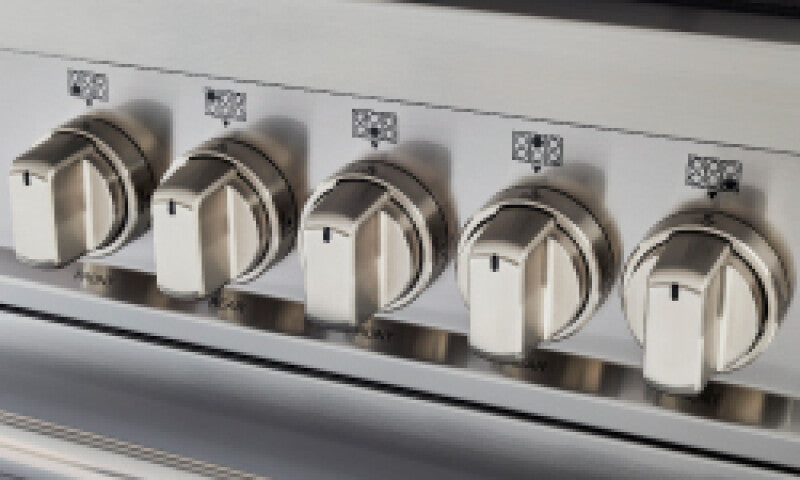

| Worktop controls | metal knobs |
| Knobs | metal |
| Burner type | aluminum |
| Grates | cast iron |
| Continous grating | yes |
| Thermocouple safety device | yes |
| One-hand ignition | yes |
| Backguard | yes |
| Wok ring | yes |
| Simmer ring | yes |
Cooking zones
| Power burners | 2 |
| Rapid burner | 2500 |
| Medium burner | 2 |
| Simmer burner | 750 |
| Griddle power | 1100 |
| Griddle dual control | yes |
| Griddle drip tray | yes |

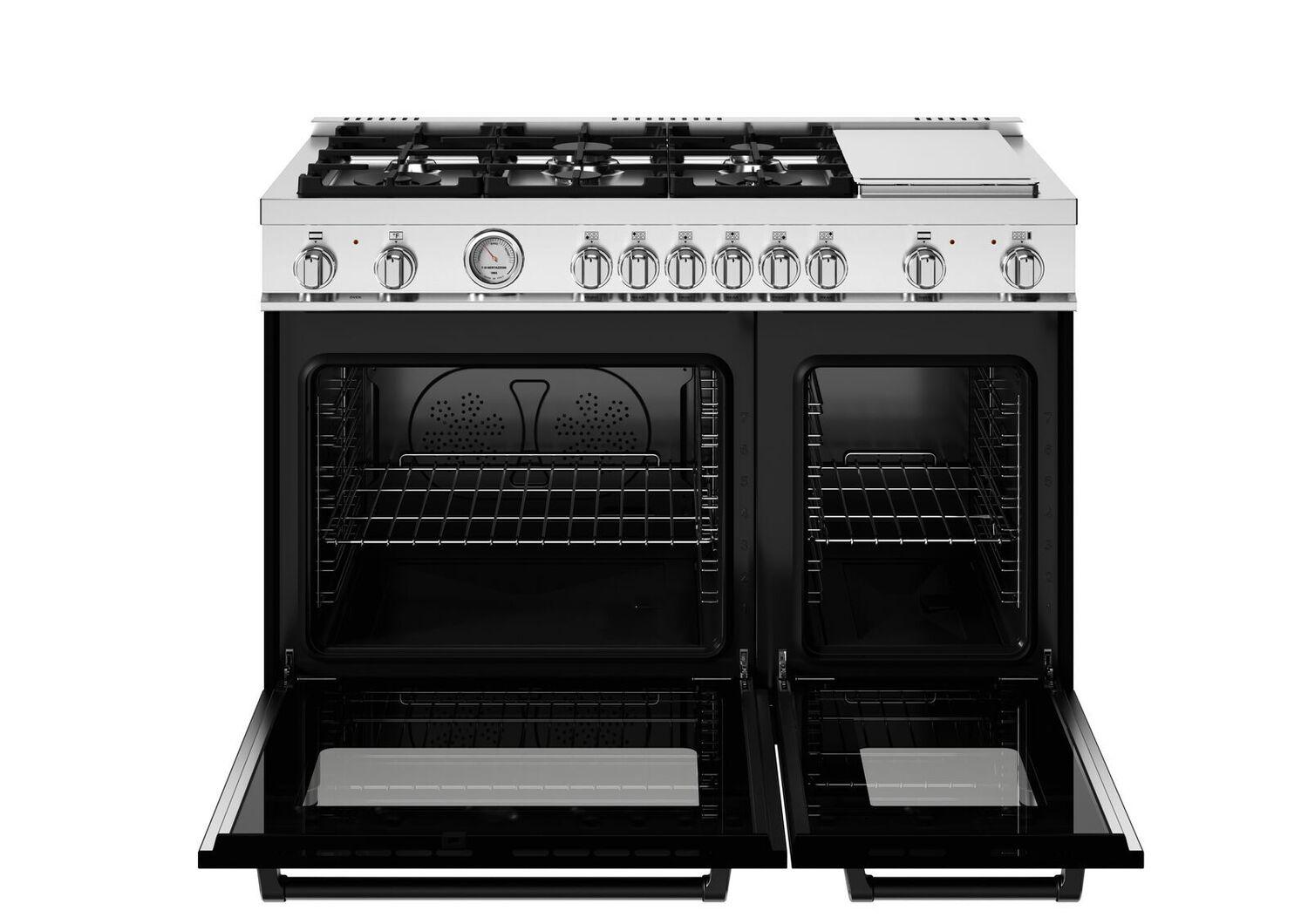

Oven cavity
| Oven configuration | double |
| Oven fuel | electric |
| Oven convection system | dual horizontal fans |
| Main oven type | electric multifunction |
| Main oven broiler type | electric |
| Main oven functions | bake / broiler / convection / convection bake / convection broiler / dehydrate / pizza / proofing / warming |
| Main oven volume | 4.7 |
| Auxiliary oven type | electric |
| Auxiliary oven broiler type | electric |
| Auxiliary oven functions | bake / bottom bake / broiler / upper bake |
| Auxiliary oven volume | 2.4 |
| Oven controls | knobs |
| Inner oven door | triple glass |
| Removable inner glass | yes |
| Cooling fan | yes |
| Oven levels | 7 |
| Door hinges | soft-motion |
| Wire-shelves | 4 |
| Tray | 1 |
| Grill trivet for tray | yes |
| Oven lights | double side mounted |
Technical specifications
| Absorbed current (A) | 40 |
| Electrical supply | 120 |
Features
- Counter Depth design allows ranges to sit flush with cabinetry for seemless installation
- Counter Depth Worktop and Range
Bertazzoni’s Counter-Depth Ranges are expertly crafted to blend perfectly with your kitchen cabinetry, offering a sophisticated, streamlined look that enhances the overall design of your space. - High power electric griddle
- 19000 BTU Power burner with dual ring flame delivering fastest time-to-boil in its class
- Best in Class Burners
Experience culinary precision and safety with Bertazzoni's best-in-class burners, expertly engineered for rapid boiling, energy efficiency, and precise simmering control. - Stainless steel worktop is formed from one piece to allow easy cleaning with no gaps, joints, or screws
- Thermocouple Gas Safety System
Bertazzoni’s Thermocouple Gas Safety System shuts off gas flow instantly if a flame is extinguished, ensuring top-tier safety and reliability. Every burner is independently equipped for unparalleled protection and peace of mind. - European Convection Oven
- Category Leading Range Oven Cavity
Discover unparalleled cooking precision with Bertazzoni’s counter-depth ranges, featuring the largest oven cavities in their category. - Oven door with edge-to-edge tempered glass

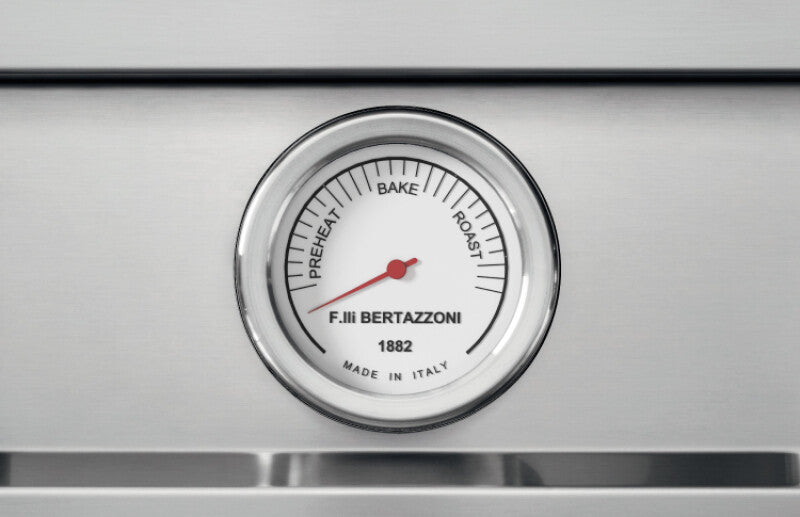

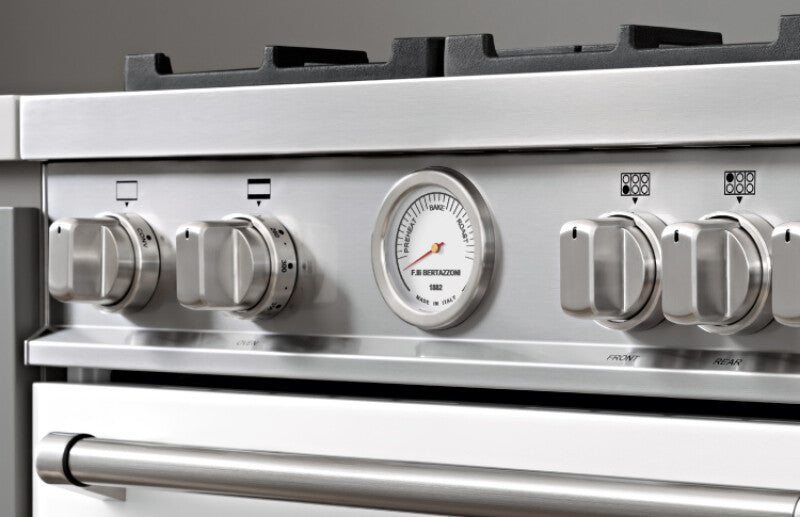

- Elegant temperature gauge for control of oven temperature during pre-heating and baking
- Discover Collezione Metalli for Master Series
Now you can add an exquisite personal touch to your Master Series appliances with the new Collezione Metalli Décor set. - 1" stainlesss steel backguard for sleek design and integration into any kitchen.
Description
Manuals & Guides
- MAS486GDFMNEV - MAS486GDFMXV specifications sheet
- MAS486GDFMNEV - MAS486GDFMNEV specifications sheet
- MAS486GDFMNEV - MAS486GDFMBIV specifications sheet
- MAS486GDFMNEV - Installation, User and Maintenance Manual EN
- MAS486GDFMNEV - Installation, User and Maintenance Manual FR
- MAS486GDFMNEV - Cleaning tips
- MAS486GDFMNEV - Installation drawings
- MAS486GDFMNEV - Dimension Diagram
- MAS486GDFMNEV - Specifications PDF
Key Features
Counter Depth Worktop and Range
Bertazzoni’s Counter-Depth Ranges are expertly crafted to blend perfectly with your kitchen cabinetry, offering a sophisticated, streamlined look that enhances the overall design of your space.
19000 BTU Power burner with dual ring flame delivering fastest time-to-boil in its class
Category Leading Range Oven Cavity
Discover unparalleled cooking precision with Bertazzoni’s counter-depth ranges, featuring the largest oven cavities in their category.
Discover Collezione Metalli for Master Series
Now you can add an exquisite personal touch to your Master Series appliances with the new Collezione Metalli Décor set.
Best in Class Burners
Experience culinary precision and safety with Bertazzoni's best-in-class burners, expertly engineered for rapid boiling, energy efficiency, and precise simmering control.
