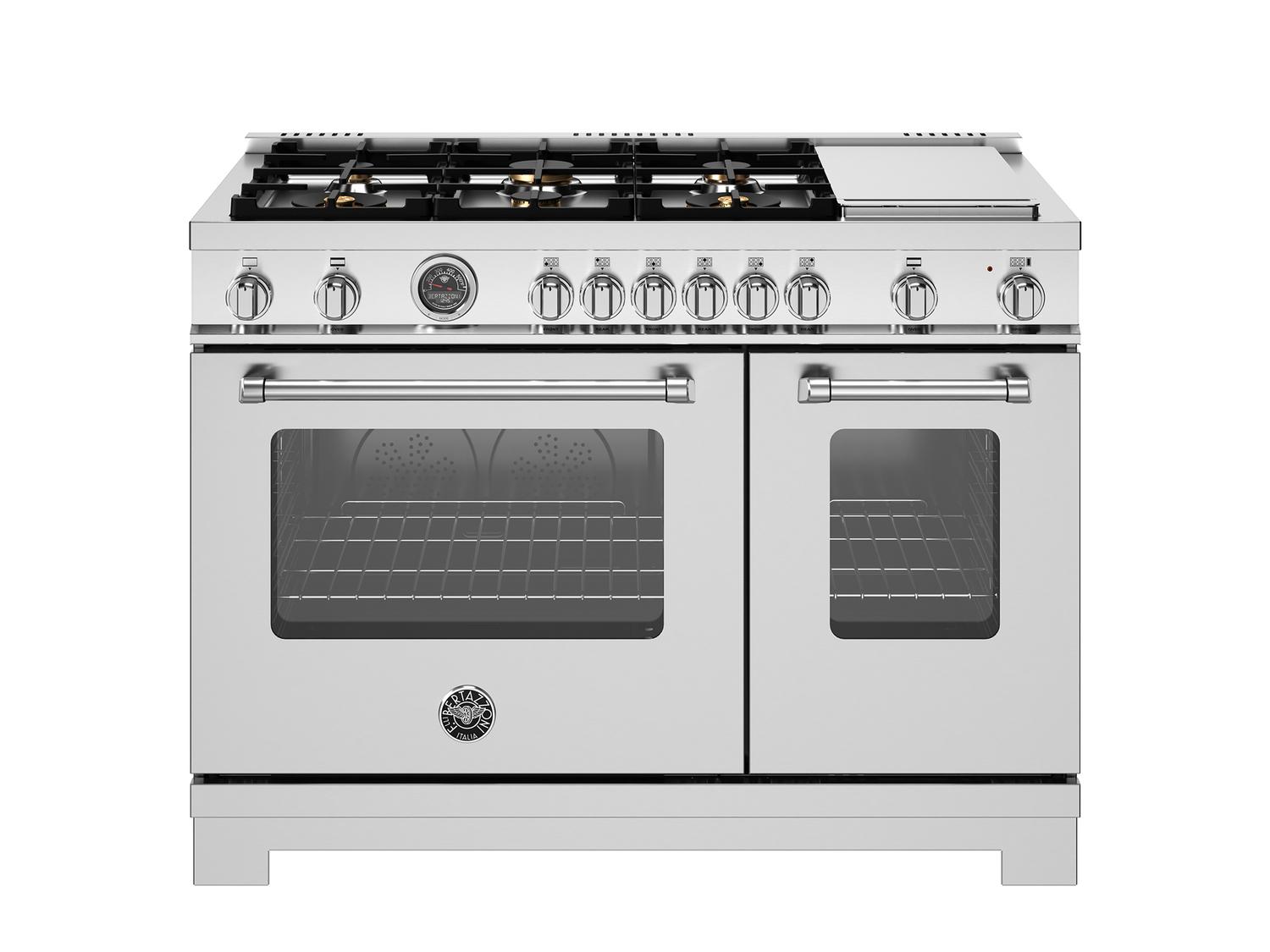

Product Details for BERTAZZONI MAS486BTFGMXT
Technical Details
Worktop
| Size | 48.0 |
| Cooking zones | 7 |
| Number of gas burners | 6 |
| Griddle zones | electric |
| Worktop type | gas / electric griddle |
| Worktop design | stainless steel with seamless edges |

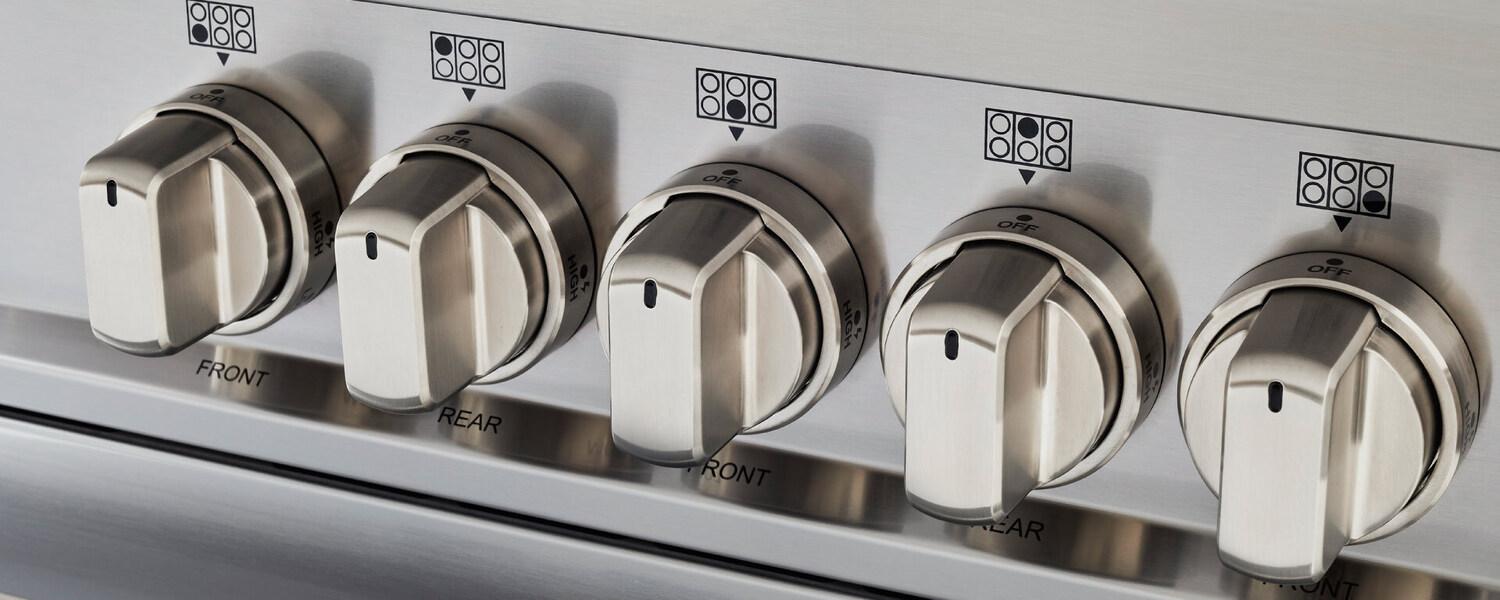

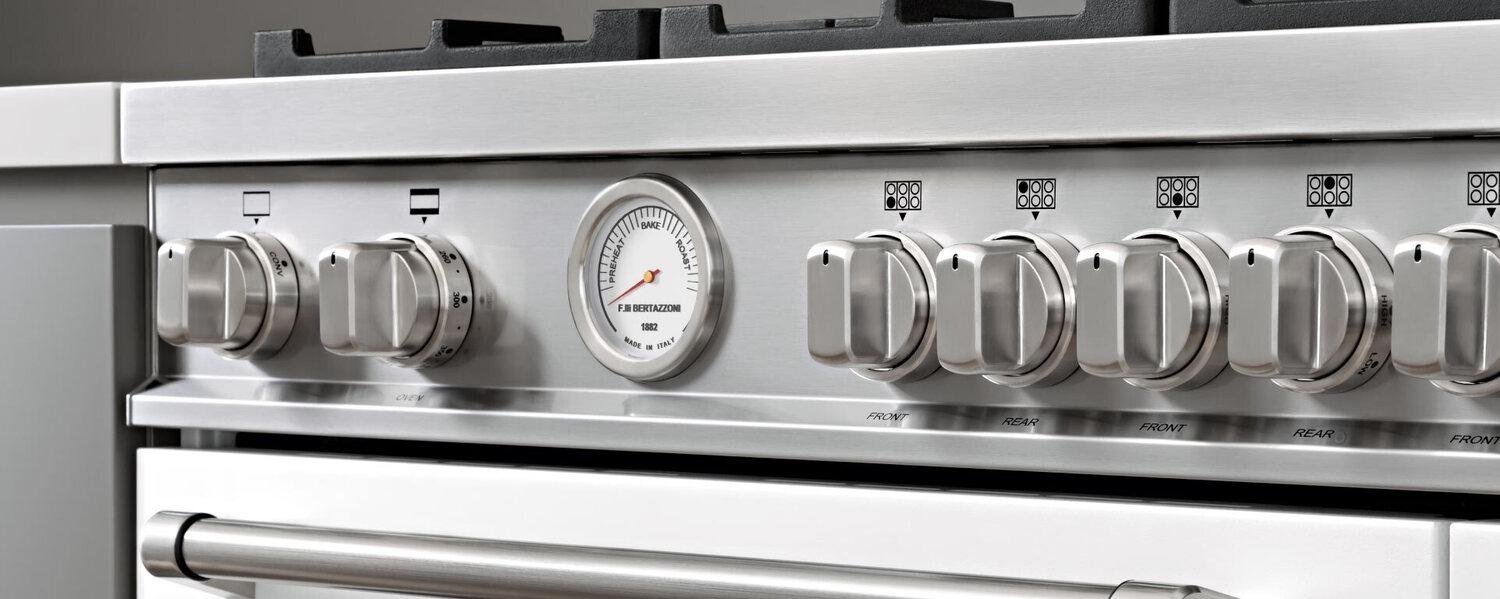

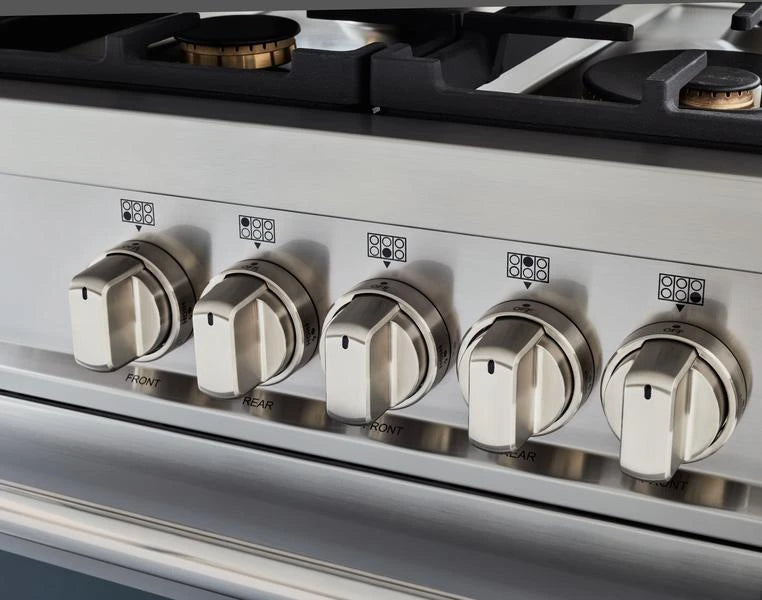

| Worktop controls | metal knobs |
| Knobs | metal |

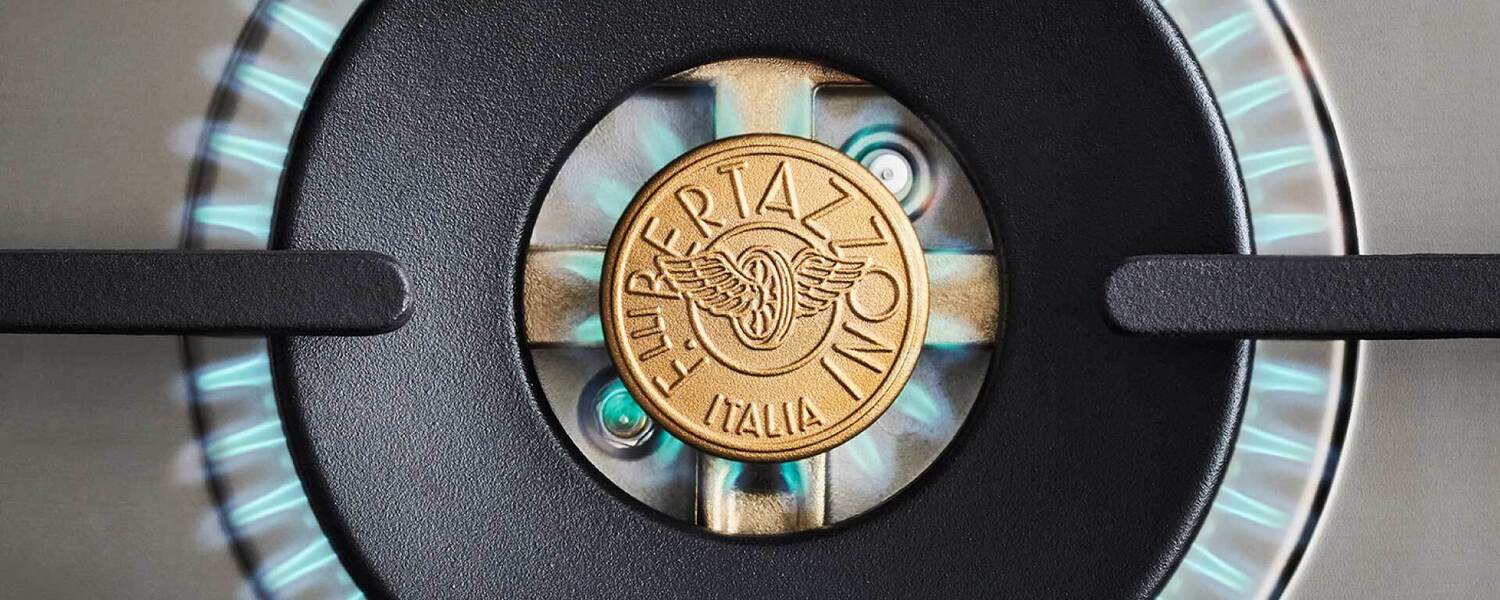

| Burner type | brass |
| Grates | cast iron |
| Continous grating | yes |
| Thermocouple safety device | yes |
| One-hand ignition | yes |
| Backguard | yes |
| Wok ring | yes |
| Simmer ring | yes |
Cooking zones
| Power burners | 2 |
| Rapid burner | 2500 |
| Medium burner | 2 |
| Simmer burner | 750 |

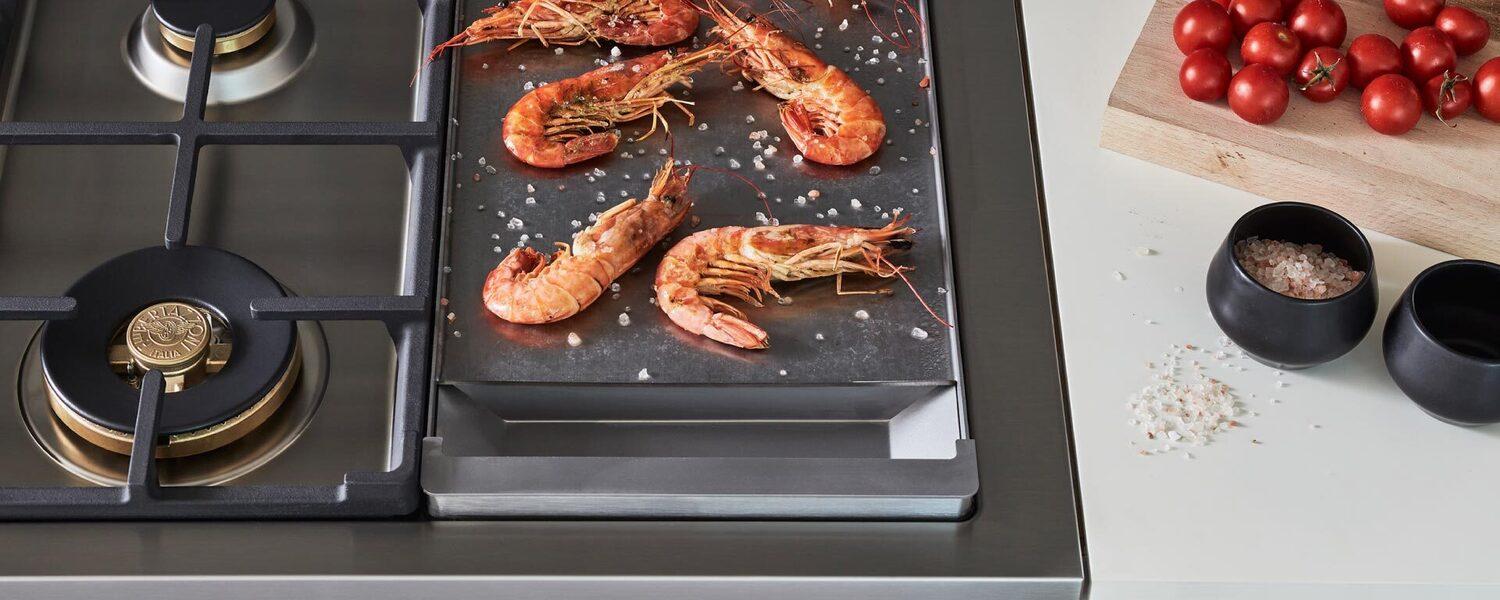

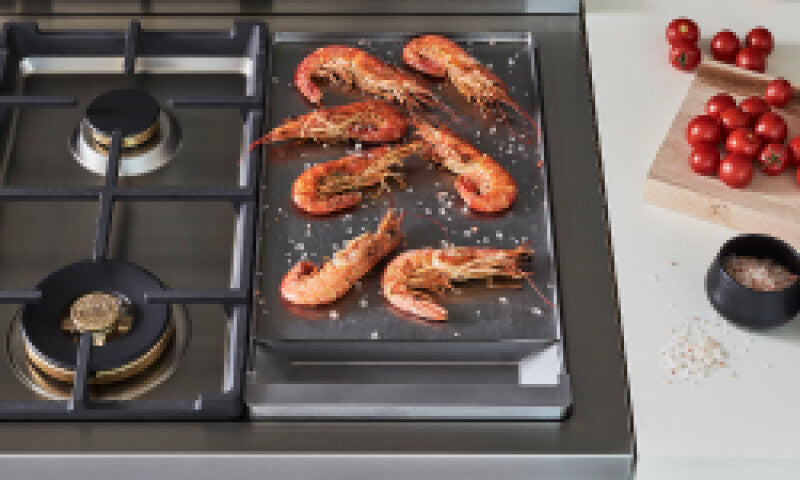

| Griddle power | 1100 |
| Griddle dual control | yes |
| Griddle drip tray | yes |
Oven cavity

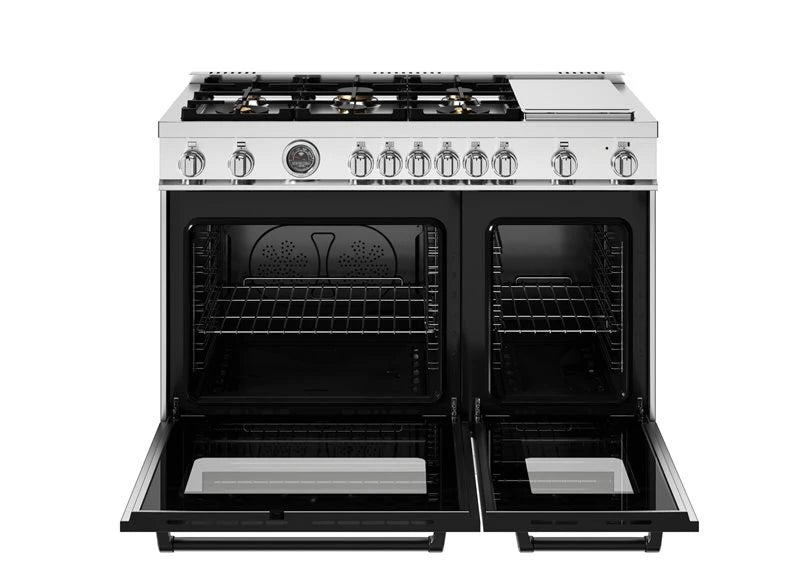

| Oven configuration | double |
| Oven fuel | gas |
| Oven convection system | dual horizontal fans |
| Oven levels | 7 |
| Main oven type | gas conventional |
| Main oven broiler type | gas |
| Main oven functions | bake / broiler / convection bake / defrosting |
| Main oven volume | 4.7 |
| Auxiliary oven type | gas |
| Auxiliary oven functions | bake |
| Auxiliary oven volume | 2.4 |
| Oven controls | knobs with digital control buttons |
| Inner oven door | triple glass |
| Removable inner glass | yes |
| Cooling fan | yes |
| Food probe | yes |
| Door hinges | soft-close |
| Wire-shelves | 4 |
| Tray | 1 |
| Grill trivet for tray | yes |
| Oven lights | double side mounted |
Technical specifications
| Absorbed current (A) | 10 |
| Electrical supply | 110 |
Features
- Counter Depth design allows ranges to sit flush with cabinetry for seemless installation
- Counter Depth Worktop and Range
- Best in Class Burners

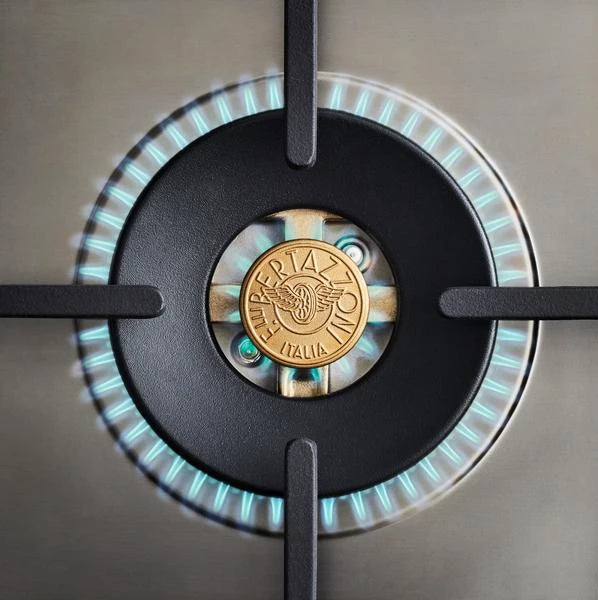

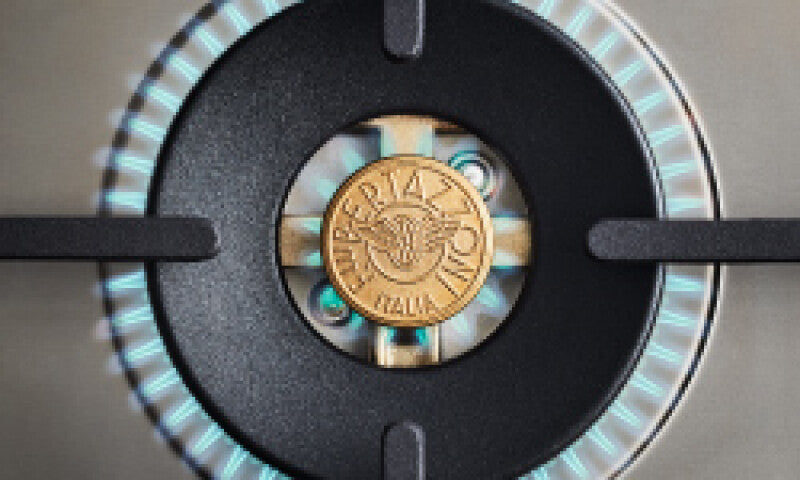

- 19000 BTU Power burner with dual ring flame delivering fastest time-to-boil in its class
- Thermocouple Gas Safety System

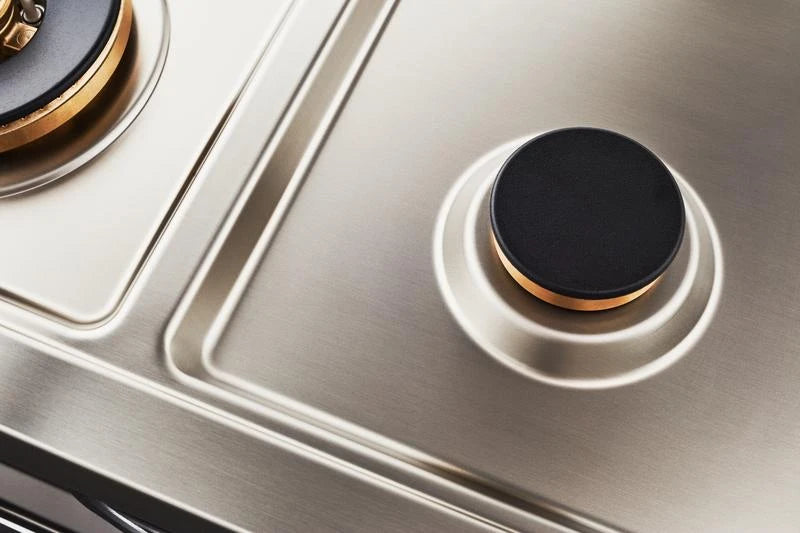

- Stainless steel worktop is formed from one piece to allow easy cleaning with no gaps, joints, or screws
- European Convection Oven
- Category Leading Range Oven Cavity
- Soft-close oven door with edge-to-edge tempered glass

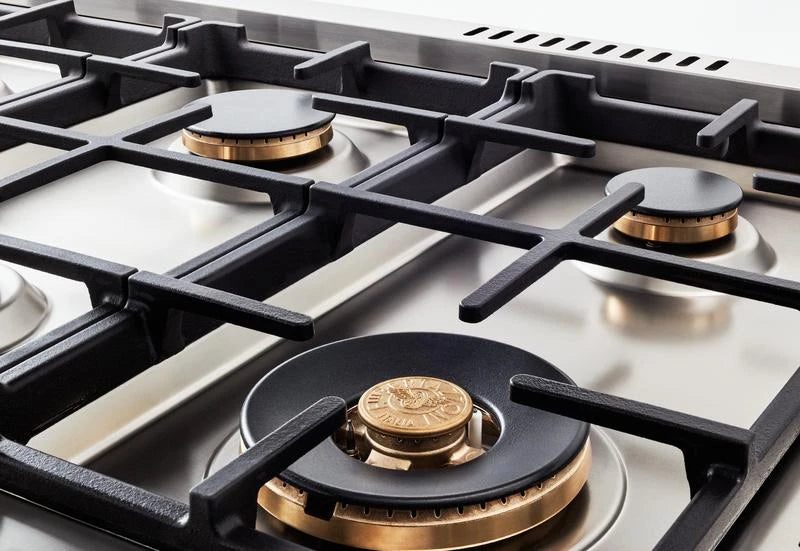

- Continuous contour grates and single piece worktop

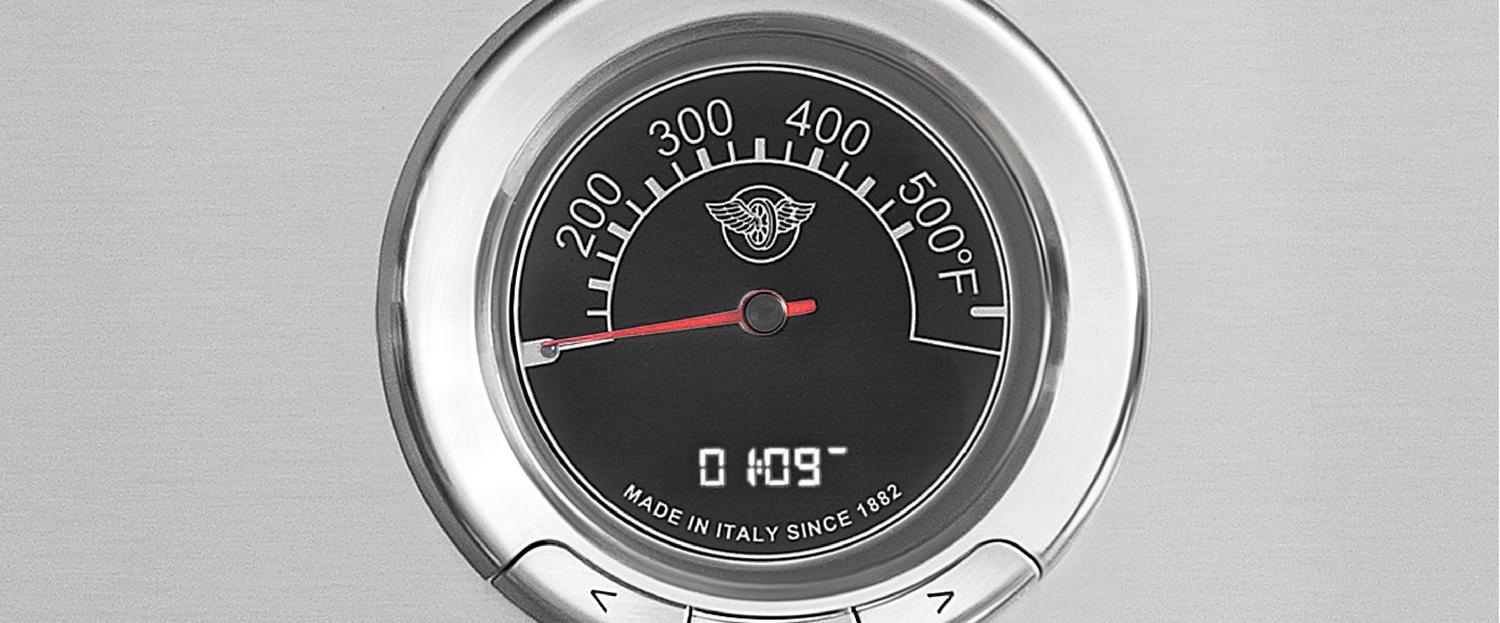

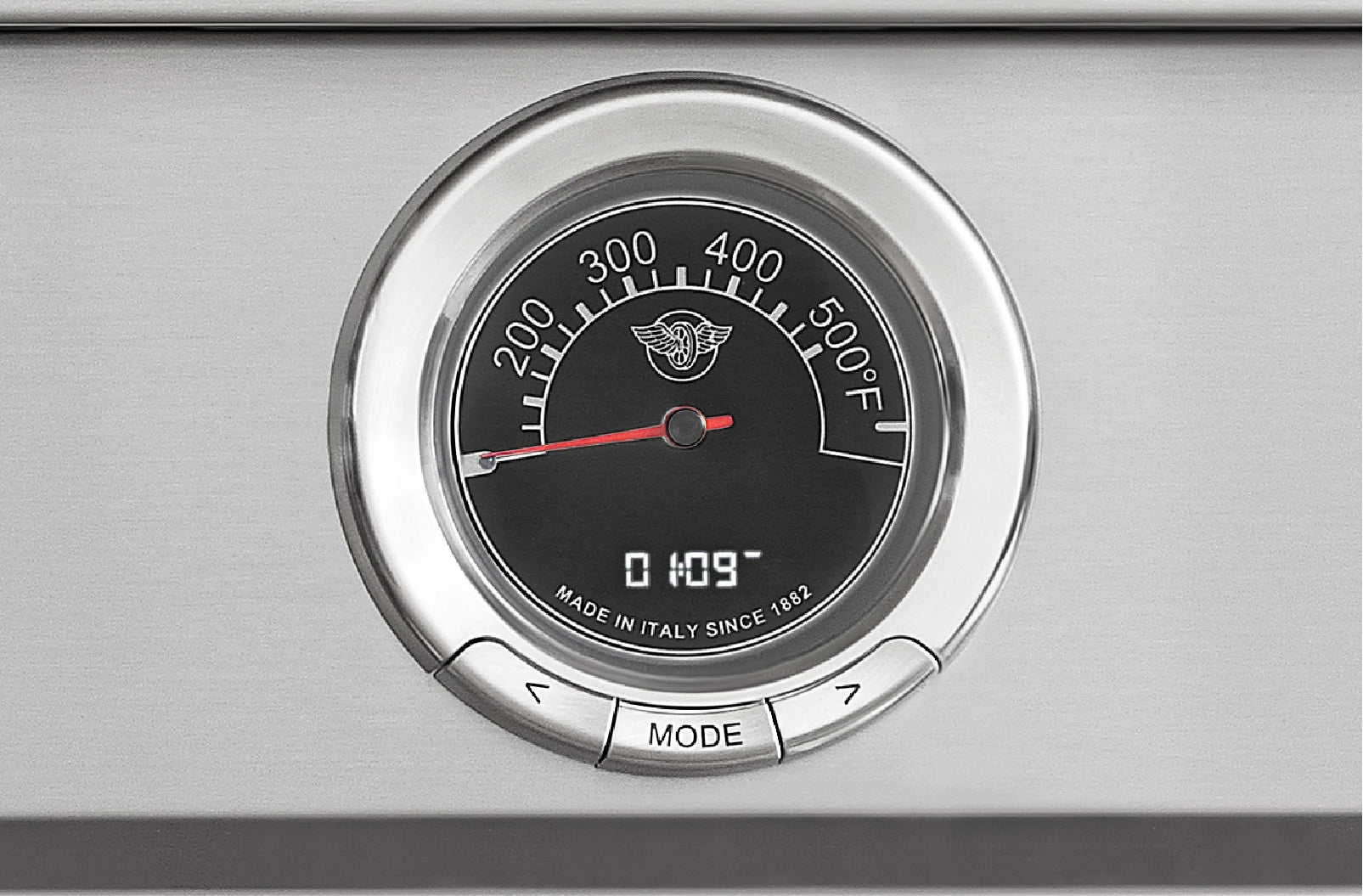

- Elegant temperature gauge for control of oven temperature during pre-heating and baking
- Gas convection oven
- 1" stainlesss steel backguard for sleek design and integration into any kitchen.
- High-efficiency maintop and digital food probe
- Discover Collezione Metalli for Master Series
Description
The new Bertazzoni ranges are superb cooking appliances designed, engineered and made in Italy. All Bertazzoni appliances integrate seamlessly into style-harmonized suites for a true, high-performing kitchen.
Manuals & Guides
- MAS486BTFGMXT - MAS486BTFGMXT specifications sheet
- MAS486BTFGMXT - MAS486BTFGMXT specifications sheet - 4.48 MB
- MAS486BTFGMXT - MAS486BTFGMXTLP specifications sheet
- MAS486BTFGMXT - MAS486BTFGMXTLP specifications sheet - 4.48 MB
- MAS486BTFGMXT - Installation, User and Maintenance Manual EN
- MAS486BTFGMXT - Installation, User and Maintenance Manual EN - 13.26 MB
- MAS486BTFGMXT - Installation, User and Maintenance Manual FR
- MAS486BTFGMXT - Installation, User and Maintenance Manual FR - 13.41 MB
- MAS486BTFGMXT - Quick Reference Guide
- MAS486BTFGMXT - Quick Reference Guide - 1.01 MB
- MAS486BTFGMXT - Cleaning tips
- MAS486BTFGMXT - Installation drawings - 1.67 MB
- MAS486BTFGMXT - Installation drawings
- MAS486BTFGMXT - Dimension Diagram
- MAS486BTFGMXT - Specifications PDF
Key Features
Counter Depth design allows ranges to sit flush with cabinetry for seemless installation
Counter Depth Worktop and Range
Best in Class Burners
19000 BTU Power burner with dual ring flame delivering fastest time-to-boil in its class
Thermocouple Gas Safety System
Stainless steel worktop is formed from one piece to allow easy cleaning with no gaps, joints, or screws
European Convection Oven
Category Leading Range Oven Cavity
Soft-close oven door with edge-to-edge tempered glass
Continuous contour grates and single piece worktop
Elegant temperature gauge for control of oven temperature during pre-heating and baking
Gas convection oven
1" stainlesss steel backguard for sleek design and integration into any kitchen.
High-efficiency maintop and digital food probe
