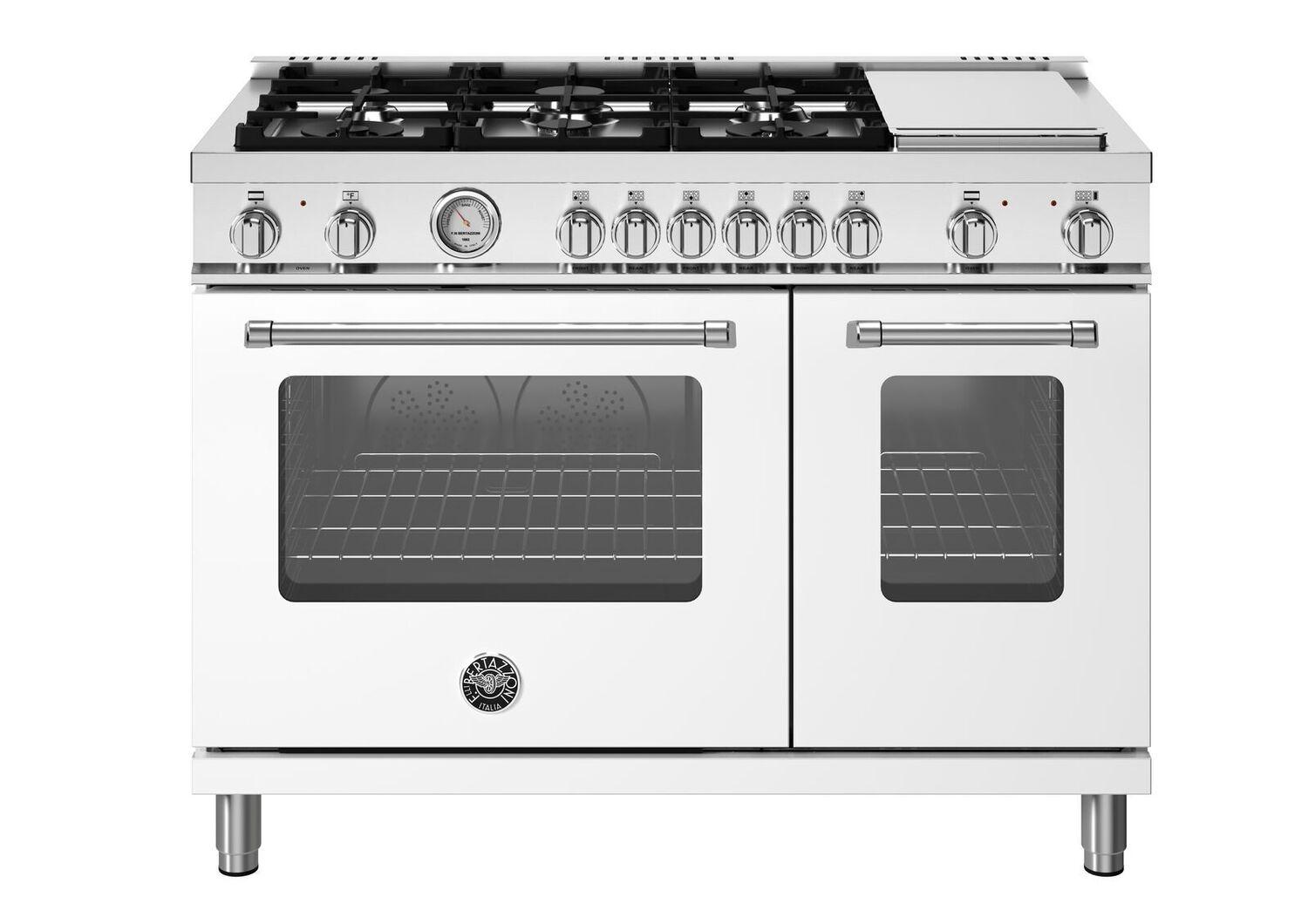

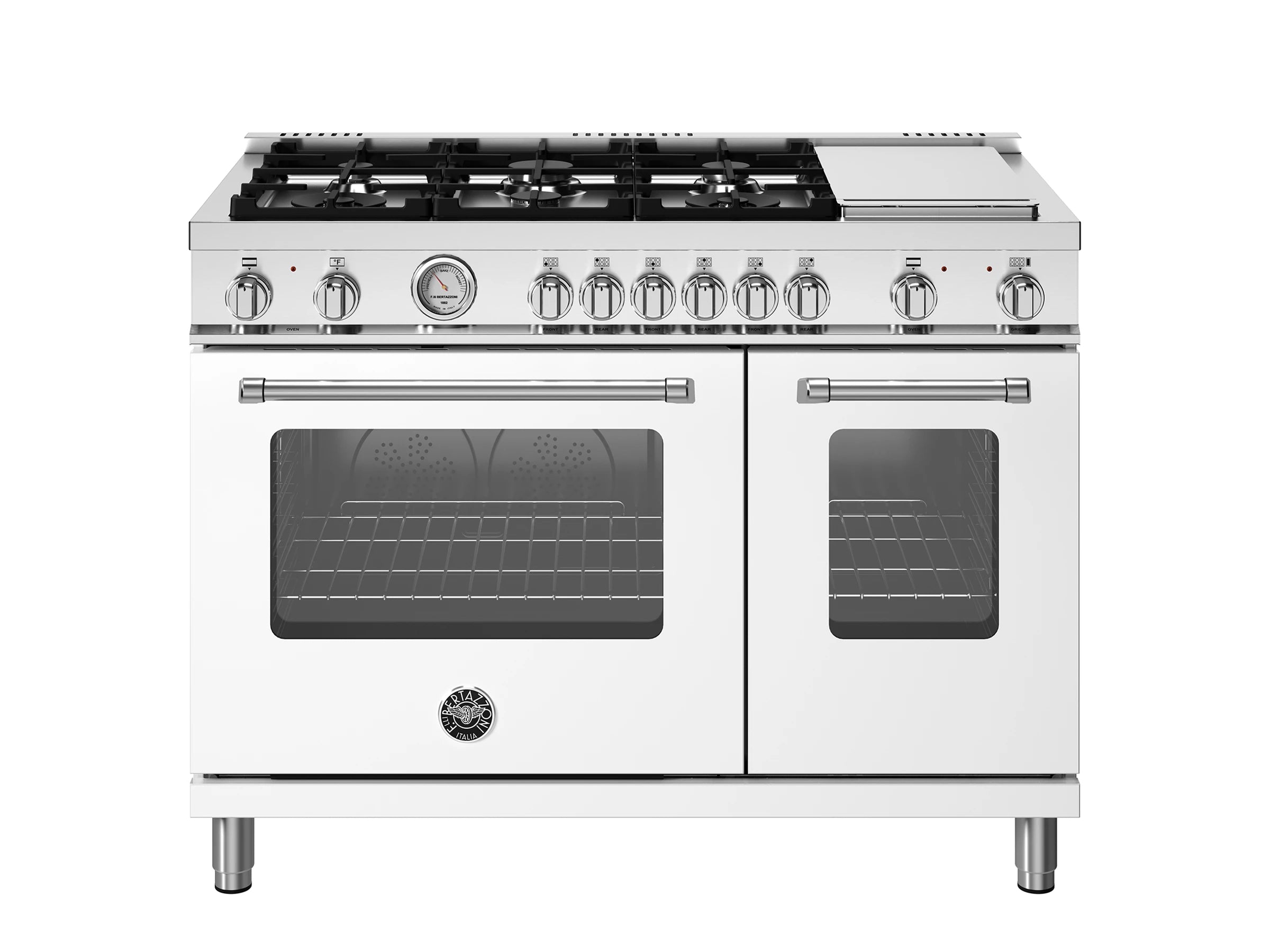

Product Details for Bertazzoni MAS486GDFMBIV

Technical Details

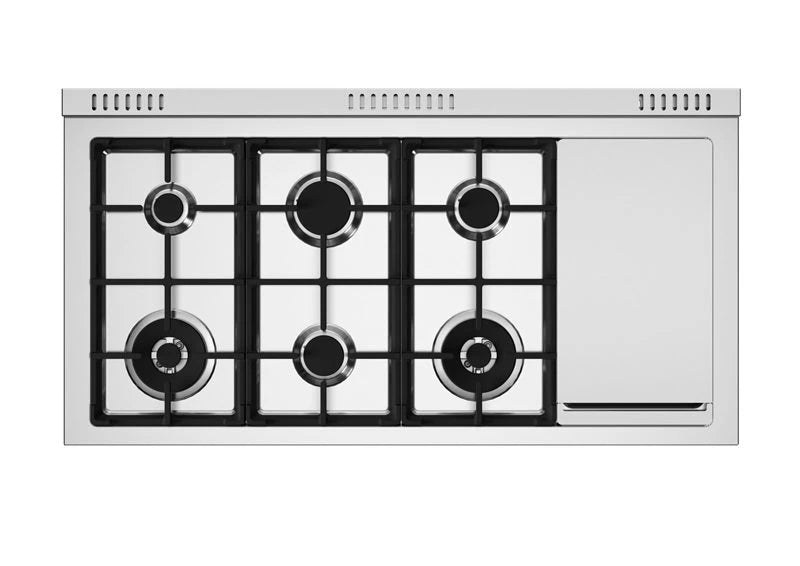

Worktop

Size 48 in
Cooking zones 7
Griddle zones electric
Knobs metal
Burner type aluminum
Grates cast iron
Continous grating yes
Thermocouple safety device yes
One-hand ignition yes
Backguard yes
Simmer ring yes
Worktop design stainless steel with seamless edges

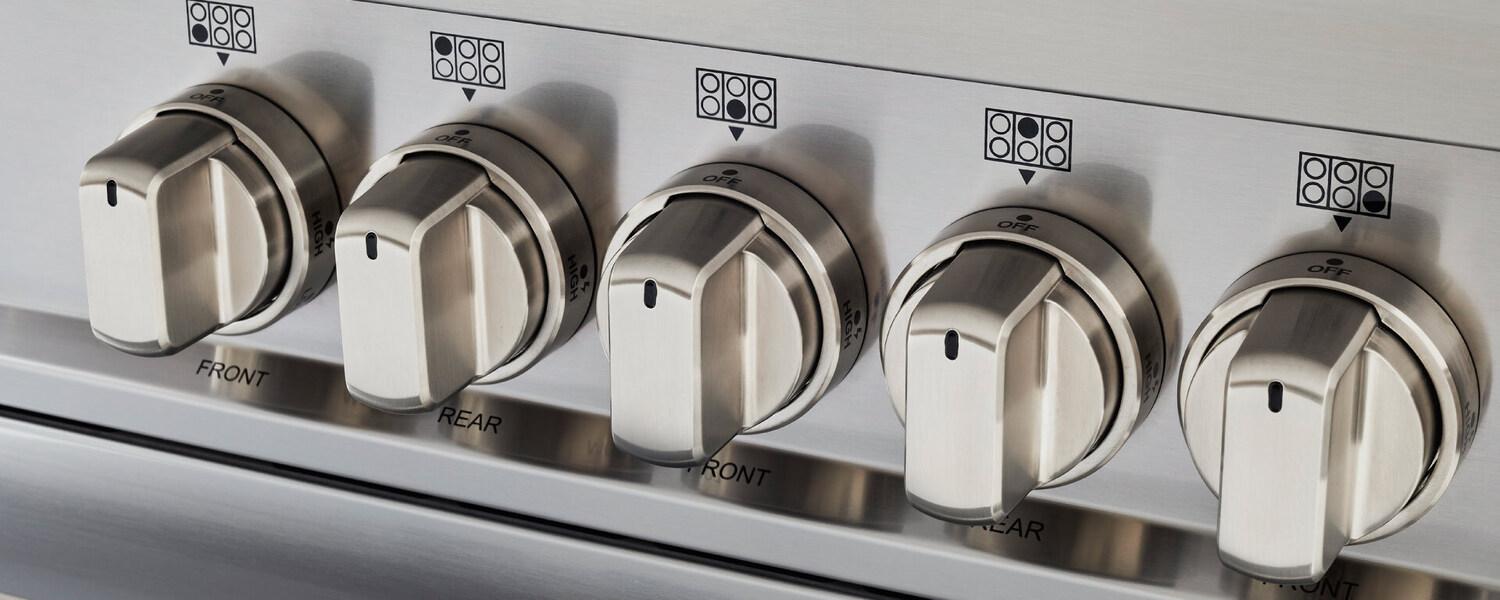

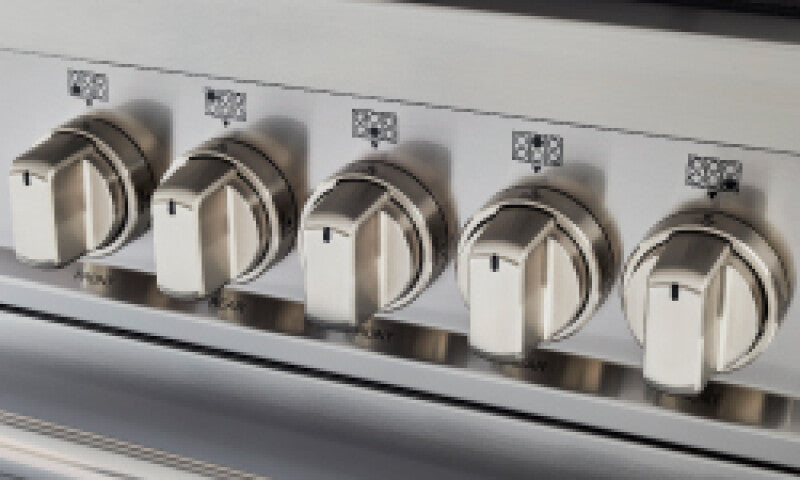

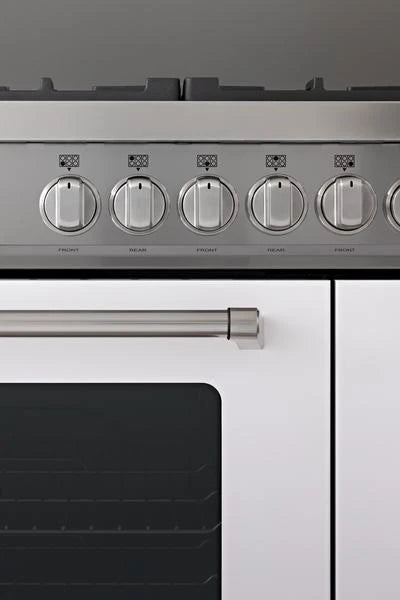

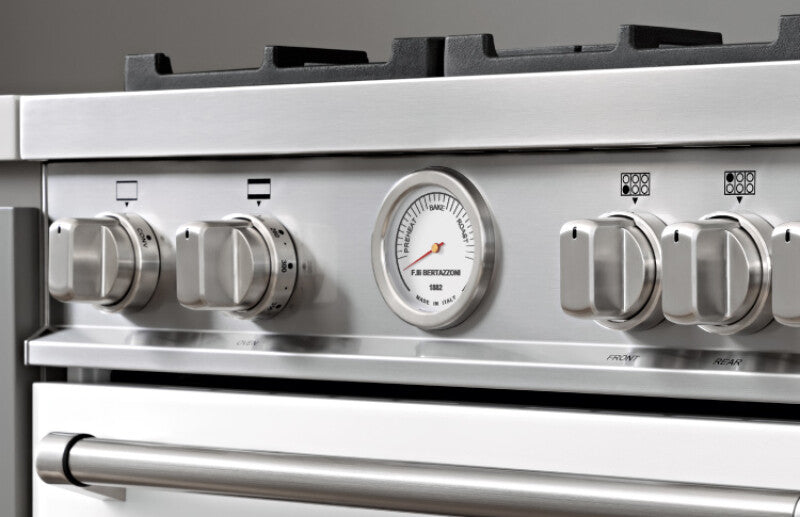

Worktop controls metal knobs
Wok ring yes
Number of gas burners 6 burners
Worktop type gas electric griddle

Cooking zones

Power burners 2 x 1300 BTU - 19000 BTU
Rapid burner 2500 BTU - 10400 BTU
Medium burner 2 x 1500 BTU - 5900 BTU
Simmer burner 750 BTU - 3500 BTU
Griddle power 1100 W
Griddle dual control yes
Griddle drip tray yes

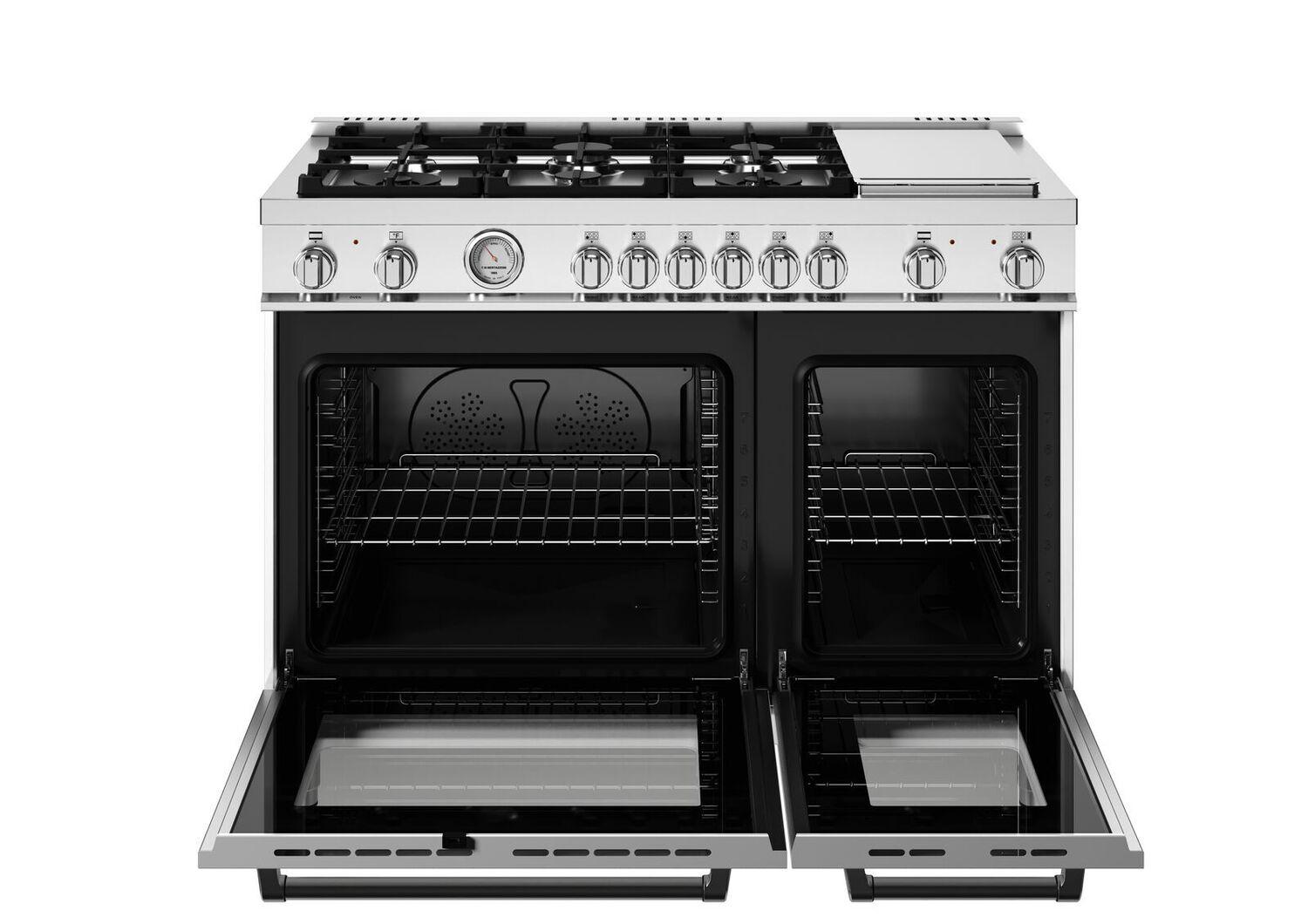

Oven cavity

Oven configuration double
Oven fuel electric
Oven convection system dual horizontal fans
Main oven type electric multifunction
Main oven broiler type electric
Main oven volume 4.7 ft³
Auxiliary oven type electric
Auxiliary oven broiler type electric
Auxiliary oven volume 2.4 ft³
Inner oven door triple glass
Removable inner glass yes
Cooling fan yes
Oven levels 7
Door hinges soft-motion
Wire-shelves 4 full size
Tray 1 baking tray with grill trivet
Grill trivet for tray yes
Oven lights double side mounted
Oven controls knobs
Main oven functions bake broiler convection convection bake convection broiler dehydrate pizza proofing warming
Auxiliary oven functions bake bottom bake broiler upper bake

Bottom

Legs stainless steel

Technical specifications

Absorbed current (A) 40 A with dedicated circuit
Electrical supply 120/240V 60 Hz - 6700W or120/208V 60 Hz - 5400W

Warranty

Parts 2 Year
Labor 2 Year

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 51.5 Inch
Shipping Height 42.5 Inch
Shipping Length 29.5 Inch
Shipping Weight 375 lbs
Total of Shipping Weight 375 lbs
Source Manufacturer

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 26 ft³
Dimensional Weight 323.19 Ibs
Total of Cubes 26 ft³
Total of Dimensional Weight 323.19 Ibs

Description

The new Bertazzoni ranges are superb cooking appliances designed, engineered and made in Italy. All Bertazzoni appliances integrate seamlessly into style-harmonized suites for a true, high-performing kitchen.


Product Features

  • Counter Depth Worktop and Range

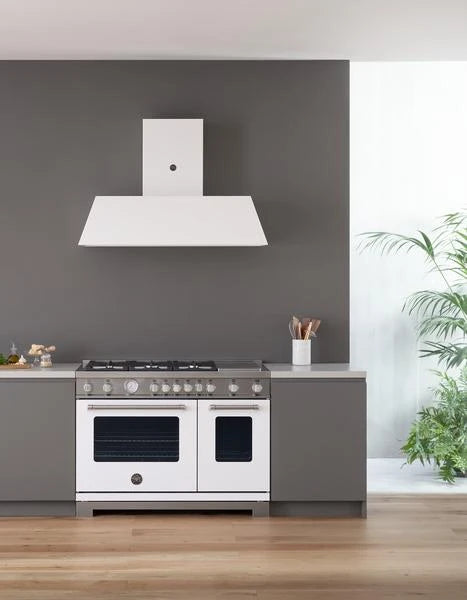

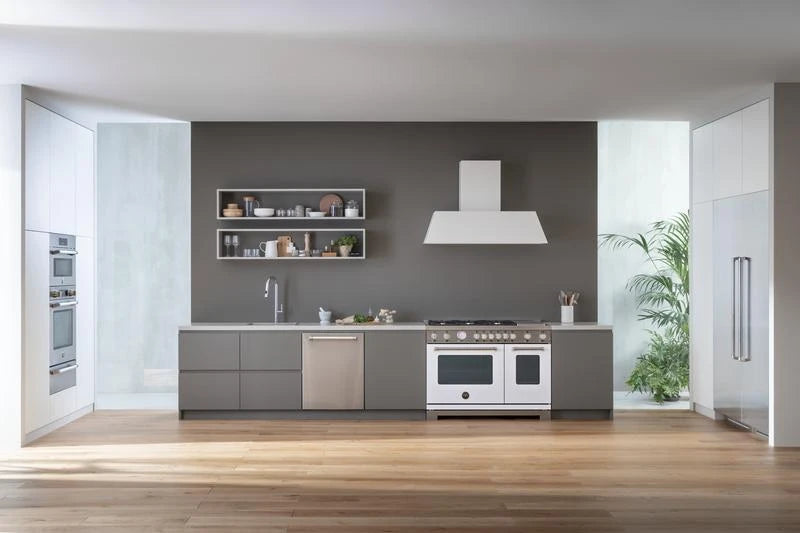

    Bertazzoni’s Counter-Depth Ranges are expertly crafted to blend perfectly with your kitchen cabinetry, offering a sophisticated, streamlined look that enhances the overall design of your space.
  • Best in Class Burners
    Experience culinary precision and safety with Bertazzoni's best-in-class burners, expertly engineered for rapid boiling, energy efficiency, and precise simmering control.
  • Thermocouple Gas Safety System
    Bertazzoni’s Thermocouple Gas Safety System shuts off gas flow instantly if a flame is extinguished, ensuring top-tier safety and reliability. Every burner is independently equipped for unparalleled protection and peace of mind.
  • Category Leading Range Oven Cavity
    Discover unparalleled cooking precision with Bertazzoni’s counter-depth ranges, featuring the largest oven cavities in their category.
  • High power electric griddle
    The stainless-steel griddle is designed to heat up super-fast to cook a wide variety of food to perfection. This makes it easy to prepare and serve the perfect pancakes, grilled cheese, hamburgers or bacon.
  • Discover Collezione Metalli for Master Series
    Now you can add an exquisite personal touch to your Master Series appliances with the new Collezione Metalli Décor set.
