Product Details for ZLINE RBIV36

Technical Details

Warranty

Parts 2 Year
Labor 2 Year

Other

Cut-Out Dimensions 36" W x 25" D x 84" H
Total Capacity 19.6 cu. ft.
Fridge Capacity 14 cu. ft.
Freezer Capacity 5.6 cu. ft.
Flex Drawer Capacity 1.1 cu. ft.
Flex Drawer Temp Controls 30°F (-1°C) - 41°F (5°C)
Door French Doors with Pull-Out Freezer: (Reversible Hinge)Door Alarm: Yes
Ice Maker Yes
Ice Maker Types Single Ice Maker
Ice Amount Per Day 3.9 lbs
Ice Tray Storage (lbs.) 8.4 lbs
Water Dispenser Yes; Internal
Flow rate for Water Dispenser .5 GPM
Lights 4 LED (3 fridge, 1 freezer)
Energy Consumption (kWh/year) 587 kWh/year
Voltage 120V/60Hz
Amps 3A
Noise Level 43 Decibels
Humidity-Controlled Crispers N/A
Freezer Drawer Bins 2- Pull Out Drawers
Door Bins 6
Number of Fridge Shelves 3
Mount Type Built-In, Integrated
Certifications ETL Listed, ENERGY STAR certified
Material Stainless Steel
Outdoor Approved No
Performance (compressor or thermoelectric) Compressor
Warranty Manufacturing Warranty - 2-year parts and labor warranty, 5 years sealed system parts and labor

Dimensions & weight

Width 35.75 in.
Height 82.5 in.
Length 25.13 in.
Weight 400 lbs.
Width 35.75 Inch
Height 83.5 Inch
Weight 355 lbs
Depth 23.31 Inch

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 40.75 in.
Shipping Height 87.5 in.
Shipping Length 30.13 in.
Shipping Weight 440 lbs.
Total of Shipping Weight 440 lbs.
Source Calculation
Shipping Width 40.75 Inch
Shipping Height 88.5 Inch
Shipping Length 28.31 Inch
Shipping Weight 395 lbs
Total of Shipping Weight 395 lbs

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 42.88 ft³
Dimensional Weight 533.12 lbs.
Total of Cubes 42.88 ft³
Total of Dimensional Weight 533.12 lbs.
Cubic Feet Measurement 40.27 ft³
Dimensional Weight 500.65 Ibs
Total of Cubes 40.27 ft³
Total of Dimensional Weight 500.65 Ibs

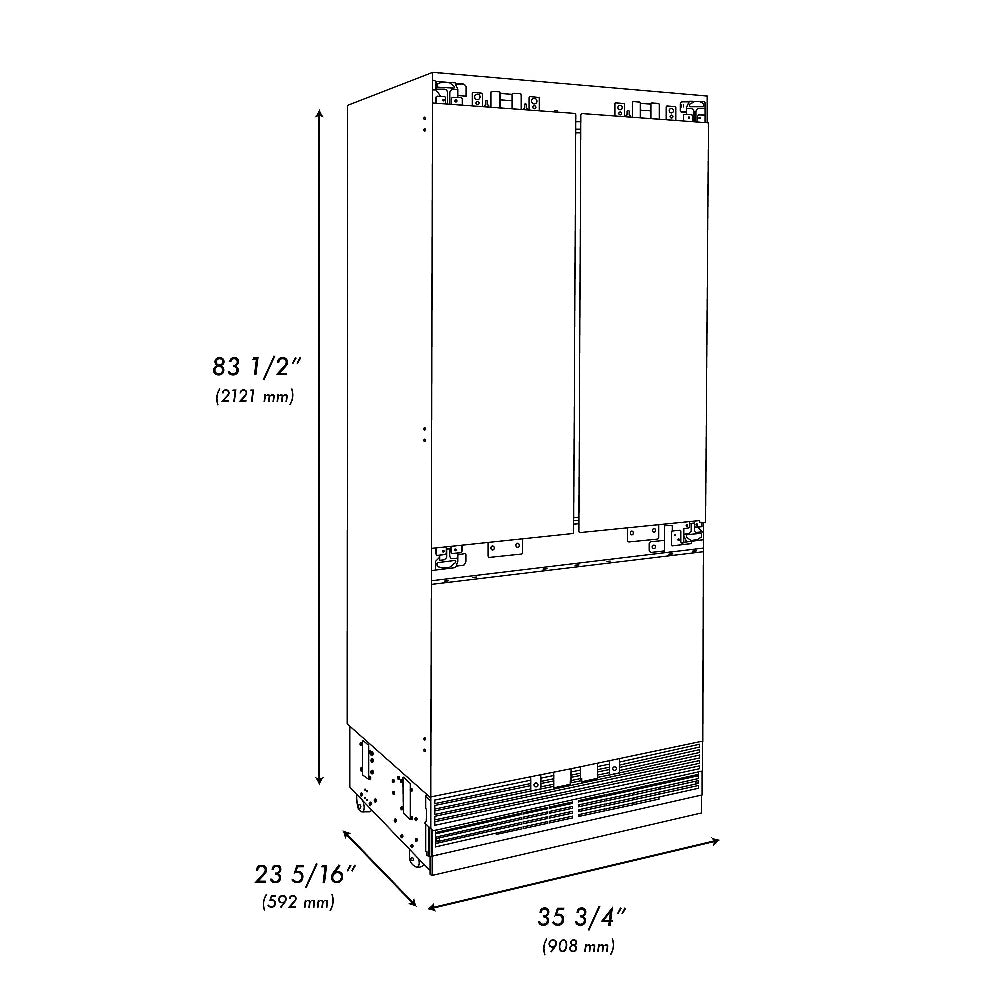

Dimensions

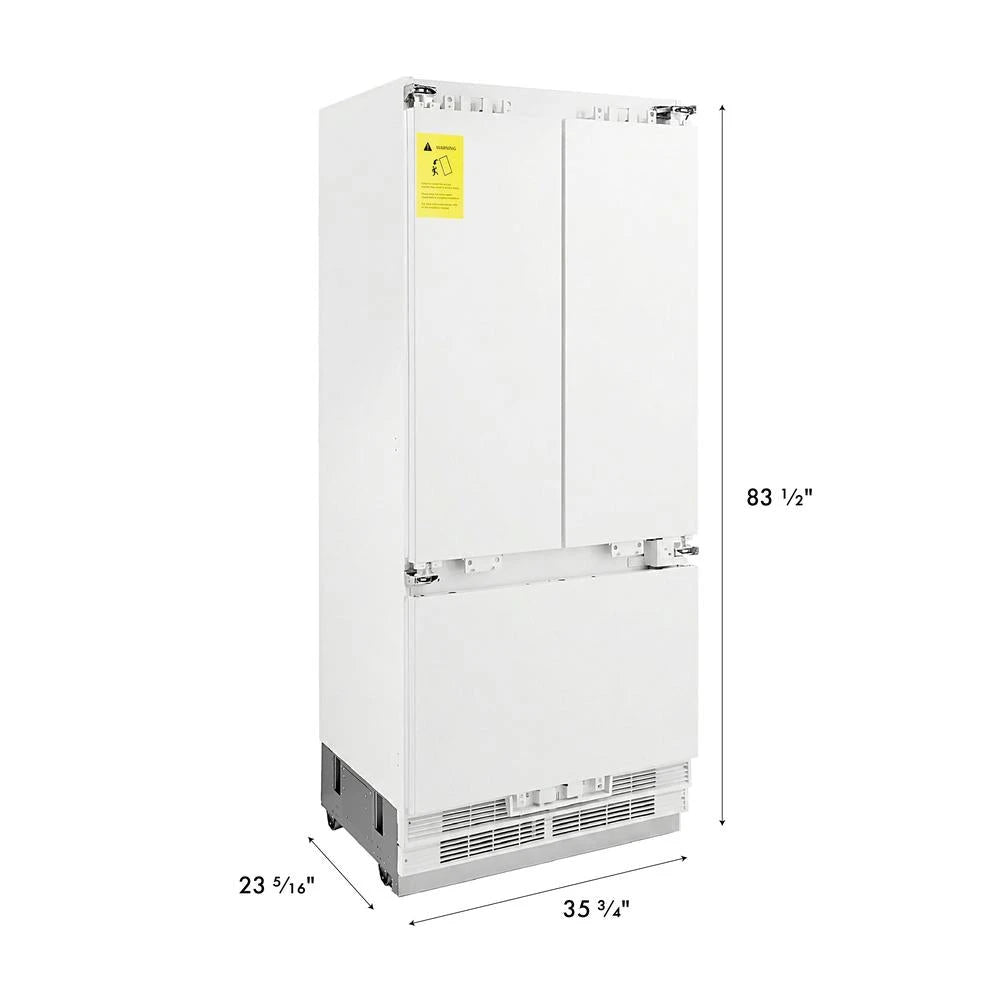

Dimensions 35.75 in. W x 23.3125 in. D x 83.5 in. H
Product Depth (in.) 23.3125
Product Width (in.) 35.75
Product Height (in.) 83.50
Depth With Door(s) Open 90 Degrees (in.) 42
Cut-out Dimensions 36.1875 in. W x 25 in. D x 84 in. H
Refrigeration Size (Width) 36 in.

Warranties & certifications

Certifications and Listings ETL Listed, Energy Star Certified, AB100 (also known as NSF or ANSI 61)
Manufacturer Warranty Manufacturing Warranty - 2-year parts and labor warranty, 5-year parts-only for sealed system

Technical information

Appliance Category Refrigerator
Color/ Finish Family Stainless Steel
Fridge Capacity 14 cu. ft.
Freezer Capacity 5.6 cu. ft.
Flex Drawer Capacity 1.1 cu. ft.
Energy Consumption 587 kWh/year
Flow Rate for Water Dispenser 0.5 GPM
Ice Maker Yes
Ice Amount per Day (lbs.) 3.9 lbs
Interior Finish White Interior with Stainless Steel Back Panel
Product Weight (lb.) 355
Decibels 43 dBA
Door Alarm Yes
Voltage 120V/60Hz
Amps 15A
Lights 4 LED (3 fridge, 1 freezer)
Number of Fridge Shelves 3

Description

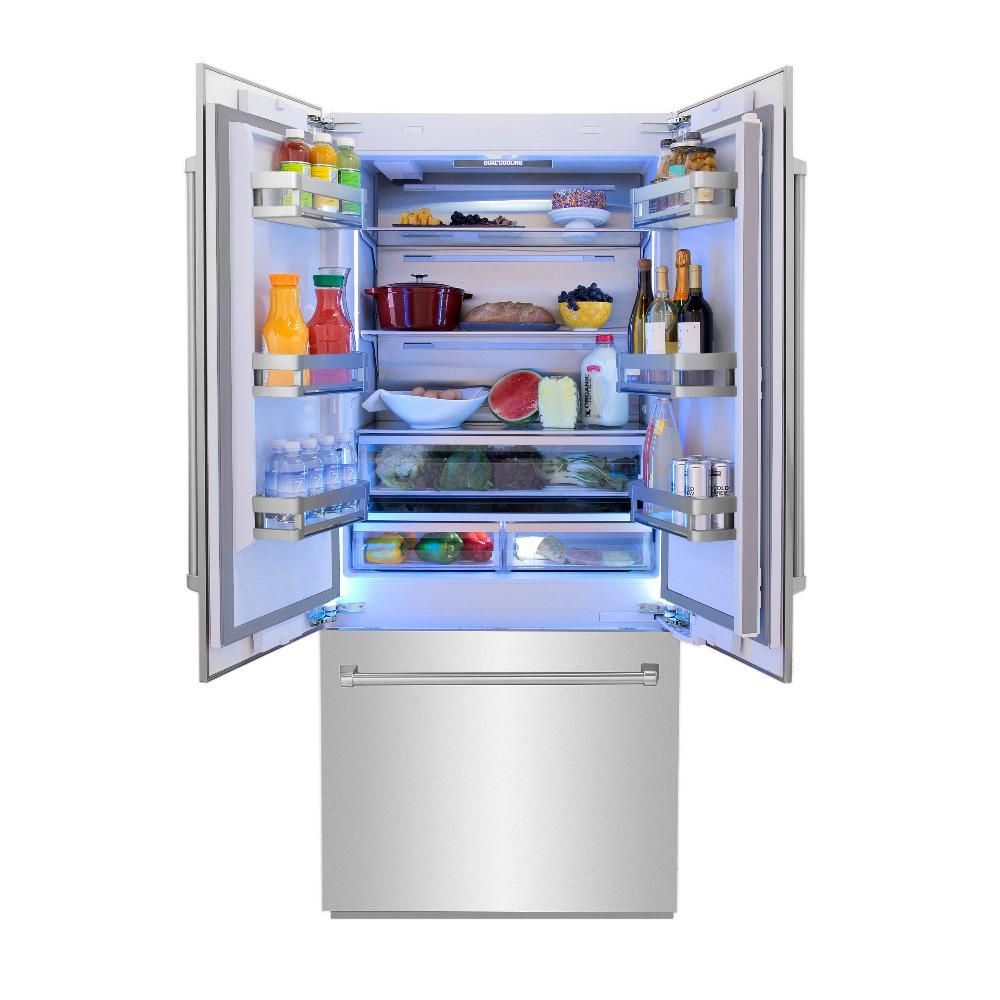

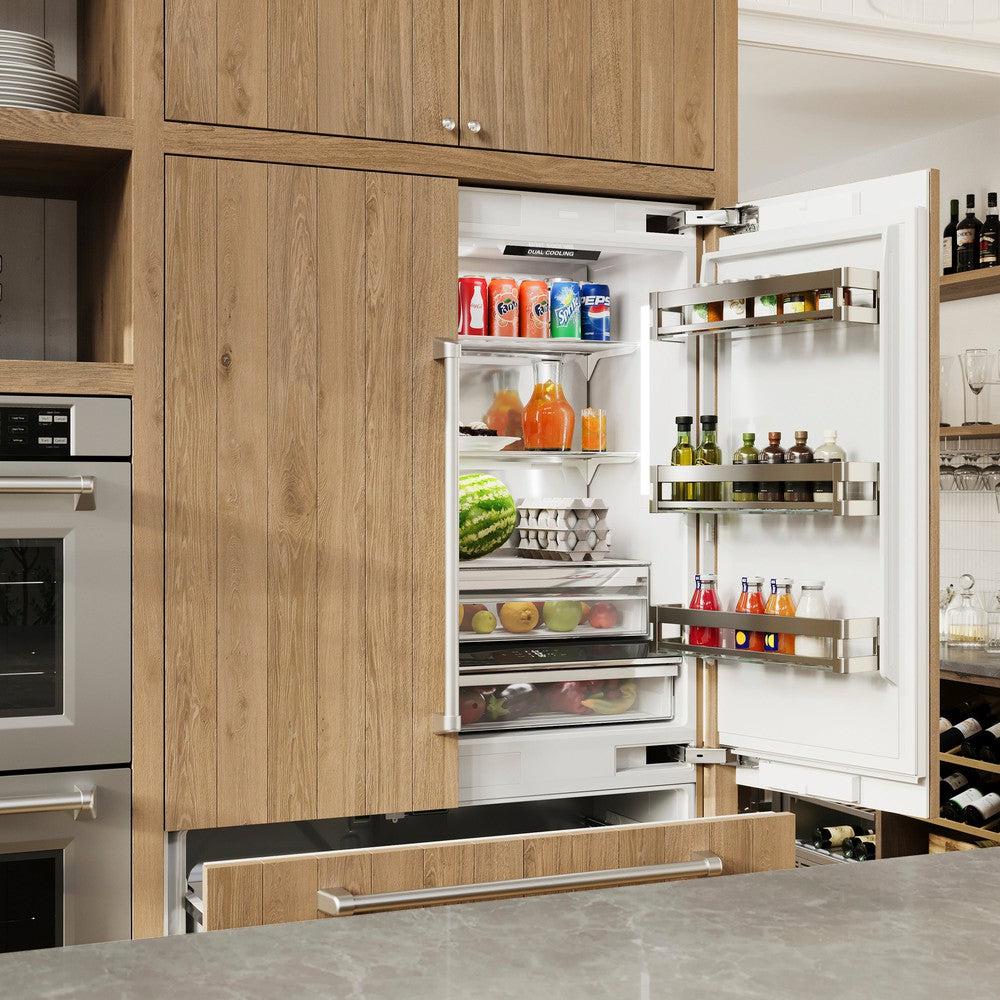

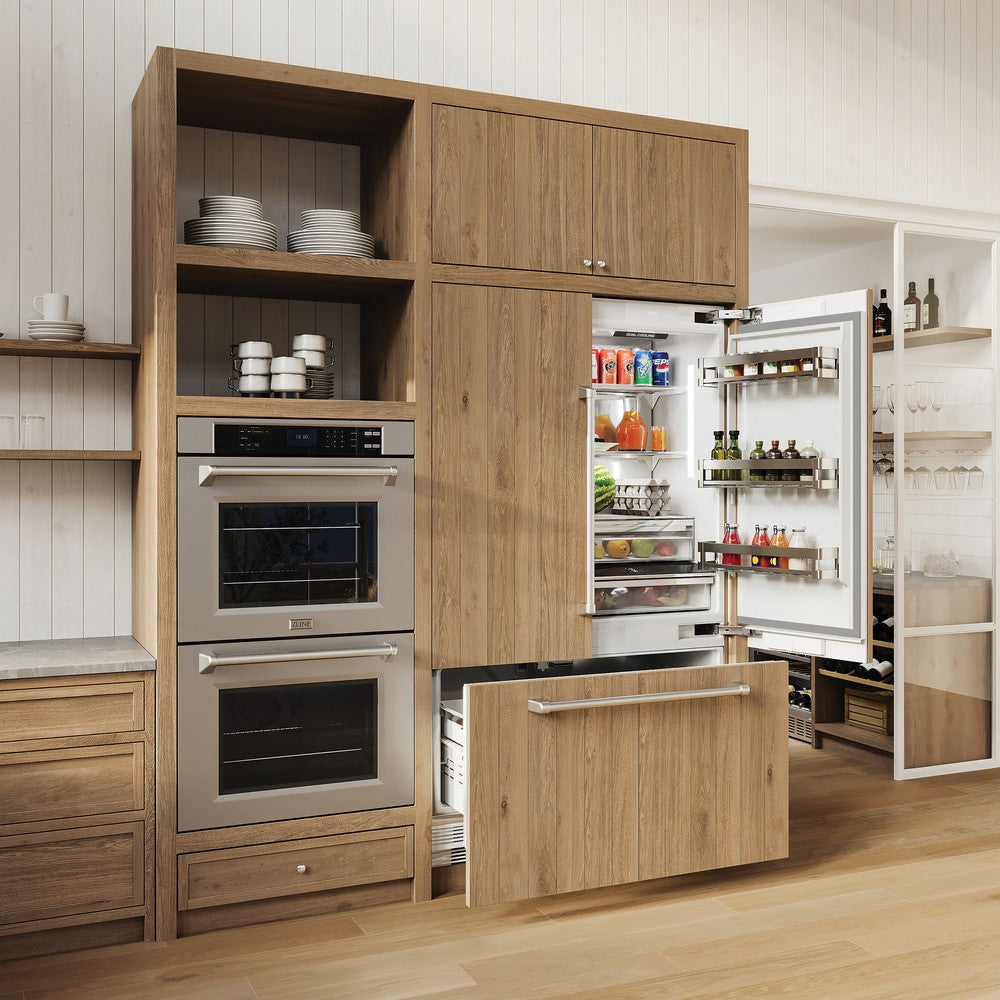

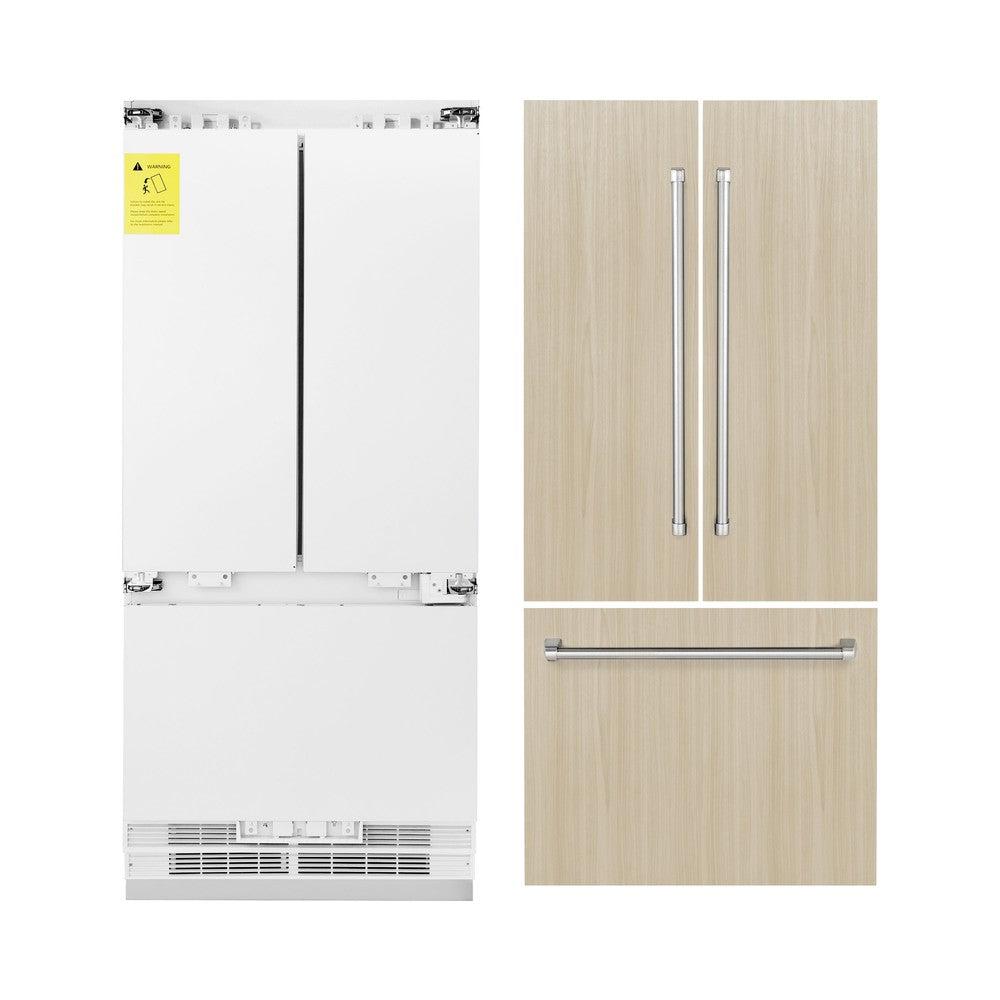

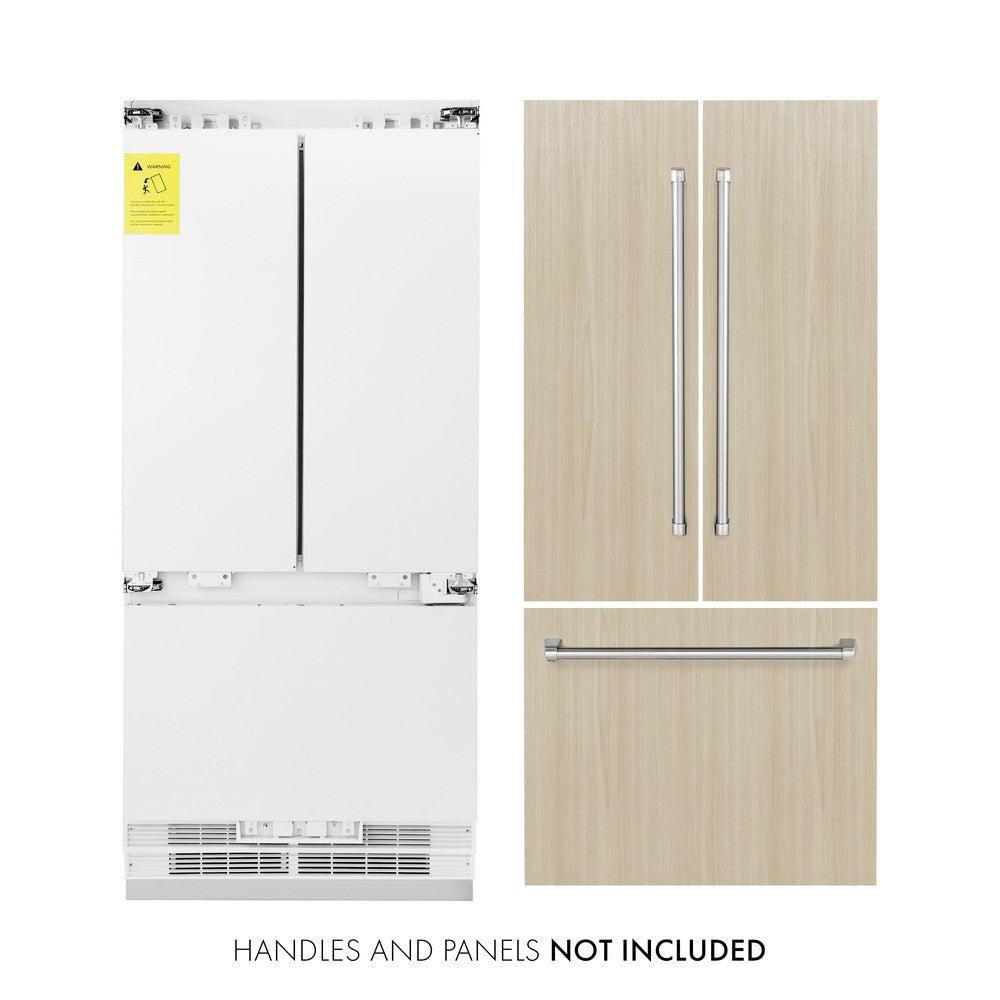

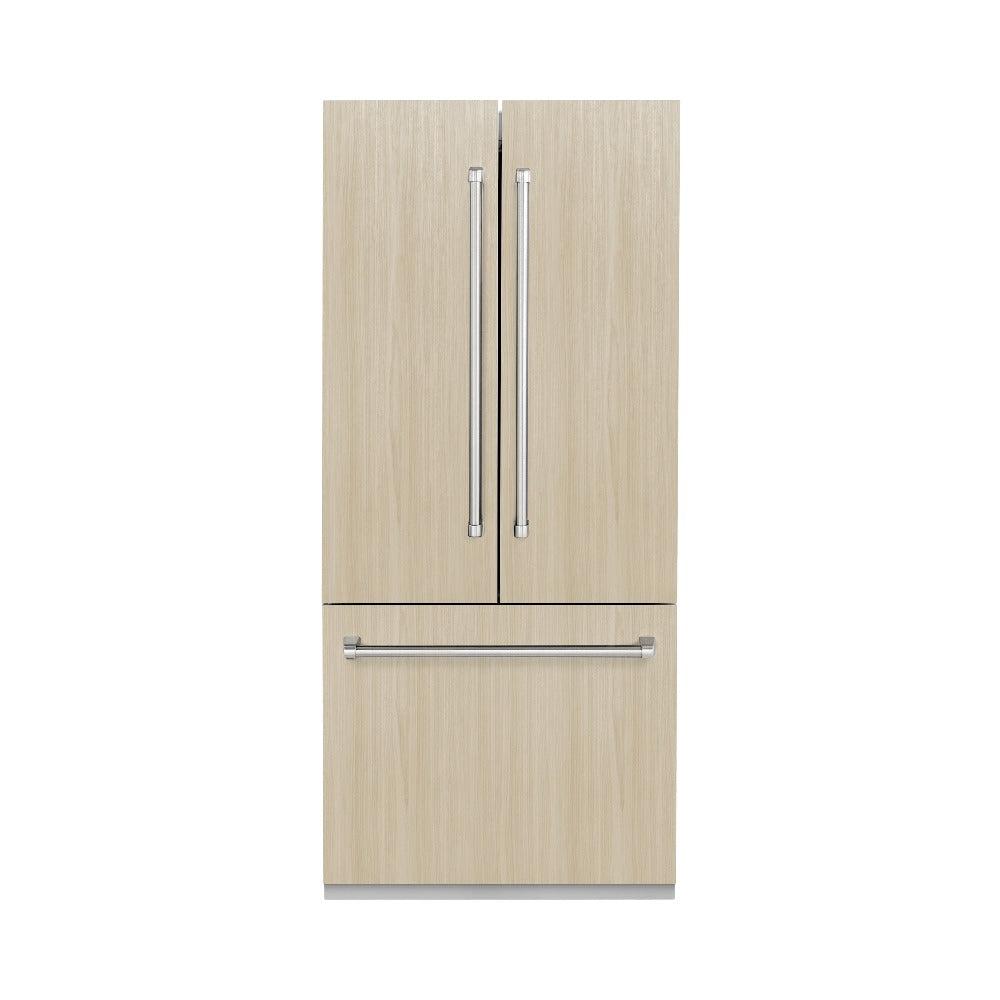

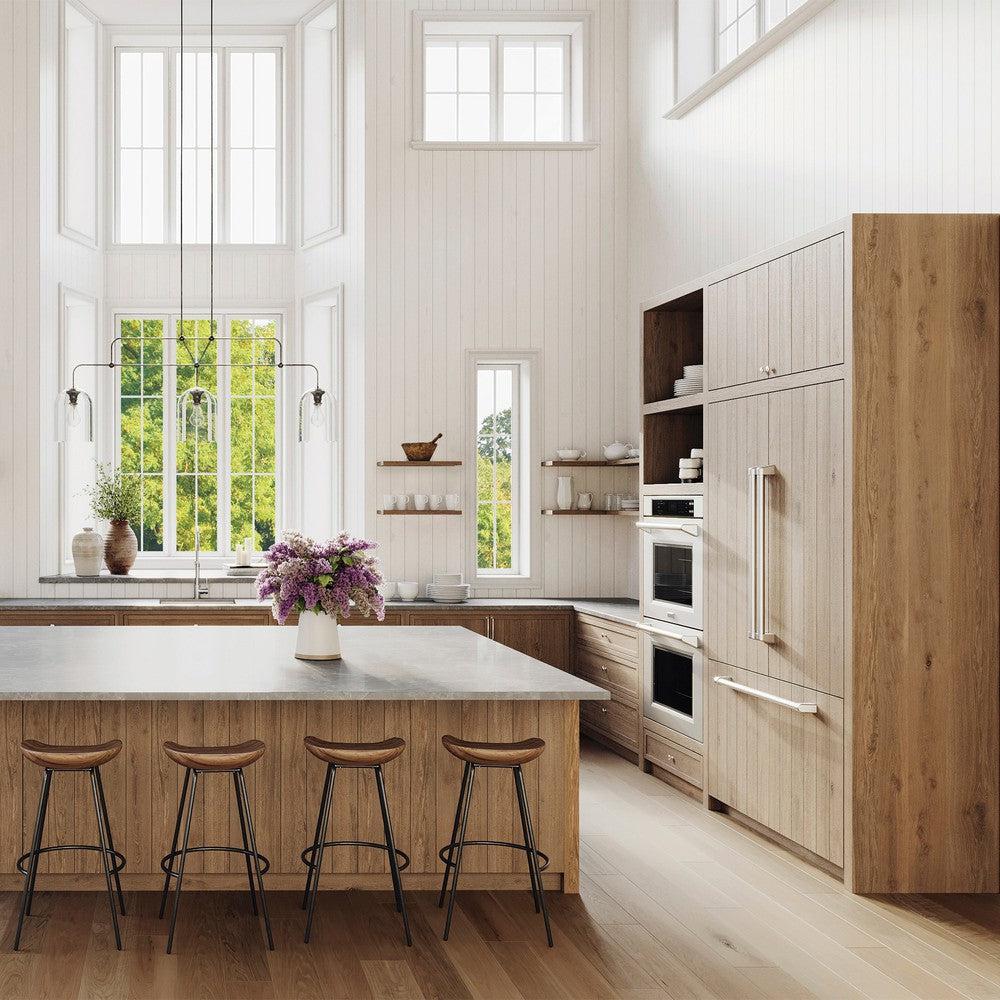

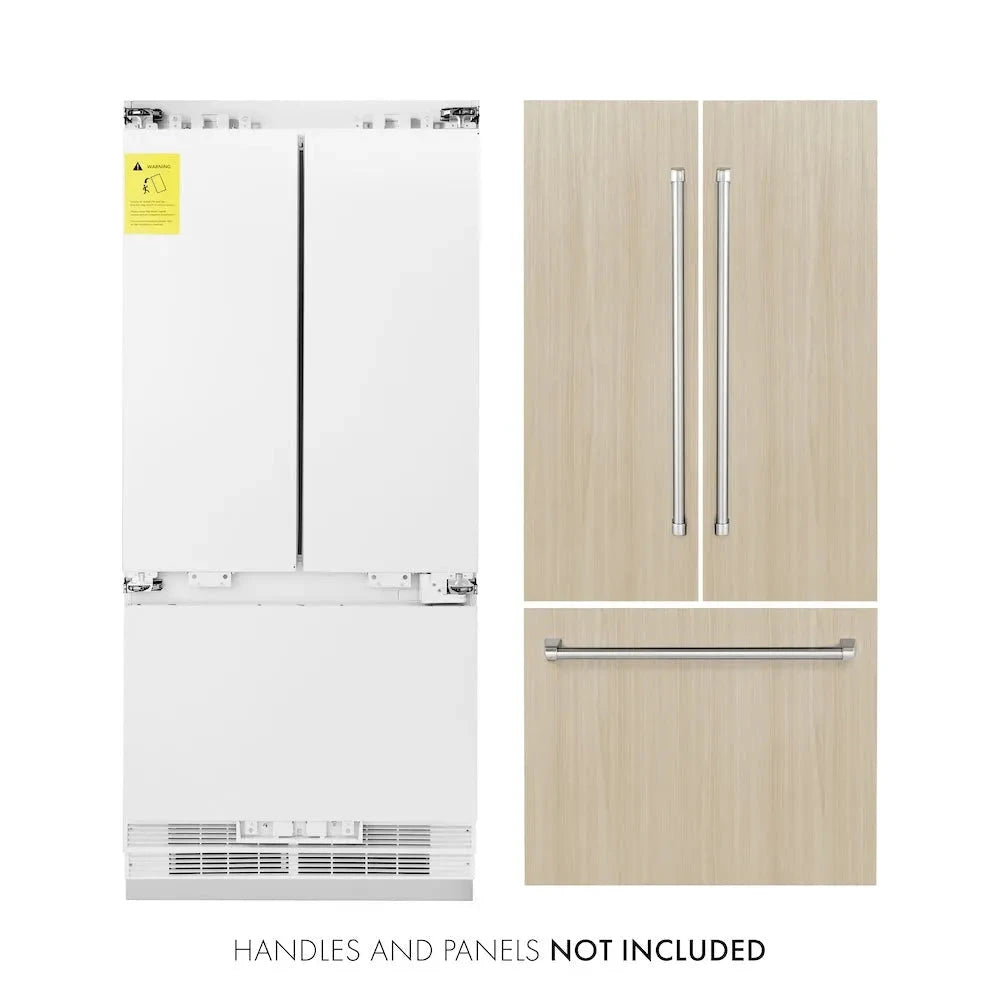

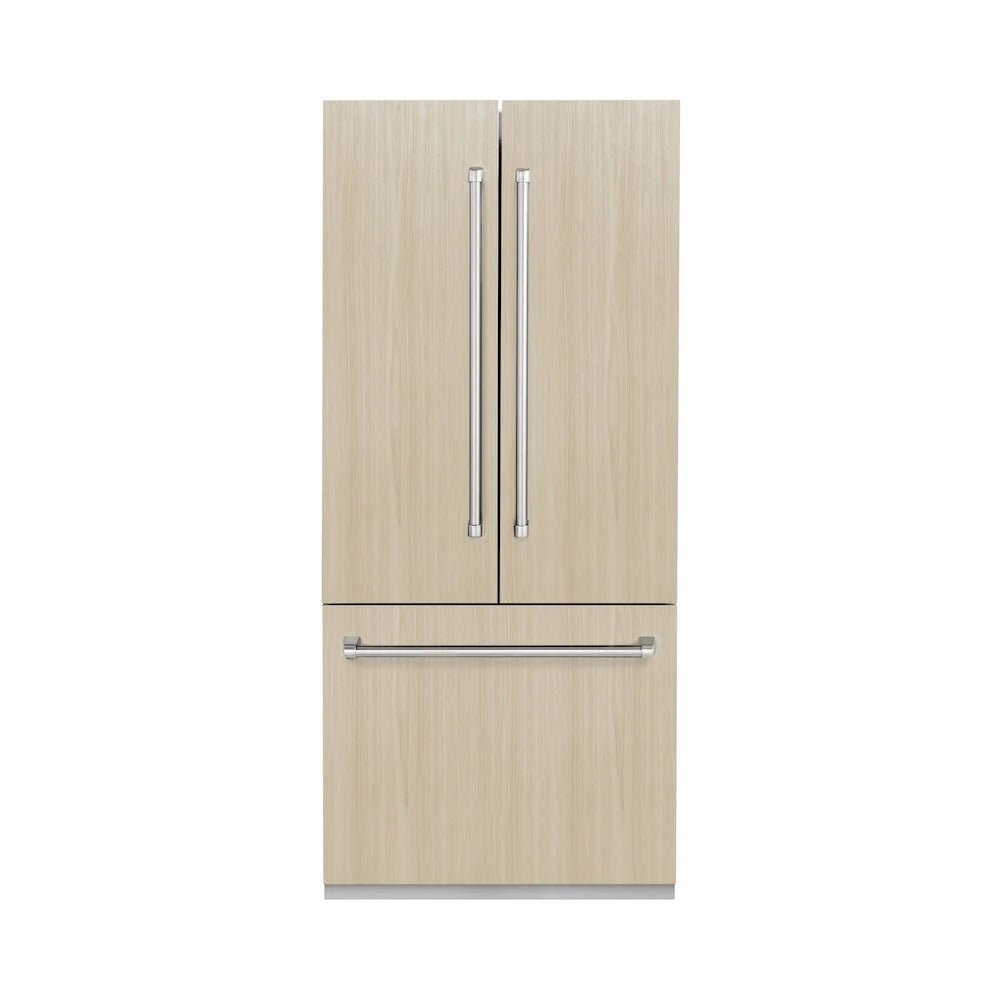

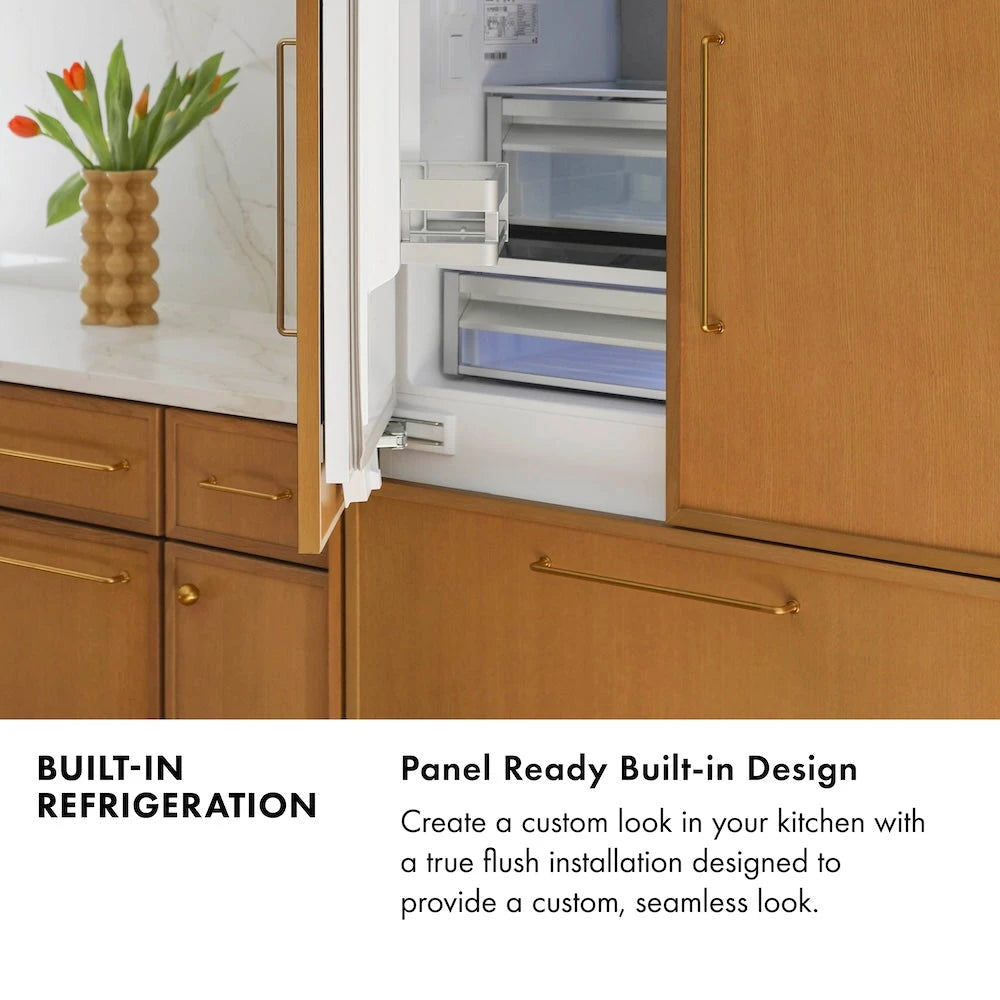

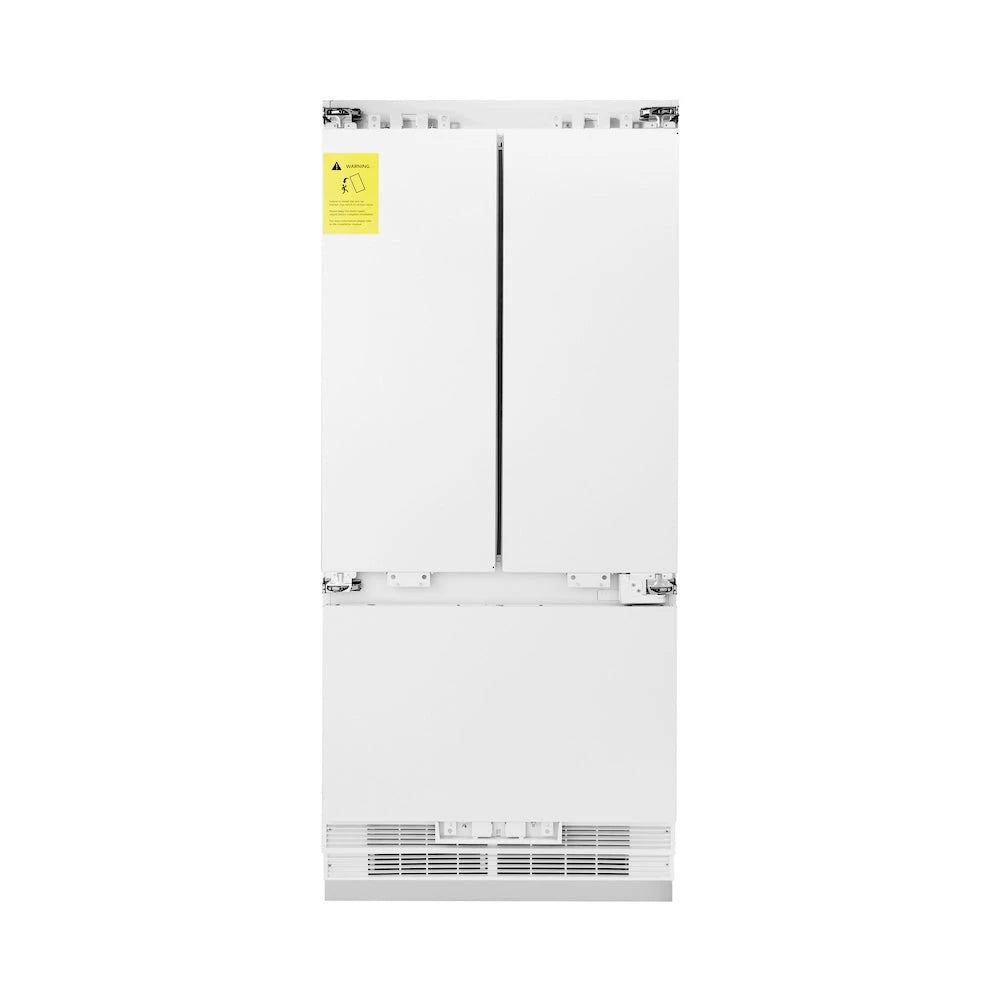

The ZLINE 36 in. 19.6 cu. ft. Panel Ready French Door Built-In Bottom Freezer Refrigerator with Water Dispenser and Ice Maker (RBIV-36) provides the ultimate upgrade to the center of your home by pairing premium dual cooling technology with enhanced storage capacity for multiple grocery items. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s cooling and freezing capability.


Product Features

  • Flex Drawers
    2 specialty half-width flex drawers feature 4 set temperature options between 30°F and 41°F, perfect for chilling wines, specialty meats, and other items for any occasion
  • Spacious Storage
    Comfortably organize multiple grocery items inside a 14 cu. ft. refrigeration compartment and 5.6 cu. ft. freezer compartment—totaling 19.6 cu. ft. of interior capacity
  • Bright White Interior
    Achieve ZLINE Attainable Luxury® excellence by pairing best-in-class freshness with Bright White interior units featuring exceptional dual cooling technology

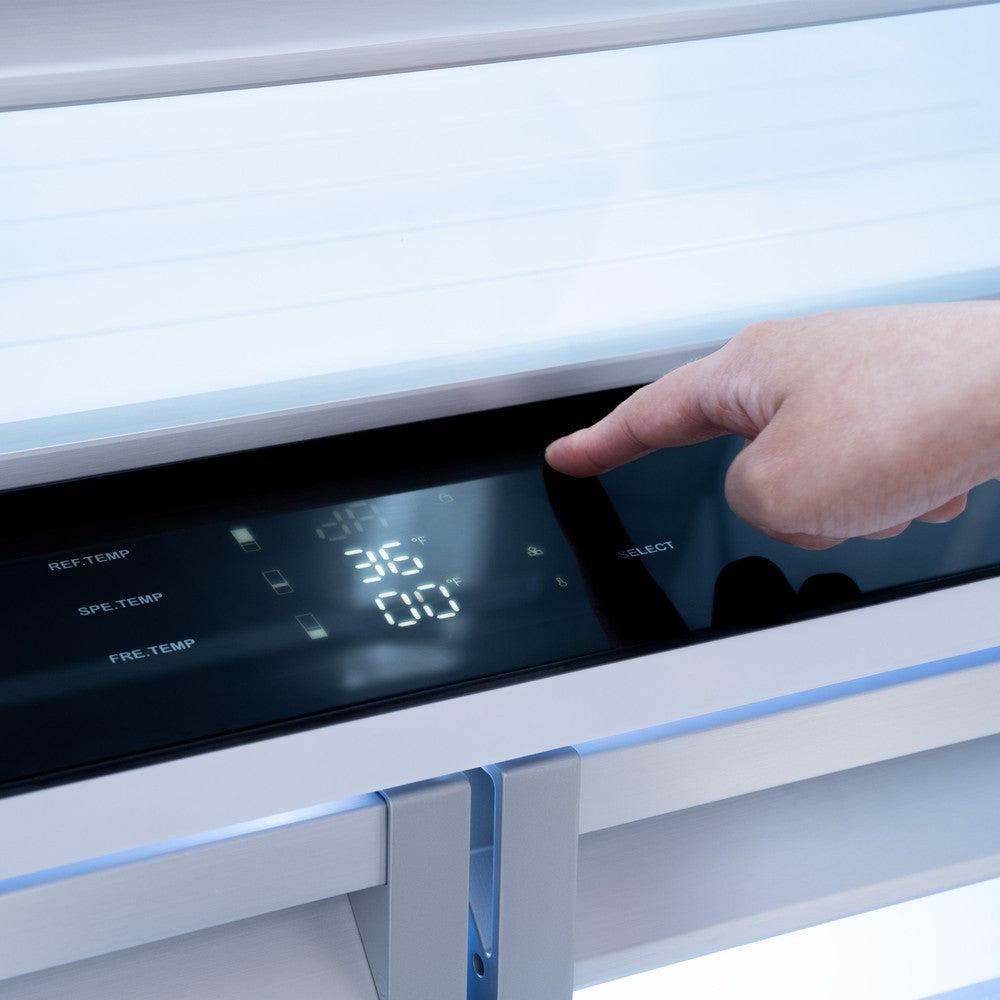

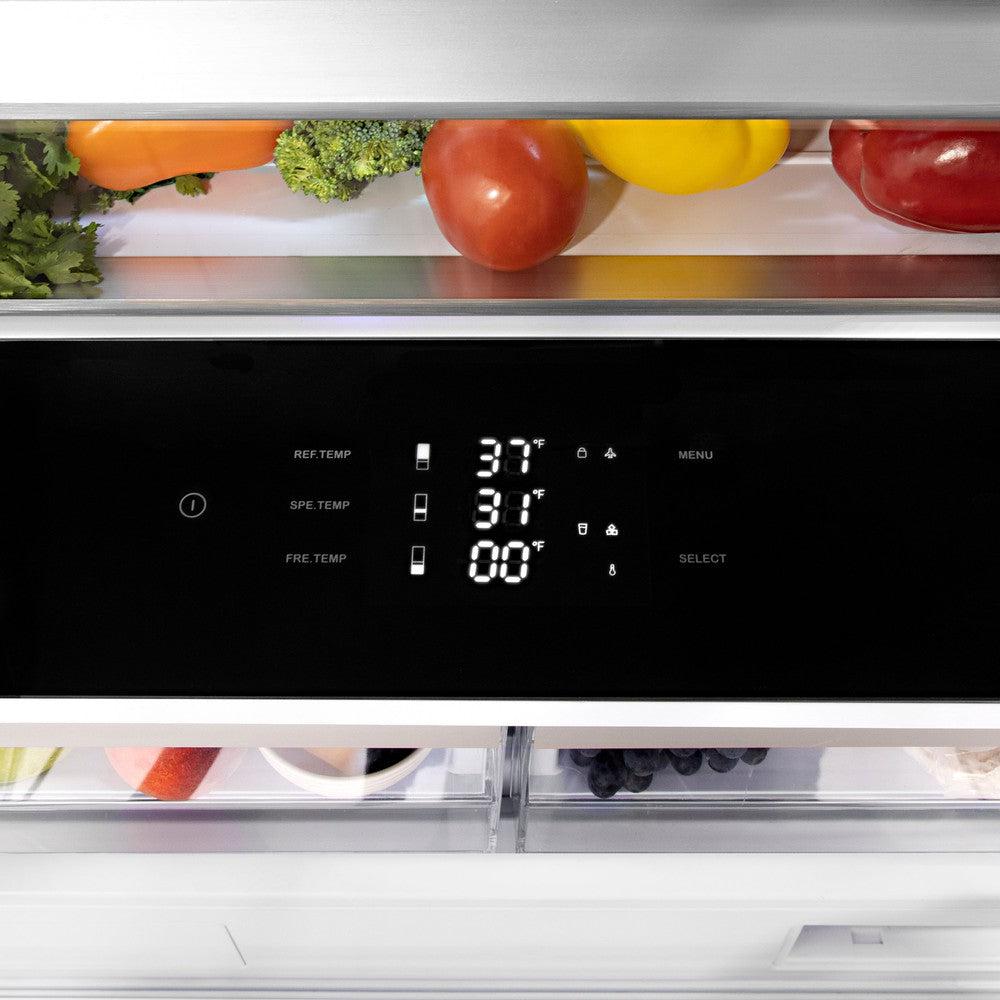

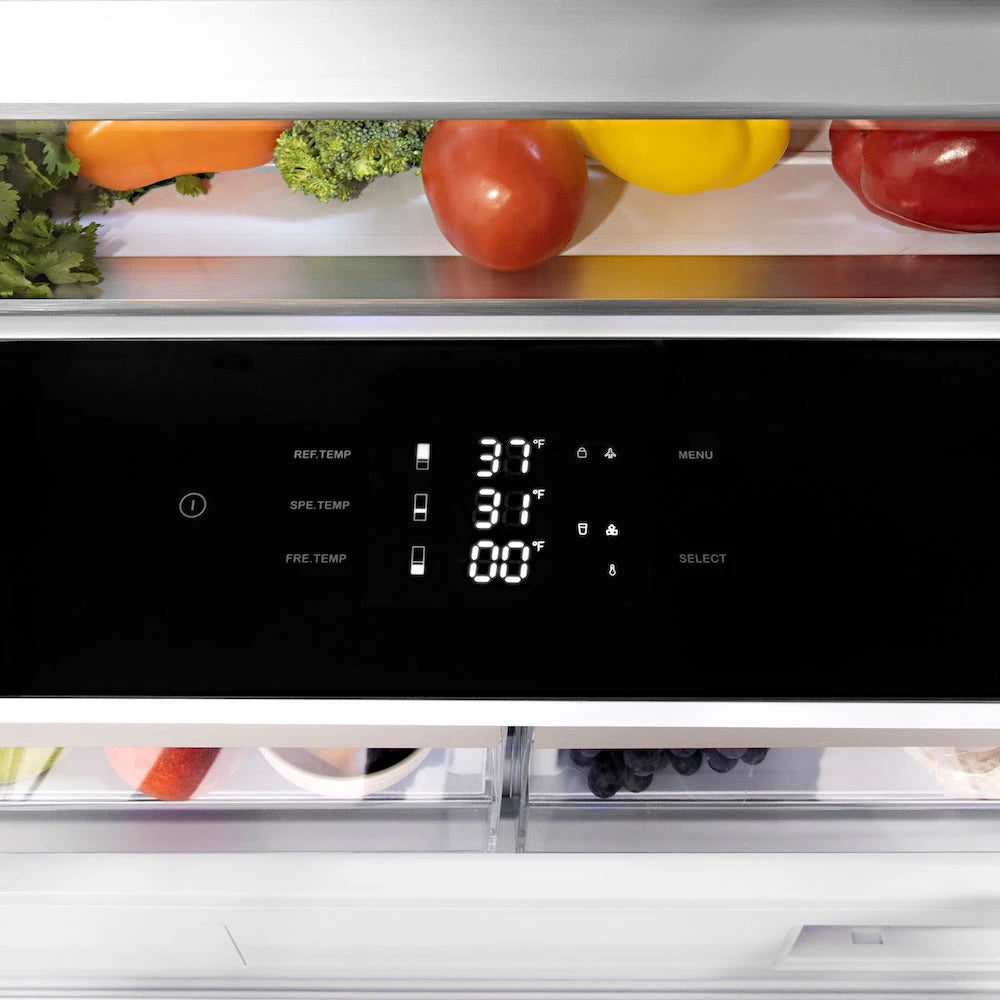

  • Digital ChillControl
    An ergonomic LED display allows you to quickly change temperatures and navigate menu options to change the appliance to vacation, sabbath, or eco modes
  • Adjustable Temperatures
    Create the perfect cooling environment with fridge temperatures ranging from 35°F to 46°F and freezer temperatures ranging from -11°F to 5°F

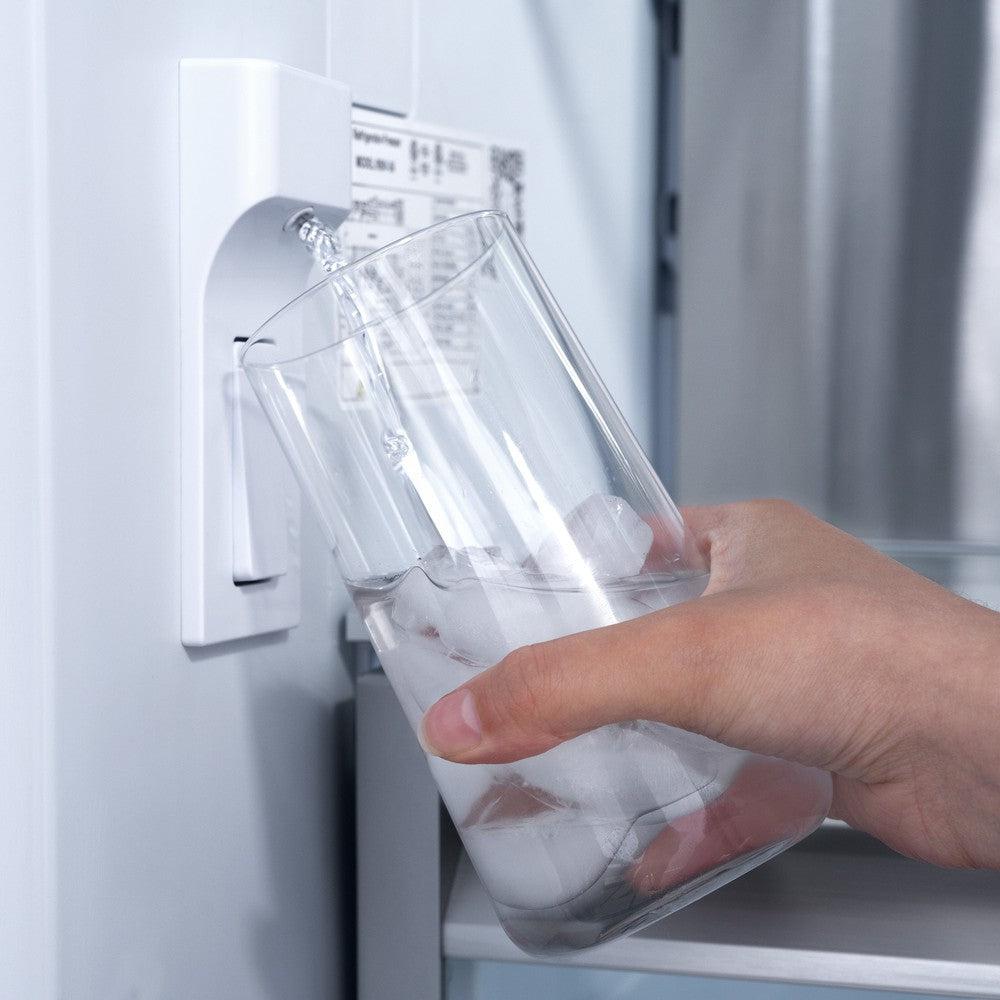

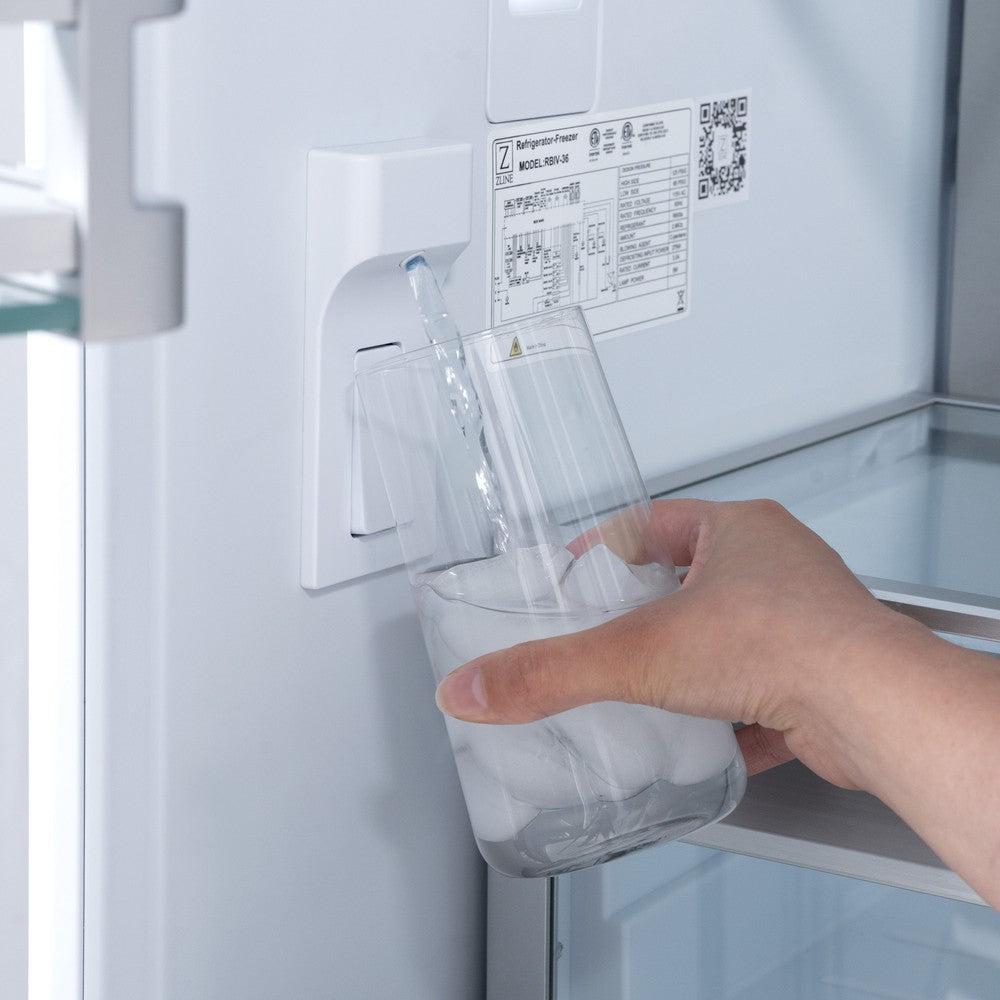

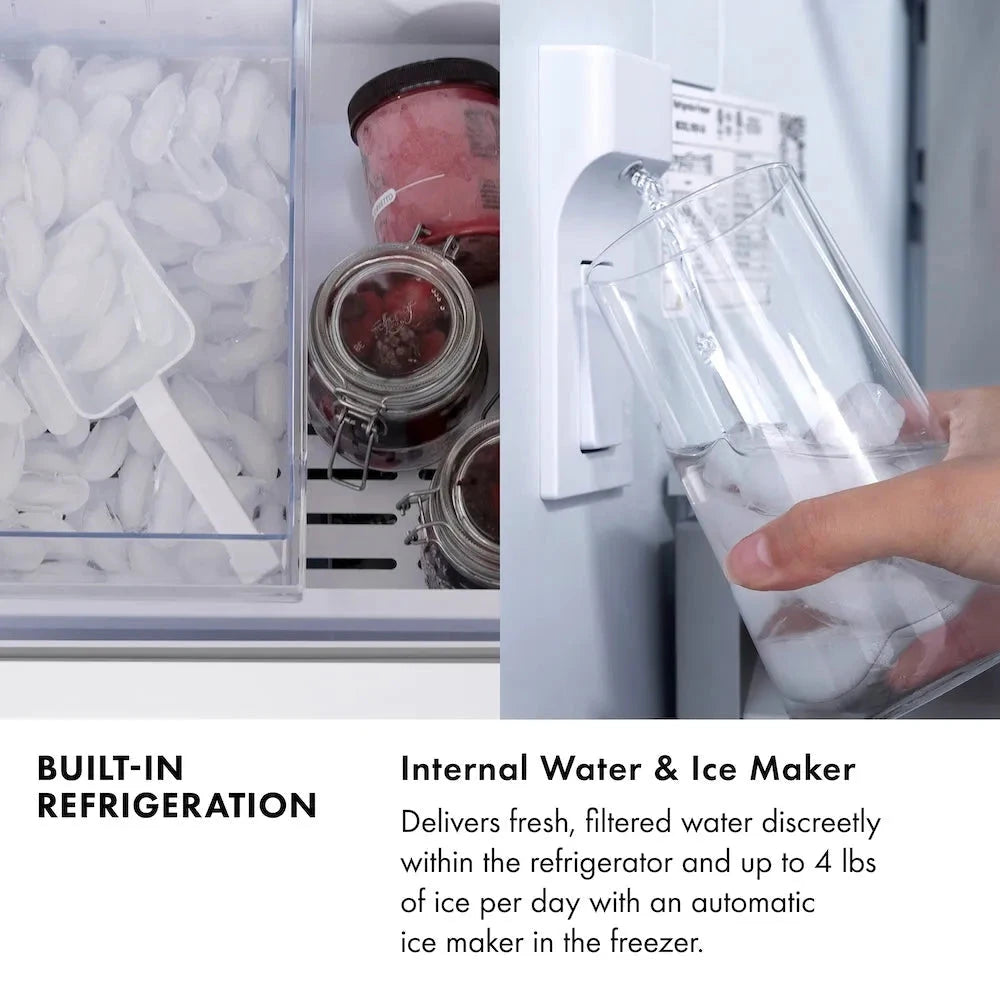

  • Water Dispenser and Ice Maker
    Deliver fresh, filtered water discreetly with a water dispenser in the fridge and produce up to 4 pounds of daily ice with an automatic ice maker in the freezer
  • Soft-Shut Technology
    Smooth-closing fridge drawers seamlessly open and close ensuring heavily used components are enjoyed for years to come
  • LED Illumination
    Easily spot items inside the fridge thanks to cool white LED interior lights along the walls and ceiling that illuminate when you open the door
  • Electrical Requirements
    Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system

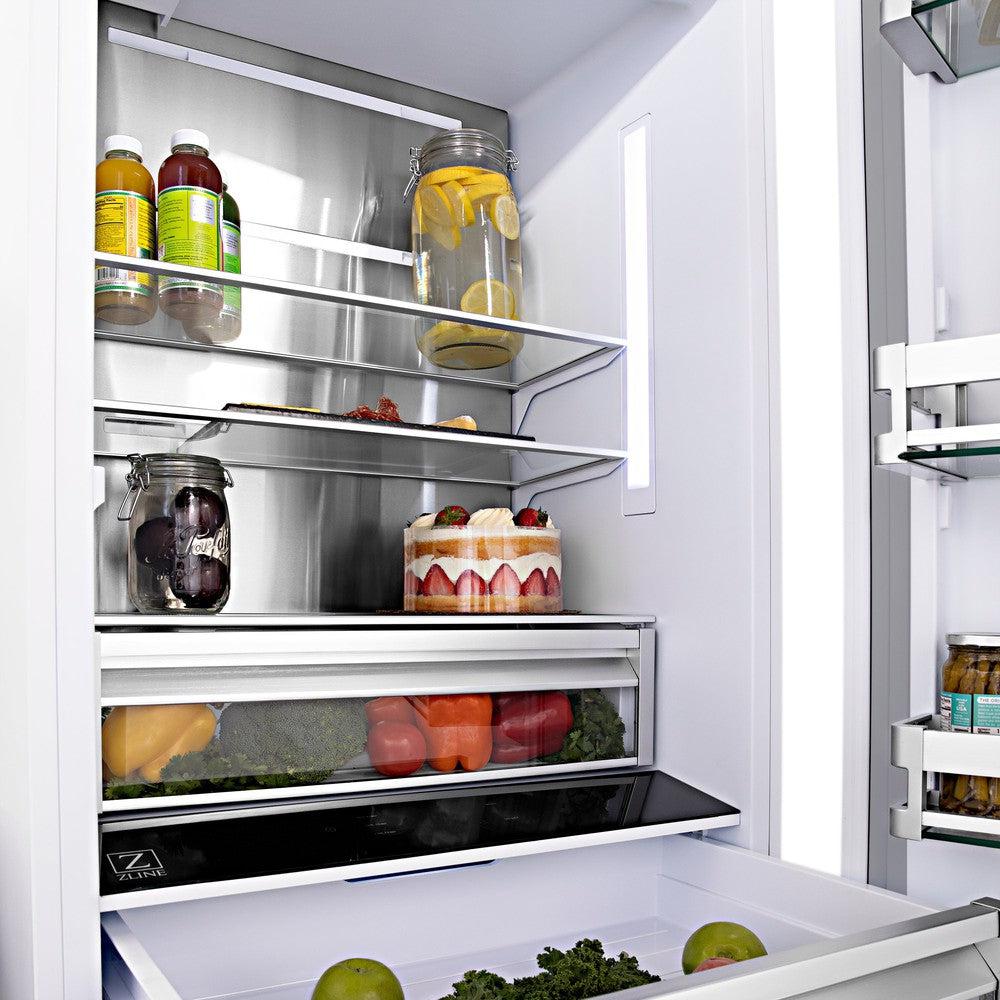

  • Full-Width Pantry Drawer
    A full-width pantry drawer provides substantial storage for fruits, vegetables, and other food items you want to keep fresher longer

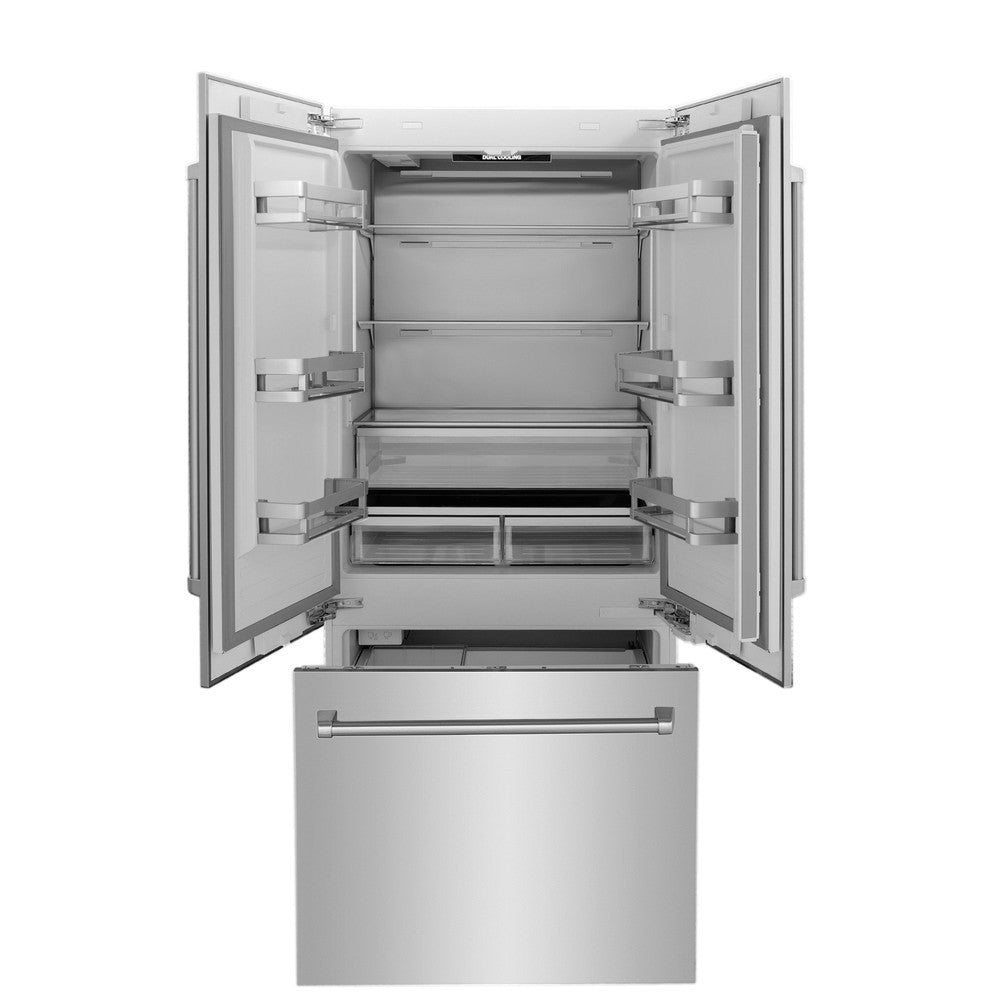

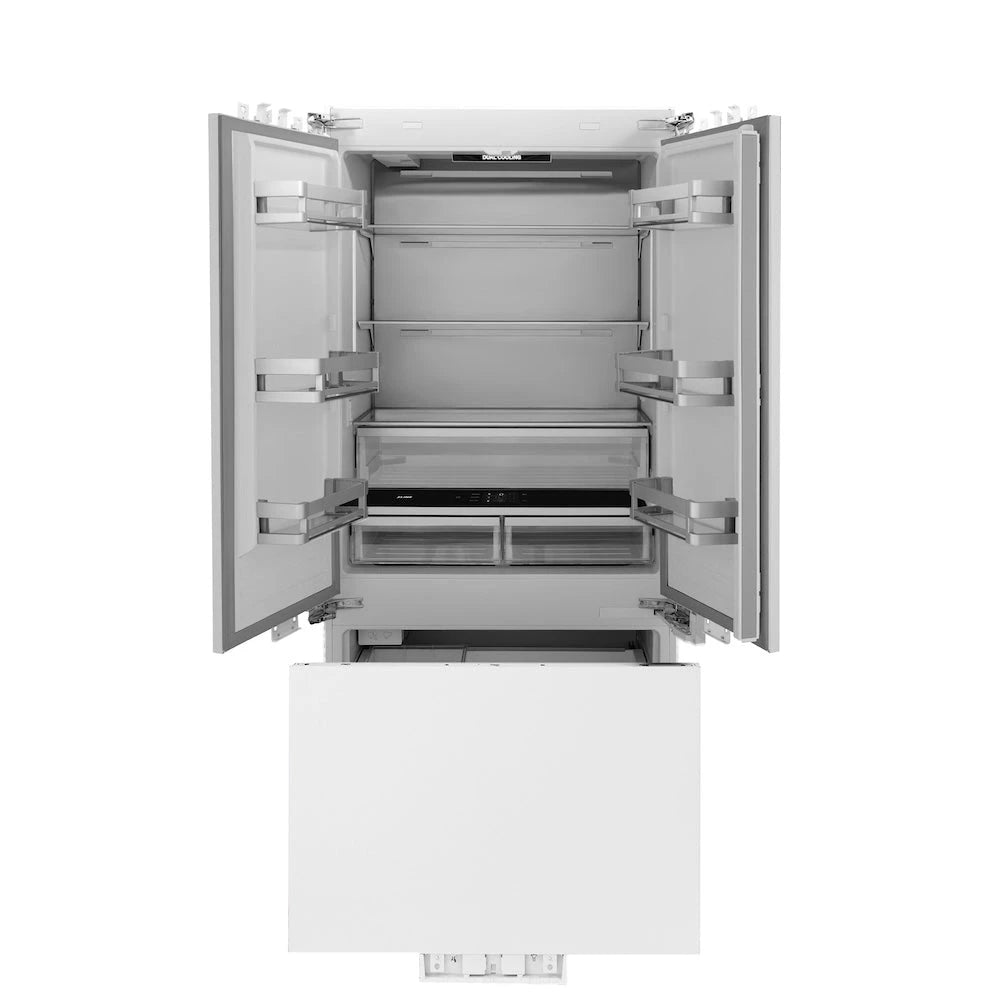

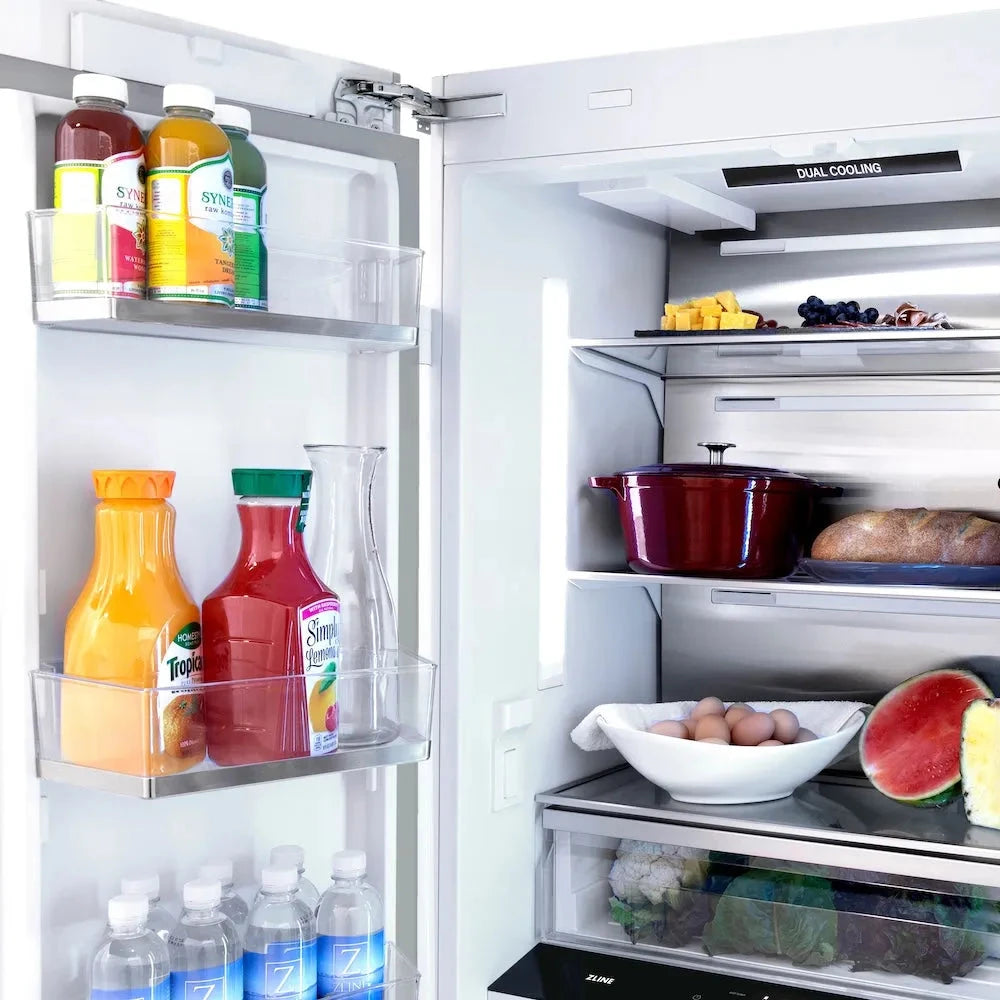

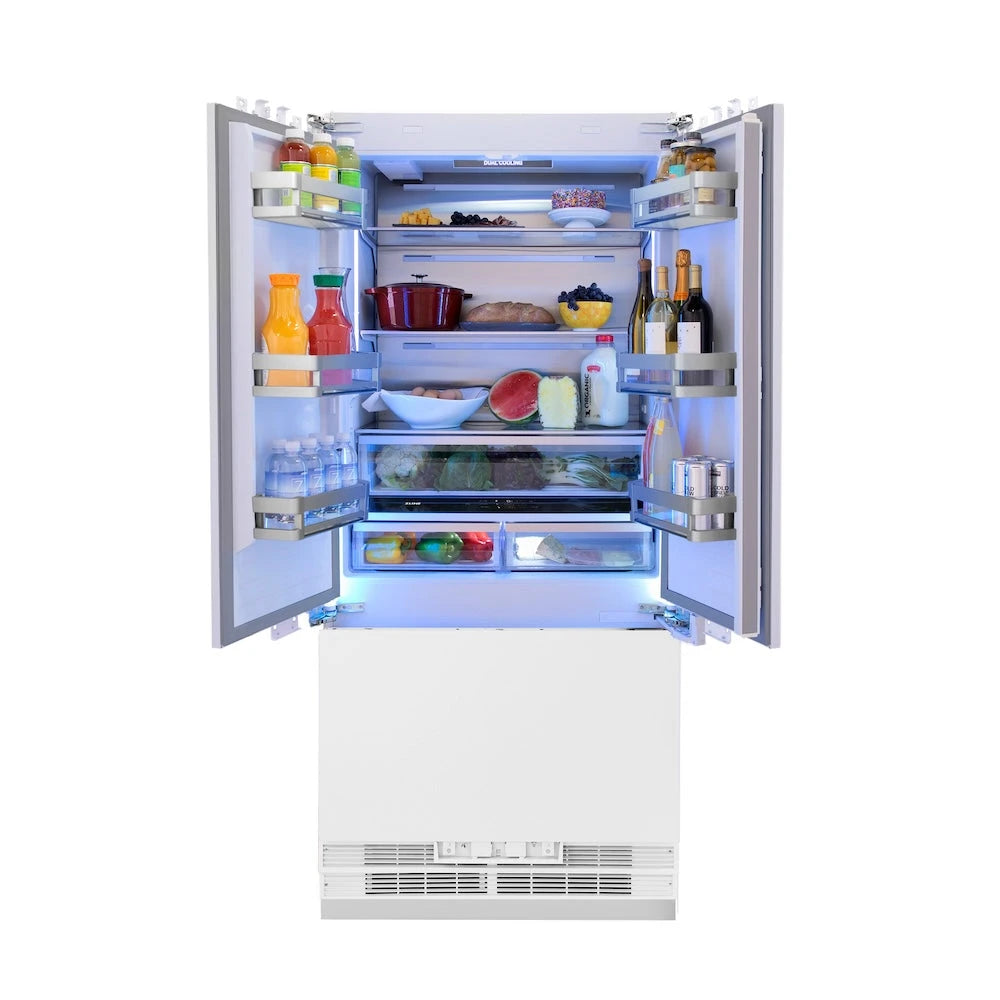

  • Adjustable Shelves and Bins
    Easily store larger items with 3 spill-resistant glass shelves and 6 door bins in the fridge, as well as 2 full-extension drawers in the freezer
  • Super Cool and Super Freeze Modes
    Save time and quickly chill food with unique functions that automatically set the fridge temperature to 35°F and freezer to -12°F

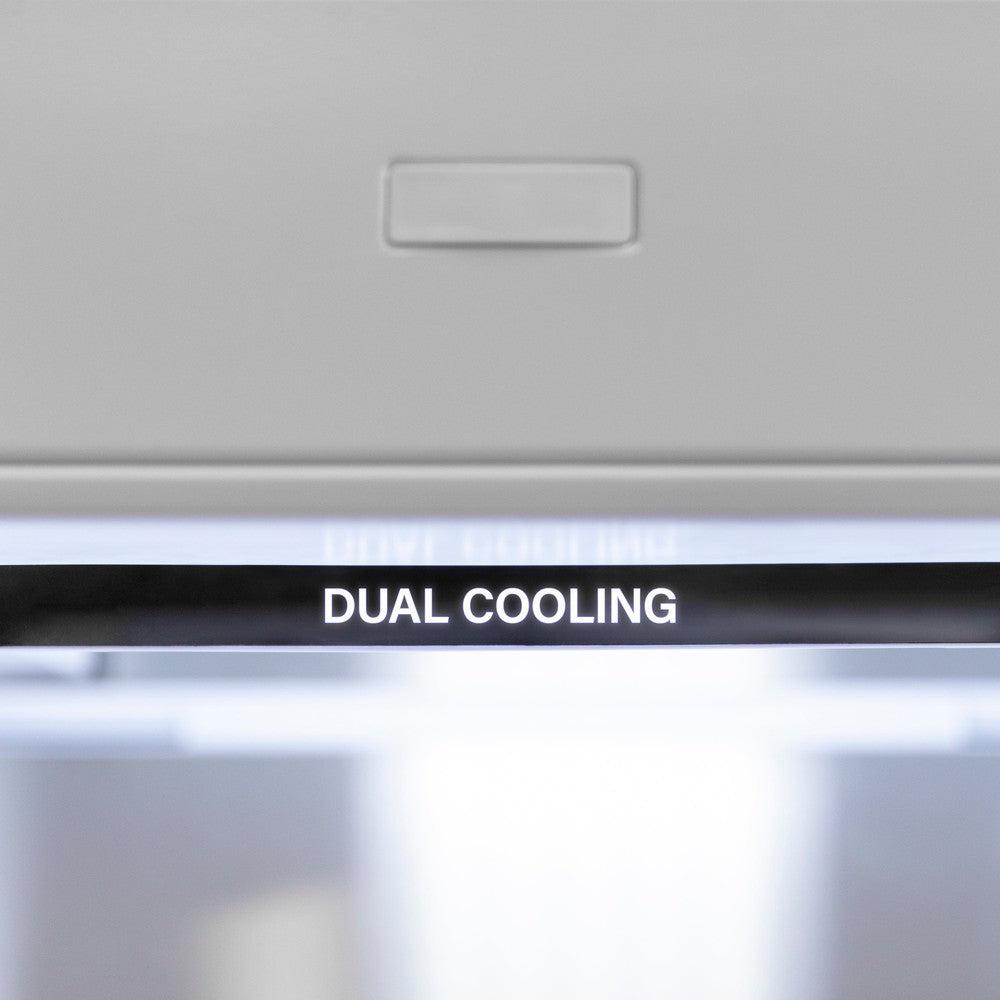

  • Dual Cooling
    Separate fridge and freezer cooling systems ensure air and odors are not mixed between compartments and provide fast and efficient cooling
  • Water Filter Included
    A simple-to-replace filter that eliminates impurities for crystal-clear drinking water is conveniently located in the fridge compartment
  • ENERGY STAR® Rated
    Enjoy energy savings while maintaining professional power with superior insulation and an energy-reducing cooling system
  • Warranty
    2-year parts and labor warranty, 5-year parts-only sealed system warranty
