Sale price $1,255.14 Regular price $1,748.97 Save $493.83 / 28% OFF

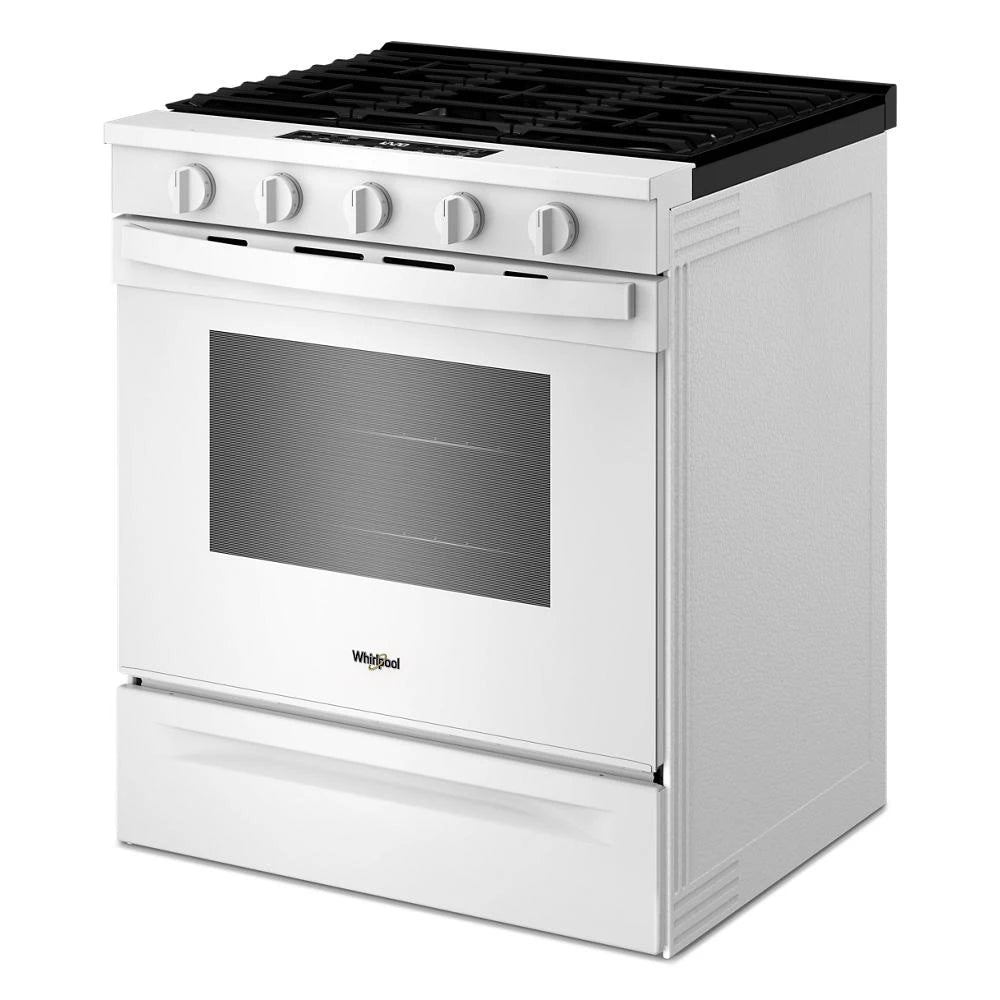

Product Details for Whirlpool WSGS5030SW

Technical Details

Certifications

ADA Compliant No
CUL Yes
Star K Certified Star K Certified
UL Yes
Energy Star® Qualified No
Prop 65 Standard

Controls

Display Color White

Cooktop details

Auto Re-ignition Yes
Cooktop Control Knob Type Plastic
Cooktop Control Location Front
Cooktop Control Type Knobs
Cooktop Surface Material Porcelain Coated Steel
Griddle Included No
Heating Element On Indicator Light Yes
Hot Surface Indicator Light Yes
Ignition Type Direct Spark Ignition

Details

Cooktop Configuration All Burners
Delay Clean No
Fuel Type Gas
Installation Configuration Freestanding
LP Convertible Yes - Kit Included
Oven Automatic Shut-Off Yes
Oven Configuration Single Oven
Power On Indicator Light Yes
Power Outage Compatible Yes
Range Configuration Slide-In
Range Type Slide-in
Natural Gas Convertible No
Oven Selections Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Convect Modes, Cook Time Indicator, Delay Start, Keep Warm/Warm Hold, Language Conversion, No Preheat - Frozen, Rapid Preheat, Re

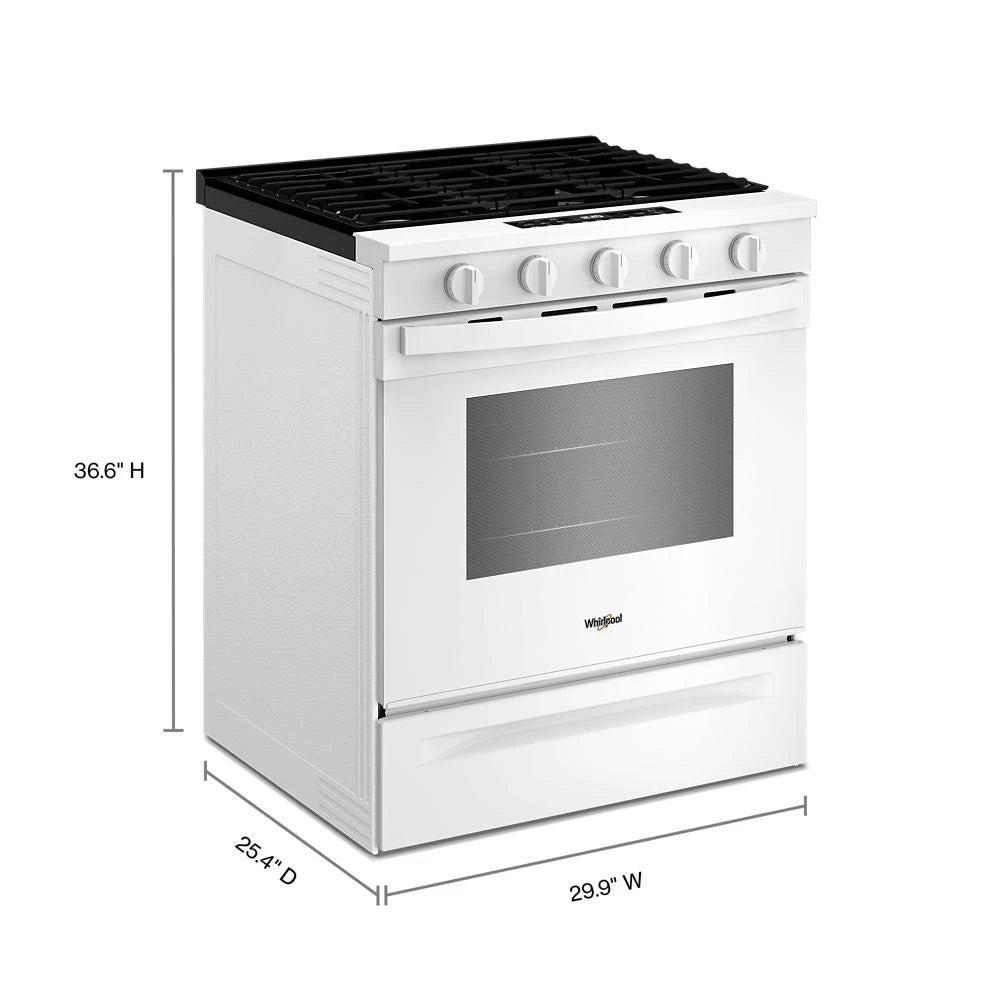

Dimensions

Adjustable Height Yes
Capacity 5 cu. ft.
Common Size 30 in
Cutout Depth 24 in
Cutout Height 36 in
Cutout Width 30 in
Depth 25-2/5 in
Depth Closed Excluding Handles 27-2/5 in
Depth Closed Including Handles 29-1/10 in
Depth Excluding Doors 25-2/5 in
Depth With Door Open 90 Degree 47-7/10 in
Gross Weight 205 lbs
Height 36-3/5 in
Maximum Height 38-1/10 in
Minimum Height 36-3/5 in
Net Weight 189 lbs
Oven Interior Depth 19 in
Oven Interior Height 18-4/5 in
Oven Interior Width 24-1/5 in
Width 29-9/10 in

Electrical

Power Cord Included Yes
Amps 15
Hz 60
Volts 120
Watts 1

Element/burner details

Center Rear Element-Burner Size N/A
Center Rear Element-Burner Type Oval Burner
Cooktop Element Style Sealed Burner
Left Front Element-Burner Size N/A
Left Front Element-Burner Type Large
Left Rear Element-Burner Power 10000 BTU
Left Rear Element-Burner Size N/A
Left Rear Element-Burner Type Standard
Number of Cooking Element-Burners 5
Right Front Element-Burner Size N/A
Right Front Element-Burner Type Extra Large
Right Rear Element-Burner Size N/A
Right Rear Element-Burner Type Simmer/Melt
Center Rear Element-Burner Power 12,000 BTU
Left Front Element-Burner Power 15,000 BTU
Number of Grates 3
Right Front Element-Burner Power 18,000 BTU
Right Rear Element-Burner Power 5,000 BTU

Exterior details

Door Type Glass
Oven Control Knob Type N/A
Oven Control Location Front
Oven Control Type Tap Touch
Oven Window Size Extra Large
Handle Color White
Handle Material Metal
Handle Type Reach Through Handle
Knob Color White
Knob Type Weighted-Plastic
Door Lock Yes

Smart compatibility

Smart Appliance Yes
Connectivity Amazon Alexa, Android, Google Assistant, Nest, iOS
Works With App, Bluetooth, Remote Access, Voice Controlled, WiFi

Oven cavity details

Automatic Convection Conversion Temperature Adjust No
Bake Element Power 16,500 BTU
Broiler Element Power 1,300 W Electric Broil
Broiler Location Top Center
Convection Element Type Fan
Convection Functions Air Baking, Air Broil, Air Fry, Air Reheat, Air Roast, Bake, Broil, and Roast, Keep Warm, No Preheat Air Fry, No Preheat Frozen Bake Lasagna, No Preheat Frozen Bake Pizza, Slow Cook, Warm Zon
Door Removable Yes
Hidden Bake Element Hidden
Interior Color Blue
Number of Oven Lights 1
Number of Oven Racks 2
Number of Rack Guides 5
Oven Cleaning Type Self Clean + Steam Clean
Oven Cooking System Convection
Oven Light Switch Location Oven Control
Oven Light Type Halogen
Oven Rack Front Material Metal
Oven Rack Type 2 Standard
Temperature Probe No
Temperature Sensor Yes

Grate details

Grate Details Dishwasher Safe, Matte Finish, Porcelain Coated Steel Grates

Description

Experience the difference of Air Cooking Technology with this Whirlpool 30 inch gas range. Get crispy with our most advanced No Preheat Air Fry mode, and even results on every rack with Air Baking. Cook up all that delights, all at once with Griddle Zone, make feel good meals with a variety of Cooking Modes, and tackle your to-do list with smart features built for multitasking.


Product Features

  • 10 Cooking Modes
    Take your favorite meals from fresh, fridge or freezer to fabulous with the Air Cooking Technology of No Preheat Air Fry, Air Baking, Air Roast, Air Broil and Air Reheat, or use traditional heating modes like No Preheat Mode, Bake, Slow Cook, Broil, and Keep Warm.

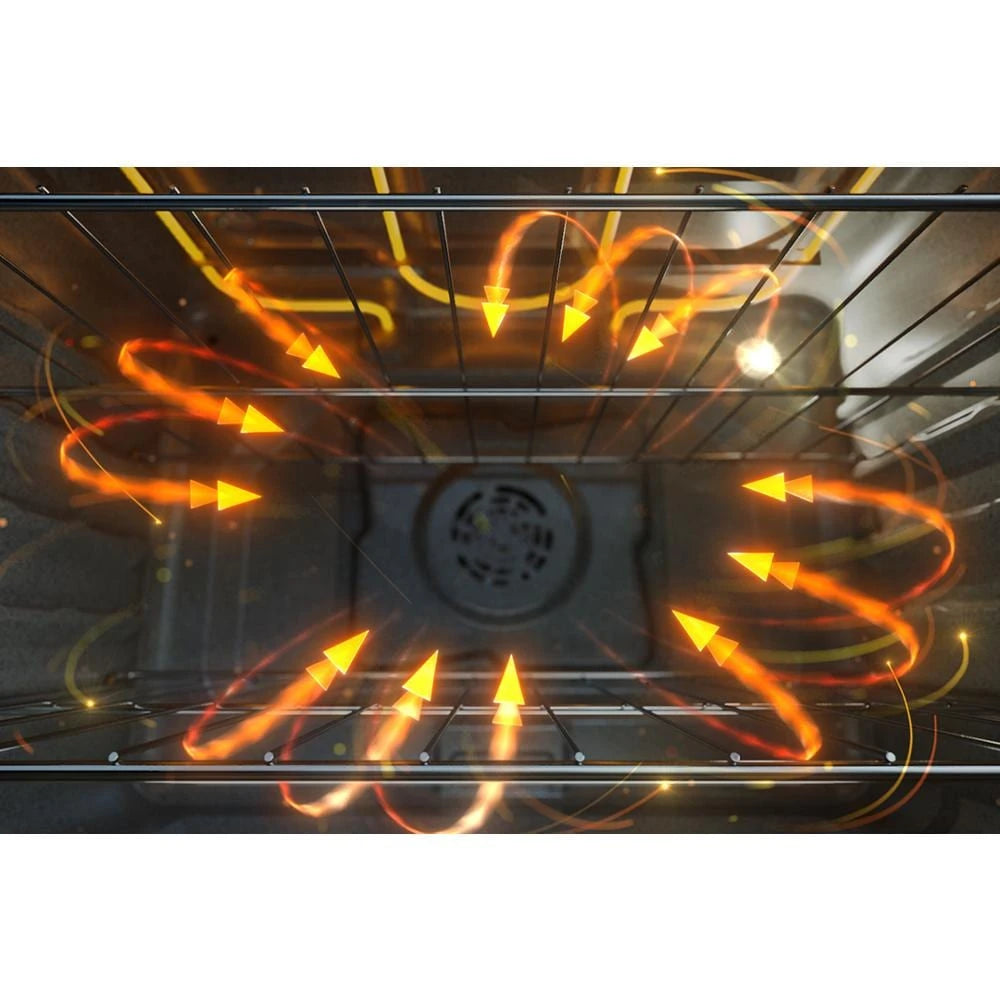

  • Air Baking
    Go from gooey to golden and get even results when baking on multiple racks with Air Baking. Our high-speed fan optimizes air flow and drives consitent heat throughout the oven. Get golden results on breads, pastries and more.
  • Air Broil
    Melt, char and sear in a snap with Air Broil. Our high-speed fan drives air flow to drives intense heat directly to the top of the oven. Prepare juicy chops, crispy vegetables and gooey s'mores with the added power of intense air-driven heat.

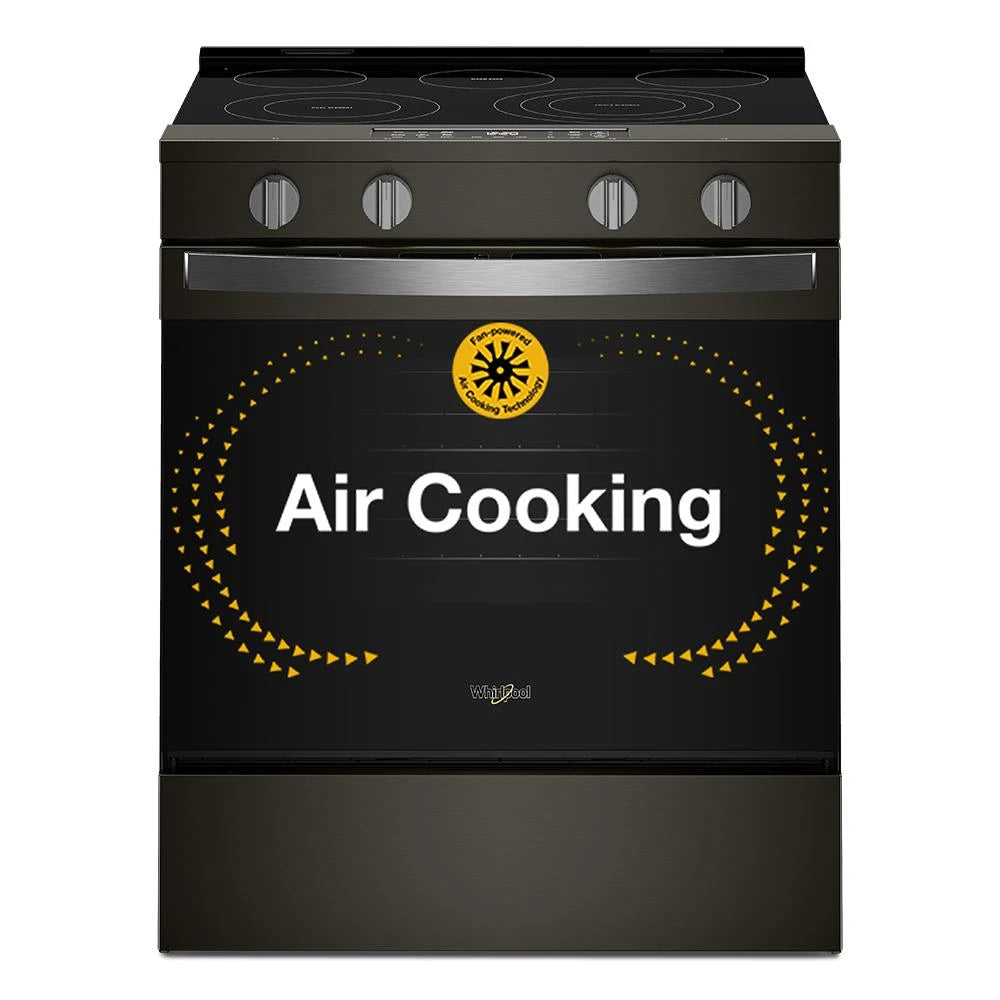

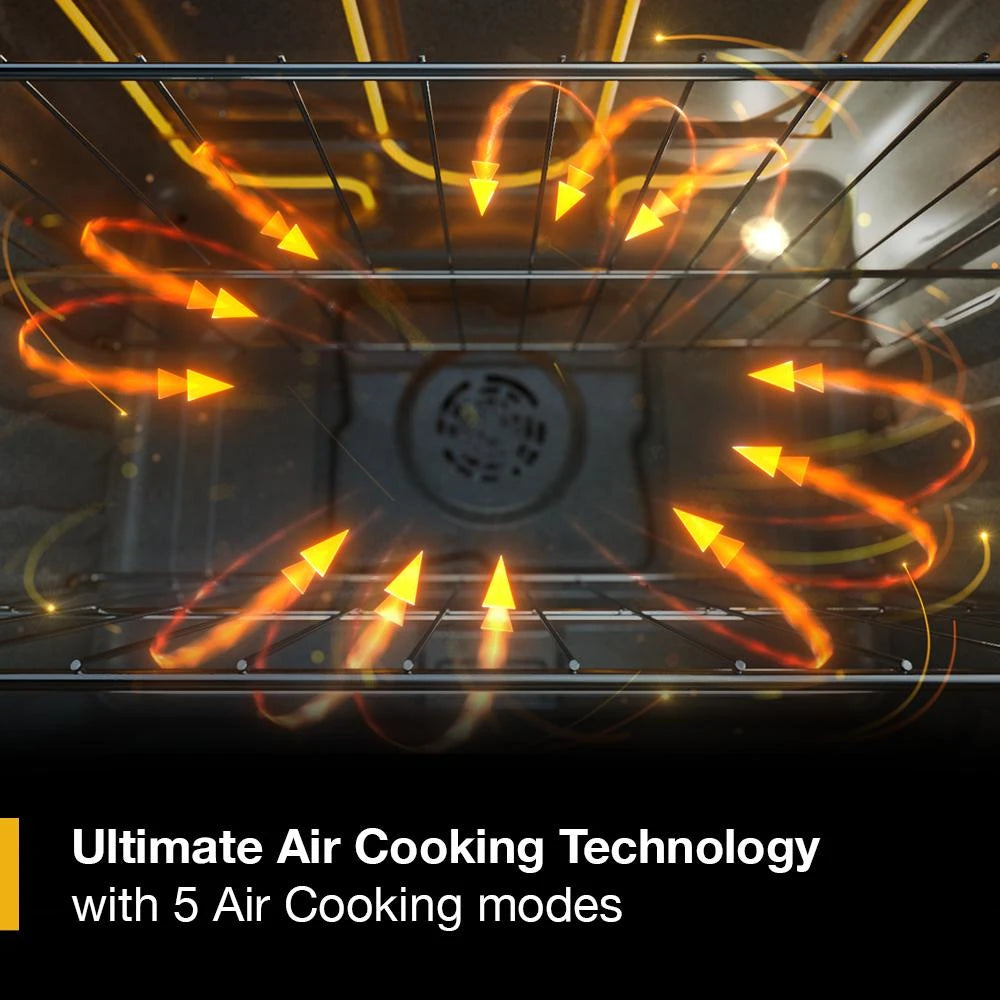

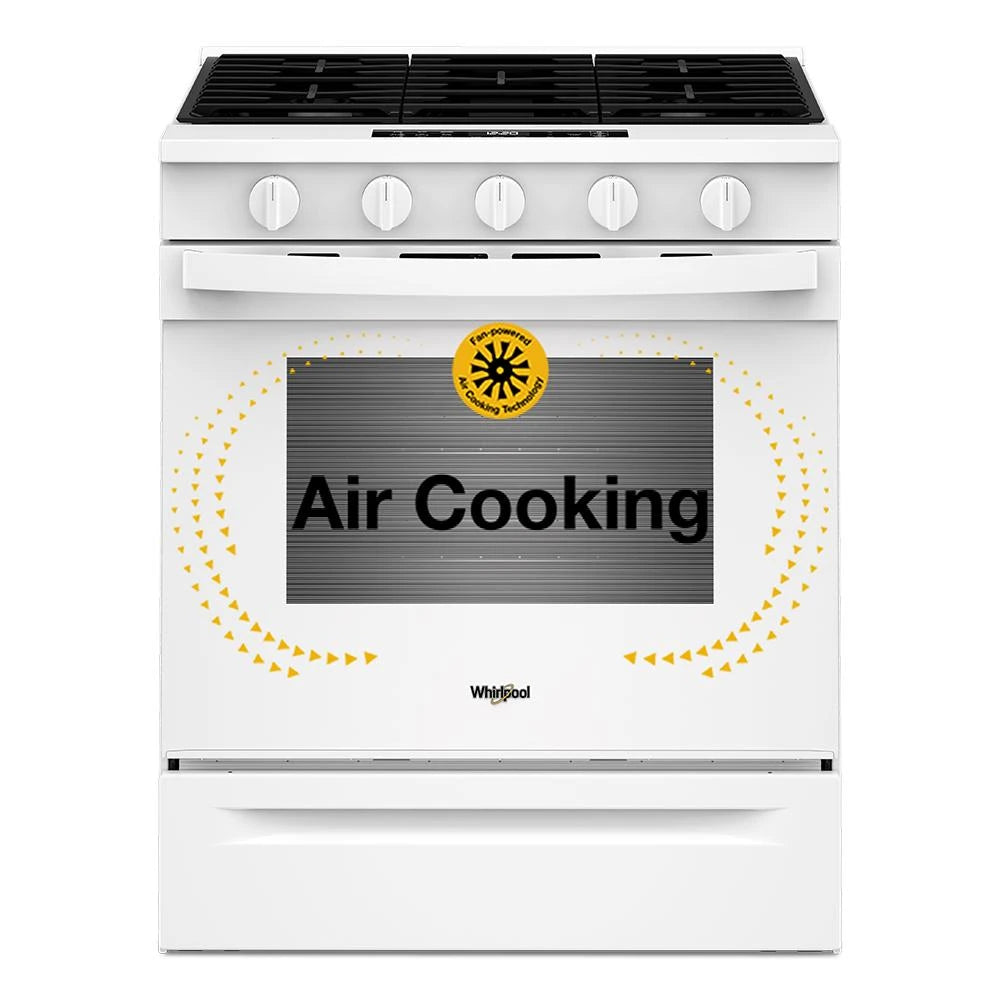

  • Air Cooking technology
    Experience the difference with the dynamic air flow and intense heat of Air Fry and Air Baking
  • Air Reheat
    Connect your range to skip microwaving and add crispness to leftovers with Air Reheat. Our high-speed fan delivers the right heat at the right time to quickly bring food up to temp. Add life back to leftovers like pizza and more with Air Reheat.*Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.
  • Air Roast
    Seal in flavors and juices for meat and poultry with Air Roast. Our high-speed fan drives air flow to optimize heat through longer cook times. Enjoy the full flavor of hearty dishes like pot roast and whole chicken.
  • Broil
    Redefine mealtime with Broil to make crispy-melty nachos, juicy-seared meat, toasty grilled cheese and more.

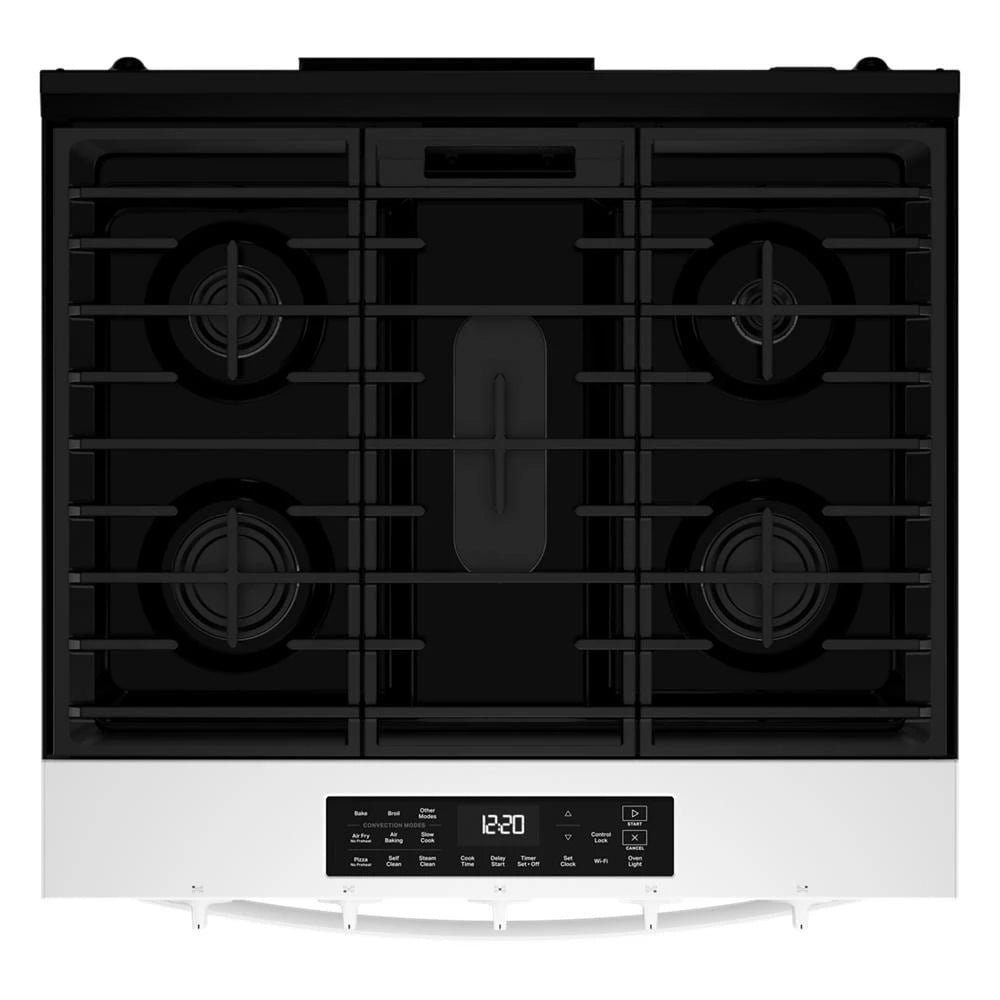

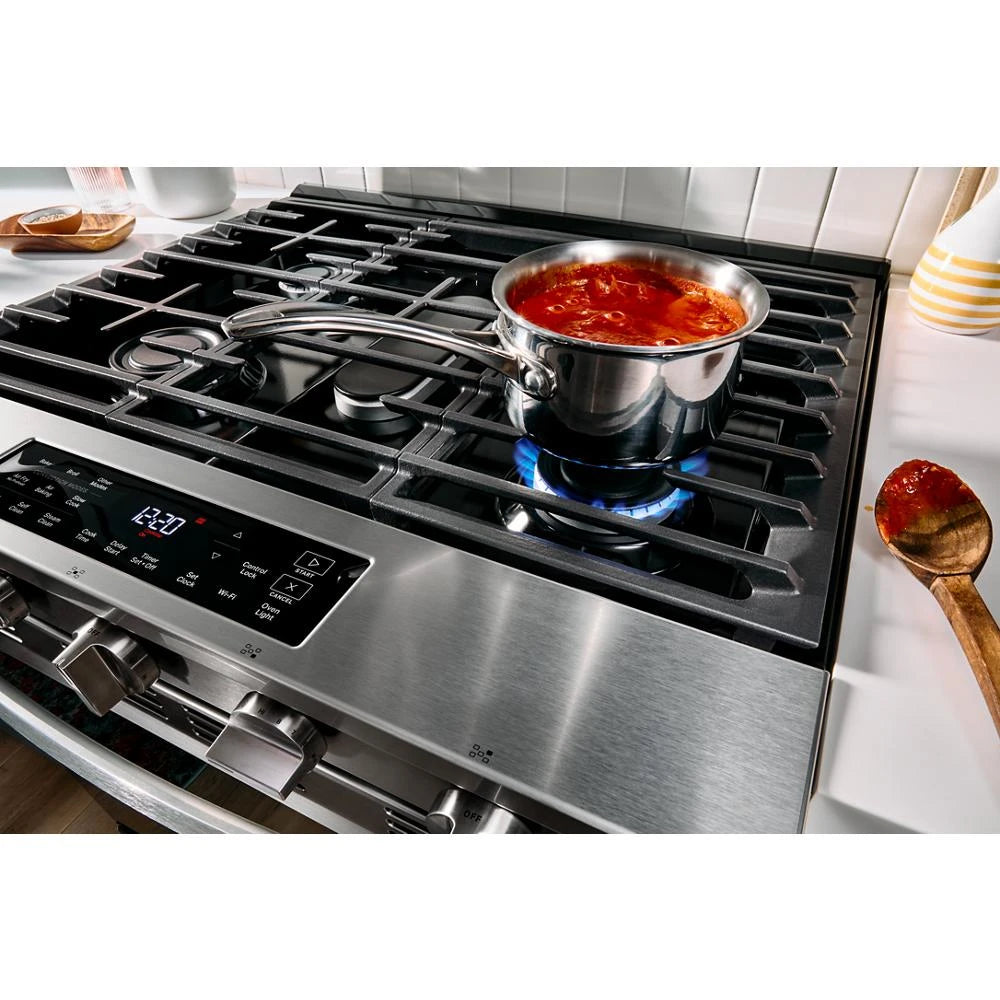

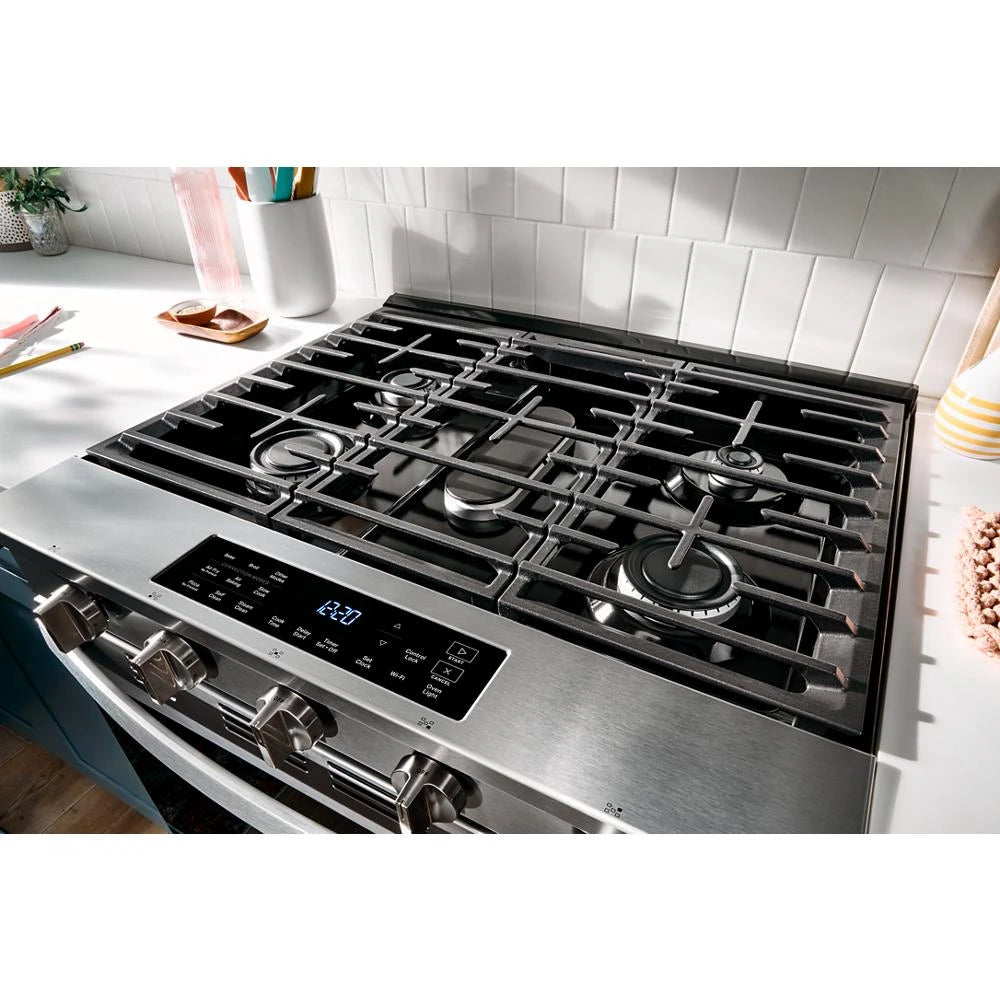

  • Cooktop Flexibility
    Easily cook multiple dishes at once with a flexible cooktop that offers a range of burner sizes and power levels.

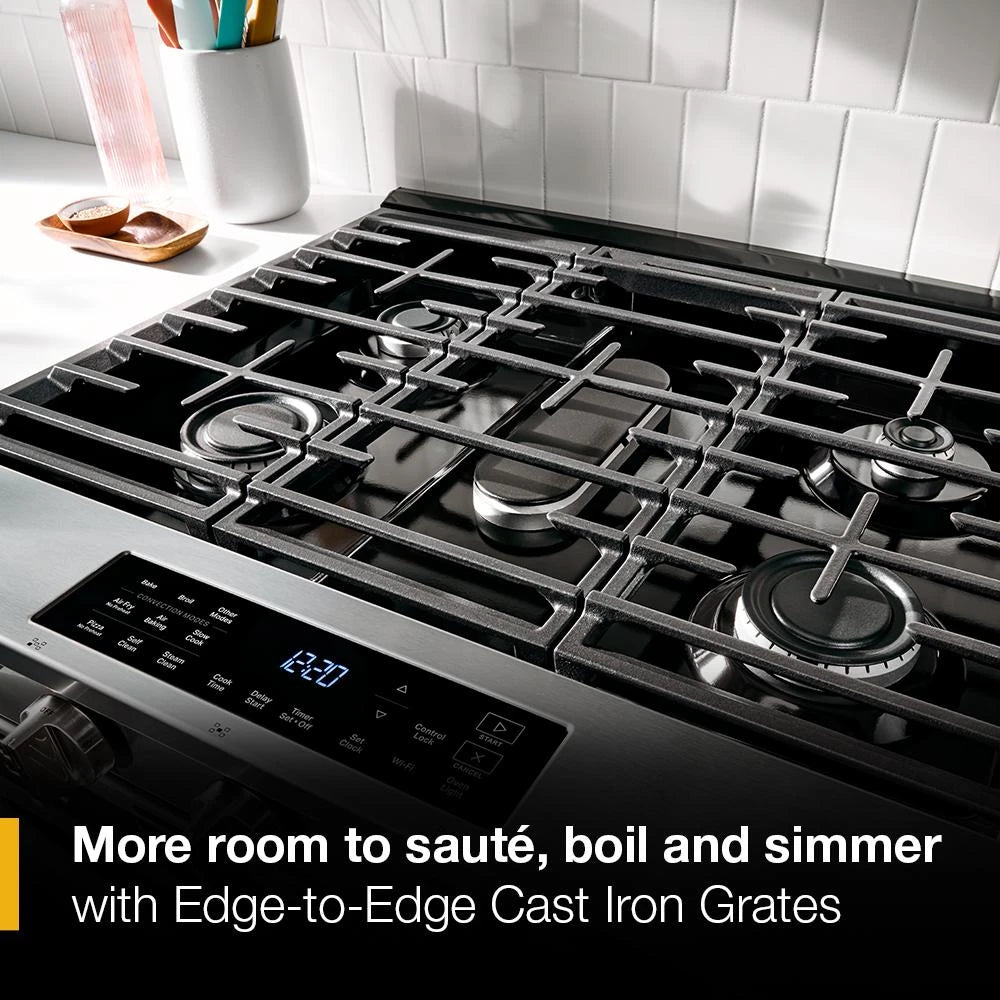

  • Edge-to-Edge Grates
    Enjoy plenty of space to sauté, boil and simmer with Edge-to-Edge Cast-Iron Grates and the flexibility of a cooktop with a range of burner sizes and power levels.
  • Energy Star
    ENERGY STAR® Certified models exceed government standards to help save money on your utility bills.

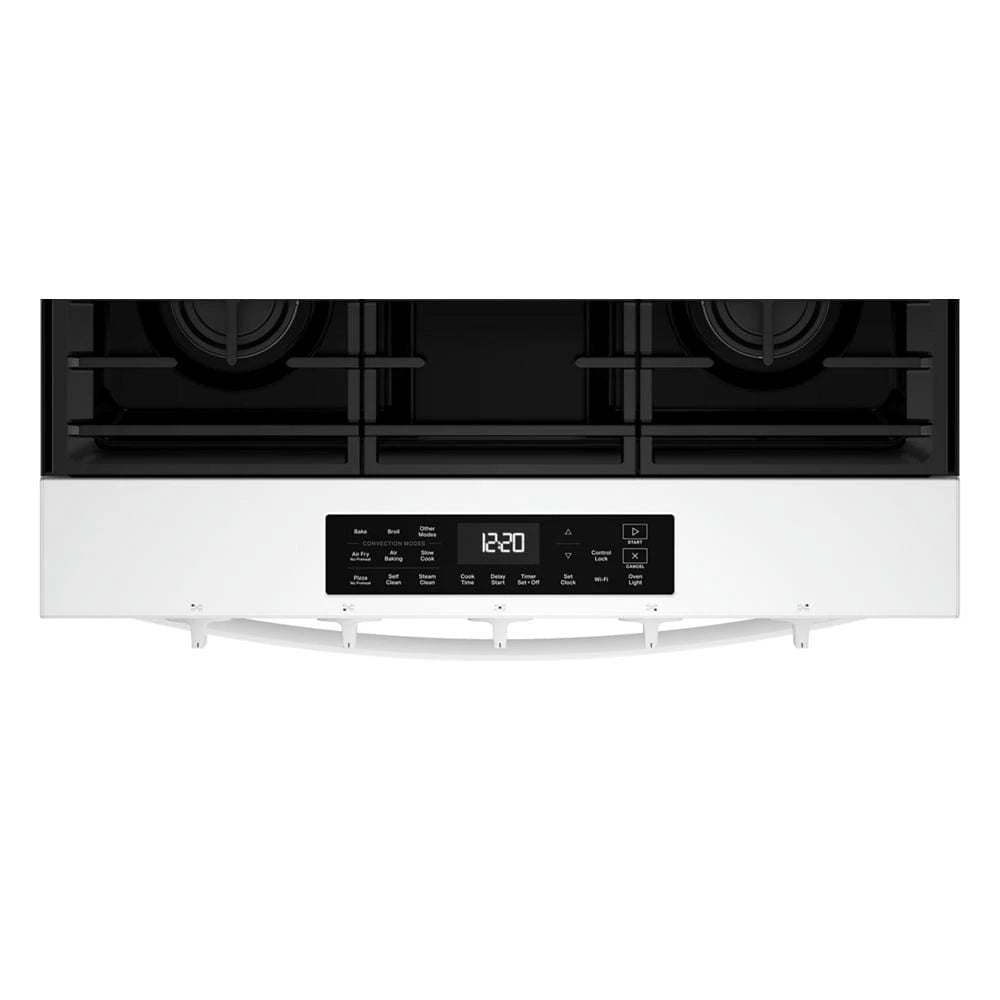

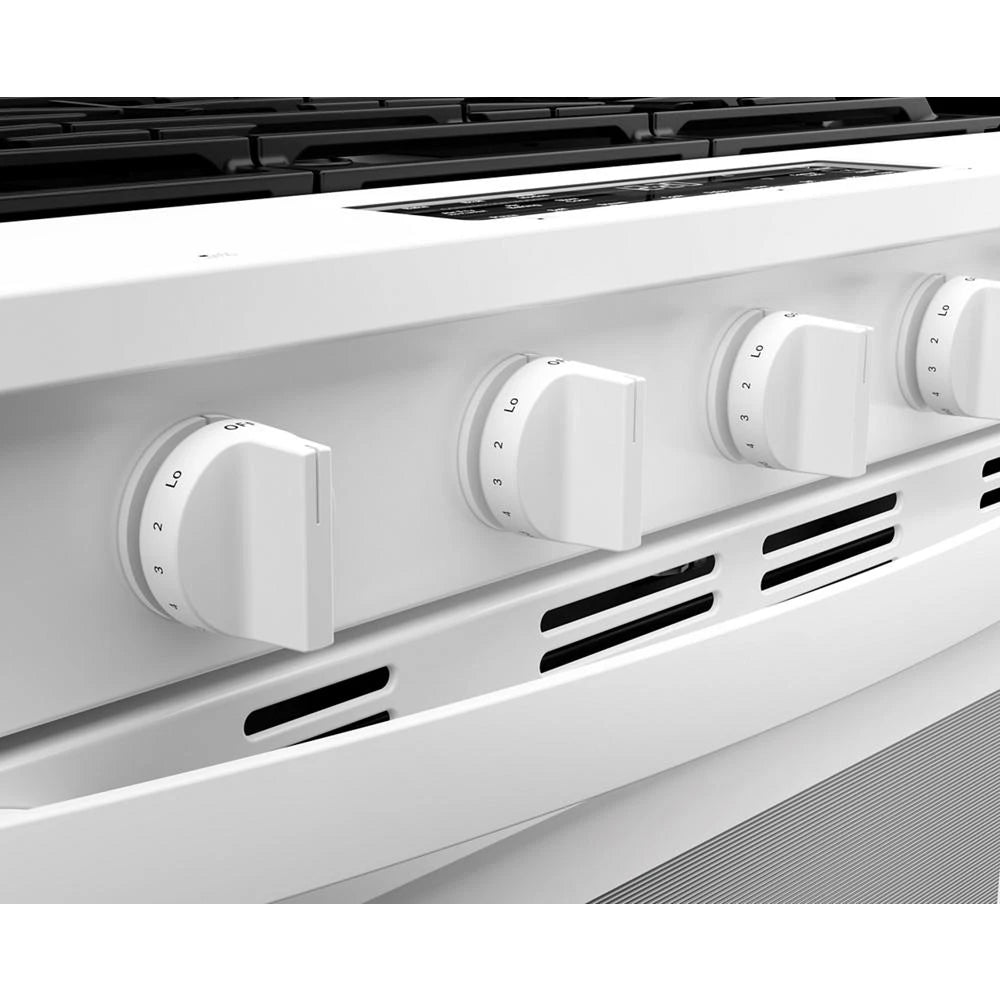

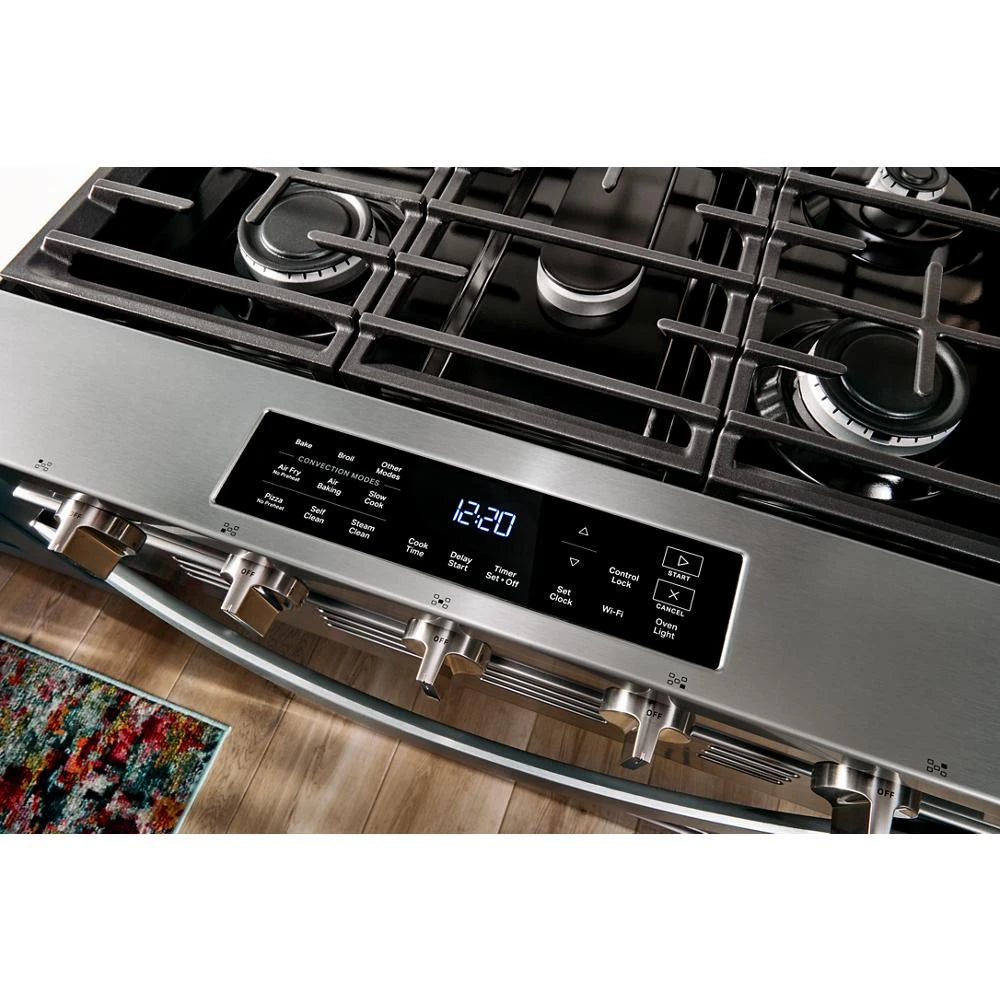

  • Front Control Design
    Easily upgrade your kitchen with the features you want and a premium look that brings controls to the front of the range for easy reach woth Front Control Design.

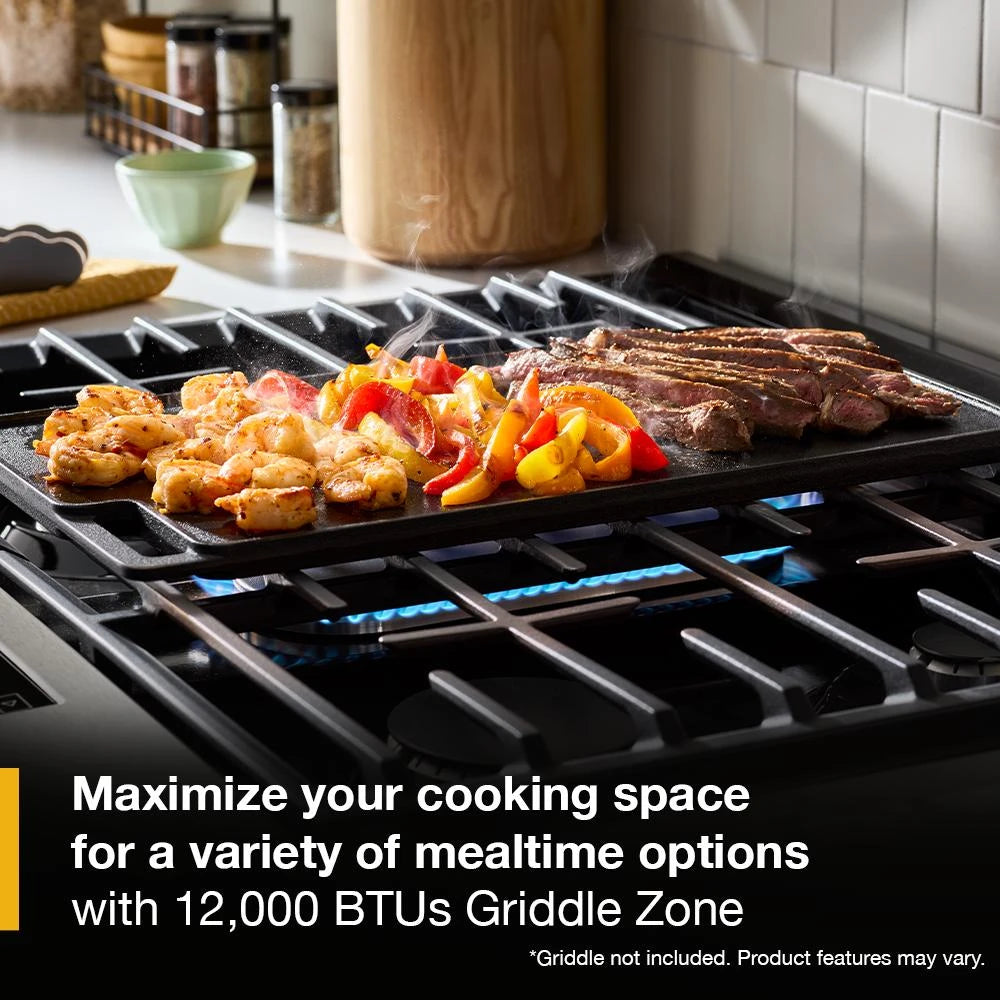

  • Griddle Zone
    Bring a whole new world of cooking capabilities to your cooktop with Griddle Zone. Two individual heating elements combine to form one larger one, making it easy to cook up all that delights, all at once.
  • High Speed Preheat
    Cook for a crowd and get dinner going quickly with our High Speed Preheat Oven. Our specially designed oven preheats in under 8 minutes* and fits large dishes like a full-sized 20 pound turkey with your side dishes. Get food on the table with our fastest preheat available.*Using rapid preheat bake cycle to 350 degrees when cooktop is not in use.
  • Keep Warm Setting
    Use the Keep Warm setting in the oven to help your dishes stay warm until your family is ready to dig in.

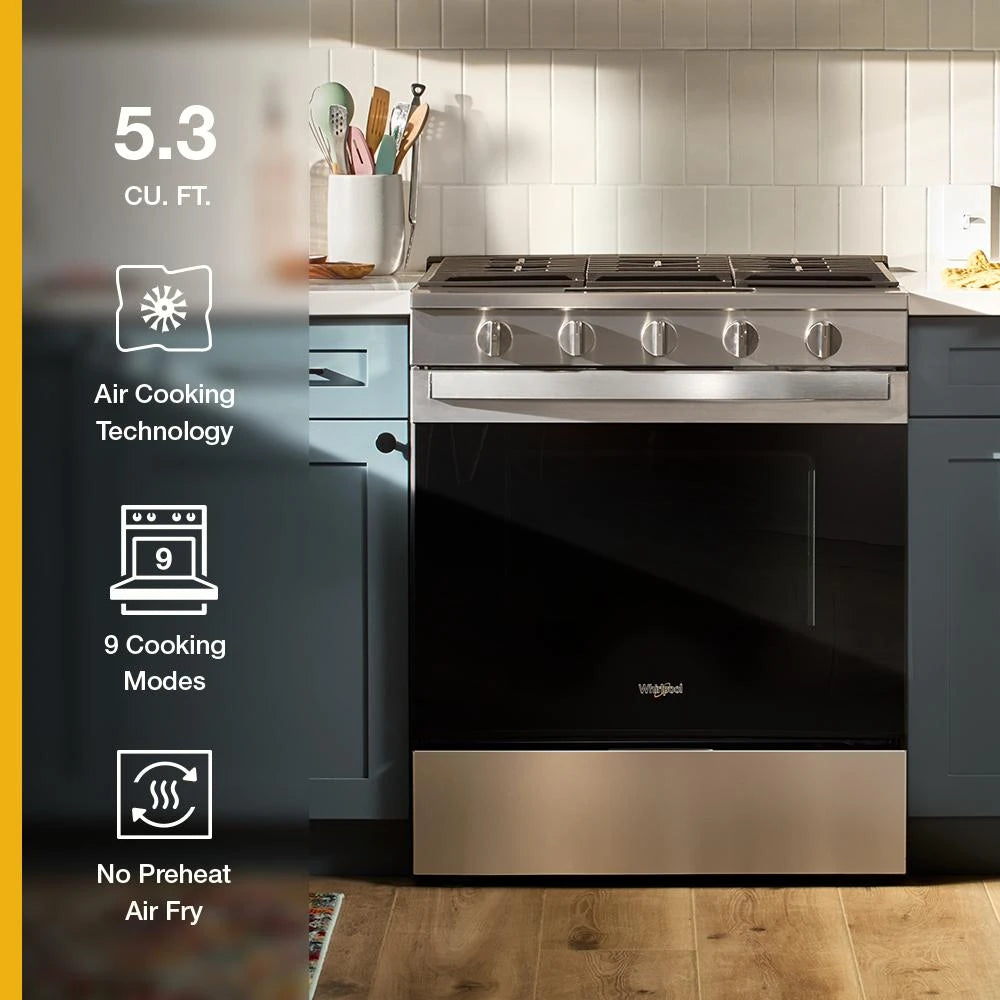

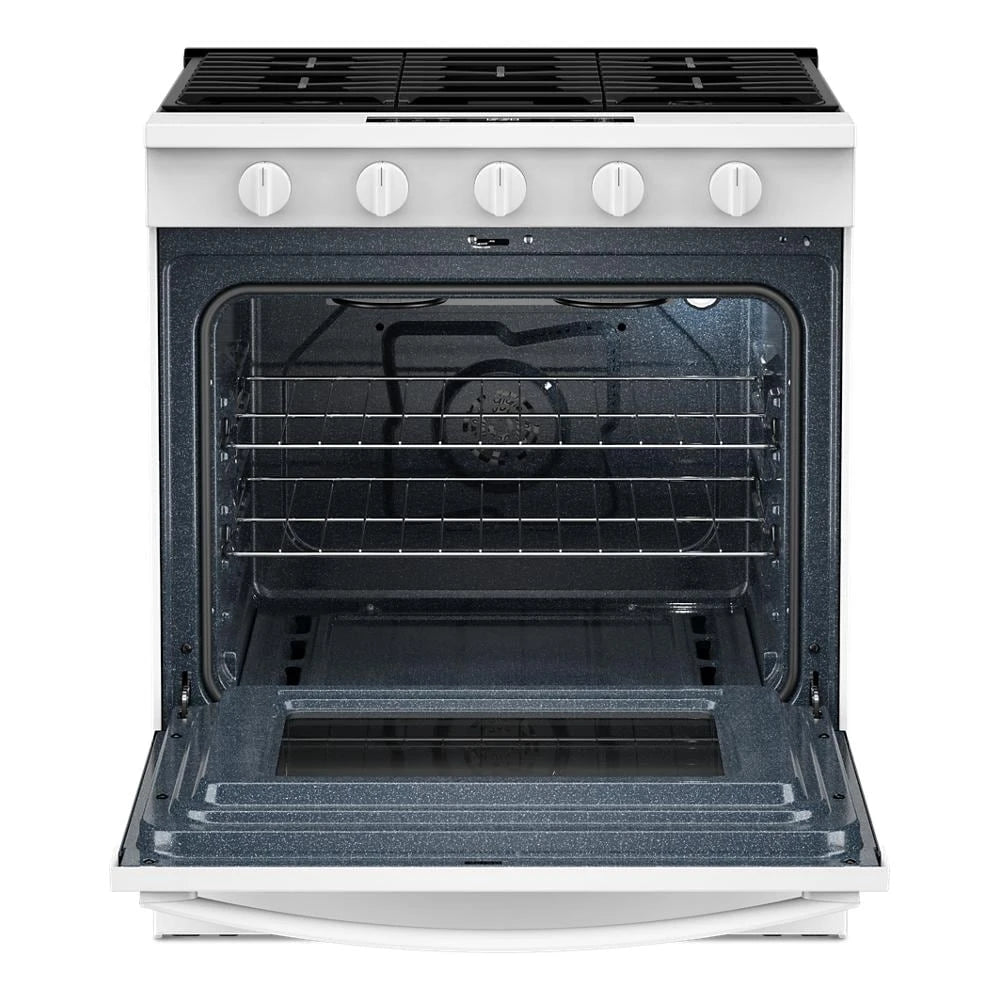

  • Large Capacity Oven
    Cook for a crowd and fit large dishes, like a full-sized turkey, into the spacious Large Capacity 5.0 cu. ft. oven.
  • No Preheat Air Fry
    Save time* with No Preheat Air Fy. Get the right heat at the right time with our most advanced Air Fry mode. Get fast, crispy results on chicken wings and mozzarella sticks without the guilt.*Compared to WFE550S0LZ
  • No Preheat Mode
    Take preheating off your plate and cook up frozen faves with No Preheat Mode. Simply press a few buttons and let your oven calculate the proper cooking time.
  • Sabbath Mode
    Sabbath mode keeps the oven in Bake mode until it can be shut off, allowing you to cook and warm food during the Sabbath. All other oven settings, including temperature displays, sounds, changes in light status and cleaning cycles will be disabled.
  • Slow Cook
    Heat up all day dishes with Slow Cook. Our high speed fan optimizes air flow to maintain a low, even temperature for longer cook times to thoroughly heat up your food. Tackle your to-do list while soups, pastas and roasts come to temp without the worry.
  • Smart Feature Updates
    Stay on top of the latest cooking features and unlock new ones over time. Explore more ways to cook with updates through the Whirlpool app. *Appliance must be connected. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.
  • Smart Range
    When you’re busy elsewhere, use your smartphone to get dinner started by remotely preheating the oven. Or, when your hands are full, use your compatible voice-enabled device to adjust the cook time or temperature with a voice command.**Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.

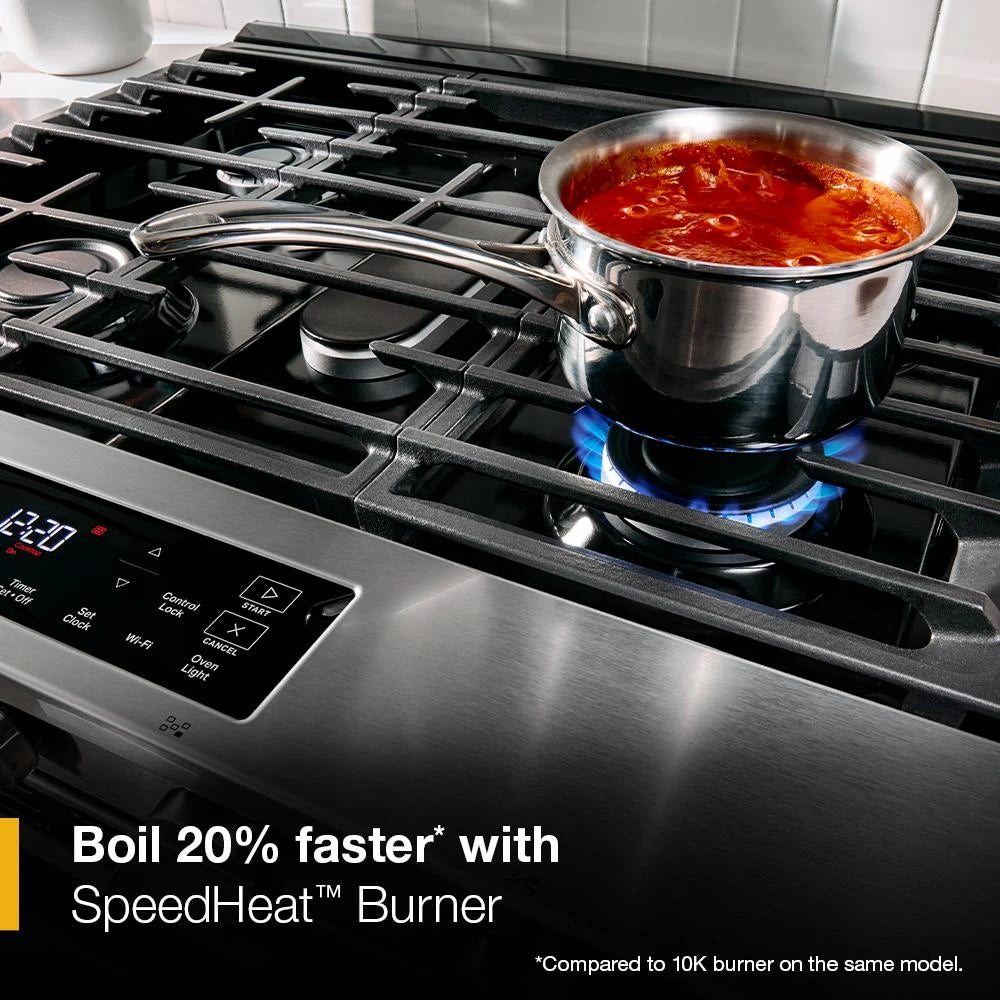

  • SpeedHeat™ Burner
    Use the SpeedHeat™ Burner to boil 20% faster* with high heat, so you can get dinner to the table quickly.*Compared to 10K burner on the same model
  • Steam & Self Clean Cycles
    Easily clean your oven with the adjustable Self Clean cycle that can be customized based on the amount of spills and splatters. For lighter messes, use the Steam Clean setting to quickly and easily loosen residue inside the oven without harsh chemicals or cleaners—just add water, run the cycle and wipe away.
  • Storage Drawer
    A Storage Drawer in the bottom of your range allows easy access to the items you use most and opens up space elsewhere.
  • Warm Zone
    Use the designated Warm Zone to keep your food warm on the cooktop as you prep the rest of your meal.
  • Fingerprint-Resistant Stainless Steel
    Available in a stainless finish that’s easy to clean and resists fingerprints and smudges.
