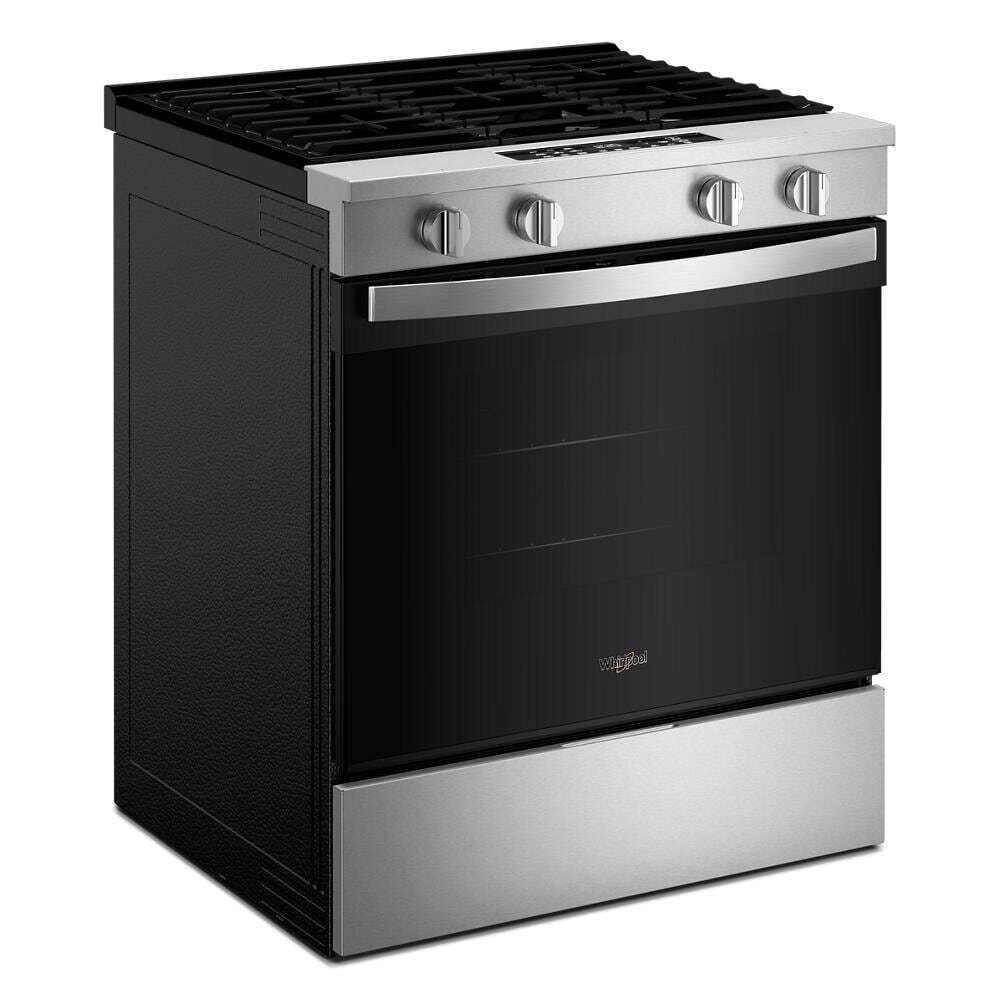

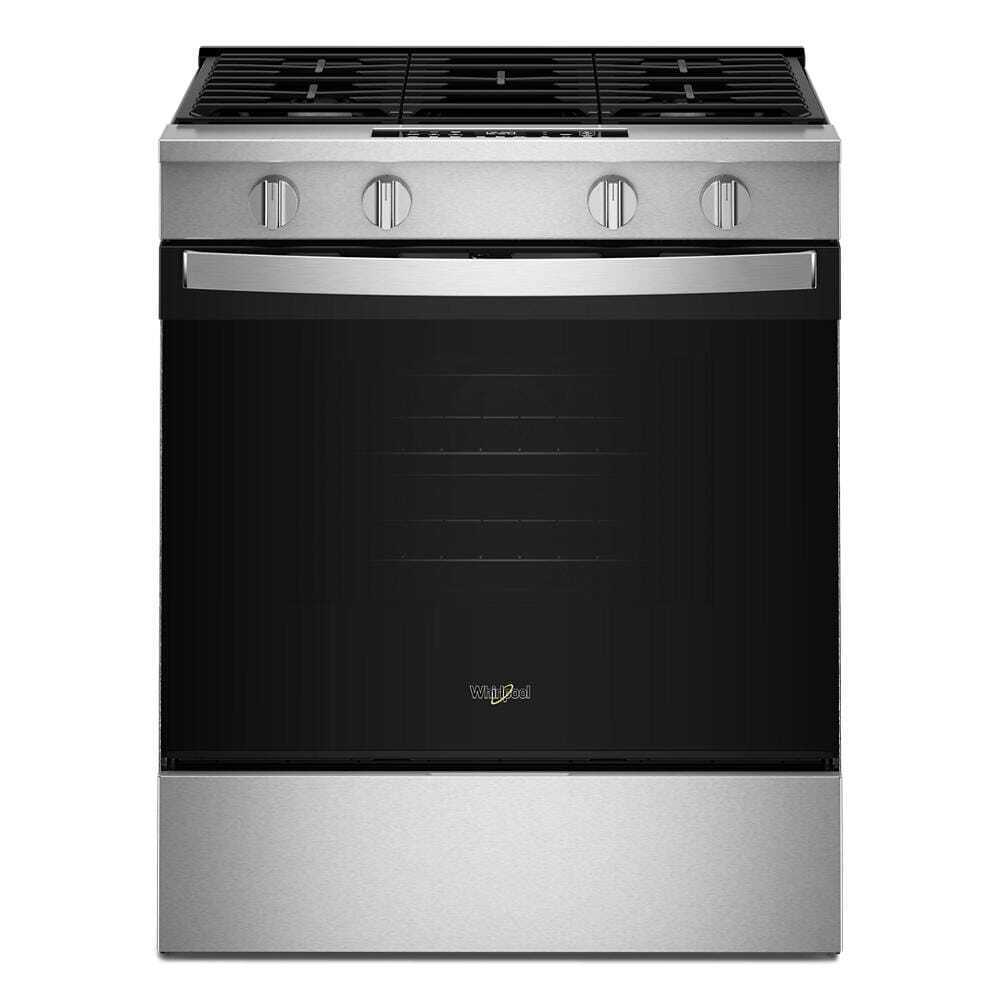

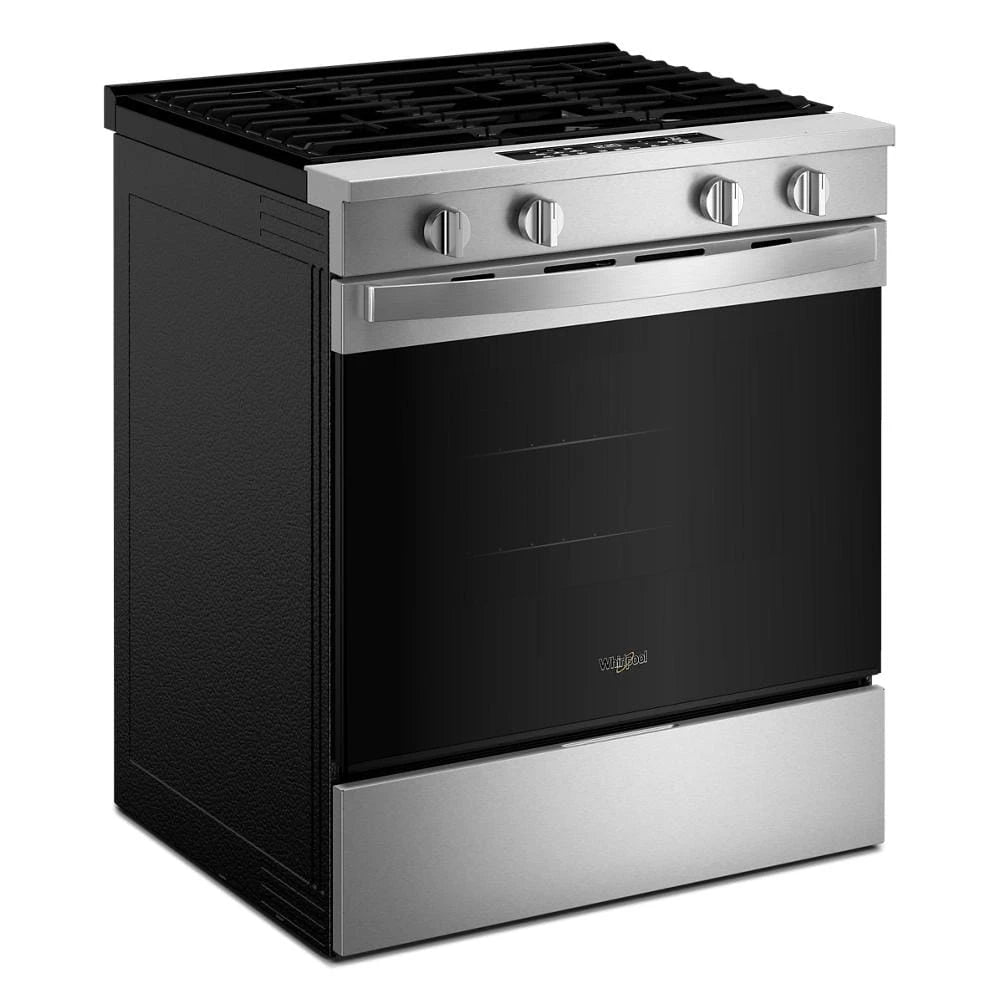

Product Details for Whirlpool WSGS4530TZ

Technical Details

Certifications

ADA Compliant Yes
CUL Yes
Star K Certified Star K Certified
UL Yes
prop65 CA

Controls

Display Color White

Cooktop details

Auto Re-ignition No
Cooktop Control Knob Type Plastic
Cooktop Control Location Front
Cooktop Control Type Knobs
Cooktop Surface Material Porcelain Coated Steel
Griddle Included No
Heating Element On Indicator Light No
Ignition Type Direct Spark Ignition
Total Gas BTUs - Cooktop 48, 000

Details

Air Fry Yes
Automatic Convection Conversion Temperature Adjust No
Cooktop Configuration All Burners
Delay Clean No
Fuel Type Gas
Installation Configuration Freestanding
LP Convertible Yes - Kit Included
Oven Automatic Shut-Off Yes
Oven Configuration Single Oven
Oven Light Switch Location Oven Control
Oven Selections Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Convect Modes; Cook Time Indicator; Delay Start; Keep Warm/Warm Hold; Language Conversion; No Preheat - Frozen; Rapid Preheat; Re
Power On Indicator Light Yes
Power Outage Compatible Yes
Range Configuration Slide-In
Range Drawer Type Storage Drawer
Range Type Slide-in

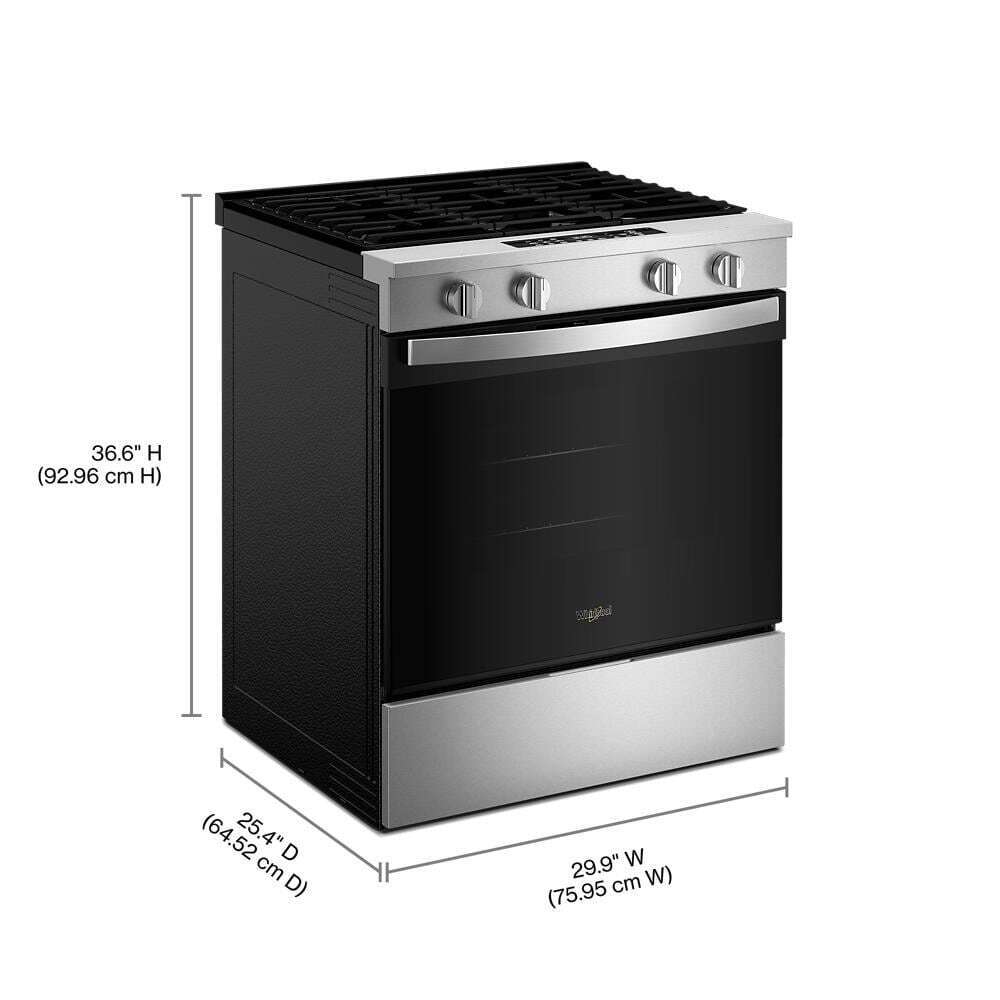

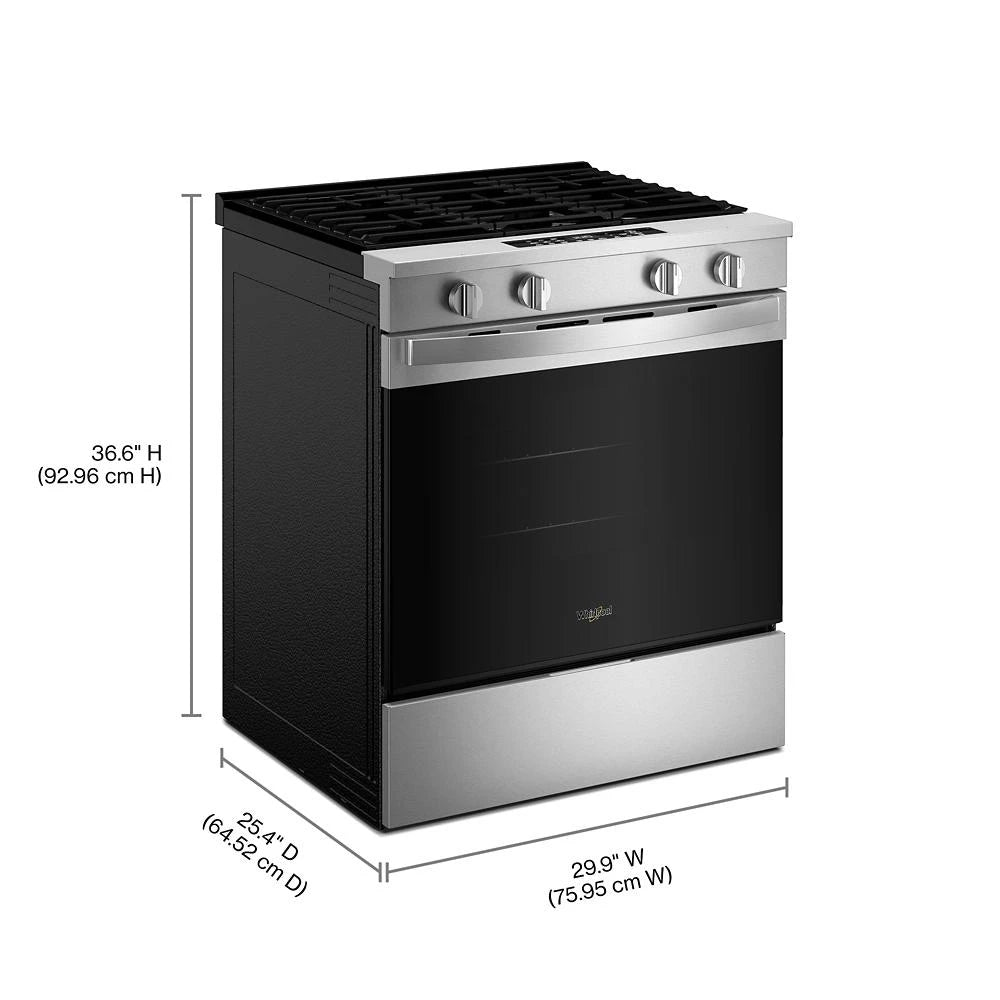

Dimensions

Adjustable Height Yes
Cutout Depth 24
Cutout Height 36
Cutout Width 30
Depth Closed Excluding Handles 27.4
Depth Closed Including Handles 29.1
Depth Excluding Doors 25.4
Depth With Door Open 90 Degree 47.7
Oven Interior Depth 19
Oven Interior Height 18.8
Oven Interior Width 24.2
carton depth 31
carton height 43
carton width 32
gross weight 205
net weight 189

Electrical

Power Cord Included Yes

Element/burner details

Cooktop Element Style Sealed Burner
Left Front Element-Burner Power 15, 000 BTU
Left Front Element-Burner Size N/A
Left Front Element-Burner Type Large
Left Rear Element-Burner Power 10000 BTU
Left Rear Element-Burner Size N/A
Left Rear Element-Burner Type Standard
Number of Cooking Element-Burners 4
Right Front Element-Burner Power 18, 000 BTU
Right Front Element-Burner Size N/A
Right Front Element-Burner Type Extra Large
Right Rear Element-Burner Power 5000 BTU
Right Rear Element-Burner Size N/A
Right Rear Element-Burner Type Simmer/Melt

Export details

Export Packaging No

Exterior details

Door Type Glass
Oven Control Knob Type N/A
Oven Control Location Front
Oven Control Type Tap Touch
Oven Window Size Extra Large

Grate details

Grate Details Dishwasher Safe; Matte Finish; Porcelain Coated Steel Grates
Number of Grates 3

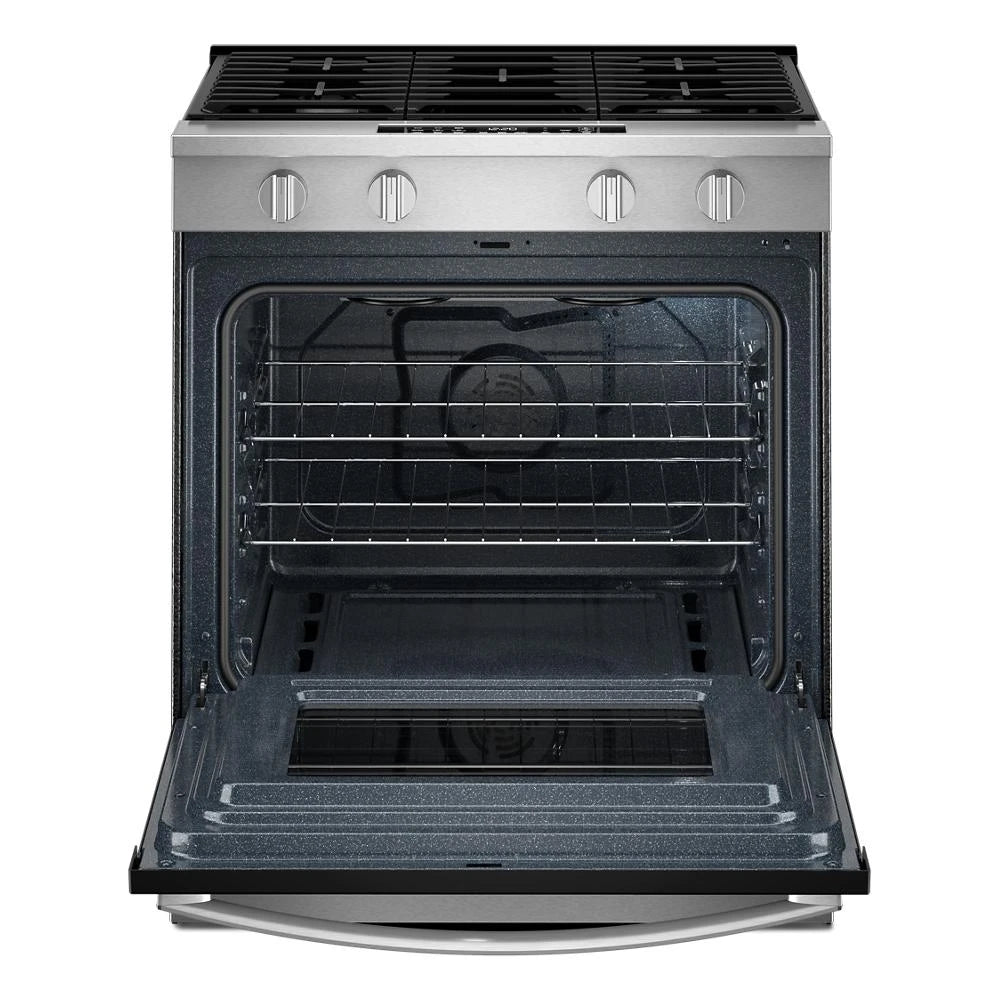

Oven details

Bake Element Power 16, 500 BTU
Broiler Element Power 1, 300 W Electric Broil
Broiler Location Top Center
Convection Element Type Fan
Convection Functions Air Baking; Air Broil; Air Fry; Air Reheat; Air Roast; Bake, Broil, and Roast; Keep Warm; No Preheat Air Fry; No Preheat Frozen Bake Lasagna; No Preheat Frozen Bake Pizza; Slow Cook; Warm Zon
Door Lock Yes
Door Removable Yes
Hidden Bake Element Hidden
Natural Gas Convertible No
Number of Oven Lights 1
Number of Oven Racks 2
Number of Rack Guides 5
Oven Cleaning Type Steam Clean
Oven Cooking System Convection
Oven Light Type Halogen
Oven Rack Front Material Metal
Oven Rack Guide Type Embossed
Oven Rack Type 2 Standard
Temperature Probe No
Temperature Sensor Yes
Total Gas BTUs - Ovens 16, 500

Smart compatibility

Connectivity Amazon Alexa; Android; Google Assistant; Nest; iOS
Smart Appliance Yes
Works With App; Bluetooth; Remote Access; Voice Controlled; WiFi

Product details

Air Fry Basket Included No
Console Language English
Energy Star® Qualified No
Literature Language English; French; Spanish

Description

Experience the difference* of Air Cooking Technology with Air Baking in this 30-inch gas range. Get crispy fast with No Preheat Air Fry or make more feel-good meals with a variety of 10 Cooking Modes. Boil 20% faster** with the SpeedHeat Burner™, and prevent soils from building up by regularly using Steam Clean.*Compared to thermal bake.**Compared to 10K burner on the same model


Product Features

  • Fingerprint-Resistant Stainless Steel
    Available in a stainless finish that’s easy to clean and resists fingerprints and smudges.
  • Keep Warm Setting
    Use the Keep Warm setting in the oven to help your dishes stay warm until your family is ready to dig in.
  • Sabbath Mode
    Sabbath mode keeps the oven in Bake mode until it can be shut off, allowing you to cook and warm food during the Sabbath. All other oven settings, including temperature displays, sounds, changes in light status and cleaning cycles will be disabled.
  • FIT System Limited Guarantee
    Fits right, or we make it right. Upgrade your range without the construction zone. We’re so confident your new Whirlpool® Slide-In Range will fit your existing space that we’ll provide up to $100 if your cabinets need a professional adjustment*.*Fit System Limited Guarantee: On 30" Whirlpool® slide-in ranges. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified. Visit www.whirlpool.com/fit-guarantee.html for complete details.

Key Features

10 Cooking Modes

Take your favorite meals from fresh, fridge or freezer to fabulous with the Air Cooking Technology of No Preheat Air Fry, Air Baking, Air Roast, Air Broil and Air Reheat, or use traditional heating modes like No Preheat Mode, Bake, Slow Cook, Broil, and Keep Warm.

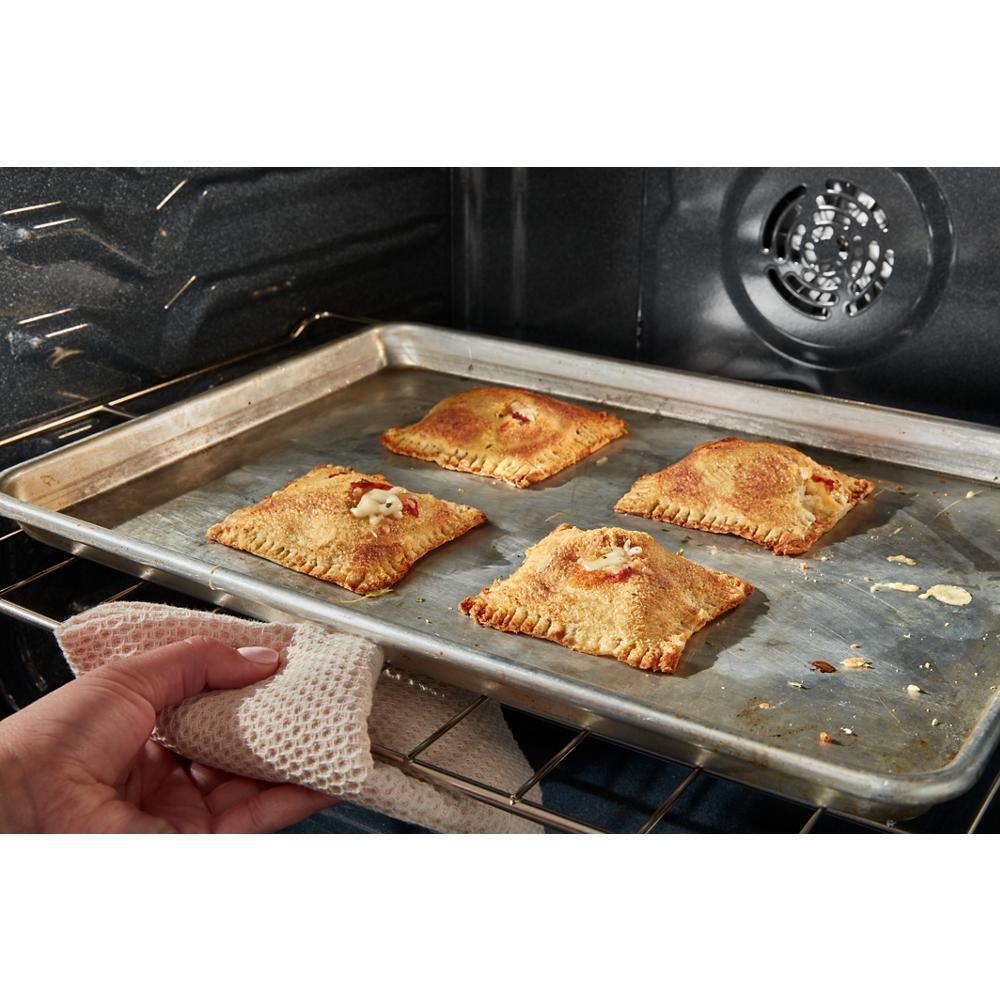

Air Baking

Go from gooey to golden and get even results when baking on multiple racks with Air Baking. Our high-speed fan optimizes air flow and drives consitent heat throughout the oven. Get golden results on breads, pastries and more.

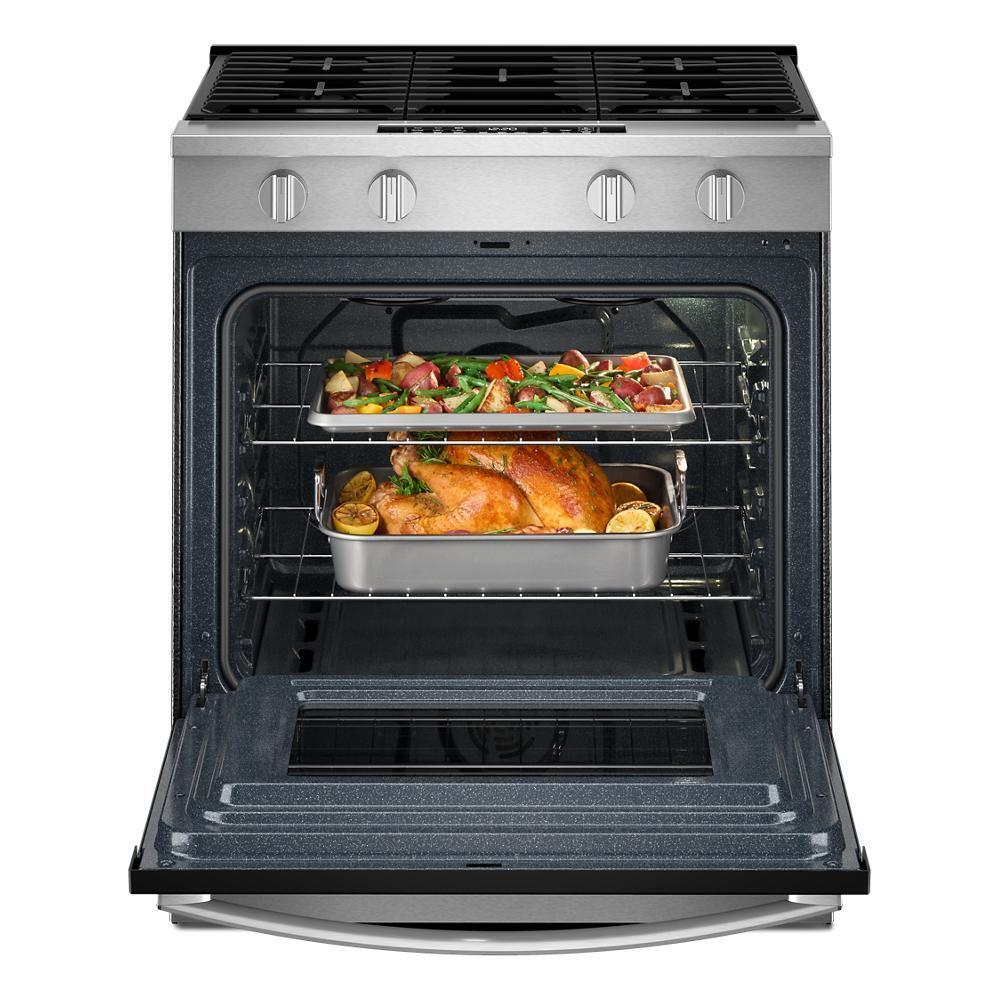

Air Roast

Seal in flavors and juices for meat and poultry with Air Roast. Our high-speed fan drives air flow to optimize heat through longer cook times. Enjoy the full flavor of hearty dishes like pot roast and whole chicken.

Broil

Redefine mealtime with Broil to make crispy-melty nachos, juicy-seared meat, toasty grilled cheese and more.

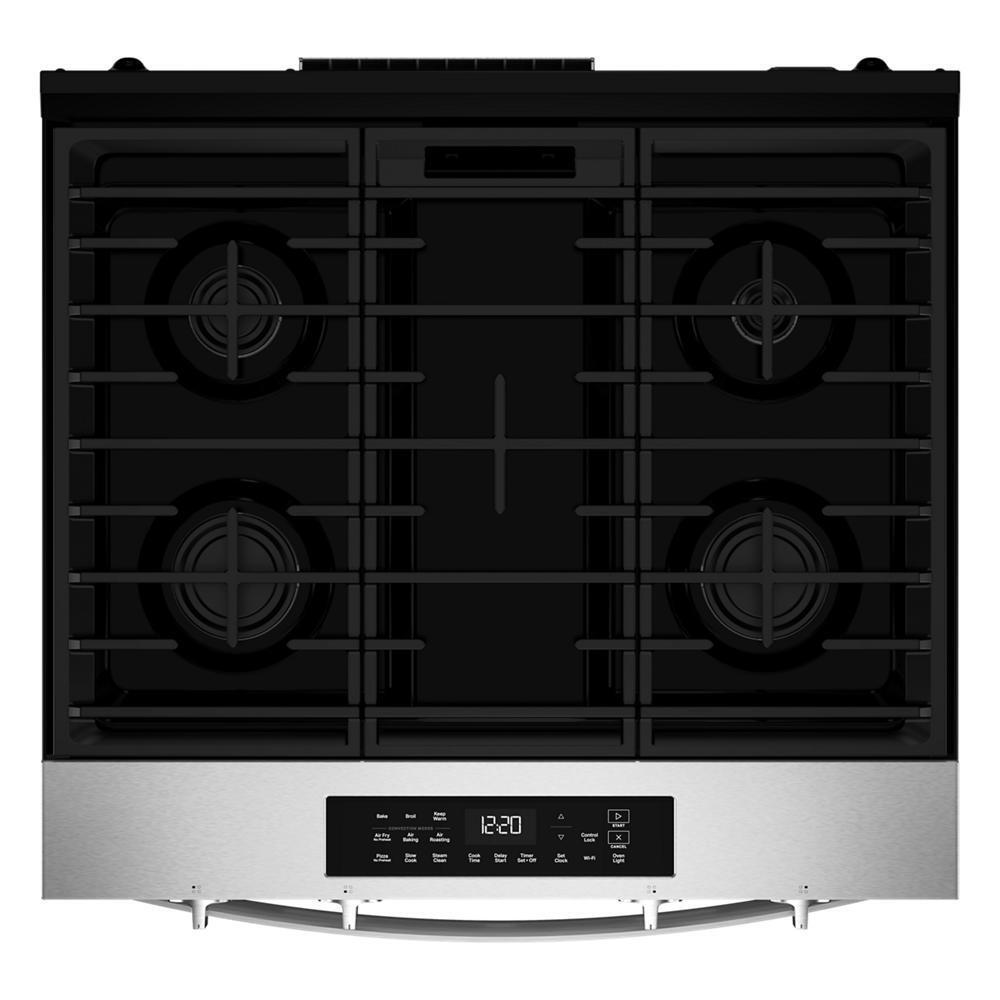

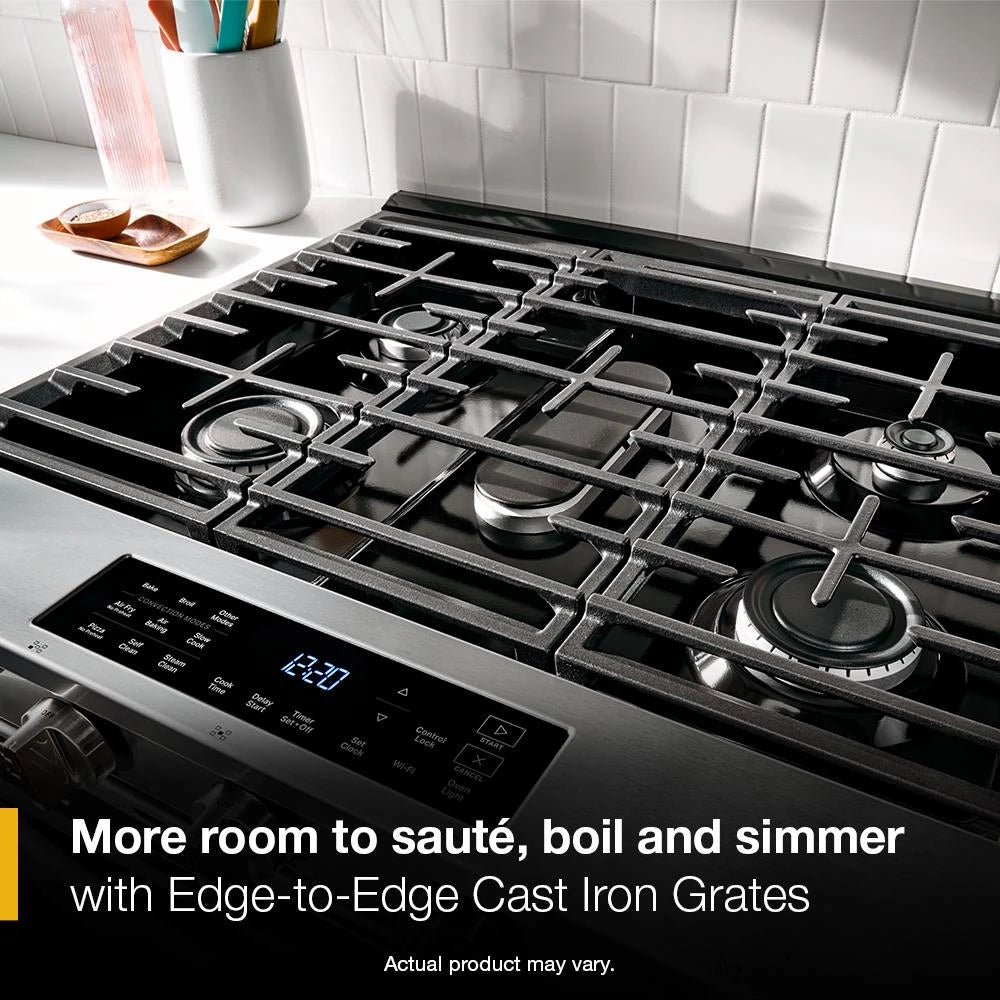

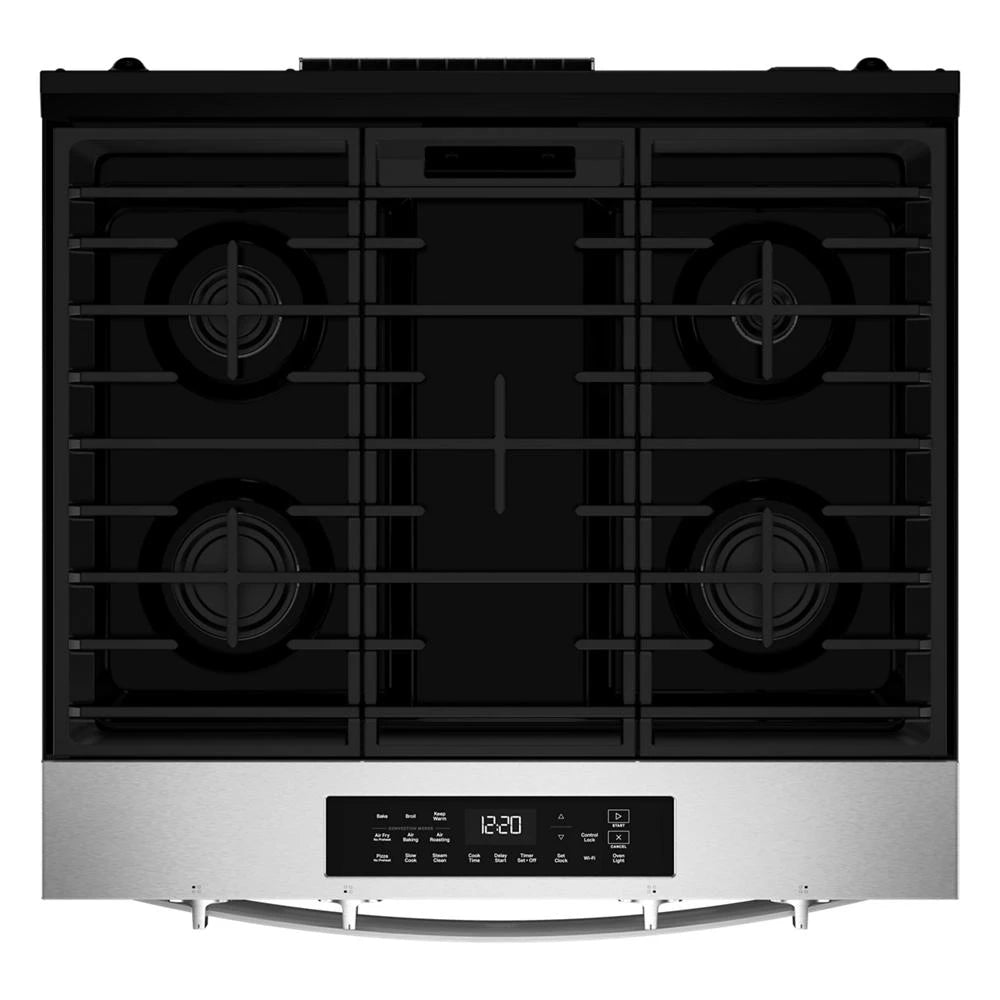

Edge-to-Edge Grates

Enjoy plenty of space to sauté, boil and simmer with Edge-to-Edge Cast-Iron Grates and the flexibility of a cooktop with a range of burner sizes and power levels.

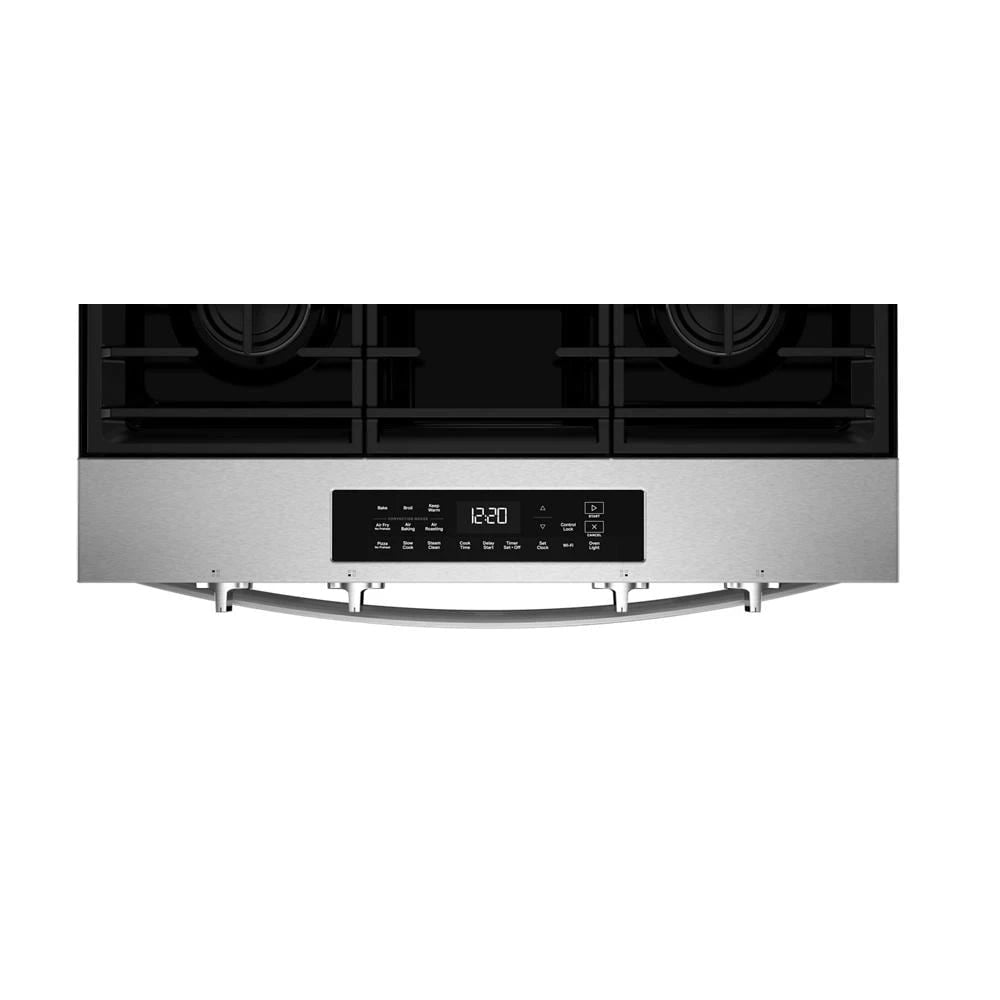

Front Control Design

Easily upgrade your kitchen with the features you want and a premium look that brings controls to the front of the range for easy reach woth Front Control Design.

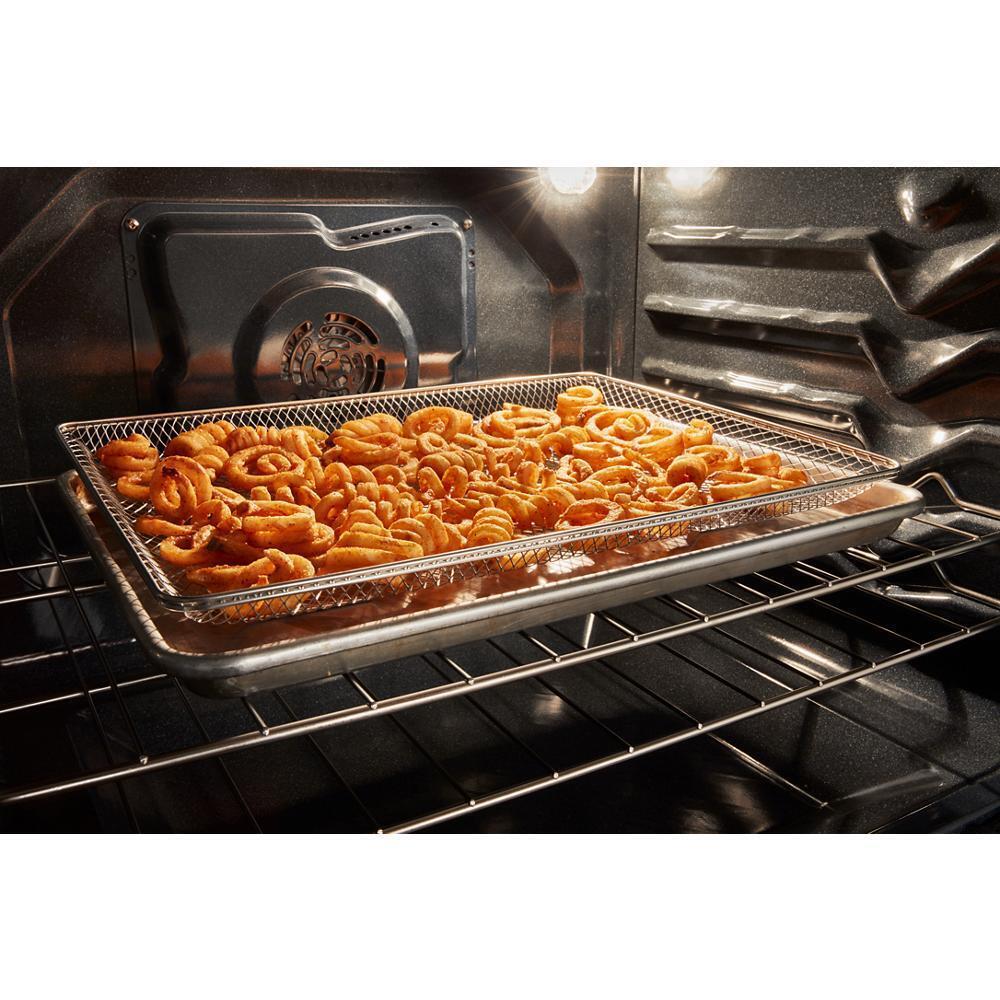

No Preheat Air Fry

Save time* with No Preheat Air Fry. Our most advanced air fry mode delivers the right heat at the right time, while using less oil than traditional deep frying. Get fast, crispy, tasty results with No Preheat Air Fry. *Compared to WFE550S0LZ

No Preheat Mode

Take preheating off your plate and cook up frozen faves with No Preheat Mode. Simply press a few buttons and let your oven calculate the proper cooking time.

Slow Cook

Heat up all day dishes with Slow Cook. Our high speed fan optimizes air flow to maintain a low, even temperature for longer cook times to thoroughly heat up your food. Tackle your to-do list while soups, pastas and roasts come to temp without the worry.

Smart Feature Updates

Stay on top of the latest cooking features and unlock new ones over time. Explore more ways to cook with updates through the Whirlpool app. *Appliance must be connected. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.

Smart Range

When you’re busy elsewhere, use your smartphone to get dinner started by remotely preheating the oven. Or, when your hands are full, use your compatible voice-enabled device to adjust the cook time or temperature with a voice command.**Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.

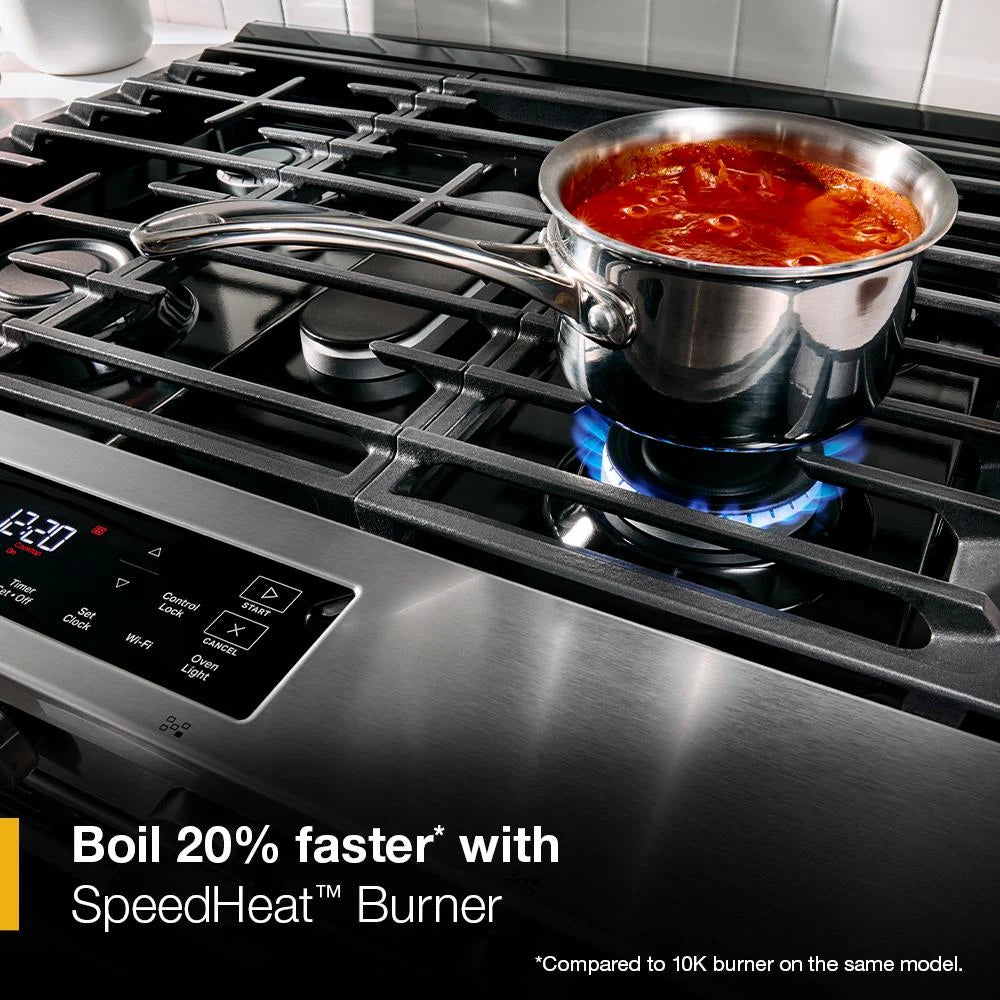

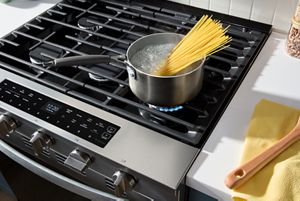

SpeedHeat™ Burner

Use the SpeedHeat™ Burner to boil 20% faster* with high heat, so you can get dinner to the table quickly.*Compared to 10K burner on the same model

Steam Clean

Use the Steam Clean setting to quickly and easily loosen light messes inside the oven without harsh chemicals or cleaners—just add water, run the cycle and wipe away.

Storage Drawer

A Storage Drawer in the bottom of your range allows easy access to the items you use most and opens up space elsewhere.

Warm Zone

Use the designated Warm Zone to keep your food warm on the cooktop as you prep the rest of your meal.

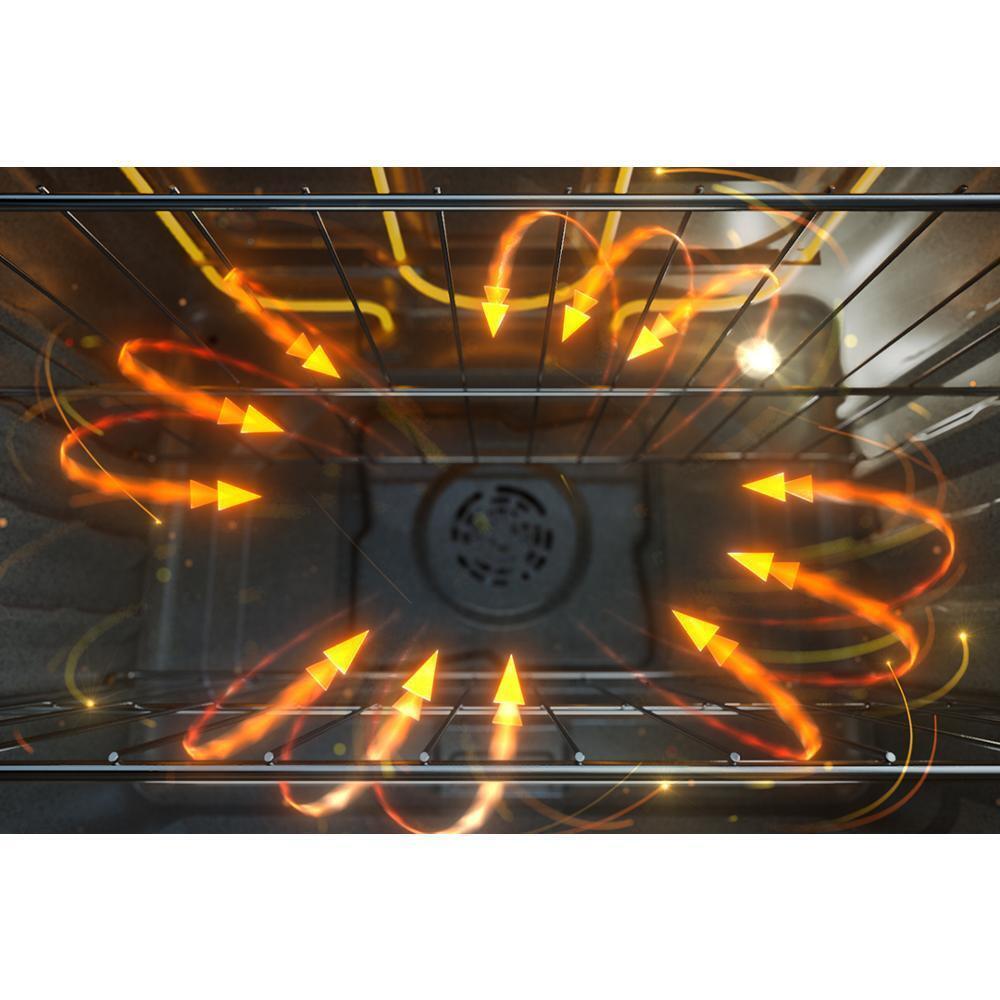

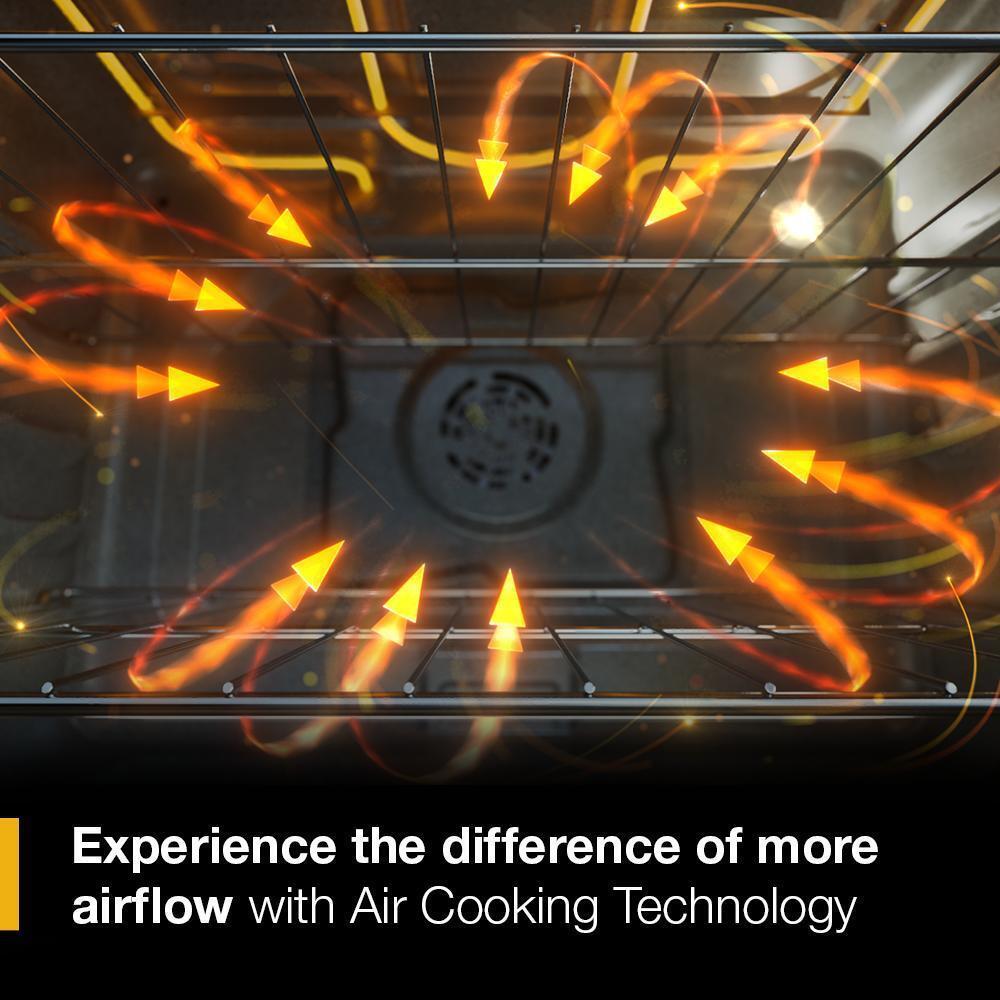

Air Cooking Technology

Experience the difference* with the dynamic airflow and intense heat of Air Fry and Air Baking.*Compared to thermal bake.
