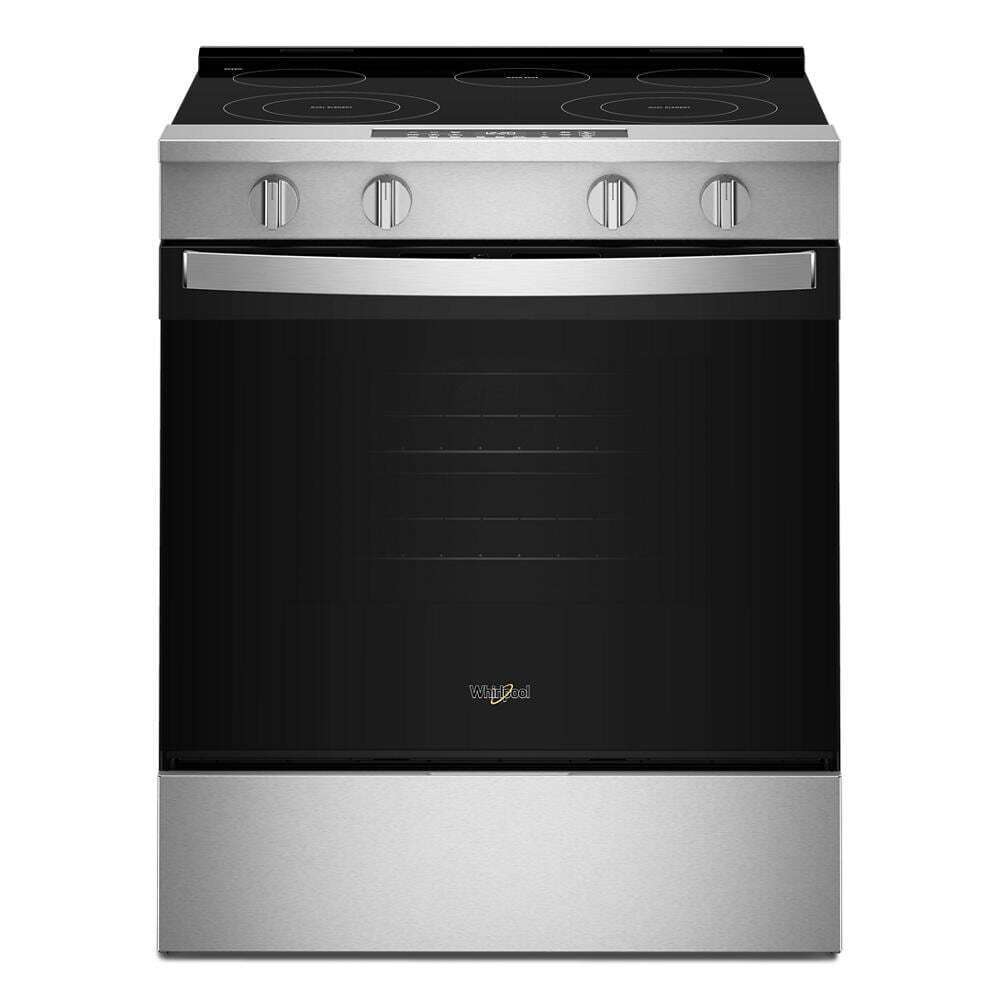

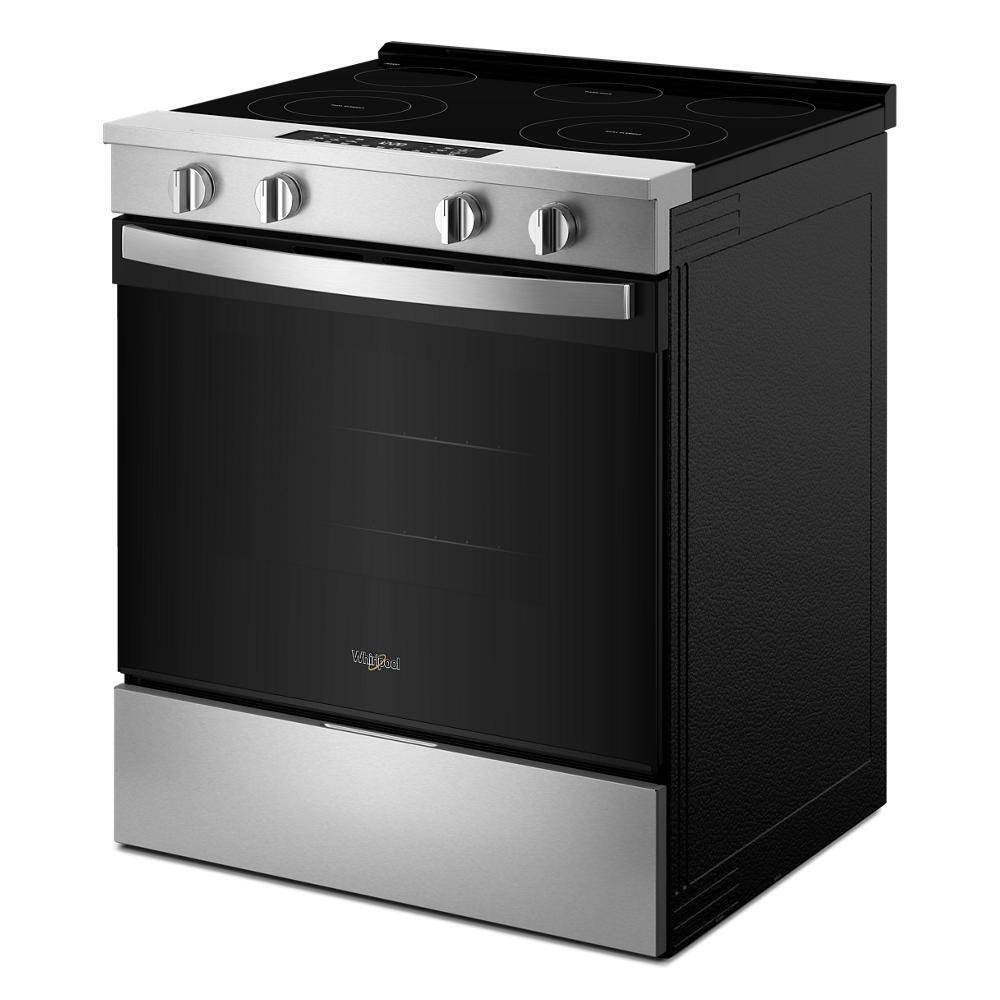

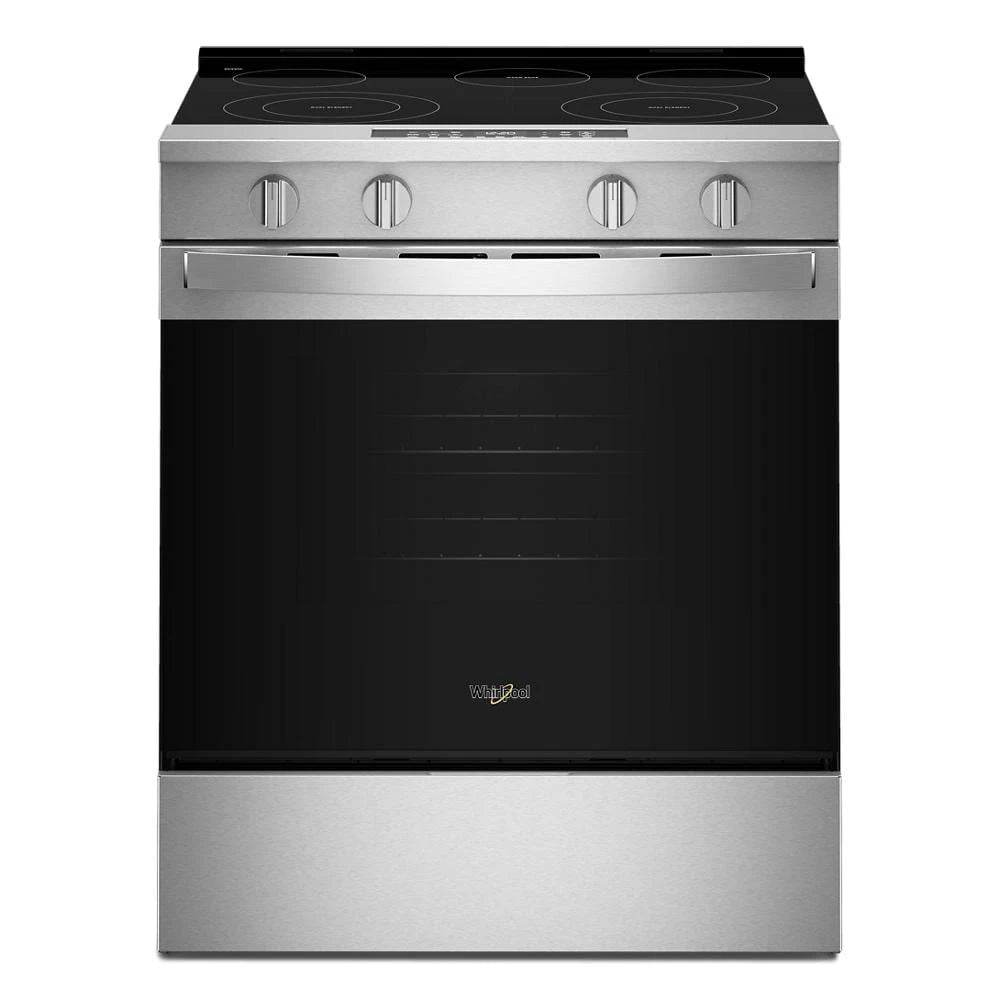

Product Details for Whirlpool WSES4530TZ

Technical Details

Certifications

ADA Compliant Yes
CUL No
Star K Certified Star K Certified
UL Yes
prop65 CA

Controls

Display Color White

Cooktop details

Cooktop Control Knob Type Plastic
Cooktop Control Location Front
Cooktop Control Type Knobs
Cooktop Surface Material Glass
Griddle Included No
Heating Element On Indicator Light Yes
Hot Surface Indicator Light Yes

Details

Air Fry Yes
Automatic Convection Conversion Temperature Adjust No
Cooktop Configuration All Burners
Delay Clean No
Fuel Type Electric
Installation Configuration Freestanding
Oven Automatic Shut-Off Yes
Oven Configuration Single Oven
Oven Light Switch Location Oven Control
Oven Selections Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Convect Modes; Cook Time Indicator; Delay Start; Keep Warm/Warm Hold; Language Conversion; No Preheat - Frozen; Rapid Preheat; Re
Power On Indicator Light Yes
Power Outage Compatible Yes
Range Configuration Slide-In
Range Drawer Type Storage Drawer
Range Type Slide-in

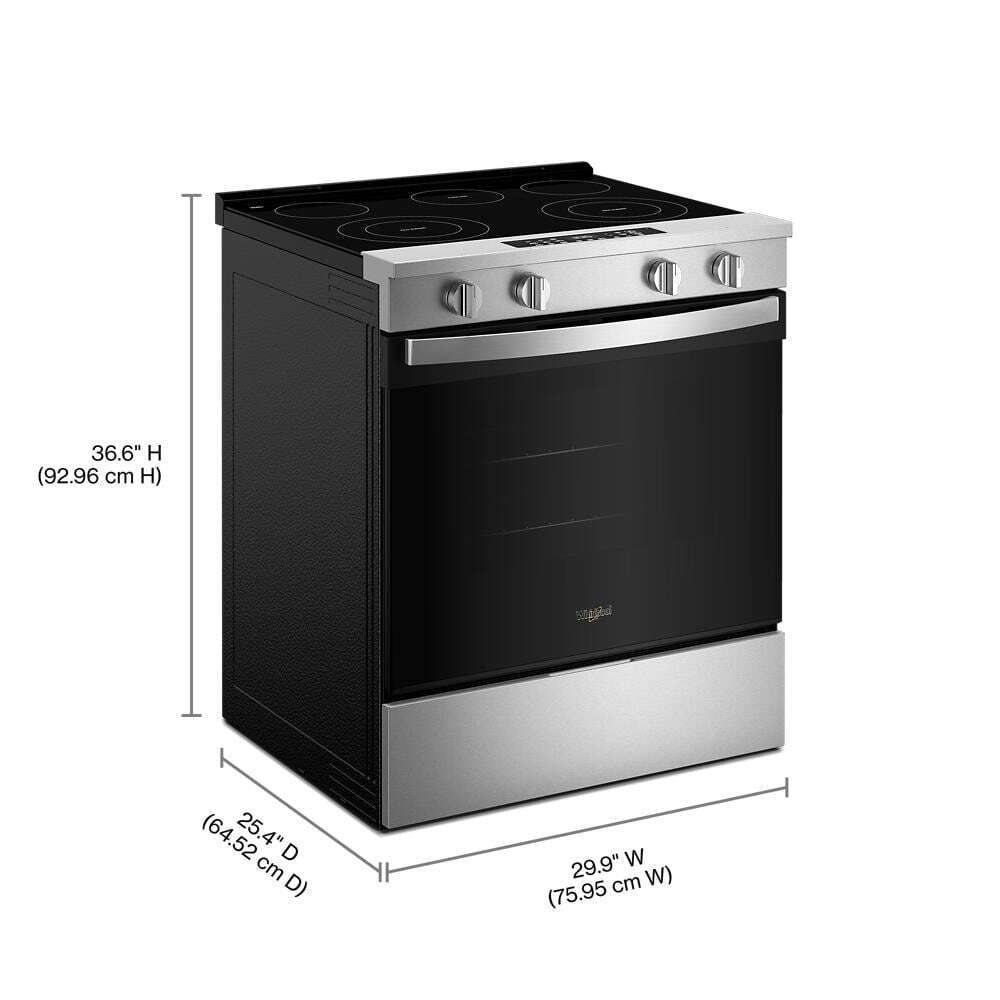

Dimensions

Adjustable Height Yes
Cutout Depth 24
Cutout Height 36
Cutout Width 30
Depth Closed Excluding Handles 27.4
Depth Closed Including Handles 29.1
Depth Excluding Doors 25.4
Depth With Door Open 90 Degree 47.7
Oven Interior Depth 19
Oven Interior Height 17.9
Oven Interior Width 24.2
carton depth 30.5
carton height 43
carton width 32
gross weight 185
net weight 169

Electrical

Power Cord Included No

Element/burner details

Center Rear Element-Burner Power 100W
Center Rear Element-Burner Size 6in.
Center Rear Element-Burner Type Warming
Cooktop Element Style Radiant
Left Front Element-Burner Power 3000W
Left Front Element-Burner Size 9in./6in.
Left Front Element-Burner Type Dual
Left Rear Element-Burner Power 1200W
Left Rear Element-Burner Size 6in.
Left Rear Element-Burner Type Single
Number of Cooking Element-Burners 5
Right Front Element-Burner Power 3000W
Right Front Element-Burner Size 9in./6in.
Right Front Element-Burner Type Dual
Right Rear Element-Burner Power 1200W
Right Rear Element-Burner Size 6in.
Right Rear Element-Burner Type Single

Export details

Export Packaging No

Exterior details

Door Type Glass
Oven Control Knob Type N/A
Oven Control Location Front
Oven Control Type Tap Touch
Oven Window Size Extra Large

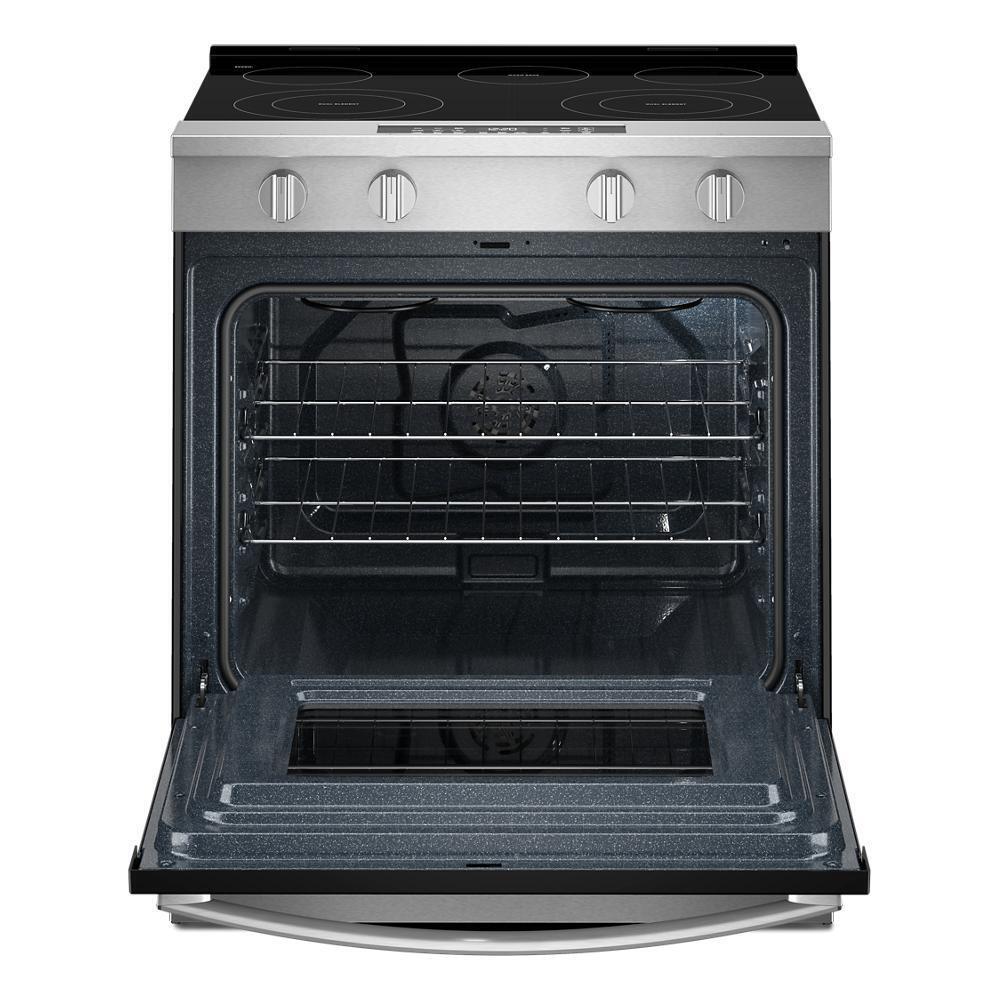

Oven details

Bake Element Power 2, 400 W
Broiler Element Power 3, 400 W
Broiler Location Top Center
Convection Element Type Fan
Convection Functions Air Baking; Air Broil; Air Fry; Air Reheat; Air Roast; Bake, Broil, and Roast; Keep Warm; No Preheat Air Fry; No Preheat Frozen Bake Lasagna; No Preheat Frozen Bake Pizza; Slow Cook; Warm Zon
Door Lock Yes
Door Removable Yes
Hidden Bake Element Hidden
Number of Oven Lights 1
Number of Oven Racks 2
Number of Rack Guides 5
Oven Cleaning Type Steam Clean
Oven Cooking System Convection
Oven Light Type Halogen
Oven Rack Front Material Metal
Oven Rack Guide Type Embossed
Oven Rack Type 2 Standard
Temperature Probe No
Temperature Sensor Yes

Smart compatibility

Connectivity Amazon Alexa; Android; Google Assistant; Nest; iOS
Smart Appliance Yes
Works With App; Bluetooth; Remote Access; Voice Controlled; WiFi

Product details

Air Fry Basket Included No
Console Language English
Energy Star® Qualified Yes
Literature Language English; French; Spanish

Description

Experience the difference* of Air Cooking Technology with Air Baking with this 30-inch electric range. Get crispy fast with No Preheat Air Fry or make more feel-good meals with a variety of 7 Cooking Modes. Boil 40% faster with 2 FlexHeat™ Dual Radiant Elements** and prevent soils from building up by regularly using Steam Clean.*Compared to thermal bake.**When comparing the 9" element to the standard 6" element on the same unit.


Product Features

  • ENERGY STAR® Certified
    ENERGY STAR® Certified models exceed government standards to help save money on your utility bills.
  • Fingerprint-Resistant Stainless Steel
    Available in a stainless finish that’s easy to clean and resists fingerprints and smudges.
  • Keep Warm Setting
    Use the Keep Warm setting in the oven to help your dishes stay warm until your family is ready to dig in.
  • Sabbath Mode
    Sabbath mode keeps the oven in Bake mode until it can be shut off, allowing you to cook and warm food during the Sabbath. All other oven settings, including temperature displays, sounds, changes in light status and cleaning cycles will be disabled.
  • FIT System Limited Guarantee
    Fits right, or we make it right. Upgrade your range without the construction zone. We’re so confident your new Whirlpool® Slide-In Range will fit your existing space that we’ll provide up to $100 if your cabinets need a professional adjustment*.*Fit System Limited Guarantee: On 30" Whirlpool® slide-in ranges. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified. Visit www.whirlpool.com/fit-guarantee.html for complete details.

Key Features

10 Cooking Modes

Take your favorite meals from fresh, fridge or freezer to fabulous with the Air Cooking Technology of No Preheat Air Fry, Air Baking, Air Roast, Air Broil and Air Reheat, or use traditional heating modes like No Preheat Mode, Bake, Slow Cook, Broil, and Keep Warm.

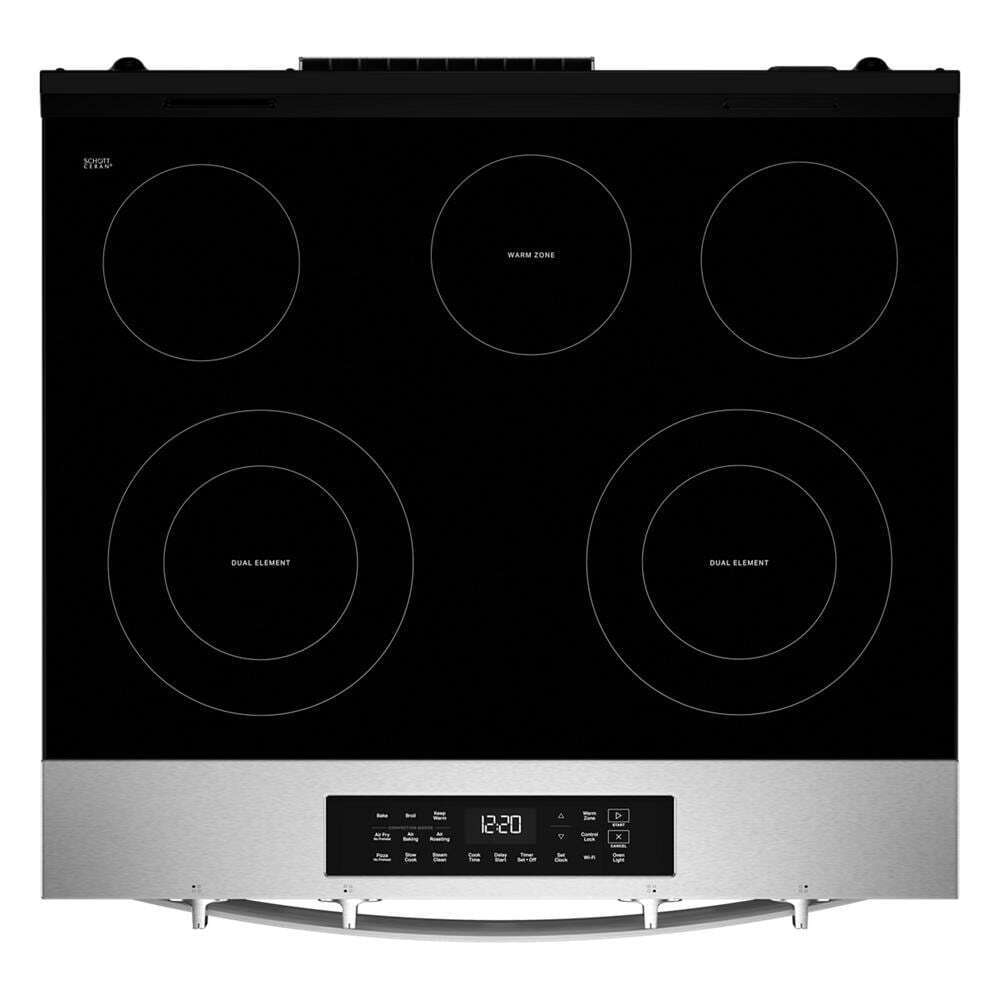

2 FlexHeat™ Dual Radiant Elements

Customize your element size for large or small cookware and boil 40% faster* with two FlexHeat™ Dual Radiant Elements, designed with a 6" inner ring and 9" expandable outer ring. *When comparing the 9" element to the standard 6" element on the same unit.

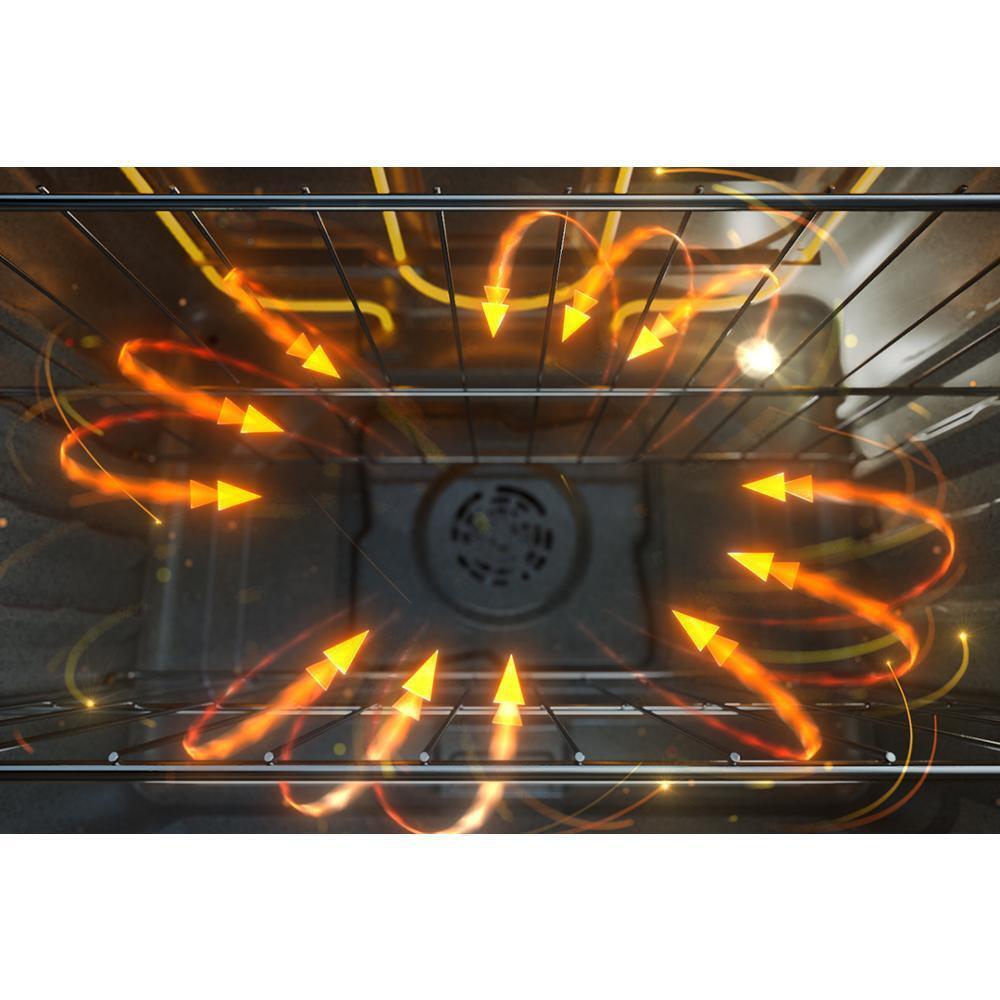

Air Baking

Go from gooey to golden and get even results when baking on multiple racks with Air Baking. Our high-speed fan optimizes air flow and drives consitent heat throughout the oven. Get golden results on breads, pastries and more.

Air Roast

Seal in flavors and juices for meat and poultry with Air Roast. Our high-speed fan drives air flow to optimize heat through longer cook times. Enjoy the full flavor of hearty dishes like pot roast and whole chicken.

Broil

Redefine mealtime with Broil to make crispy-melty nachos, juicy-seared meat, toasty grilled cheese and more.

Edge-to-Edge Glass Cooktop

Upgrade your kitchen with the streamlined design of the Edge-to-Edge Glass Cooktop. Creating an easy transition to your countertop and allowing you to move pots and pans easily from your counter to the cooking surface.

Front Control Design

Easily upgrade your kitchen with the features you want and a premium look that brings controls to the front of the range for easy reach woth Front Control Design.

No Preheat Air Fry

Save time* with No Preheat Air Fry. Our most advanced air fry mode delivers the right heat at the right time, while using less oil than traditional deep frying. Get fast, crispy, tasty results with No Preheat Air Fry. *Compared to WFE550S0LZ

No Preheat Mode

Take preheating off your plate and cook up frozen faves with No Preheat Mode. Simply press a few buttons and let your oven calculate the proper cooking time.

Slow Cook

Heat up all day dishes with Slow Cook. Our high speed fan optimizes air flow to maintain a low, even temperature for longer cook times to thoroughly heat up your food. Tackle your to-do list while soups, pastas and roasts come to temp without the worry.

Smart Feature Updates

Stay on top of the latest cooking features and unlock new ones over time. Explore more ways to cook with updates through the Whirlpool app. *Appliance must be connected. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.

Smart Range

When you’re busy elsewhere, use your smartphone to get dinner started by remotely preheating the oven. Or, when your hands are full, use your compatible voice-enabled device to adjust the cook time or temperature with a voice command.**Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.

Steam Clean

Use the Steam Clean setting to quickly and easily loosen light messes inside the oven without harsh chemicals or cleaners—just add water, run the cycle and wipe away.

Storage Drawer

A Storage Drawer in the bottom of your range allows easy access to the items you use most and opens up space elsewhere.

Warm Zone

Use the designated Warm Zone to keep your food warm on the cooktop as you prep the rest of your meal.

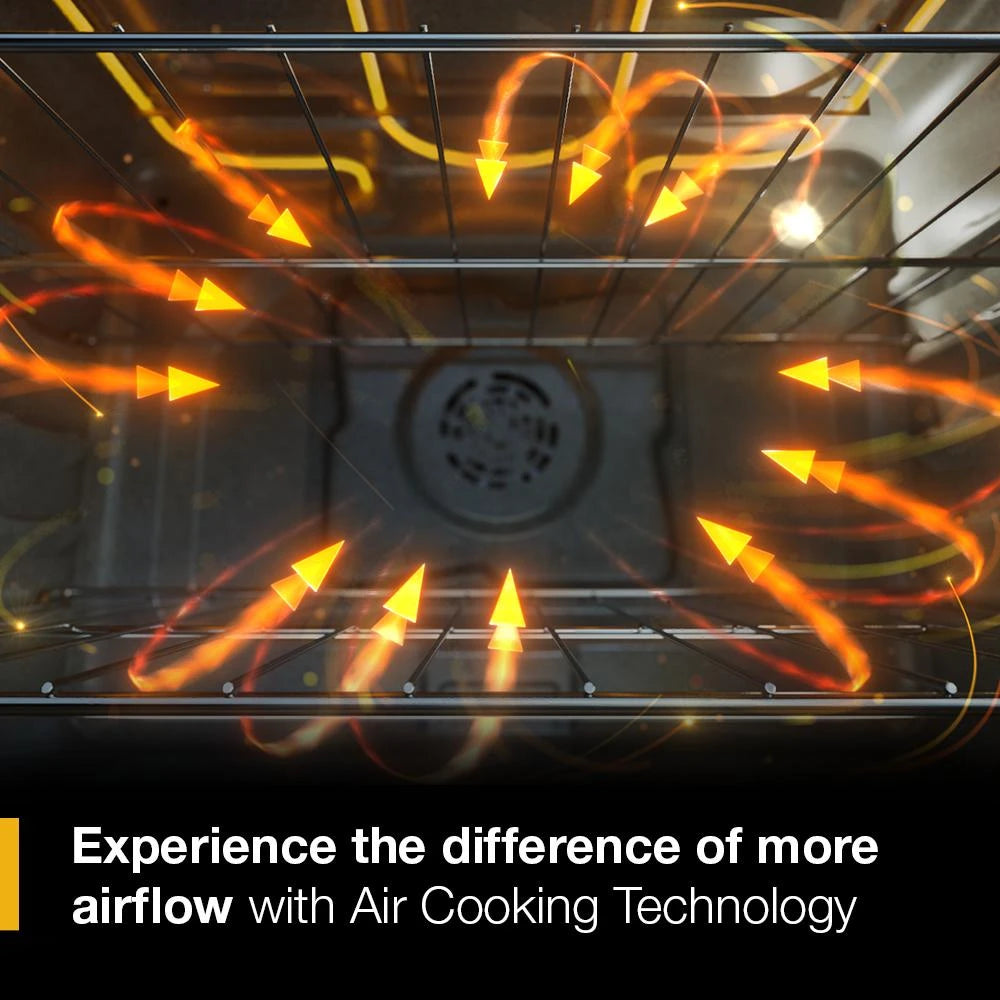

Air Cooking Technology

Experience the difference* with the dynamic airflow and intense heat of No Preheat Air Fry and Air Baking. *Compared to thermal bake.
