| Cubic Feet Measurement | 23.92 ft³ |
| Dimensional Weight | 297.42 lbs. |
| Total of Cubes | 23.92 ft³ |
| Total of Dimensional Weight | 297.42 lbs. |
| Door Type | Metal & Glass |
| Oven Window Size | Extra Large |
| Door Lock | Yes |
| Handle Color | Black Stainless |
| Handle Material | Metal |
| Delay Clean | No |
| Flush Installation Approved | Yes |
| Fuel Type | Electric |
| Oven Automatic Shut-Off | Yes |
| Oven Type | Double |
| Power On Indicator Light | Yes |
| Oven Selections | Air Fry, Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Cook Time Indicator, Delay Start, Favorites, Frozen Bake, Keep Warm/Warm Hold, Language Conversion, Rapid Preheat, Sabba |
| Control Type | Glass Touch Digital Display |
| Display Color | Full Color |
| Electronic Display Type | Full Color LCD |
| Language Conversion | English/French/Spanish |
| Light Control | Oven Light Touch Pad |
| Power Cord Included | No |
| Amps | 40 |
| Hz | 60 |
| Volts | 240 |
| ADA Compliant | No |
| CUL | Yes |
| Star K Certified | Star K Certified |
| UL | Yes |

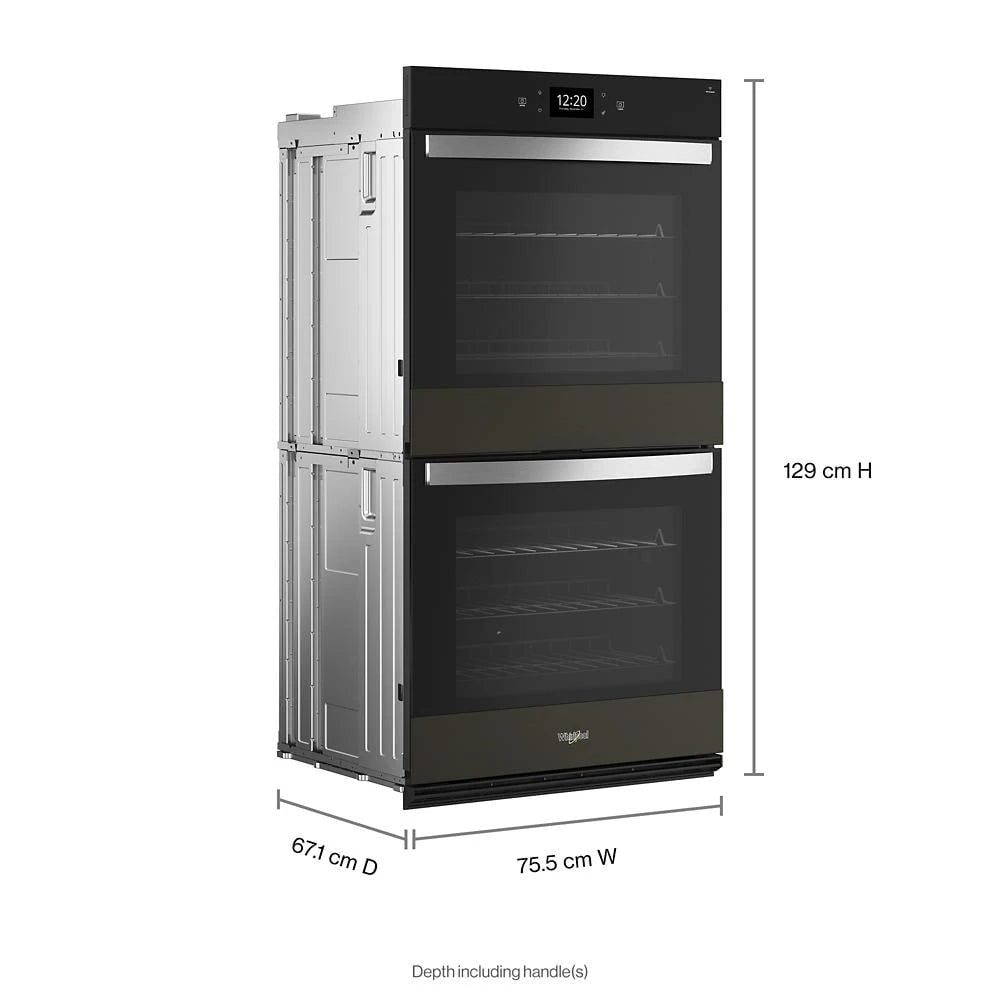

| Width | 29.75 in. |
| Height | 52.56 in. |
| Length | 26.44 in. |
| Weight | 274 lbs. |
| Cutout Depth | 24 in |
| Gross Weight | 274 lbs |
| Lower Oven Interior Depth | 19 in |
| Lower Oven Interior Height | 18 in |
| Lower Oven Interior Width | 25 in |
| Net Weight | 221 lbs |
| Upper Oven Interior Depth | 19 in |
| Upper Oven Interior Height | 18 in |
| Upper Oven Interior Width | 25 in |
| Cutout Height | 50.25 in |
| Cutout Width | 28.5 in |
| Depth Closed Excluding Handles | 24.438 in |
| Depth Closed Including Handles | 26.438 in |
| Depth Excluding Doors | 23.063 in |
| Depth With Door Open 90 Degree | 46.188 in |
| Maximum Height | 52.5625 in |
| Minimum Height | 50.8125 in |
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 53 in. |
| Shipping Length | 31.44 in. |
| Shipping Weight | 314 lbs. |
| Total of Shipping Weight | 314 lbs. |
| Source | Calculation |
| Common Size | 30 in |
| Broiler Location | Top of Oven |
| Convection Element Type | True Convection |
| Convection Functions | Bake, Broil, and Roast |
| Door Broil Position | Closed |
| Door Lock | Yes |
| Door Removable | Yes |
| Hidden Bake Element | Yes |
| Installable Under Cooktop | No |
| Interior Coating | Porcelain |
| Interior Color | Grey |
| Light Type | Halogen |
| Lower Oven Number of Oven Lights | 2 |
| Number of Bake Elements | 2 |
| Number of Broil Elements | 1 |

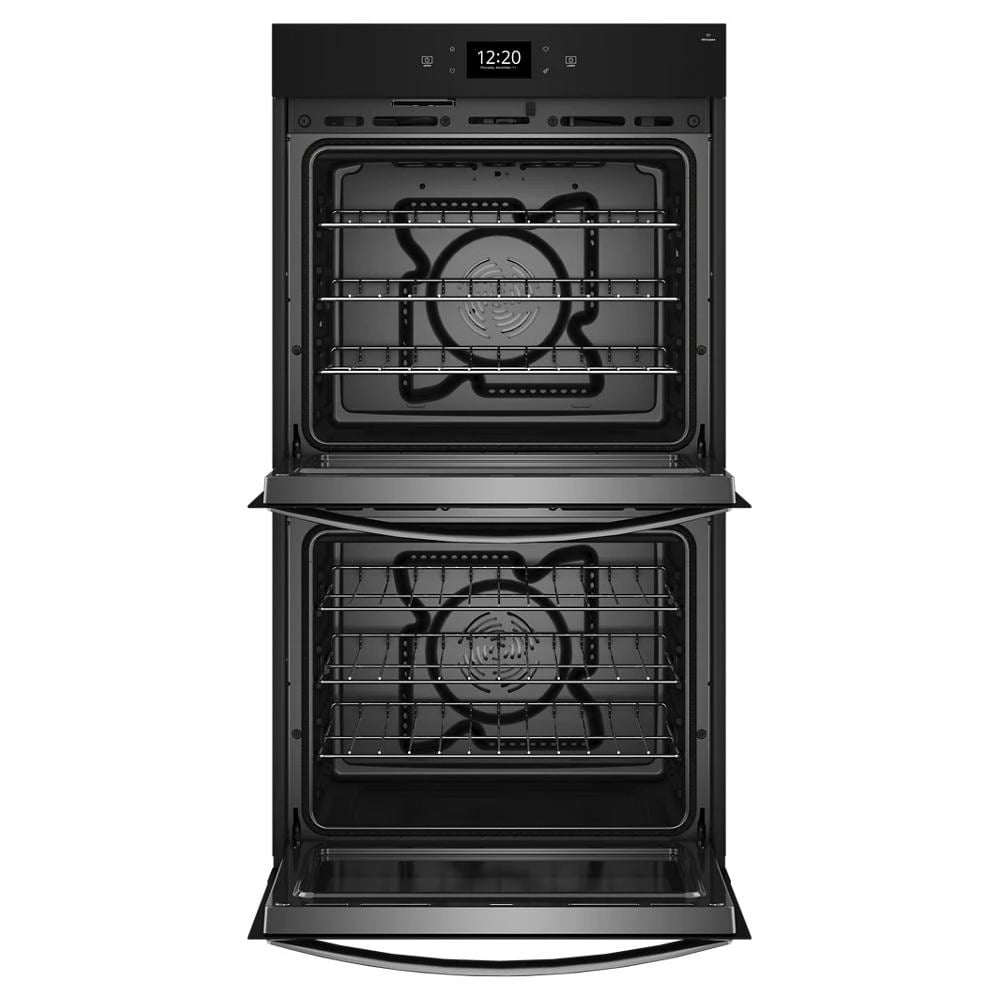

| Number of Lower Oven Racks | 3 |
| Number of Lower Rack Guides | 6 |
| Number of Upper Oven Racks | 3 |
| Number of Upper Rack Guides | 6 |
| Oven Cleaning Type | Self-Cleaning |
| Oven Cooking System | Convection Both |
| Self-Cleaning Oven Racks | No |
| Upper Oven Number of Oven Lights | 2 |
| Bake Element Power | 2,800 W Both |
| Broiler Element Power | 3,600 W Both |
| Convection Element Power | 2,500 Both w |
| Connectivity | Amazon Alexa, Android, Google Assistant, iOS |
| Works With | App, Bluetooth, Remote Access, Voice Controlled, WiFi |
| Volume | 33.278 Cu.Ft. |

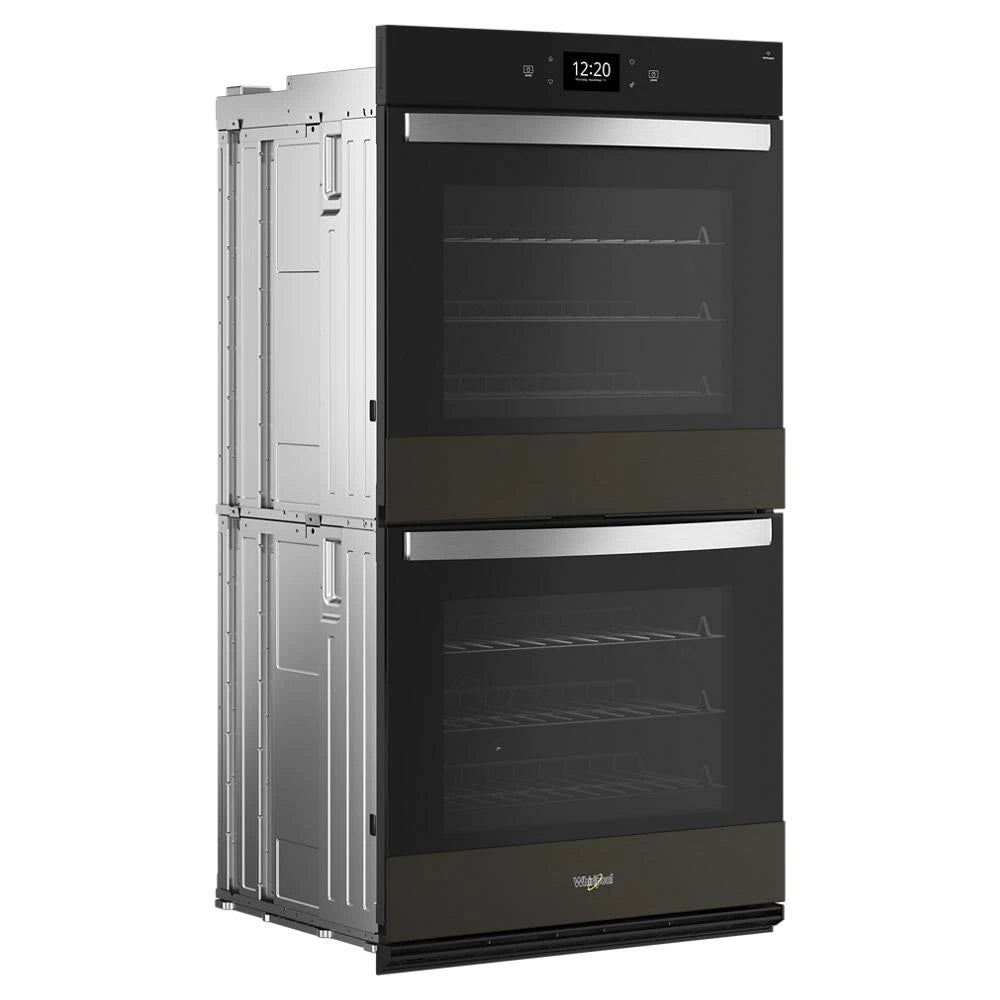

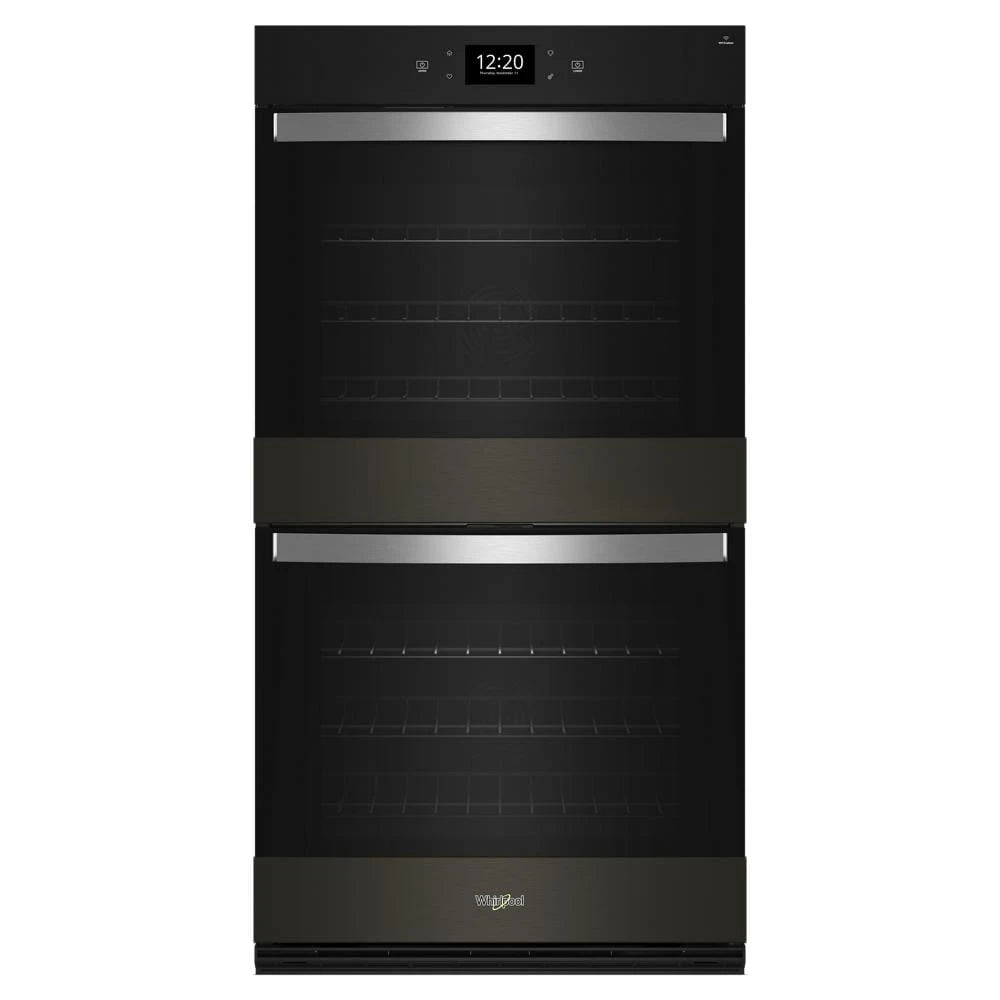

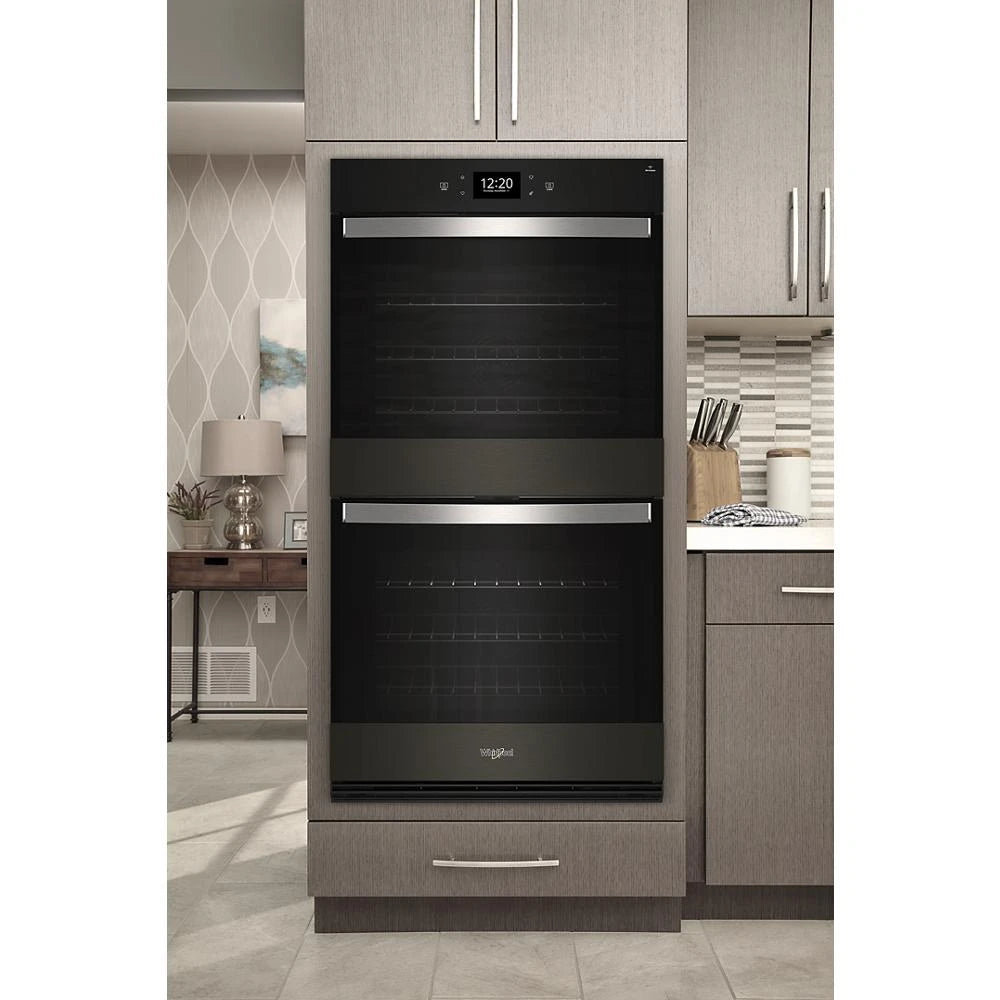

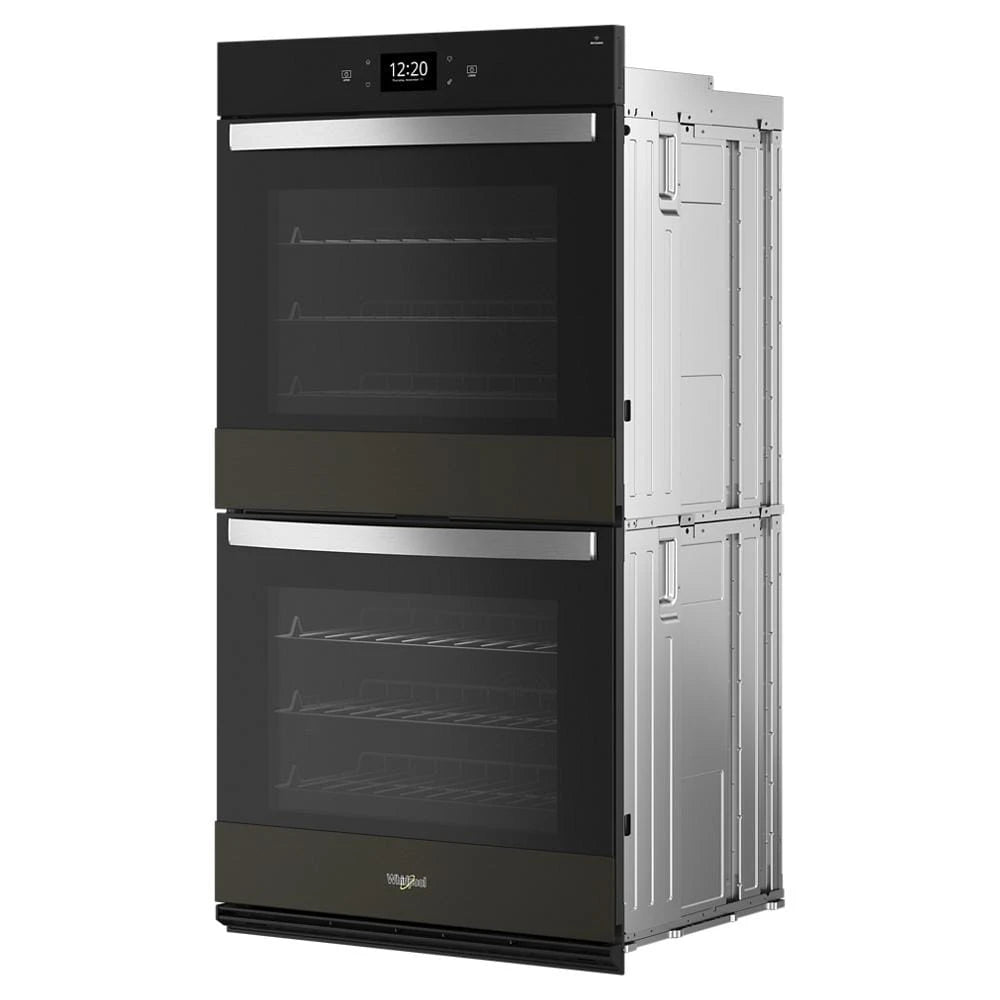

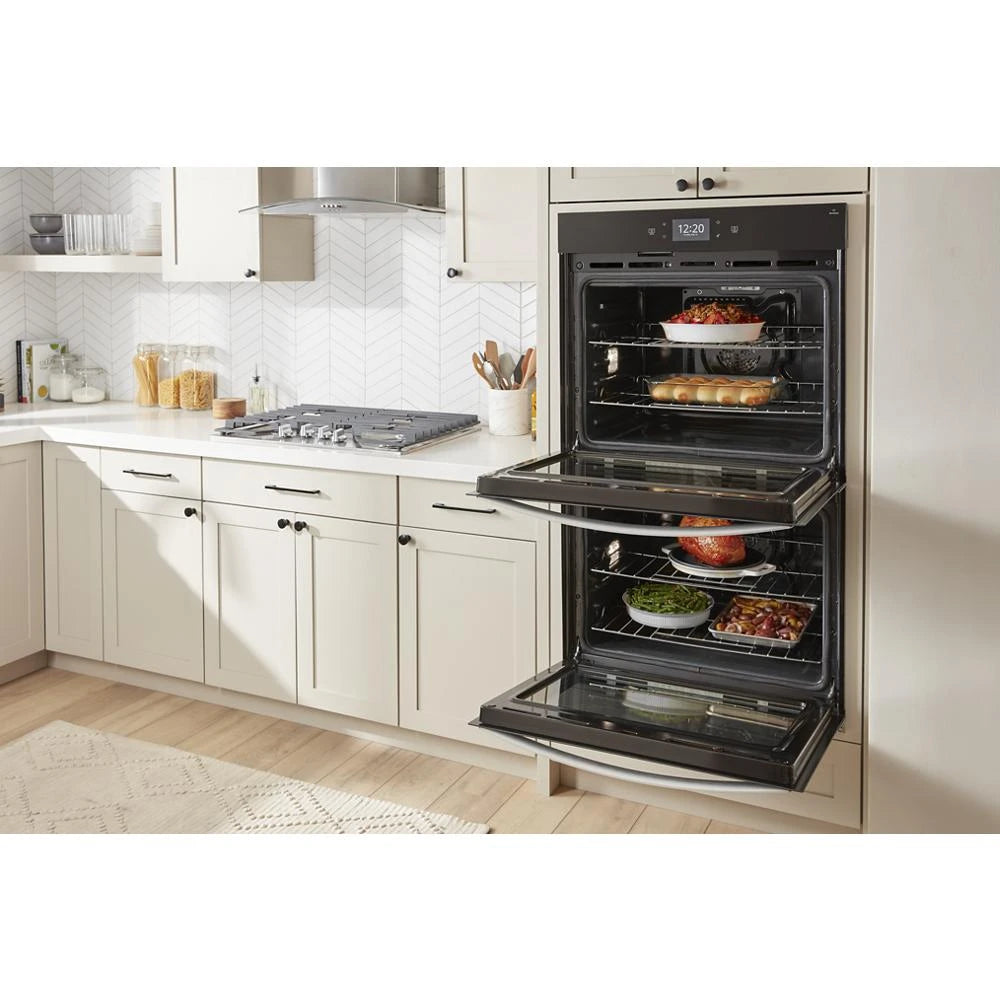

The Whirlpool WOED7030PV 30 Inch Double Electric Smart Wall Oven delivers versatile and efficient cooking performance with a spacious 10.0 cu ft capacity split between two ovens, each featuring True Convection and powered by 2,800 W bake and 3,600 W broil elements. Enjoy crispy Air Fry results, rapid preheat, and Frozen Bake™ convenience, all controllable via a 4.5″ touchscreen or remotely through Wi‑Fi and voice assistants. The oven offers eight cooking modes, automatic feature updates, Self‑Clean (including Steam Clean), extra‑large windows, and a PrintShield™ Finish that resists fingerprints. Designed for flush installation, this smart double wall oven brings professional-level flexibility, cleaning convenience, and connected cooking to your kitchen.
When you’re busy elsewhere, use your smartphone to get dinner started by remotely preheating the oven. Or, when your hands are full, use your compatible voice-enabled device to adjust the cook time or temperature with a voice command.*

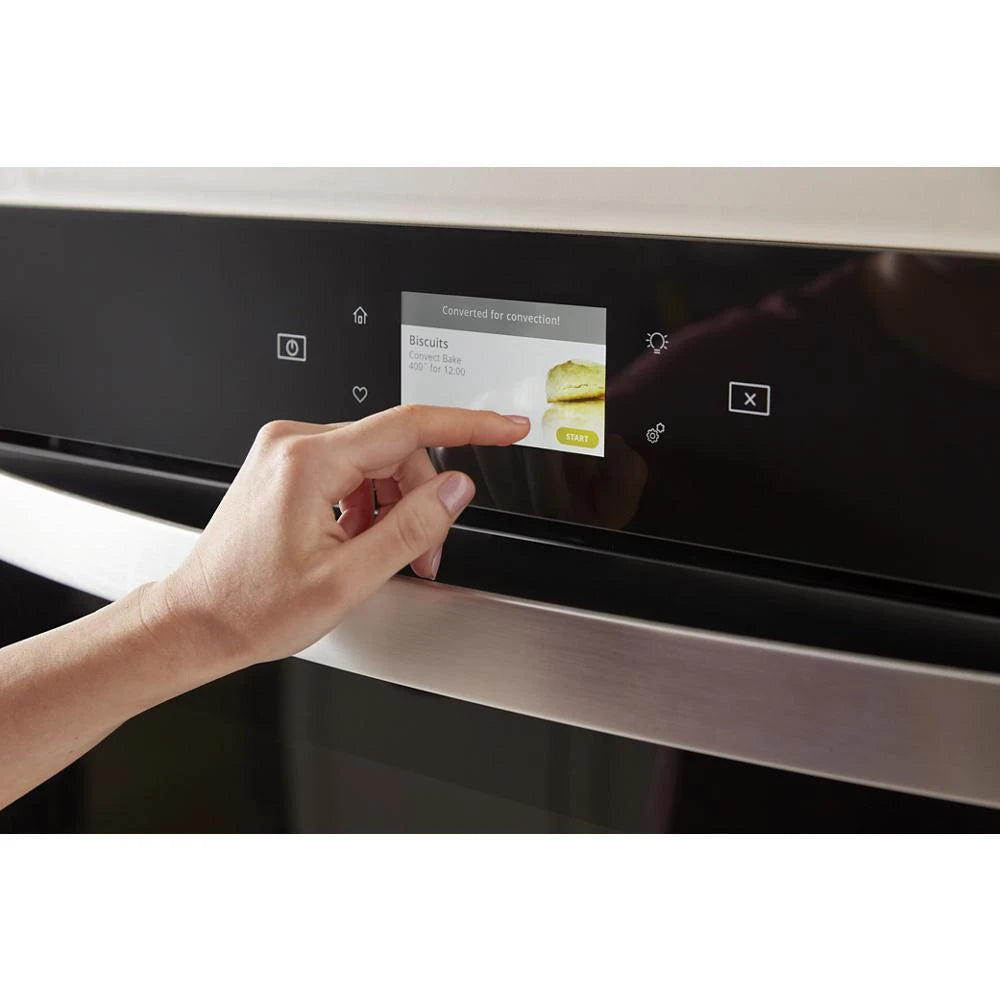

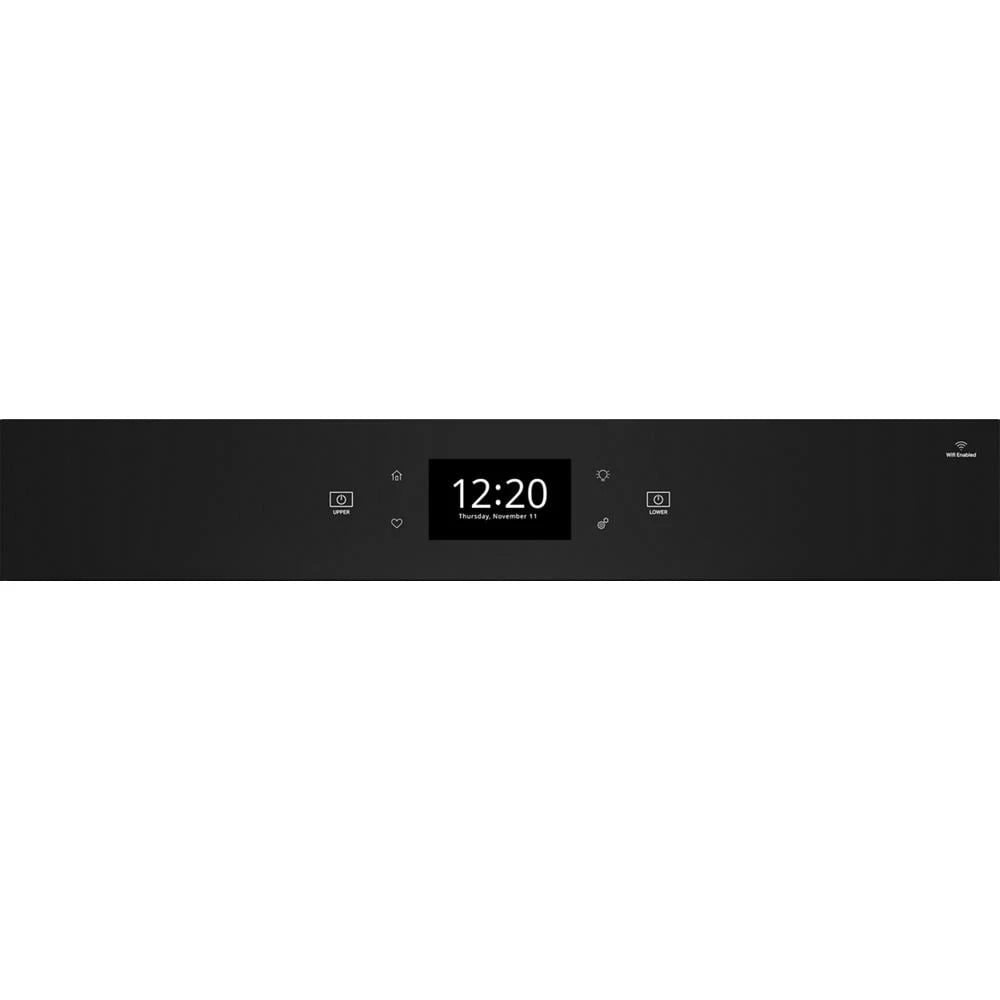

Get instant access to the settings you use most with a touchscreen that learns, adapts and suggests customized presets based on your family's routines.
Assisted Cooking cycles calculate and set the ideal cooking time and temperature for common foods like casseroles, meat, fish, vegetables, pizza and some baked goods.

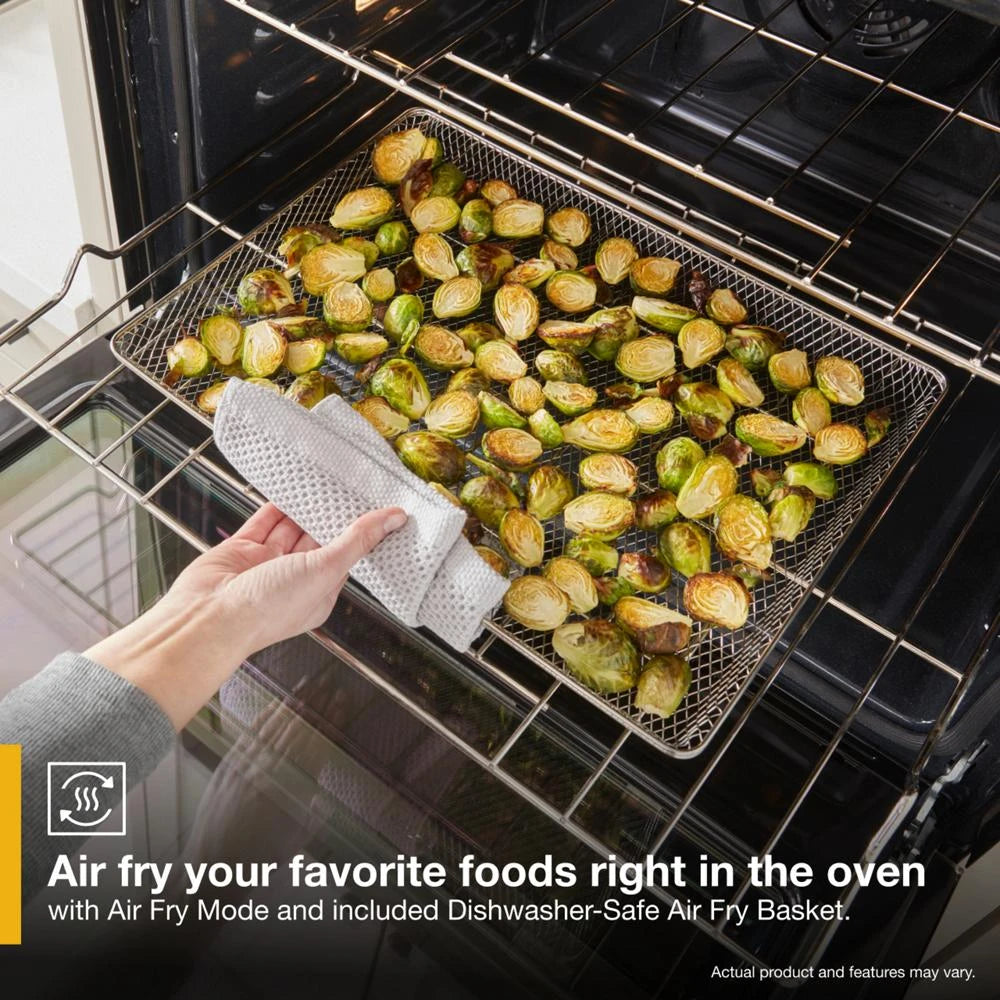

Skip preheating and air fry chicken nuggets, wings, fries and more to get crispy results right in your oven. The Air Fry Mode circulates hot air around the air fry basket to cook fried food in a healthy way, with less oil than traditional frying.
