Sale price $2,499.30 Regular price $2,998.97 Save $499.67 / 16% OFF

Product Details for Whirlpool WOED5027LZ

Technical Details

Exterior details

Door Type Metal & Glass
Oven Window Size Extra Large
Door Lock Yes
Handle Color Stainless Steel
Handle Material Metal

Details

Delay Clean Yes
Flush Installation Approved Yes
Fuel Type Electric
Oven Automatic Shut-Off Yes

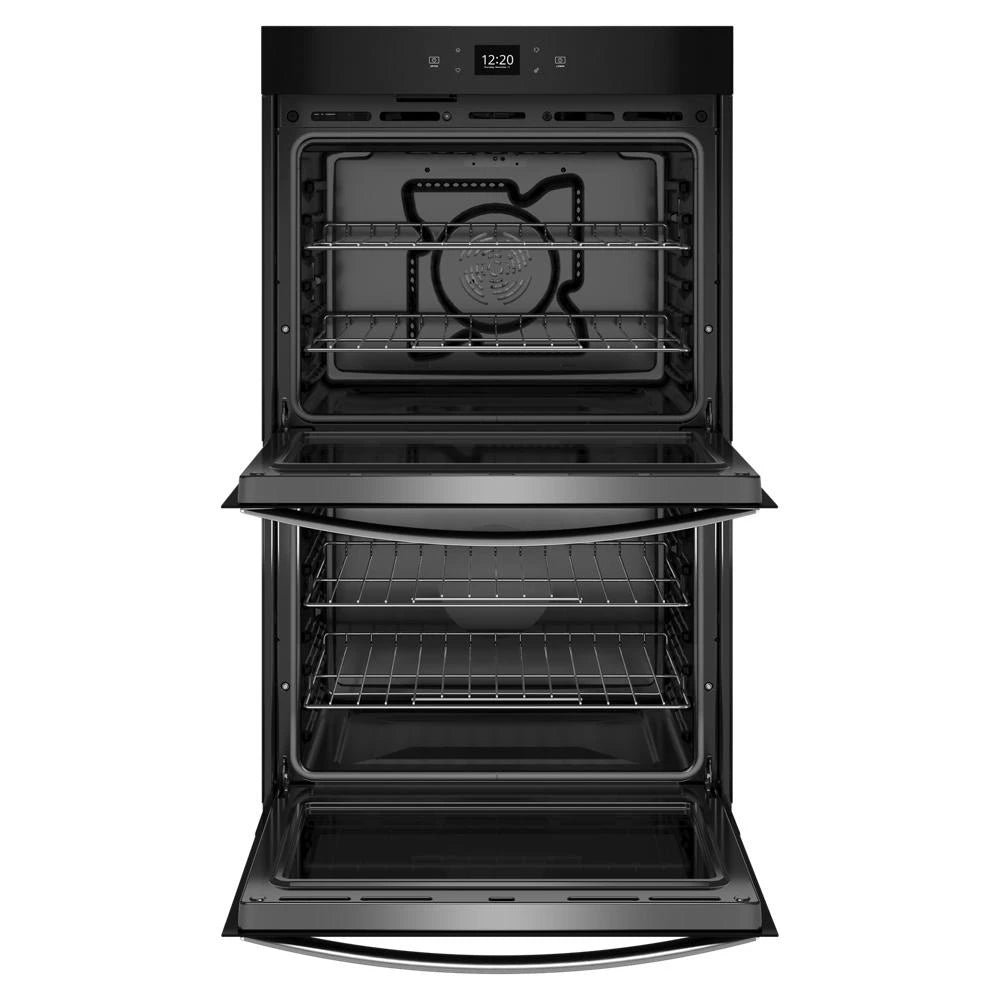

Oven Type Double
Power On Indicator Light Yes
Oven Selections Air Fry, when connected, Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Cook Time Indicator, Delay Start, Favorites, Frozen Bake, Keep Warm/Warm Hold, Language Conversion, Rapi

Controls

Control Type Glass Touch Digital Display
Display Color Full Color
Electronic Display Type Full Color LCD
Language Conversion English/French/Spanish
Light Control Oven Light Touch Pad

Smart compatibility

Smart Appliance Yes
Connectivity Amazon Alexa, Android, Google Assistant, iOS
Works With App, Remote Access, Voice Controlled, WiFi

Electrical

Power Cord Included No
Amps 40
Hz 60
Volts 240

Certifications

ADA Compliant No
CUL Yes
Star K Certified Star K Certified
UL Yes

Oven cavity details

Broiler Element Power 3600 W/3120 W
Broiler Location Top of Oven
Convection Element Power 2500 W/2167 W w
Convection Element Type Single Fan
Convection Functions Bake, Broil, Convection Conversion
Door Broil Position Closed
Door Lock Yes
Door Removable Yes
Hidden Bake Element Yes
Installable Under Cooktop No
Interior Coating Porcelain
Interior Color Grey
Light Type Halogen
Lower Oven Number of Oven Lights 2
Number of Bake Elements 1
Number of Broil Elements 1
Number of Lower Oven Racks 2
Number of Lower Rack Guides 6
Number of Upper Oven Racks 2
Number of Upper Rack Guides 6
Oven Cleaning Type Self-Cleaning
Self-Cleaning Oven Racks No
Temperature Conversion Yes
Upper Oven Number of Oven Lights 2
Bake Element Power 2,800 W/2,427W

Capacity

Volume 31 Cu.Ft.

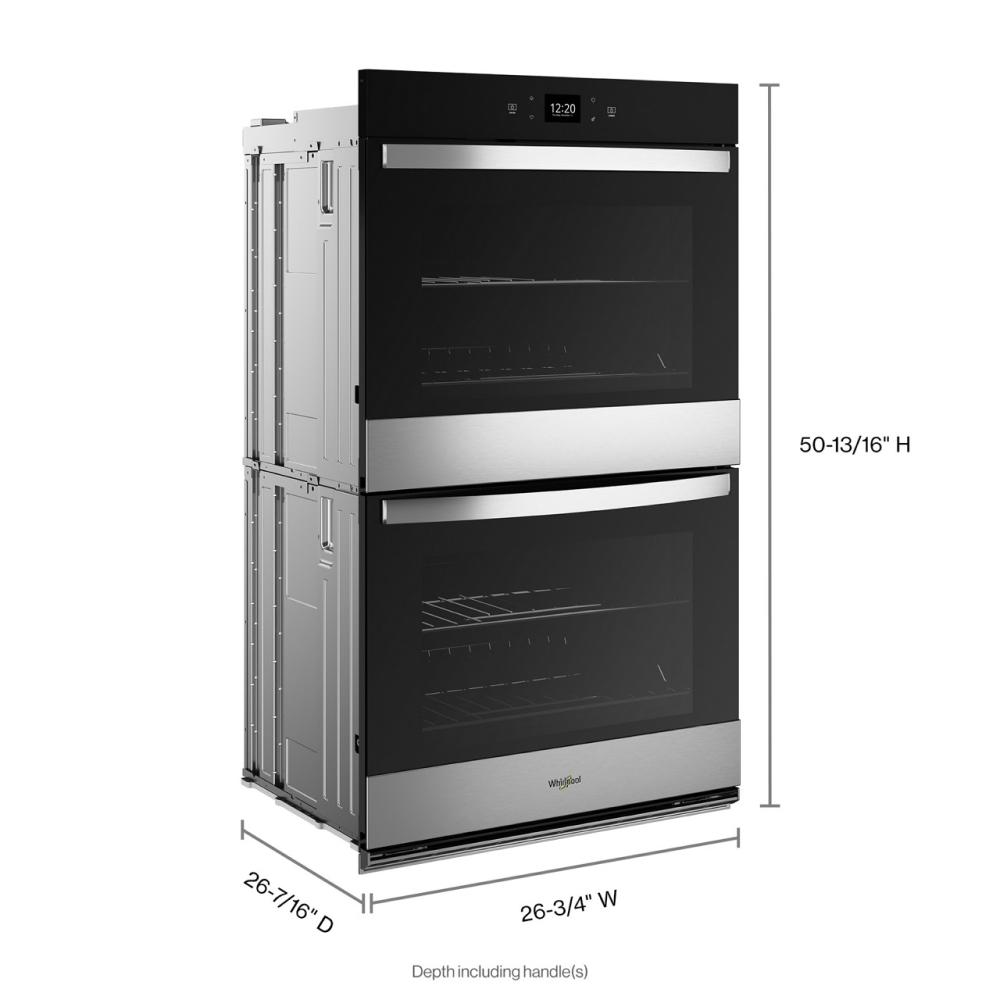

Dimensions & weight

Width 26.75 in.
Height 50.81 in.
Length 26.31 in.
Weight 260 lbs.
Cutout Depth 24 in
Lower Oven Interior Depth 19 in
Lower Oven Interior Height 18 in
Net Weight 255 lbs
Upper Oven Interior Depth 19 in
Upper Oven Interior Height 18 in
Cutout Height 50.25 in
Cutout Width 25.5 in
Depth Closed Excluding Handles 24.438 in
Depth Closed Including Handles 26.313 in
Depth With Door Open 90 Degree 46.188 in
Gross Weight 260 lbs
Maximum Height 52.5625 in
Minimum Height 50.8125 in

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 32 in.
Shipping Height 54 in.
Shipping Length 31.31 in.
Shipping Weight 300 lbs.
Total of Shipping Weight 300 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 20.7 ft³
Dimensional Weight 257.3 lbs.
Total of Cubes 20.7 ft³
Total of Dimensional Weight 257.3 lbs.

Other

Common Size 27 in

Description

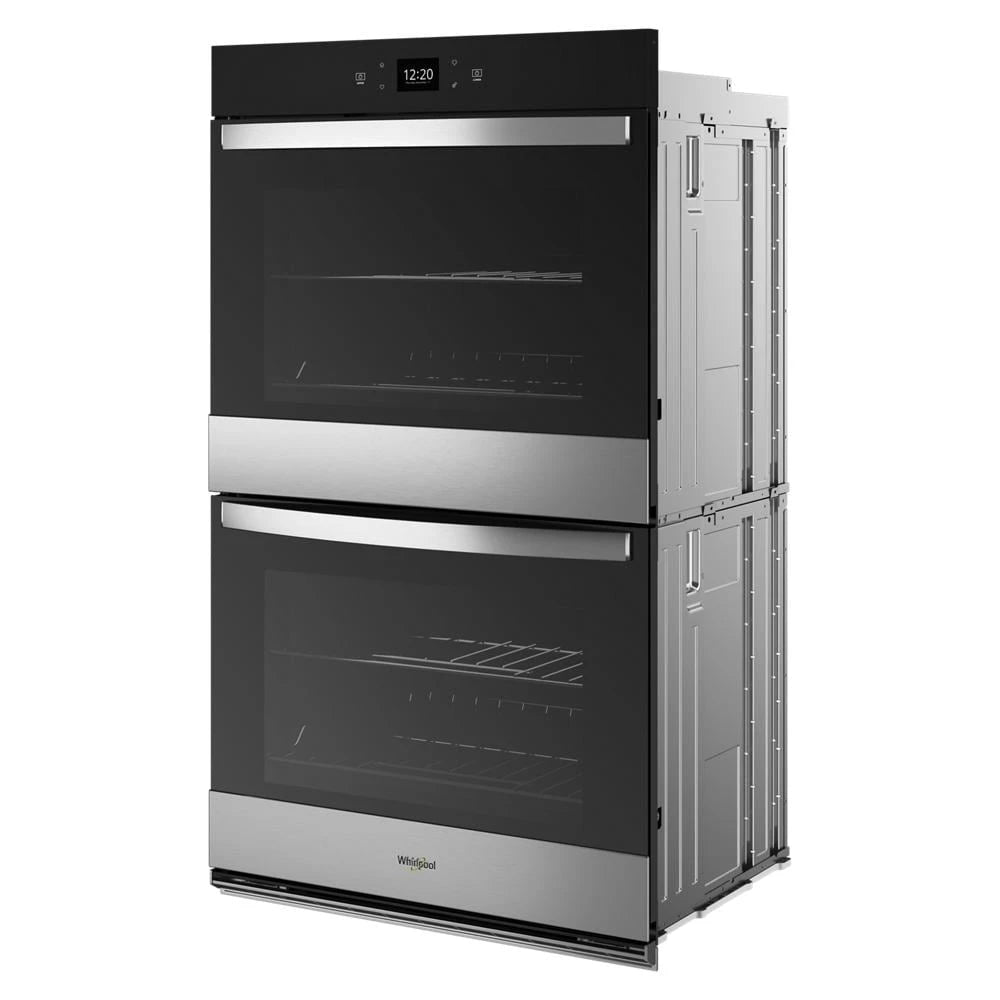

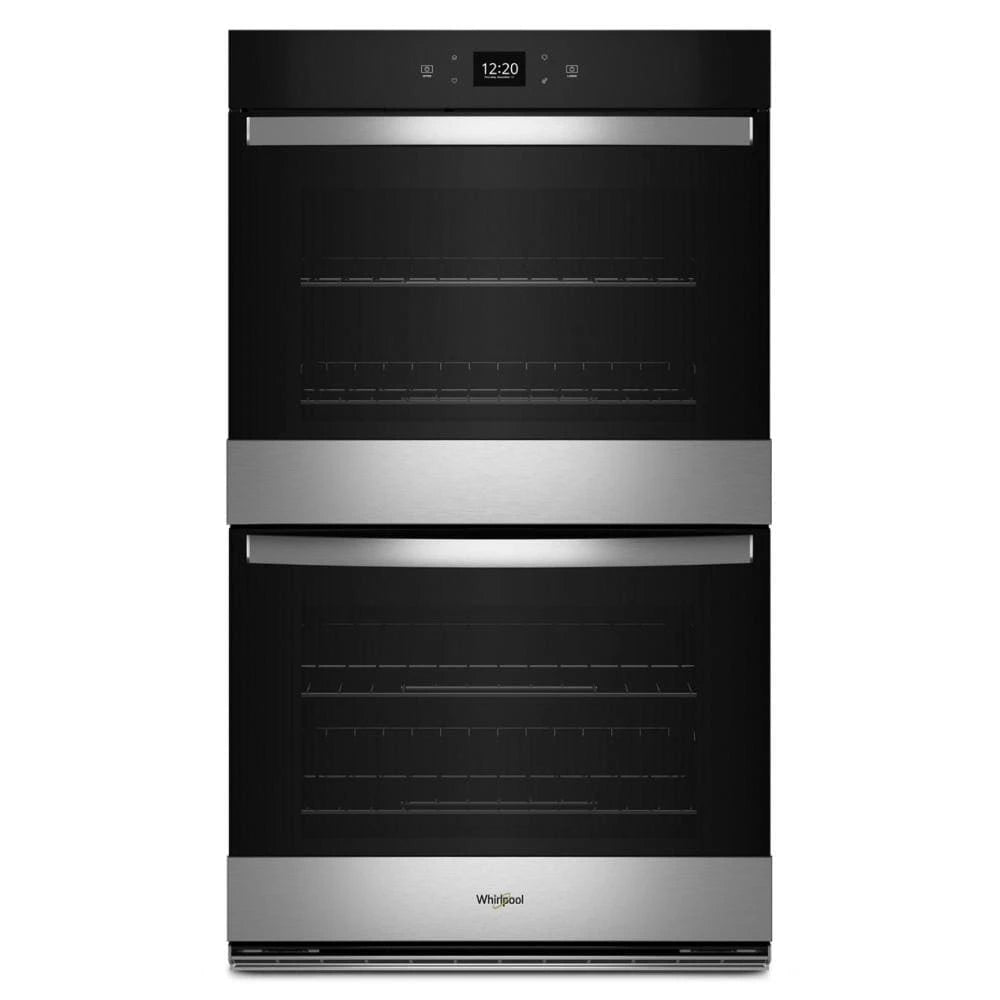

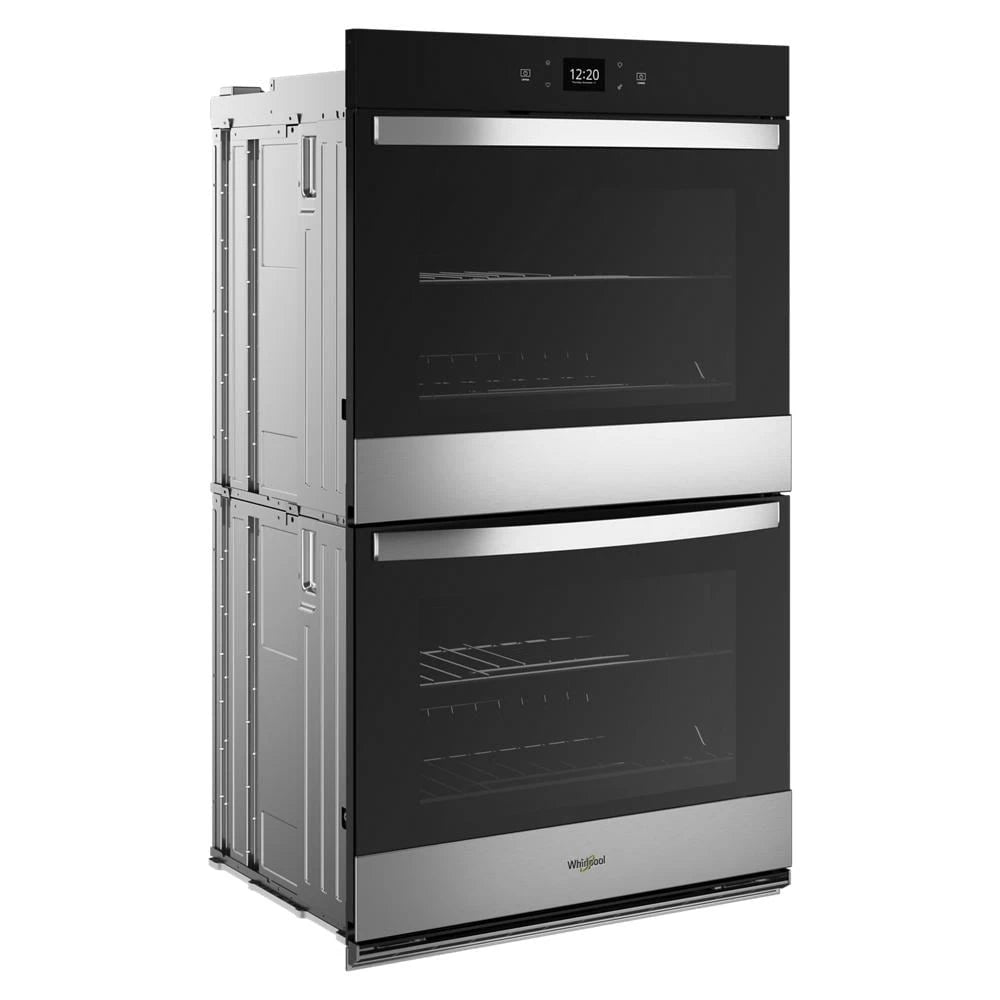

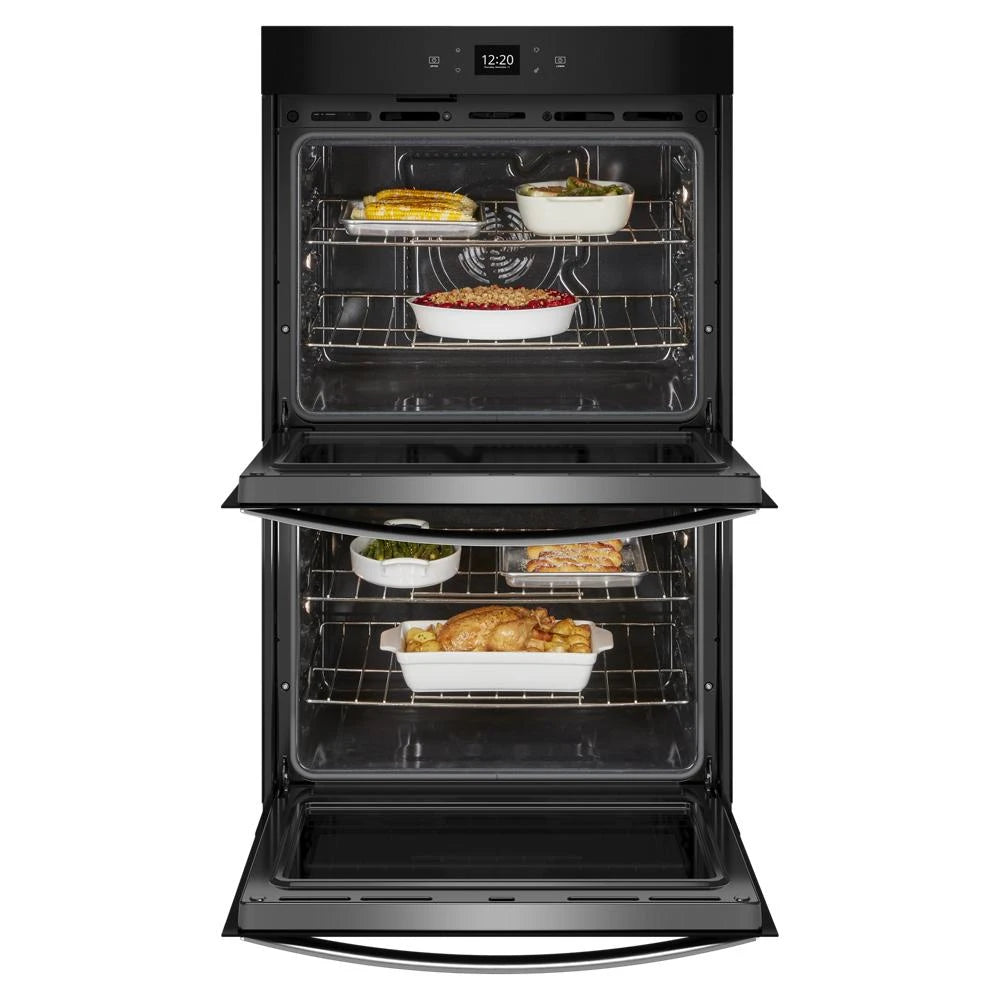

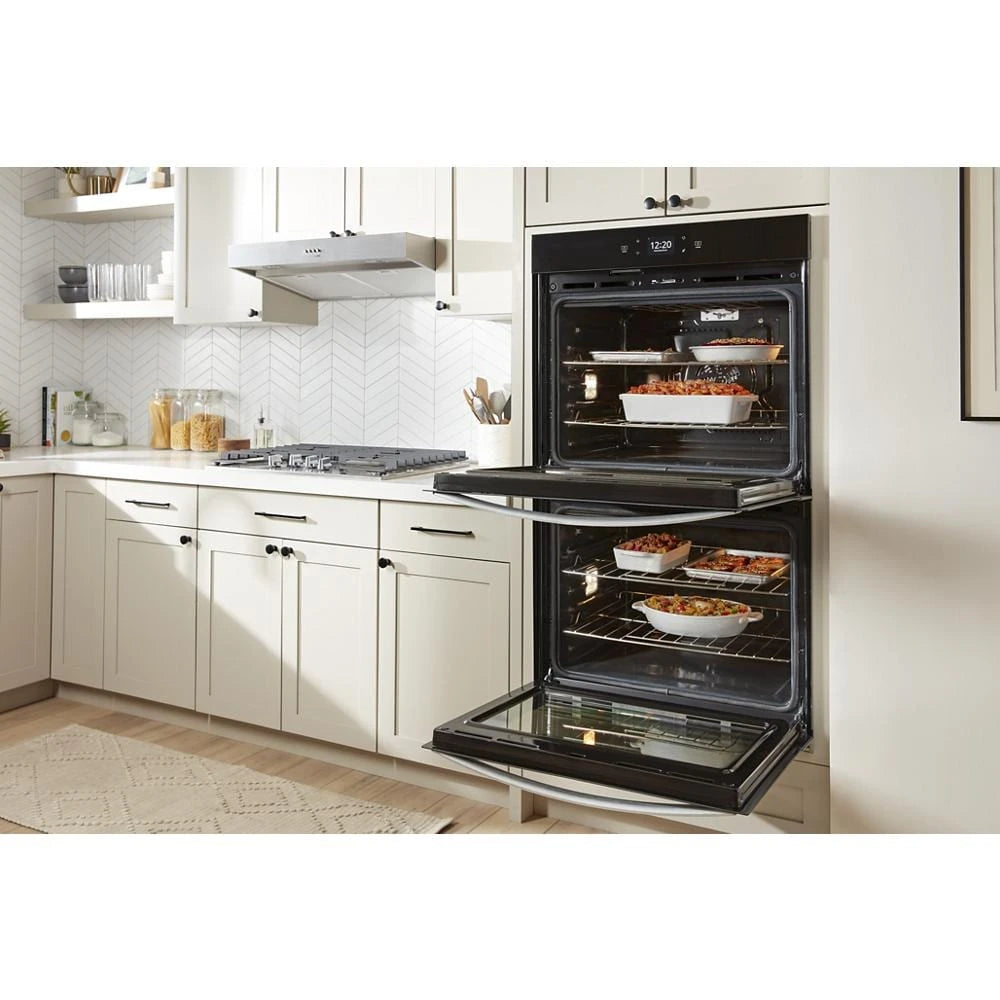

The Whirlpool WOED5027LZ 27 Inch Double Electric Smart Wall Oven combines high-performance features and smart technology in a sleek package. It offers a total 5.7 cu ft capacity via dual ovens, each equipped with True Convection to deliver consistent baking and roasting results. Innovative cooking modes include Air Fry for crispy, healthier meals and Frozen Bake™ for quick, no-preheat cooking. The ovens support Wi‑Fi connectivity with remote control and voice assistant compatibility, accessed through an intuitive touchscreen interface. Additional enhancements include Rapid Preheat, Steam Clean, a Self-Clean option, and a fingerprint-resistant stainless steel finish for easy maintenance. Designed for flush installation, this smart wall oven is perfect for gourmet cooking and modern kitchen aesthetics.



Product Features

  • Smart Wall Oven
    When you’re busy elsewhere, use your smartphone to get dinner started by remotely preheating the oven. Or, when your hands are full, use your compatible voice-enabled device to adjust the cook time or temperature with a voice command.

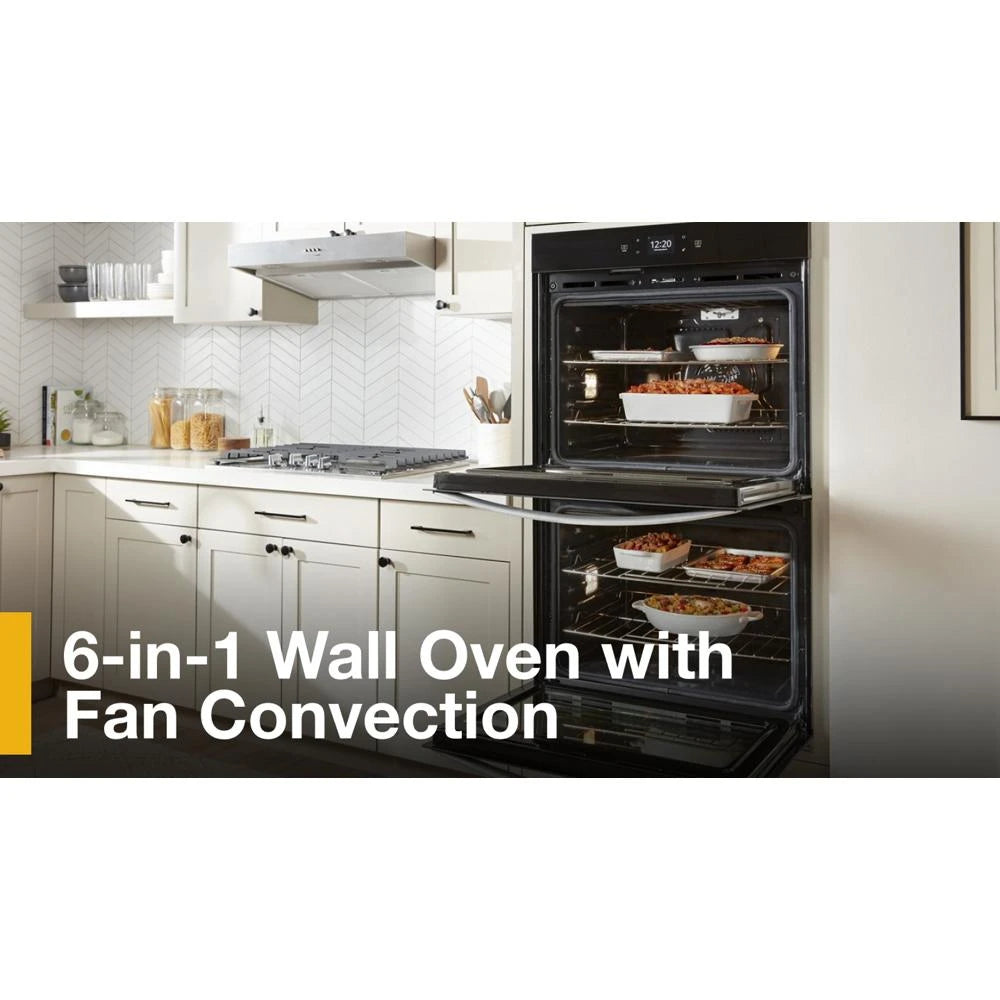

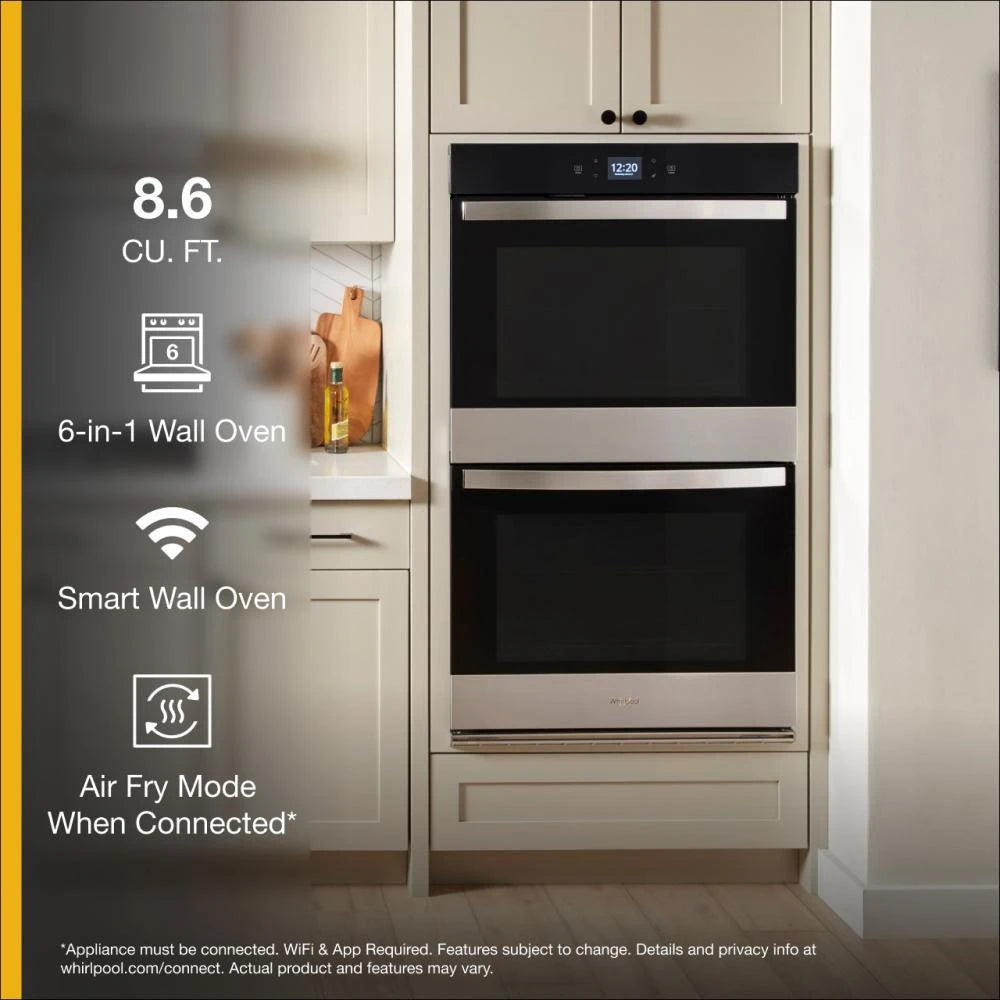

  • 6-in-1 Wall Oven with Fan Convection
    Cook however you want with 6 cooking modes in one wall oven: Frozen Bake™ Technology, Keep Warm, Broil, Convect Broil, Bake and Convect Bake. For even more cycles like Air Fry connect your appliance to receive Automatic Feature Updates.
  • 8.6 Cu. Ft. Total Capacity
    Make large family meals by cooking your main course, side dishes and dessert in this 8.6 Cu. Ft. Total Capacity double wall oven.

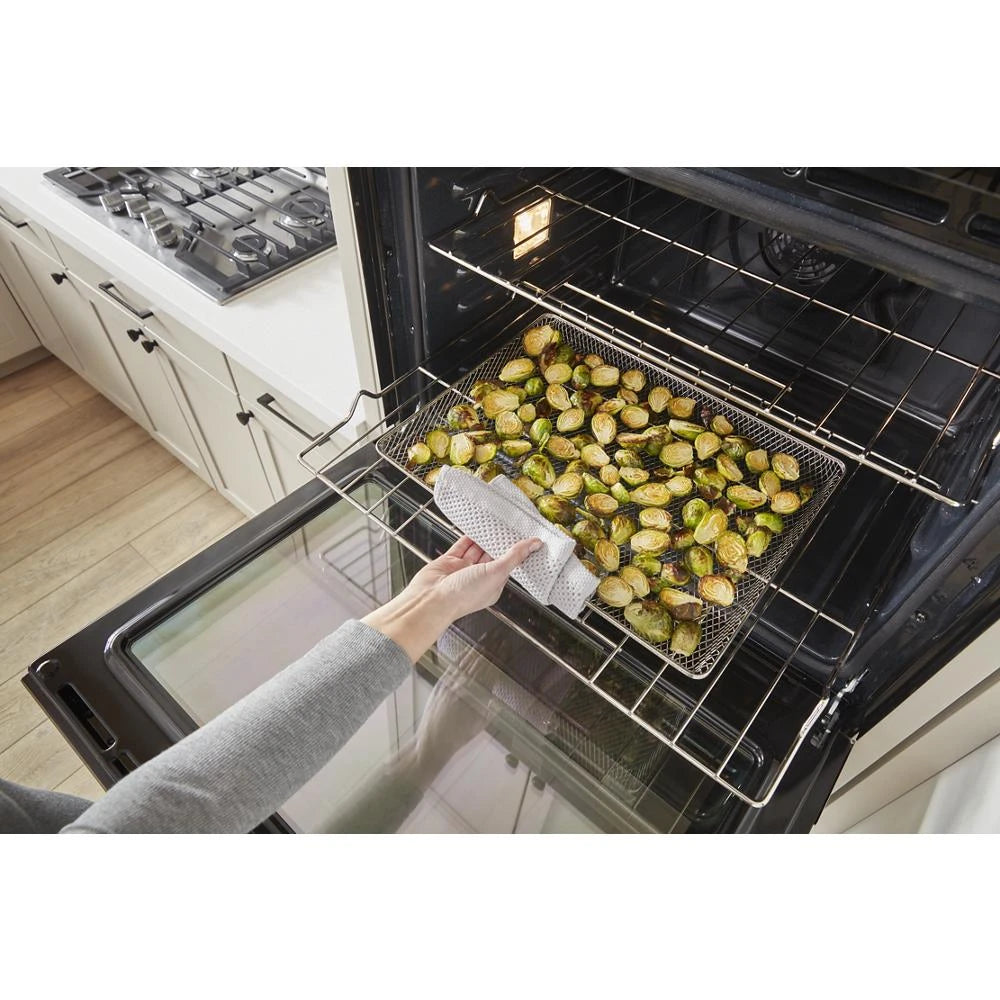

  • Air Fry Mode When Connected
    Air fry chicken nuggets, wings, fries and more to get crispy results right in your oven when your appliance is connected.*Air Fry Mode circulates hot air around the air fry basket to cook fried food in a healthy way, with less oil than traditional frying.

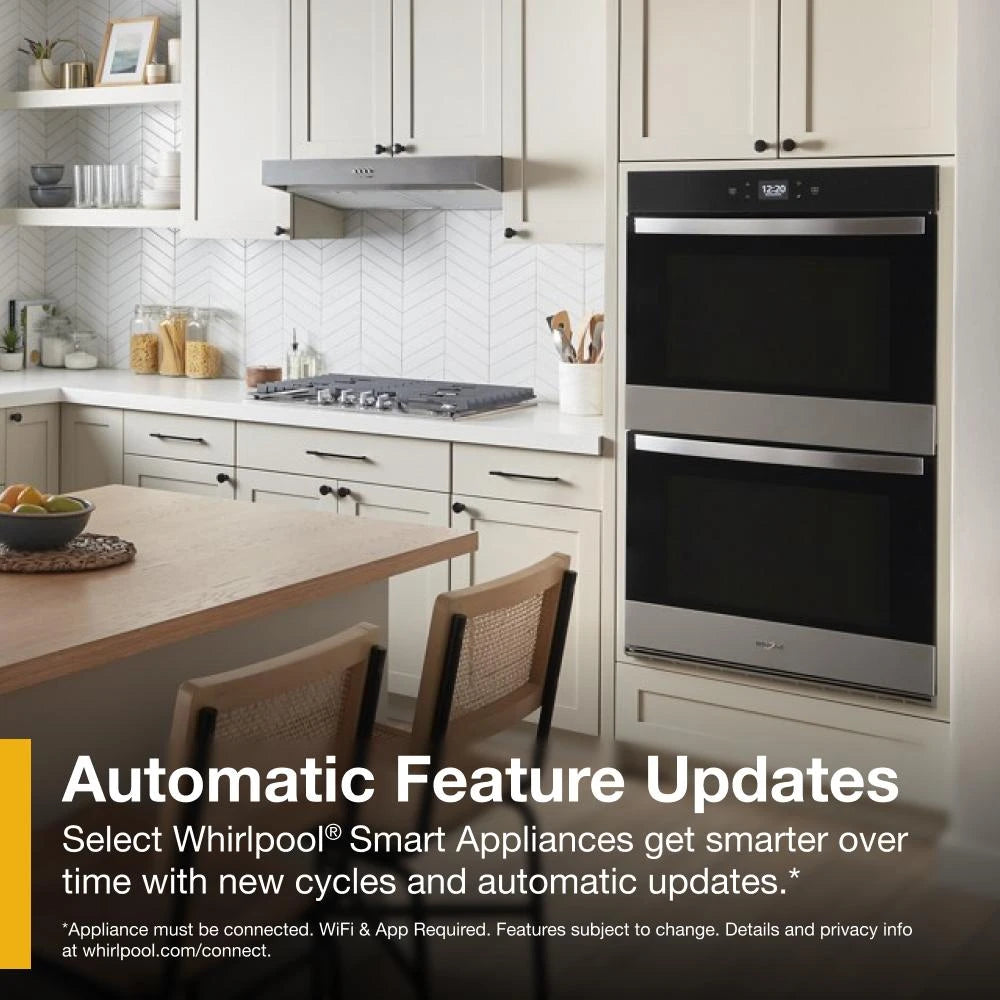

  • Automatic Feature Updates When Connected
    Select Whirlpool® Smart Appliances get smarter over time with new cycles like Air Fry Mode and automatic updates* to enhance performance. Once your appliance is connected, it downloads updates and adds new cycles as they’re released.Appliance must be connected. WiFi & App Required. Features subject to change. Details and privacyinfo at whirlpool.com/connect.

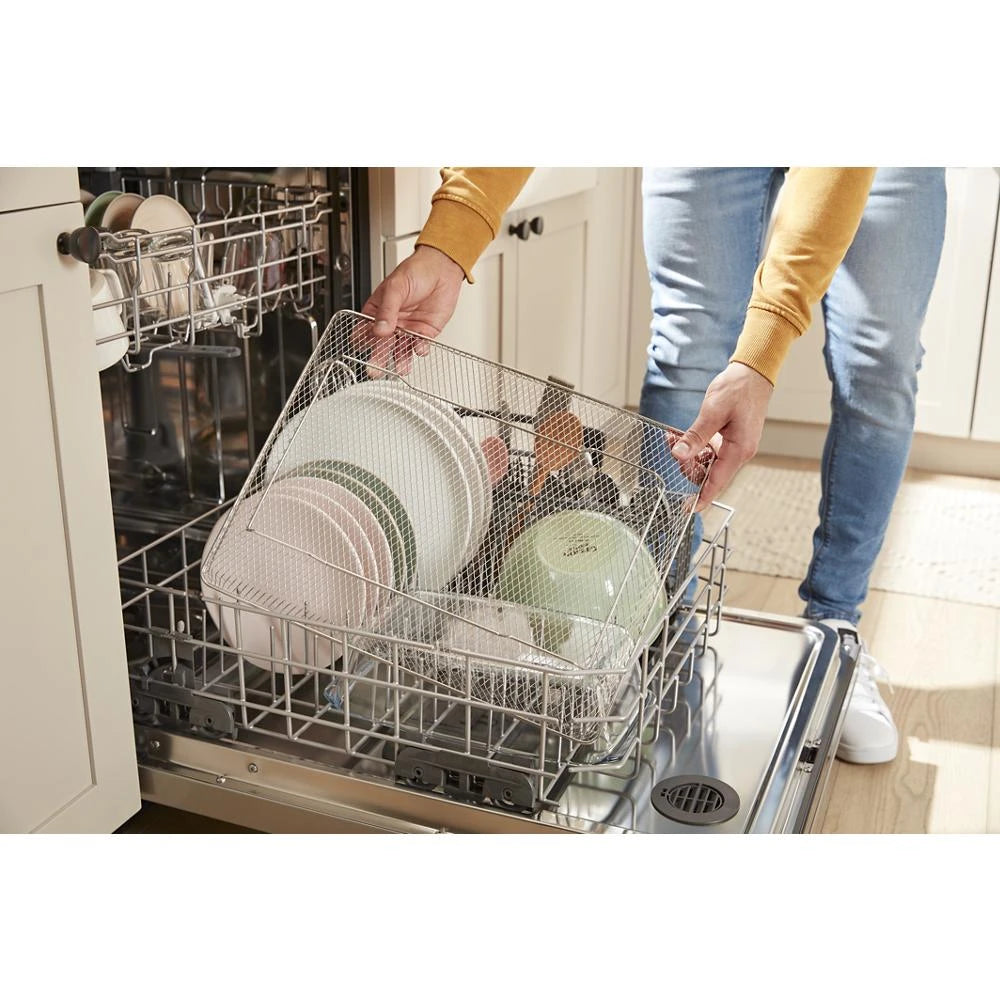

  • Dishwasher-Safe Air Fry Basket (Sold Separately)
    For easy cleaning, put the Dishwasher-Safe Air Fry Basket (Sold Separately) right in the dishwasher when it gets messy.

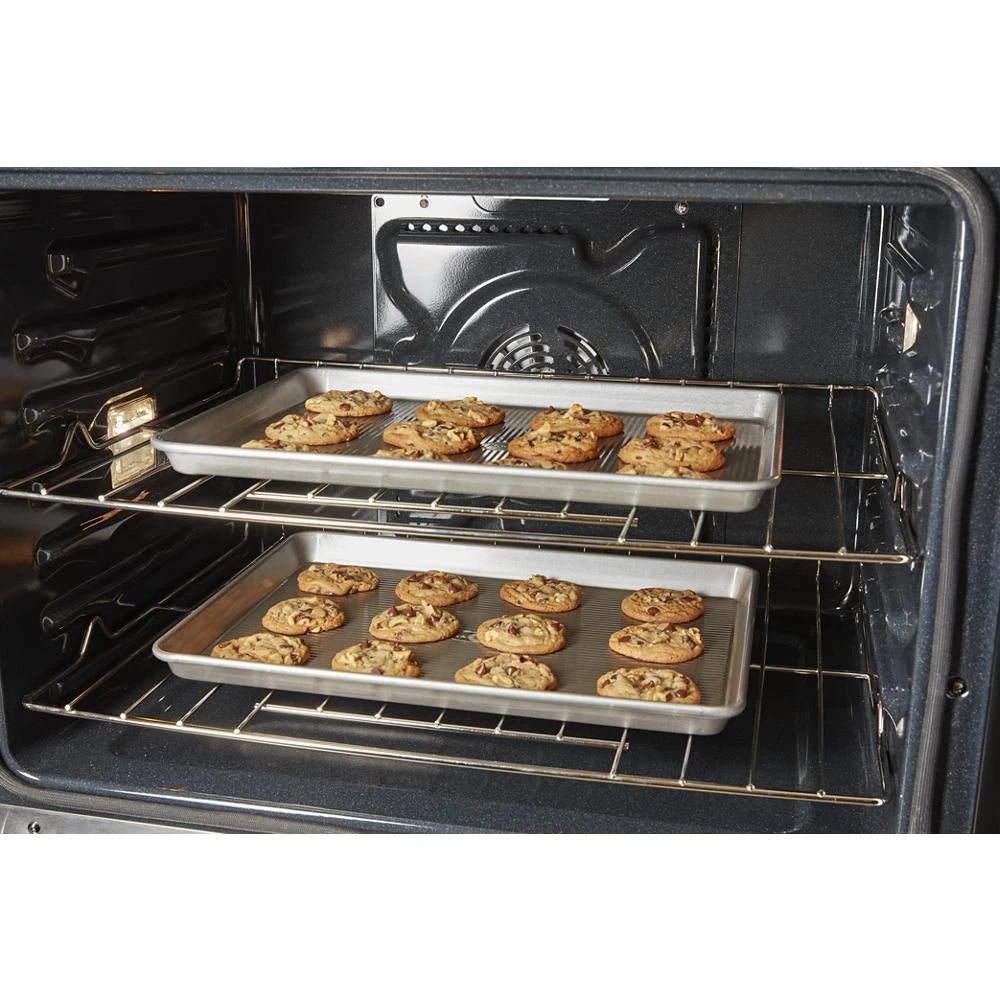

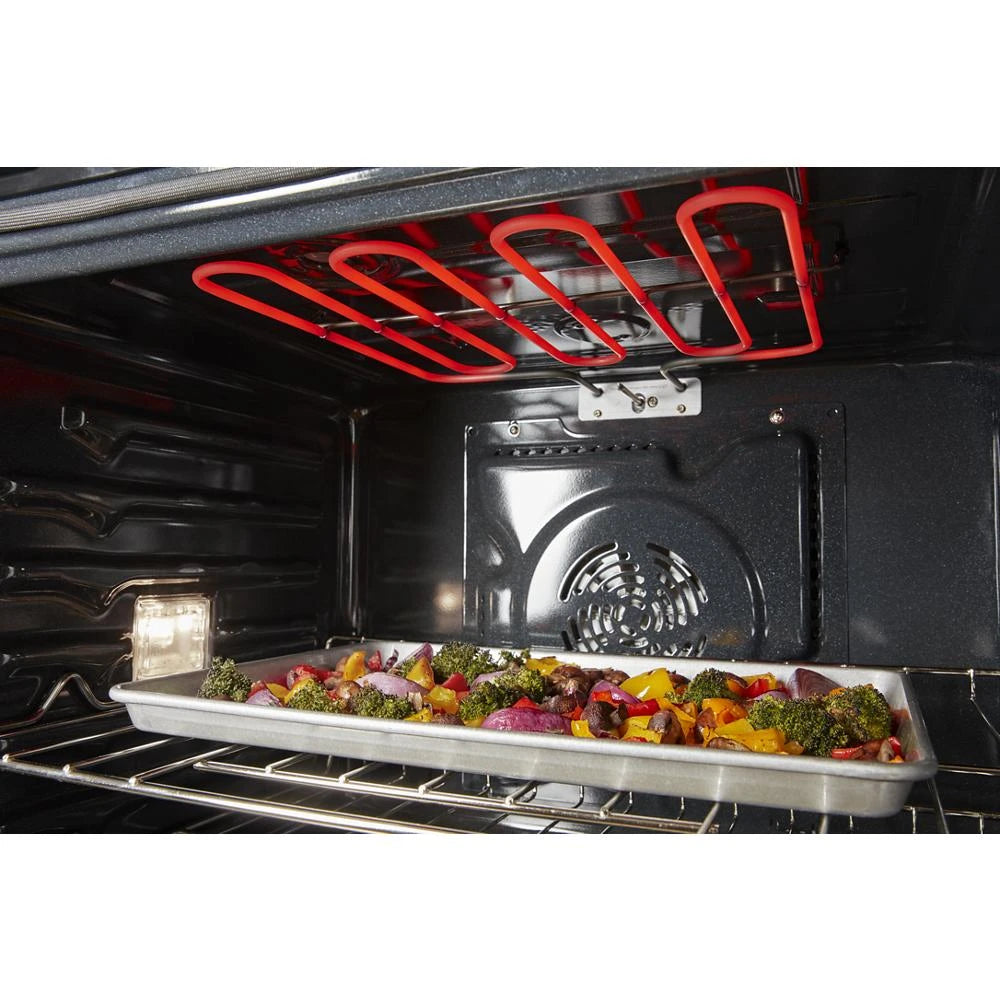

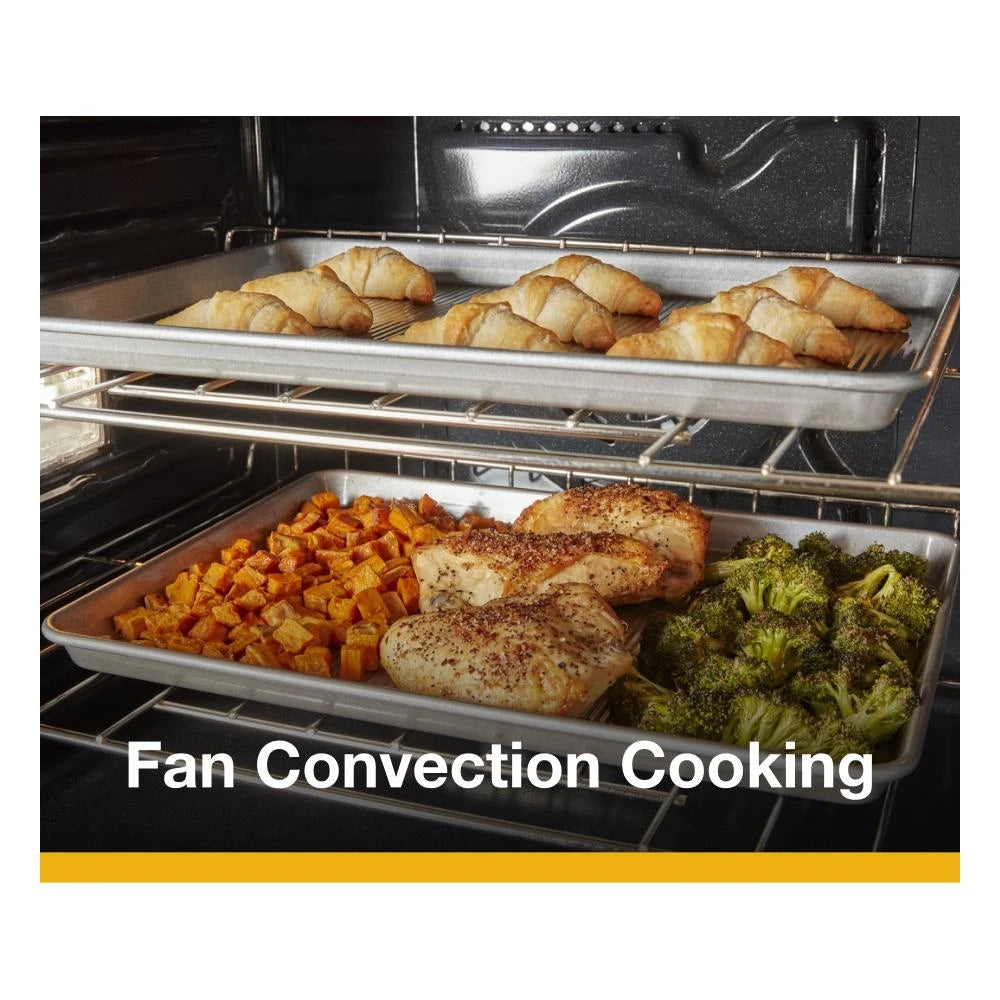

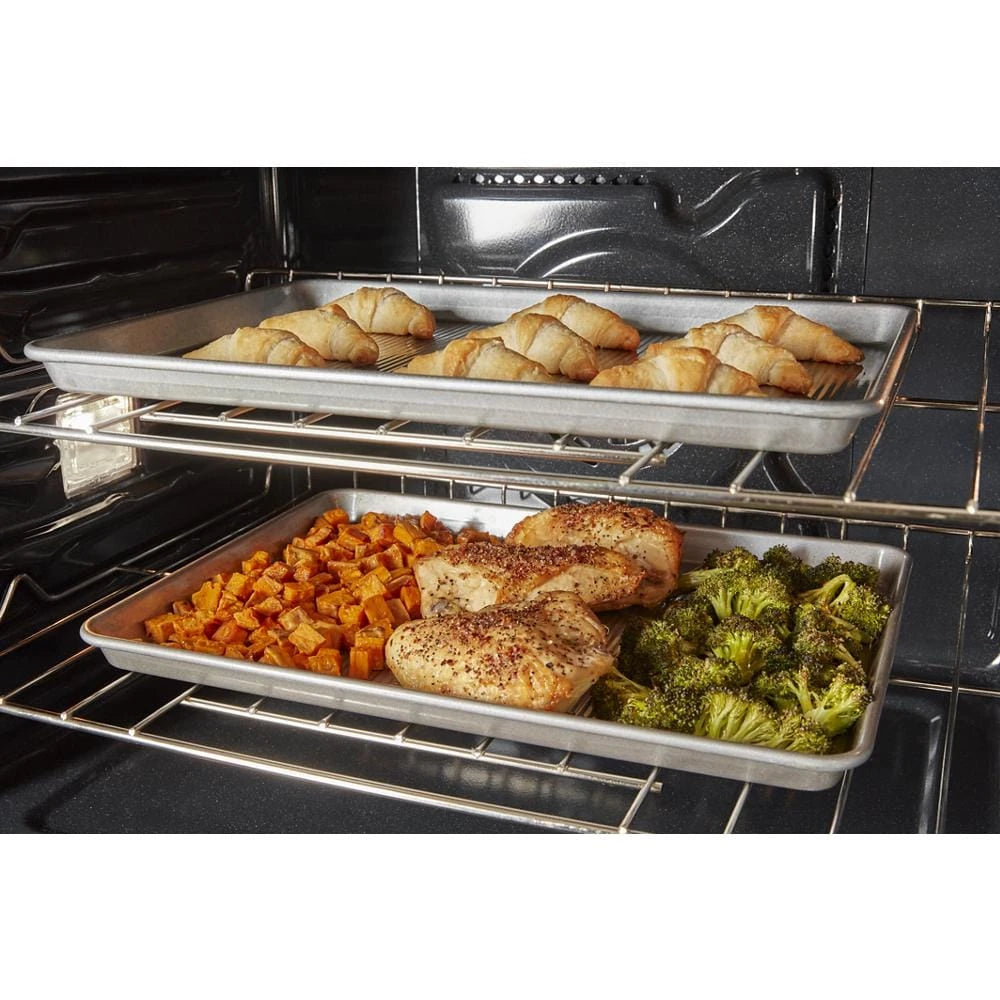

  • Fan Convection Cooking
    Cook meals with a fan in the back of the oven that distributes hot air more evenly than traditional baking, so you can bake on multiple racks at once.

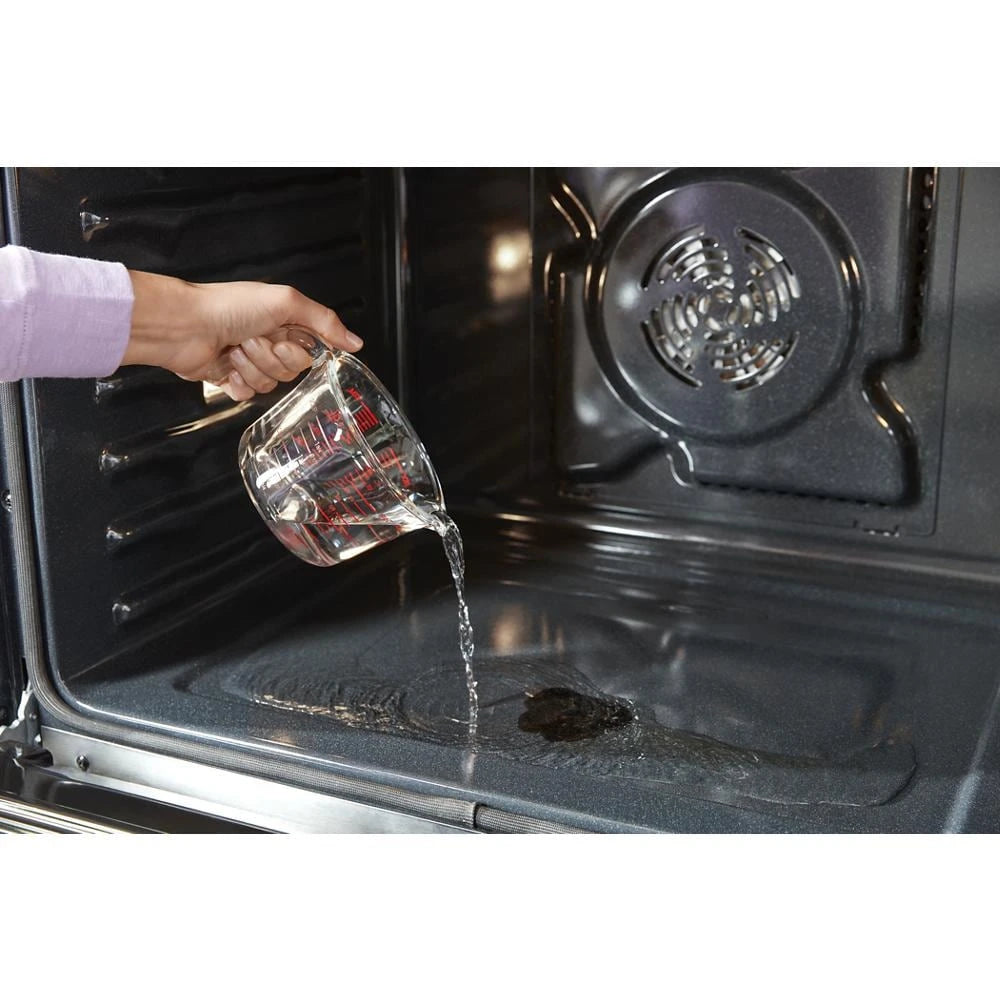

  • Steam Clean Option
    Clean up after everyday light spills using only heat and 1-1/4 cups of water—no harsh chemicals or cleaners needed. Used periodically to clean light spills on the bottom of the oven, it keeps the oven clean and reduces the need for frequent self-clean cycles.
  • Adjustable Self-Clean Cycle
    Clean without harsh chemicals using the high temperature self-clean cycle. Adjust the cycle for various soil levels to keep your oven looking clean.

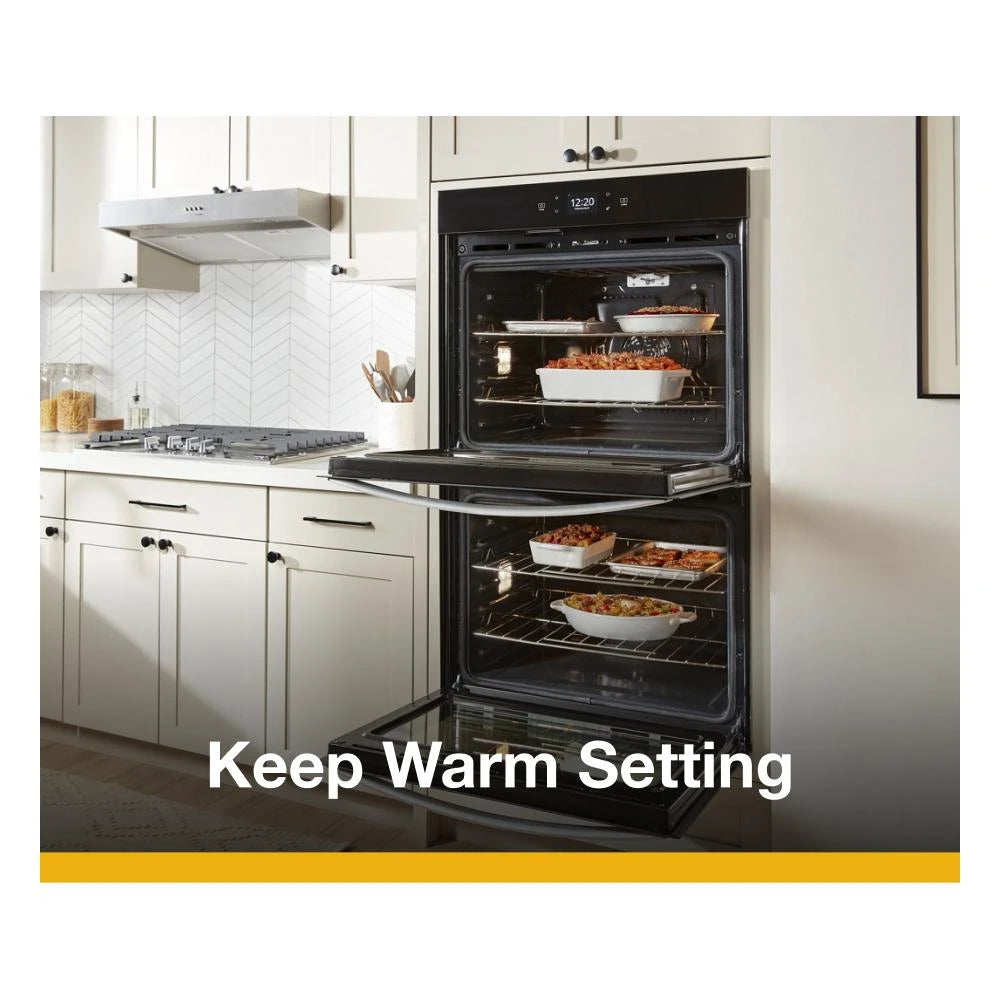

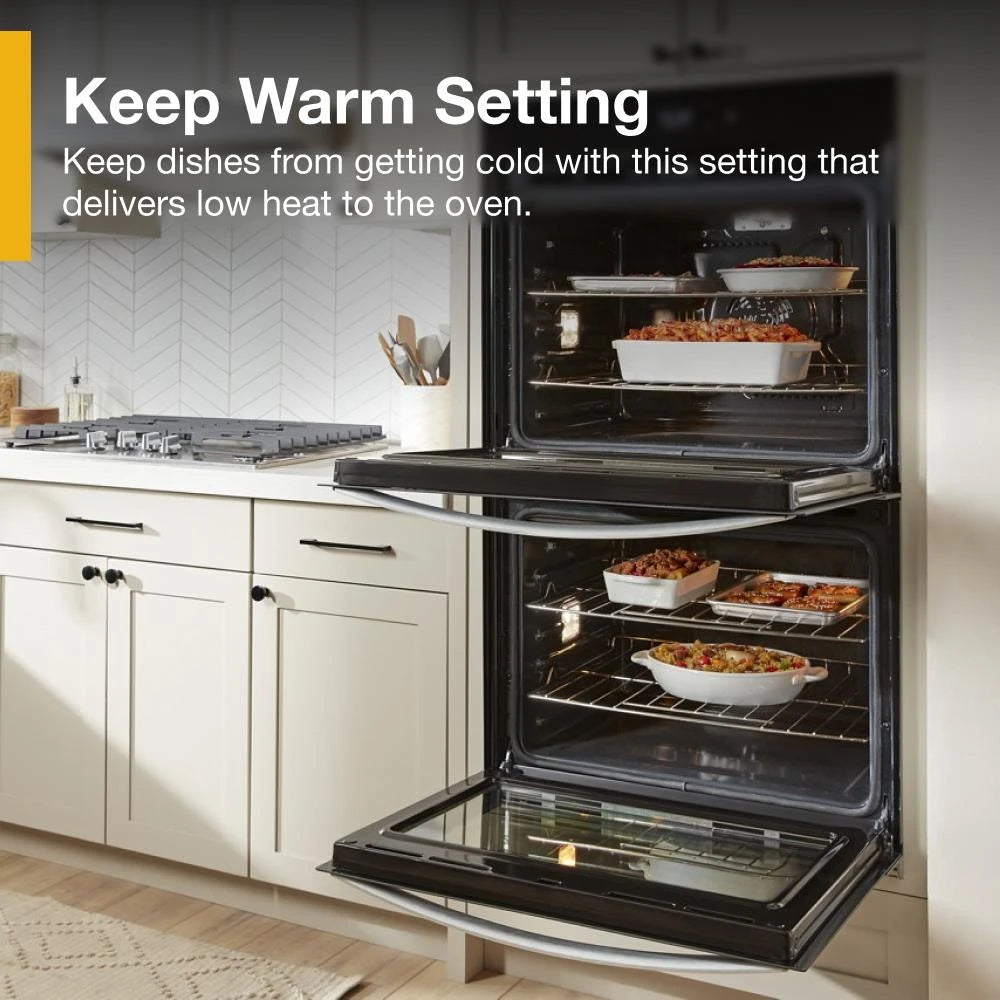

  • Keep Warm Setting
    Keep dishes from getting cold with this setting that delivers low heat to the oven.
  • Broil
    When you place food close to the oven’s top heating element using the Broil Setting, you can quickly sear meat, char vegetables, brown lasagna, caramelize the top of a casserole and more.

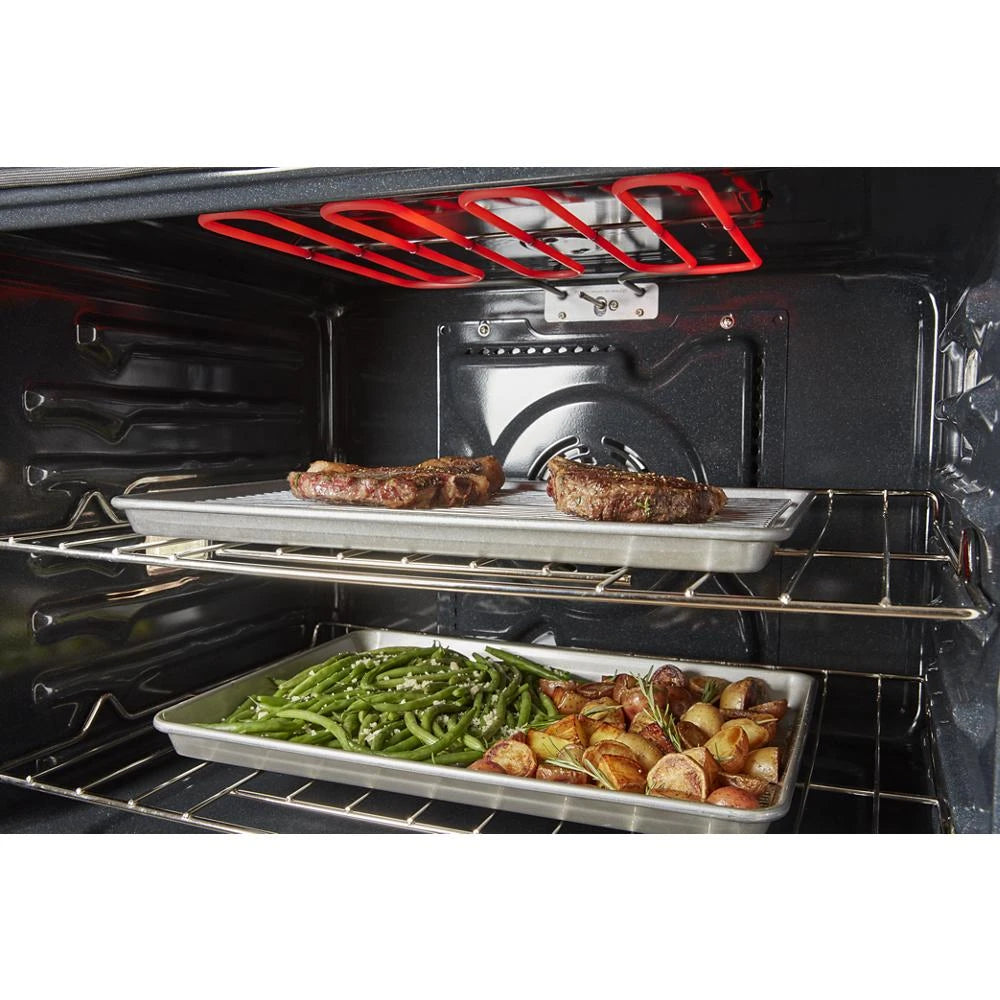

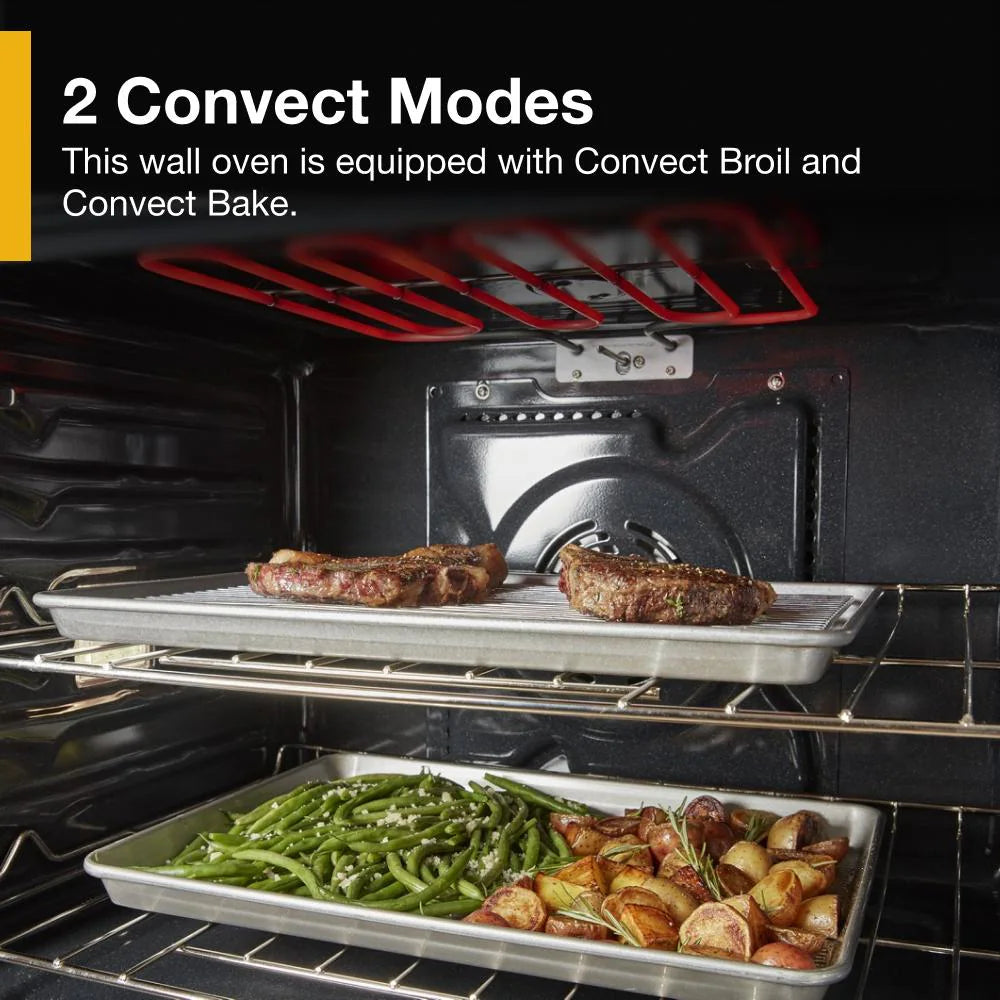

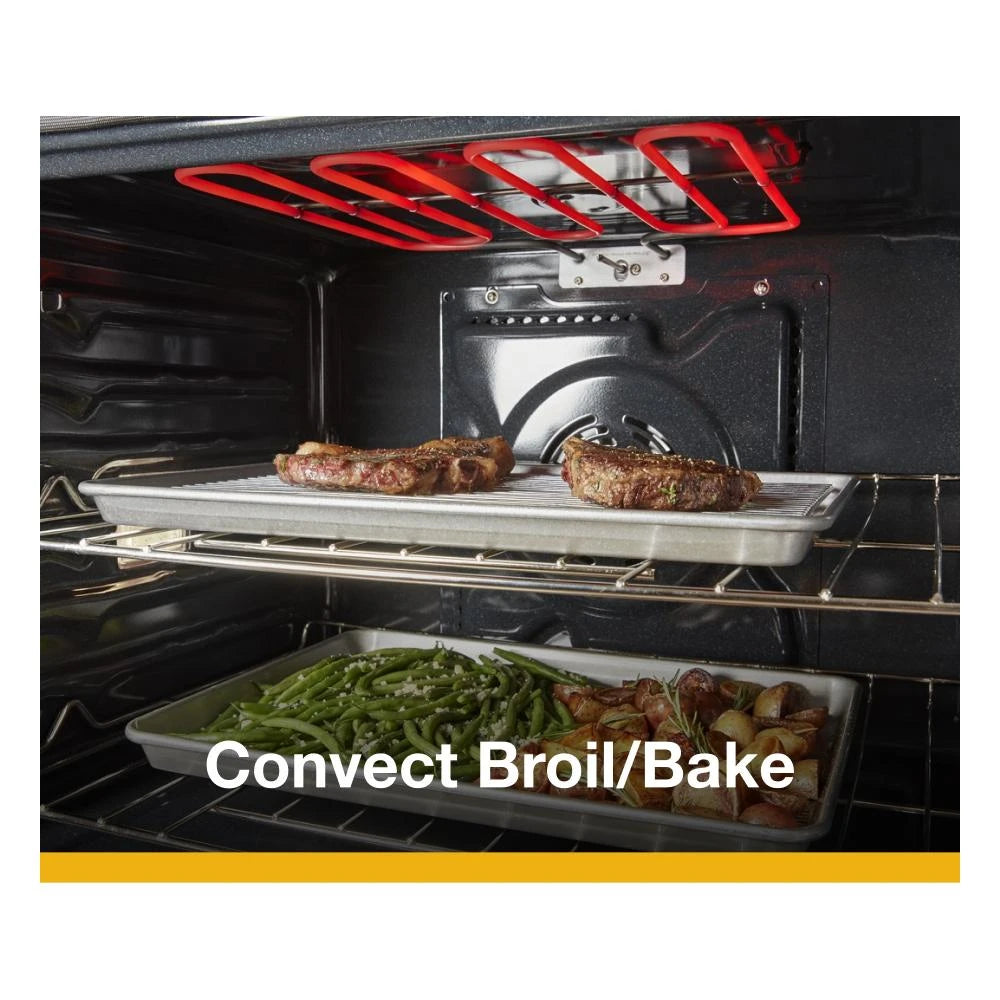

  • Convect Broil
    When cooking thicker cuts of meat like bone-in chicken or steaks over an inch thick, use the Convect Broil setting to brown the top while still keeping the hot air circulating around the food in the oven to cook your food.
  • Bake
    Cook your favorite treats like cookies, pies, cakes or muffins with the Bake setting that uses hot air to cook food inside the oven.
  • Convect Bake
    Convect Bake uses the bake and broil heating elements and a fan to achieve more even heating when cooking on multiple racks.**Compared to a traditional thermal-bake cycle on the same model.

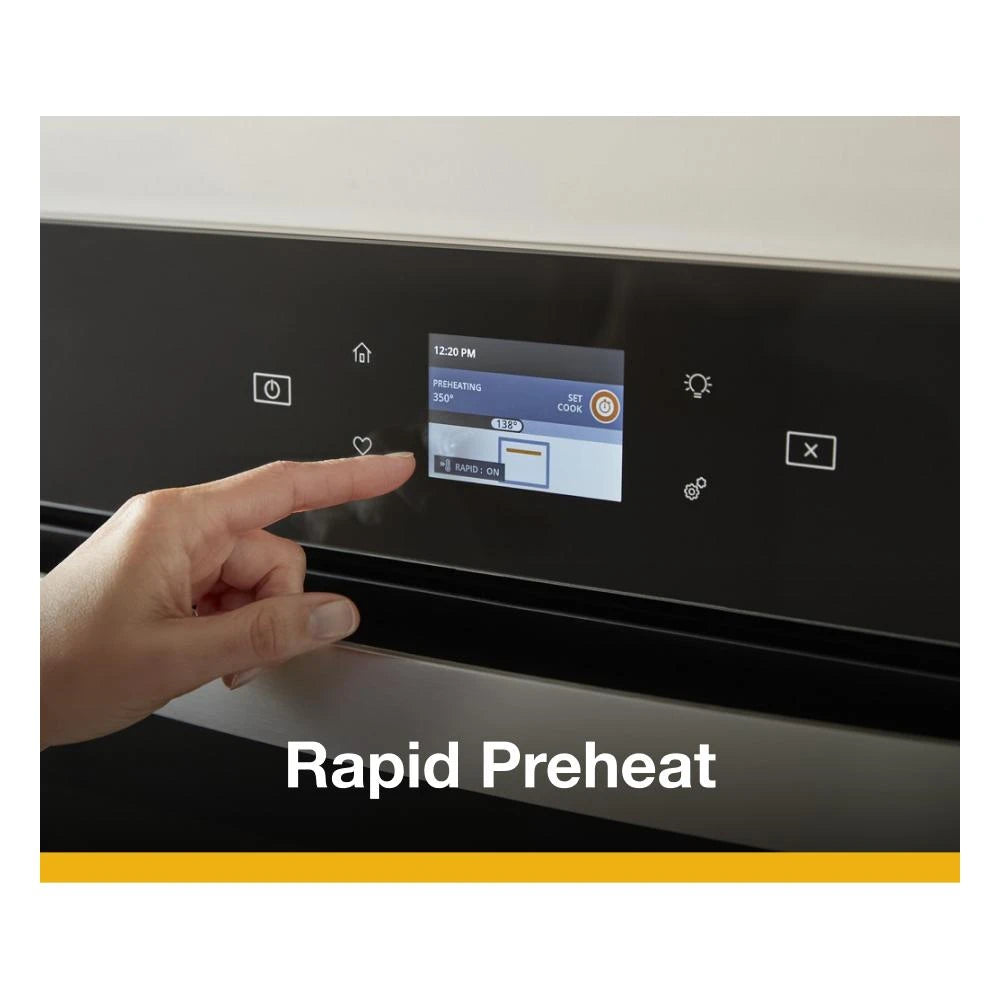

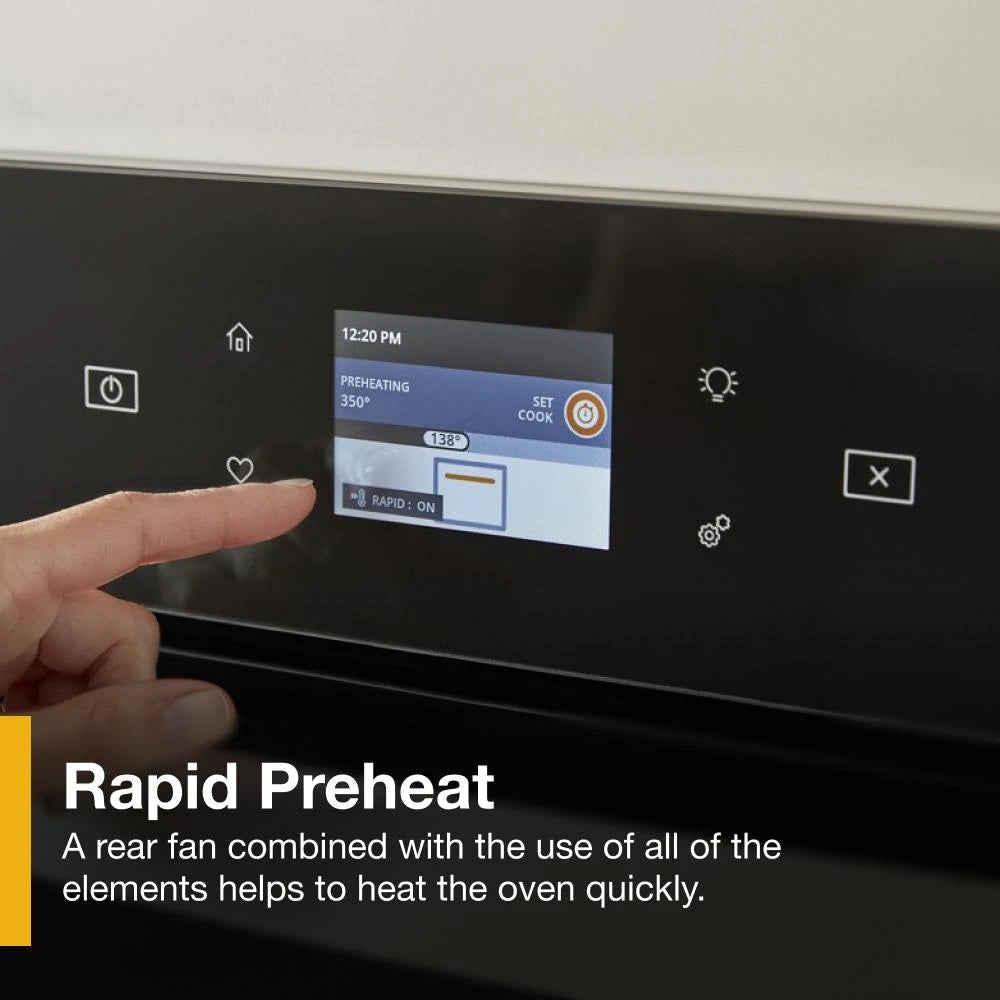

  • Rapid Preheat
    The Rapid Preheat option preheats the oven 25% faster and saves time and energy. Using all of the range elements and a fan, the oven heats up more quickly and creates the ideal temperature for single rack baking. Now cutting preheat time for your next batch of chocolate chip cookies or apple crisps is easy.
  • Voice control with a compatible voice-enabled device (US only)
    Control your kitchen no matter what you’ve got on your hands with simple voice commands using the Google Assistant or an Alexa-enabled device.

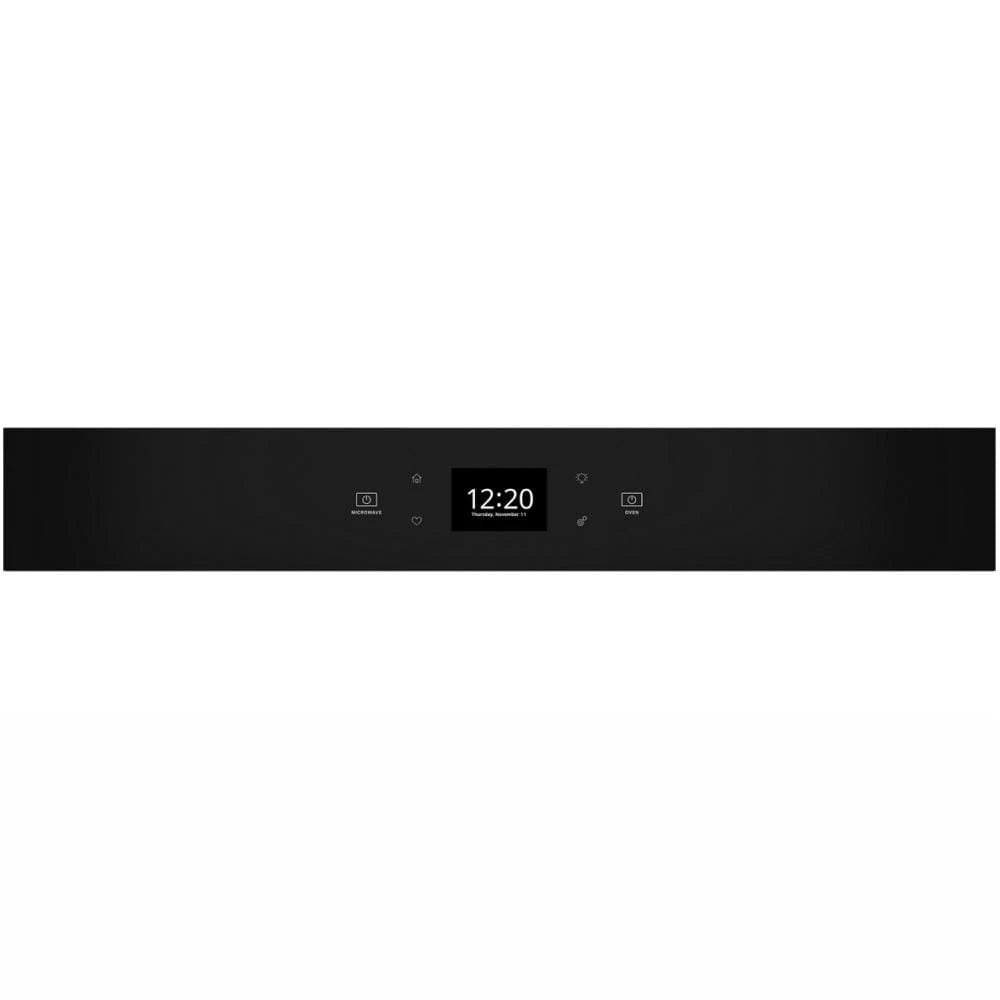

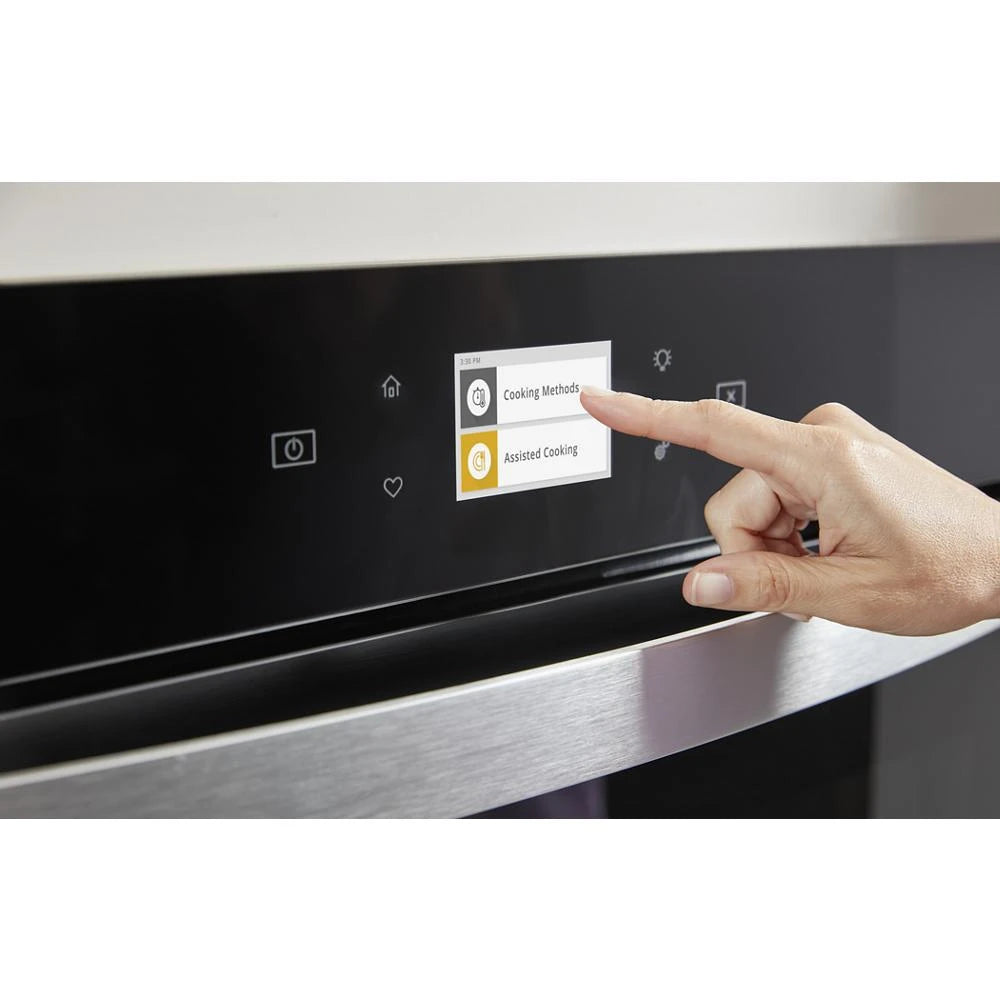

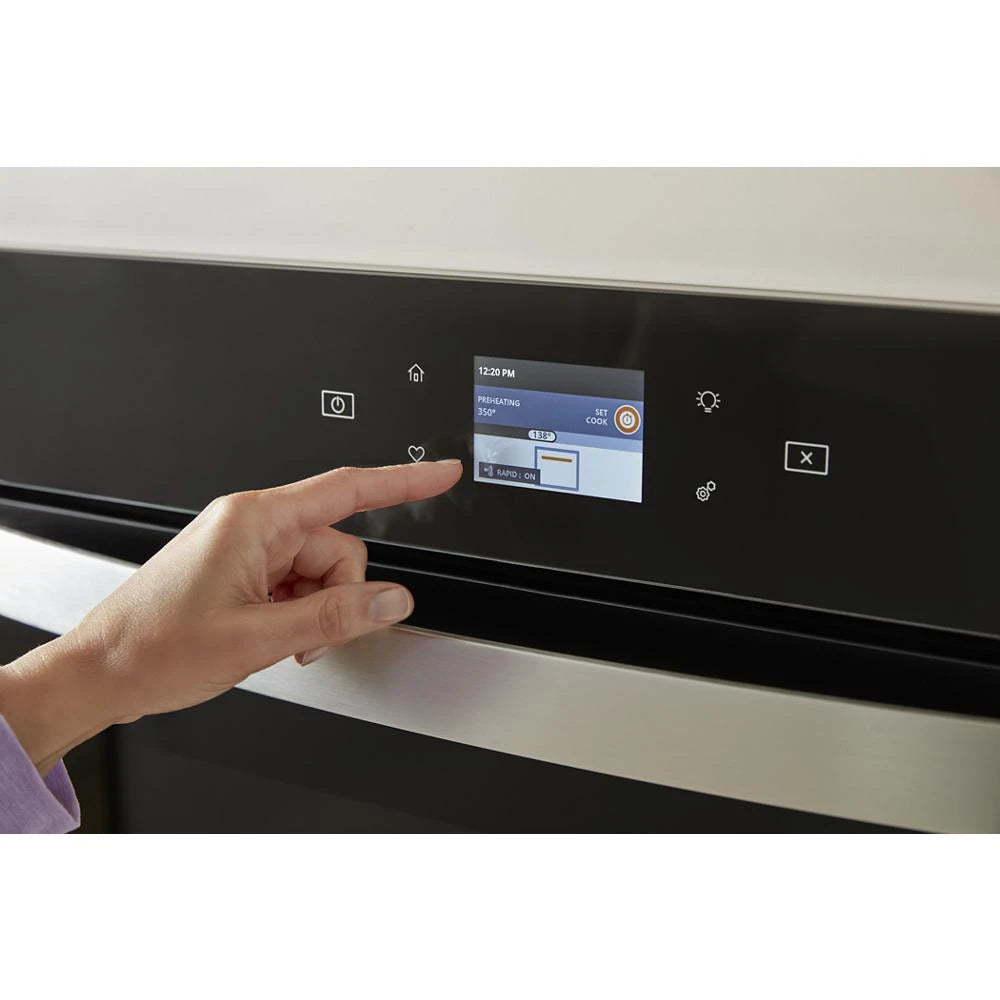

  • Touchscreen
    Get instant access to the settings you use most with a full-color Touchscreen display.
  • Favorites
    Make your favorite cooking settings easy to access by creating and saving them right in the Whirlpool® App or directly on your appliance.**Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.

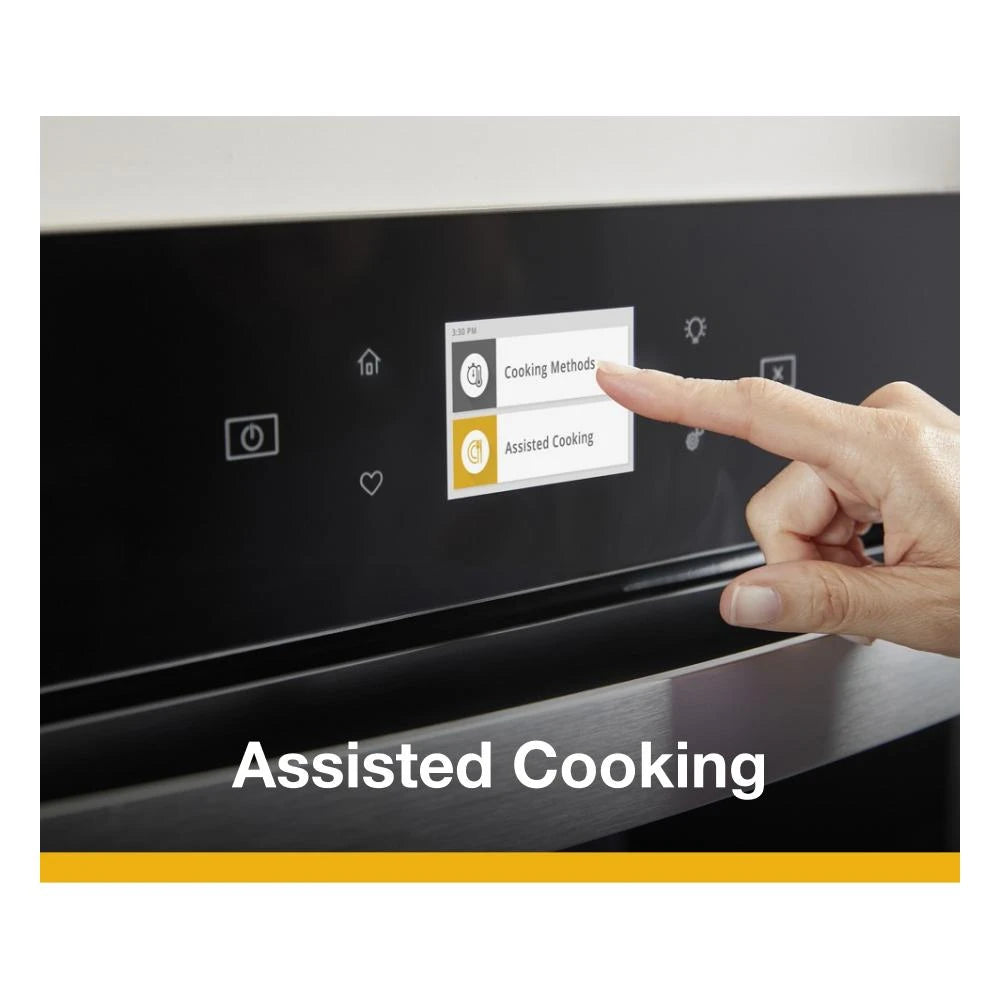

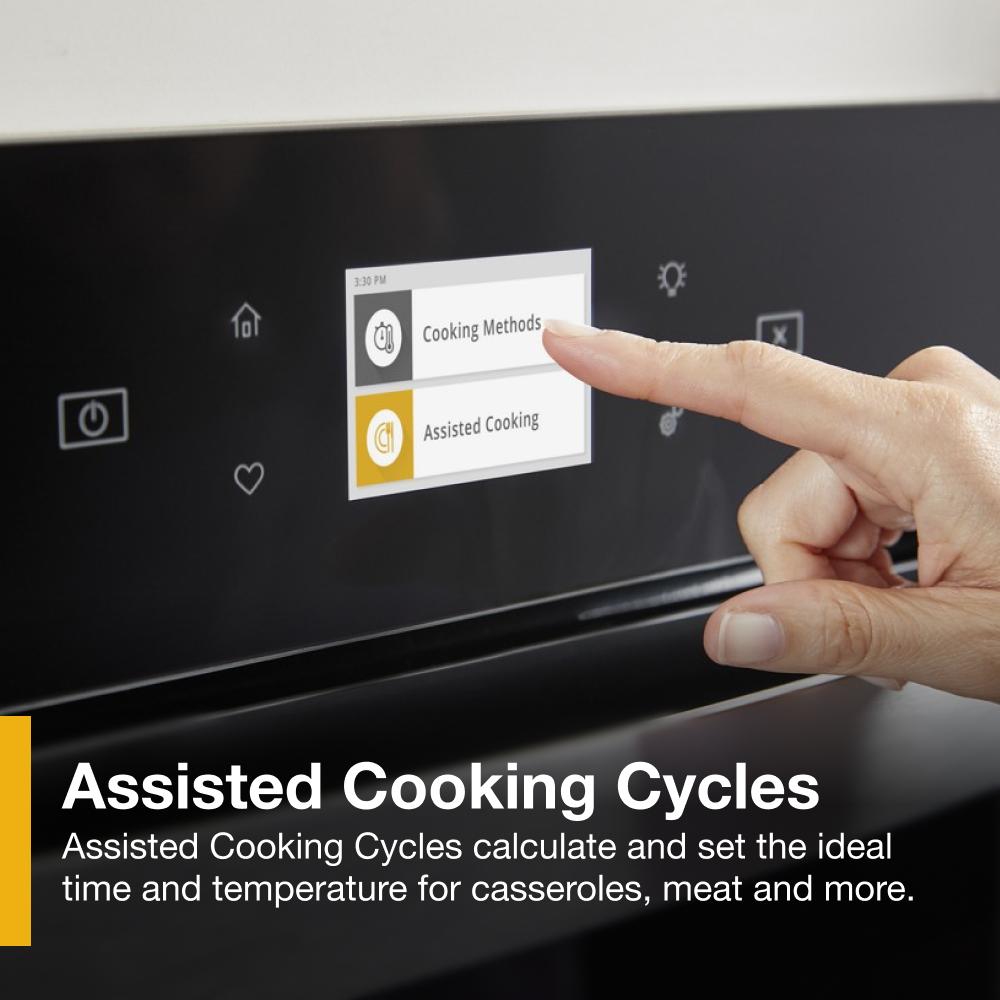

  • Assisted Cooking
    Assisted Cooking cycles calculate and set the ideal cooking time and temperature for common foods like casseroles, meat, fish, vegetables, pizza and some baked goods.
  • Scan-to-Connect Technology**U.S. only.
    You don’t need to be a tech expert to connect your new appliance. Simply open the Whirlpool® App, add your appliance and follow the guided experience to get up and running quickly.*
  • Remote Start
    When set to remote enable, use your smartphone or tablet to remotely turn your cooking appliance on so it’s heated up and ready to cook meals when you are.
  • Multi-Step Cooking
    Make multi-step meals more simple. Use your smartphone or tablet to send multiple cooking instructions to the oven all at once. The temperature automatically adjusts based on the recipe you enter for great results without having to monitor your meal.
  • Hidden Bake Element
    A concealed bake element placed under the floor of the oven creates a smooth surface at the bottom of the oven for easy cleaning.
  • Delay Start
    Program the oven to start baking at a future time so you can move onto other things, and still get dinner to the table on time.
  • Control Lock Mode
    Disable the control panel to avoid unintended use and easily clean controls.
  • Extra-Large Oven Window
    Keep an eye on your meal through the Extra-Large Oven Window.
  • Sabbath Mode
    Use Sabbath mode to keep the oven on the "Bake" setting at a constant temperature until it's turned off. When this mode is enabled, displays, tones and all other cooking and cleaning cycles are disabled.
  • An American Company for Over 100 Years
    As a long-standing American company, we pack over a century of knowledge, experience and dependability into every product.

Key Features

FIT System Limited Guarantee US Only

The FIT System Limited Guarantee ensures your new Whirlpool® Wall Oven will fit or get up to $300 toward cabinet modification.**Fit System Limited Guarantee: On 27"" and 30"" Whirlpool® Wall Ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified. Visit www.whirlpool.com/fit-guarantee.html for complete details.

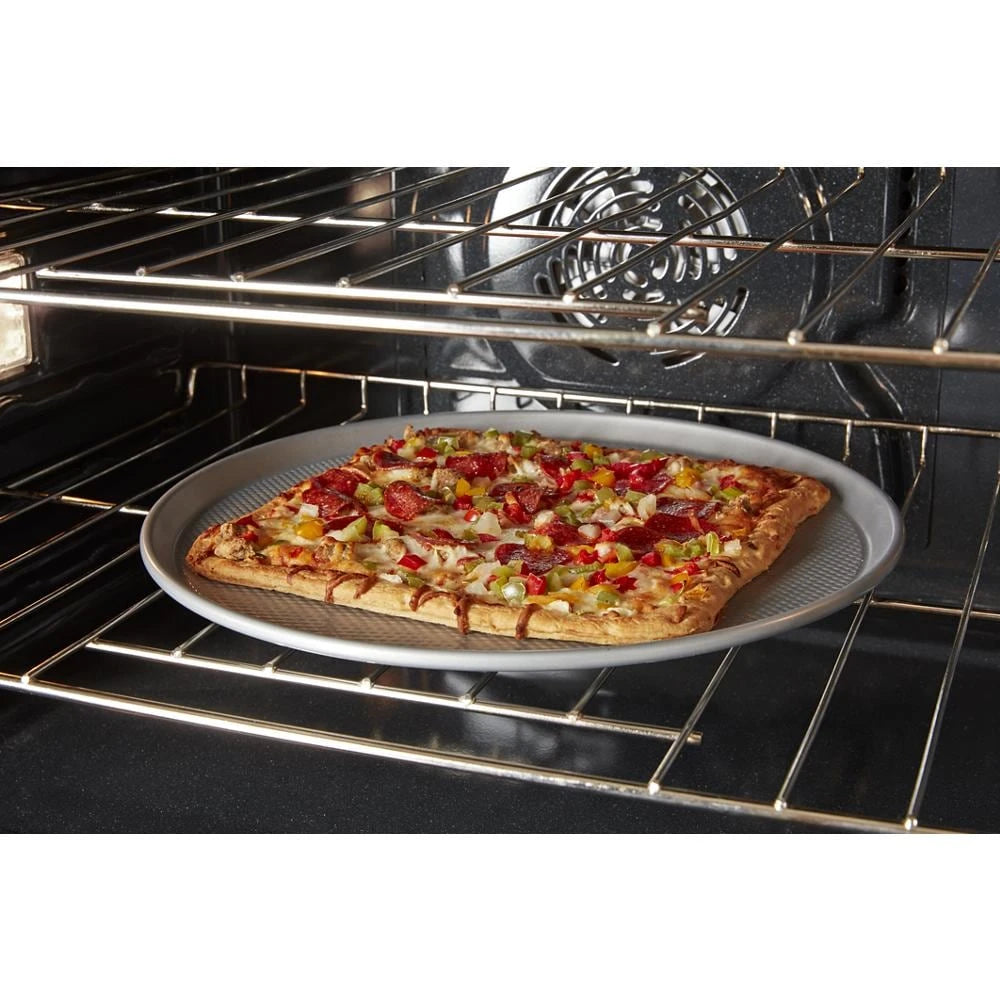

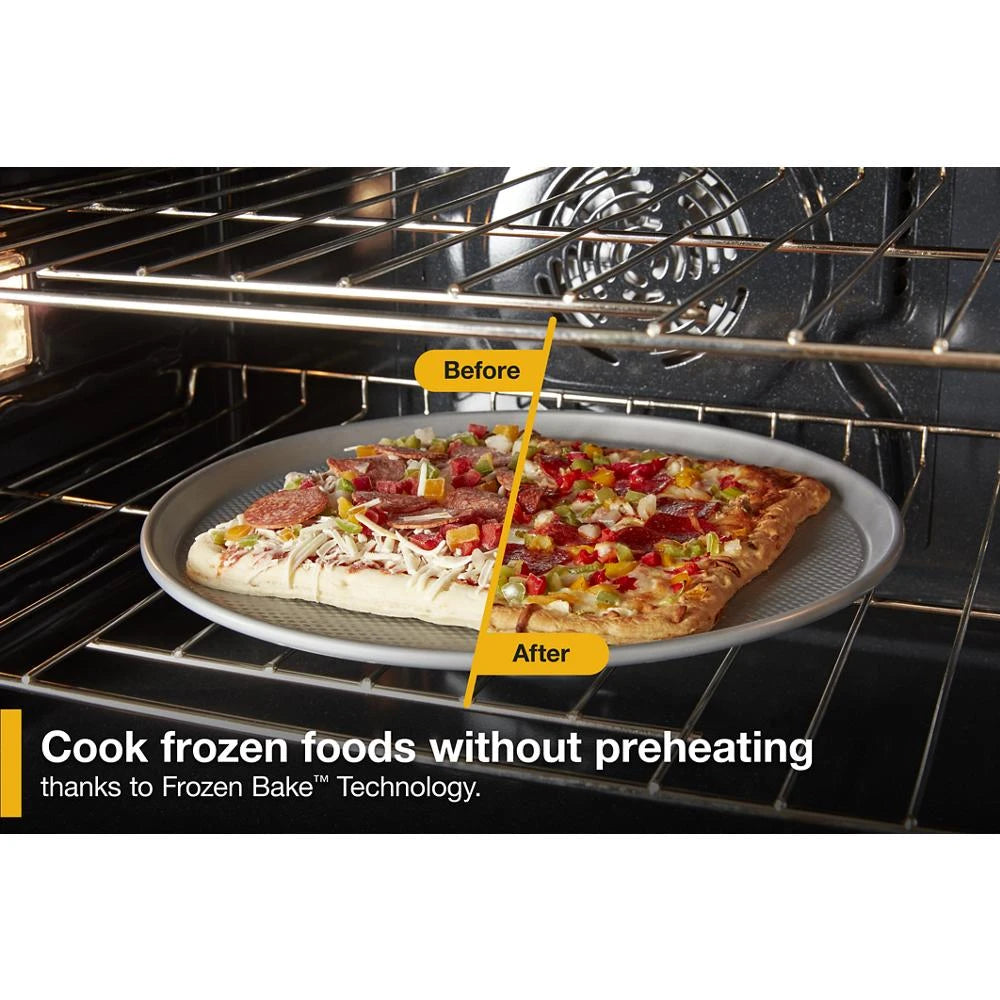

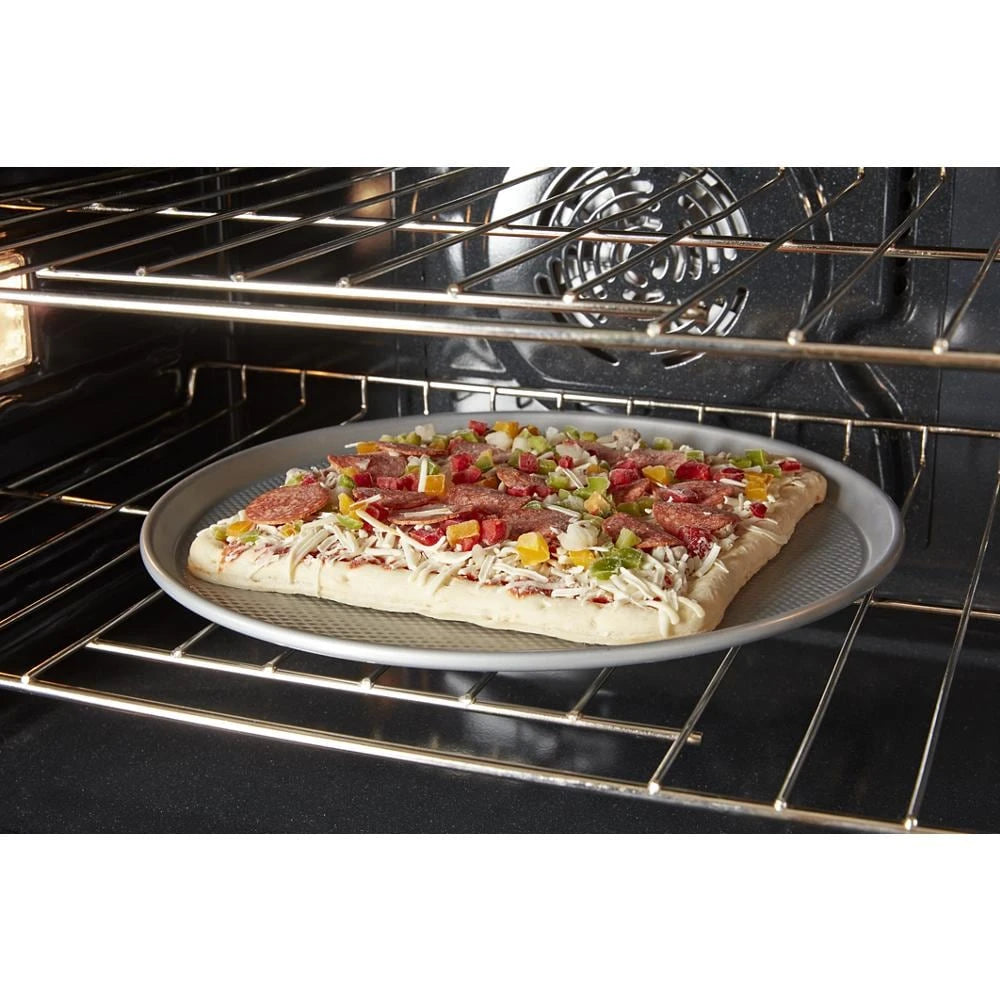

Frozen Bake™ Technology

Skip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings that automatically adjust cooking times for you.

FIT System Limited Guarantee

The FIT System Limited Guarantee ensures your new Whirlpool® Wall Oven will fit or get up to $300 toward cabinet modification.**Fit System Limited Guarantee: On 27"" and 30"" Whirlpool® Wall Ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified. Visit www.whirlpool.com/fit-guarantee.html for complete details.
