Product Details for Whirlpool WOD52ES4MB

Technical Details

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 15.25 ft³
Dimensional Weight 189.58 lbs.
Total of Cubes 15.25 ft³
Total of Dimensional Weight 189.58 lbs.

Exterior details

Door Type Glass
Door Lock Yes
Handle Color Black
Handle Material Metal

Details

Delay Clean Delay Clean (Upper Oven)
Flush Installation Approved Yes
Fuel Type Electric
Oven Automatic Shut-Off Yes
Oven Type Double
Power On Indicator Light Yes
Oven Selections Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Cook Time Indicator, Delay Start, Favorites, Frozen Bake, Full Meal Cook, Keep Warm/Warm Hold, Language Conversion, Proofing, Rap

Smart compatibility

Smart Appliance Yes
Connectivity Amazon Alexa, Android, Google Assistant, iOS
Works With App, Remote Access, Voice Controlled, WiFi

Controls

Control Type Glass Touch Digital Display
Display Color Full Color
Electronic Display Type LCD Touch Screen
Language Conversion English/French
Light Control Oven Light Touch Pad

Electrical

Power Cord Included No
Amps 20
Hz 60
Volts 208

Certifications

CUL Yes
UL Yes

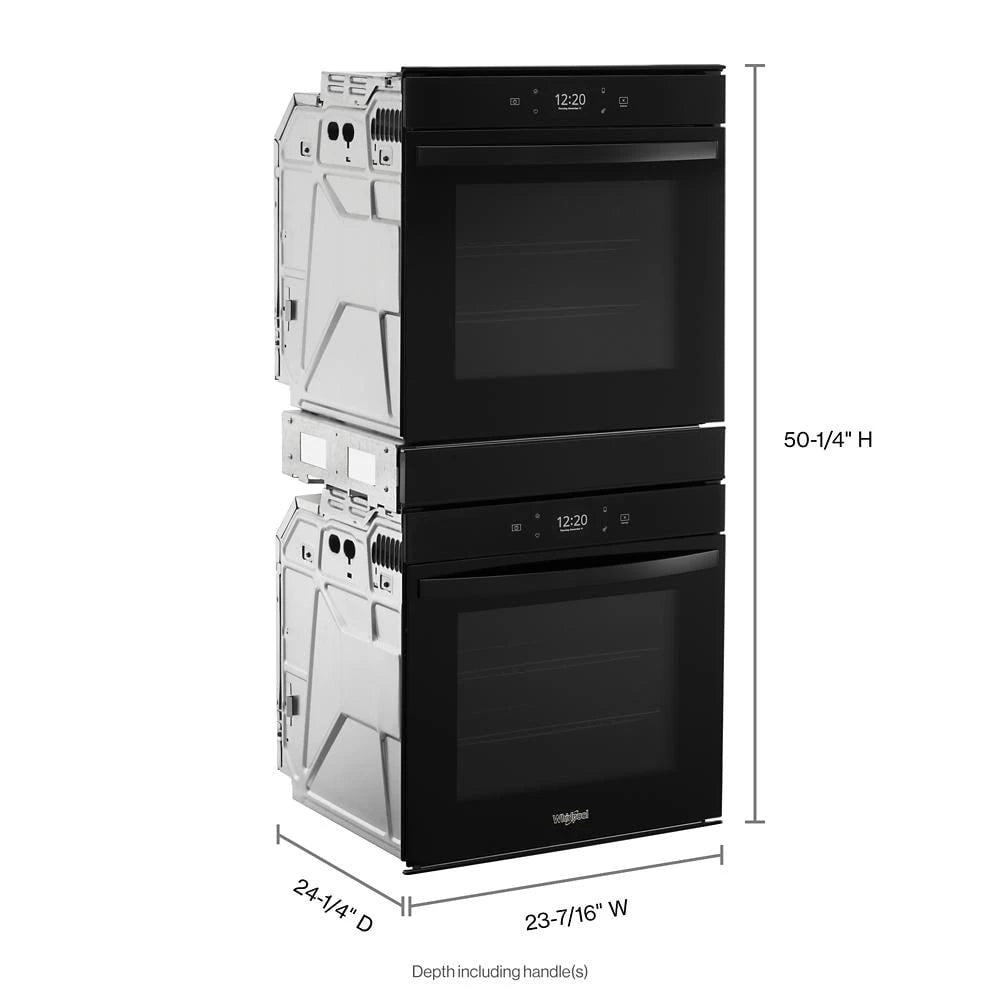

Dimensions & weight

Width 23.44 in.
Height 50.25 in.
Length 22.38 in.
Weight 172 lbs.
Gross Weight 172 lbs
Lower Oven Interior Depth 17 in
Lower Oven Interior Width 18 in
Net Weight 161 lbs
Upper Oven Interior Depth 17 in
Upper Oven Interior Width 18 in
Cutout Depth 23.25 in
Cutout Height 49.75 in
Cutout Width 22.625 in
Depth Closed Excluding Handles 22.375 in
Depth Closed Including Handles 24.25 in
Depth With Door Open 90 Degree 39.625 in
Lower Oven Interior Height 14.563 in
Upper Oven Interior Height 14.563 in

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 25.2 in.
Shipping Height 61.42 in.
Shipping Length 27.38 in.
Shipping Weight 212 lbs.
Total of Shipping Weight 212 lbs.
Source Calculation

Other

Common Size 24 in

Oven cavity details

Broiler Location Top of Oven
Convection Element Type True Convection
Convection Functions Bake, Broil
Door Broil Position Closed
Door Removable Yes
Hidden Bake Element Yes
Installable Under Cooktop No
Interior Coating Porcelain
Interior Color Grey
Light Type Halogen
Lower Oven Number of Oven Lights 2
Number of Bake Elements 1
Number of Broil Elements 1
Number of Lower Oven Racks 2
Number of Lower Rack Guides 5
Number of Upper Oven Racks 2
Number of Upper Rack Guides 5
Oven Cleaning Type Self-Cleaning Upper/Manual Clean Lower
Oven Cooking System Convection
Temperature Conversion Yes
Upper Oven Number of Oven Lights 2
Bake Element Power 1,150 W
Broiler Element Power 2,045 W
Convection Element Power 2,000 w

Capacity

Volume 24.329 Cu.Ft.

Description

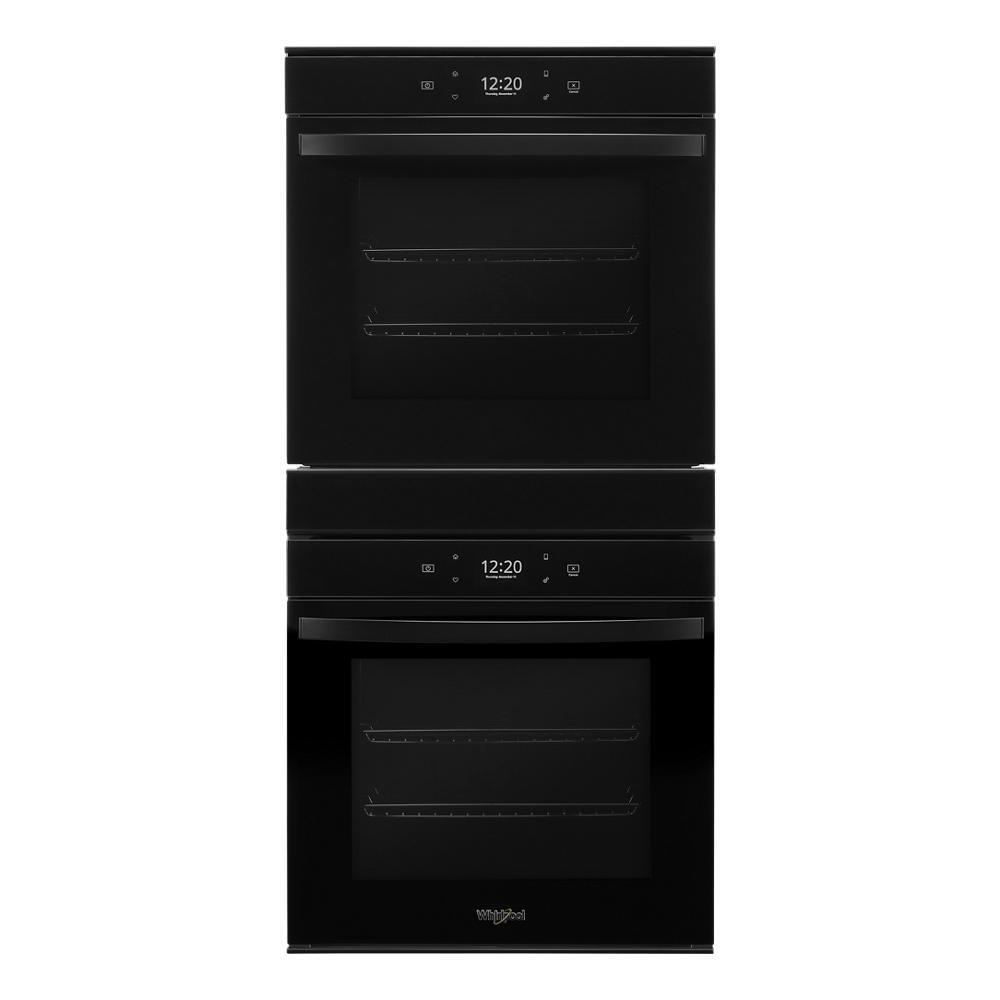

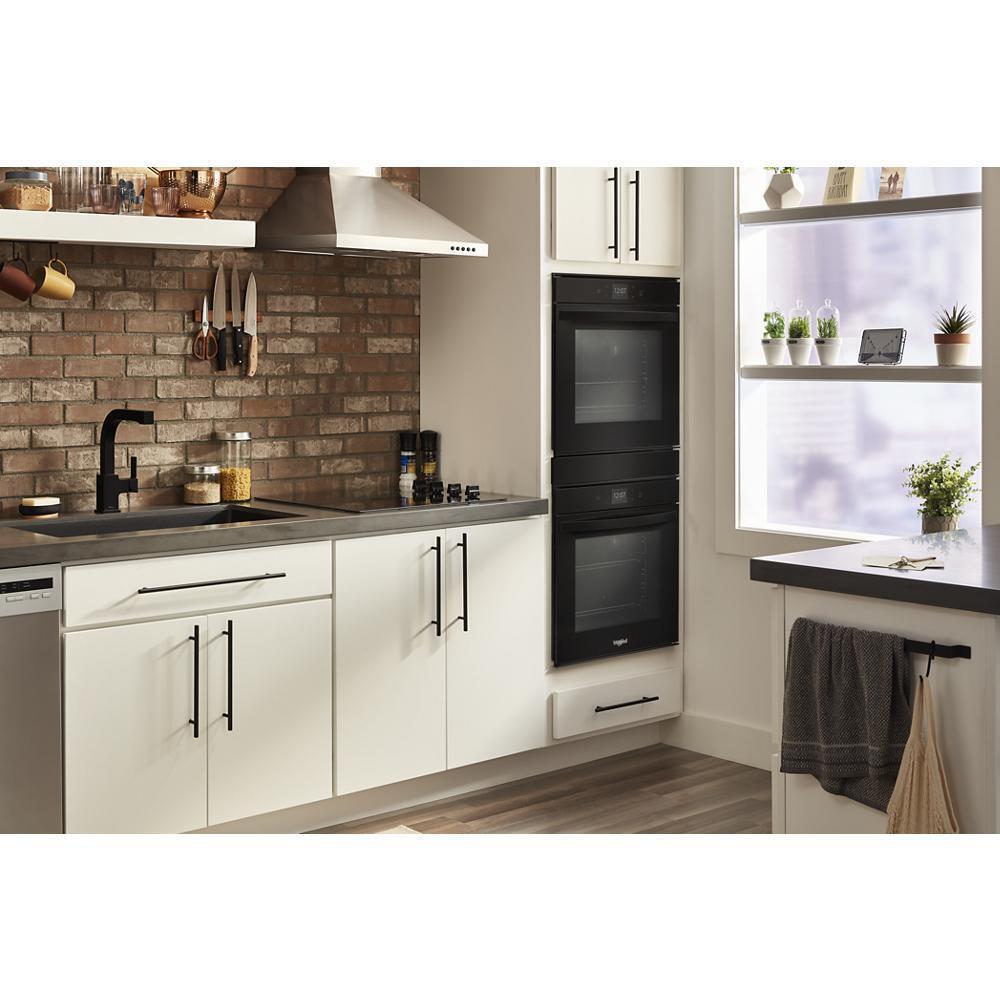

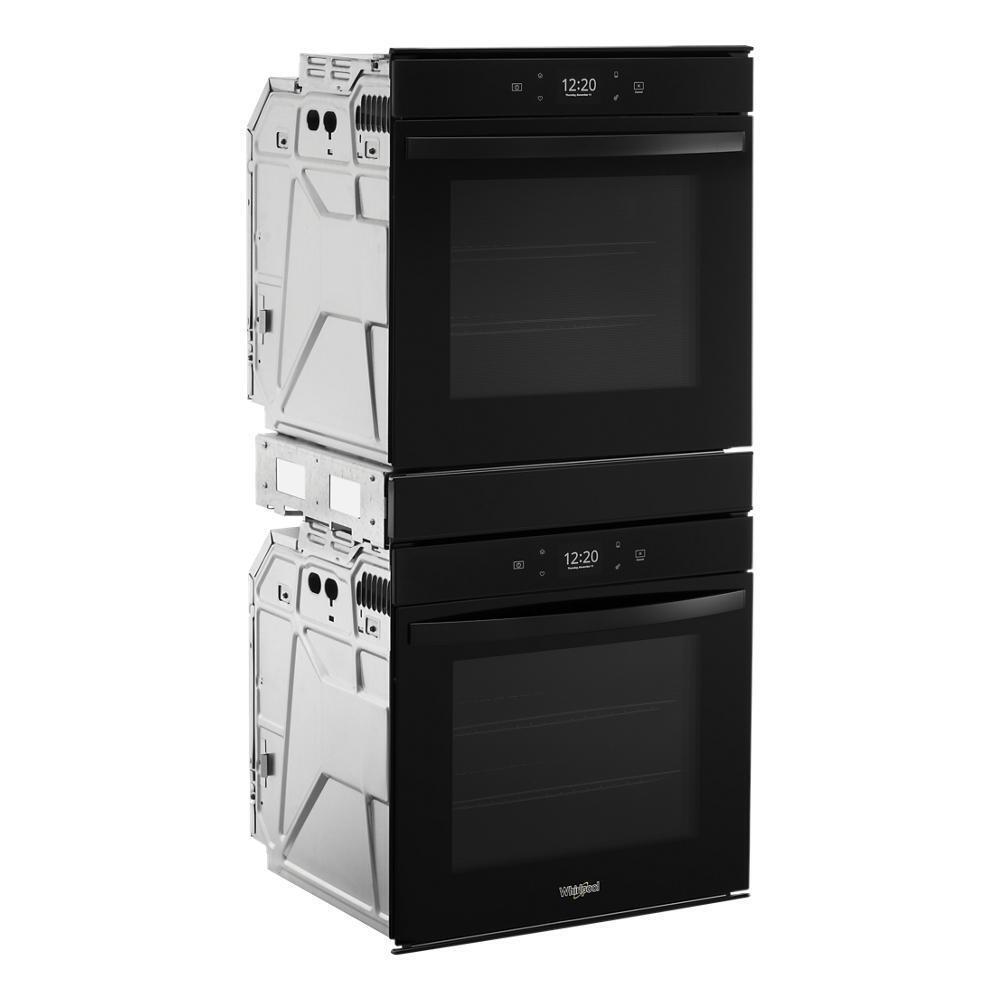

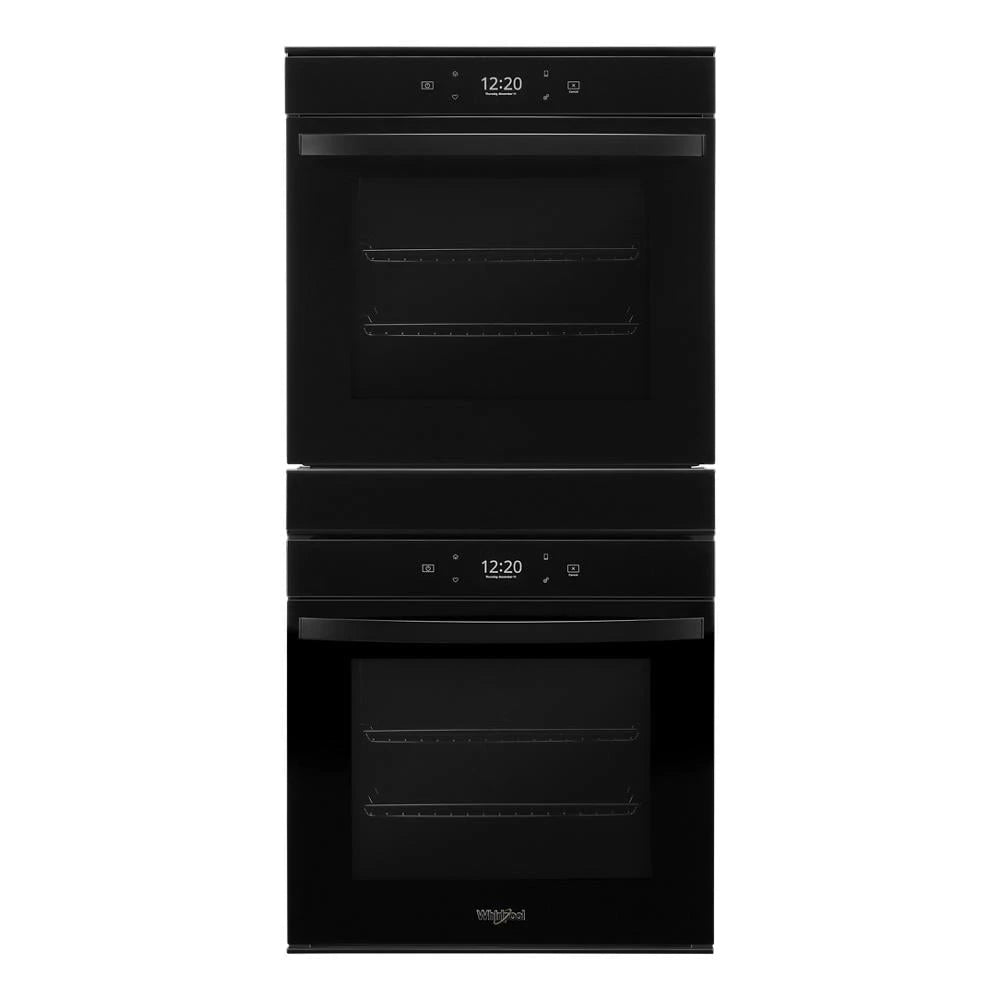

The brand Whirlpool WOD52ES4MB 24‑Inch Double Smart Electric Wall Oven delivers premium cooking capabilities and intuitive control in a compact size. Equipped with True Convection in both ovens for even multi-rack baking and Frozen Bake™ technology to skip preheating, it features a vibrant full-color touchscreen display and Assisted Cooking cycles for everyday favorites. Wi‑Fi-enabled Scan‑to‑Connect and Remote Start bring smart control to your fingertips. The oven’s hidden bake element, adjustable self-clean cycles, and side oven lights simplify maintenance and monitoring. All this functionality comes in a bold Black finish that complements modern kitchen designs.



Product Features

  • Smart Wall Oven
    When you’re busy elsewhere, use your smartphone to get dinner started by remotely preheating the oven. Or, when your hands are full, use your compatible voice-enabled device to adjust the cook time or temperature with a voice command.
  • Small Space Solution

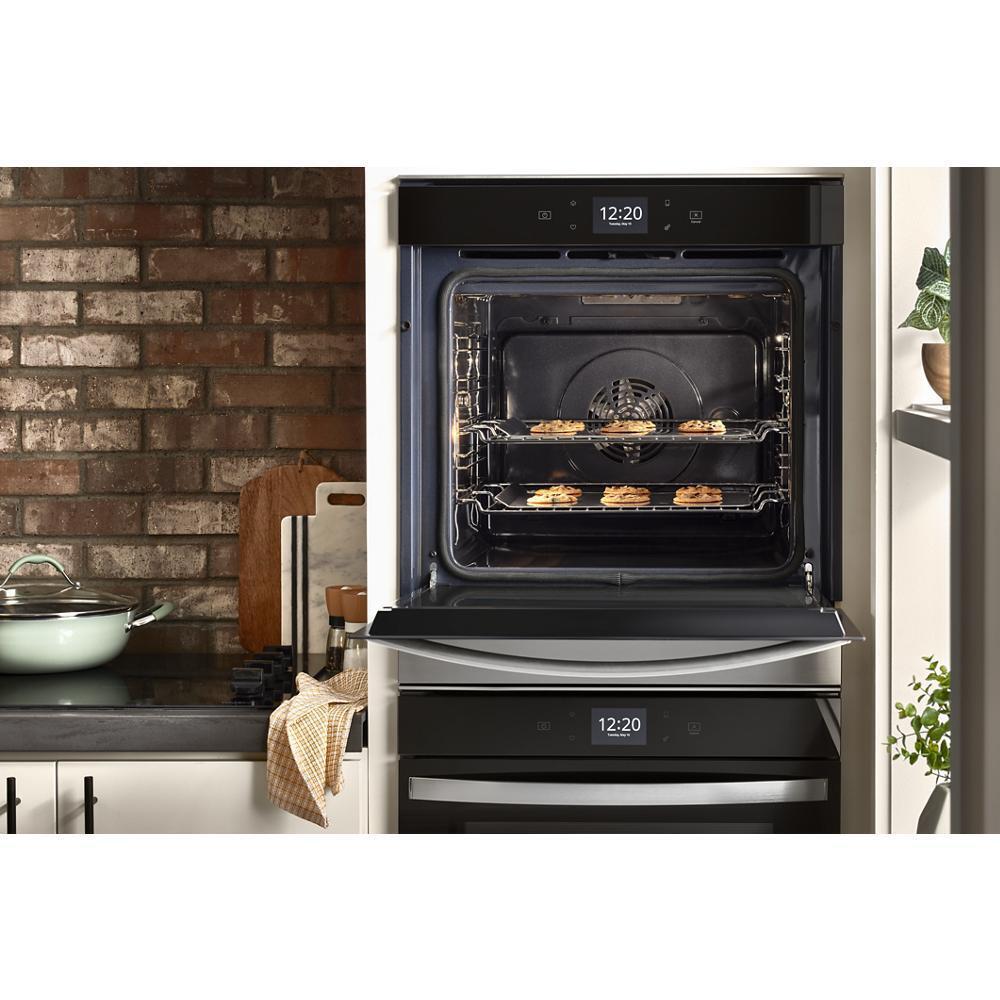

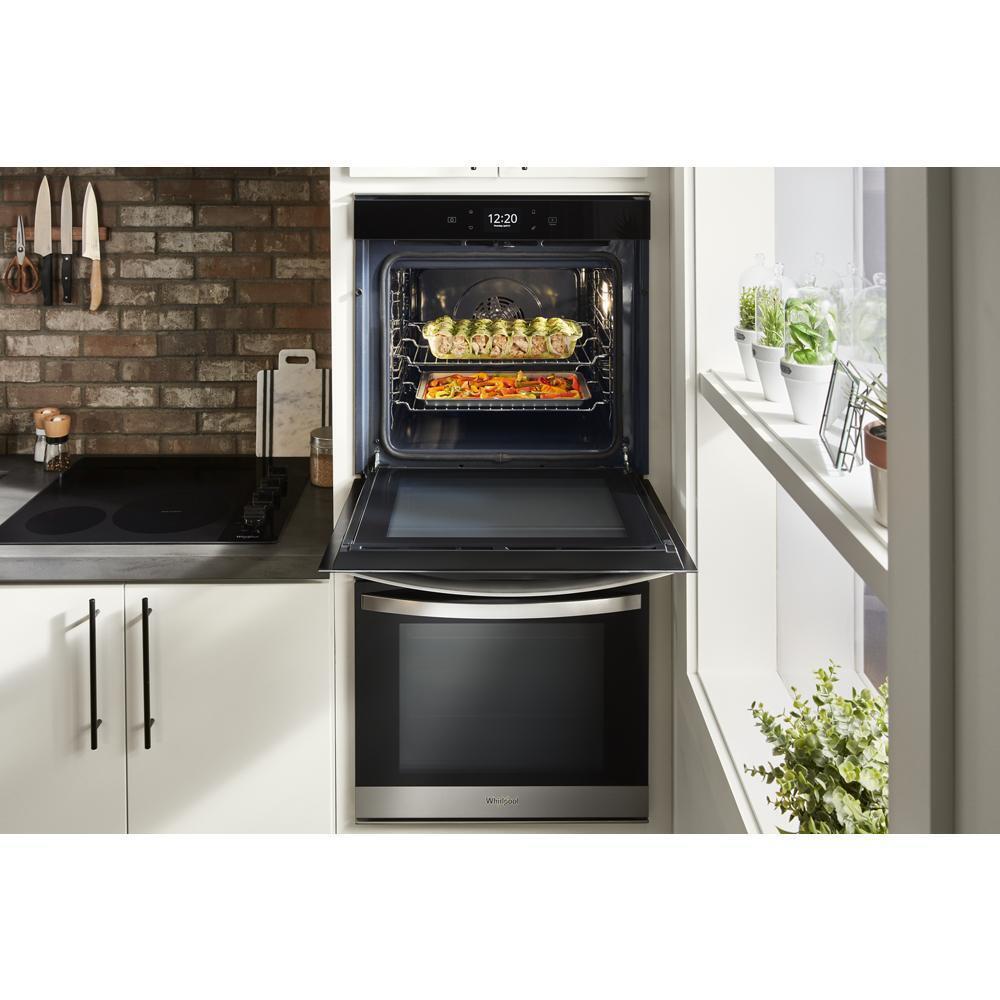

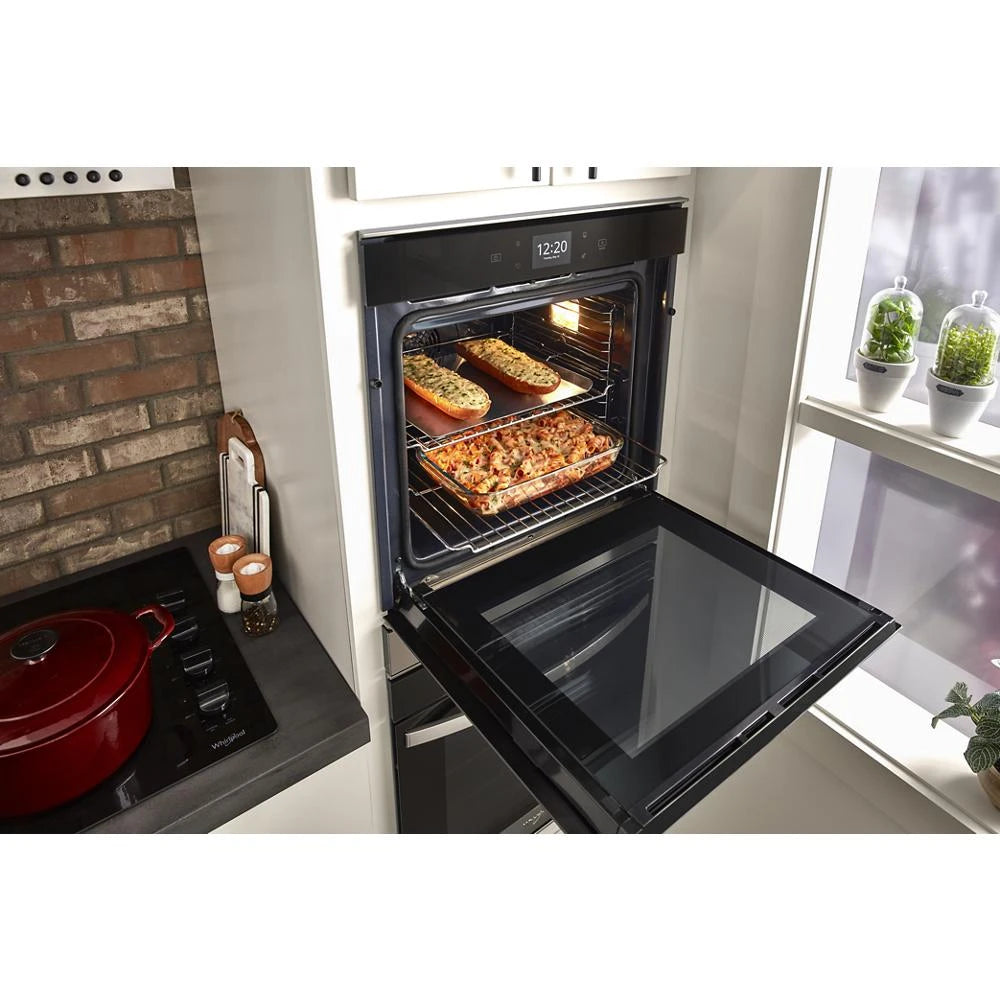

    Fit your own casserole dishes or bakeware in a wall oven that takes up less space and still gives you the flexibility to cook on multiple racks at once. Even in a smaller kitchen, you can broil and bake all your family favorites the way you would in a larger kitchen.
  • 9-in-1 Oven with True Convection
    Cook however you want with 9 cooking modes in 1 oven: Frozen Bake™ Technology, Bake, Convect Bake, Broil, Convect Broil, Defrost, Keep Warm, Proofing and Convect Roast cycles. This oven gives you flexibility to cook a variety of dishes by combining multiple cooking modes in one oven.
  • 5.8 Cu. Ft. Total Capacity
    Make large family meals by cooking your main course, side dishes and dessert in this 5.8 Cu. Ft. Total Capacity double wall oven.

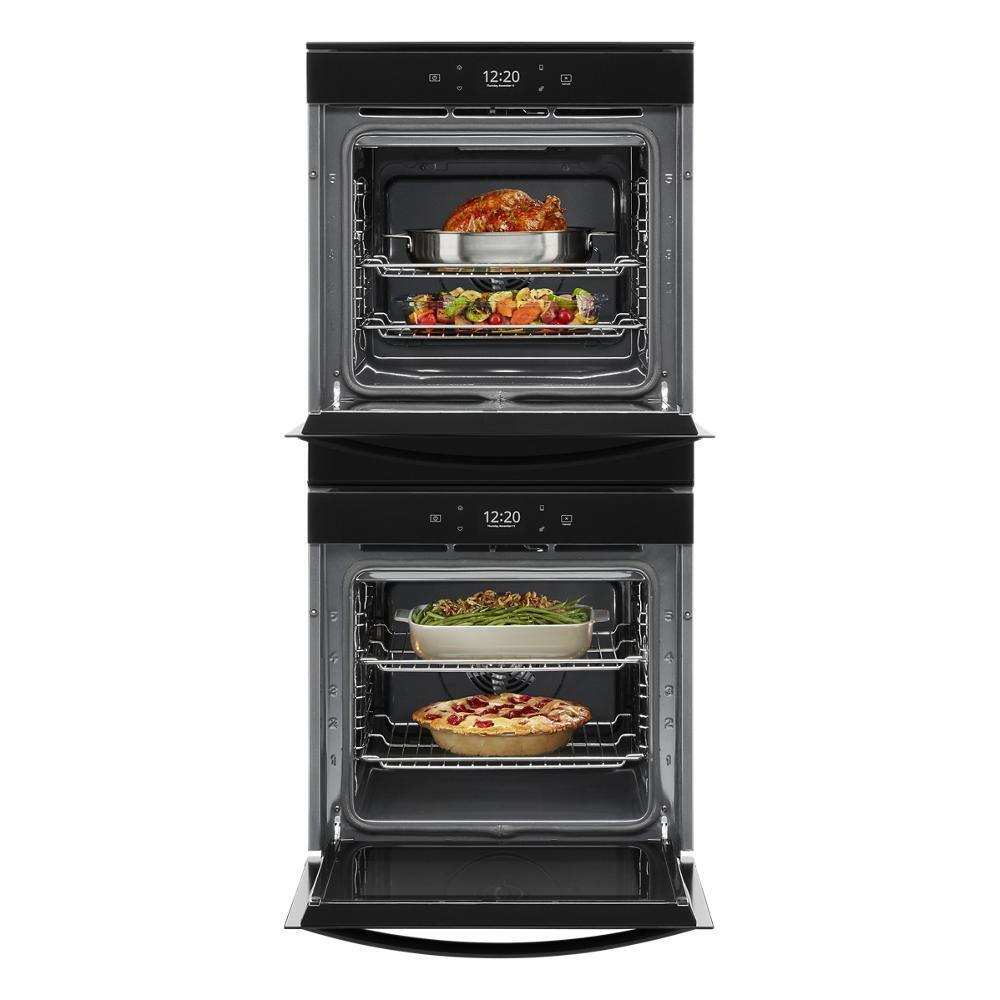

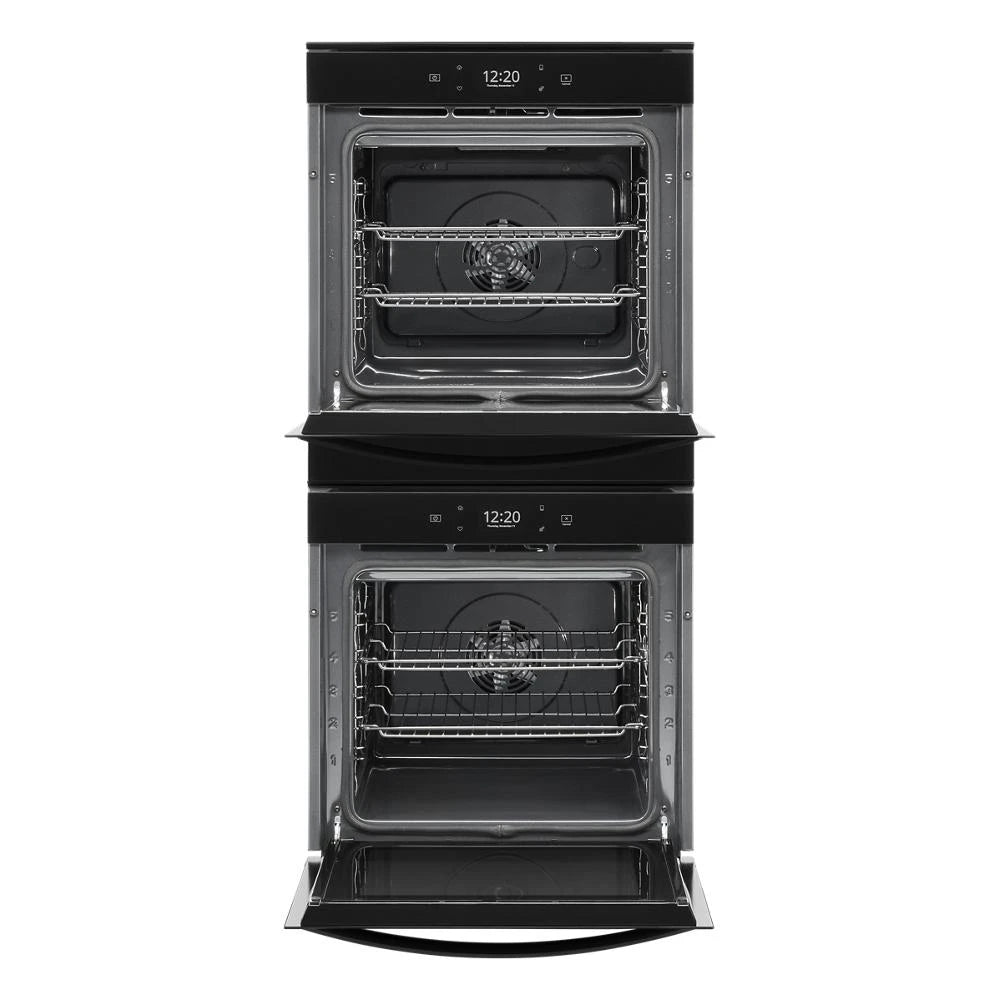

  • 2 Adjustable Racks
    Make room for a variety of dishes with 2 Adjustable Racks that you can move to 5 different positions inside your oven.

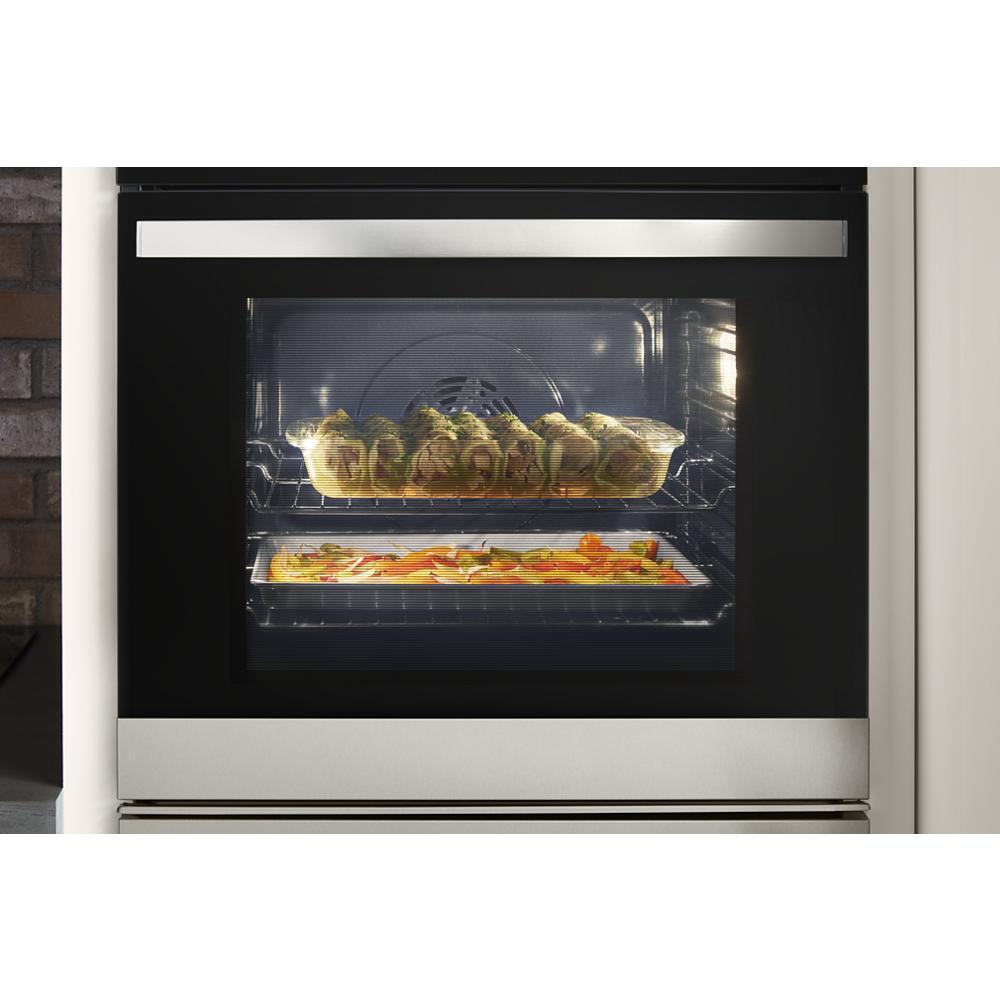

  • True Convection with Third Heating Element
    True convection cooking uses the bake element, the broil element, a third heating element and a fan in the back of the oven to bake multiple items at once and circulate hot air around the oven cavity for more even heating.

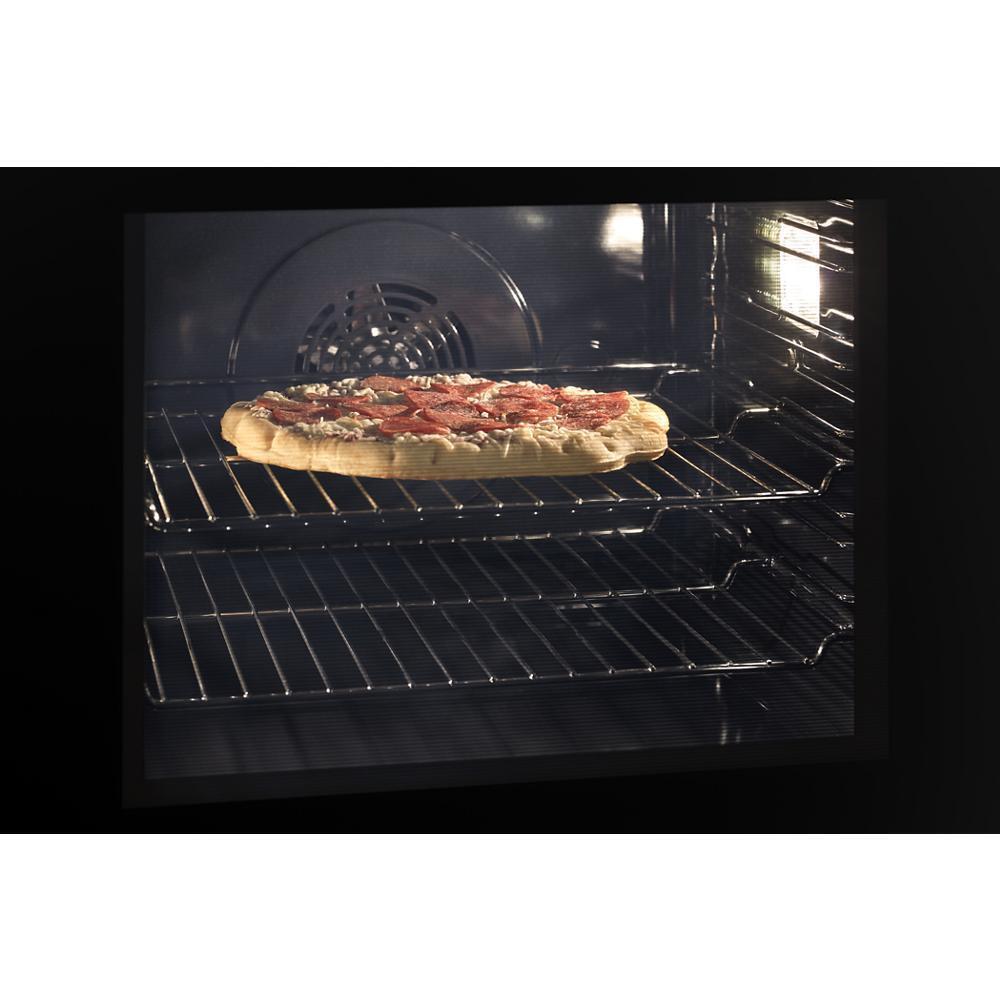

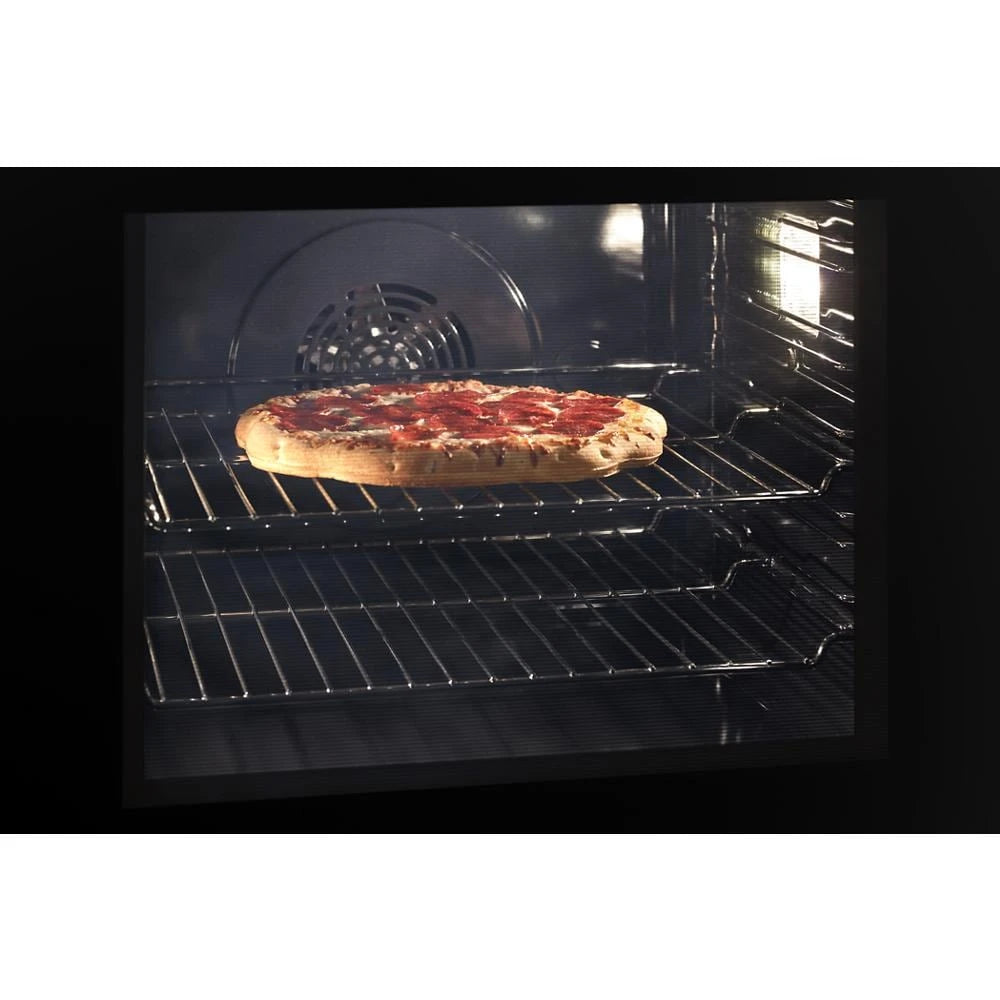

  • Frozen Bake™ Technology
    Skip preheating and cook your frozen favorites like pizza, lasagna, fries and pastries in fewer steps with the oven automatically setting temperatures for you.
  • Adjustable Self-Clean Cycle
    Clean your upper wall oven without harsh chemicals using the high-temperature self-clean cycle. Adjust the cycle for light, medium or heavy soil levels to help keep your oven looking clean.
  • Assisted Cooking
    Assisted Cooking cycles calculate and set the ideal cooking time and temperature for common foods like casseroles, meat, fish, vegetables, pizza and some baked goods.

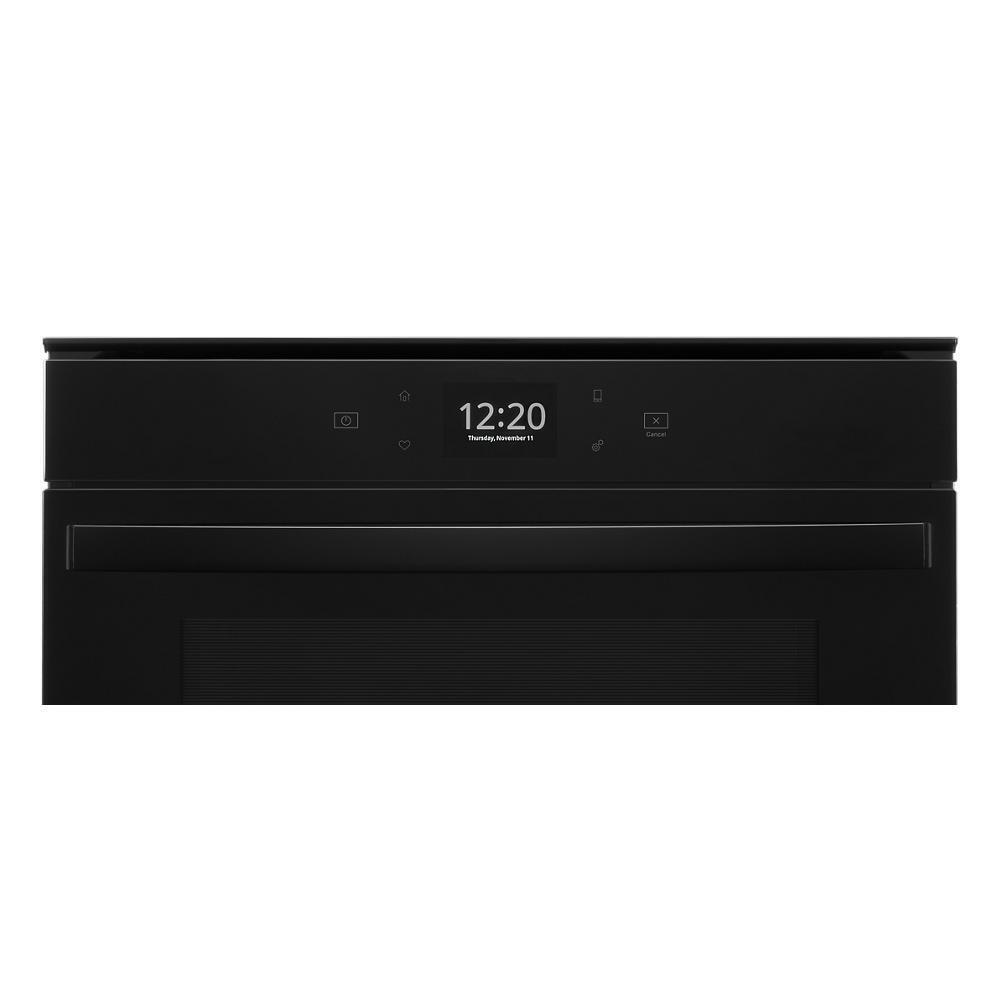

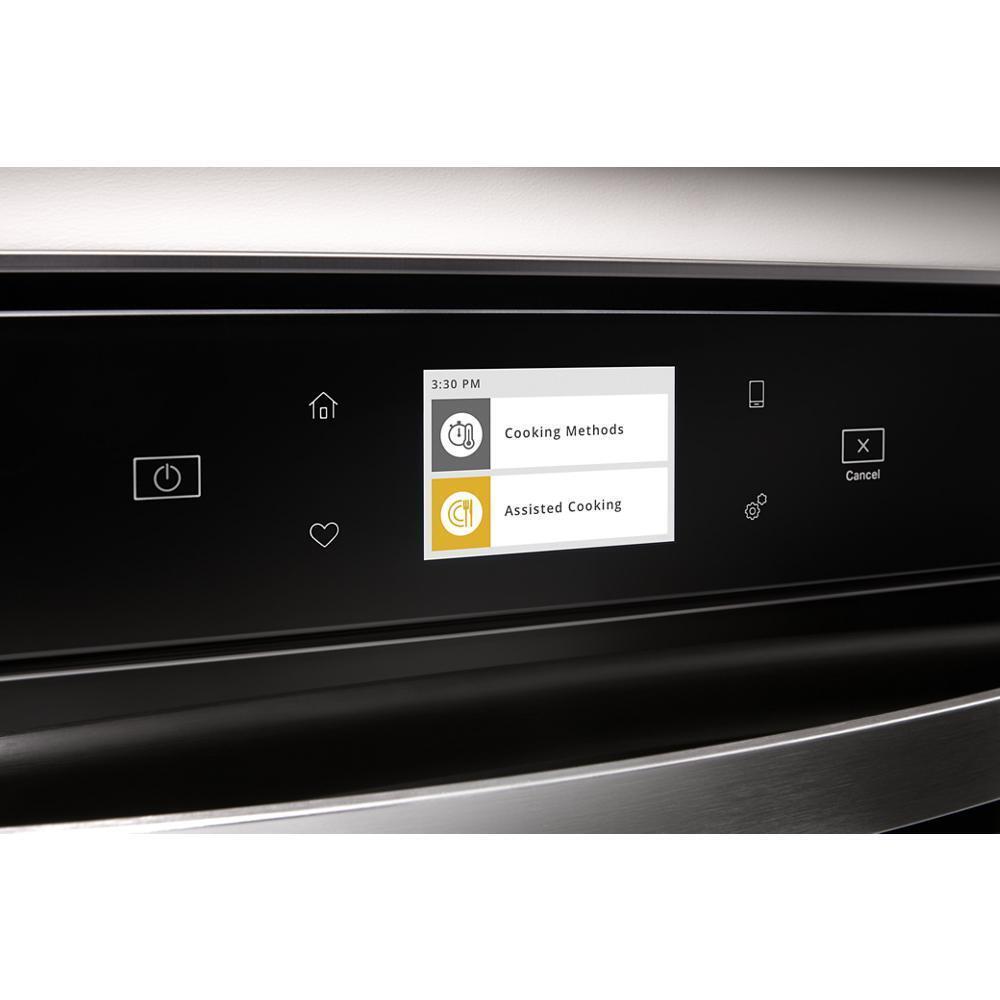

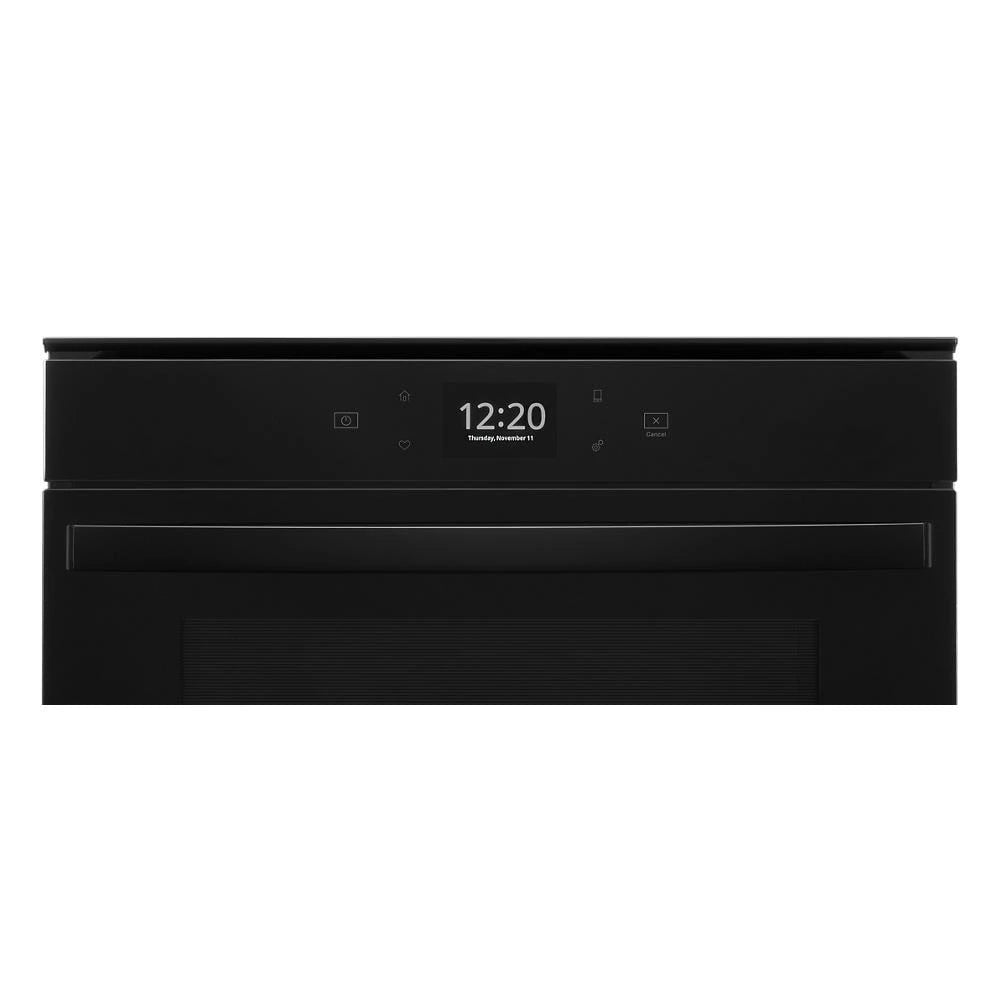

  • Touchscreen
    Get instant access to the settings you use most with a full-color Touchscreen display.
  • Favorites
    Make your favorite cooking settings easy to access by creating and saving them right on your appliance with Favorites.
  • Scan-to-Connect Technology
    You don't need to be a tech expert to connect your new appliance. Simply open the Whirlpool® app, add your appliance and follow the guided experience to get up and running quickly.

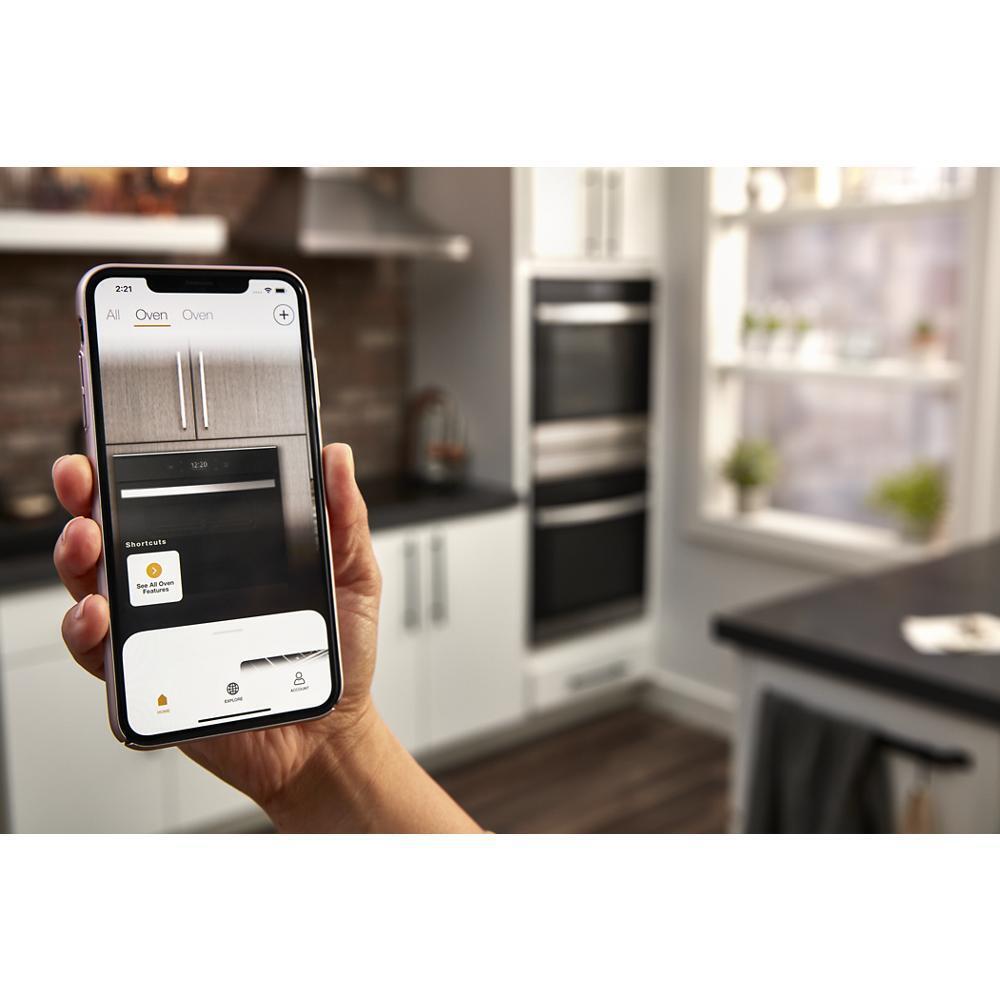

  • Remote Start
    When set to remote enable, use your smartphone or tablet to remotely turn your cooking appliance on so it’s heated up and ready to cook meals when you are.
  • Control Lock Mode
    Use your smartphone or tablet to remotely disable the control panel to avoid unintended use.
  • Hidden Bake Element
    A Hidden Bake Element under the floor of the oven creates a smooth surface inside the oven that’s easy to clean.
  • Fingerprint Resistant
    Available in a stainless finish that’s easy to clean and resists fingerprints and smudges.
  • Side Lights
    See your food clearly with bright Side Lights built into the oven cavity so you can check on your food without opening the door.

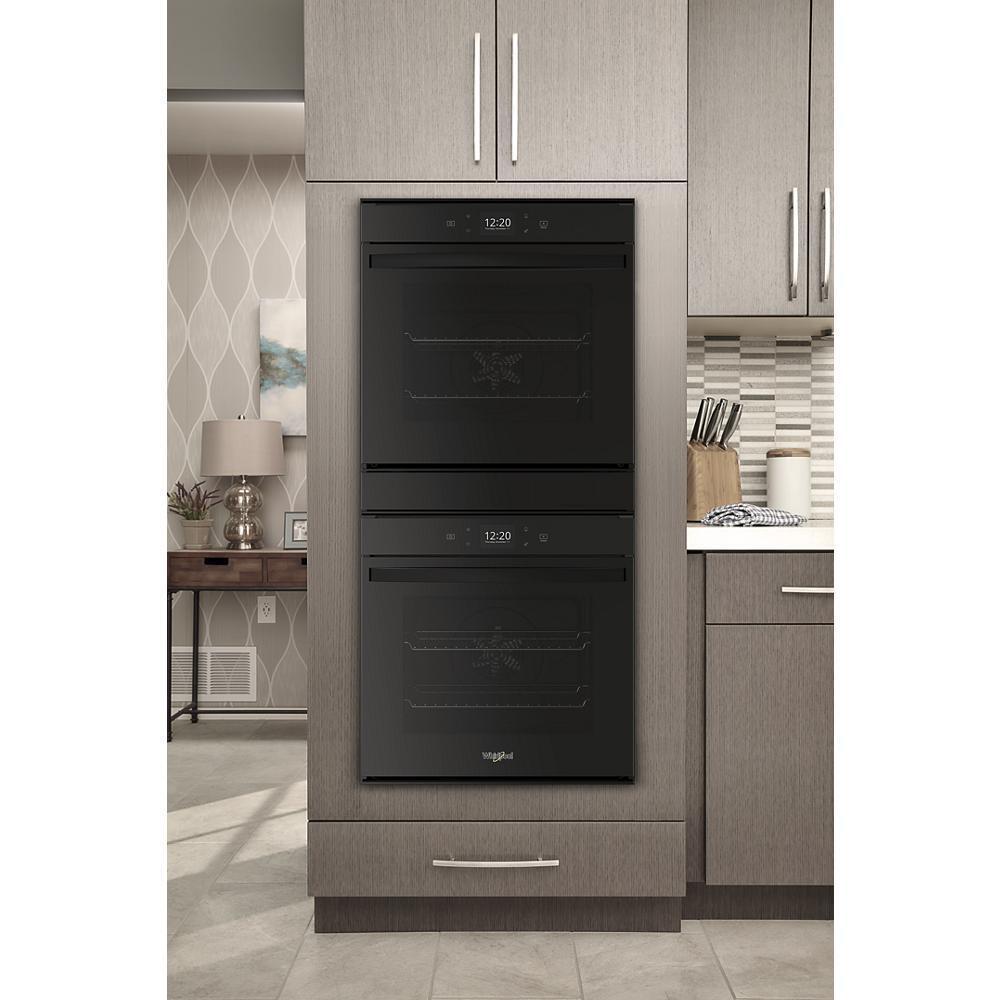

  • Flush Installation Capable
    This Flush Installation Capable oven integrates into the cabinet for an optional built-in look that doesn’t stick out.
  • Bake
    Cook your favorite treats like cookies, pies, cakes or muffins with the Bake setting that uses hot air to cook food inside the oven.
  • Convect Bake
    Convect Bake uses a third heating element and a fan to achieve more even heating when cooking on multiple racks.
  • Broil
    Evenly brown lasagna or pizza toppings and caramelize glazes and sauces when you place food close to the oven's top heating element using the Broil setting.

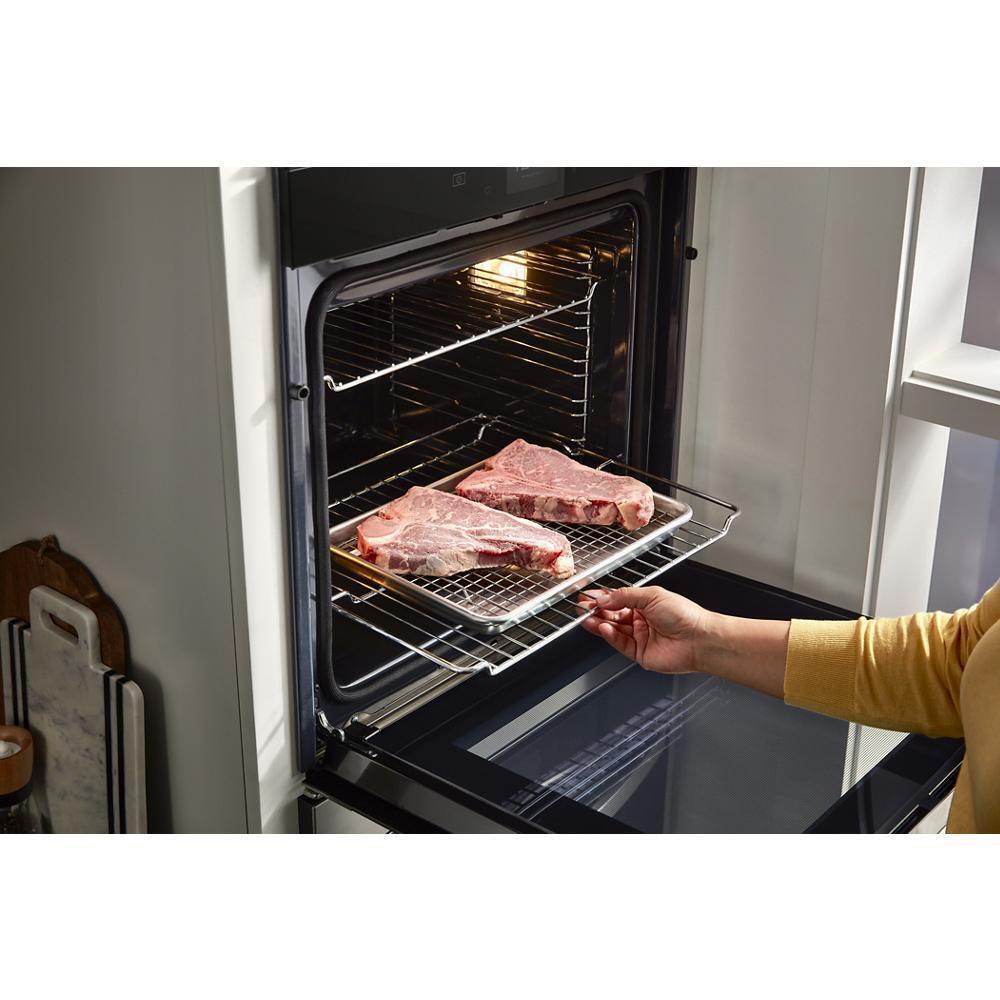

  • Convect Broil
    Cook and brown thicker cuts of meat like ribs or chicken thighs using the Covect Broil setting. The oven’s top heating element broils your food while the fan circulates hot air throughout the oven.
  • Preheat
    Preheat the oven to 350°F in under 8 minutes.
  • Defrost Setting
    Speed up the thawing process of meat and other frozen food with the Defrost Setting.
  • Keep Warm Setting
    Keep dishes from getting cold with this setting that delivers low heat to the oven.

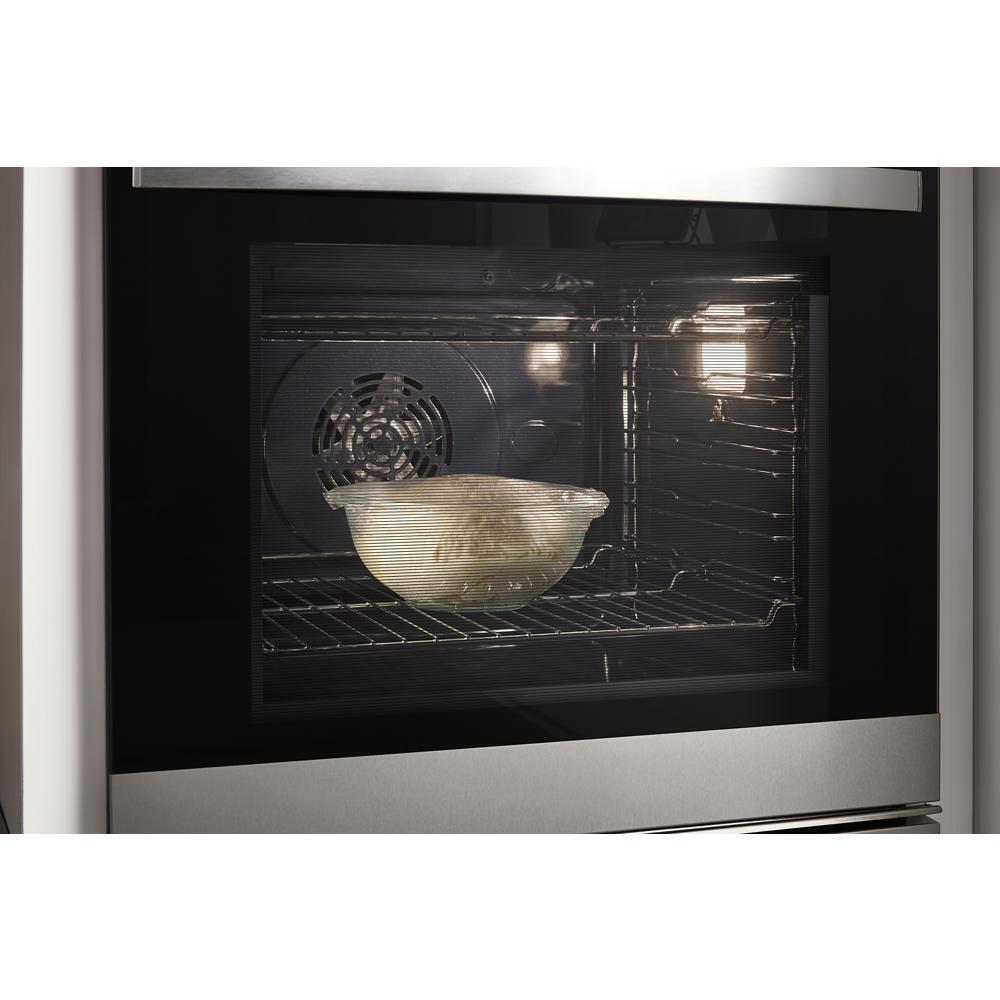

  • Proofing
    Use the Proofing setting to help bread dough rise in a low temperature environment inside your oven.
  • Convect Roast
    Cook foods including chicken, turkey, potatoes or broccoli with the Convect Roast setting that uses a high fan speed and controls the heat distribution in your oven by turning on the bake and broil elements as needed.
