Product Details for Whirlpool WCE55US6HB

Technical Details

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 2.4 ft³
Dimensional Weight 29.83 lbs.
Total of Cubes 2.4 ft³
Total of Dimensional Weight 29.83 lbs.

Exterior details

Knob Color Black
Knob Type Dishwasher-Safe Plastic

Cooktop details

Cooktop Surface Color Black
Cooktop Surface Material Glass
Digital Display No
Griddle Included N/A
Heating Element On Indicator Light Yes
Hot Surface Indicator Light Yes
Installs Over Built-In Oven Yes
Combination Match with Oven WOES3027L, WOES3030L, WOES5027L, WOES5030L, WOES5930L, WOES7027P, WOES7030P, WOS11EM4, WOS31ES0, WOS31ES7, WOS51EC0, WOS51EC7, WOS51ES4, WOS72EC0, WOS72EC7, WOS92EC0, WOS92EC7, WOS97EC0, WOS9

Element/burner details

Automatic Pan Detection No
Center Rear Element-Burner Power 100W
Center Rear Element-Burner Size 6in.
Center Rear Element-Burner Type Warming
Cooktop Element Style Radiant
Cooktop Type Standard
Left Front Element-Burner Size 6in.
Left Front Element-Burner Type Standard
Left Rear Element-Burner Size 10in.
Left Rear Element-Burner Type Standard
Number of Cooking Element-Burners 5
Right Front Element-Burner Power 1200W
Right Front Element-Burner Size 6in.
Right Front Element-Burner Type Dual
Right Rear Element-Burner Power 3000/1900W
Right Rear Element-Burner Size 10in./6in.
Right Rear Element-Burner Type Standard
Left Front Element-Burner Power 1,200W
Left Rear Element-Burner Power 2,500W

Details

Cooktop Configuration All Burners
Digital Display No
Fuel Type Electric
Installs Over Built-In Oven Yes
LP Convertible No
Natural Gas Convertible No
Power Outage Compatible No

Ventilation details

Downdraft Vent No

Electrical

208V Compatible Yes
Amps 40
Hz 60
Power Cord Included No
Volts 240

Controls

Control Location Front

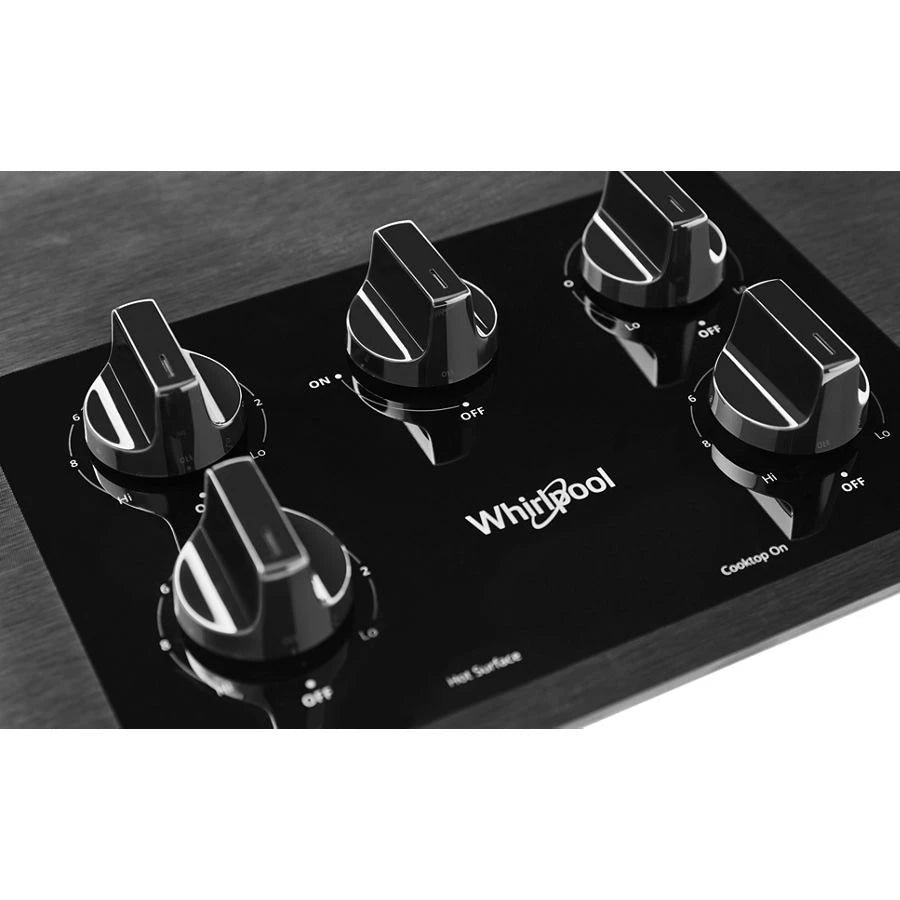

Control Type Knobs

Oven cavity details

Natural Gas Convertible No

Refinements

Features ADA Compliant

Features

Cooktop Features ADA Compliant

Certifications

ADA Compliant ADA Height and Operation Compliant
Energy Star® Qualified ENERGY STAR® Qualified

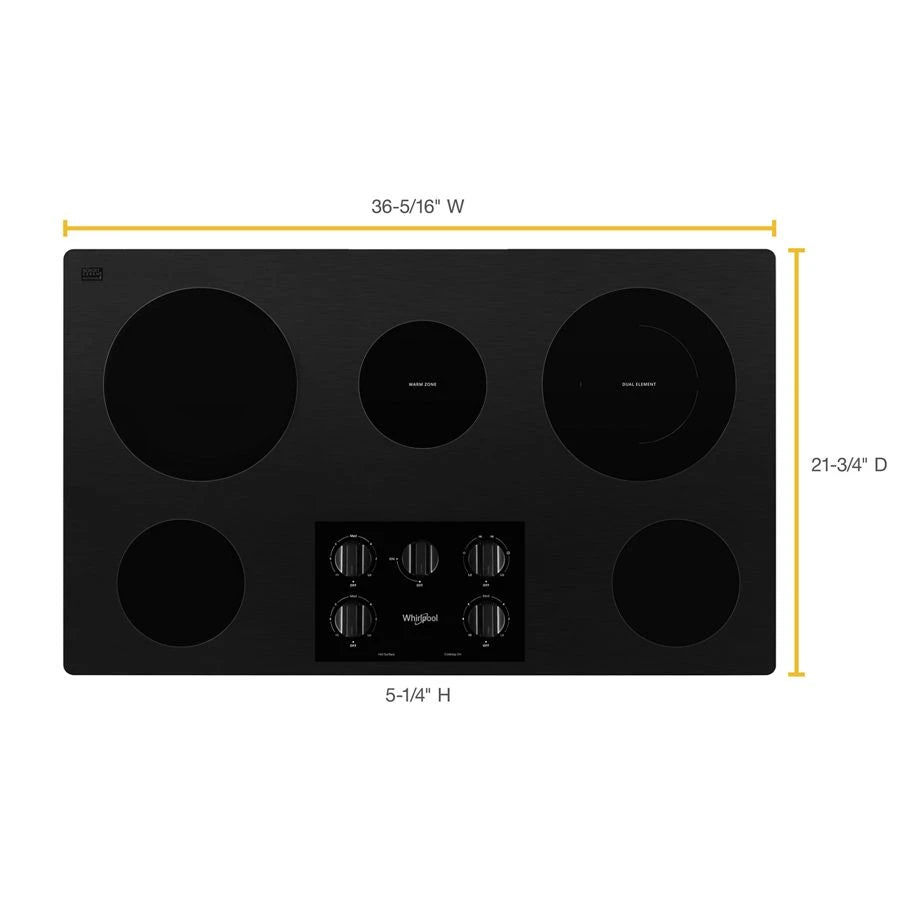

Dimensions & weight

Width 36.31 in.
Height 5.25 in.
Length 21.75 in.
Weight 50 lbs.
Gross Weight 50 lbs
Net Weight 44 lbs
Cutout Depth 20.375 in
Cutout Depth Max 20.563 in
Cutout Depth Min 20.375 in
Cutout Width 34.563 in
Cutout Width Max 35.563 in
Maximum Height 5.25 in

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 40.75 in.
Shipping Height 9.25 in.
Shipping Length 26.75 in.
Shipping Weight 90 lbs.
Total of Shipping Weight 90 lbs.
Source Calculation

Capacity

Volume 5.453 Cu.Ft.

Description

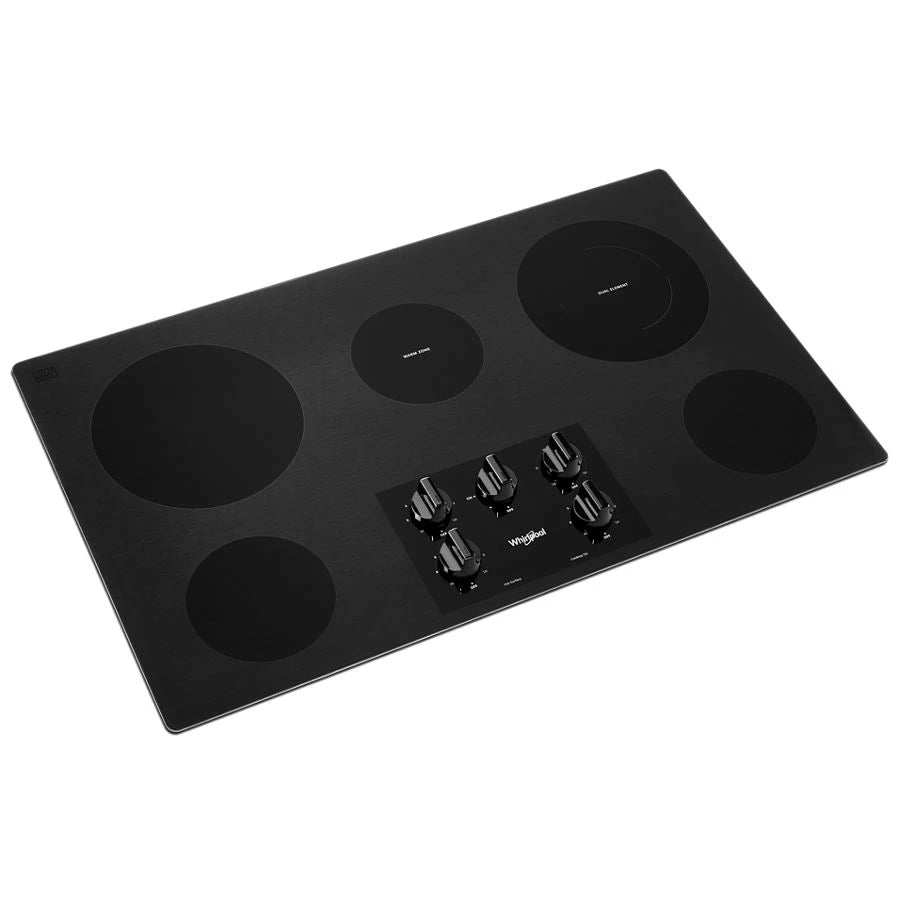

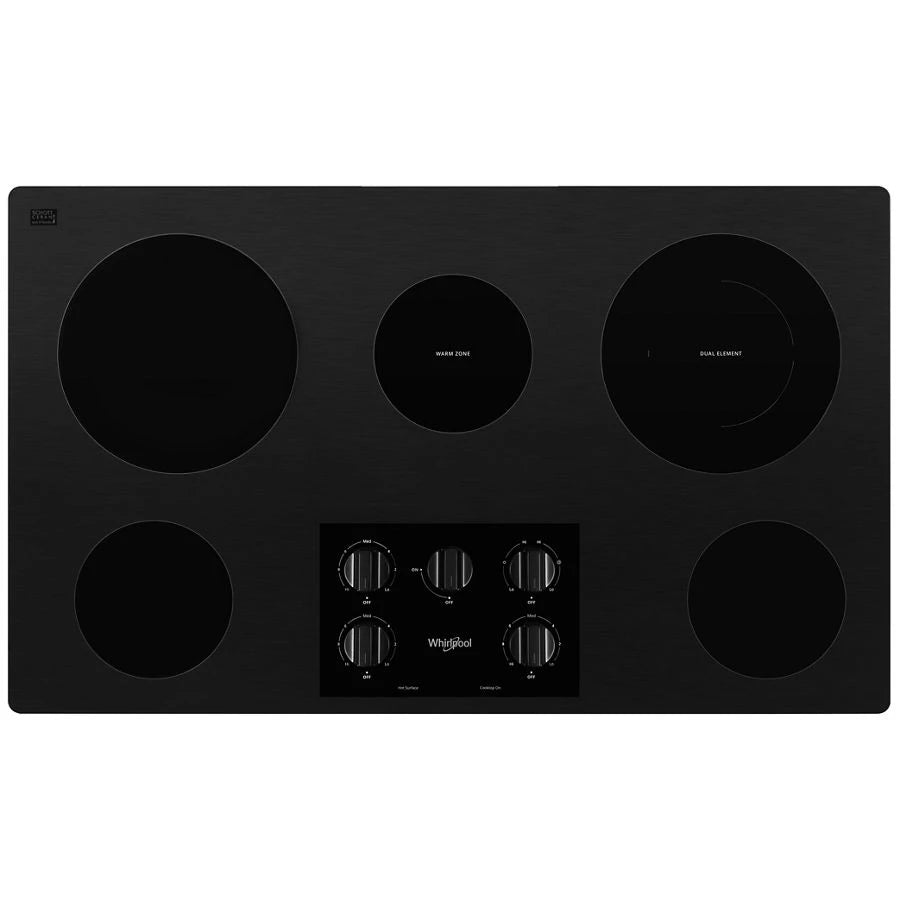

Cook all your family’s favorites and clean up quick with a 5-burner cooktop designed to make the most of your mealtime routine. The FlexHeat™ Dual Radiant Element gives you flexibility, while the Warm Zone Element keeps food warm while you finish cooking. When dinner’s done, a ceramic glass cooktop makes it easy to wipe away messes.


Product Features

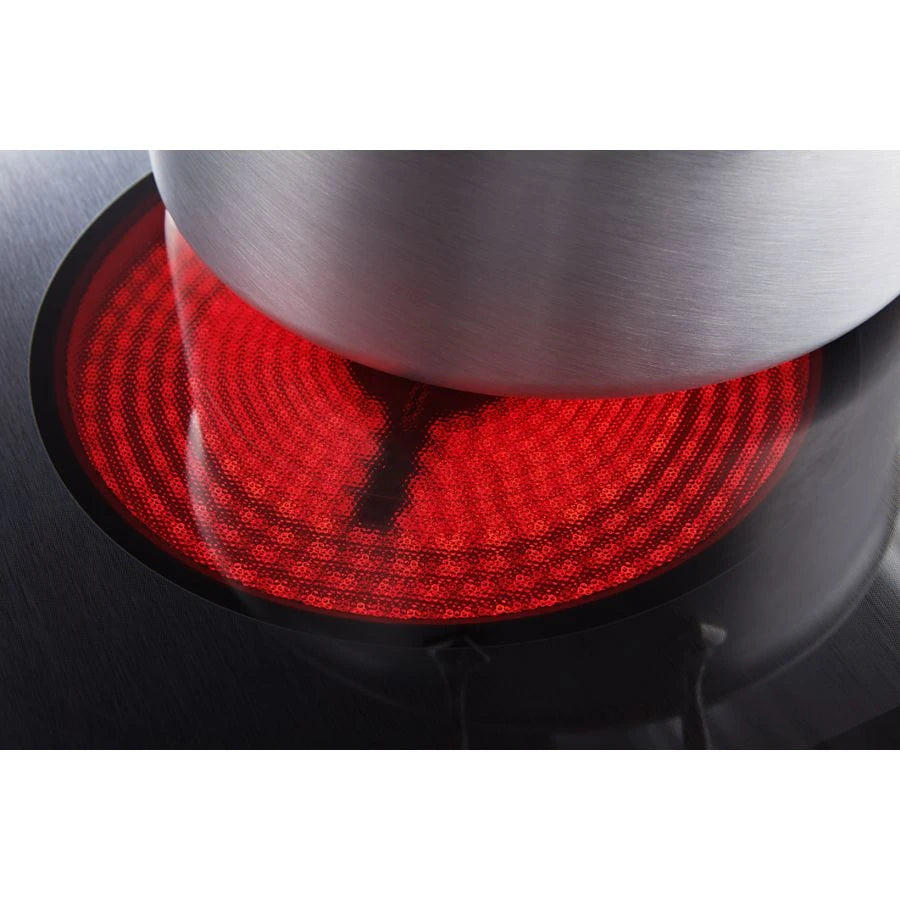

  • FlexHeat™ Dual Radiant Element
    Get two elements in one with a 6" inner ring that's great for smaller pots and pans and a 10" expandable outer ring that makes room for larger cookware.
  • Easy-Wipe Ceramic Glass Cooktop
    Wiping up spills is simple with the easy-to-clean cooktop.
  • Warm Zone Element
    Keep food warm while you're finishing the rest of the meal using this low-powered element.
  • 30 & 40 Amp Installation
    Properly install with either a 30 or 40 amp hookup, so there's no need to rewire.
  • Hot Surface Indicator Light
    See when the cooktop's still hot to the touch, even after it's been turned off, with a light that lets you know.
  • Wall Oven Compatible
    Install this cooktop to work with a wall oven or on its own for more flexibility.
  • 6" Extra Element
    Cook small dishes like sides and sauces on the 6" Extra Element.
  • ADA compliant
    This cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
  • Energy Star
    ENERGY STAR® Certified models exceed government standards to help save money on your utility bills.

Key Features

5-Element Cooktop

Provides five independent cooking surface areas.

5 Element Cooktop

Cook more of your family's favorites and enjoy added versatility with a fifth element.
