Sale price $619.20 Regular price $998.97 Save $379.77 / 38% OFF

Product Details for Whirlpool WCE55US0HB

Technical Details

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 2.14 ft³
Dimensional Weight 26.62 lbs.
Total of Cubes 2.14 ft³
Total of Dimensional Weight 26.62 lbs.

Exterior details

Knob Color Black
Knob Type Dishwasher-Safe Plastic

Cooktop details

Cooktop Surface Color Black
Cooktop Surface Material Glass
Griddle Included N/A
Heating Element On Indicator Light Yes
Hot Surface Indicator Light Yes
Installs Over Built-In Oven Yes
Combination Match with Oven WOES3027L, WOES3030L, WOES5027L, WOES5030L, WOES5930L, WOES7027P, WOES7030P, WOS11EM4, WOS31ES0, WOS31ES7, WOS51EC0, WOS51EC7, WOS51ES4, WOS52EM4, WOS72EC0, WOS72EC7, WOS92EC0, WOS92EC7, WOS9

Element/burner details

Automatic Pan Detection No
Cooktop Element Style Radiant
Cooktop Type Standard
Left Front Element-Burner Size 6in.
Left Front Element-Burner Type Standard
Left Rear Element-Burner Size 8in.
Left Rear Element-Burner Type Standard
Number of Cooking Element-Burners 4
Power Boost No
Right Front Element-Burner Power 2500W/1800W
Right Front Element-Burner Size 10in./6in.
Right Front Element-Burner Type Dual
Right Rear Element-Burner Size 6in.
Right Rear Element-Burner Type Standard
Left Front Element-Burner Power 1,200W
Left Rear Element-Burner Power 1,800W
Right Rear Element-Burner Power 1,200W

Ventilation details

Downdraft Vent No

Details

Cooktop Configuration All Burners
Digital Display No
Fuel Type Electric
LP Convertible No
Power Outage Compatible No

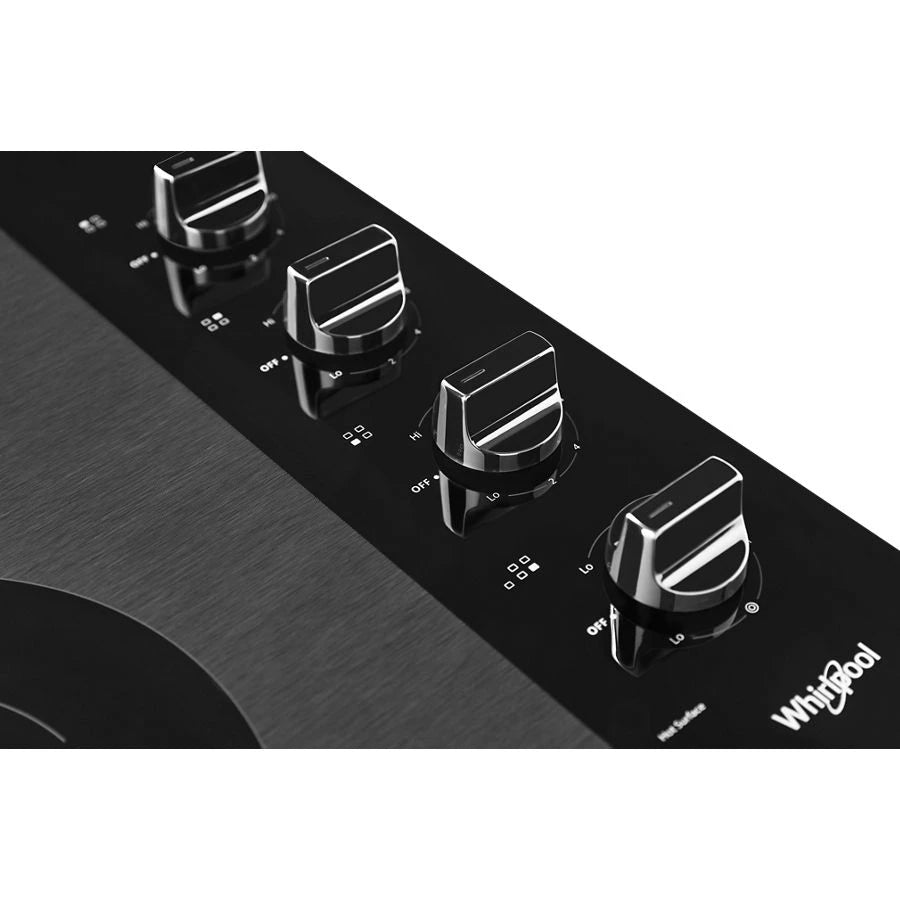

Controls

Control Location Right
Control Type Knobs

Electrical

208V Compatible Yes
Amps 30
Hz 60
Power Cord Included No
Volts 240

Refinements

Features ADA Compliant

Features

Cooktop Features ADA Compliant

Certifications

ADA Compliant ADA Height and Operation Compliant
Energy Star® Qualified ENERGY STAR® Qualified

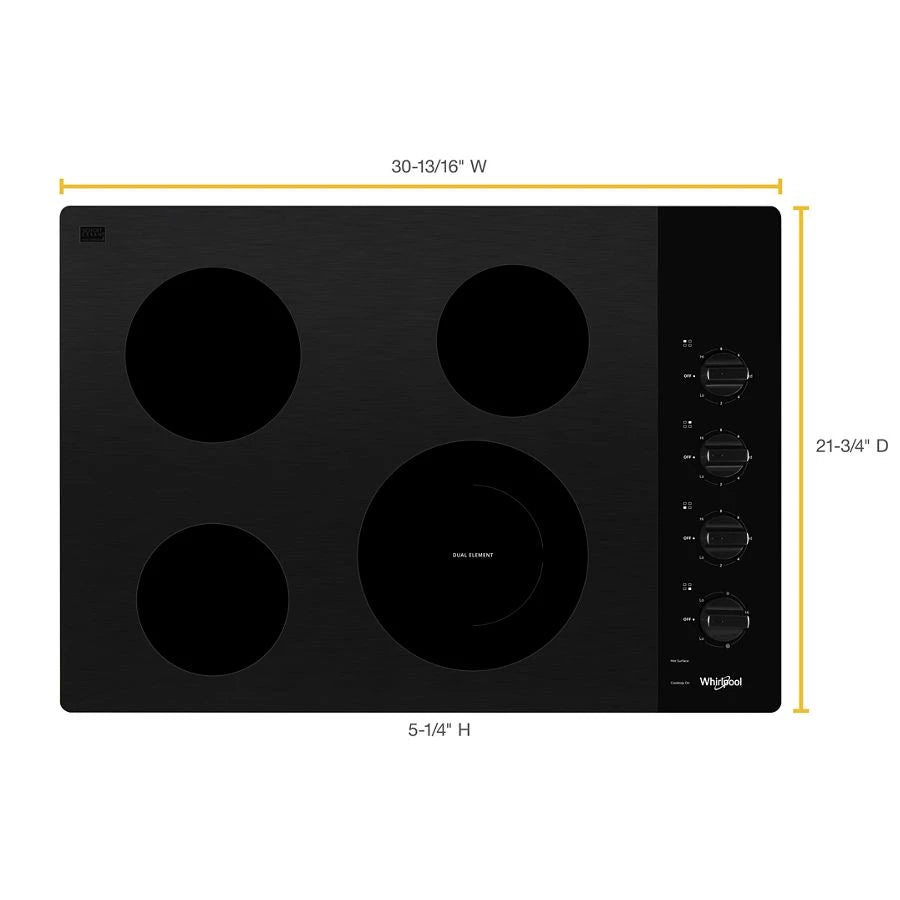

Dimensions & weight

Width 30.81 in.
Height 5.25 in.
Length 22.88 in.
Gross Weight 46 lbs
Net Weight 41 lbs
Weight 46 lbs.
Cutout Depth 20.375 in
Cutout Depth Max 20.563 in
Cutout Width 29.063 in
Maximum Height 5.25 in

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 35 in.
Shipping Height 9.25 in.
Shipping Length 27.88 in.
Source Calculation
Shipping Weight 86 lbs.
Total of Shipping Weight 86 lbs.

Capacity

Volume 4.684 Cu.Ft.

Description

Cook all your family’s favorites with an easy-to-clean cooktop designed to make the most of your mealtime routine. Get added flexibility when installing with 30 & 40 amp compatibility, or while cooking with the FlexHeat™ Dual Radiant Element. When dinner’s done, a ceramic glass cooktop makes it easy to wipe away messes.


Product Features

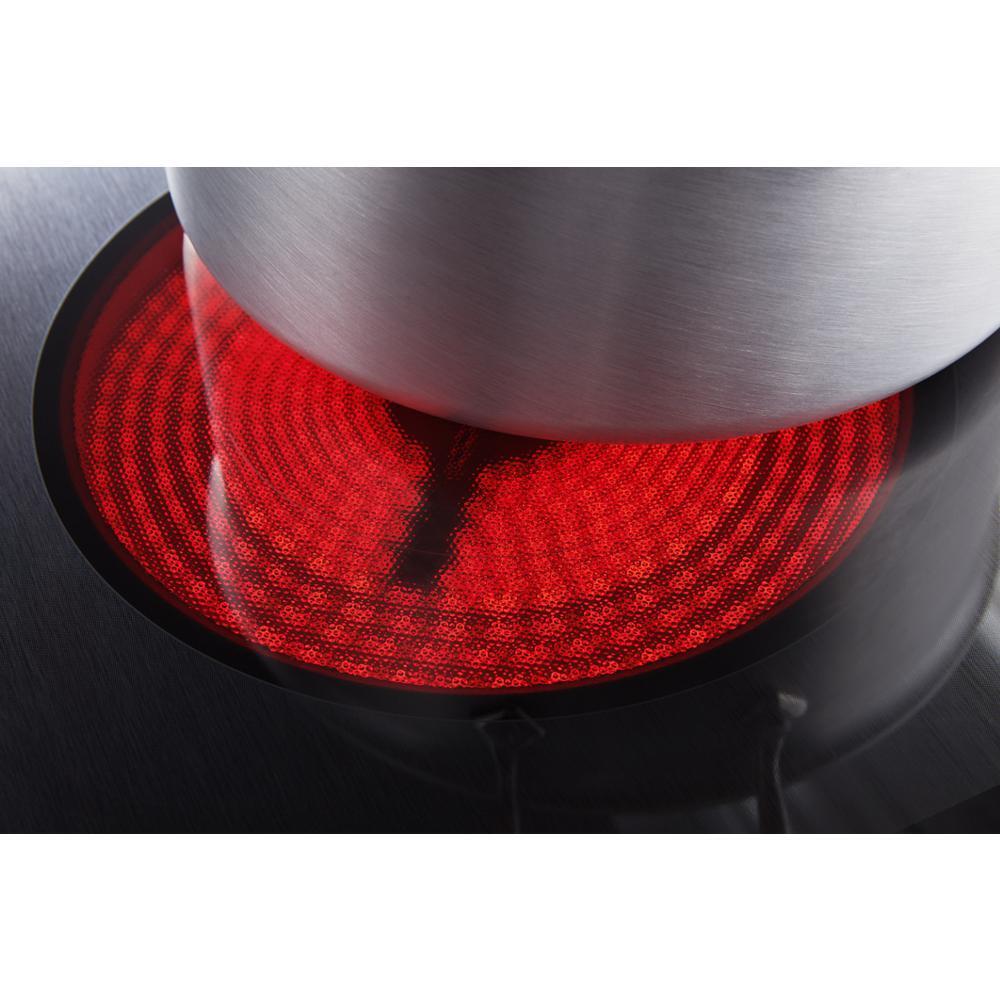

  • FlexHeat™ Dual Radiant Element
    Get two elements in one with a 6" inner ring that's great for smaller pots and pans and a 10" expandable outer ring that makes room for larger cookware.
  • Easy-Wipe Ceramic Glass Cooktop
    Wiping up spills is simple with the easy-to-clean cooktop.
  • 30 & 40 Amp Installation
    Properly install with either a 30 or 40 amp hookup, so there's no need to rewire.
  • Hot Surface Indicator Light
    See when the cooktop's still hot to the touch, even after it's been turned off, with a light that lets you know.
  • Wall Oven Compatible
    Install this cooktop to work with a wall oven or on its own for more flexibility.
  • 8" Extra Element
    Cook small dishes like sides and sauces on the 8" Extra Element.
  • 6" Extra Element
    Cook small dishes like sides and sauces on the 6" Extra Element.
  • ADA compliant
    This cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
  • Energy Star
    ENERGY STAR® Certified models exceed government standards to help save money on your utility bills.
