Product Details for Whirlpool WCD3090JW

Technical Details

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 12.02 ft³
Dimensional Weight 149.45 lbs.
Total of Cubes 12.02 ft³
Total of Dimensional Weight 149.45 lbs.

Details

Automatic Dry Control Yes
Cycle Time Remaining Yes
Drying Rack No
EcoBoost Energy Saver No
Fuel Type Electric
LP Convertible No
Lint Filter Indicator Yes
Maytag Commercial Components No
Moisture Sensor Yes
Motor Horsepower 1/4 HP
Pedestal Options WFP24JW
Quad Baffles No
Secondary Lint Filter Yes
Sound Package No
Stackable Yes
Steam Hose Y Connector No

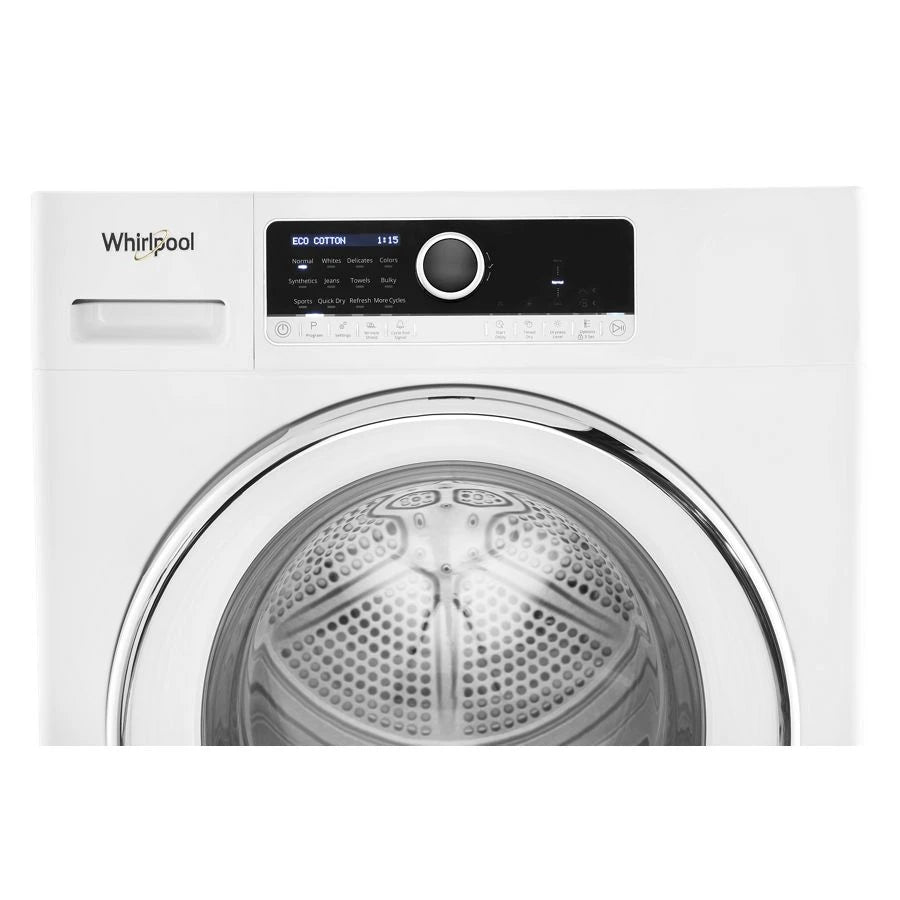

Controls

Automatic Temperature Controls Yes
Control Location Front
Control Type Electronic
Electronic Display Type Digital
End of Cycle Signal Yes
Feedback-Status Indicators Bottom Filter Clogged, Delay Start, Door Filter Clogged, Water Tank Full

Exterior details

Door Opening Direction Right
Door Style Side Swing
Reversible Door Yes
Window Yes

Cycles

Drying Cycles Selections Bulky, Colors, Cotton, Delicates, Dress Shirts, Jeans, Normal, Quick Dry, Refresh, Silk, Sports, Synthetics, Towels, Whites, Wool
Number of Dryer Cycles 15

Interior details

Dryer Drum Material Stainless Steel
Dryer Interior Light No
Drying Rack No
Eco Monitor/Efficiency Monitor No
Lint Screen Location Front
Motor Horsepower 1/4 HP
Sound Package No

Installation considerations

Flat Back No
Hoses Included No
Long Vent No
Venting Direction Bottom, Rear
Ventless Condensing

Modifiers

Number of Dryness Levels 3
Number of Temperatures 3
Selection of Drying Levels Less, More, Normal
Temperature Selections High, Low, Medium

Options

Dryer Option Selections Control Lock, Delay Start, Dryness Level, End of Cycle Signal, Timed Dry, Wrinkle Shield™
Number of Dryer Options 6

Electrical

Amps 20
Hz 60
Volts 240

Certifications

ADA Compliant ADA Height and Operation Compliant
CEE Tier Rating Tier I
Energy Star Qualified ENERGY STAR® Qualified
UL Yes
Energy Star® Qualified ENERGY STAR® Qualified

Dimensions & weight

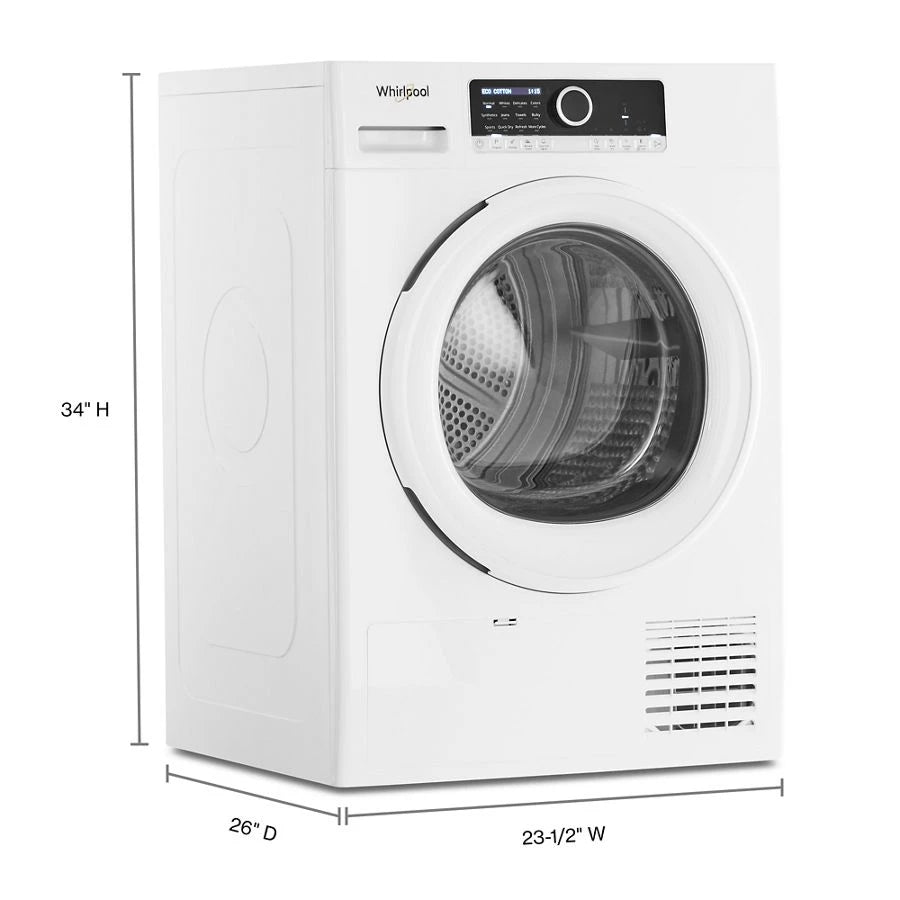

Width 23.5 in.
Height 34 in.
Length 26 in.
Weight 96 lbs.
Gross Weight 96 lbs
Maximum Height 34 in
Depth With Door Open 90 Degree 43.313 in
Door Opening Height 14.94 in
Door Opening Width 15.38 in
Minimum Height 33.875 in
Net Weight 93.25 lbs

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 26 in.
Shipping Height 34 in.
Shipping Length 31 in.
Shipping Weight 136 lbs.
Total of Shipping Weight 136 lbs.
Source Calculation

Capacity

Volume 13.813 Cu.Ft.

Description

Fit laundry almost anywhere with the 4.3 cu. ft. small space dryer. This 24" compact dryer installs virtually anywhere thanks to its ventless, space-saving design. With features like the Wrinkle Shield™ Option and Refresh Cycle that help keep laundry day moving, you’ll be able to dry clothes fast and efficiently in this compact ventless dryer.


Product Features

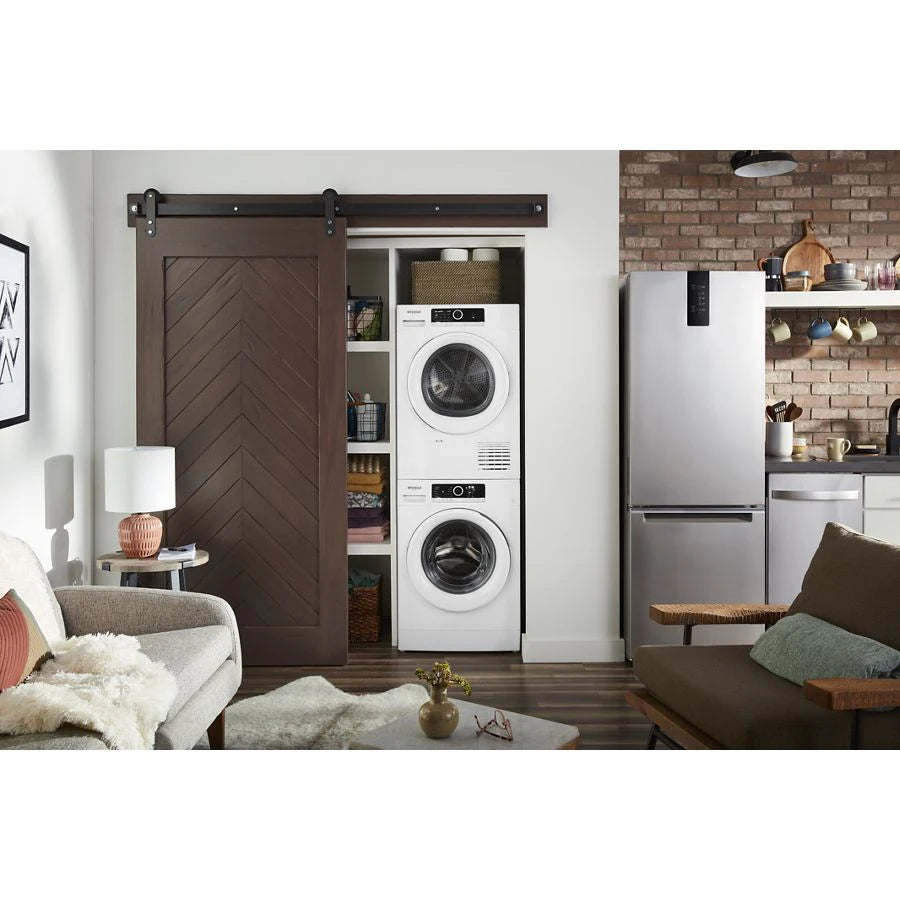

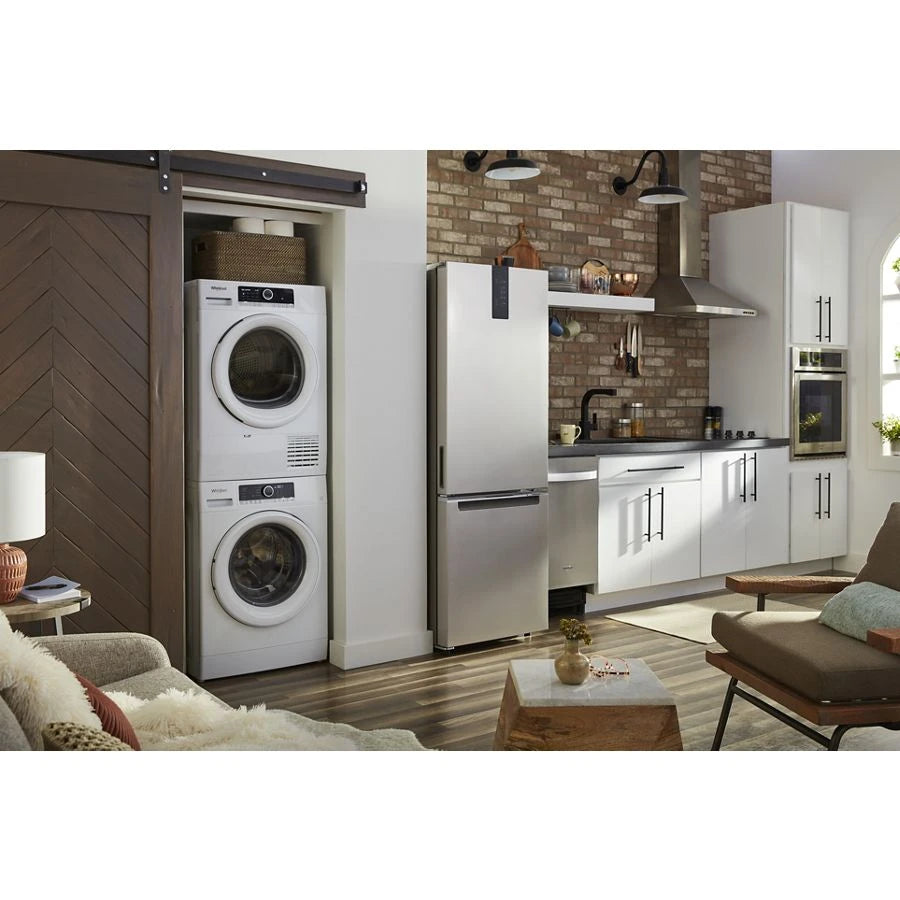

  • Our Most Space-Saving Front Load Pair Available
    Install almost anywhere with Our Most Space-Saving Front Load Pair Available. The ventless design and compact 24" width of the dryer make it easy to fit laundry into tight quarters.
  • Energy-Efficient Small Space Dryer Technology
    Save energy and help reduce utility costs with our Energy-Efficient Small Space Dryer Technology. The ventless design with condensing technology recycles air and captures moisture inside the unit instead of using an outside exhaust vent, so you can dry clothes more efficiently.
  • Whites Cycle
    Dry a small load of cotton items in under an hour with increased temperatures, so clothes are ready when you’re on a tight schedule.
  • Wrinkle Shield™ Option
    Help keep wrinkles from setting into clean, dry fabrics with the Wrinkle Shield™ Option. It keeps clothes tumbling for up to 2-1/2 hours after the cycle ends or until you open the door.
  • 4.3 Cu. Ft. Capacity
    At 4.3 cu. ft., this compact small space dryer has the capacity to fit your clothes while still being able to fit your living space.
  • Refresh Cycle
    Help release wrinkles from clean, dry clothes so they’re ready to wear without needing to be rewashed. Simply add a wet towel or clothing item to a small load before running the cycle.
  • Baffles
    Baffles help clothes tumble freely instead of getting stuck against the drum, providing a thorough dry for both small and large loads.
  • Wool Cycle
    Help protect dryable wool fabrics from damage with the Wool Cycle that evaporates water faster, reducing drying time.
  • Bulky Items Cycle
    Thoroughly dry blankets and bedding with the Bulky Items Cycle.
  • Delicates Cycle
    Reduced temperatures provide the right dry for delicate loads.
  • ENERGY STAR® Certified
    ENERGY STAR® Certified models exceed government standards to help save money on your utility bills.
