SKU: TXR860WP | UPC: 4002516379836

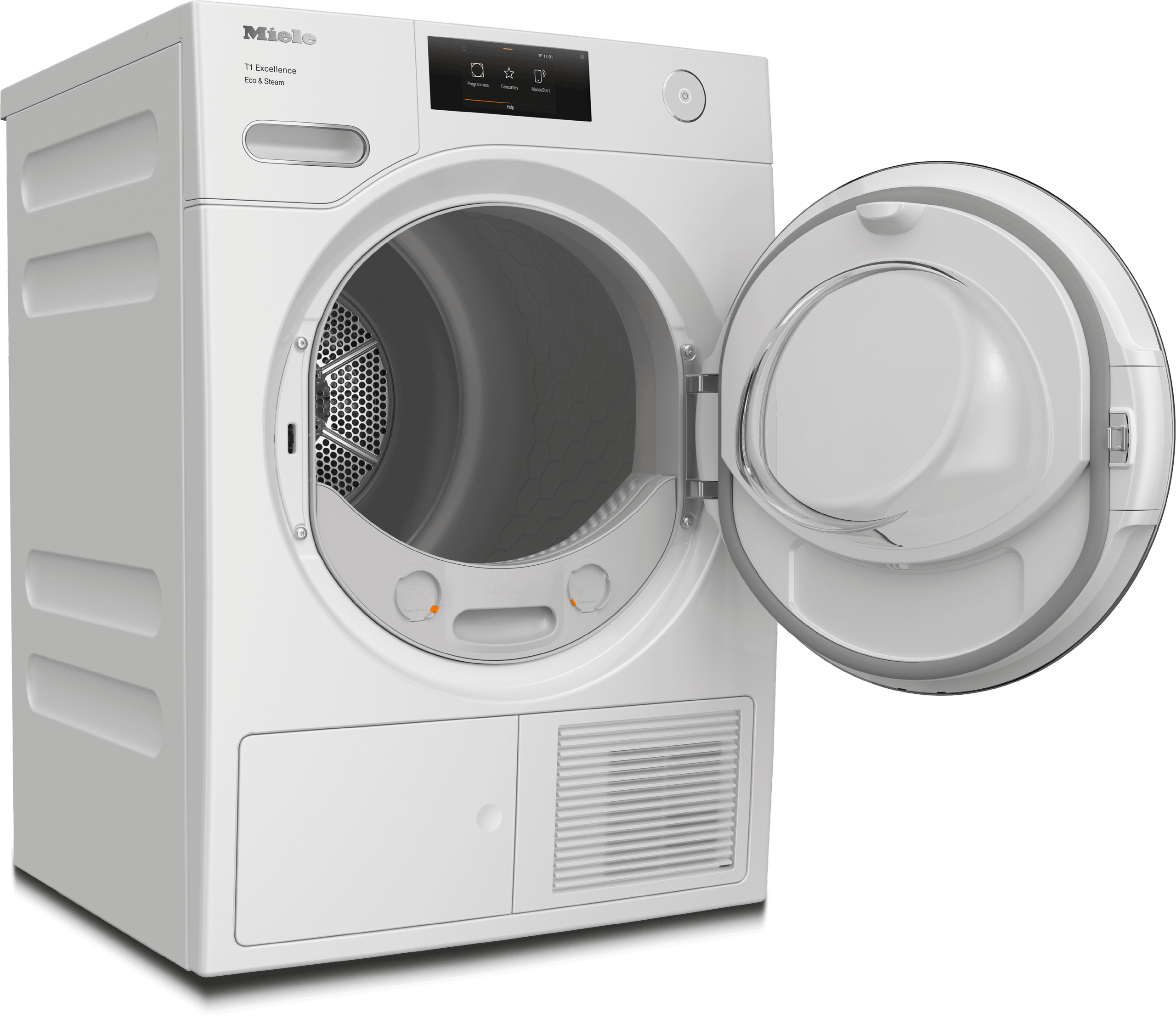

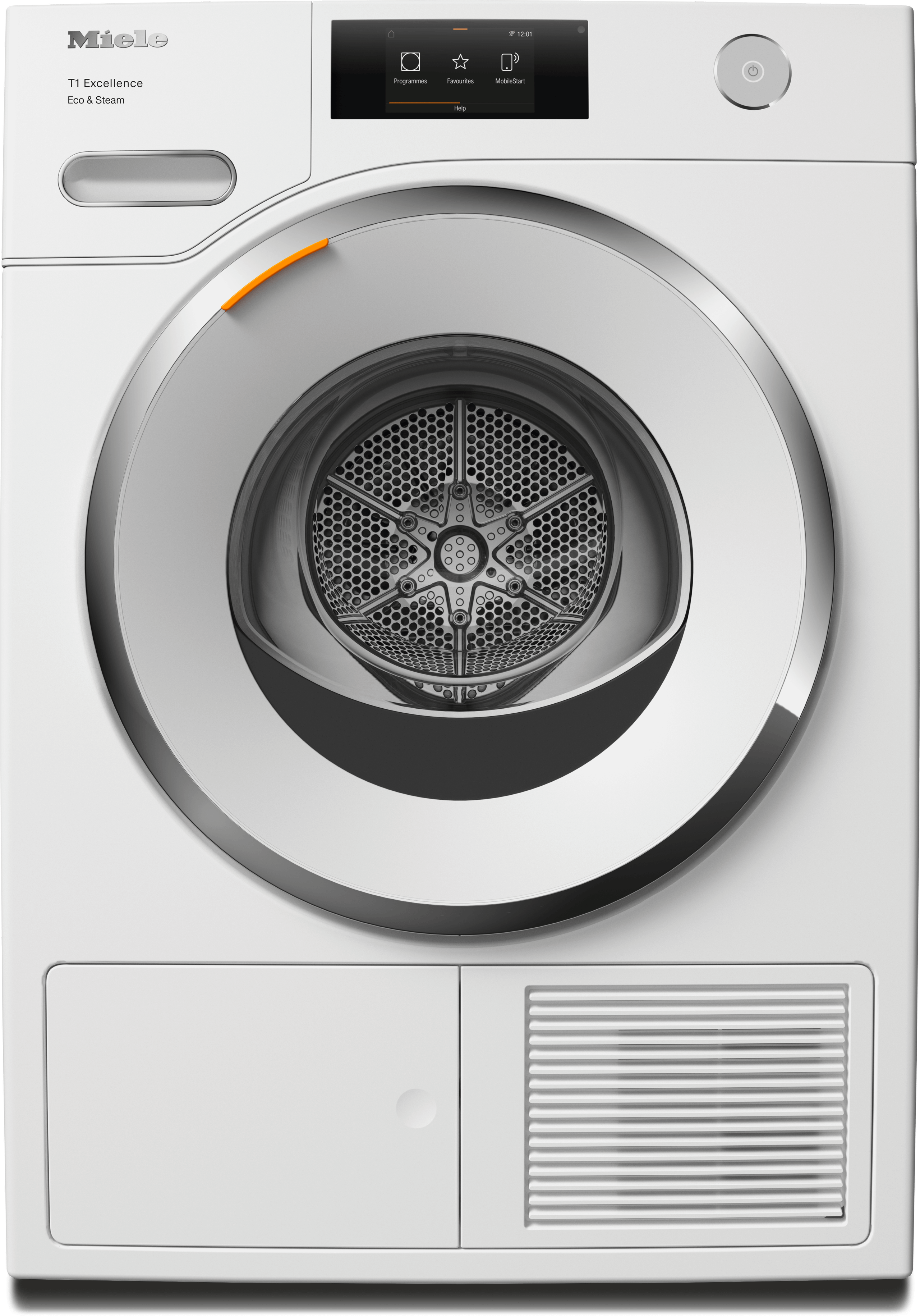

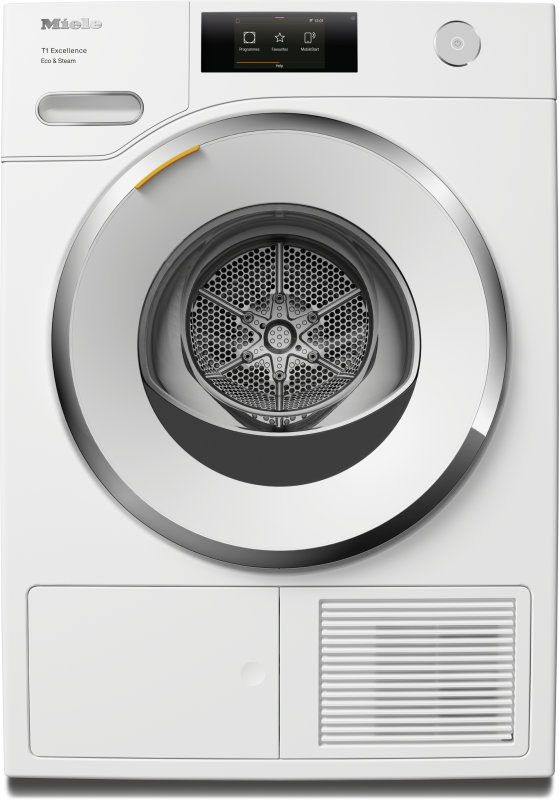

Miele TXR860WPLW 24" T1 Dryer Heat Pump Glass Door & Steam WiFi MTouch Control (Lotus White)

Quick Specification More details

Width:
23.46"
Depth:
25.31"
Height:
33.46"
Type:
Front Load Dryers

About this product

Miele@home
Integrated condensed water drainage
AddLoad
PerfectDry

Summer Sale

Clearance

SKU: TXR860WP | UPC: 4002516379836

Miele TXR860WPLW 24" T1 Dryer Heat Pump Glass Door & Steam WiFi MTouch Control (Lotus White)

Active Rebates

Electrical Requirement Notice: This appliance may require a dedicated electrical circuit or special voltage (e.g., 120V or 240V). Please verify your home’s electrical setup or consult a licensed electrician before installation. If you have any questions, please contact us.

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
23.46"
Depth:
25.31"
Height:
33.46"
Type:
Front Load Dryers

About this product

Miele@home
Integrated condensed water drainage
AddLoad
PerfectDry

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Rebates
Reviews

Product Details for MIELE TXR860WP

Technical Details

General information

Model number	TXR860WP Eco & Steam
Manufacturer material number	11620030
EAN number	4002516379836
Marketing class	Diamond

Design

Stackable	TRUE
Side-by-Side	TRUE
Slot-in	TRUE
Door hinging	Reversible
Door hinging	right
Appliance color	Lotus white
Control panel color	Lotus white
Door design	Lotus white with chrome ring
Fascia panel version	5° inclined
Control type	Touch control

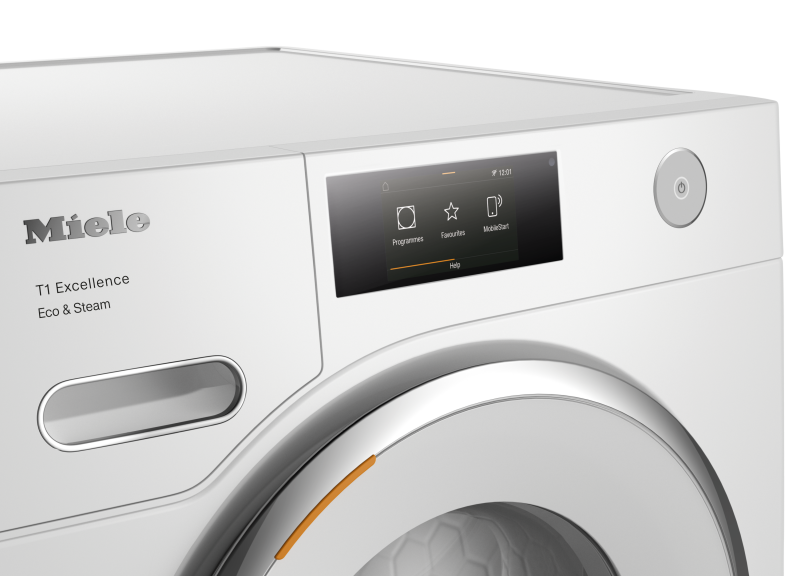

Display	MTouch

Type

Product brand	T1 White Edition
Heat-pump dryer	TRUE

Drying results

PerfectDry precision drying	TRUE
FragranceDos² fragrance system	TRUE
Intelligent drum reversal	TRUE

Gentle laundry care

Honeycomb drum	TRUE
Load in lbs. (kg)	18 (8)

User convenience

Networking with Miele@home	TRUE
Delay start up to 24 hours	TRUE
Countdown indicator	TRUE
Time display	TRUE
Programme sequence indicator	TRUE
Drying assistant	TRUE
Information text	TRUE
Favorite programs	TRUE
Drum lighting	LED
MultiLingua	TRUE
Condensed water container	TRUE
Integrated condensed water drainage	TRUE
AddLoad	TRUE

Efficiency and sustainability

EcoFeedback	TRUE
EcoDry technology	TRUE
Maintenance-free heat exchanger	TRUE
ProfiEco motor	TRUE

Drying programs

Delicates	TRUE
Express	TRUE
Outerwear	TRUE
Proofing	TRUE
Normal	TRUE
Wrinkle-free	TRUE
Smoothing	TRUE
Woolens/Silks	TRUE
Dress Shirts	TRUE
Time Dry	TRUE
Denims	TRUE
Table Linens/Drapes	TRUE
Bed Linens	TRUE
Cold Air	TRUE
Basket	TRUE
Sportswear	TRUE
Soft Steam	TRUE
Pillows	TRUE
DryFresh	TRUE

Drying extras

Anti-crease action	TRUE
Gentle tumble	TRUE
Freshen up	TRUE
Acoustic signal	TRUE

Quality

Soft ribs

TRUE

Safety

Lock code	TRUE
Empty out container" indicator	TRUE
Clean filter" indication	TRUE
Optical interface	TRUE

Technical data

Dimensions (width) in in. (mm)	23 1/2 (596)
Dimensions (H x W x D) in inches (mm)	33 1/2 (850) x 23 1/2 (596) x 25 3/8 (643)
Dimensions (height) in in. (mm)	33 1/2 (850)
Dimensions (depth) in in. (mm)	25 3/8 (643)
Depth with door open in in. (mm)	42 1/2 (1077)
Weight in lbs. (kg)	135 (61)
Total connected load in kW	1
Voltage in V	120
Fuse rating in A	15
Frequency in Hz	60
Length of supply lead in ft. (m)	6 (2)
Type of coolant	R134a
Refrigerant quantity in lbs (kg)	1.036 (0.470)

Standard accessories

Fragrance flacon	TRUE
Voucher for a second fragrance flacon	TRUE

Available display languages

Available display languages via MultiLingua	ελληνιкά
Available display languages via MultiLingua	čeština
Available display languages via MultiLingua	繁體中文
Available display languages via MultiLingua	slovenčina
Available display languages via MultiLingua	slovenščina
Available display languages via MultiLingua	中文
Available display languages via MultiLingua	polski
Available display languages via MultiLingua	français (FR)
Available display languages via MultiLingua	magyar
Available display languages via MultiLingua	nederlands
Available display languages via MultiLingua	hrvatski
Available display languages via MultiLingua	yкраїнська
Available display languages via MultiLingua	bahasa malaysia
Available display languages via MultiLingua	italiano
Available display languages via MultiLingua	english (GB)
Available display languages via MultiLingua	deutsch
Available display languages via MultiLingua	türkçe
Available display languages via MultiLingua	suomi
Available display languages via MultiLingua	dansk
Available display languages via MultiLingua	日本語
Available display languages via MultiLingua	română
Available display languages via MultiLingua	english (AU)
Available display languages via MultiLingua	english (CA)
Available display languages via MultiLingua	español
Available display languages via MultiLingua	srpski
Available display languages via MultiLingua	العربية
Available display languages via MultiLingua	svenska
Available display languages via MultiLingua	norsk
Available display languages via MultiLingua	français (CA)
Available display languages via MultiLingua	pусский
Available display languages via MultiLingua	english (US)
Available display languages via MultiLingua	português
Available display languages via MultiLingua	한국어

Dimensions & weight

Width	23.46 in.
Height	33.46 in.
Length	25.31 in.
Weight	296.48 lbs.
Gross Weight	144.4 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	25.98 in.
Shipping Height	37.01 in.
Shipping Length	27.17 in.
Shipping Weight	336.48 lbs.
Source	Manufacturer
Total of Shipping Weight	336.48 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	15.12 ft³
Cubic Feet Measurement	11.50 ft³
Dimensional Weight	142.93 lbs.
Total of Cubes	11.50 ft³
Total of Dimensional Weight	142.93 lbs.

Description

The brand Miele TXR860WP combines advanced heat-pump drying performance and high-capacity convenience in a space-saving design. Featuring innovative HeatPump EcoDry technology, it delivers gentle, low‑temperature drying while using minimal energy. The generous 4.03 cu. ft. stainless steel honeycomb drum protects fabrics and prevents snagging. Equipped with a range of drying programs—including delicate, timed dry, refresh, and anti‑crease options—plus intuitive DirectSensor touch controls, this compact 24" dryer ensures precise, user‑friendly operation. Finished in elegant Lotus White, it blends seamlessly into modern laundry spaces while delivering quiet, efficient performance.

Manuals & Guides

Key Features

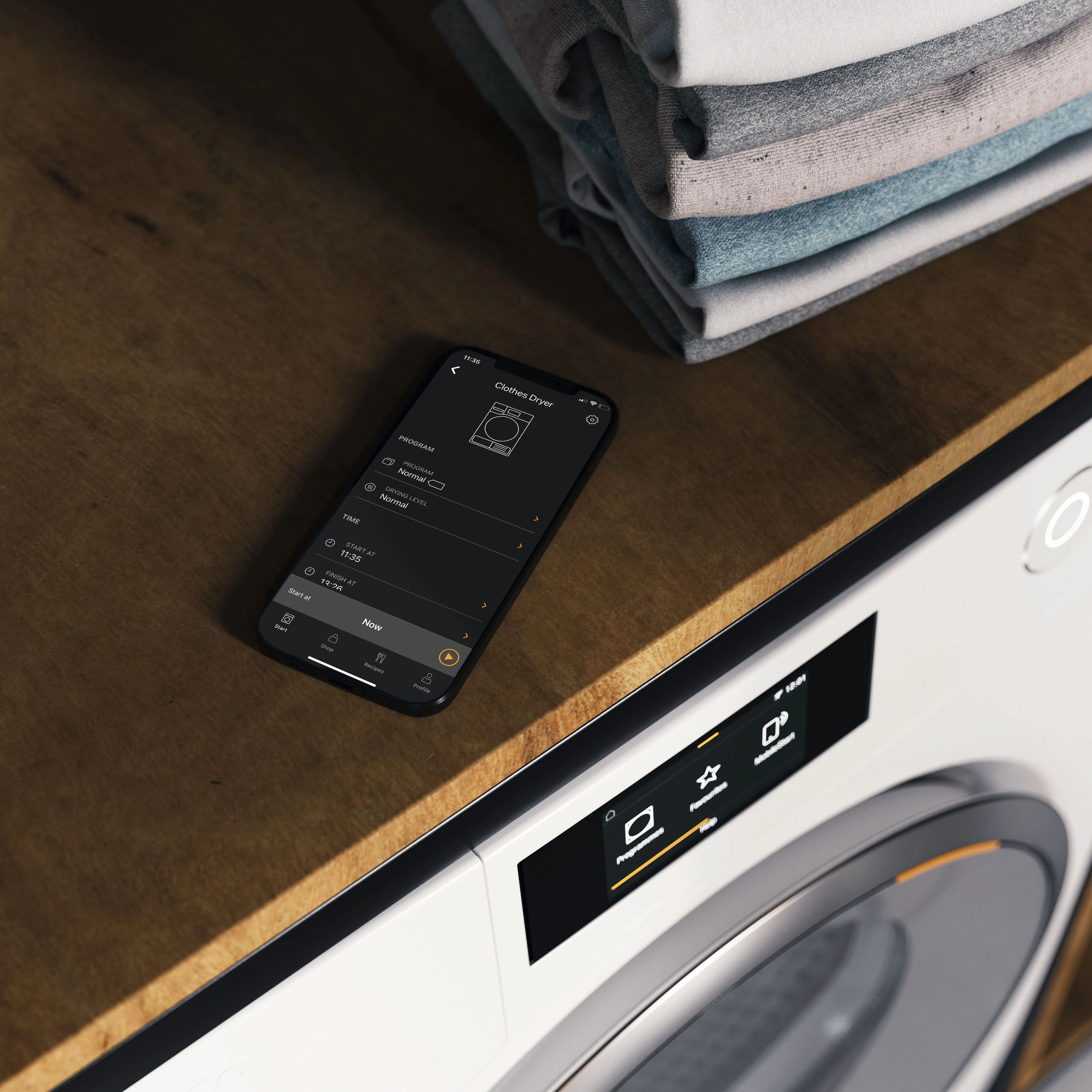

Miele@home

Enjoy modern convenience by connecting your tumble dryer to the Miele app. This allows you to control your appliance from anywhere in your home. Receive notifications when your laundry is ready, monitor energy consumption, create customized programs, and much more.

Integrated condensed water drainage

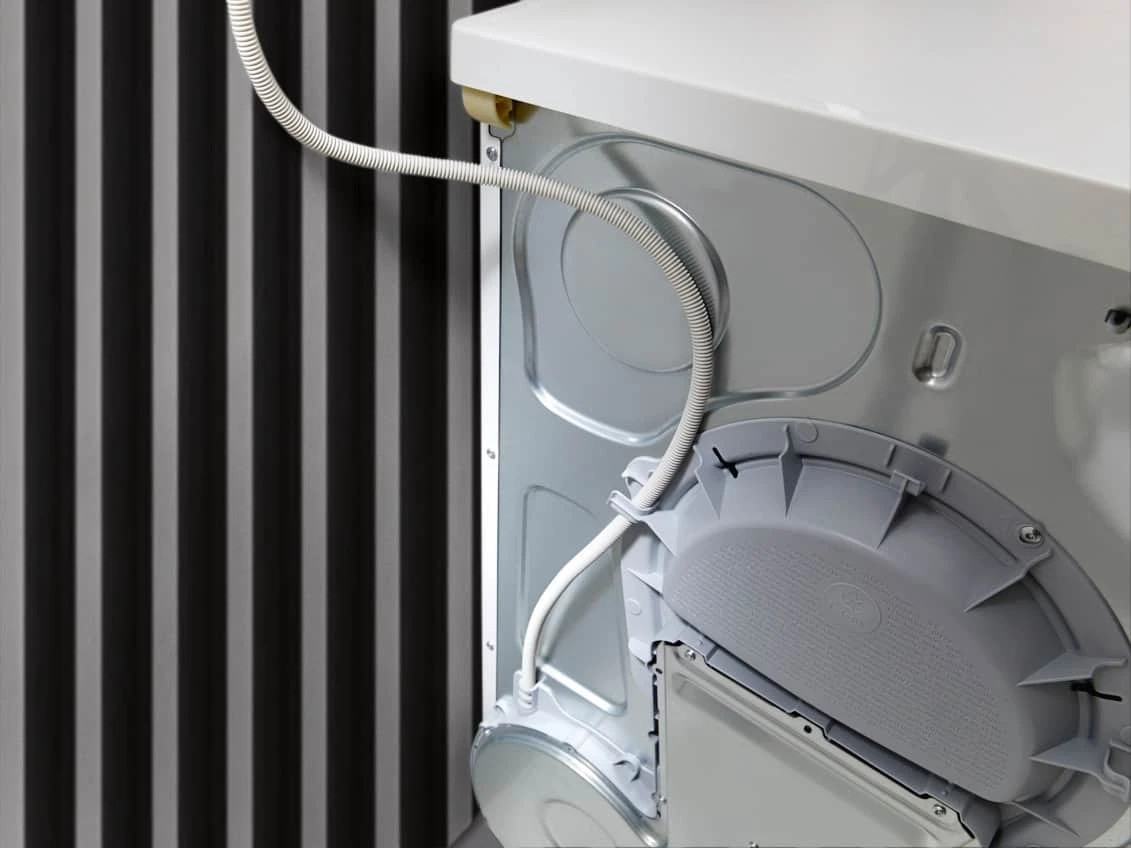

All Miele Heat-Pump Dryers feature integrated condensed water drainage with a hose tie. As a result, you can pump out condensate into a sink or a siphon and save yourself the trouble of emptying the condensate container.

AddLoad

Whether it’s a pair of jeans, a blouse, or just a sock: Thanks to the AddLoad function, you can easily add any laundry items that you’ve forgotten – a handy feature that saves having to dry them separately.

PerfectDry

Minerals affect the measurement of residual moisture, which in turn has a direct effect on your drying results. PerfectDry measures the current mineral content of the water and adapts the drying process accordingly so that your laundry is dried perfectly – the results are neither too damp nor too dry.

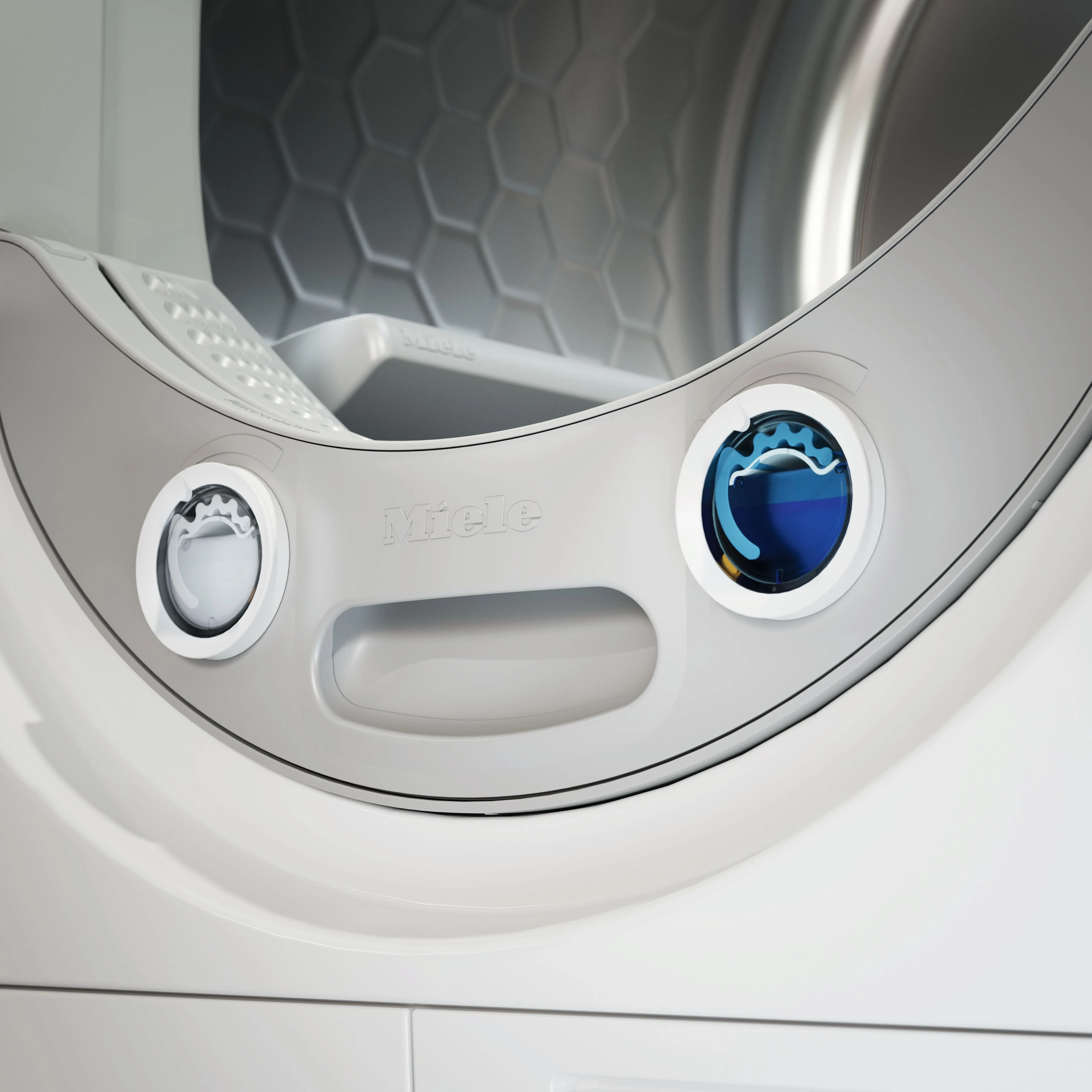

FragranceDos fragrance system

Our FragranceDos system has room for one or two flacons (depends on the model) of your favorite fragrance, ensuring that all clothing leaving your dryer is scented just the way you like. There is a varied selection of timeless scents available to choose from, with the option to control the intensity of the fragrance, or not apply an extra scent at all.

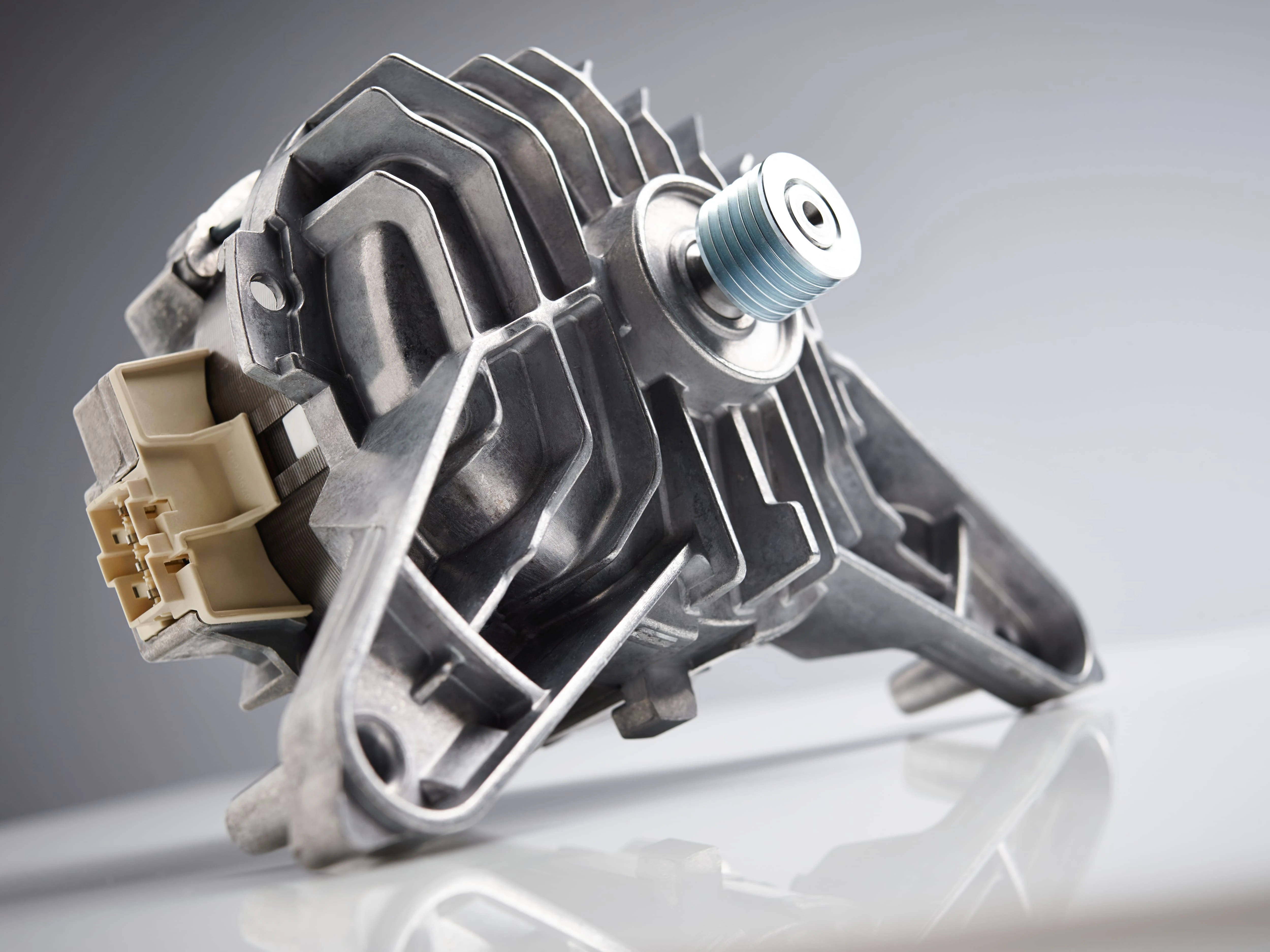

ProfiEco motor

The ProfiEco motor from Miele is a powerful inverter drive that deploys its energy economically and quietly. Thanks to an electronic control system and the absence of carbon brushes, it operates almost wear-free. This innovative design ensures many years of efficient, worry-free, and convenient laundry care.

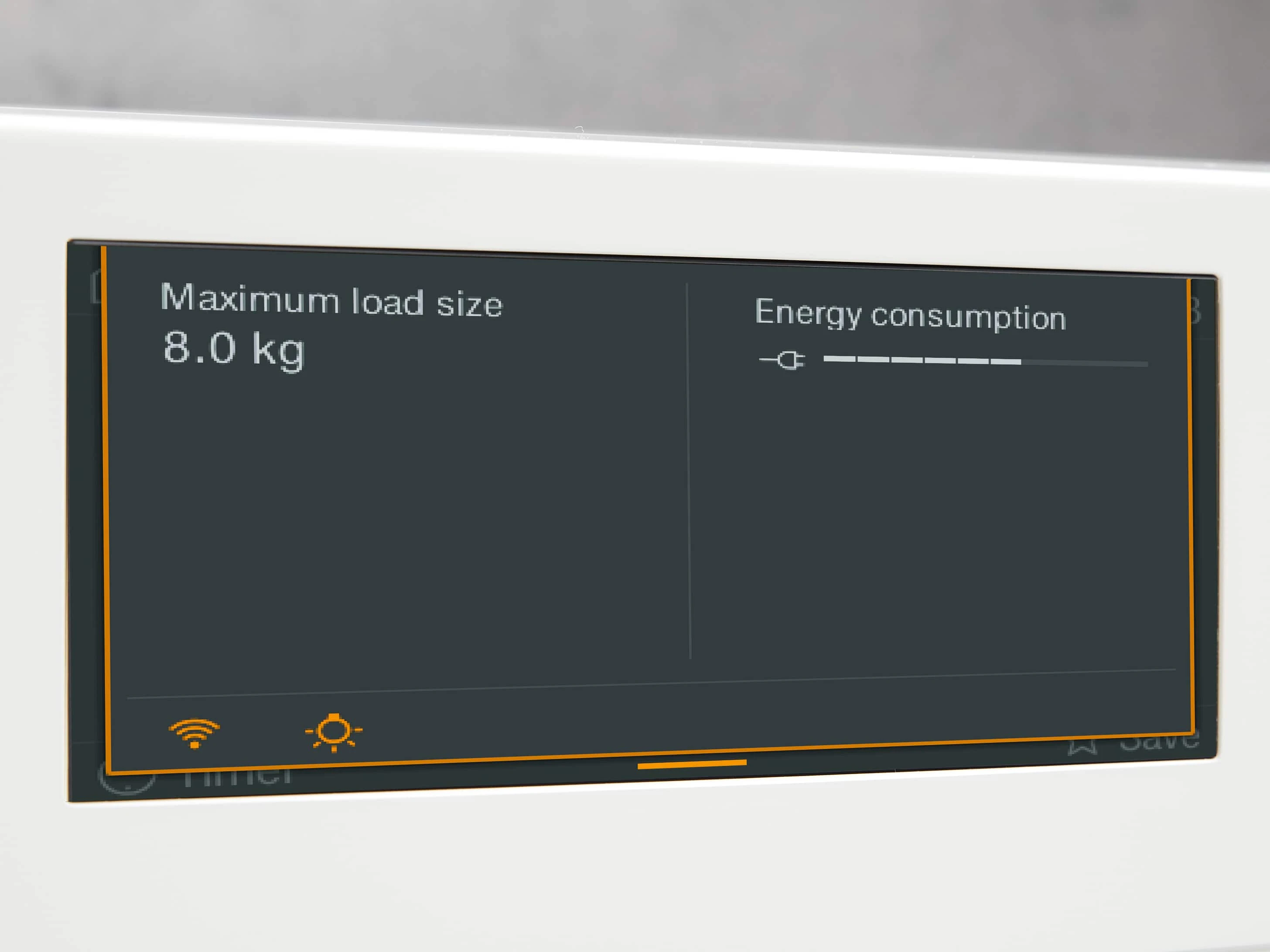

EcoFeedback

Miele tumble dryers with EcoFeedback carefully monitor energy consumption, enabling you to adapt and optimize your drying habits as needed. At the end of the program, you will receive an electricity consumption report that also takes account of the specific load.

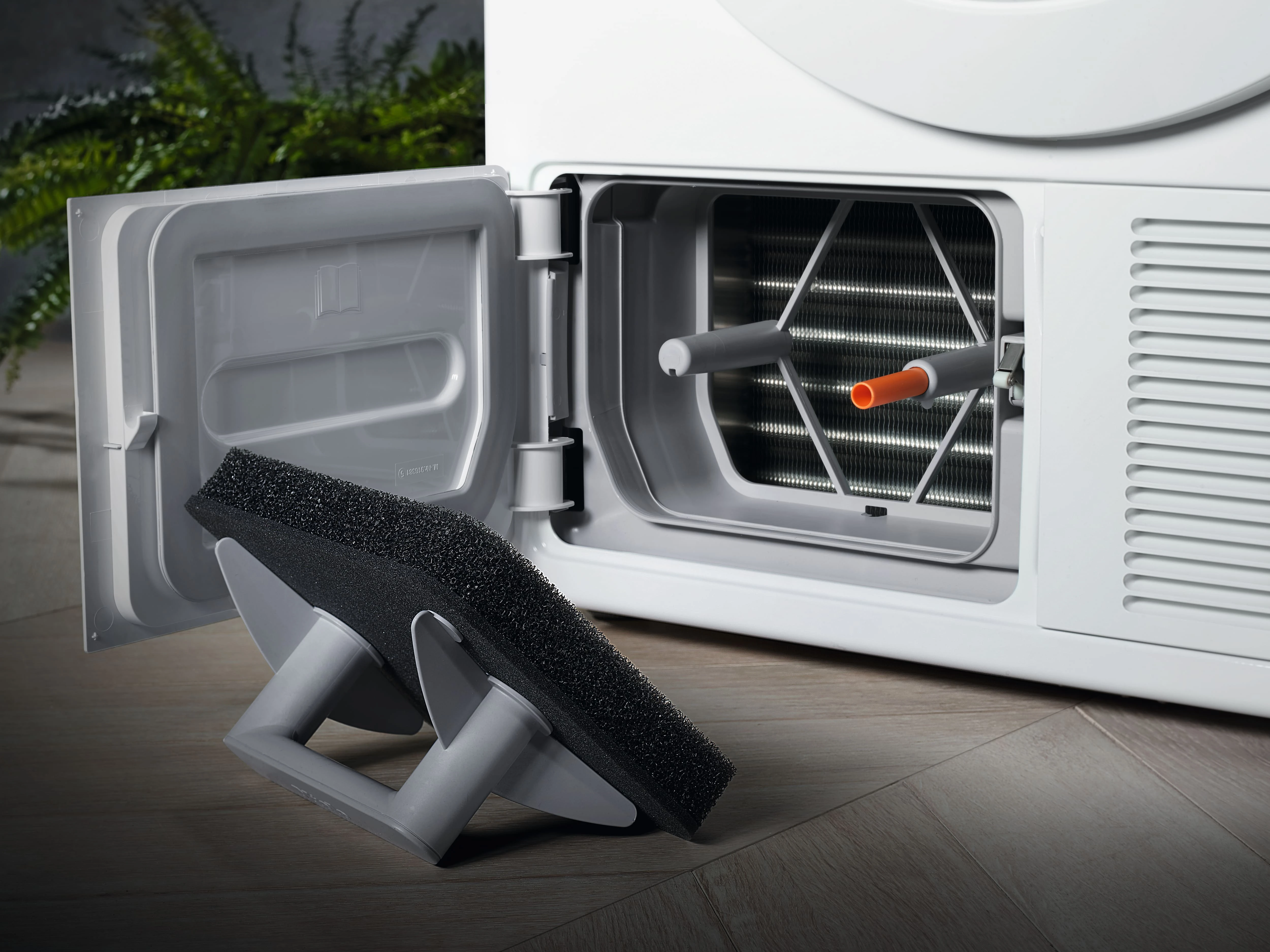

Maintenance-free heat exchanger

In Miele heat pump dryers, the heat exchanger is protected by an effective filtration system and does not require cleaning. This ensures that throughout the complete service life of your appliance, you will benefit from consistently low energy consumption. Not just during the first years of ownership.

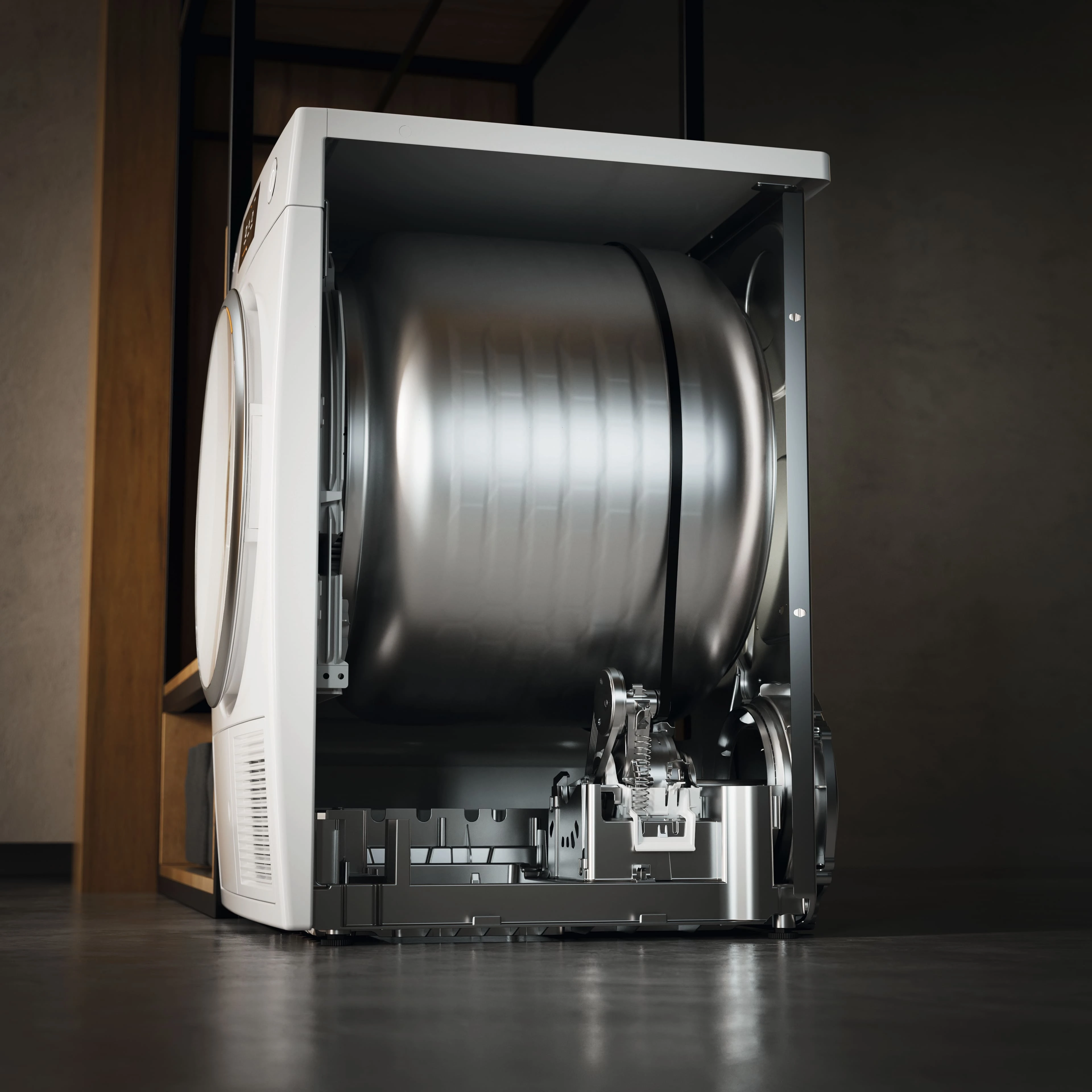

EcoDry technology

Our tumble dryers with EcoDry technology dry a full load of laundry quickly with minimum energy consumption. What’s more, our patented filter system (patent EP 2 455 537) prevents fluff from blocking up the heat exchanger. It is through this synergy that Miele tumble dryers are able to maintain their performance throughout their service life and deliver impressively short program runtimes.

Tested for the equivalent of 20 years’ use

While some car engines are subjected to 3,000 hours of tests, we test continuous performance for up to 7,500 hours. Day and night. Comprehensive and precise. So you can benefit from outstanding results, year after year.

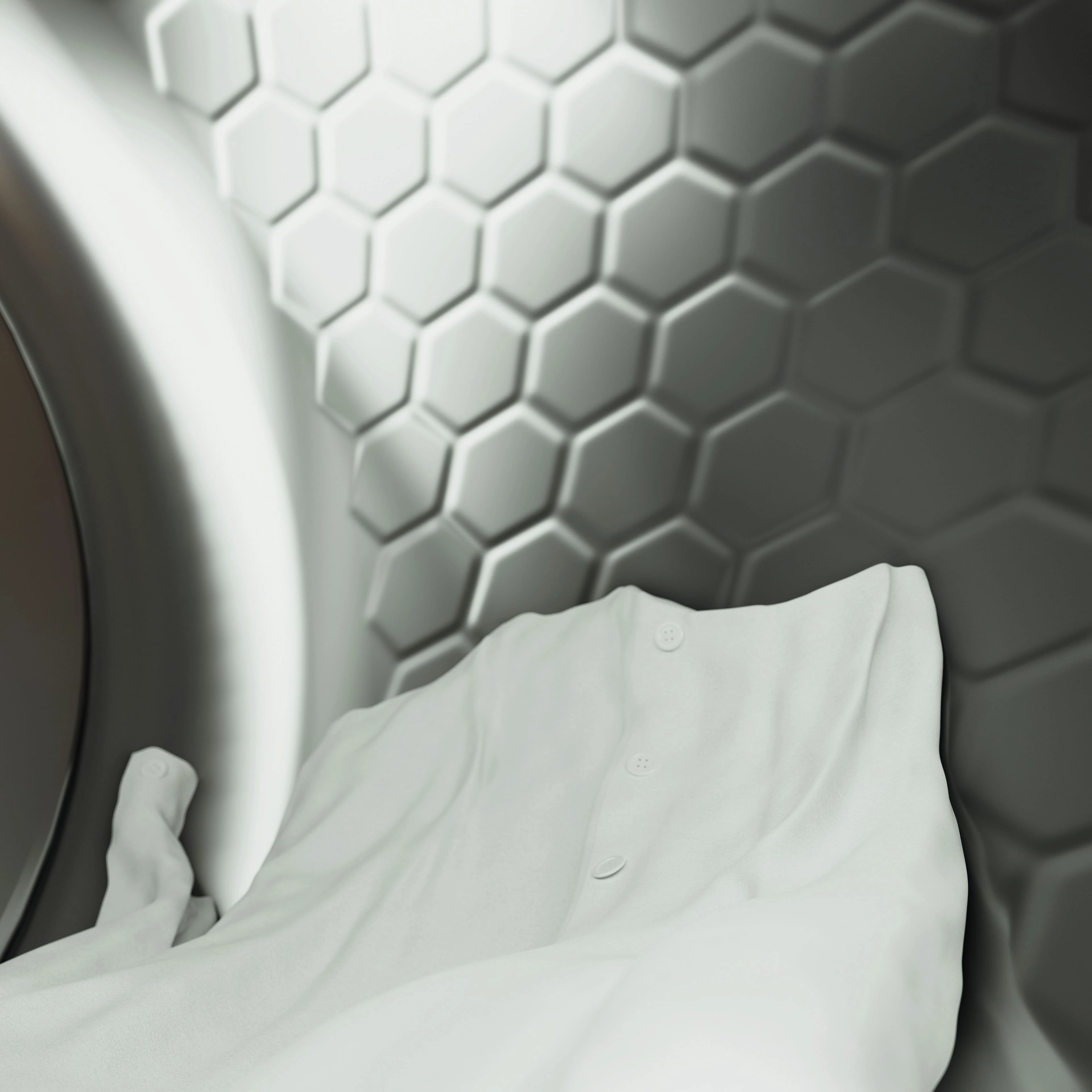

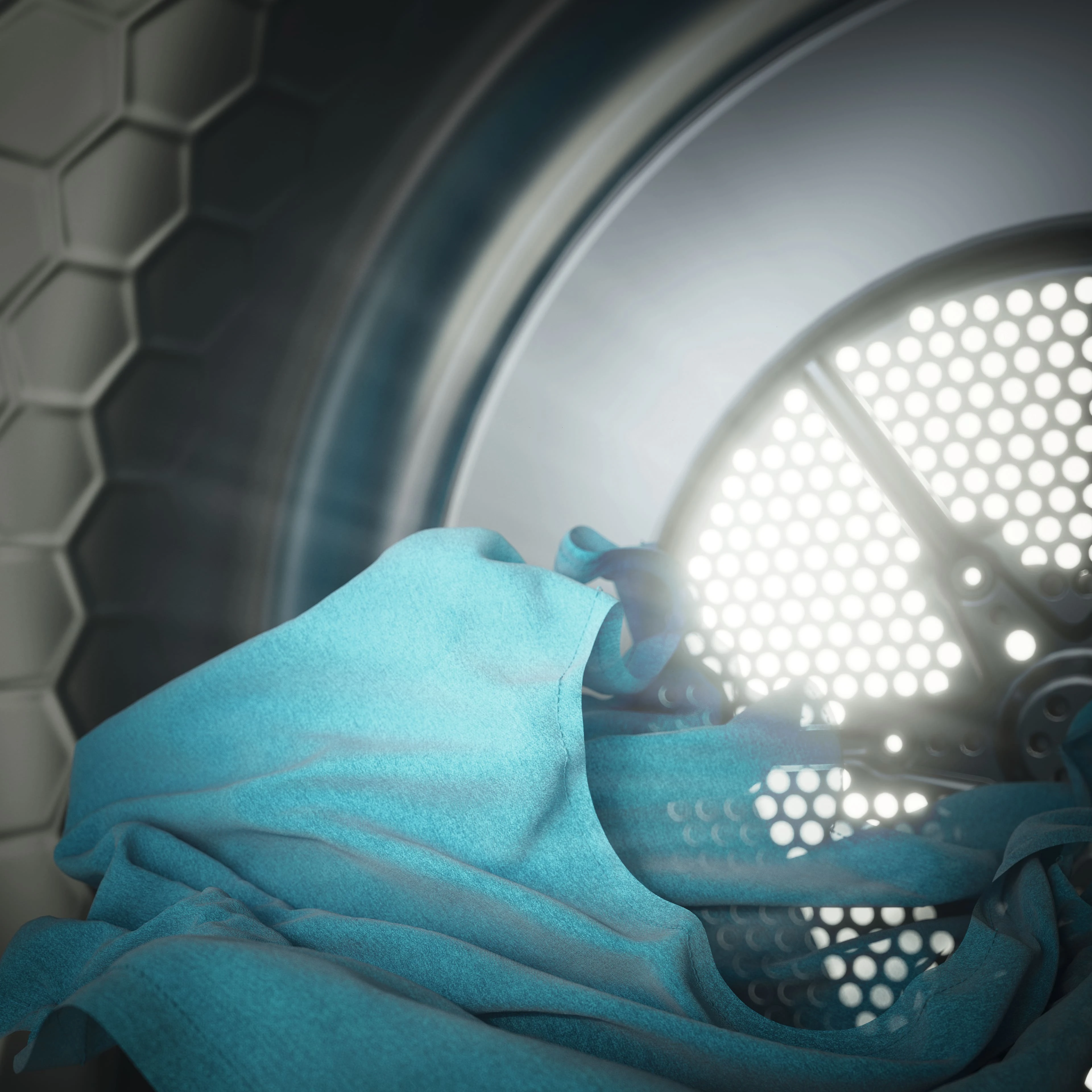

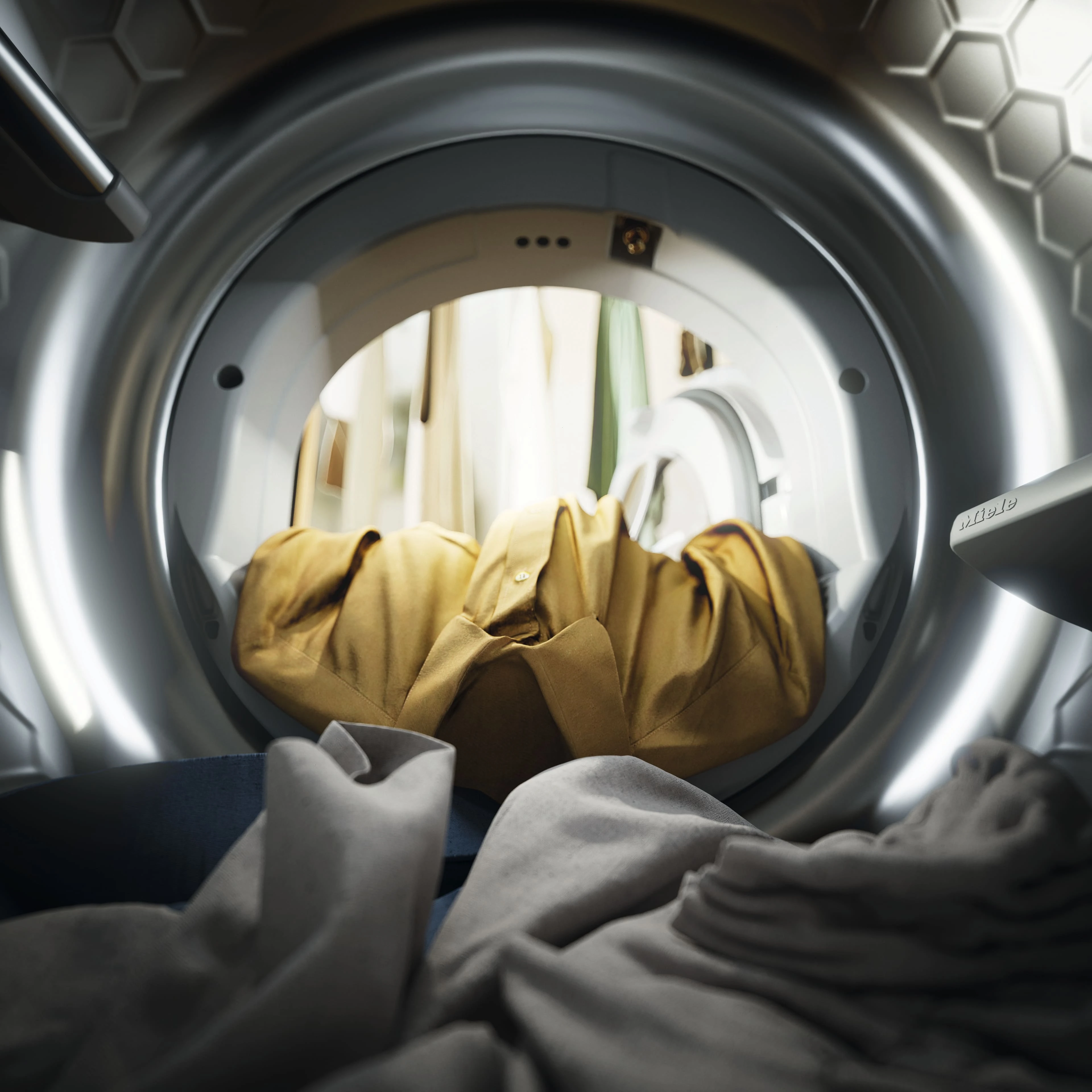

Honeycomb drum

The unique honeycomb structure lifts the laundry up higher inside the rotating drum, so that the items being dried are suspended in the flow of hot air for longer and dried more evenly. Tiny air cushions form in the honeycomb structure and catch the laundry on its way back down. The drying process is much gentler on your laundry, which will be less crinkled at the end of the program. An additional bonus is that ironing is quicker and easier.

Anti-crease

If you cannot remove your laundry immediately after the program has finished, Anti-crease ensures that the laundry is loosened at regular intervals and does not crease.

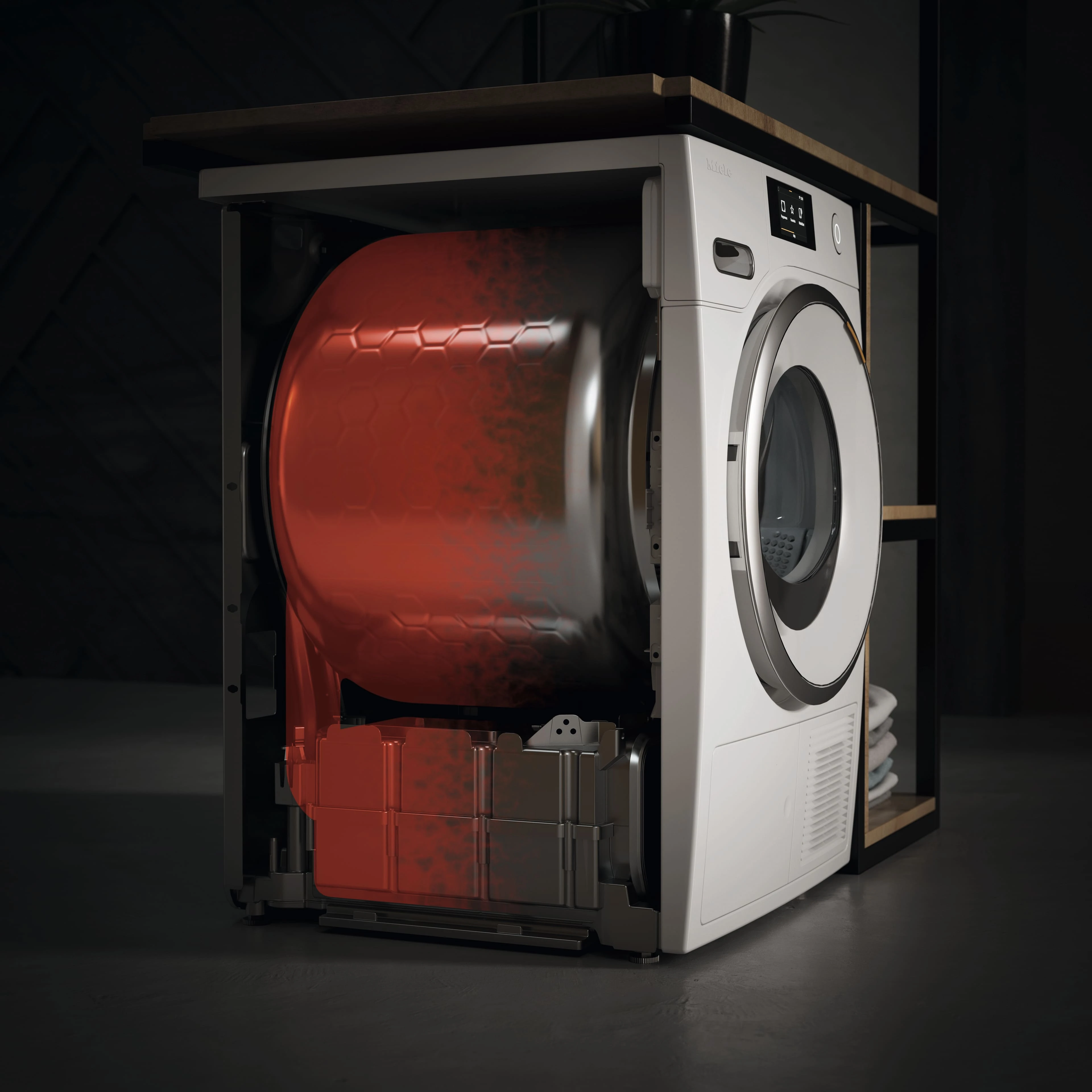

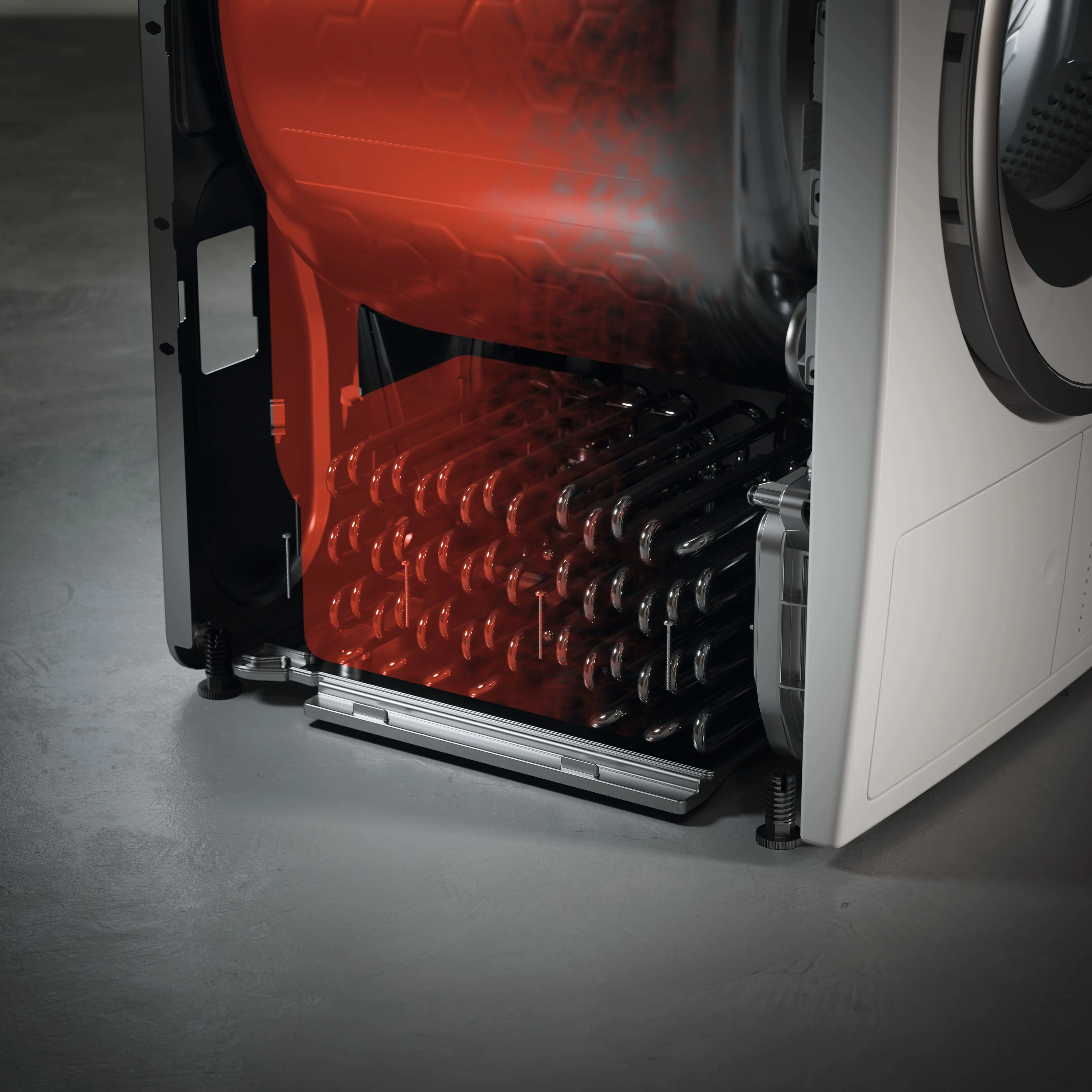

Heat-pump technology

Tumble dryers with heat pumps are renowned for their energy efficiency. As well as drying costing you less, the low temperatures protect the high-quality fibers of your laundry. This means that you can dry delicate items without worrying about damage and unnecessary wear.
