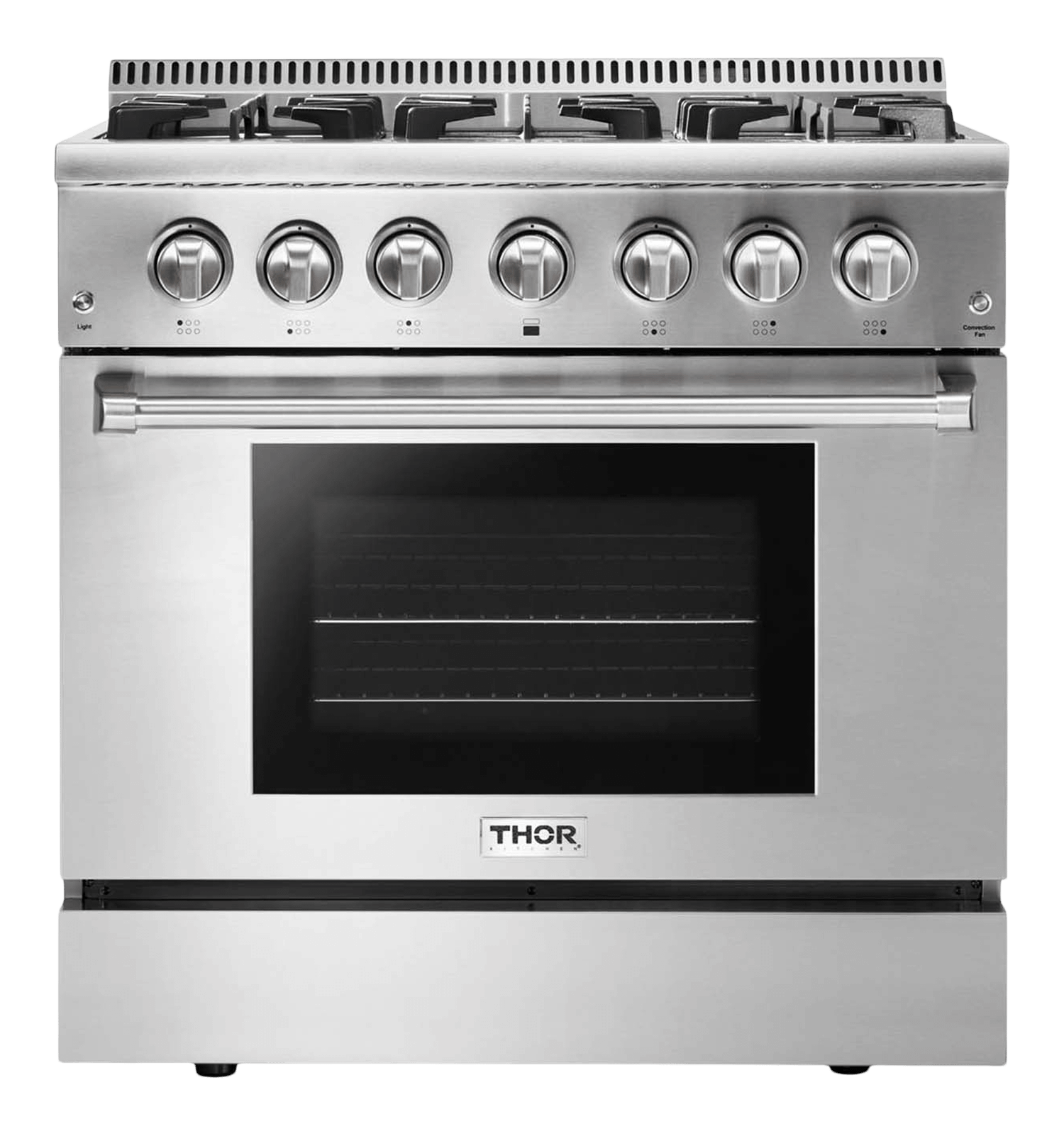

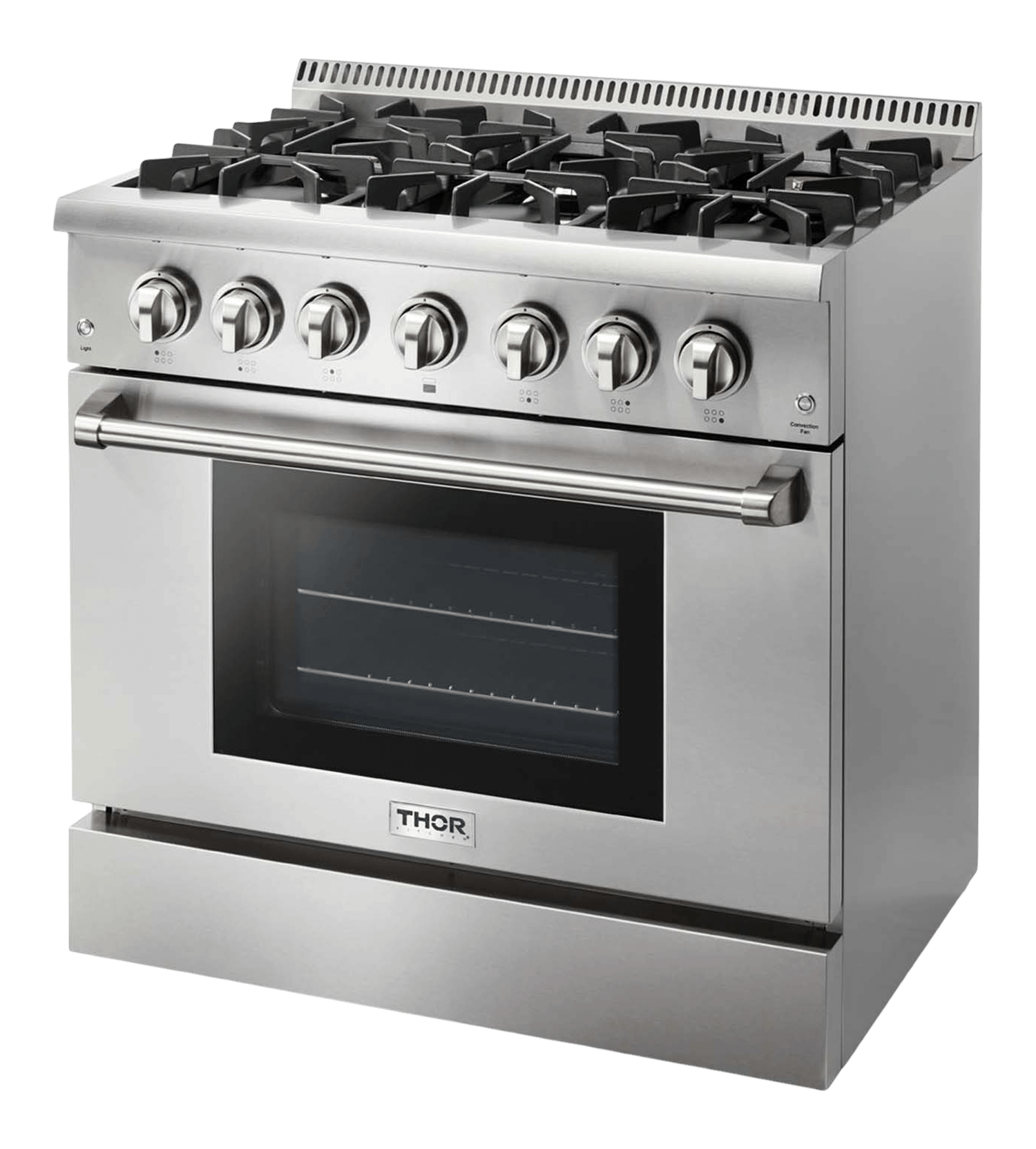

Product Details for Thor Kitchen HRD3606ULP
Technical Details
Technical details
| Fuel Type | Liquid Propane Ready |
| Installation Type | Freestanding |
| Color | Stainless Steel |
| Electrical Requirements | 240 |
| Circuit Breaker (A) | 30 |
| Frequency (Hz) | 60 |
| Controls Type | Knob |
Burner performance
| Total Burners | 4 |
| [1] Front Left (Single) | 18 |
| [2] Front Middle (Single) | 18 |
| [3] Front Right (Single) | 18 |
| [4] Rear Left (Dual Burner with simmer function) | 15 |
| [5] Rear Middle (Single) | 12 |
| [6] Rear Right (Dual Burner with simmer function) | 15 |
Oven performance
| Oven Capacity | 6.1 |
| Bake Power | 850 |
| Broil Power | 3 |
Dimensions
| Product Width | 36.0 |
| Product height (from bottom to top of back splash) | 38 1/2 -39 1/2 |
| Product height (from bottom to top of side panel) | 35 15/16 - 36 15/16 |
| Product depth (from back panel to bullnose) | 27 7/8 |
| Product depth (from back panel to control board) | 26 1/2 |
| Product depth (from back panel to side panel front) | 24 3/16 |
| Depth of control panel (minimum | 2 1/4 |
| Depth of control panel (bullnose) | 3 11/16 |
| Cast iron cooking grate (W x L) | 10 3/4 x 23 |
Oven dimensions
| Oven Cavity Dimension | 30 |
| Oven Rack Dimension | 28 3/4 x 15 1/2 |
| Distance Between Oven Rack | 2.13 |
Weight
| Adjustable Leg Sizes | 1.0 |
| Net weight | 277 |
| Gross weight | 327 |
Cutout
| Cutout Height | 35 15/16 (+1 ) |
| Cutout Width | 36 1/8 |
| Cutout Depth | 24 3/16 |
Accessories not included
| 36-inch Telescopic Rack | TR36SS |
| 36-inch Island Trim | ITHRD3606U |
| Wok ring | WK01 |
| Cast Iron Reversible Griddle | RG1022 |
Features
- Heating element distributes heat evenly for excellent broiling and baking
- From a high-powered 18,000 BTU burner to a burner with a steady 650 BTU simmer function, this range gives you the power you need for large family meals and the consistent low heat desired for cooking delicate sauces or melting chocolate
- Telescopic racks use ball bearing rack guides for an effortless glide in and out of the oven. This luxury feature allows the rack to extend fully without tipping over for smooth, easy handling of even the heaviest dishes, and adjusts to fit different rack support levels
Description
Key Features

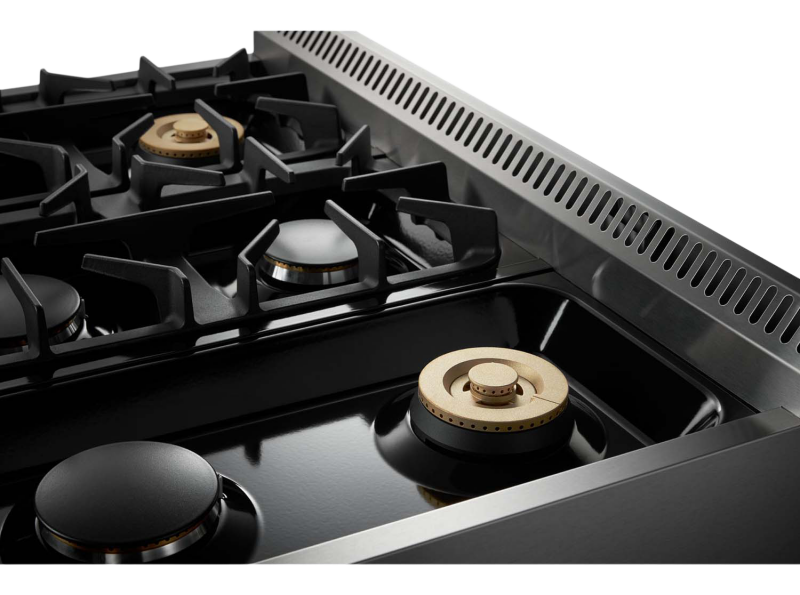

High-powered Btu Burners
From a high-powered 18,000 BTU burner to a burner with a steady 650 BTU simmer function, this range gives you the power you need for large family meals and the consistent low heat desired for cooking delicate sauces or melting chocolate
HIGH-POWERED BTU BURNERS
From a high-powered 18,000 BTU burner to a burner with a steady 650 BTU simmer function, this range gives you the power you need for large family meals and the consistent low heat desired for cooking delicate sauces or melting chocolate

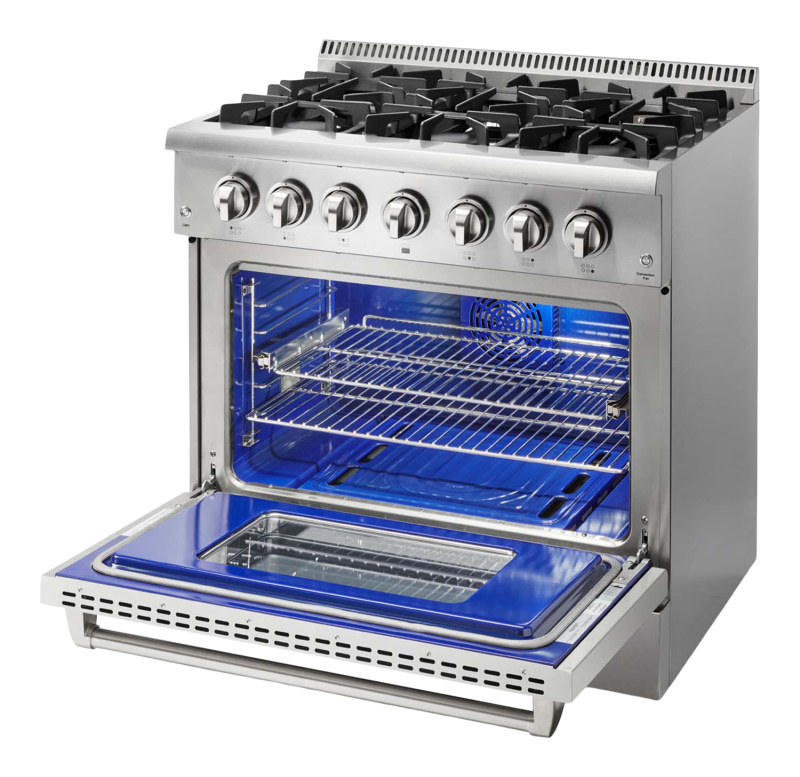

Luxglide™ Telescopic Racks
Telescopic racks use ball bearing rack guides for an effortless glide in and out of the oven. This luxury feature allows the rack to extend fully without tipping over for smooth, easy handling of even the heaviest dishes, and adjusts to fit different rack support levels
LUXGLIDE(TM) TELESCOPIC RACKS
Telescopic racks use ball bearing rack guides for an effortless glide in and out of the oven. This luxury feature allows the rack to extend fully without tipping over for smooth, easy handling of even the heaviest dishes, and adjusts to fit different rack support levels
Energy Efficient Heating
Heating element distributes heat evenly for excellent broiling and baking
ENERGY EFFICIENT HEATING
Heating element distributes heat evenly for excellent broiling and baking
Commercial Convection Fan
Convection fan provides controlled heat distribution for fast and efficient cooking
