Product Details for SUMMIT WNM430P

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Dimensions & weight

Width 36 in.
Height 44 in.
Length 24 in.
Weight 180 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 22 ft³
Dimensional Weight 273.5 lbs.
Total of Cubes 22 ft³
Total of Dimensional Weight 273.5 lbs.

Overview gas range

Nominal Height 44.0" (112 cm)
Height of Cabinet 44.0" (112 cm)
Nominal Width 36.0" (91 cm)
Width 36.0" (91 cm)
Nominal Depth 24.0" (61 cm)
Depth 24.0" (61 cm)
Door White
Cabinet White
Weight 180.0 lbs. (82 kg)
Parts & Labor Warranty 1 Year
UPC 761101029528
Ignition Battery Start
LP Convertible With Kit LPP Accessory
Oven Capacity 2.92 cu.ft
Cooktop Surface Porcelain
Burner Type Open
Number of Burners 4
Burner #1 BTU 9000.0
Burner #2 BTU 9000.0
Burner #3 BTU 9000.0
Burner #4 BTU 9000.0
Burner Controls Dial
Oven Controls Dial
Backguard Yes
Cleaning Type Manual
Oven Interior Height 14.0" (36 cm)
Oven Interior Width 19.0" (48 cm)
Oven Interior Depth 19.0" (48 cm)
Broiler Location Below Oven
Oven Door White

Description

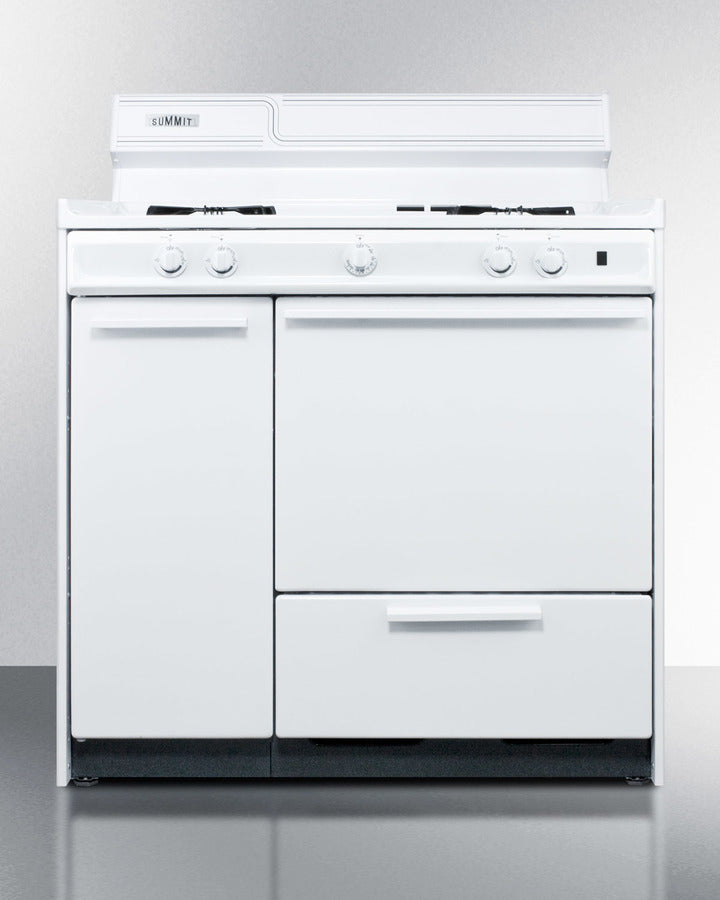

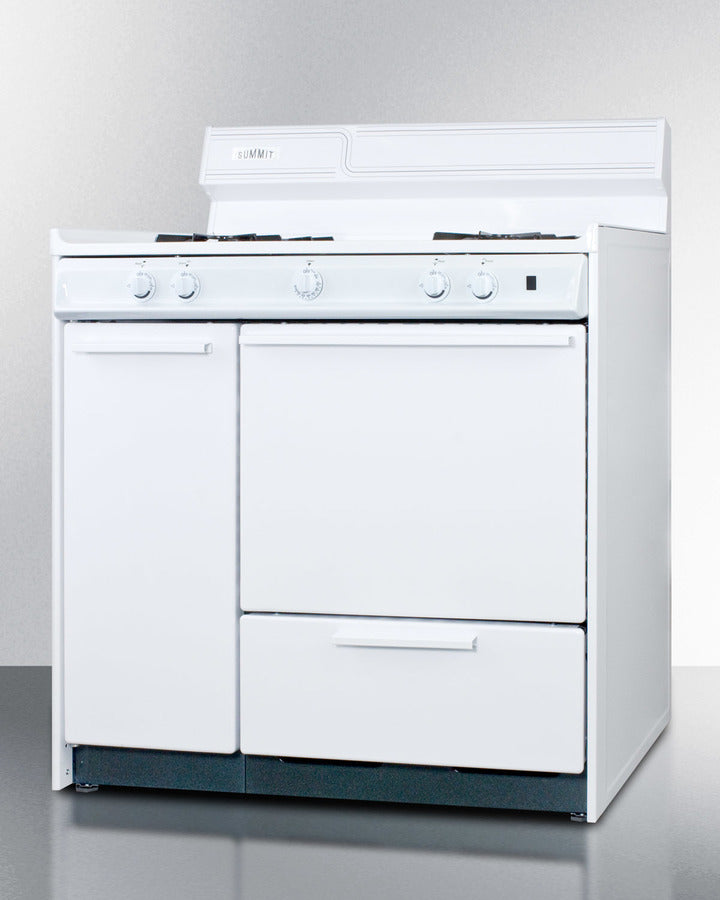

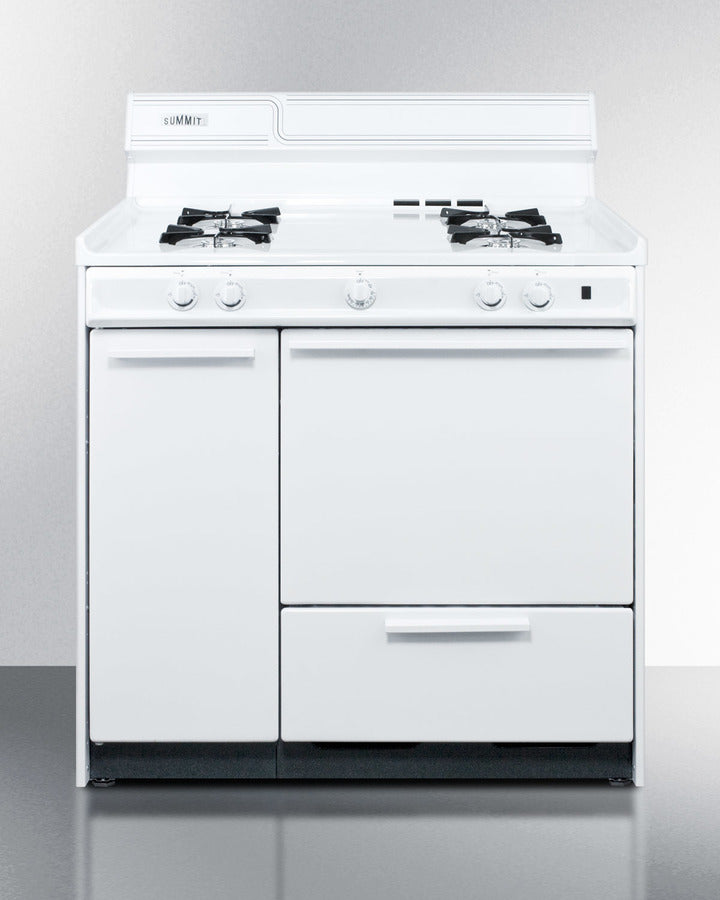

Summit Appliance offers a wide selection of American-made household ranges built to last in space-challenged kitchens, including off-grid settings with non-traditional power needs. Sized at 36" wide, the WNM430P is a complete gas range with four open 9000 BTU burners, a 2.92 cu.ft. oven, and lower drop-down broiler compartment. It utilizes battery start ignition, ideal for rural areas or other homes not using electricity to power appliances. This item is set for natural gas. To convert for propane use, add accessory Kit LPP. With a classic white exterior, the WNM430P matches any kitchen style. It is sized with a convenient 24" depth, ideal for L-shaped or galley kitchens where every inch counts. The recessed door design helps to protect adjacent cabinetry. Upfront push-to-turn knobs ensure easy, safer cooking, preventing users from reaching over hot burners to adjust the heating. Inside, the porcelain oven includes two adjustable racks to accommodate a variety of sizes. Made in the USA, Summit's slim-fitting ranges offer lasting durability in the prefect fit. Additional sizes and styles are available. Browse our full selection to explore your choices.


Product Features

  • Made in the USA
    Designed and constructed domestically
  • 36 inch wide range
    Uniquely sized to fit many older kitchen spaces
  • 24 inch depth
    Shallower fit is ideal for L-shaped and galley kitchens
  • Battery start ignition
    Uses a 9V battery to ignite the oven and burners, providing a convenient off-grid solution to kitchens previously using pilot lights when no electricity is available
  • 4 open burners
    9000 BTU burners with built-in enamel grates to meet most cooking needs
  • Natural gas design
    Set for use with natural gas connection. To convert for propane use, add Kit LPP
  • Broiler compartment
    Lower drop-down compartment for separate broiling with even heat distribution
  • Recessed oven door
    Smart design limits the depth and protects adjacent cabinets

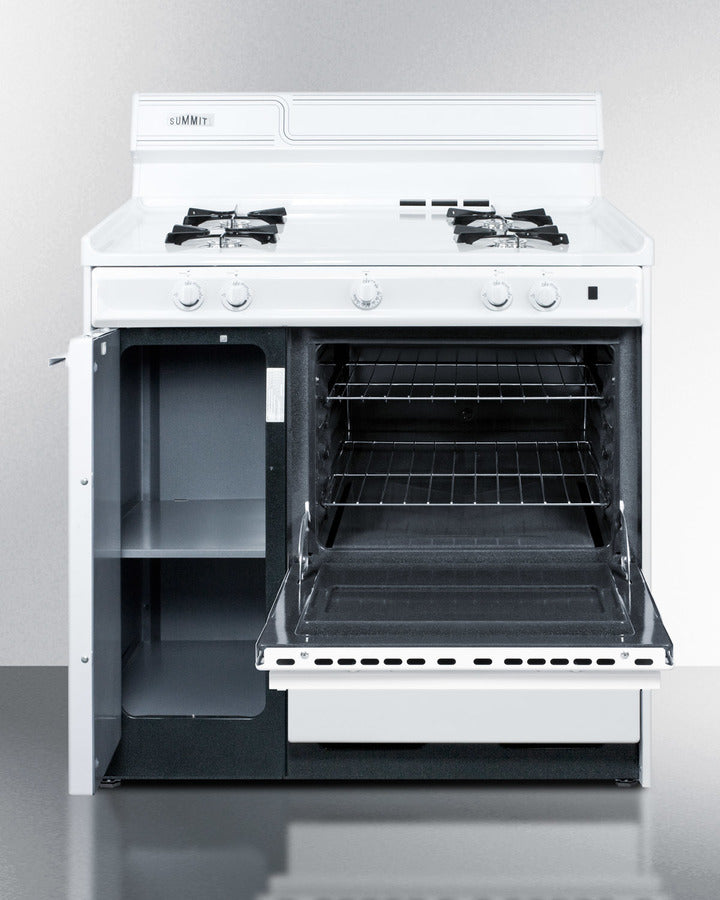

  • Storage cabinet
    12" wide storage cabinet included in body, with a removable shelf to help store cookware, smaller appliances, non-perishable food, and other items
  • Upfront controls
    Push-to-turn knobs offer easier, safer access, preventing users from reaching over hot burners to adjust
  • Adjustable oven racks
    Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
  • ADA compliant design
    Upfront controls and easy-to-operate knobs offer easier accessibility
  • Porcelain and steel construction
    Lasting durability with solid construction inside and out designed to hold up to everyday kitchen use
  • Removable oven door and range top
    White porcelain oven door and top can be removed for easier cleaning
  • Anti-tip bracket included
    Included for user installation to help prevent tipping
  • Broiler tray included
    Two-piece porcelain broiler tray with grease well
  • White exterior finish
    Classic design in a clean white finish to match any kitchen
