SKU: WEM230KW | UPC: 761101054117

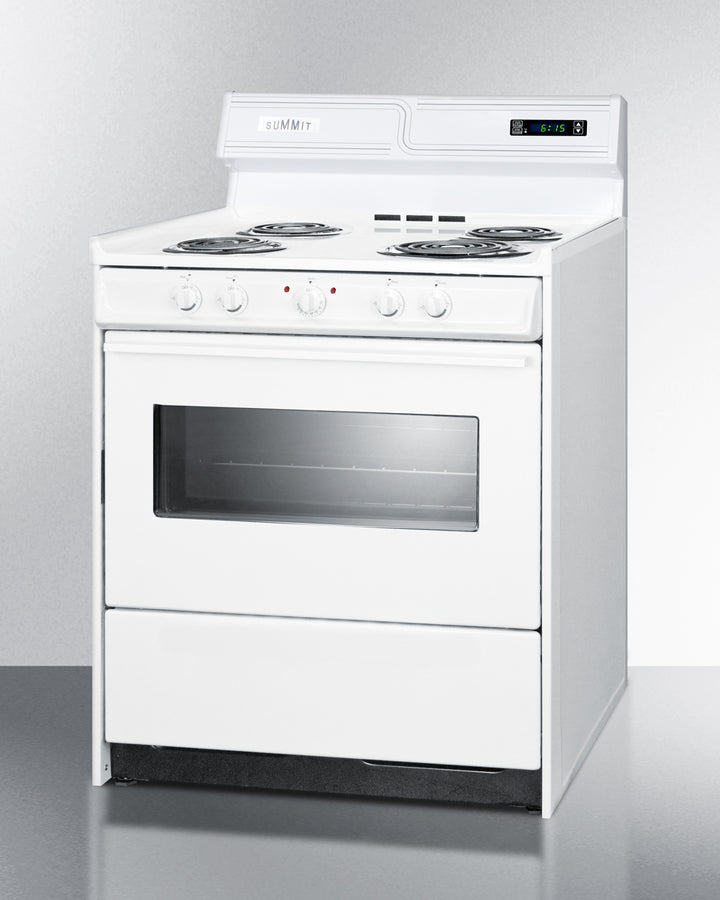

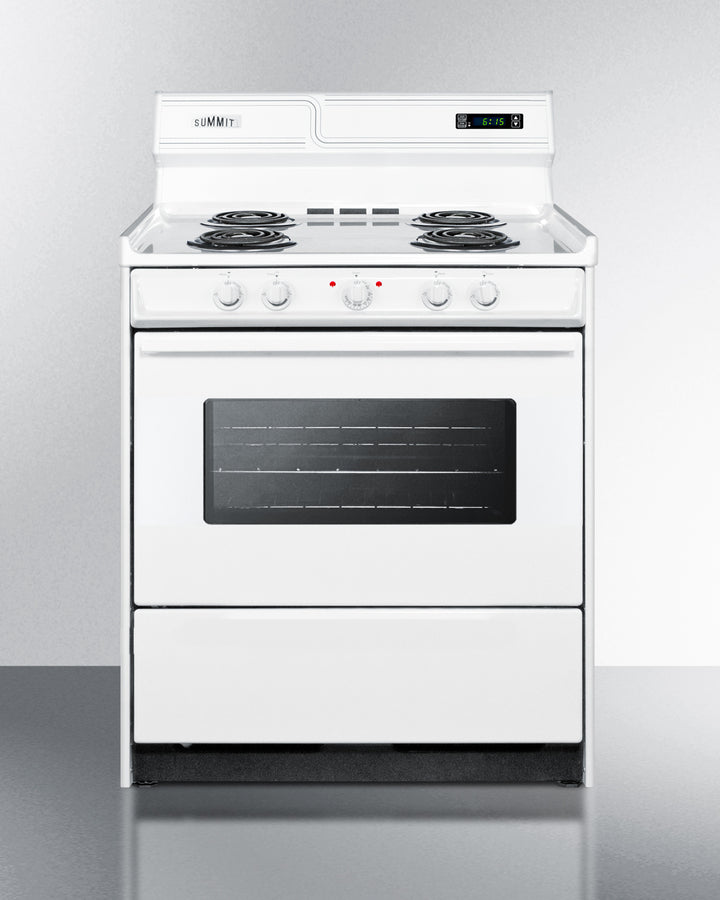

Summit WEM230KW 30" Wide Electric Coil Top Range White

Quick Specification More details

Width:
30.0" (76 cm)
Depth:
24.0" (61 cm)
Type:
Freestanding Ranges

About this product

Made in the USA
30 inch wide range
Low amperage
24 inch depth

Summer Sale

Clearance

SKU: WEM230KW | UPC: 761101054117

Summit WEM230KW 30" Wide Electric Coil Top Range White

Active Rebates

Electrical Requirement Notice: This appliance may require a dedicated electrical circuit or special voltage (e.g., 120V or 240V). Please verify your home’s electrical setup or consult a licensed electrician before installation. If you have any questions, please contact us.

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
30.0" (76 cm)
Depth:
24.0" (61 cm)
Type:
Freestanding Ranges

About this product

Made in the USA
30 inch wide range
Low amperage
24 inch depth

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Product Details for SUMMIT WEM230KW

Technical Details

Overview electric range

Nominal Height	44.0" (112 cm)
Height of Cabinet	44.0" (112 cm)
Nominal Width	30.0" (76 cm)
Width	30.0" (76 cm)
Nominal Depth	24.0" (61 cm)
Depth	24.0" (61 cm)
Door	White
Cabinet	White
US Electrical Safety	CSA
Amps	23.2
Voltage/Frequency	220 V AC/60 Hz
Weight	175.0 lbs. (79 kg)
Parts & Labor Warranty	1 Year
UPC	761101054117
Oven Capacity	3.7 cu.ft. (105 L)
Cooktop Surface	Porcelain
Element Type	Coils
Number of Elements	4
Element #1 Size	6.0" (15 cm)
Element #1 Wattage	675.0
Element #2 Size	6.0" (15 cm)
Element #2 Wattage	675.0
Element #3 Size	6.0" (15 cm)
Element #3 Wattage	675.0
Element #4 Size	8.0" (20 cm)
Element #4 Wattage	950.0
Burner Controls	Dial
Oven Controls	Dial
Oven Light	Yes
Cooking Timer	Yes
Backguard	Yes
Backguard Display	Yes
Cleaning Type	Manual
Oven Window	Yes
Oven Interior Height	14.0" (36 cm)
Oven Interior Width	24.0" (61 cm)
Oven Interior Depth	19.0" (48 cm)
Storage Compartment	Yes
Broiler Location	Inside Oven
Oven Door	Black Glass

Description

Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens. The 23.2 amp design is ideal for kitchens with power limitations. The WEM230KW is an apartment-sized 220V electric range sized at 30" wide, with a generous 3.7 cu.ft oven interior that can accommodate large trays. The oven window and interior light with an on/off switch make it easy to monitor your cooking without opening the door. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. The lower drop-down storage compartment is ideal for keeping pots and pans out of the way in small kitchens. Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric ranges, allowing for a slow but steady heating process that will not cycle off. Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat. This unit complies with ADA guidelines. The WEM230KW comes in a classic white finish to suit any kitchen. It has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts. Porcelain and steel construction help the unit hold up to years of daily use. We include an anti-tip bracket for added safety. This unit does not include a line cord (a standard 25 or 30 amp 3 or 4-wire range cord can be installed by your electrician). With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 20", 24", and 36" wide fits.

Product Features

Made in the USA
Designed and constructed domestically
30 inch wide range
Standard size ideal for most kitchens

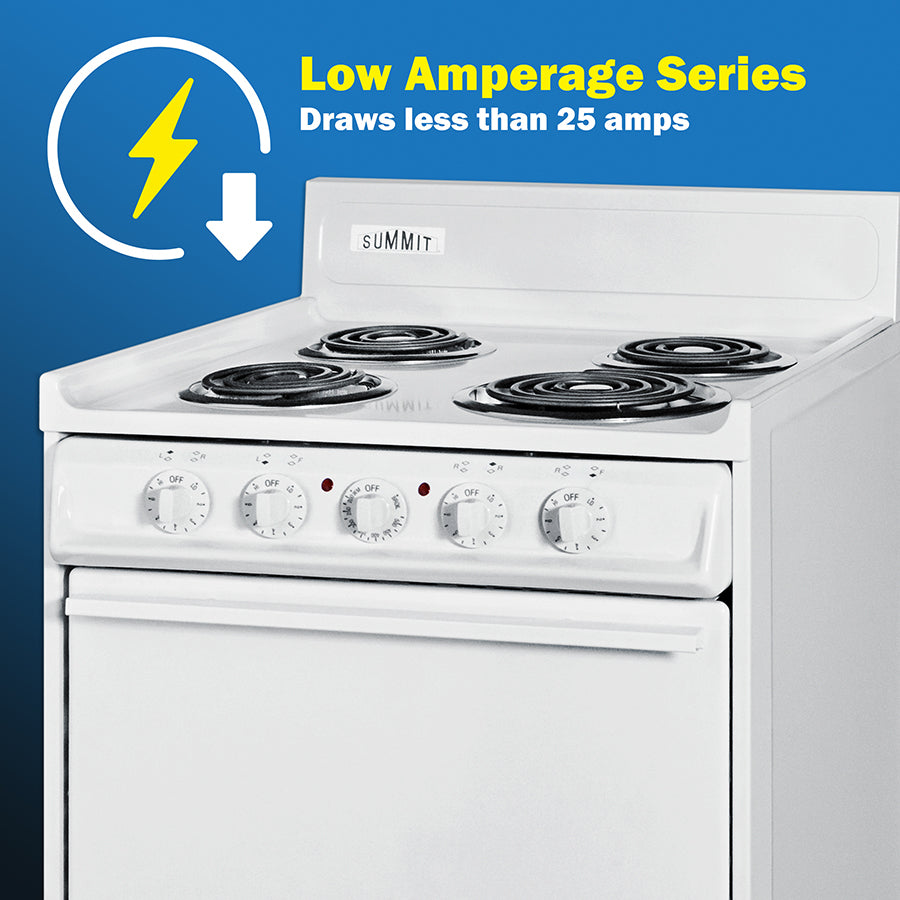

Low amperage
23.2 amp performance allows use with 25 or 30 amp breakers, ensuring full cooking performance in kitchens with limited power resources
24 inch depth
Shallower fit is ideal for L-shaped and galley kitchens
Storage compartment
Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen
Four coil elements
Three standard 6" and one large 8" element
Safety burners with low wattage outputs
Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
Chrome drip pans
Each coil element includes a removable chrome pan for easier cleaning
Waist-high broiler
Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor
Oven window and light
Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door

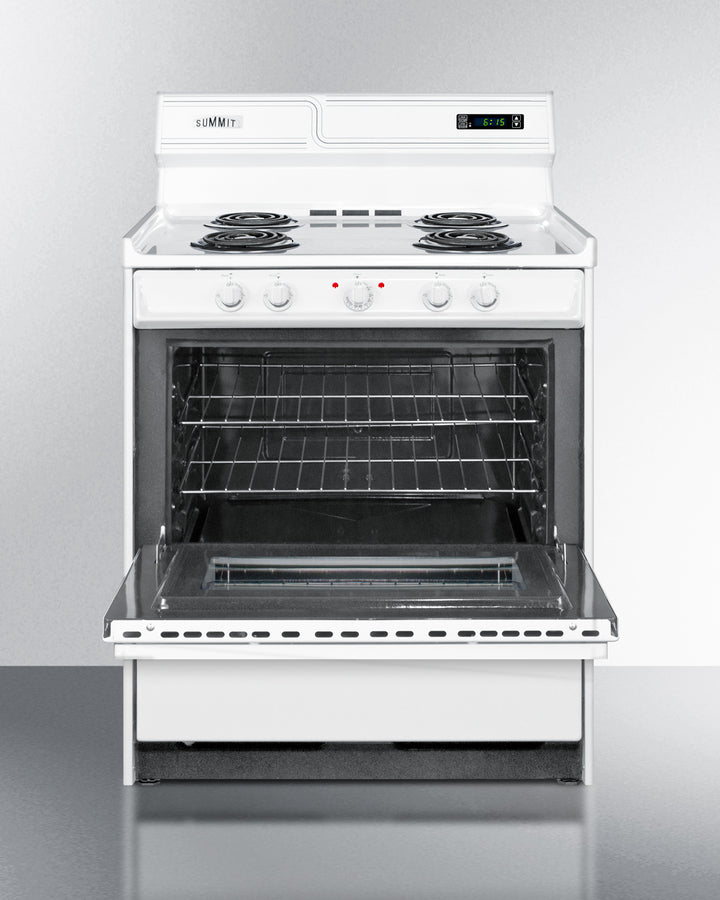

Adjustable oven racks
Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
Recessed oven door
Smart design limits the depth and protects adjacent cabinets
Porcelain and steel construction
Solid construction built to hold up to everyday use
Upfront controls
All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners
Push-to-turn knobs
Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn
Indicator lights
Control panel includes an 'on' light for the oven and burners for added safety when using the range
Removable oven door and range top
Allows for easier cleaning as needed
Deluxe backguard
High backguard to protect wall from back splashes
Digital clock and timer
Backguard includes time readout
Anti-tip bracket
Included for user installation to help prevent tipping
Broiler pan included
Two-piece porcelain broiler tray with grease well
Cord not included
Compatible with standard 25 or 30 amp 3 or 4-wire range cords
