Sale price $1,030.30 Regular price $1,239.97 Save $209.67 / 16% OFF

Product Details for SUMMIT WEM130DK

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Dimensions & weight

Width 20 in.
Height 44 in.
Length 24 in.
Weight 145 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 12.22 ft³
Dimensional Weight 151.94 lbs.
Total of Cubes 12.22 ft³
Total of Dimensional Weight 151.94 lbs.

Overview electric range

Nominal Height 44.0" (112 cm)
Height of Cabinet 44.0" (112 cm)
Nominal Width 20.0" (51 cm)
Width 20.0" (51 cm)
Nominal Depth 24.0" (61 cm)
Depth 24.0" (61 cm)
Door Black
Cabinet White
US Electrical Safety CSA
Amps 23.2
Voltage/Frequency 220 V AC/60 Hz
Weight 145.0 lbs. (66 kg)
Parts & Labor Warranty 1 Year
UPC 761101003498
Oven Capacity 2.46 cu.ft. (70 L)
Cooktop Surface Porcelain
Element Type Coils
Number of Elements 4
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 675.0
Element #2 Size 6.0" (15 cm)
Element #2 Wattage 675.0
Element #3 Size 6.0" (15 cm)
Element #3 Wattage 675.0
Element #4 Size 8.0" (20 cm)
Element #4 Wattage 950.0
Burner Controls Dial
Oven Controls Dial
Oven Light Yes
Cooking Timer Yes
Backguard Yes
Backguard Display Yes
Oven Window Yes
Oven Interior Height 14.0" (36 cm)
Oven Interior Width 16.0" (41 cm)
Oven Interior Depth 19.0" (48 cm)
Storage Compartment Yes
Broiler Location Inside Oven
Oven Door Black Glass

Description

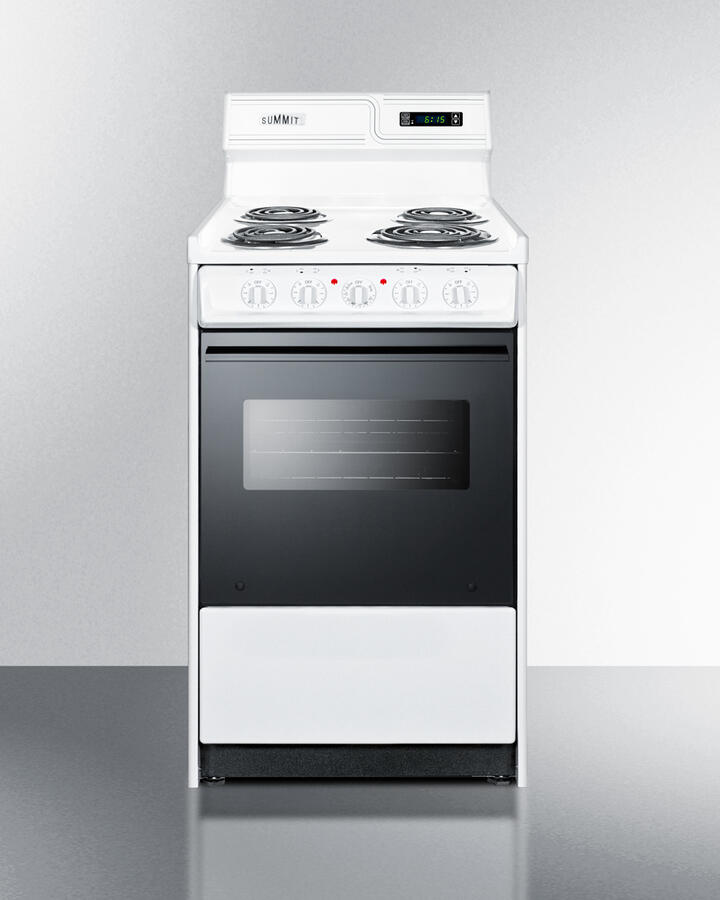

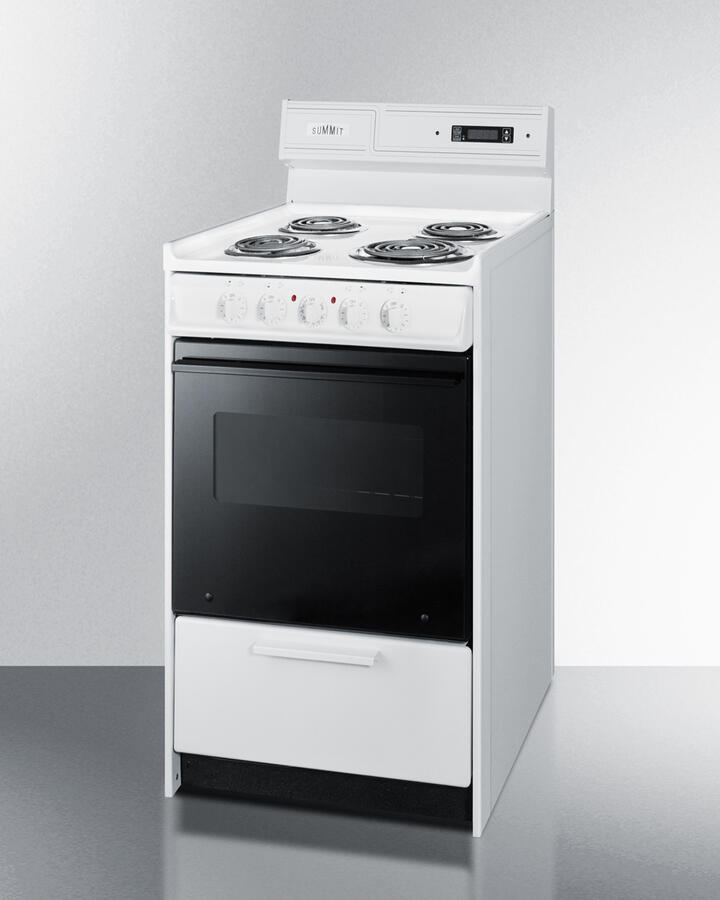

Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens. The 23.2 amp design is ideal for kitchens with power limitations. The WEM130DK is an apartment-sized 220V electric range sized at just 20" wide, with a generous 2.46 cu.ft oven interior that can accommodate large trays. The black glass oven window and interior light with an on/off switch make it easy to monitor your cooking without opening the door. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. The lower drop-down storage compartment is ideal for keeping pots and pans out of the way in small kitchens. Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric ranges, allowing for a slow but steady heating process that will not cycle off. Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat. This unit complies with ADA guidelines. The WEM130DK comes in a classic white finish to suit any kitchen. It has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts. Porcelain and steel construction help the unit hold up to years of daily use. We include an anti-tip bracket for added safety. This unit does not include a line cord (a standard 25 or 30 amp 3 or 4-wire range cord can be installed by your electrician). With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 24", 30", and 36" wide fits.


Product Features

  • Storage compartment
    Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen
  • Made in the USA
    Designed and constructed domestically
  • 24 inch depth
    Shallower fit is ideal for L-shaped and galley kitchens
  • Slim 20 inch width
    Apartment-sized width offers all the functionality you need in a smaller footprint
  • Four coil elements
    Three standard 6" and one large 8" element
  • Safety burners with low wattage outputs
    Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
  • Chrome drip pans
    Each coil element includes a removable chrome pan for easier cleaning
  • Oven window and interior lighting
    Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door

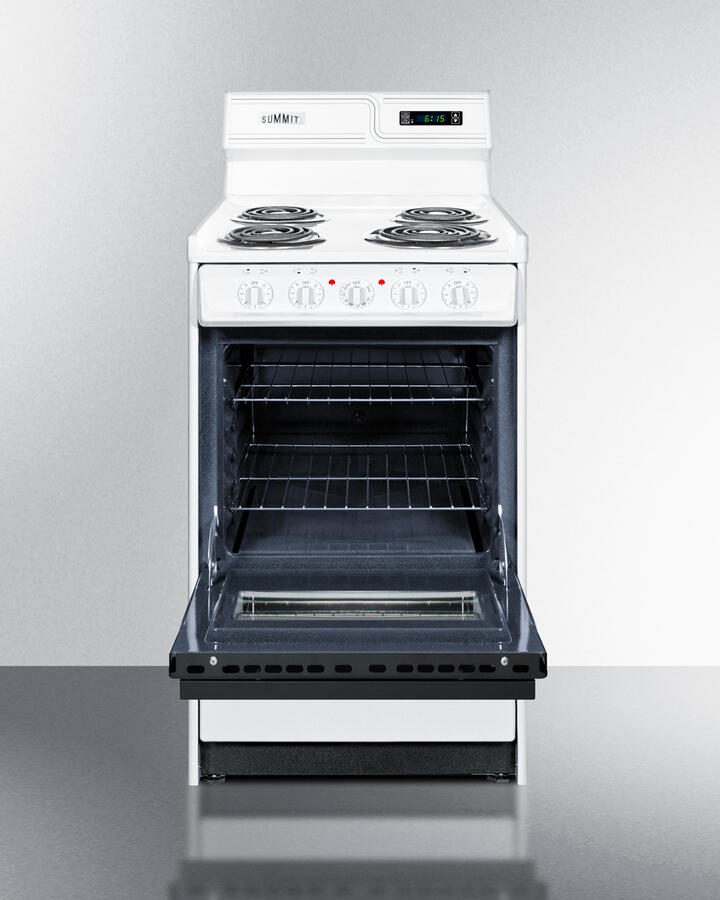

  • Adjustable oven racks
    Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
  • Recessed oven door in black glass
    Smart design limits the depth and protects adjacent cabinets
  • Porcelain and steel construction
    Solid construction built to hold up to everyday use
  • Deluxe backguard
    8" high backguard helps to protect your walls from spills and splashes
  • Upfront oven/burner controls
    All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners
  • Push-to-turn knobs
    Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn
  • Indicator lights
    Control panel includes an 'on' light for the oven and burners for added safety when using the range
  • Removable oven door and range top
    Allows for easier cleaning as needed
  • Broiler tray included
    Two-piece porcelain broiler tray with grease well
  • Anti-tip bracket
    Included for user installation to help prevent tipping
  • Cord not included
    Compatible with standard 25 or 30 amp 3 or 4-wire range cords
  • 20" Wide Electric Range
    Coil surface and full-sized oven ideal for smaller kitchens

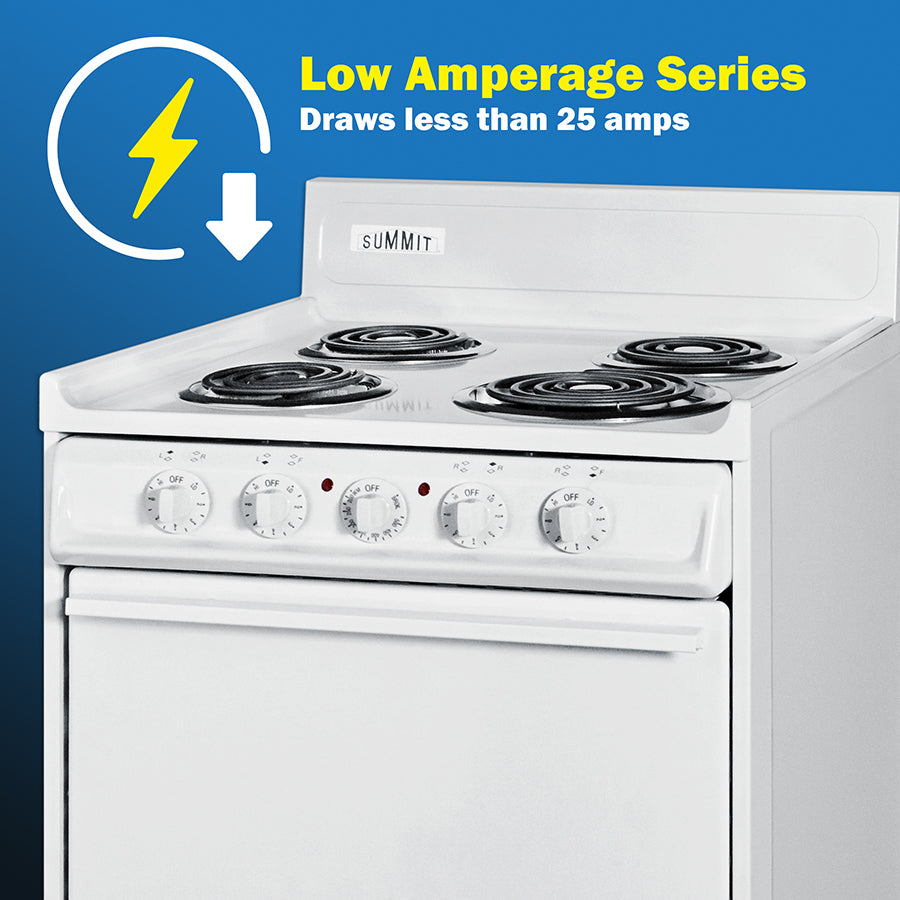

  • Low amperage
    23.2 amp performance allows use with 25 or 30 amp breakers, ensuring full cooking performance in kitchens with limited power resources
  • Waist-high broiler
    Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor
  • Digital clock and timer
    Backguard includes clock and timer for added convenience
