Sale price $1,041.42 Regular price $1,254.97 Save $213.55 / 17% OFF

Product Details for SUMMIT TEM610CW

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Dimensions & weight

Width 24 in.
Height 40 in.
Length 24 in.
Weight 140 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 13.33 ft³
Dimensional Weight 165.76 lbs.
Total of Cubes 13.33 ft³
Total of Dimensional Weight 165.76 lbs.

Overview electric range

Nominal Height 40.0" (102 cm)
Height of Cabinet 40.0" (102 cm)
Nominal Width 24.0" (61 cm)
Width 24.0" (61 cm)
Nominal Depth 24.0" (61 cm)
Depth 24.0" (61 cm)
Door Black
Cabinet Black
US Electrical Safety CSA
Amps 23.2
Voltage/Frequency 220 V AC/60 Hz
Weight 140.0 lbs. (64 kg)
Parts & Labor Warranty 1 Year
UPC 761101016511
Oven Capacity 2.92 cu.ft. (83 L)
Cooktop Surface Porcelain
Element Type Coils
Number of Elements 4
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 675.0
Element #2 Size 6.0" (15 cm)
Element #2 Wattage 675.0
Element #3 Size 6.0" (15 cm)
Element #3 Wattage 675.0
Element #4 Size 8.0" (20 cm)
Element #4 Wattage 950.0
Burner Controls Dial
Oven Controls Dial
Oven Light Yes
Backguard Yes
Cleaning Type Manual
Oven Rack Qty 2
Oven Window Yes
Oven Interior Height 14.0" (36 cm)
Oven Interior Width 19.0" (48 cm)
Oven Interior Depth 19.0" (48 cm)
Storage Compartment Yes
Broiler Location Inside Oven
Oven Door White

Description

Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens. The 23.2 amp design is ideal for kitchens with power limitations. The TEM610CW is an apartment-sized 220V electric range sized at just 24" wide, with a generous 2.92 cu.ft oven interior that can accommodate large trays. The oven window and interior light with an on/off switch make it easy to monitor your cooking without opening the door. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. The lower drop-down storage compartment is ideal for keeping pots and pans out of the way in small kitchens. Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric ranges, allowing for a slow but steady heating process that will not cycle off. Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat. This unit complies with ADA guidelines. The TEM610CW comes in a jet black finish to suit any kitchen. It has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts. Porcelain and steel construction help the unit hold up to years of daily use. We include an anti-tip bracket for added safety. This unit does not include a line cord (a standard 25 or 30 amp 3 or 4-wire range cord can be installed by your electrician). With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 20", 30", and 36" wide fits.


Product Features

  • Storage compartment
    Keep pots and pans inside the lower drop-down compartment for easy space-saving storage
  • Made in the USA
    Designed and constructed domestically
  • Slim 24 inch width
    Apartment-sized width offers all the functionality you need in a smaller footprint
  • 24 inch depth
    Shallower fit is ideal for L-shaped and galley kitchens
  • Safety burners with low wattage outputs
    Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
  • Chrome drip pans
    Each element includes a removable chrome pan for easier cleaning
  • Oven window and interior lighting
    Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door
  • Waist-high broiler
    Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor
  • Four coil elements
    Three standard 6" and one large 8" element
  • Adjustable oven racks
    Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
  • Recessed oven door
    Smart design limits the depth and protects adjacent cabinets
  • Porcelain and steel construction
    Solid construction built to hold up to everyday use
  • Removable oven door and range top
    Black porcelain oven door and top can be removed for easier cleaning
  • Upfront controls
    All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners
  • Push-to-turn burner knobs
    Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn
  • Indicator lights
    Control panel includes an 'on' light for the oven and burners for added safety when using the range
  • Broiler tray included
    Two-piece porcelain broiler tray with grease well
  • Cord not included
    Compatible with standard 25 or 30 amp 3 or 4-wire range cords
  • Anti-tip bracket
    Included for user installation to help prevent tipping
  • ADA compliant
    Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines
  • 24" Wide Electric Range
    Coil surface and full-sized oven ideal for smaller kitchens

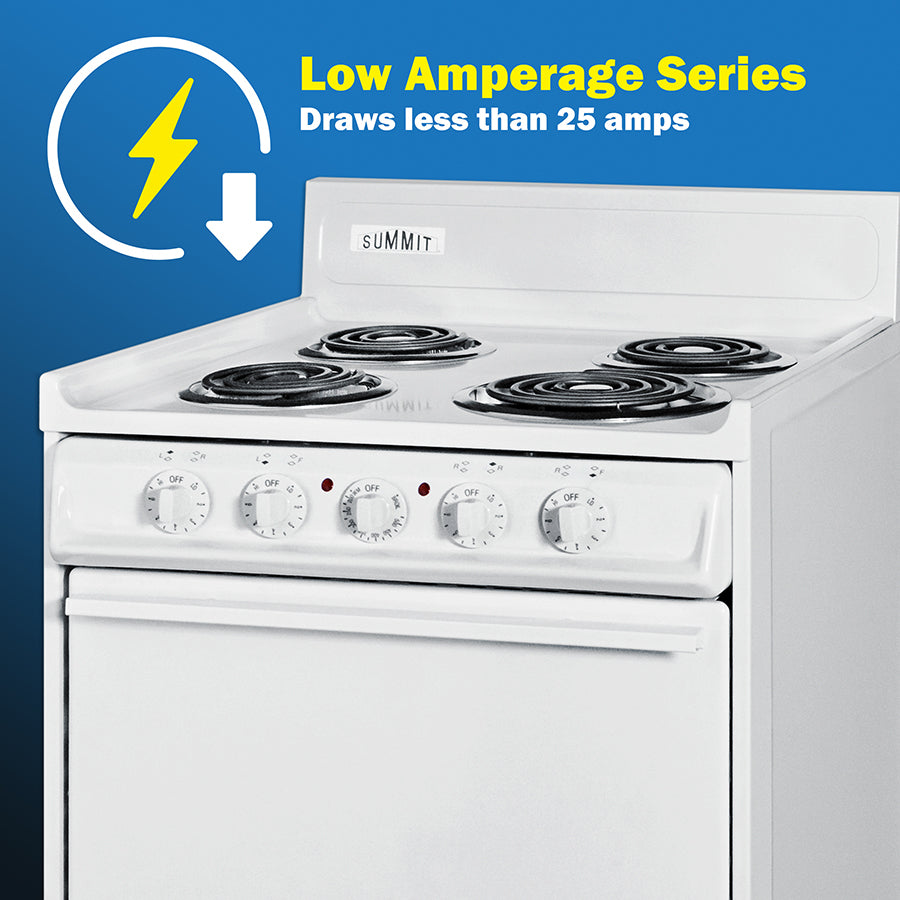

  • Low amperage
    23.2 amp performance allows use with 25 or 30 amp breakers, ensuring full cooking performance in kitchens with limited power resources
