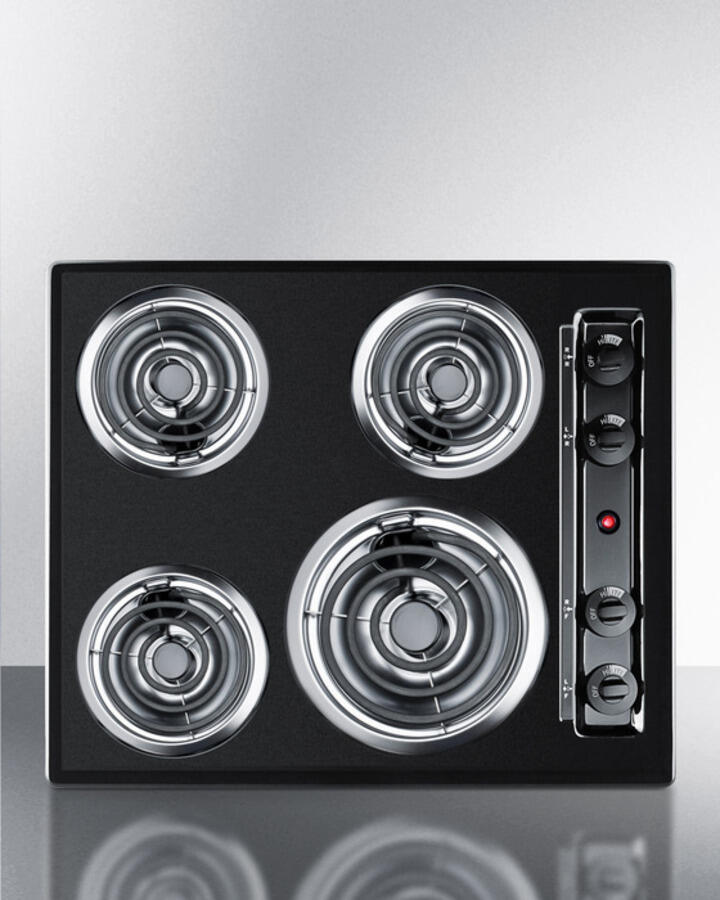

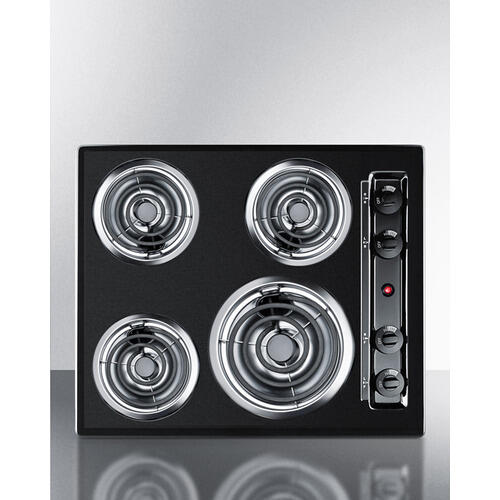

Summit TEL03 24" Wide 4-Burner Coil Cooktop Black

Quick Specification More details

Width:
24"
Depth:
20"
Height:
3.75"
Type:
Electric Cooktops

About this product

Made in the USA
Porcelain cooking surface
Classic fit
Recessed top

Summer Sale

Clearance

SKU: TEL03 | UPC: 761101000756

Summit TEL03 24" Wide 4-Burner Coil Cooktop Black

$382.33 ~~$504.97~~ Save $122.64 / 24% OFF

Out of stock

Active Rebates

Electrical Requirement Notice: This appliance may require a dedicated electrical circuit or special voltage (e.g., 120V or 240V). Please verify your home’s electrical setup or consult a licensed electrician before installation. If you have any questions, please contact us.

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
24"
Depth:
20"
Height:
3.75"
Type:
Electric Cooktops

About this product

Made in the USA
Porcelain cooking surface
Classic fit
Recessed top

Product Details
Manuals & Guides
From The Manufacturer
Reviews

$382.33 ~~$504.97~~ Save $122.64 / 24% OFF

Product Details for SUMMIT TEL03

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Dimensions & weight

Width	24 in.
Height	3.75 in.
Length	20 in.
Weight	27 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	1.04 ft³
Dimensional Weight	12.95 lbs.
Total of Cubes	1.04 ft³
Total of Dimensional Weight	12.95 lbs.

Overview electric cooktop

Nominal Height	3.75" (10 cm)
Height of Cabinet	3.75" (10 cm)
Nominal Width	24.0" (61 cm)
Width	24.0" (61 cm)
Nominal Depth	20.0" (51 cm)
Depth	20.0" (51 cm)
Cabinet	Black
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Voltage/Frequency	230 V AC/60 Hz
Weight	27.0 lbs. (12 kg)
Parts & Labor Warranty	1 Year
UPC	761101000756
Heating Type	Radiant
Surface	Painted
Element Type	Coils
Number of Elements	4
Controls	Dial
Countertop Cutout Width	22.63" (57 cm)
Countertop Cutout Depth	18.63" (47 cm)
Element #1 Size	6.0" (15 cm)
Element #1 Wattage	675.0
Element #2 Size	8.0" (20 cm)
Element #2 Wattage	950.0
Element #3 Size	6.0" (15 cm)
Element #3 Wattage	675.0
Element #4 Size	6.0" (15 cm)
Element #4 Wattage	675.0
Power Cord Included	No

Description

Summit Appliance offers a wide selection of American-made household cooktops built for long-lasting durability in space-challenged kitchens. The TEL03 is a 24" wide 220-240V electric cooktop designed to fit 22 5/8" wide x 18 5/8" deep cutouts. It features a porcelain surface in a jet black finish for a classic look, with a recessed design that helps to contain spills. Side-located push-to-turn knobs offer easy and safe use, with an indicator lights to show when the cooktop is on. Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric cooktops, allowing for a slow but steady heating process that will not cycle off. Each element includes a removable chrome drip pan for easier cleanup. This is a 220V cooktop and requires professional installation. It is compatible with a standard 40 amp 3 or 4-wire range cord. The TEL03 is designed and constructed in the USA. Additional finishes are available, as well as 30" sizes for larger kitchen spaces and matching wall ovens. Browse our website to explore our complete selection.

Product Features

Made in the USA
Designed and constructed domestically
Porcelain cooking surface
Scratch-resistant top in a jet black finish
Classic fit
Fits 22 5/8" W x 18 5/8" D counter cutouts
Recessed top
Curved design helps to contain spills on the surface
Side controls
Cooktop knobs are located on the right side of the cooktop, reducing the risk of accidentally adjusting the heating in busy kitchens
Push-to-turn controls
Knobs require a small amount of force for added safety
Cord not included
Compatible with standard 40 amp 3 or 4-wire range cords
Coil elements
Traditional design offers reliable heating and strong durability for everyday use
Safety burners with low wattage outputs
Complies with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
8" burner
Larger element is ideal for heating wider pots and pans
Three 6" burners
Standard burners accommodate most heating needs
Chrome drip bowls
Each coil element includes a removable chrome pan to catch spills for easier cleanup
220-240V operation
Professional installation required
