Product Details for SUMMIT SWCP1988T

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Dimensions & weight

Width 23.63 in.
Height 69.5 in.
Length 26.5 in.
Weight 269 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 25.19 ft³
Dimensional Weight 313.1 lbs.
Total of Cubes 25.19 ft³
Total of Dimensional Weight 313.1 lbs.

Overview wine cellar

Nominal Height 70.0" (178 cm)
Height of Cabinet 69.5" (177 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 27.0" (69 cm)
Depth 26.5" (67 cm)
Depth with Handle 28.25" (72 cm)
Depth with door at 90° 8.75" (22 cm)
Bottles 149 bottles
Defrost Type Automatic
Door Glass/SS
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 269.0 lbs. (122 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101077246
Number of Zones 3
Door Swing RHD
Reversible Factory Reversible
Shelf Type Wire
Shelf Qty 12
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.58 oz.
High Side PSI 320.0
Low Side PSI 120.0
Interior Height 1 62.75" (159 cm)
Interior Width 1 20.5" (52 cm)
Interior Depth 1 26.5" (67 cm)
Level Legs 2
Temperature Range 41-65°F (upper zone); 41-54°F (middle zone); 54-65°F (lower zone)
Sound Level 34.1 dB

Description

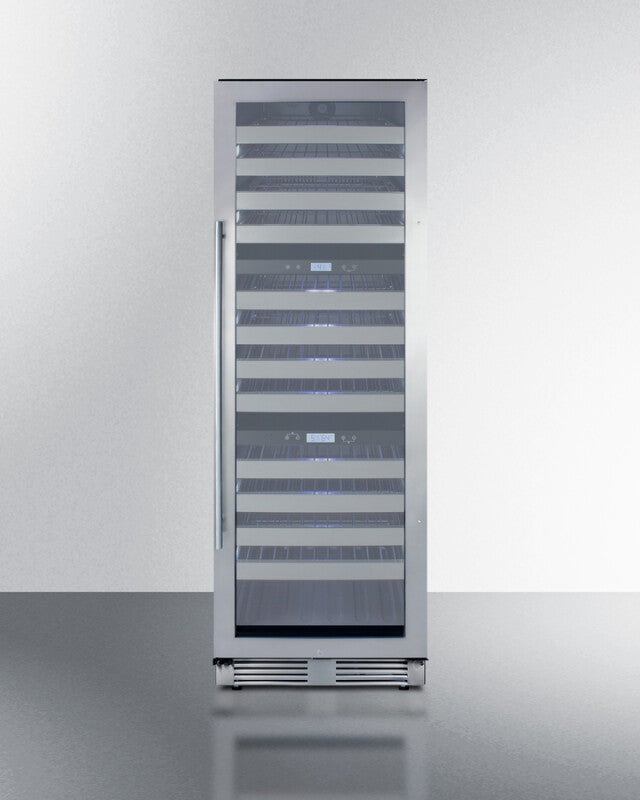

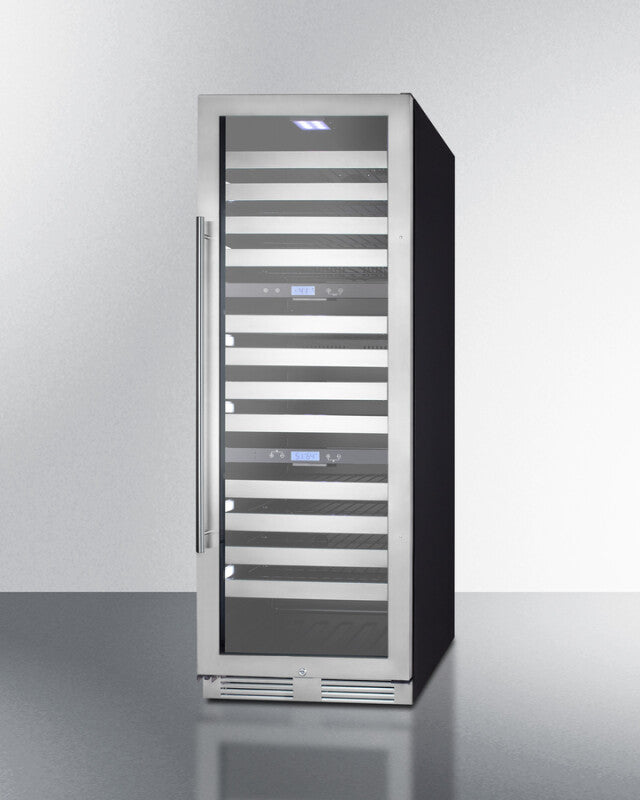

Summit offers a unique selection of built-in capable full-sized wine cellars with a versatile luxury design ideal for residential or commercial use. The SWCP1988T is a 24" wide triple zone wine cellar that is ETL-S listed to NSF-7 commercial standards. It features a front-breathing design for built-in installation, with a fully finished black cabinet that also allows freestanding use. Sized just under 27" deep, this unit has a sealed back and right angle plug for added depth savings. The luxury exterior features a double pane tempered glass door with a seamless stainless steel trim. A stainless steel kickplate provides added elegance, while the pro-style handle completes the look. This unit includes a factory-installed keyed lock for added security and powerful magnetic gaskets to ensure a proper seal in high-traffic commercial settings. Three temperature zones allow you to accommodate red, white, or sparkling wine, as well as non-alcoholic bottled beverages. The upper zone temperature can be set between 41 and 65°F for versatile storage, with more space on the top shelf to accommodate champagne bottles. A rubber sealing strip prevents air in the upper zone from affecting the air temperature in lower compartments. The middle zone can operate between 41 and 54°F, while the lower zone is best suited for preserving red wine with a range of 54-65°F. Two separate cooling systems (one for the upper zone and one for the middle and lower zones) ensure proper cooling. Inside, the SWCP1988T includes 12 full-extension black wire shelves, four in each zone, positioned on ball bearing glides for smooth loading. Stainless steel fronts offer a modern touch. Optimal storage capacity accommodates up to 149 standard 750ml Bordeaux bottles (note: your capacity may vary depending on the bottle style). For wider Burgundy style bottles (typically used for Pinot Noir and Chardonnay), the SWCP1988T can hold up to 102 bottles. 13 white LED lights are positioned on the sides and top of the unit to attractively illuminate your collection for a stylish display. A charcoal filtration system keeps the interior odor-free. Additional features include an open door alarm and high/low temperature alarm that sound if the unit temperature goes out of range. With its convenient size, advanced features, and luxury design, the SWCP1988T is perfect for restaurants, bars, wineries, and homes seeking full capacity wine storage with a modern presentation.


Product Features

  • Double pane tempered glass door
    Provides a full display of the interior, with two levels of glass for added protection
  • Commercially approved
    ETL-S listed to NSF-7 standards for use in restaurants, bars, and other foodservice settings
  • Built-in capable
    Front-breathing design allows the unit to be integrated with minimum clearance for a flush look (fits in spaces sized at 70.75" H x 23.88"W x 28" D)
  • Two cooling systems
    Two cooling systems (one for the upper zone and one for the middle/lower zones) ensure your collection is kept under the proper conditions

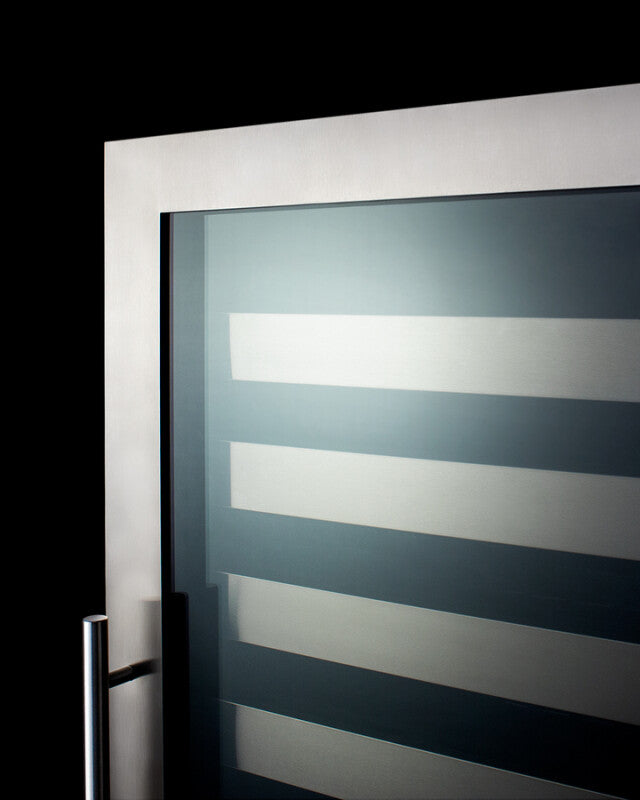

  • Seamless stainless steel door frame
    Single-piece door trim offers a more deluxe look

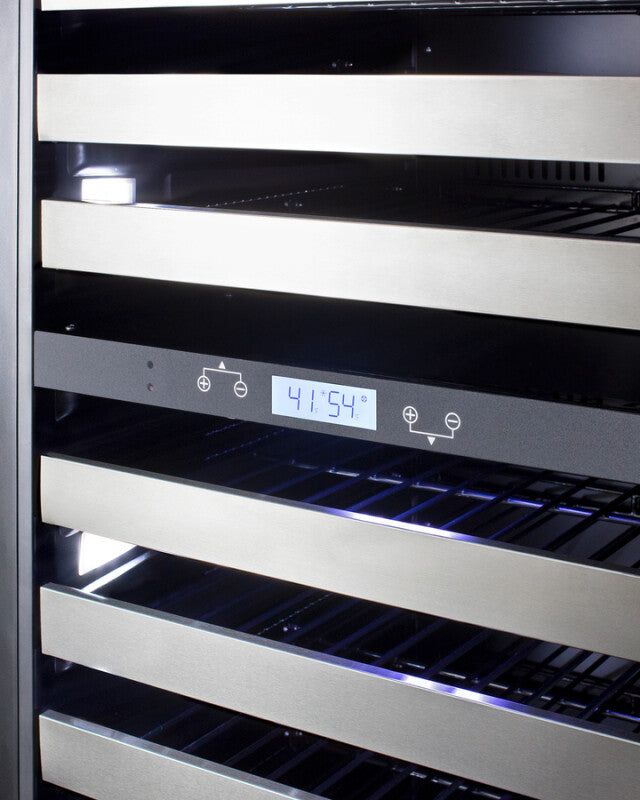

  • Digital thermostats
    Located inside the unit, the digital thermostats allow easy temperature management with a display in Celsius or Fahrenheit

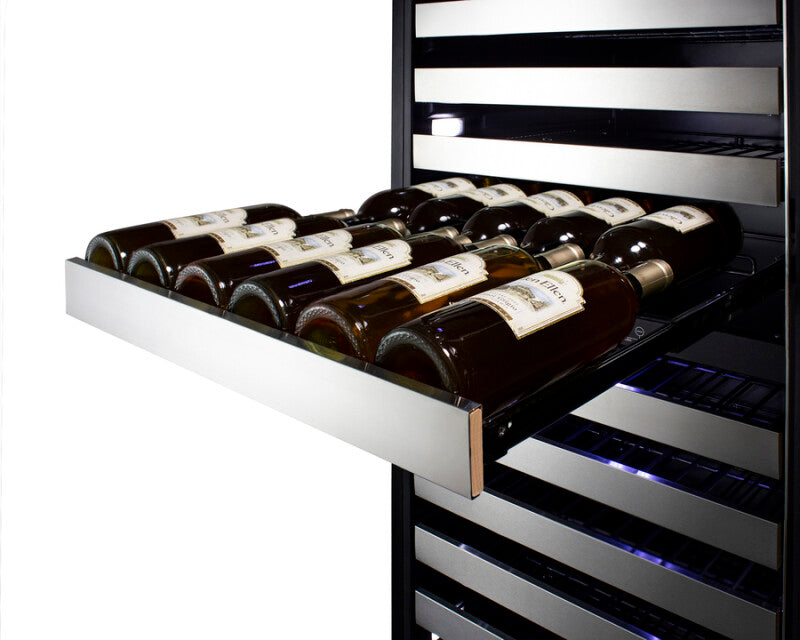

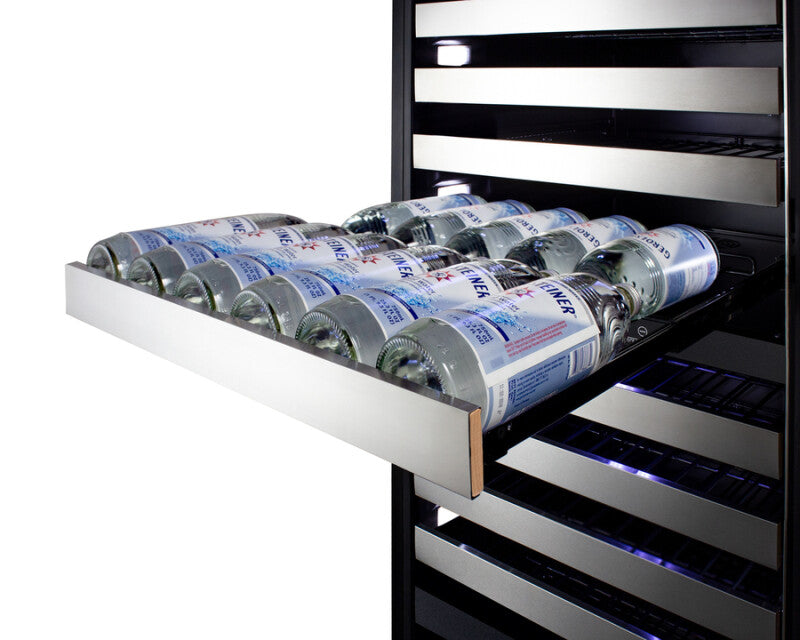

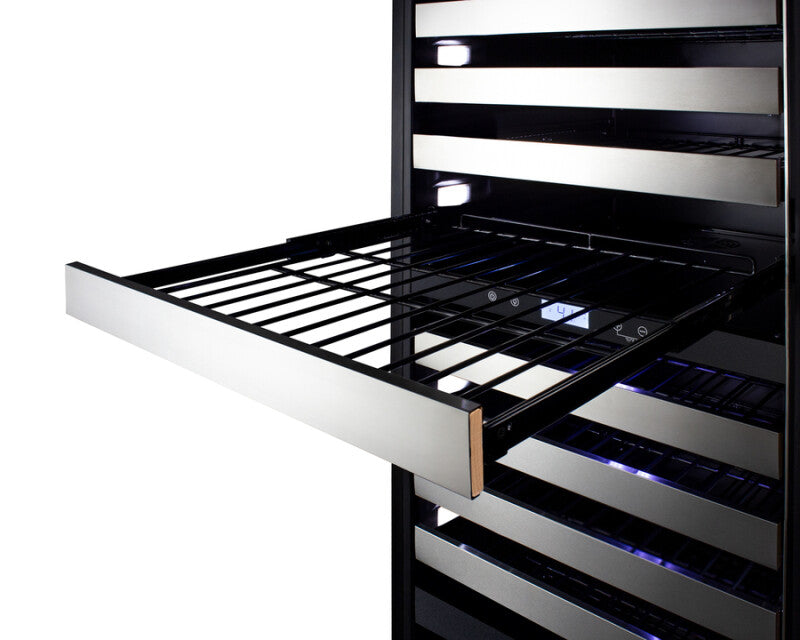

  • Full-extension wire shelving
    12 shelves on ball-bearing glides glide out smoothly for easier loading and optimum capacity
  • Stainless steel trimmed shelving
    Fronts feature a stainless steel accent to elevate your presentation
  • Versatile storage

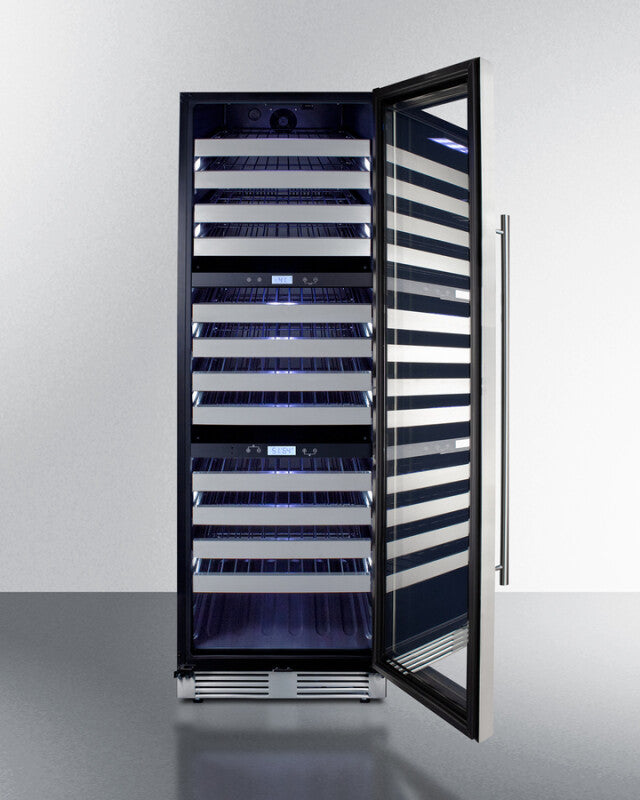

    Interior can hold up to 149 standard 750ml Bordeaux style bottles (17 bottles stacked on the upper shelf, 11 bottles on each additional shelf, and 11 on the slotted floor). If storing wider Burgundy style bottles (typically used for Pinot Noir or Chardonnay), you can accommodate up to 102 bottles (8 per shelf with 6 stacked on the slotted floor)
  • Professional handle
    37" long handle in a brushed stainless look offers the perfect finish to your wine cellar
  • LED lighting
    13 LED lights provide an attractive and energy-efficient illumination of your collection with a gentle white hue
  • Factory-installed lock
    Keyed lock secures all three zones (2 keys included)
  • Temperature range
    Upper zone: 41-65°F for red, white, or sparkling wine; Middle zone: 41-54°F perfect for chilling white; Lower zone: 54-65°F for holding reds at a warmer temperature
  • Sealing strip
    Rubber trim prevents air in the upper zone from affecting the air temperature in the middle and lower zones
  • Stainless steel kickplate
    Allows for front ventilation in an elegant design
  • Charcoal filtration system
    Helps to purify air for an odor-free interior
  • High/low temperature alarms
    Audibly sounds if the interior rises or falls out of recommended range
  • Open door alarm
    Alerts if unit door is ajar for more than 5 minutes
  • Magnetic door gasket
    Ensures a tight seal for energy savings and improved performance
  • Sealed back
    Flush back allows for a better fit and easier cleanability
  • Right angle plug
    Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
  • Fully finished black cabinet
    Allows the unit to be used freestanding
  • 100% CFC free
    Environmentally friendly design with no ozone-damaging chemicals
  • CARB Compliant
    Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
  • Three temperature zones
    Versatile upper zone accommodates red, white, or sparkling wine. The middle zone chills white wine while the lower zone preserves yours reds at a warmer temperature
